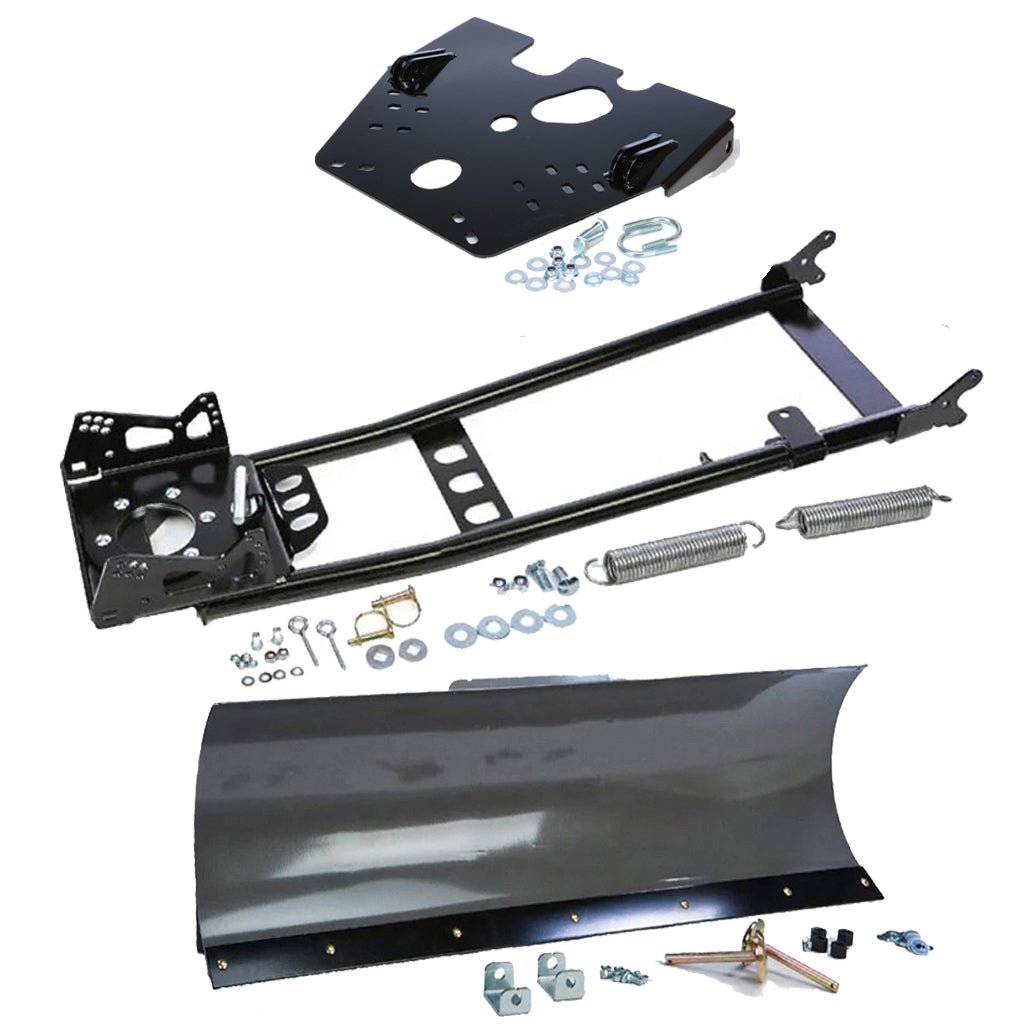

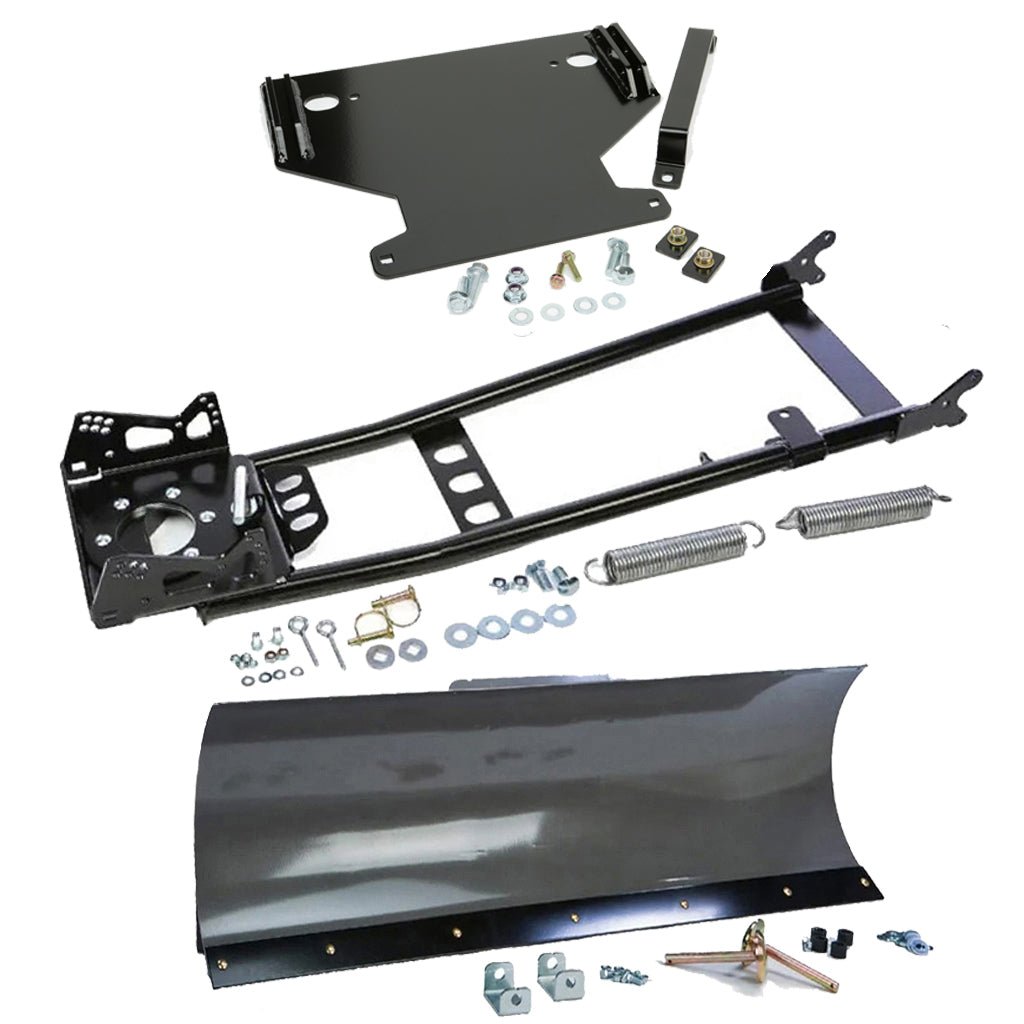

KFI Snowplow Kit fits various Arctic Cat 375-1000 ATV

Plow Mount Installation Instructions

FITS:
Arctic Cat 400 4x4: 2006-2008
Arctic Cat 400 TBX 4x4: 2005-2006
Arctic Cat 400 TRV 4x4: 2006-2014
Arctic Cat 450 4x4: 2010-2012
Arctic Cat 450 TRV 4x4: 2011-2015
Arctic Cat 500 2x4 / 4x4: 2002-2017
Arctic Cat 500 TBX 4x4: 2005-2006
Arctic Cat 500 TRV 4x4: 2006-2015
Arctic Cat 550 4x4: 2009-2014
Arctic Cat 550 TRV 4x4: 2009-2016
Arctic Cat 650 4x4: 2005-2012
Arctic Cat 650 TBX 4x4: 2007-2009
Arctic Cat 650 TRV 4x4: 2007-2009
Arctic Cat 700 4x4: 2006-2017
Arctic Cat 700 Alterra TBX 4x4: 2017-2020
Arctic Cat 700 Alterra VLX 4x4: 2018
Arctic Cat 700 TBX 4x4: 2010-2017
Arctic Cat 700 TRV 4x4: 2008-2016
Arctic Cat 700 VLX: 2017
Arctic Cat 1000 4x4: 2008-2017
Arctic Cat 1000 TRV 4x4: 2009-2016

Straight Blade Specifications:
100% MADE IN USA
Pushes snow straight ahead or to the sides up to 25 degrees
Added gussets for the wider width
The 66 inch & 72 inch blades include a 7 inch high 2-ply top rubber flap
Measures 16 inch vertical blade face height with an approximate 21 inch height with snow flap
Fully-adjustable blade skids with bolt-on brackets
Heavy duty 3 inch -diameter grade-50 steel skid plates
Blade Constructed of 11 ga steel
3/16 inch Grade 50 Ribbing for a strong bolt-up to the Swivel Tube
Unlike all other Plow competitors our Plows are metal bead blasted before they are powder coated Metallic Silver for supreme durability
2-Sided 3/16 inch x 3.00 inch Grade 50 Steel Wear Bar
Wear Bar attached with Heavy Duty Grade 8 Bolts
2-Year KFI Warranty

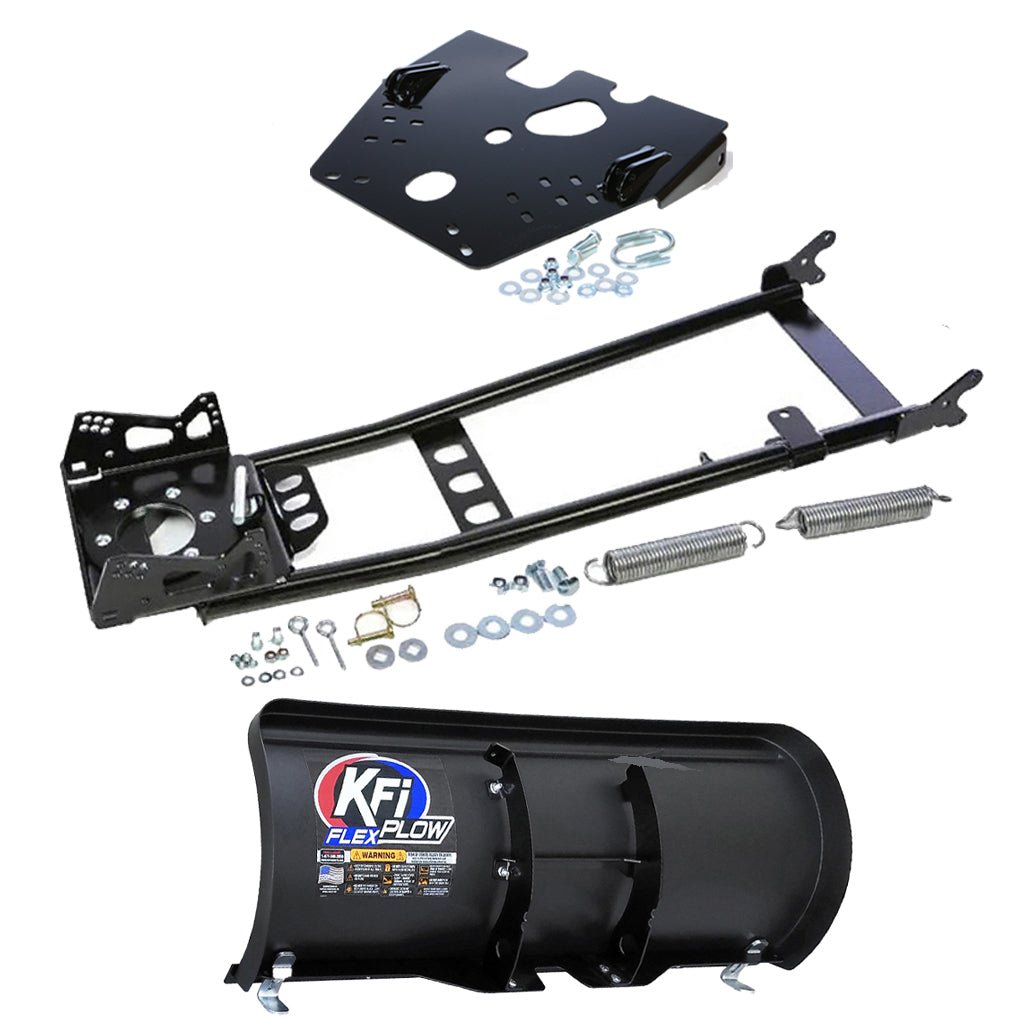

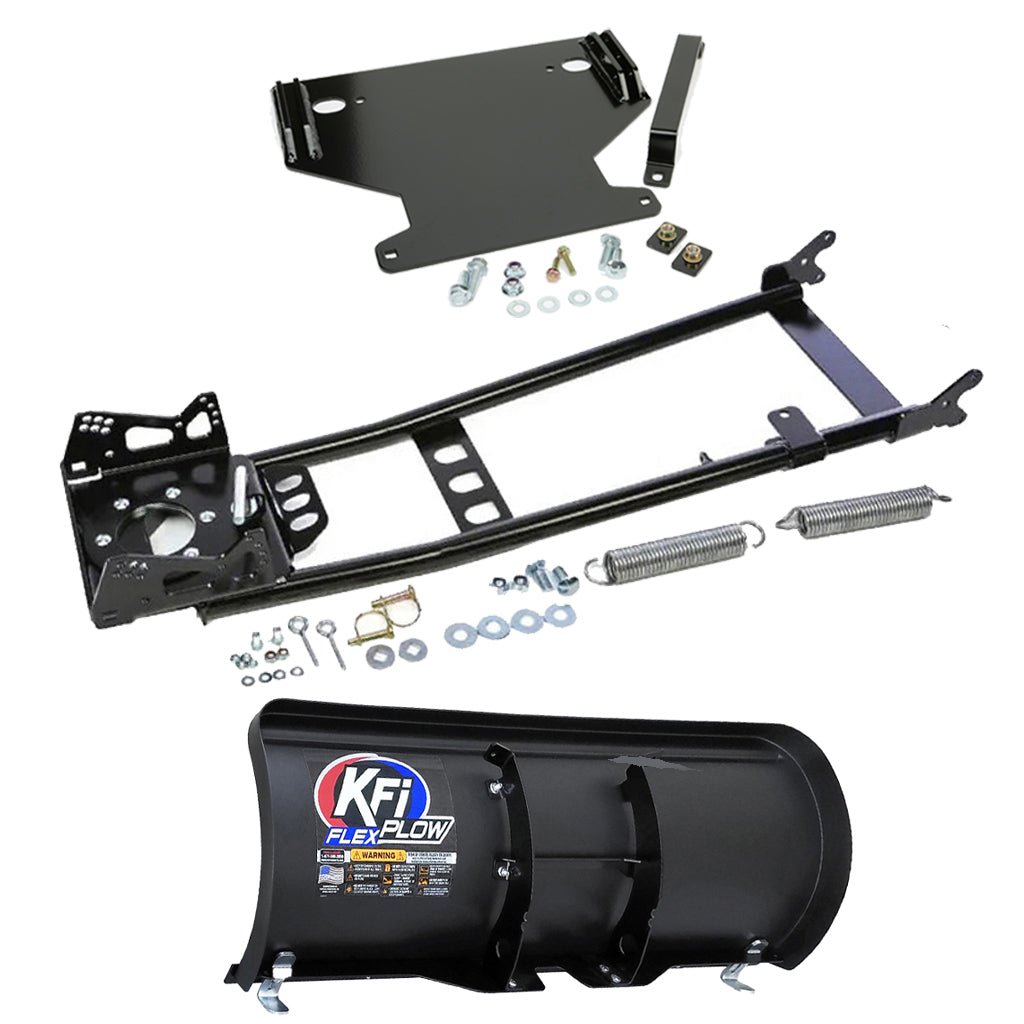

ATV Flex Plow Blade Specifications:
Rolls snow off to the side, great for continuous plowing of long driveways and paths
100% MADE IN USA
Lightweight Blade fully assembled at 25lbs.
50 inch width Flexible Black Poly Vacuum formed face
3/16 inch and 10 gauge Grade 50 Steel Rib and Frame construction
Shot Blasted and Powder Coated Black
2-Sided 3/16 inch Grade 50 Steel wear bar
17 inch vertical blade face height
Works with current KFI No.105000 or 105590 ATV Tube System
1/4 inch thick Adjustable Skids
Complete installation instructions included
All mounting hardware included
1-Year KFI Warranty

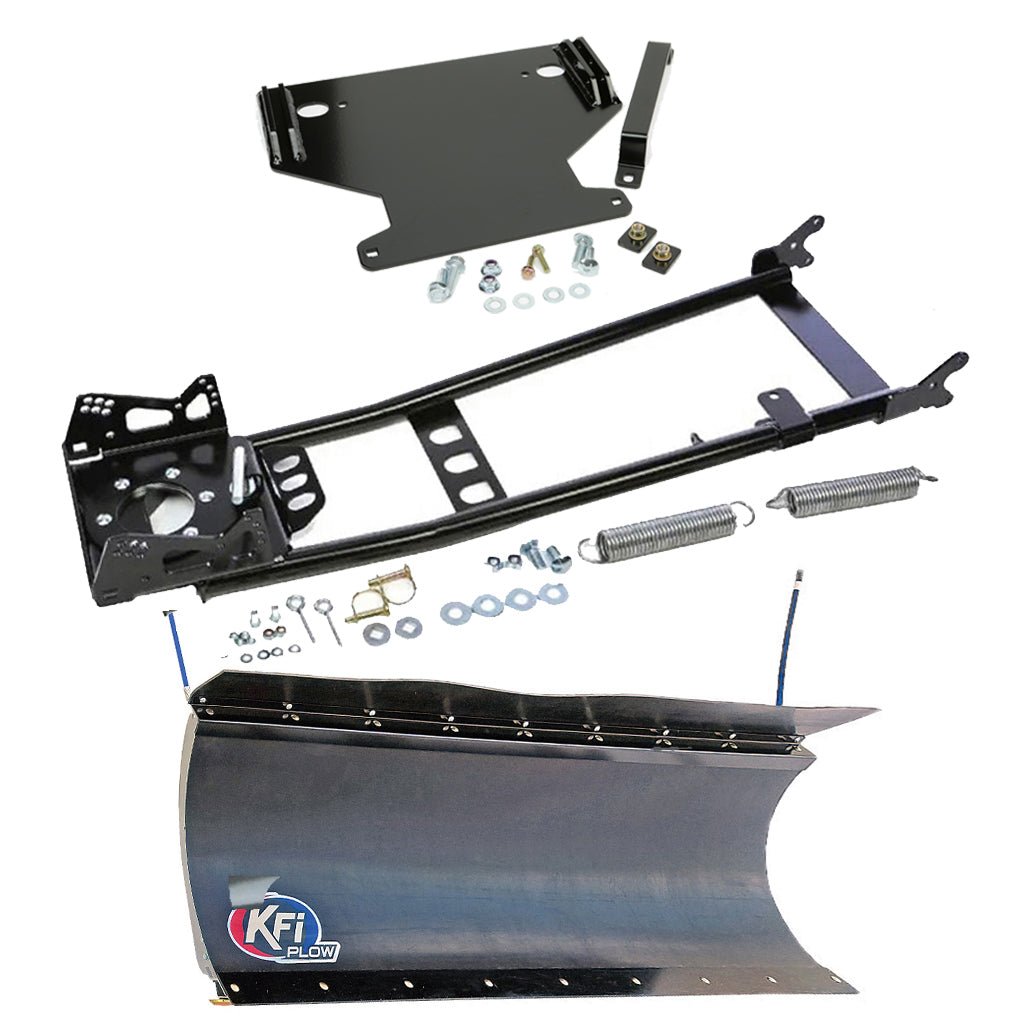

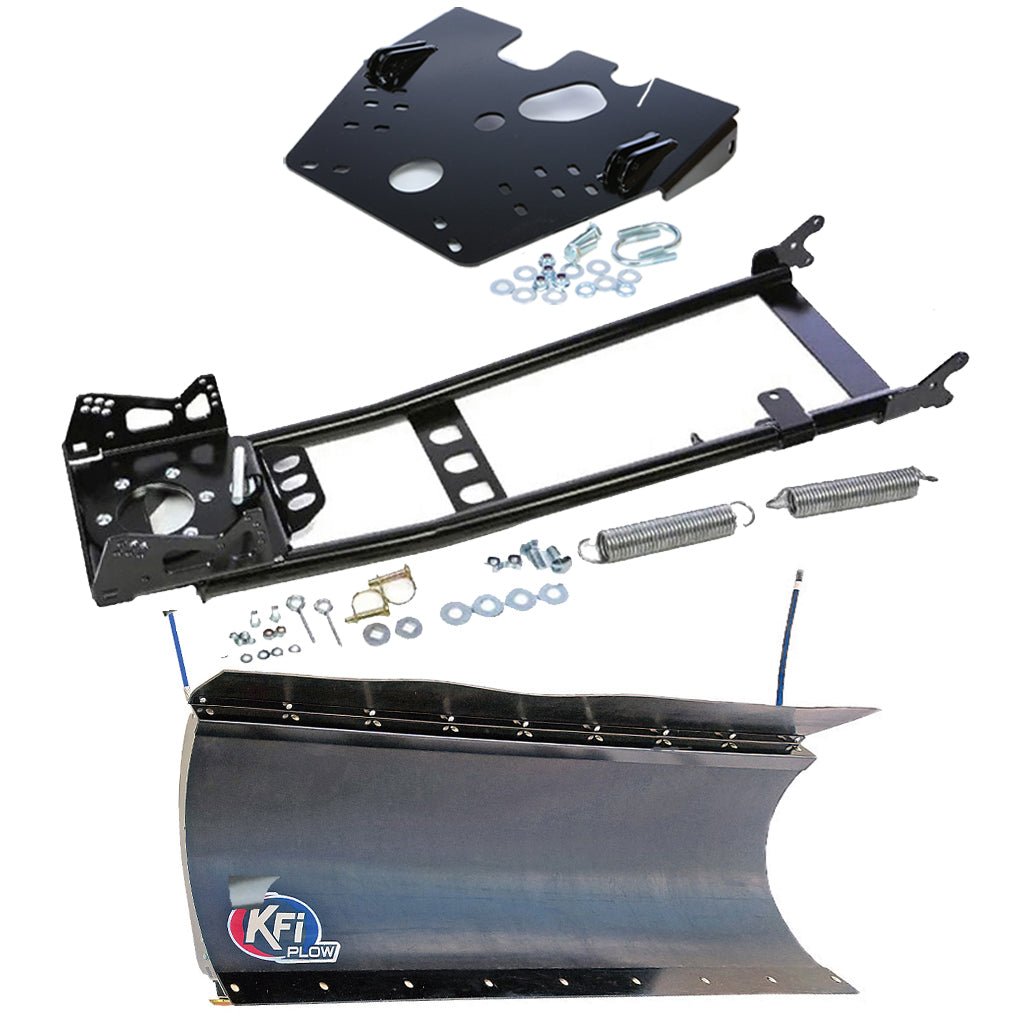

Poly Blade Specifications:
Includes a 7 inch high 2-ply top rubber flap
100% MADE IN USA
Dual Curvature face for supreme snow moving
Measures 21 inch Vertical blade face height with an approximate 27 inch height with snow flap
Fully-adjustable blade skids with bolt-on brackets
Heavy duty 3 inch -diameter grade-50 steel skid plates
Flexible Heavy Duty Black Poly face
3/16 inch Grade 50 Steel Rib and Frame construction
Unlike all other Plow competitors our Plows are metal bead blasted before they are Powder Coated Black for supreme durability
2-Sided 3/16 inch x 3.00 inch Grade 50 Steel Wear Bar
Wear Bar attached with Heavy Duty Grade 8 Bolts
Complete installation instructions included
Works with KFI ATV & UTV Tubes
Includes Plow Markers
2-Year KFI Warranty
