Description
The Vapor speedometer tachometer is a popular choice for both on and off-road enthusiasts. Vapor's large digital tachometer bar graph is easy to read. At a small size of 4.2 x 2.3 inches, Vapor is perfect for all types of riding like cross country, trail riding or at the track. The main features include a large RPM graph and speed readout, with much more data built in. At the top, programmable LED lights blink when it’s time to shift gears or during an over-temp event.

Overview & Specs

• Features include a large RPM graph and speed readout, programmable LED lights that blink when it’s time to shift gears or during an over-temp event
• Vapor displays speed, teach, engine temperature, ambient temperature, resettable distance, clock, ride time, and odometer
• Customize and fine tune Vapor for tire size, teach sensitivity, and trigger temps for the temp and teach warning lights
• Vapor can operate on regulated AC or 12V DC electrical systems, meaning it works on almost everything
• Use the built-in stop watch for race training, or resettable trip distance for endure courses
• An indicator dashboard accessory (022-PDA) is available if indicators are required, providing space for 4 indicator lights such as neutral and high beam.
• Vapor’s small size and ability to mount to any vehicle makes it a clean choice for most applications.

Warranty
1 Year Warranty

What's in the Box

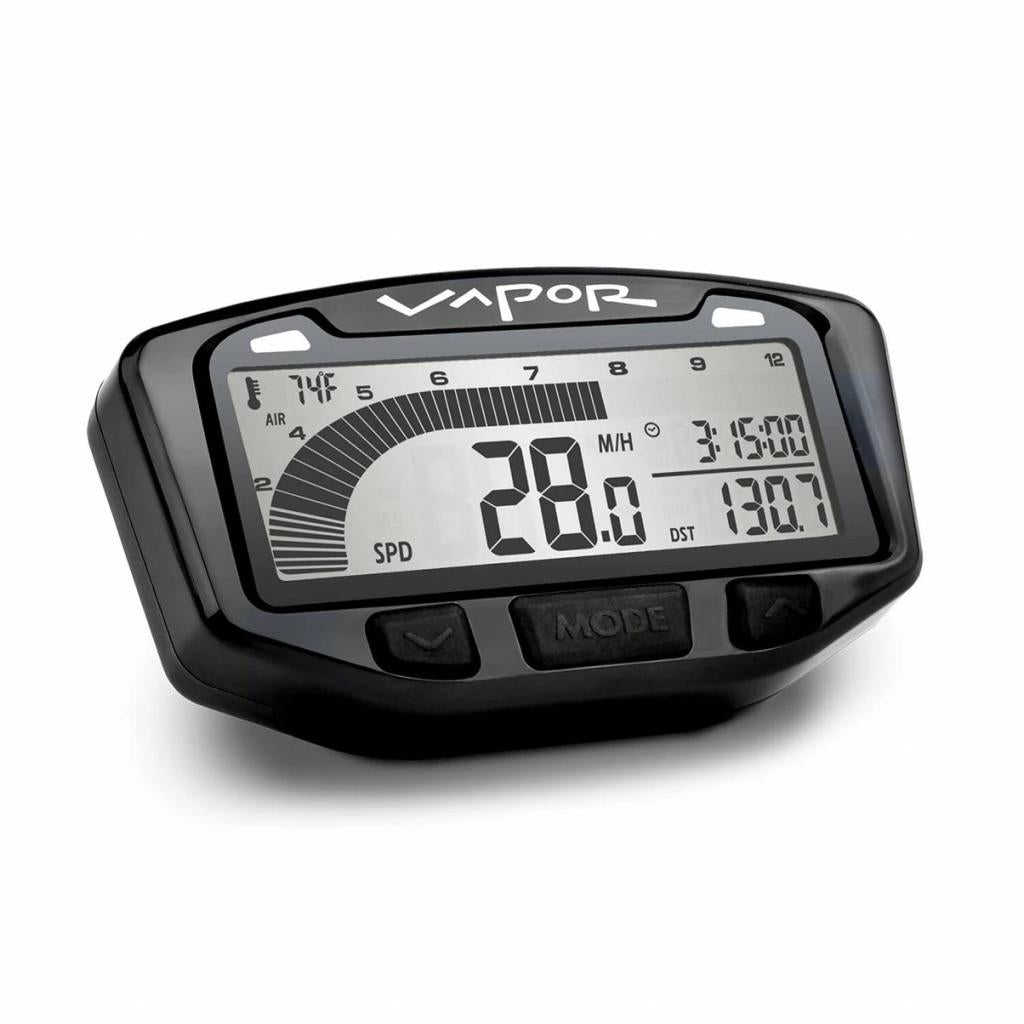

Vapor Tach Screen 1
HEAD UNIT
7500-R2
Vapor Tachometer Device

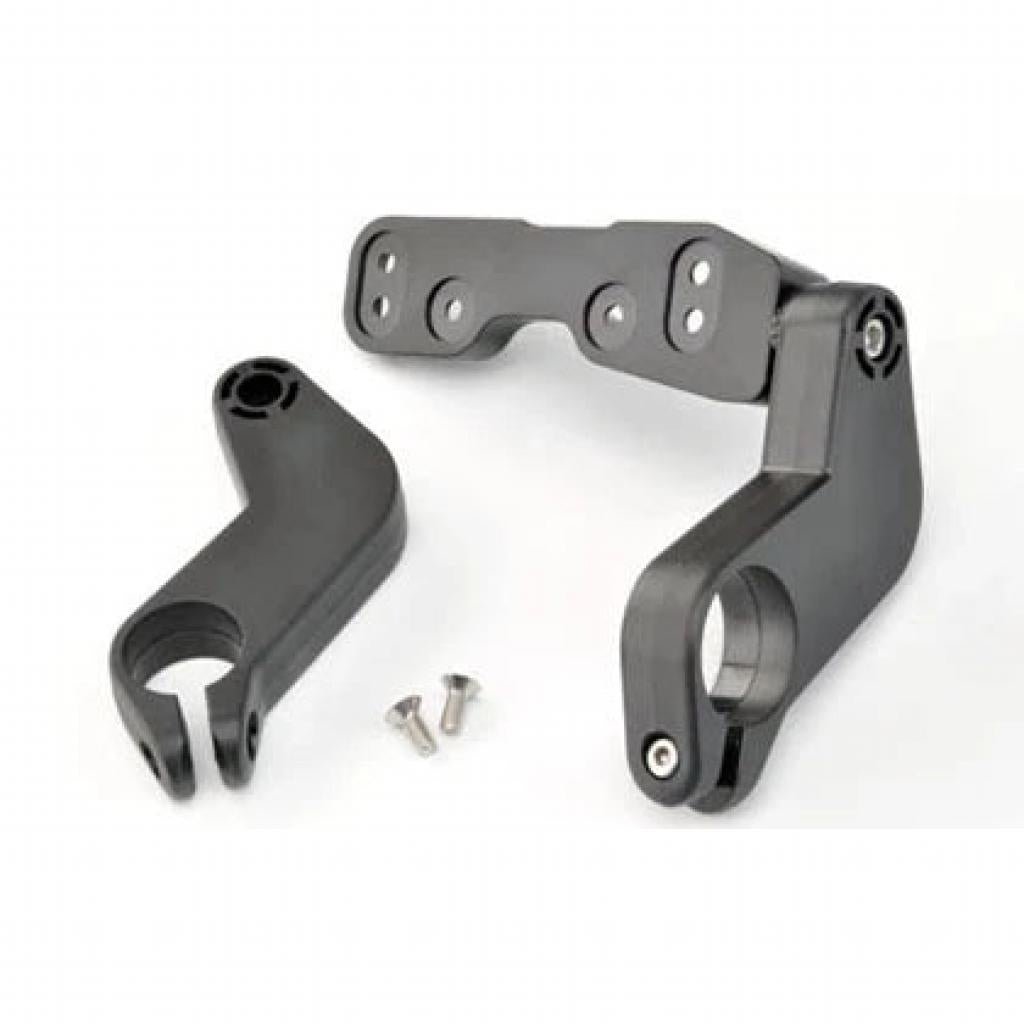

Vapor Handlebar Mounting Hardware
BAR MOUNT
9000-1000
Vapor/Striker/Voyager Mounting for 7/8" and 1-1/8" Bars

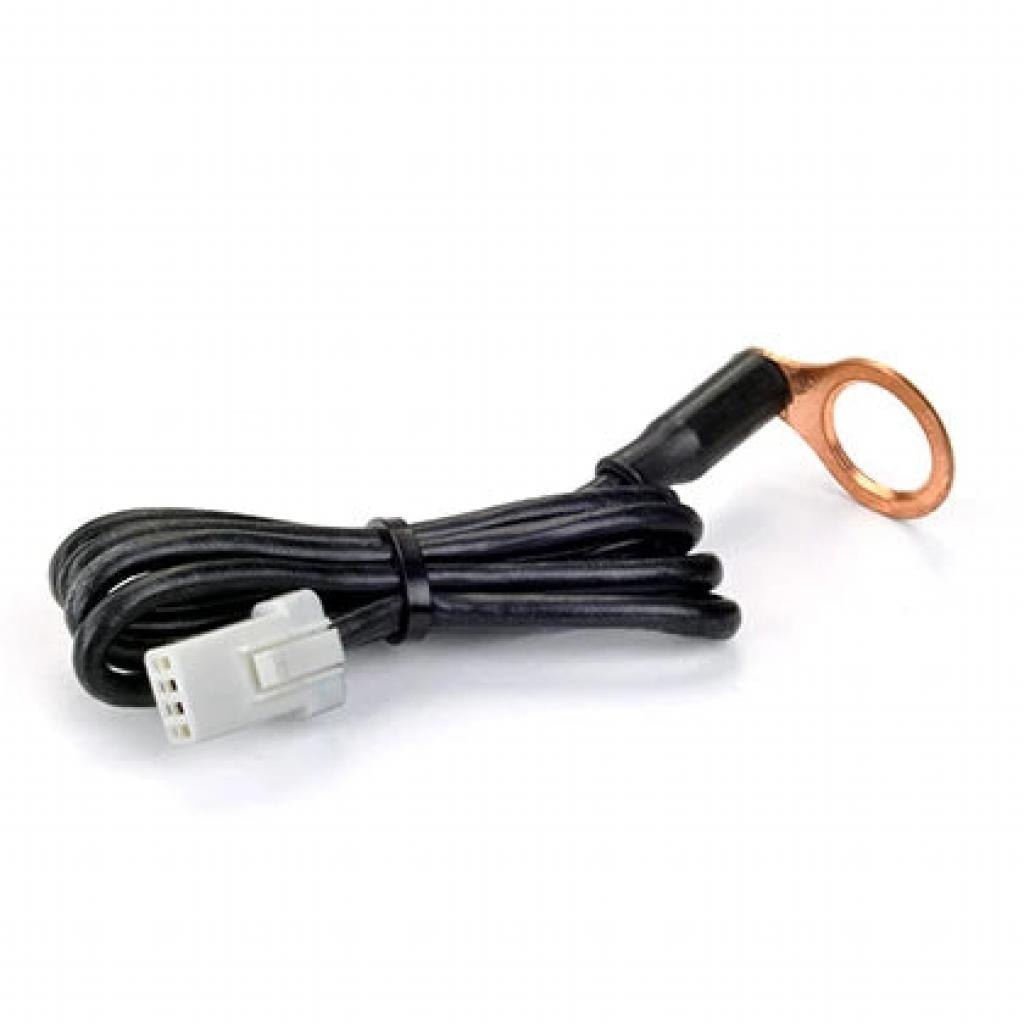

Sensor, CHT, 12mm
CHT Temperature Sensor
7500-3012
12mm CHT

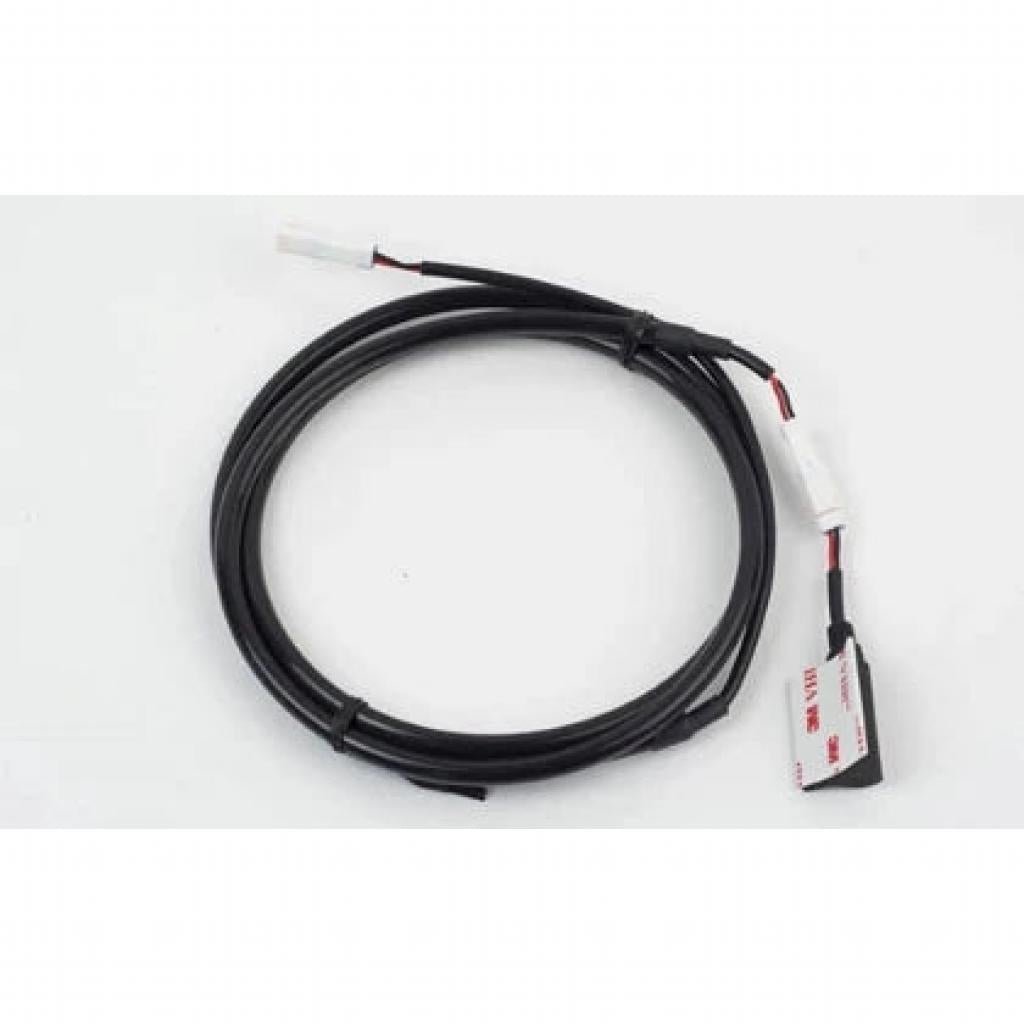

Sensor, Wheel Speed, 704-06
Wheel Speed Sensor
704-06
Generic Conventional Forks

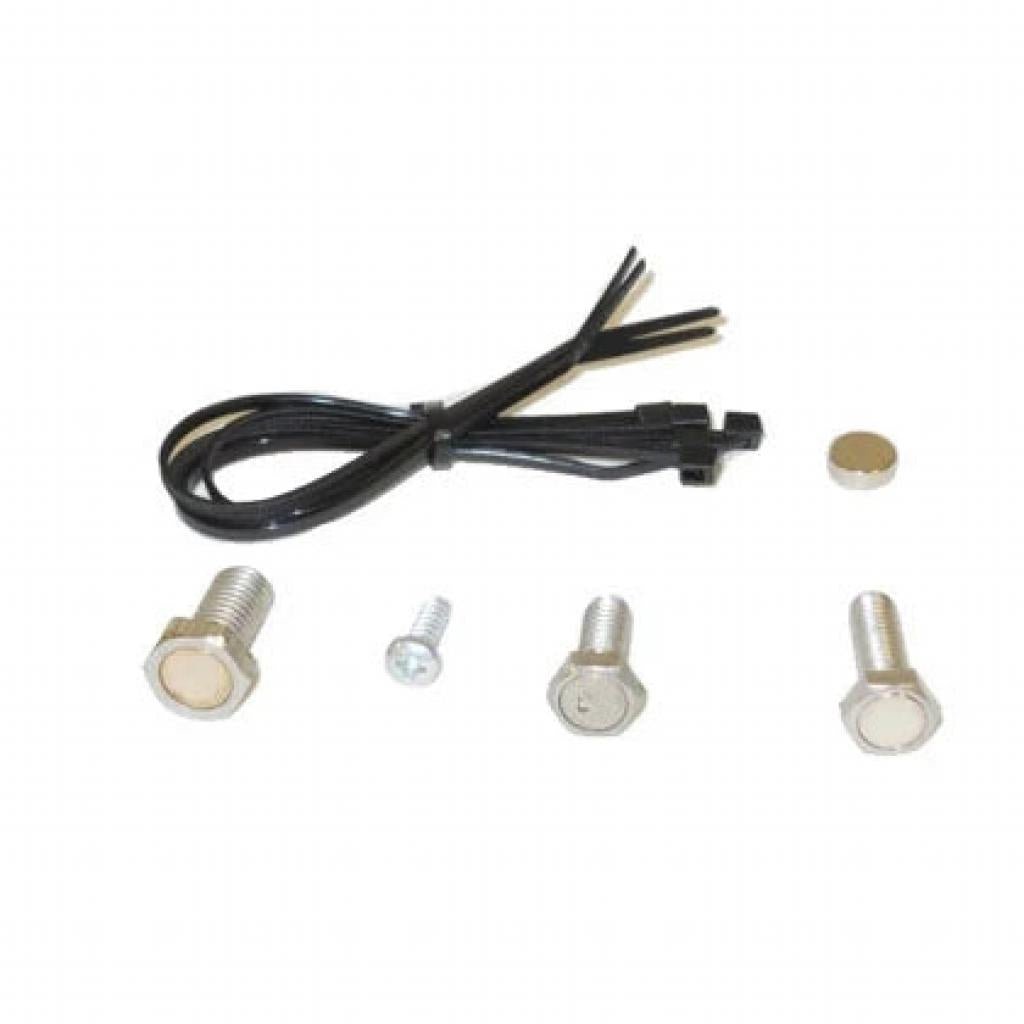

Sensor, Magnets, 704-01
Magnet Kit
704-01
Multi Bolt Selection

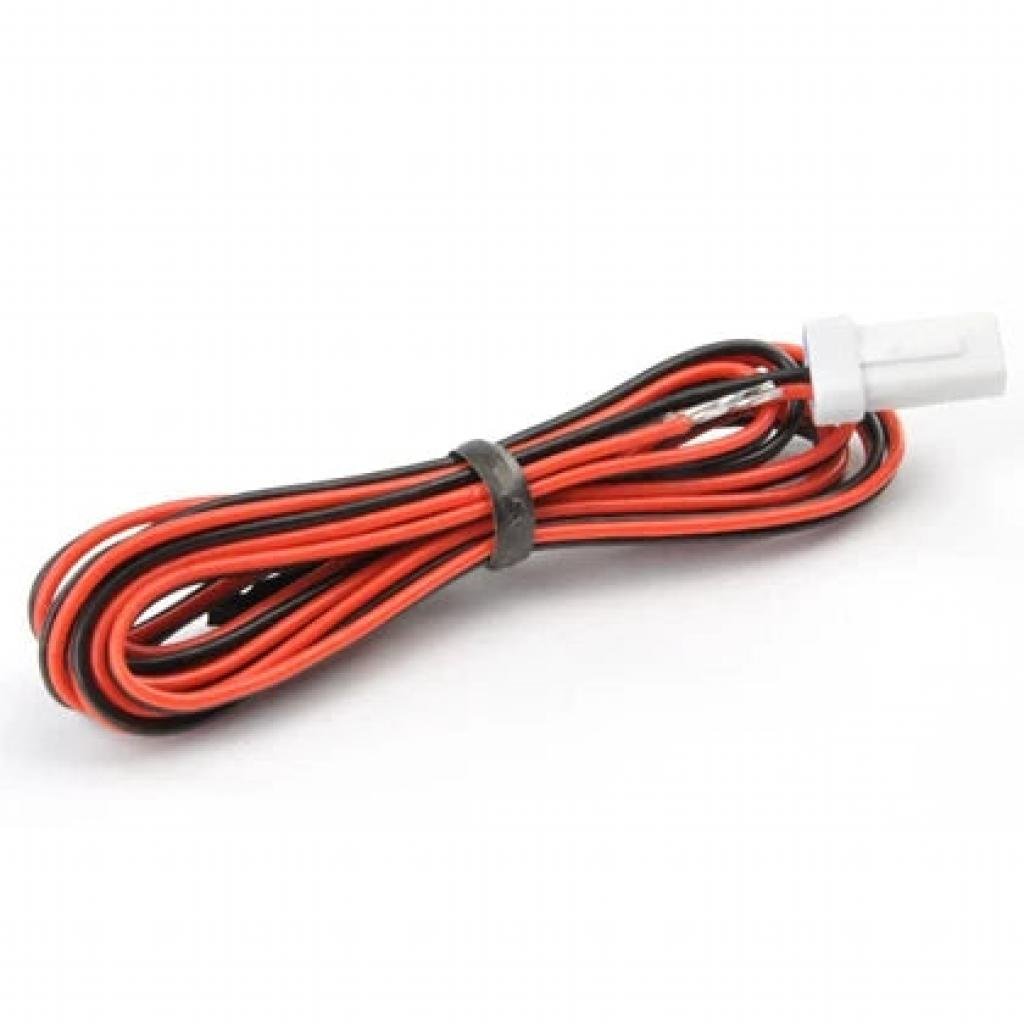

Sensor, Tachometer, 70in
TACH SENSOR
9000-1021
70in, Senses Engine RPM

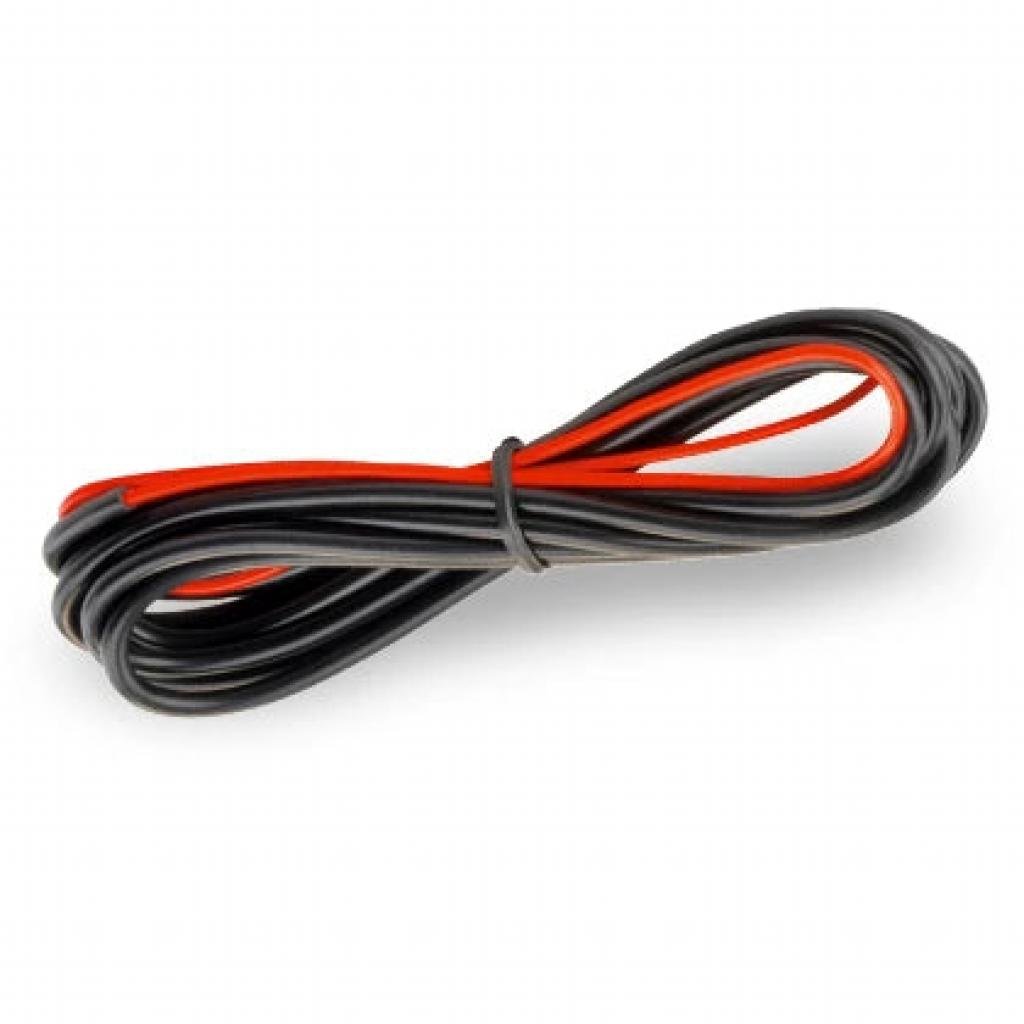

Sensor, Power Wire, 48in
POWER WIRE
9000-1011
48", Connect to Vehicle Battery

Fitment:

• Honda CRF150F 2003 to 2005
• Honda CRF230F 2003 to 2009
• Honda CRF230F 2012 to 2017
• Honda XR400R 1996 to 2004
• Honda XR600R 1985 to 2000
• Honda XR650L 1993 to 2009
• Honda XR650L 2012 to 2016
• Honda XR650R 2000 to 2007
• Suzuki DR200S 2015 to 2017
• Suzuki DR200SE 2000 to 2010
