Baja Designs XL Sport Headlight Kit 2012-23 Yamaha WR250F/450F
SPECIAL ORDER
Please allow 1 - 3 weeks for this item to fulfill.
Product Details
- Type Headlights
- Vendor Baja Designs
- SKU 507100
- Shipping Weight 8.0 lb

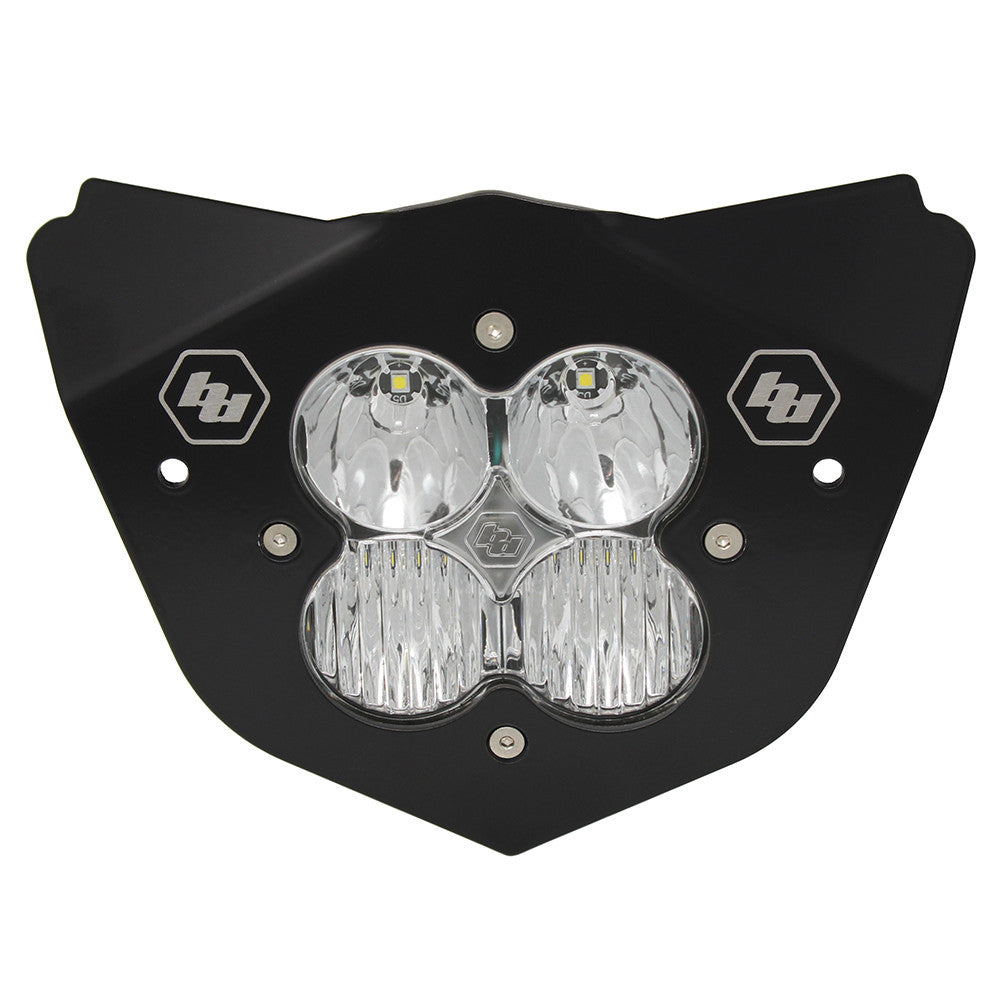

The Baja Designs XL Sport headlight Kit for the Yamaha WR250F/450F offroad motorcycles is designed specifically for aggressive night-time riding over any terrain by combining amazing distance projection, wide peripheral spread, and a smooth light pattern. The XL Sport provides 3,162 raw lumens lighting up the trail in front of you at night. Perfect for racers and enthusiasts that need a vast amount of light at high speeds and also for slower technical riding. This kit is bike specific to the Yamaha WR250 and WR450F models with a simple plug and play harness making for an easy installation. An industry first 30-Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection.
Kit Includes:
- (1x) XL Sport, Clear Driving/Combo
- (1x) Yamaha WR Face Plate
- (1x) Weather Pac 2-pin Connector Kit
- All Necessary Mounting Hardware
XL Sport Specifications (Per Light):
- Lumens: 3,162
- Wattage/Amps: 30.36W/ 2.2A
The Baja Designs Advantage:
- Satisfaction Guarantee – 30-Day Money Back Guarantee
- Limited Lifetime Warranty – Complete Purchase Protection
- uService – Replaceable Lenses and Optics
- ClearView – All the Light, Right Where You Need It
- MoistureBlock – Waterproof, Rain Proof, Submersible
- CopperDrive – Safely Driving LEDs at 100%
- 5000K Daylight – Less Driver Fatigue, Natural Color
Baja Designs 507100 Installation Sheet
Specifications
| Product Type | XL Sport LED Light Pod |
| Overvoltage Protection | Built-In |
| Mounting Hardware Included | Yes |
| Lighting Type | Forward Projecting |
| Lighting Technology | LED |
| Lighting Quantity | 4 |
| Lighting Modes | Beam |
| Light Quantity | 1 |
| Lens Material | Hardcoated Polycarbonate |
| Lens Color | Clear |
| Mounting Hardware Material | Stainless Steel |
| Universal or Specific | Universal |
| Wiring Harness Included | No |
| Wattage (W) | 30.360 |
| Housing Material | Powder Coated Cast Aluminum |
| Housing Color | Black |
| Description | Driving/Combo; Clear |
| Brightness (Lumens) | 3162 |
| Bezel Material | Powder Coated Cast Aluminum |
| Beam Pattern | Driving/Combo |
| Average Rated Life (hr.) | 49,930 |
| Amperage Rating (A) | 2.200 |
Standards & Compliance
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
Dimensions
| Weight (lbs.) | 2.450 |
| Length (in.) | 4.430 |
| Height (in.) | 4.430 |
| Depth (in.) | 3.650 |
LIGHTING ZONES/ LENS PATTERNS/ COLORS
-
Driving Combo
Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42-degree) and spot (9-degree) optics to provide you with a smooth blend of light for both near field applications and distance.
-
Spot
A longer and narrower 9-degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights.
-
Wide Cornering
The Wide Driving pattern offers a 42-degree flattened horizontal beam for the ultimate in comfort lighting. This pattern is specifically for cornering, dust, snow, rain, and/or fog conditions.
-
Work/Scene
Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft. This pattern is not suitable for driving.
-
Trail
Designed to aid in both vertical and horizontal light spread. Provides more near and mid-field visibility in tight slower technical terrain. (S1 only)
-
-
Clear
The original performance lens. Our clear lens combined with our 5000k LEDs provides light most similar to daylight, reducing driver fatigue and increasing terrain recognition.
-
Baja Amber
This performance-driven lens is designed for off-road driving in challenging conditions like dust, rain, snow, or fog. The Baja Amber lens minimizes glare, enhancing visibility and significantly improving your driving experience.
-
Factory Amber
This replacement lens option is crafted to seamlessly match the OEM running lights found on vehicles today. Factory Amber provides a color temperature that is best utilized in low-visibility conditions to increase depth perception while minimizing glare.
-
ZONES
-
Dust/Fog
Illuminates the area directly in front of the vehicle, for use during rainy, snowy, or dusty conditions.
Automotive, Motorcycle, UTV
-
Cornering
Provides cornering and peripheral light, which is necessary to drive comfortably at speed.
Automotive, Motorcycle, UTV
-
Driving Combo
Your primary driving light and most important zone to start with when building a balanced lighting package.
Automotive, Motorcycle, UTV
-
Spot
This zone is your first level of long-distance lighting. Lights intended for this zone will give you the distance needed to travel at speeds and see safely down the road or trail.
Automotive, Motorcycle, UTV
-
Racer Edition Spot
This zone is implemented when approaching triple-digit speeds, or in instances when distance penetration becomes necessary.
Automotive, Motorcycle, UTV
-
Rock Light
This zone illuminates the wheel wells, undercarriage, or any other part of the vehicle that can benefit from great visibility while moving through tight spaces and jagged terrain.
Automotive, UTV
-
Cargo
This zone is important for drivers that need quick access to tools and cargo, in and immediately around the vehicle.
Automotive, UTV
-
Backup/Reverse
This zone is crucial to keeping the backside of your vehicle safe. Whether reversing on the trail or leading a pack through the dust, you will want the correct lighting solution.
Automotive, UTV
-
Laser Series
This zone is one of the last additions to your lighting package. When you have optimized your entire package and still need that extra punch in the distance, make sure to check out the ultimate distance lighting available today.
Automotive, UTV
