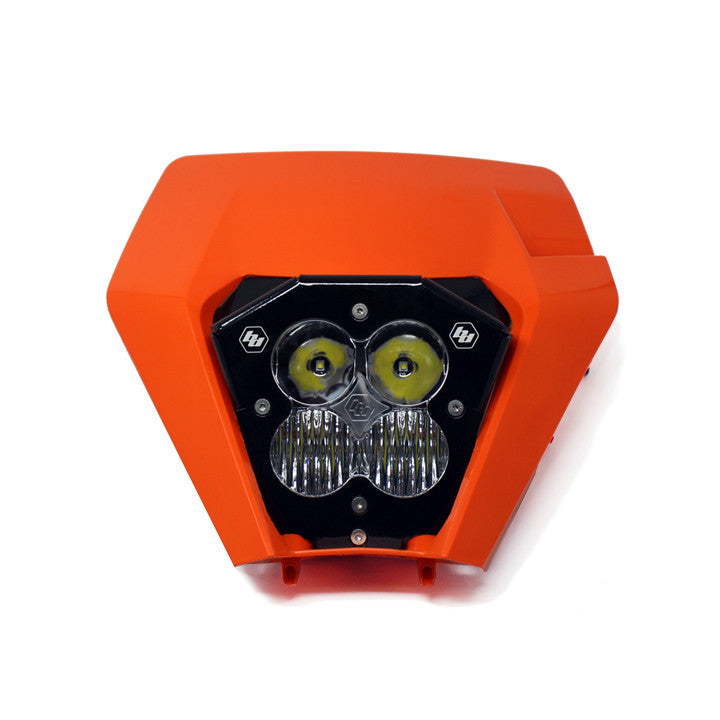

Baja Designs 17-19 KTM LED Headlight Kit w/Shell XL Pro A/C

Baja Designs XL Pro A/C Headlight Kit w/ Shell 2017-19 KTM XC/XC-W

SKU: 507198AC

No reviews

$ 535.95

Light Pattern Driving/Combo

Color Clear

SPECIAL ORDER

Please allow 1 - 3 weeks for this item to fulfill.

Product Details

Type Headlights
Vendor Baja Designs
SKU 507198AC
UPC 810031741694
Shipping Weight 7.0 lb

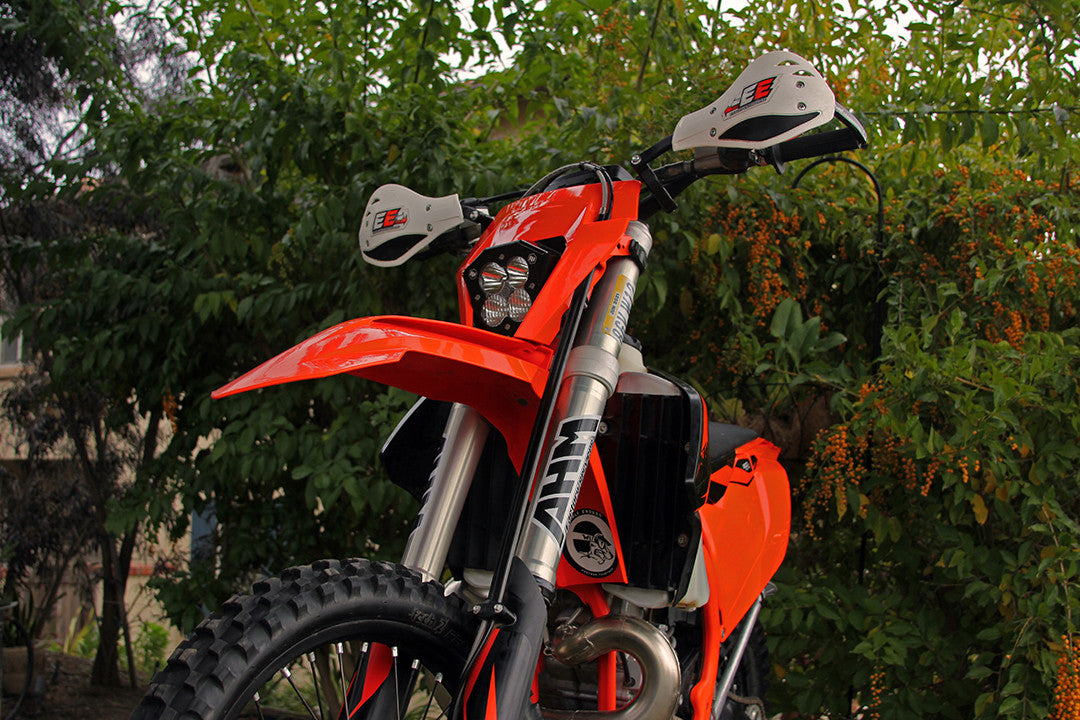

If you're looking to go night riding look no further, our Baja Designs drop in replacement headlight kit is a major upgrade from stock and features a rugged design. This headlight kit was designed with ample adjustability, and features a significant amount of vertical and horizontal spread for ultimate trail coverage. This specific model utilizes our XL Pro which produces 4600 lumens and features a 20 percent dimming feature. The XL Pro now features a variety of Cree LEDs to provide a 20 percent more reach, with the same power consumption! Installation on this kit is as easy as installing a factory headlight, we provide a plug and play connector and all necessary hardware. Baja Designs offers an industry first 30 Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection. This kit comes preinstalled into a factory KTM Headlight mask (17-19). We offer this kit for the bikes that didn't come equipped with a headlight shell or for the customer who doesn't want to disassemble their factory unit.

Satisfaction Guarantee – 30-Day Money Back Guarantee

Limited Lifetime Warranty – Complete Purchase Protection

uService – Replaceable Lenses And Optics

ClearView – All The Light, Right Where You Need It

MoistureBlock – Waterproof, Rain Proof, Submersible

CopperDrive – Only LED Driven At 100 Percent

5000K Daylight – Less Driver Fatigue, Natural Color

Baja Designs 507198 Installation Sheet

12-9016 - This is an add on part that was designed to retain the factory dual sport bike's hi/low pin out for their bar switch. The Hi-Beam Indicator will always be on when used with our Hi/Low KTM relay harness. Unsure if your bike is powerful enough to run this kit? Check out the chart found below.

Model	Yrs	Stck Outpt	AC/DC	Stat Rwd	Squd Sport	Squd Pro	XL Sprt	XL Pro	XL80
250 XC-F	’06-10	100W	AC		X	X	X	X	X
250 XC-F	’11-16	20W	DC
250 XC-F	’11-16	90W*	DC	126007	X	X	X	X
250 XC-F	’17-22	70W	DC		X		X
350 XC-F	’11-16	20W	DC
350 XC-F	’11-16	90W*	DC	126007	X	X	X	X
350 XC-F	’17-22	70W	DC		X		X
450 XC-F	’08-10	42W	AC		X		X
450 XC-F	’11-16	20W	DC
450 XC-F	’11-16	90W*	DC	126007	X	X	X	X
450 XC-F	’13-18	90W	DC		X	X	X	X
450 XC-F	’17-22	70W	DC		X		X
505 XC_F	’08-12	42W	DC		X		X

250 XCF-W	’06-10	100W	AC		X	X	X	X
250 XCF-W	’11-16	20W	DC
250 XCF-W	’11-16	90W*	DC	126007	X	X	X	X
350 XCF-W	’11-16	20W	DC
350 XCF-W	’11-16	90W*	DC	126007	X	X	X	X
350 XCF-W	’20-22	196W	DC		X	X	X	X	X
500 XCF-W	’20-22	70W	DC		X	X	X	X

250 SX-F	’11-16	20W	DC
250 SX-F	’11-16	90W*	DC	126007	X	X	X	X
250 SX-F	’17-22	70W	DC		X		X
350 SX-F	’11-16	20W	DC
350 SX-F	’11-16	90W*	DC	126007	X	X	X	X
350 SX-F	’17-22	70W	DC		X		X
450 SX-F	’07-17	20W	DC
450 SX-F	’16-17	90W*	DC	126007	X	X	X	X
450 SX-F	’18-22	70W	DC		X		X

250 EXC-F	’17	168W	DC		X	X	X	X	X
250 EXC-F	’18-20	196W	DC		X	X	X	X	X
250 EXC-F	’21-22	200W	DC		X	X	X	X	X
300 EXC TPI	’18-22	196W	DC		X	X	X	X	X
350 EXC-F	’12-17	195W	DC		X	X	X	X	X
350 EXC-F	’20-22	196W	DC		X	X	X	X	X
450 EXC-F	’17-18	168W	DC		X	X	X	X	X
450 EXC-F	’19-22	196W	DC		X	X	X	X	X
500 EXC-F	’17-18	168W	DC		X	X	X	X	X
500 EXC-F	’19-22	196W	DC		X	X	X	X	X
500 EXC	’12-16	200W	DC		X	X	X	X	X

200 XC	’06-16	100W	AC		X		X
250 XC	’06-16	100W	AC		X		X
250 XC	’17-19	100W	AC		X		X
250 XC TPI	’20-22	196W	DC		X	X	X	X	X
300 XC	’06-19	100W	AC		X	X	X	X
300 XC TPI	’20-22	196W	DC		X	X	X	X	X
450 XC	’06-11	100W	AC		X	X	X	X

450 SMR	’21-22	70W	DC		X		X

690 Enduro R	’19-22	300W	DC		X	X	X	X	X

250 EXC	’05	100W	AC
250 EXC	’05	130W*	AC	126026	X	X	X	X
300 EXC	’00-05	40W	AC
300 EXC	’00-05	100W*	AC	126026	X	X	X	X
380 EXC	’00-02	40W	AC
380 EXC	’00-02	100W*	AC	126026	X	X	X	X

*Power output after stator rewind service.

Specifications

Description	Driving/Combo; Clear
Brightness (Lumens)	4095
Bezel Material	Powder Coated Cast Aluminum
Beam Pattern	Driving/Combo
Average Rated Life (hr.)	49,930
Amperage Rating (A)	3
Housing Color	Black
Housing Material	Hard Anodized and Powder Coated Cast Aluminum
Lens Color	Clear
Product Type	XL Pro LED Light Pod
Overvoltage Protection	Built-In
Mounting Hardware Material	Stainless Steel
Mounting Hardware Included	Yes
Lighting Type	Forward Projecting
Lighting Technology	Cree XP-L LED
Lighting Quantity	4
Lighting Modes	High Beam/Dimming Feature (20%)
Light Quantity	1
Lens Material	Hardcoated Polycarbonate
Universal or Specific	Universal
Wattage (W)	41.400
Wiring Harness Included	No

Dimensions

Weight (lbs.)	2.450
Height (in.)	4.430
Depth (in.)	3.650
Length (in.)	4.430

Standards & Compliance

Standards/Compliance (Water Resistance)	IP69K (Waterproof up to 9ft & Pressure Washable)
Standards/Compliance (Impact Resistance)	IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Durability)	Exceeds MIL-STD810G (Mil-Spec Testing)

We appreciate your business and are committed to providing you with the exceptional service and timely delivery we are known for. Please review the shipping information below for your order.

*FREE U.S. Shipping:

Orders with a subotal of $99.00 or above qualify for Free Standard Ground Shipping to the Contiguous 48 United States. Hawaii and Alaska do not qualify and will be reflected with rates at checkout.

Order Processing Time:

Orders are usually processed within 24-48 hours after the order has been placed.
Custom or special order items may take longer to process, typically 3-5 business days.

Shipping Methods:

Standard Shipping (3-7 business days)
Expedited Shipping (2-3 business days)
Express Shipping (1-2 business days)

Packaging:

Rest assured that all items will be securely and safely packaged to prevent any damage during transit. Fragile or high-value parts will be packaged with additional protective materials, such as bubble wrap or foam padding.

Shipping Rates:

Shipping rates vary based on the size, weight, and destination of the package. You can view the estimated shipping costs for your order during the checkout process before placing your order.

Order Tracking:

Once your order has been shipped, you will receive an email with the tracking number and carrier information. You can also track your order status by logging into your account.

International Shipping:

We ship worldwide! Please note that international shipping rates and delivery times may vary based on destination. Customers are responsible for any customs fees, import taxes, or additional charges that may apply.

LIGHTING ZONES/ LENS PATTERNS/ COLORS

Driving Combo
Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42-degree) and spot (9-degree) optics to provide you with a smooth blend of light for both near field applications and distance.
Spot
A longer and narrower 9-degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights.
Wide Cornering
The Wide Driving pattern offers a 42-degree flattened horizontal beam for the ultimate in comfort lighting. This pattern is specifically for cornering, dust, snow, rain, and/or fog conditions.
Work/Scene
Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft. This pattern is not suitable for driving.
Trail
Designed to aid in both vertical and horizontal light spread. Provides more near and mid-field visibility in tight slower technical terrain. (S1 only)

Clear
The original performance lens. Our clear lens combined with our 5000k LEDs provides light most similar to daylight, reducing driver fatigue and increasing terrain recognition.
Baja Amber
This performance-driven lens is designed for off-road driving in challenging conditions like dust, rain, snow, or fog. The Baja Amber lens minimizes glare, enhancing visibility and significantly improving your driving experience.
Factory Amber
This replacement lens option is crafted to seamlessly match the OEM running lights found on vehicles today. Factory Amber provides a color temperature that is best utilized in low-visibility conditions to increase depth perception while minimizing glare.

ZONES

Dust/Fog
Illuminates the area directly in front of the vehicle, for use during rainy, snowy, or dusty conditions.
Automotive, Motorcycle, UTV
Cornering
Provides cornering and peripheral light, which is necessary to drive comfortably at speed.
Automotive, Motorcycle, UTV
Driving Combo
Your primary driving light and most important zone to start with when building a balanced lighting package.
Automotive, Motorcycle, UTV
Spot
This zone is your first level of long-distance lighting. Lights intended for this zone will give you the distance needed to travel at speeds and see safely down the road or trail.
Automotive, Motorcycle, UTV
Racer Edition Spot
This zone is implemented when approaching triple-digit speeds, or in instances when distance penetration becomes necessary.
Automotive, Motorcycle, UTV
Rock Light
This zone illuminates the wheel wells, undercarriage, or any other part of the vehicle that can benefit from great visibility while moving through tight spaces and jagged terrain.
Automotive, UTV
Cargo
This zone is important for drivers that need quick access to tools and cargo, in and immediately around the vehicle.
Automotive, UTV
Backup/Reverse
This zone is crucial to keeping the backside of your vehicle safe. Whether reversing on the trail or leading a pack through the dust, you will want the correct lighting solution.
Automotive, UTV
Laser Series
This zone is one of the last additions to your lighting package. When you have optimized your entire package and still need that extra punch in the distance, make sure to check out the ultimate distance lighting available today.
Automotive, UTV
