Baja Designs 40" S8 Roof Bar Kit 2020-24 Kawasaki Teryx KRX 1000
SPECIAL ORDER
Please allow 1 - 3 weeks for this item to fulfill.
Product Details
- Type LED Light Bar
- Vendor Baja Designs
- SKU 44-7196
- Shipping Weight 17.8 lb

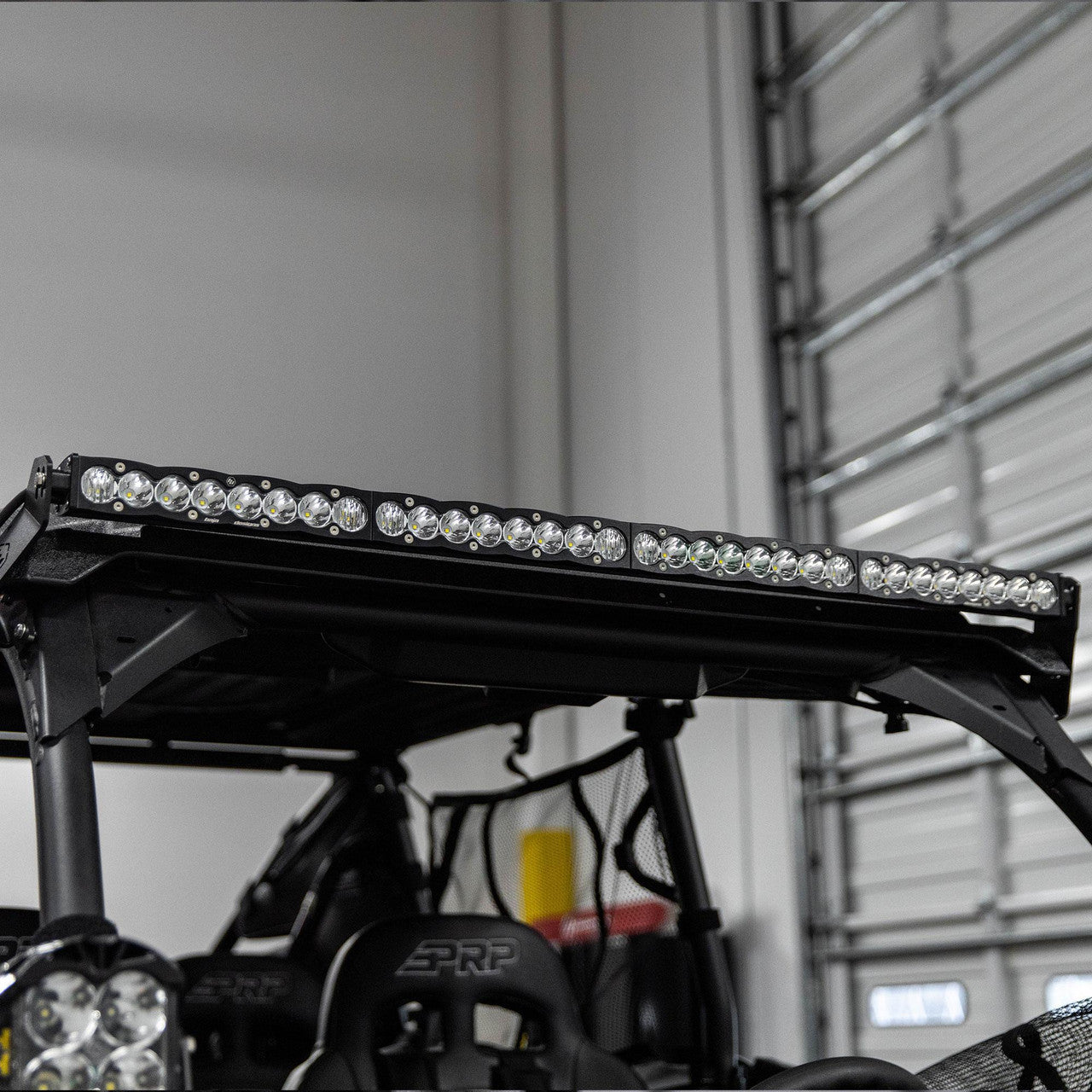

Upgrade your Kawasaki Teryx KRX 1000 with the Baja Designs S8 40-inch Roof Bar Kit, designed to deliver exceptional lighting performance in a sleek, low-profile package. The S8 boast 25,400 lumens and offers excellent visibility utilizing next generation LEDs with high-performance reflectors and a distinctive amber backlight that ensures you stand out both in terms of style and trail visibility. The S8 Roof bar kit provides light that allows for a wider and longer beam pattern that makes it easier to see further ahead on the trails, aiding in driver safety at night and low light conditions. The amber backlight feature of the S8 adds a stylish touch to your vehicle and can be used as a marker light for added visibility when your main lights are not needed. No need to worry about draw on your system, as the S8 offers low amp draw for its size which helps conserve your vehicle’s battery life.
The kit includes the S8 light bar, mounting brackets, and a wiring harness, providing all the components needed for a seamless installation. With uService technology, you can easily customize or replace damaged lenses and beam patterns without voiding your warranty, giving you full control over your lighting setup. Backed by a 30-day satisfaction guarantee and a lifetime limited warranty, this kit offers top-tier performance and peace of mind.
Key Features:
- Delivers 25,400 lumens for superior trail illumination
- Sleek, low-profile design with high-performance reflectors
- Amber backlight for added style and visibility
- uService technology for easy lens and beam pattern customization
- Seamless installation with included mounting brackets and wiring harness
- 30-day satisfaction guarantee and lifetime limited warranty

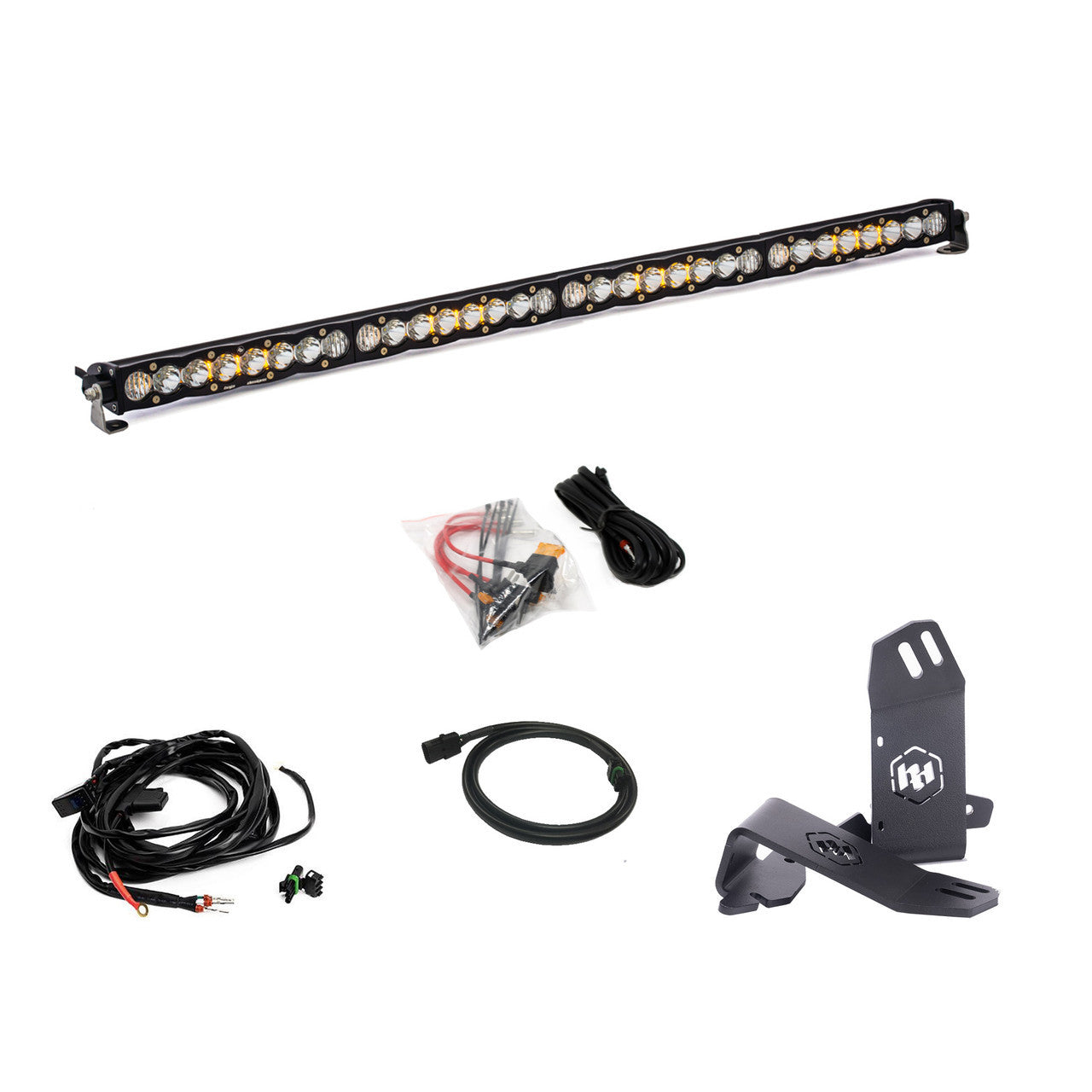

Kit includes:
- (1x) S8, 40” Driving/Combo Light Bar
- (1x) Wiring Harness
- (2x) Mounting Bracket
- All necessary hardware
Specs for the 40” S8 Light Bar:
- Lumens: 25,400
- 240W / 16.0A
LIGHTING ZONES/ LENS PATTERNS/ COLORS
-
Driving Combo
Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42-degree) and spot (9-degree) optics to provide you with a smooth blend of light for both near field applications and distance.
-
Spot
A longer and narrower 9-degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights.
-
Wide Cornering
The Wide Driving pattern offers a 42-degree flattened horizontal beam for the ultimate in comfort lighting. This pattern is specifically for cornering, dust, snow, rain, and/or fog conditions.
-
Work/Scene
Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft. This pattern is not suitable for driving.
-
Trail
Designed to aid in both vertical and horizontal light spread. Provides more near and mid-field visibility in tight slower technical terrain. (S1 only)
-
-
Clear
The original performance lens. Our clear lens combined with our 5000k LEDs provides light most similar to daylight, reducing driver fatigue and increasing terrain recognition.
-
Baja Amber
This performance-driven lens is designed for off-road driving in challenging conditions like dust, rain, snow, or fog. The Baja Amber lens minimizes glare, enhancing visibility and significantly improving your driving experience.
-
Factory Amber
This replacement lens option is crafted to seamlessly match the OEM running lights found on vehicles today. Factory Amber provides a color temperature that is best utilized in low-visibility conditions to increase depth perception while minimizing glare.
-
ZONES
-
Dust/Fog
Illuminates the area directly in front of the vehicle, for use during rainy, snowy, or dusty conditions.
Automotive, Motorcycle, UTV
-
Cornering
Provides cornering and peripheral light, which is necessary to drive comfortably at speed.
Automotive, Motorcycle, UTV
-
Driving Combo
Your primary driving light and most important zone to start with when building a balanced lighting package.
Automotive, Motorcycle, UTV
-
Spot
This zone is your first level of long-distance lighting. Lights intended for this zone will give you the distance needed to travel at speeds and see safely down the road or trail.
Automotive, Motorcycle, UTV
-
Racer Edition Spot
This zone is implemented when approaching triple-digit speeds, or in instances when distance penetration becomes necessary.
Automotive, Motorcycle, UTV
-
Rock Light
This zone illuminates the wheel wells, undercarriage, or any other part of the vehicle that can benefit from great visibility while moving through tight spaces and jagged terrain.
Automotive, UTV
-
Cargo
This zone is important for drivers that need quick access to tools and cargo, in and immediately around the vehicle.
Automotive, UTV
-
Backup/Reverse
This zone is crucial to keeping the backside of your vehicle safe. Whether reversing on the trail or leading a pack through the dust, you will want the correct lighting solution.
Automotive, UTV
-
Laser Series
This zone is one of the last additions to your lighting package. When you have optimized your entire package and still need that extra punch in the distance, make sure to check out the ultimate distance lighting available today.
Automotive, UTV
