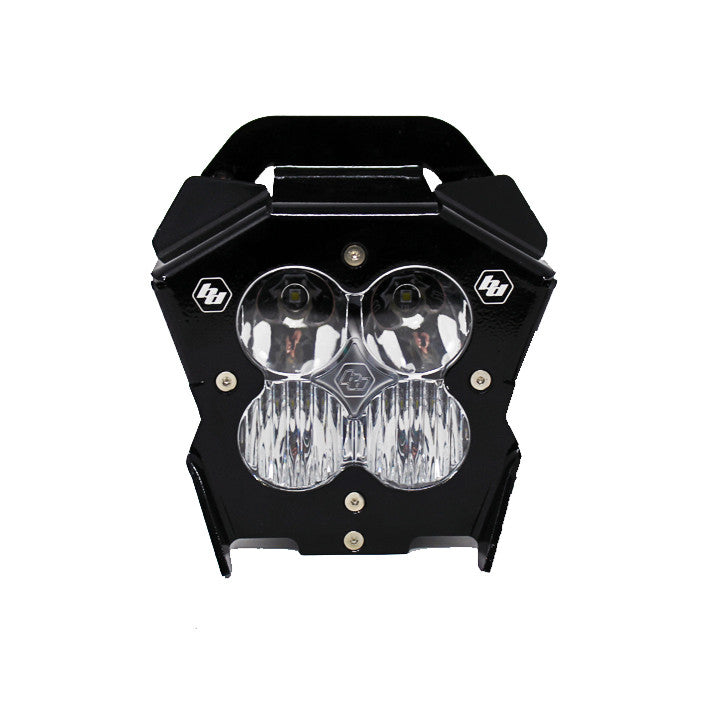

Baja Designs 2017+ XL Pro KTM LED Headlight Kit D/C
Baja Designs 2017+ XL Pro KTM LED Headlight Kit D/C

Baja Designs XL Pro D/C Headlight Kit 2017-23 KTM

SKU: 507098
No reviews
$ 427.95
Light Pattern
Color

SPECIAL ORDER

Please allow 1 - 3 weeks for this item to fulfill.

Product Details

  • Type Headlights
  • Vendor Baja Designs
  • SKU 507098
  • UPC 810031741663
  • Shipping Weight 3.1 lb
Description Fitment Shipping

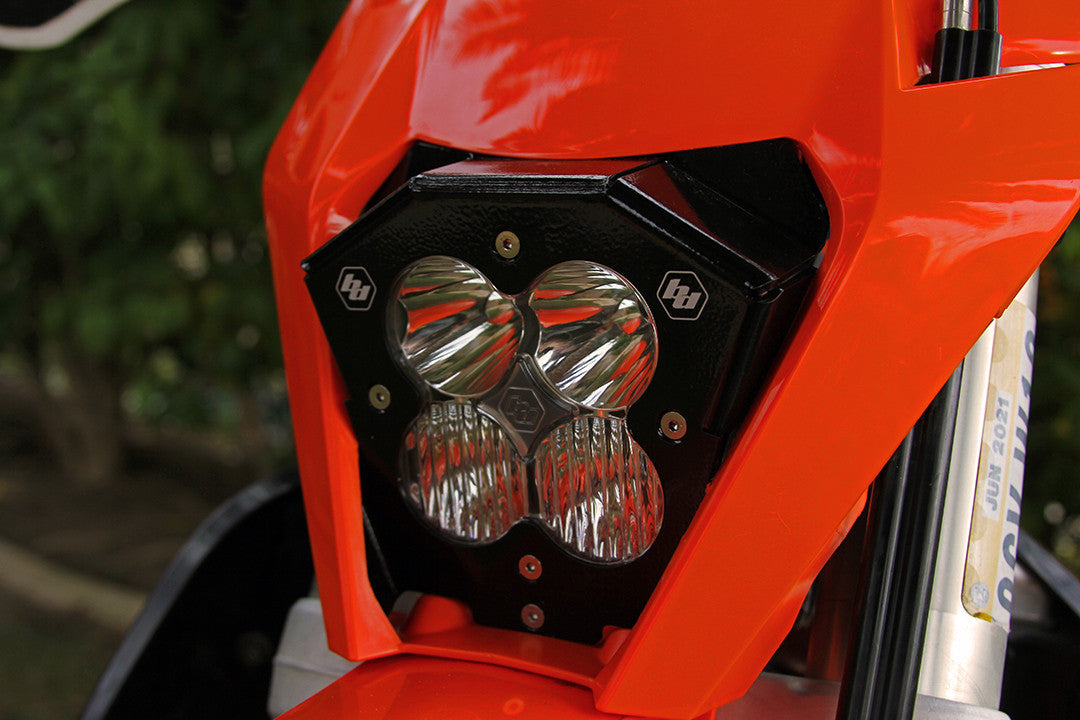

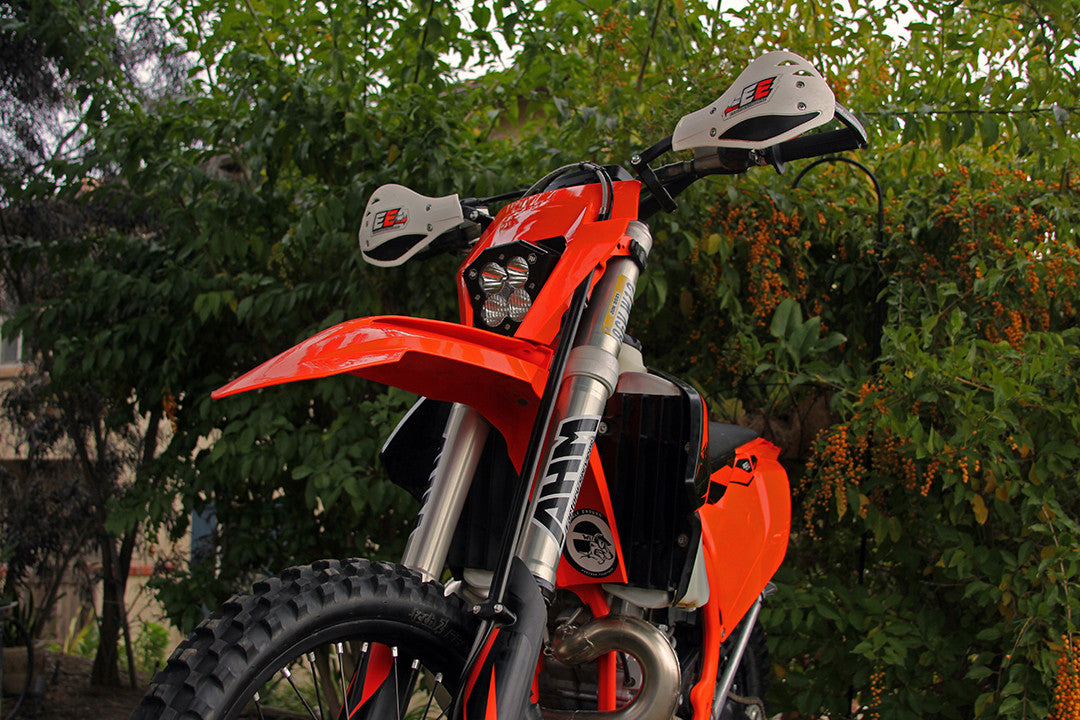

If you're looking to go night riding look no further, our Baja Designs drop in replacement headlight kit is a major upgrade from stock and features a rugged design. This headlight kit was designed with ample adjustability, and features a significant amount of vertical and horizontal spread for ultimate trail coverage. This specific model utilizes our XL Pro which produces 4600 lumens and features a 20 percent dimming feature. The XL Pro now features a variety of Cree LEDs to provide a 20 percent more reach, with the same power consumption! Installation on this kit is as easy as installing a factory headlight, we provide a plug and play connector and all necessary hardware. Baja Designs offers an industry first 30 Day Satisfaction Guarantee and Limited Lifetime Warranty is included for the ultimate in purchase protection.

Satisfaction Guarantee – 30-Day Money Back Guarantee

Limited Lifetime Warranty – Complete Purchase Protection

uService – Replaceable Lenses And Optics

ClearView – All The Light, Right Where You Need It

MoistureBlock – Waterproof, Rain Proof, Submersible

CopperDrive – Only LED Driven At 100 Percent

5000K Daylight – Less Driver Fatigue, Natural Color

Baja Designs 507098 Installation Sheet

12-9016 - This is an add on part that was designed to retain the factory dual sport bike's hi/low pin out for their bar switch. The Hi-Beam Indicator will always be on when used with our Hi/Low KTM relay harness. Unsure if your bike is powerful enough to run this kit? Check our chart found below:

Model Years Stock Output AC/DC Stat Rewind Squadron Sport Squadron Pro XL Sport XL Pro XL80
250 XC-F ’06-10 100W AC X X X X X
250 XC-F ’11-16 20W DC
250 XC-F ’11-16 90W* DC 126007 X X X X
250 XC-F ’17-22 70W DC X X
350 XC-F ’11-16 20W DC
350 XC-F ’11-16 90W* DC 126007 X X X X
350 XC-F ’17-22 70W DC X X
450 XC-F ’08-10 42W AC X X
450 XC-F ’11-16 20W DC
450 XC-F ’11-16 90W* DC 126007 X X X X
450 XC-F ’13-18 90W DC X X X X
450 XC-F ’17-22 70W DC X X
505 XC_F ’08-12 42W DC X X
250 XCF-W ’06-10 100W AC X X X X
250 XCF-W ’11-16 20W DC
250 XCF-W ’11-16 90W* DC 126007 X X X X
350 XCF-W ’11-16 20W DC
350 XCF-W ’11-16 90W* DC 126007 X X X X
350 XCF-W ’20-22 196W DC X X X X X
500 XCF-W ’20-22 70W DC X X X X
250 SX-F ’11-16 20W DC
250 SX-F ’11-16 90W* DC 126007 X X X X
250 SX-F ’17-22 70W DC X X
350 SX-F ’11-16 20W DC
350 SX-F ’11-16 90W* DC 126007 X X X X
350 SX-F ’17-22 70W DC X X
450 SX-F ’07-17 20W DC
450 SX-F ’16-17 90W* DC 126007 X X X X
450 SX-F ’18-22 70W DC X X
250 EXC-F ’17 168W DC X X X X X
250 EXC-F ’18-20 196W DC X X X X X
250 EXC-F ’21-22 200W DC X X X X X
300 EXC TPI ’18-22 196W DC X X X X X
350 EXC-F ’12-17 195W DC X X X X X
350 EXC-F ’20-22 196W DC X X X X X
450 EXC-F ’17-18 168W DC X X X X X
450 EXC-F ’19-22 196W DC X X X X X
500 EXC-F ’17-18 168W DC X X X X X
500 EXC-F ’19-22 196W DC X X X X X
500 EXC ’12-16 200W DC X X X X X
200 XC ’06-16 100W AC X X
250 XC ’06-16 100W AC X X
250 XC ’17-19 100W AC X X
250 XC TPI ’20-22 196W DC X X X X X
300 XC ’06-19 100W AC X X X X
300 XC TPI ’20-22 196W DC X X X X X
450 XC ’06-11 100W AC X X X X
450 SMR ’21-22 70W DC X X
690 Enduro R ’19-22 300W DC X X X X X
250 EXC ’05 100W AC
250 EXC ’05 130W* AC 126026 X X X X
300 EXC ’00-05 40W AC
300 EXC ’00-05 100W* AC 126026 X X X X
380 EXC ’00-02 40W AC
380 EXC ’00-02 100W* AC 126026 X X X X


Standards & Compliance

Standards/Compliance (Water Resistance) IP69K (Waterproof up to 9ft & Pressure Washable)
Standards/Compliance (Impact Resistance) IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Durability) Exceeds MIL-STD810G (Mil-Spec Testing)

Specifications

Wiring Harness Included No
Wattage (W) 41.400
Housing Material Hard Anodized and Powder Coated Cast Aluminum
Housing Color Black
Description Spot; Clear
Brightness (Lumens) 4095
Bezel Material Powder Coated Cast Aluminum
Beam Pattern Spot
Average Rated Life (hr.) 49,930
Amperage Rating (A) 3
Lens Color Clear
Lens Material Hardcoated Polycarbonate
Lighting Modes High Beam/Dimming Feature (20%)
Universal or Specific Universal
Product Type XL Pro LED Light Pod
Overvoltage Protection Built-In
Mounting Hardware Material Stainless Steel
Mounting Hardware Included Yes
Lighting Type Forward Projecting
Lighting Technology Cree XP-L LED
Lighting Quantity 4
Light Quantity 1

Dimensions

Weight (lbs.) 2.450
Length (in.) 4.430
Height (in.) 4.430
Depth (in.) 3.650

LIGHTING ZONES/ LENS PATTERNS/ COLORS

  • Driving Combo

    Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42-degree) and spot (9-degree) optics to provide you with a smooth blend of light for both near field applications and distance.

  • Spot

    A longer and narrower 9-degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights.

  • Wide Cornering

    The Wide Driving pattern offers a 42-degree flattened horizontal beam for the ultimate in comfort lighting. This pattern is specifically for cornering, dust, snow, rain, and/or fog conditions.

  • Work/Scene

    Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft. This pattern is not suitable for driving.

  • Trail

    Designed to aid in both vertical and horizontal light spread. Provides more near and mid-field visibility in tight slower technical terrain. (S1 only)

  • Clear

    The original performance lens. Our clear lens combined with our 5000k LEDs provides light most similar to daylight, reducing driver fatigue and increasing terrain recognition.

  • Baja Amber

    This performance-driven lens is designed for off-road driving in challenging conditions like dust, rain, snow, or fog. The Baja Amber lens minimizes glare, enhancing visibility and significantly improving your driving experience.

  • Factory Amber

    This replacement lens option is crafted to seamlessly match the OEM running lights found on vehicles today. Factory Amber provides a color temperature that is best utilized in low-visibility conditions to increase depth perception while minimizing glare.

ZONES

  • Dust/Fog

    Illuminates the area directly in front of the vehicle, for use during rainy, snowy, or dusty conditions.

    Automotive, Motorcycle, UTV

  • Cornering

    Provides cornering and peripheral light, which is necessary to drive comfortably at speed.

    Automotive, Motorcycle, UTV

  • Driving Combo

    Your primary driving light and most important zone to start with when building a balanced lighting package.

    Automotive, Motorcycle, UTV

  • Spot

    This zone is your first level of long-distance lighting. Lights intended for this zone will give you the distance needed to travel at speeds and see safely down the road or trail.

    Automotive, Motorcycle, UTV

  • Racer Edition Spot

    This zone is implemented when approaching triple-digit speeds, or in instances when distance penetration becomes necessary.

    Automotive, Motorcycle, UTV

  • Rock Light

    This zone illuminates the wheel wells, undercarriage, or any other part of the vehicle that can benefit from great visibility while moving through tight spaces and jagged terrain.

    Automotive, UTV

  • Cargo

    This zone is important for drivers that need quick access to tools and cargo, in and immediately around the vehicle.

    Automotive, UTV

  • Backup/Reverse

    This zone is crucial to keeping the backside of your vehicle safe. Whether reversing on the trail or leading a pack through the dust, you will want the correct lighting solution.

    Automotive, UTV

  • Laser Series

    This zone is one of the last additions to your lighting package. When you have optimized your entire package and still need that extra punch in the distance, make sure to check out the ultimate distance lighting available today.

    Automotive, UTV
