Baja Designs Squadron Sport Headlight Kit 2019-21 Honda Talon
SPECIAL ORDER
Please allow 1 - 3 weeks for this item to fulfill.
Product Details
- Type LED Light Kits
- Vendor Baja Designs
- SKU 447145
- Shipping Weight 7.5 lb

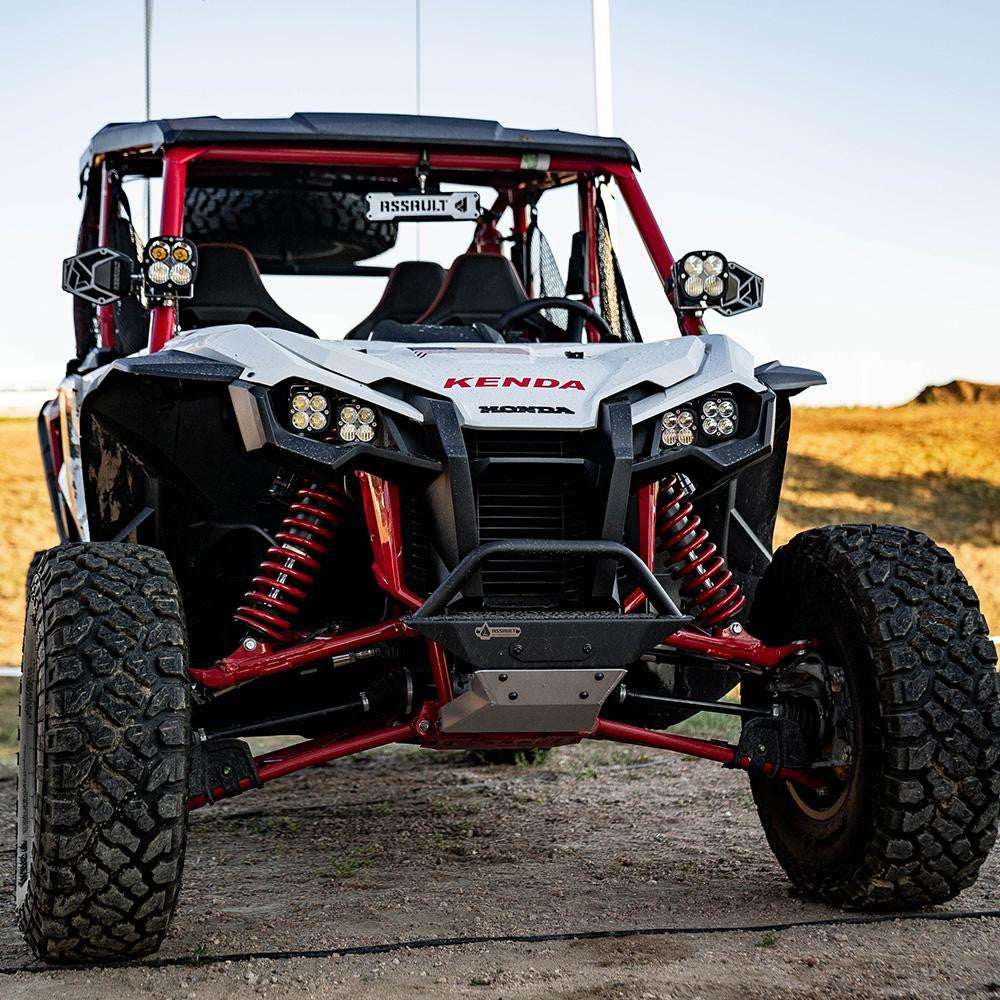

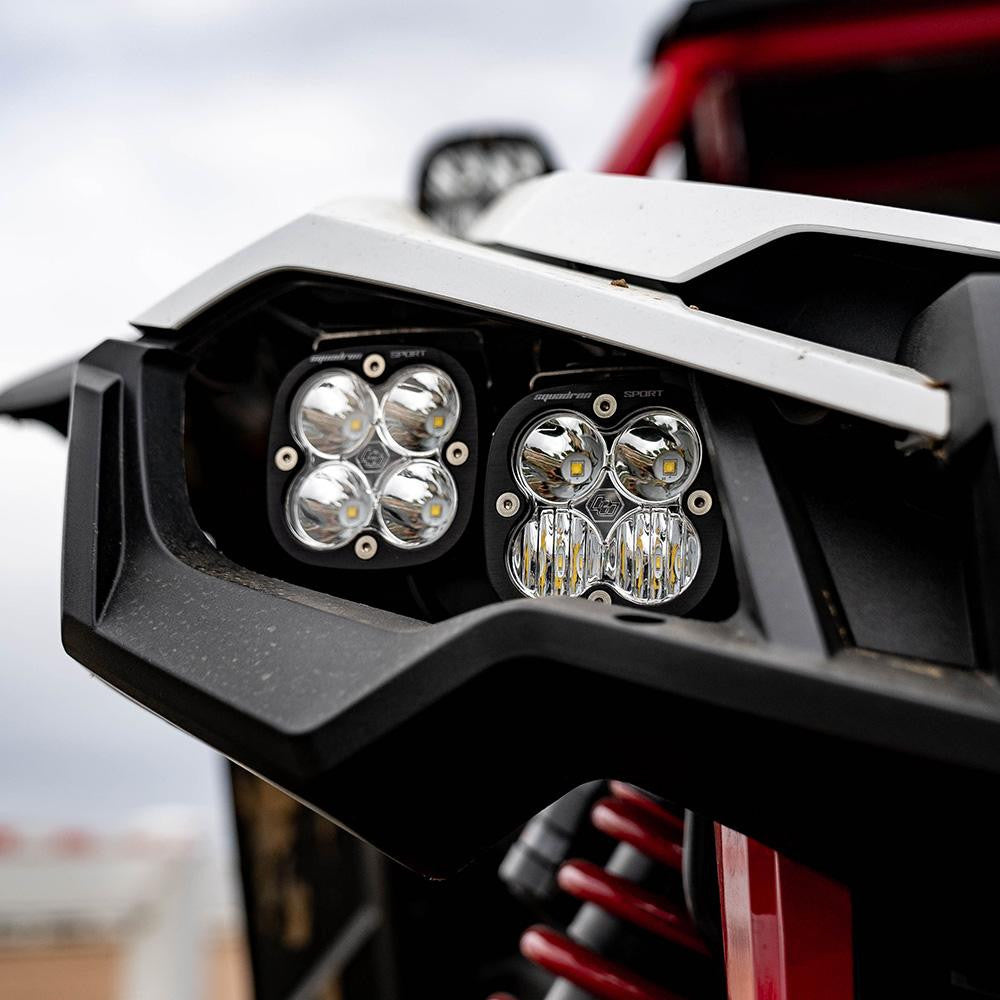

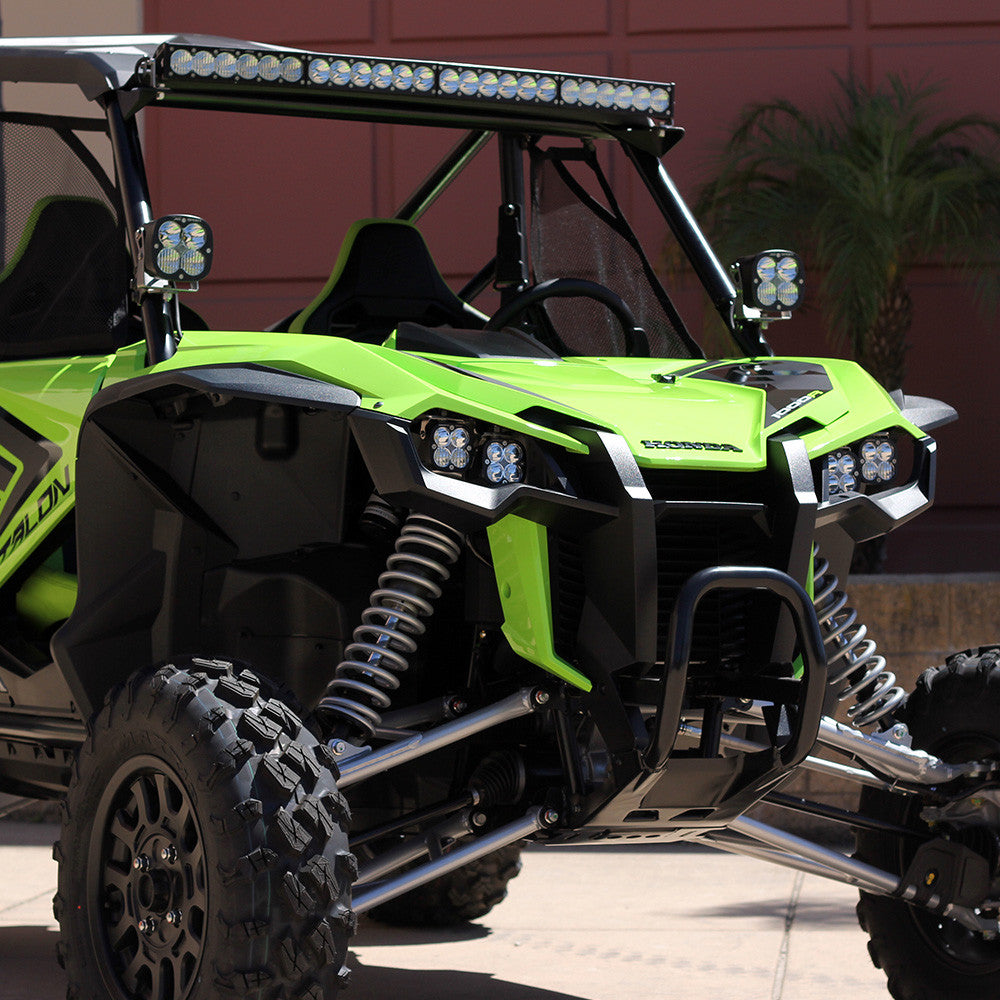

The Honda Talon 2019-2021 Squadron Sport Headlight Kit from Baja Designs will help you get the most out of your UTV while keeping you safe out on the trails. Utilizing our next-generation LEDs within four Squadron Sports pushing 3,162 raw lumens each, this kit has everything you need for a quick install. This kit is perfect on its own or complements a bumper/roof bar kit. This plug-and-play mounting kit includes two vehicle specific mounting brackets and a wiring harness, allowing you to use your factory high/low switch and mounting hardware. Paired with our 30-Day satisfaction guarantee and limited lifetime warranty for the ultimate in purchase protection! USPTO Reg No. 5,766,659
ELS™ Scores:
Squadron Sport Driving Combo Clear: ELS 112⁰/ 7.1 / 183'/ 2441
Squadron Sport Spot Clear: ELS 112⁰/ 5.3/ 229'/ 1973
Comes With:
- Squadron Sport Driving Combo Clear (x2)
- Squadron Sport Spot Clear (x2)
- Mounting Brackets (x2)
- Harness Adaptor - 600012 (x2)
- Mounting Hardware
The Baja Designs Advantage
- Satisfaction Guarantee – 30-Day Money Back Guarantee
- Limited Lifetime Warranty – Complete Purchase Protection
- uService – Replaceable Lenses And Optics
- ClearView – All The Light, Right Where You Need It
- MoistureBlock – Waterproof, Rain Proof, Submersible
- CopperDrive – Safely Driving LEDs at 100%
- 5000K Daylight – Less Driver Fatigue, Natural Color
Baja Designs 447145 Installation Sheet
SKU: 550001
Specifications
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity | 4 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | Squadron Sport LED Light Pod |
| Wattage (W) | 30.360 |
| Wiring Harness Included | No |
| Amperage Rating (A) | 2.200 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Spot |
| Bezel Material | Powder Coated Cast Aluminum |
| Brightness (Lumens) | 3162 |
| Description | Spot; Clear |
| Housing Color | Black |
| Housing Material | Powder Coated Cast Aluminum |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
Dimensions
| Depth (in.) | 2.770 |
| Height (in.) | 3.070 |
| Length (in.) | 3.070 |
| Weight (lbs.) | 0.750 |
SKU: 550003
Specifications
| Housing Material | Powder Coated Cast Aluminum |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity | 4 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | Squadron Sport LED Light Pod |
| Wattage (W) | 30.360 |
| Wiring Harness Included | No |
| Amperage Rating (A) | 2.200 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Powder Coated Cast Aluminum |
| Brightness (Lumens) | 3162 |
| Description | Driving/Combo; Clear |
| Housing Color | Black |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
Dimensions
| Depth (in.) | 2.770 |
| Height (in.) | 3.070 |
| Length (in.) | 3.070 |
| Weight (lbs.) | 0.750 |
LIGHTING ZONES/ LENS PATTERNS/ COLORS
-
Driving Combo
Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42-degree) and spot (9-degree) optics to provide you with a smooth blend of light for both near field applications and distance.
-
Spot
A longer and narrower 9-degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights.
-
Wide Cornering
The Wide Driving pattern offers a 42-degree flattened horizontal beam for the ultimate in comfort lighting. This pattern is specifically for cornering, dust, snow, rain, and/or fog conditions.
-
Work/Scene
Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft. This pattern is not suitable for driving.
-
Trail
Designed to aid in both vertical and horizontal light spread. Provides more near and mid-field visibility in tight slower technical terrain. (S1 only)
-
-
Clear
The original performance lens. Our clear lens combined with our 5000k LEDs provides light most similar to daylight, reducing driver fatigue and increasing terrain recognition.
-
Baja Amber
This performance-driven lens is designed for off-road driving in challenging conditions like dust, rain, snow, or fog. The Baja Amber lens minimizes glare, enhancing visibility and significantly improving your driving experience.
-
Factory Amber
This replacement lens option is crafted to seamlessly match the OEM running lights found on vehicles today. Factory Amber provides a color temperature that is best utilized in low-visibility conditions to increase depth perception while minimizing glare.
-
ZONES
-
Dust/Fog
Illuminates the area directly in front of the vehicle, for use during rainy, snowy, or dusty conditions.
Automotive, Motorcycle, UTV
-
Cornering
Provides cornering and peripheral light, which is necessary to drive comfortably at speed.
Automotive, Motorcycle, UTV
-
Driving Combo
Your primary driving light and most important zone to start with when building a balanced lighting package.
Automotive, Motorcycle, UTV
-
Spot
This zone is your first level of long-distance lighting. Lights intended for this zone will give you the distance needed to travel at speeds and see safely down the road or trail.
Automotive, Motorcycle, UTV
-
Racer Edition Spot
This zone is implemented when approaching triple-digit speeds, or in instances when distance penetration becomes necessary.
Automotive, Motorcycle, UTV
-
Rock Light
This zone illuminates the wheel wells, undercarriage, or any other part of the vehicle that can benefit from great visibility while moving through tight spaces and jagged terrain.
Automotive, UTV
-
Cargo
This zone is important for drivers that need quick access to tools and cargo, in and immediately around the vehicle.
Automotive, UTV
-
Backup/Reverse
This zone is crucial to keeping the backside of your vehicle safe. Whether reversing on the trail or leading a pack through the dust, you will want the correct lighting solution.
Automotive, UTV
-
Laser Series
This zone is one of the last additions to your lighting package. When you have optimized your entire package and still need that extra punch in the distance, make sure to check out the ultimate distance lighting available today.
Automotive, UTV
