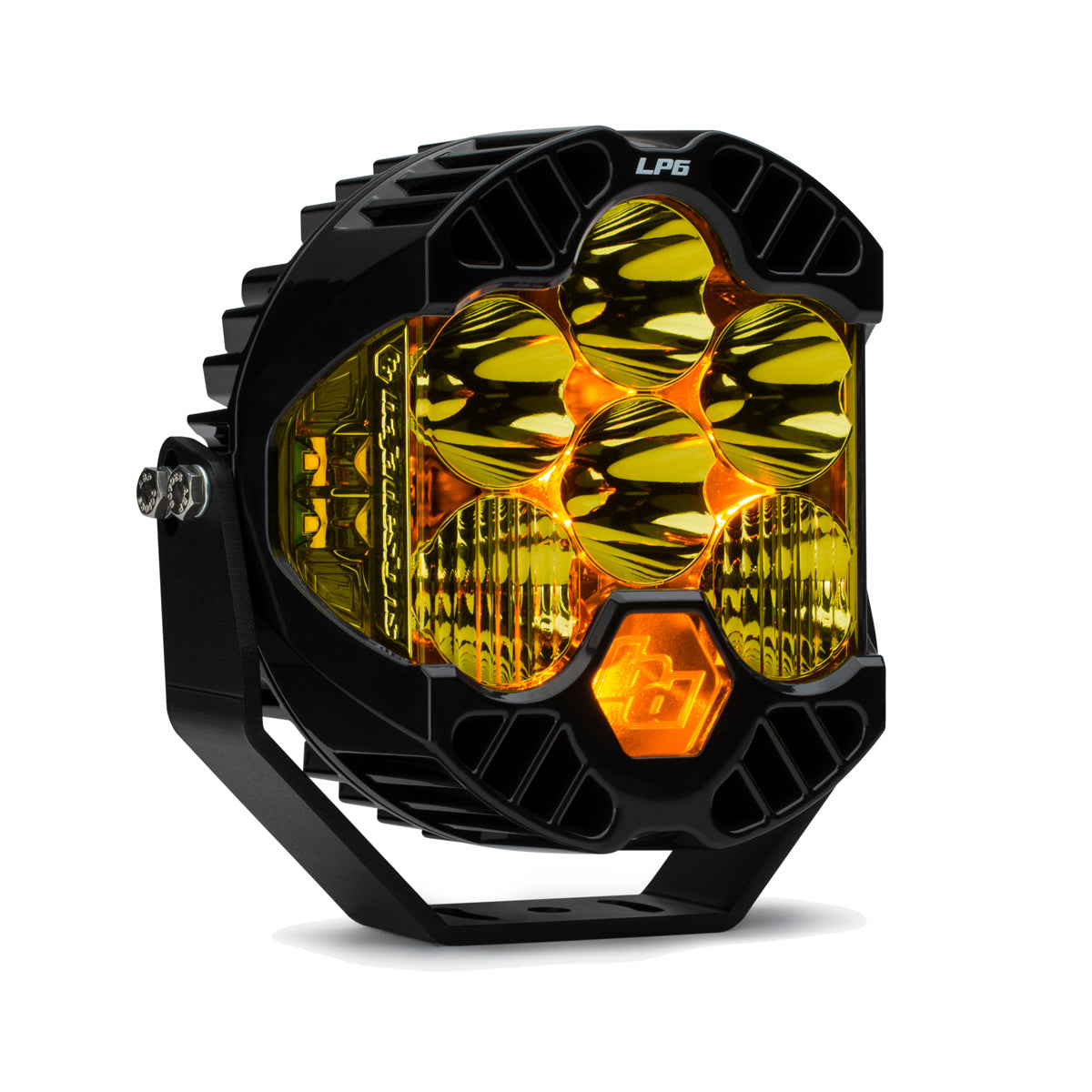

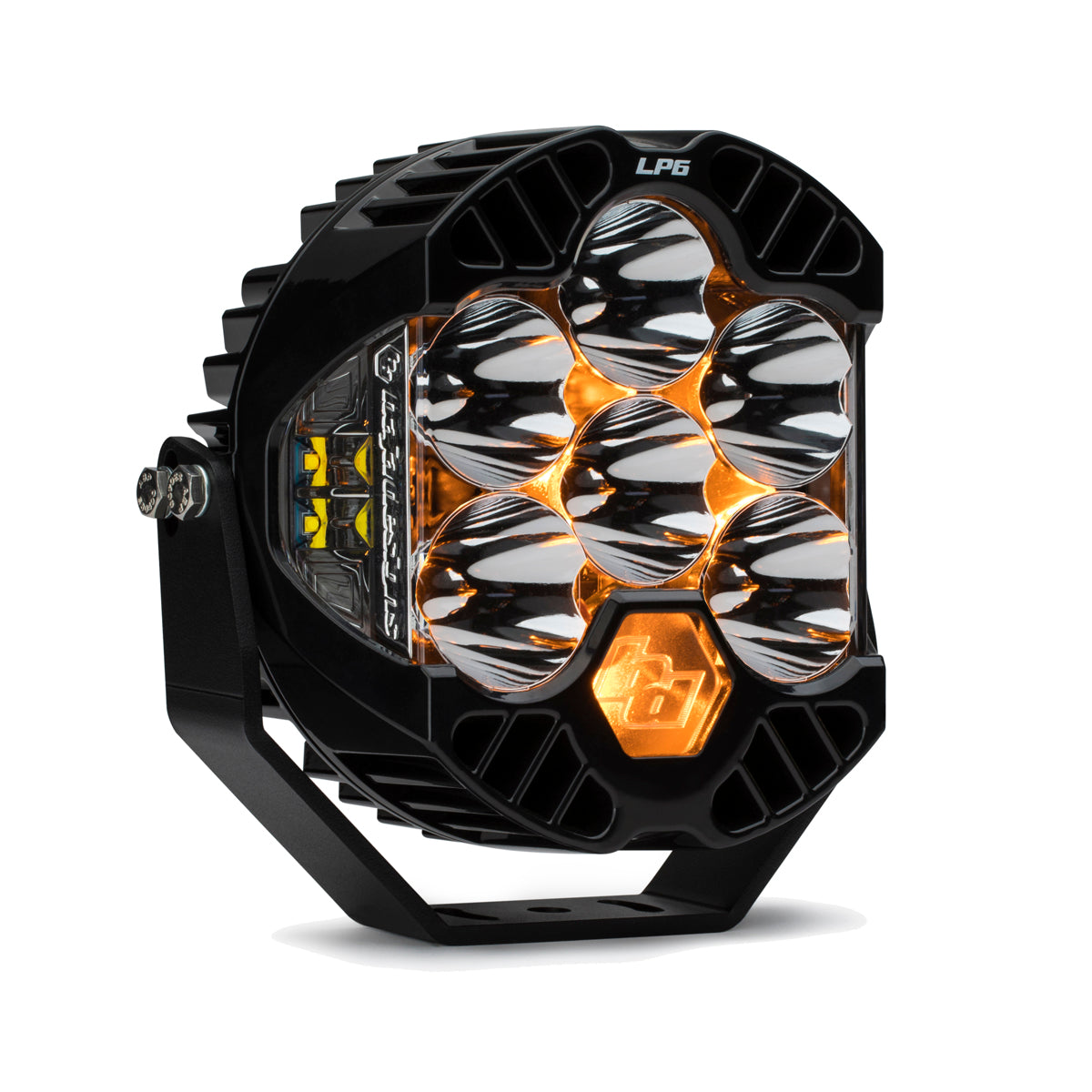

Baja Designs LP6 Pro LED Auxiliary Light Pod

SKU: 270013

No reviews

$ 534.95

Light Pattern Driving/Combo Spot

Color Baja Amber Clear

Backlight Amber Red Blue Green

Product Details

Type LED Light Pods
Vendor Baja Designs
SKU 270013
Shipping Weight 0.0 lb

The LP6 Pro stands as a 6-inch powerhouse, delivering a total of 11,225 lumens and a 200-degree spread of usable LED light through our dedicated Integrated Peripheral Technology (IPT). For optimal performance, the LP6 integrates Direct Ducted Cooling (DDC) technology, allowing efficient air circulation over the rear heat sinks. Featuring colored daytime running light, low power, and high-power modes, the LP6 effortlessly caters to all your lighting needs.

NOTE: This light does not come with a wiring harness.

Available in various patterns, the LP6 Pro suits diverse preferences. The Driving/Combo pattern offers maximum trail coverage with a blend of driving (42 degrees) and spot (8 degrees) optics for both near-field and distance applications. The Spot pattern, with its longer and narrower 8-degree beam focus, illuminates further down the trail or road, ideal for use with additional wide cornering or driving/combo auxiliary lights in Lighting Zones 4 & 5.

With additional red, blue, or green backlight options alongside the original amber, the LP6 Pro allows enthusiasts to customize their vehicle for shows, photo shoots, or anywhere attention is desired.

Disclaimer: Baja Designs LP series lights with red, blue, or green backlights are intended for exhibition use only. Avoid usage on public roads to prevent confusion with law enforcement or emergency vehicles. The owner/driver is responsible for adhering to all highway equipment laws and safety regulations.

Satisfaction Guarantee – 30-Day Money Back Guarantee

Limited Lifetime Warranty – Complete Purchase Protection

uService – Replaceable Lenses And Optics

ClearView – All The Light, Right Where You Need It

MoistureBlock – Waterproof, Rain Proof, Submersible

CopperDrive – Safely Driving LEDs at 100%

5000K Daylight – Less Driver Fatigue, Natural Color

Baja Designs 270001 Installation Sheet

Baja Designs 270003 Installation Sheet

Baja Designs 270011 Installation Sheet

Baja Designs 270013 Installation Sheet

Specifications

Lens Material	Hardcoated Polycarbonate
Light Quantity	1
Lighting Modes	High Beam/Low Beam/Day-Time Running Backlighting
Lighting Quantity	6
Lighting Technology	LED
Lighting Type	Forward Projecting
Mounting Hardware Included	Yes
Mounting Hardware Material	Stainless Steel
Overvoltage Protection	Built-In
Product Type	LP6 Pro LED Light Pod
Secondary Amperage Rating (A)	1.000
Secondary Brightness (Lumens)	1972
Secondary Light Quantity	4 LEDs
Secondary Lighting Technology	LED
Secondary Lighting Type	Integrated Peripheral Technology (IPT)
Secondary Wattage (W)	15
Terminal Connector	DT06-4S Deutsch
Terminal Type	Mating Connector
Universal or Specific	Universal
Wattage (W)	103.500
Wiring Harness Included	No
Amperage Rating (A)	7.500
Average Rated Life (hr.)	49,930
Backlight Amperage Rating (A)	0.300
Backlight Wattage (W)	4.140
Beam Pattern	Spot
Bezel Material	Powder Coat Cast Aluminum
Brightness (Lumens)	11225
Housing Color	Black
Housing Material	Powder Coat Cast Aluminum

Standards & Compliance

Standards/Compliance (Durability)	Exceeds MIL-STD810G (Mil-Spec Testing)
Standards/Compliance (Impact Resistance)	IK10 Compliant (Mechanical Impact Testing)
Standards/Compliance (Water Resistance)	IP69K (Waterproof up to 9ft & Pressure Washable)

Dimensions

Depth (in.)	3.200
Height (in.)	6.500
Length (in.)	6.500
Weight (lbs.)	4.200

GET TO KNOW THE LP SERIES

With so much power, a cooling system was an integral part of making the LP series perform at the highest level. Direct Ducted Cooling, or DDC has been designed in all of the LP series lights for exceptional heat dispersion. This acts as channels, allowing air to travel from the front of the housing to the rear heat sinks keeping the lights from overheating while in use.

One of the features that makes the LP series the best on the trail is Integrated Peripheral Technology, or IPT for short. The IPTs allows the LP series to provide an incredible 200-degree spread of usable light, combining forward and cornering light in an all-in-one package.

Unique Design

The unique Baja Designs futuristic styling through 3D light face with flat and sloping surfaces blended to the case offers the LP9, LP6 and LP4 a characteristic unlike any other light on the market today.

Our LP Pro series models offer color backlight options. Choose from amber, red, green, or blue giving enthusiasts the choice to customize their vehicles for shows, photo shoots, or anywhere they want to bring attention.

Keeping the LP series running at the highest level means having a lens that is free of damage. All LP series lights have been designed with Baja Designs uService technology. Changing a damaged lens and customizing your light pattern is made easy as unscrewing the housing bolts in the back and installing a new lens. All this can be done in your garage or on the trail without the fear of voiding your Lifetime limited warranty.

At Baja Designs, we design our lighting solutions with one goal: to win races. When we achieve this goal, we know we’ve created a product we’re proud to introduce to the general market. The LP Series combines the research and development from all our past and current Baja Designs lights, resulting in the most powerful all-in-one off-road light ever engineered. Watch the inside look: The LP Series video for a glimpse into the technology, features, and performance of the Scientists of Lighting’s flagship powerhouse

We appreciate your business and are committed to providing you with the exceptional service and timely delivery we are known for. Please review the shipping information below for your order.

*FREE U.S. Shipping:

Orders with a subotal of $99.00 or above qualify for Free Standard Ground Shipping to the Contiguous 48 United States. Hawaii and Alaska do not qualify and will be reflected with rates at checkout.

Order Processing Time:

Orders are usually processed within 24-48 hours after the order has been placed.
Custom or special order items may take longer to process, typically 3-5 business days.

Shipping Methods:

Standard Shipping (3-7 business days)
Expedited Shipping (2-3 business days)
Express Shipping (1-2 business days)

Packaging:

Rest assured that all items will be securely and safely packaged to prevent any damage during transit. Fragile or high-value parts will be packaged with additional protective materials, such as bubble wrap or foam padding.

Shipping Rates:

Shipping rates vary based on the size, weight, and destination of the package. You can view the estimated shipping costs for your order during the checkout process before placing your order.

Order Tracking:

Once your order has been shipped, you will receive an email with the tracking number and carrier information. You can also track your order status by logging into your account.

International Shipping:

We ship worldwide! Please note that international shipping rates and delivery times may vary based on destination. Customers are responsible for any customs fees, import taxes, or additional charges that may apply.

LIGHTING ZONES/ LENS PATTERNS/ COLORS

Driving Combo
Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42-degree) and spot (9-degree) optics to provide you with a smooth blend of light for both near field applications and distance.
Spot
A longer and narrower 9-degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights.
Wide Cornering
The Wide Driving pattern offers a 42-degree flattened horizontal beam for the ultimate in comfort lighting. This pattern is specifically for cornering, dust, snow, rain, and/or fog conditions.
Work/Scene
Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft. This pattern is not suitable for driving.
Trail
Designed to aid in both vertical and horizontal light spread. Provides more near and mid-field visibility in tight slower technical terrain. (S1 only)

Clear
The original performance lens. Our clear lens combined with our 5000k LEDs provides light most similar to daylight, reducing driver fatigue and increasing terrain recognition.
Baja Amber
This performance-driven lens is designed for off-road driving in challenging conditions like dust, rain, snow, or fog. The Baja Amber lens minimizes glare, enhancing visibility and significantly improving your driving experience.
Factory Amber
This replacement lens option is crafted to seamlessly match the OEM running lights found on vehicles today. Factory Amber provides a color temperature that is best utilized in low-visibility conditions to increase depth perception while minimizing glare.

ZONES

Dust/Fog
Illuminates the area directly in front of the vehicle, for use during rainy, snowy, or dusty conditions.
Automotive, Motorcycle, UTV
Cornering
Provides cornering and peripheral light, which is necessary to drive comfortably at speed.
Automotive, Motorcycle, UTV
Driving Combo
Your primary driving light and most important zone to start with when building a balanced lighting package.
Automotive, Motorcycle, UTV
Spot
This zone is your first level of long-distance lighting. Lights intended for this zone will give you the distance needed to travel at speeds and see safely down the road or trail.
Automotive, Motorcycle, UTV
Racer Edition Spot
This zone is implemented when approaching triple-digit speeds, or in instances when distance penetration becomes necessary.
Automotive, Motorcycle, UTV
Rock Light
This zone illuminates the wheel wells, undercarriage, or any other part of the vehicle that can benefit from great visibility while moving through tight spaces and jagged terrain.
Automotive, UTV
Cargo
This zone is important for drivers that need quick access to tools and cargo, in and immediately around the vehicle.
Automotive, UTV
Backup/Reverse
This zone is crucial to keeping the backside of your vehicle safe. Whether reversing on the trail or leading a pack through the dust, you will want the correct lighting solution.
Automotive, UTV
Laser Series
This zone is one of the last additions to your lighting package. When you have optimized your entire package and still need that extra punch in the distance, make sure to check out the ultimate distance lighting available today.
Automotive, UTV
