Baja Designs PowerSports Squadron Pro Vertical Mount Light Kit
SPECIAL ORDER
Please allow 1 - 3 weeks for this item to fulfill.
Product Details
- Type LED Light Kits
- Vendor Baja Designs
- SKU 497107
- Shipping Weight 5.0 lb

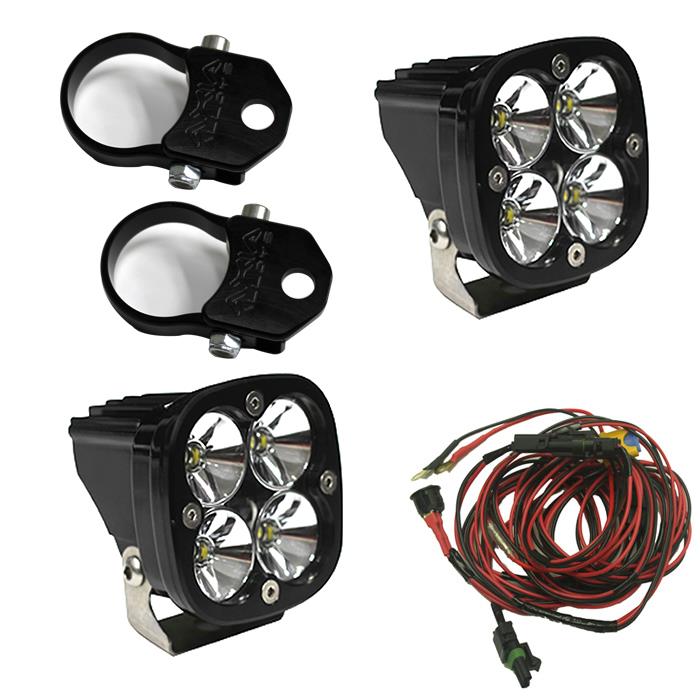

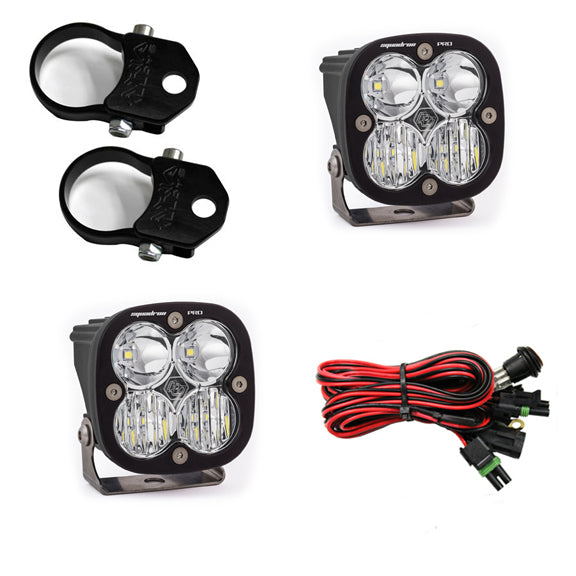

Take your UTV side by side to the next level with our Baja Designs UTV vehicle specific mounting kits. This kit comes equipped with a pair of Squadron Pro LED lights that will truly light up the night at 9,800 lumens at 80 watts. Whether you’re looking for more trail coverage or just need more light for outdoor working conditions, these Squadron Pro LED lights have you covered.
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
Specifications
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity | 4 |
| Lighting Technology | Cree LED (2 Types) |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | Squadron Pro LED Light Pod |
| Wattage (W) | 41.400 |
| Wiring Harness Included | No |
| Amperage Rating (A) | 3 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Driving/Combo |
| Bezel Material | Powder Coated Cast Aluminum |
| Brightness (Lumens) | 4095 |
| Description | Driving/Combo; Clear |
| Housing Color | Black |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
Dimensions
| Depth (in.) | 2.770 |
| Height (in.) | 3.070 |
| Length (in.) | 3.070 |
| Weight (lbs.) | 0.750 |
LIGHTING ZONES/ LENS PATTERNS/ COLORS
-
Driving Combo
Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42-degree) and spot (9-degree) optics to provide you with a smooth blend of light for both near field applications and distance.
-
Spot
A longer and narrower 9-degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights.
-
Wide Cornering
The Wide Driving pattern offers a 42-degree flattened horizontal beam for the ultimate in comfort lighting. This pattern is specifically for cornering, dust, snow, rain, and/or fog conditions.
-
Work/Scene
Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft. This pattern is not suitable for driving.
-
Trail
Designed to aid in both vertical and horizontal light spread. Provides more near and mid-field visibility in tight slower technical terrain. (S1 only)
-
-
Clear
The original performance lens. Our clear lens combined with our 5000k LEDs provides light most similar to daylight, reducing driver fatigue and increasing terrain recognition.
-
Baja Amber
This performance-driven lens is designed for off-road driving in challenging conditions like dust, rain, snow, or fog. The Baja Amber lens minimizes glare, enhancing visibility and significantly improving your driving experience.
-
Factory Amber
This replacement lens option is crafted to seamlessly match the OEM running lights found on vehicles today. Factory Amber provides a color temperature that is best utilized in low-visibility conditions to increase depth perception while minimizing glare.
-
ZONES
-
Dust/Fog
Illuminates the area directly in front of the vehicle, for use during rainy, snowy, or dusty conditions.
Automotive, Motorcycle, UTV
-
Cornering
Provides cornering and peripheral light, which is necessary to drive comfortably at speed.
Automotive, Motorcycle, UTV
-
Driving Combo
Your primary driving light and most important zone to start with when building a balanced lighting package.
Automotive, Motorcycle, UTV
-
Spot
This zone is your first level of long-distance lighting. Lights intended for this zone will give you the distance needed to travel at speeds and see safely down the road or trail.
Automotive, Motorcycle, UTV
-
Racer Edition Spot
This zone is implemented when approaching triple-digit speeds, or in instances when distance penetration becomes necessary.
Automotive, Motorcycle, UTV
-
Rock Light
This zone illuminates the wheel wells, undercarriage, or any other part of the vehicle that can benefit from great visibility while moving through tight spaces and jagged terrain.
Automotive, UTV
-
Cargo
This zone is important for drivers that need quick access to tools and cargo, in and immediately around the vehicle.
Automotive, UTV
-
Backup/Reverse
This zone is crucial to keeping the backside of your vehicle safe. Whether reversing on the trail or leading a pack through the dust, you will want the correct lighting solution.
Automotive, UTV
-
Laser Series
This zone is one of the last additions to your lighting package. When you have optimized your entire package and still need that extra punch in the distance, make sure to check out the ultimate distance lighting available today.
Automotive, UTV
