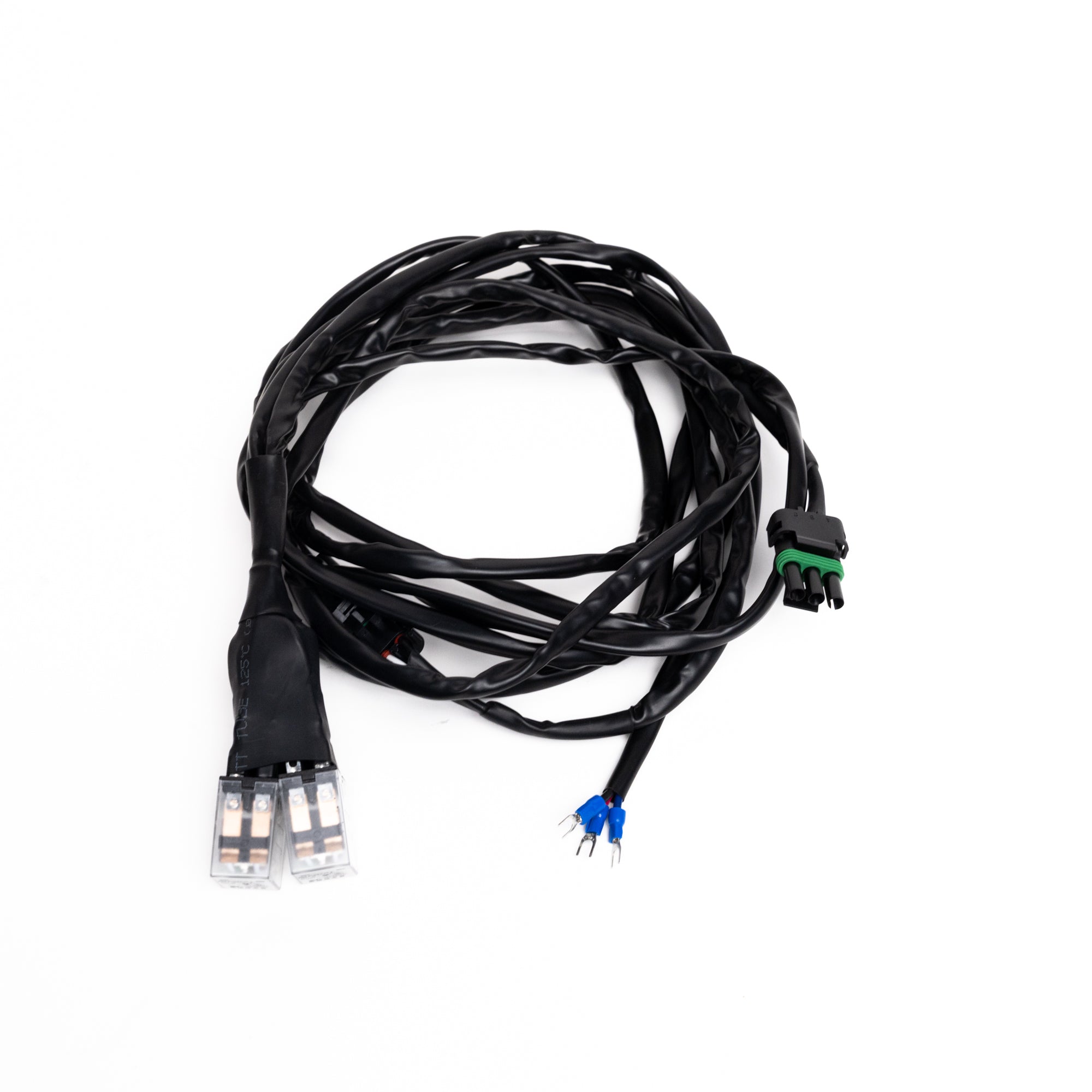

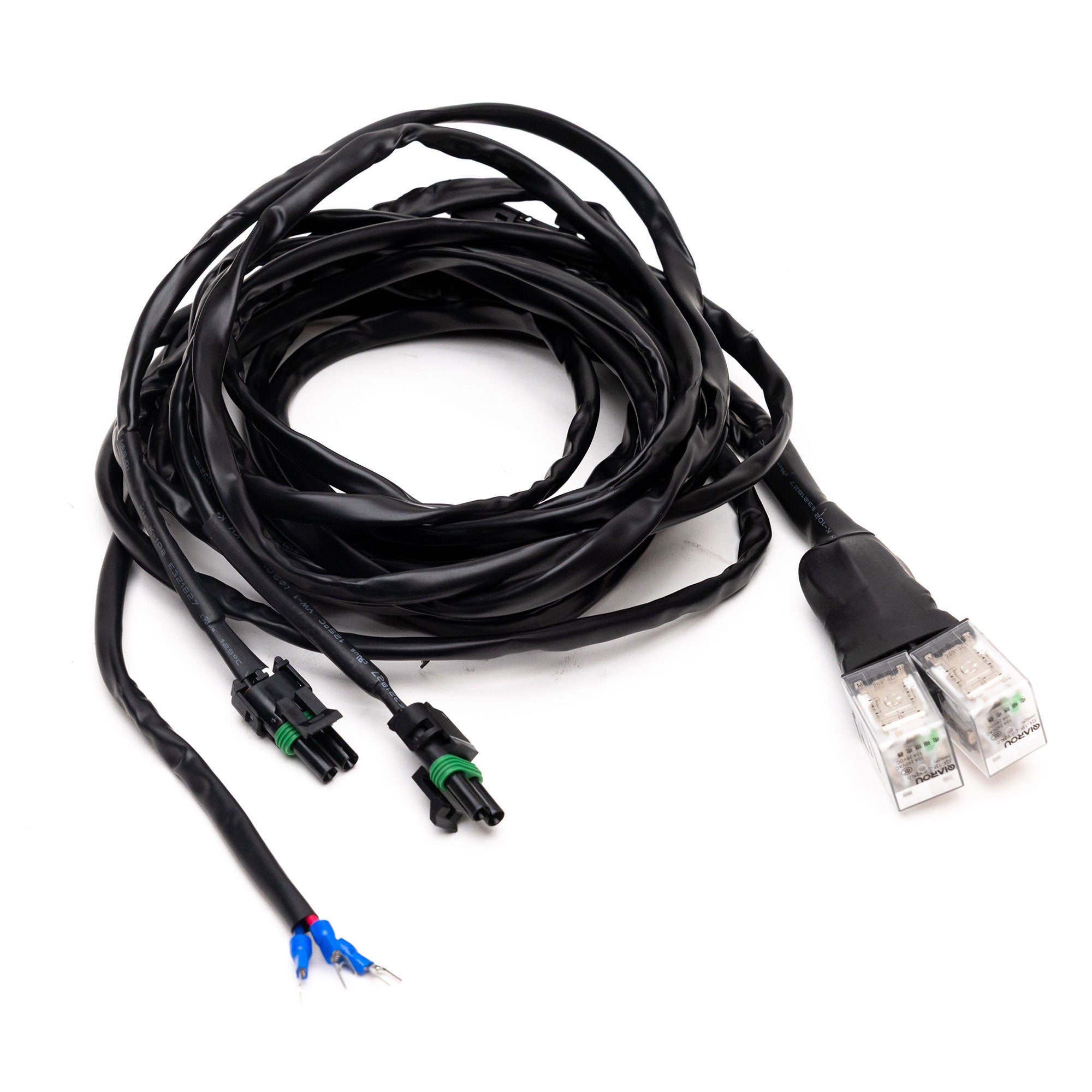

Baja Designs Reflex Light Actuator Harness – Power Management Universal Motor Actuator Adaptor Harness
SPECIAL ORDER
Please allow 1 - 3 weeks for this item to fulfill.
Product Details
- Type Wiring Harness
- Vendor Baja Designs
- SKU 64-6305
- Shipping Weight 0.0 oz
The Reflex Light Actuator wiring harness for power management systems such as sPOD, Switch Pros and others allow users the ability to wire and control the up and down movement of the actuators through their control module. Enthusiasts can select from a single harness, that when paired with an actuator linking harness can control three to eight actuators together, or the pair harness that will power one to two actuators in sync. Harnesses are sold separately to provide flexibility for user’s existing lighting setups.
Single/Pair Light Configuration
64-6305 - Pair harnesses are designed for use with single and pair lighting setups, including light bars and A-pillar kits. For 10” light bars using single actuator, extra lead can be tucked away.
3-8 Light Configuration
64-6304 - Need to control multiple actuators at once? This single lead 3-pin power management actuator harness can be paired with any actuator linking harness to power multiple actuators at the same time. For example, to actuate a 4-light LP9 bumper setup with a momentary switch and one actuator per light: (1x - 64-6304) power management single lead actuator harness and (1x - 64-0194) 4 actuator linking Harness.
XL Linkable Harnesses for use with 64-6304:
• 64-0193 – 3 Actuator Linking Harness
• 64-0194 – 4 Actuator Linking Harness
• 64-0195 – 5 Actuator Linking Harness
• 64-0190 – 6 Actuator Linking Harness
• 64-0191 – 7 Actuator Linking Harness
• 64-0192 – 8 Actuator Linking Harness
LIGHTING ZONES/ LENS PATTERNS/ COLORS
-
Driving Combo
Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42-degree) and spot (9-degree) optics to provide you with a smooth blend of light for both near field applications and distance.
-
Spot
A longer and narrower 9-degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights.
-
Wide Cornering
The Wide Driving pattern offers a 42-degree flattened horizontal beam for the ultimate in comfort lighting. This pattern is specifically for cornering, dust, snow, rain, and/or fog conditions.
-
Work/Scene
Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft. This pattern is not suitable for driving.
-
Trail
Designed to aid in both vertical and horizontal light spread. Provides more near and mid-field visibility in tight slower technical terrain. (S1 only)
-
-
Clear
The original performance lens. Our clear lens combined with our 5000k LEDs provides light most similar to daylight, reducing driver fatigue and increasing terrain recognition.
-
Baja Amber
This performance-driven lens is designed for off-road driving in challenging conditions like dust, rain, snow, or fog. The Baja Amber lens minimizes glare, enhancing visibility and significantly improving your driving experience.
-
Factory Amber
This replacement lens option is crafted to seamlessly match the OEM running lights found on vehicles today. Factory Amber provides a color temperature that is best utilized in low-visibility conditions to increase depth perception while minimizing glare.
-
ZONES
-
Dust/Fog
Illuminates the area directly in front of the vehicle, for use during rainy, snowy, or dusty conditions.
Automotive, Motorcycle, UTV
-
Cornering
Provides cornering and peripheral light, which is necessary to drive comfortably at speed.
Automotive, Motorcycle, UTV
-
Driving Combo
Your primary driving light and most important zone to start with when building a balanced lighting package.
Automotive, Motorcycle, UTV
-
Spot
This zone is your first level of long-distance lighting. Lights intended for this zone will give you the distance needed to travel at speeds and see safely down the road or trail.
Automotive, Motorcycle, UTV
-
Racer Edition Spot
This zone is implemented when approaching triple-digit speeds, or in instances when distance penetration becomes necessary.
Automotive, Motorcycle, UTV
-
Rock Light
This zone illuminates the wheel wells, undercarriage, or any other part of the vehicle that can benefit from great visibility while moving through tight spaces and jagged terrain.
Automotive, UTV
-
Cargo
This zone is important for drivers that need quick access to tools and cargo, in and immediately around the vehicle.
Automotive, UTV
-
Backup/Reverse
This zone is crucial to keeping the backside of your vehicle safe. Whether reversing on the trail or leading a pack through the dust, you will want the correct lighting solution.
Automotive, UTV
-
Laser Series
This zone is one of the last additions to your lighting package. When you have optimized your entire package and still need that extra punch in the distance, make sure to check out the ultimate distance lighting available today.
Automotive, UTV
