Baja Designs XL Linkable Roof Mount Light Kit Polaris 2018-21 RZR Turbo S
SPECIAL ORDER
Please allow 1 - 3 weeks for this item to fulfill.
Product Details
- Type LED Light Kit
- Vendor Baja Designs
- SKU 447852
- Shipping Weight 12.0 lb
Full adjustment. Total Performance. The 5XL Linkable LED light bar bumper kit for the Polaris RZR Turbo S is designed for enthusiasts looking to take charge with a light package that is completely customizable for their needs. Choose from 5XL Sport Linkable that offers 15,810 total lumens or the 5XL Pro Linkable producing 20,475 total lumens of forward projected light with a smooth blend due to the use of multiple lens patterns. This system provides 45 degrees of vertical pitch adjustment within each light or the entire unit. Completely independent horizontal adjustment allows for straight or arc configurations to perfectly match the lines of your Polaris RZR Turbo S. The wiring comes fully crimped and trimmed, allowing for easy install This kit includes 5 XL Sports, Links, vehicle specific mounting brackets, wiring harness and rock guards. This kit is a turnkey system for the Turbo S owner that is looking to take down the night and give a standoff appearance to their vehicle!
Features:
• XL Linkable system offers 45-degree of vertical pitch adjustment within each light or entire unit
• Independent horizontal adjustment allows for straight or arc configurations
• Pre-Load kit included.
• Black rock guards included

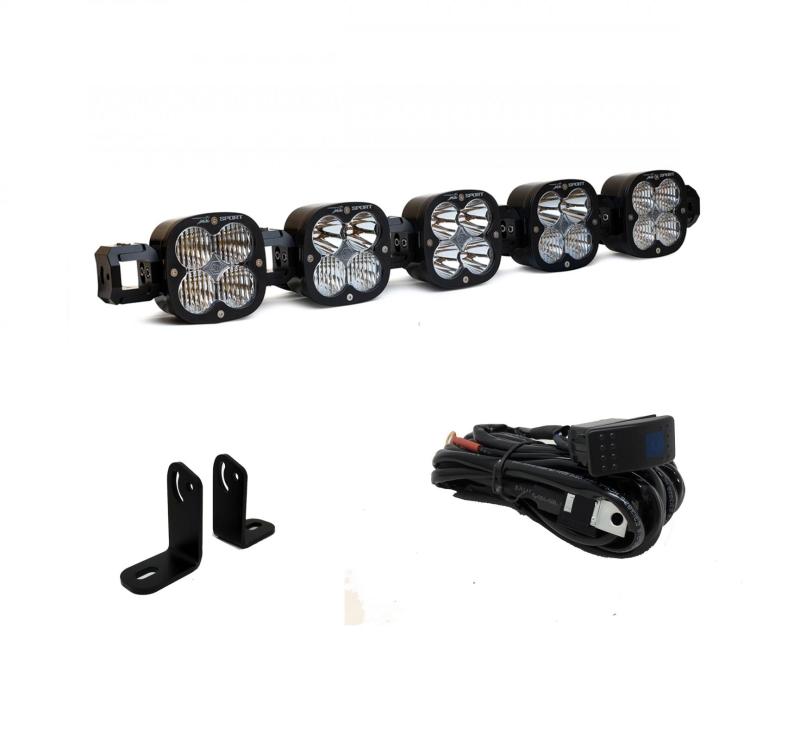

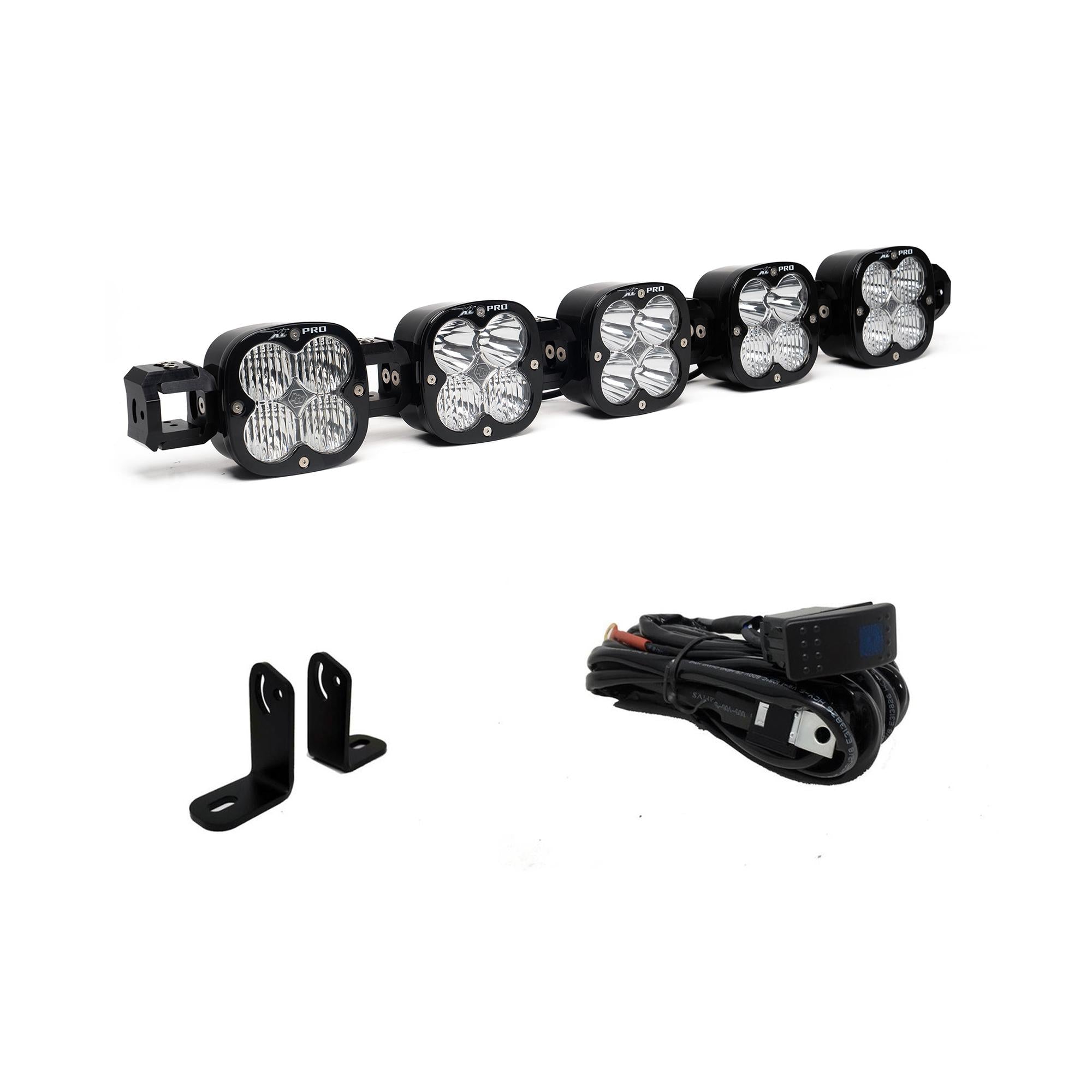

Kit Includes:
• (1x) 5XL Sport or Pro Linkable – Clear, Multi Pattern
• (2x) Mounting Brackets
• (1x) UTV Harness, Toggle (640129)
• (1x) Pre-Load Kit
• (5x) Black Rock Guards
• All Necessary Mounting Hardware
The Baja Designs Advantage:
• Satisfaction Guarantee – 30-Day Money Back Guarantee
• Limited Lifetime Warranty – Complete Purchase Protection
• uService – Replaceable Lenses And Optics
• ClearView – All The Light, Right Where You Need It
• MoistureBlock – Waterproof, Rain Proof, Submersible
• CopperDrive – Safely Driving LEDs at 100%
• 5000K Daylight – Less Driver Fatigue, Natural Color
Baja Designs 447098 Installation Sheet
SKU: 740003
Specifications
| Universal or Specific | Universal |
| Product Type | XL Linkable LED Light Bar |
| Overvoltage Protection | Built-In |
| Mounting Hardware Material | Stainless Steel |
| Mounting Hardware Included | Yes |
| Mounting Hardware Description | Links; Rock Guards |
| Lighting Type | Forward Projecting |
| Lighting Technology | LED |
| Lighting Quantity | 20 |
| Lighting Modes | Beam |
| Wattage (W) | 130 |
| Wiring Harness Included | Yes |
| Light Quantity | 5 |
| Lens Material | Hardcoated Polycarbonate |
| Lens Color | Clear |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Housing Color | Black |
| Description | 5XL Sport; Multi-Pattern; Clear |
| Brightness (Lumens) | 15,750 |
| Bezel Material | Powder Coated Cast Aluminum |
| Beam Pattern | Multi-Pattern |
| Average Rated Life (hr.) | 49,930 |
| Amperage Rating (A) | 10 |
Standards & Compliance
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
Dimensions
| Length (in.) | 32.99 |
| Height (in.) | 4.43 |
| Depth (in.) | 2.8 |
LIGHTING ZONES/ LENS PATTERNS/ COLORS
-
Driving Combo
Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42-degree) and spot (9-degree) optics to provide you with a smooth blend of light for both near field applications and distance.
-
Spot
A longer and narrower 9-degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights.
-
Wide Cornering
The Wide Driving pattern offers a 42-degree flattened horizontal beam for the ultimate in comfort lighting. This pattern is specifically for cornering, dust, snow, rain, and/or fog conditions.
-
Work/Scene
Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft. This pattern is not suitable for driving.
-
Trail
Designed to aid in both vertical and horizontal light spread. Provides more near and mid-field visibility in tight slower technical terrain. (S1 only)
-
-
Clear
The original performance lens. Our clear lens combined with our 5000k LEDs provides light most similar to daylight, reducing driver fatigue and increasing terrain recognition.
-
Baja Amber
This performance-driven lens is designed for off-road driving in challenging conditions like dust, rain, snow, or fog. The Baja Amber lens minimizes glare, enhancing visibility and significantly improving your driving experience.
-
Factory Amber
This replacement lens option is crafted to seamlessly match the OEM running lights found on vehicles today. Factory Amber provides a color temperature that is best utilized in low-visibility conditions to increase depth perception while minimizing glare.
-
ZONES
-
Dust/Fog
Illuminates the area directly in front of the vehicle, for use during rainy, snowy, or dusty conditions.
Automotive, Motorcycle, UTV
-
Cornering
Provides cornering and peripheral light, which is necessary to drive comfortably at speed.
Automotive, Motorcycle, UTV
-
Driving Combo
Your primary driving light and most important zone to start with when building a balanced lighting package.
Automotive, Motorcycle, UTV
-
Spot
This zone is your first level of long-distance lighting. Lights intended for this zone will give you the distance needed to travel at speeds and see safely down the road or trail.
Automotive, Motorcycle, UTV
-
Racer Edition Spot
This zone is implemented when approaching triple-digit speeds, or in instances when distance penetration becomes necessary.
Automotive, Motorcycle, UTV
-
Rock Light
This zone illuminates the wheel wells, undercarriage, or any other part of the vehicle that can benefit from great visibility while moving through tight spaces and jagged terrain.
Automotive, UTV
-
Cargo
This zone is important for drivers that need quick access to tools and cargo, in and immediately around the vehicle.
Automotive, UTV
-
Backup/Reverse
This zone is crucial to keeping the backside of your vehicle safe. Whether reversing on the trail or leading a pack through the dust, you will want the correct lighting solution.
Automotive, UTV
-
Laser Series
This zone is one of the last additions to your lighting package. When you have optimized your entire package and still need that extra punch in the distance, make sure to check out the ultimate distance lighting available today.
Automotive, UTV
