Baja Designs Moto S1 Auxiliary EFI Light Kit
SPECIAL ORDER
Please allow 1 - 3 weeks for this item to fulfill.
Product Details
- Type Headlights
- Vendor Baja Designs
- SKU 507086
- Shipping Weight 3.0 lb
The Baja Designs S1 Moto kit was designed with the enthusiast in mind! This kit requires very little power to run and can be ridden off of as sole headlight or as an addition to our other headlight kits. The bracketry is sturdy and allows for you to mount off of the forks of most dirt bikes. Installation is a breeze and everything you need to take on the night is included! US Patent Number 11273751. The EFI kit will utilize our bike specific harness (sold separately; fitment listed below) to power the lights, while the universal kit will come with our universal motorcycle harness (611049) that connects to the motorcycle's battery for modern electric start bikes.
NOTE: EFI models will require the additional bike-specific harness listed (see below) to power lights.
For EFI specified models below, the additional harness listed will need to be purchased to power lights:
- 129039 - CRF250R/450R (2009)
- 129041 - CRF250R/450R (13-16)
- 129042 - YZ250F (14-17)/250FX (15-18)/450F (14-17)/FX (16-18)
- 129046 - YZ450F (10-13)
- 129044 - RMZ250 (10-16)/RMZ450 (08-16)
- 129043 - KX250F/450F (09-18)

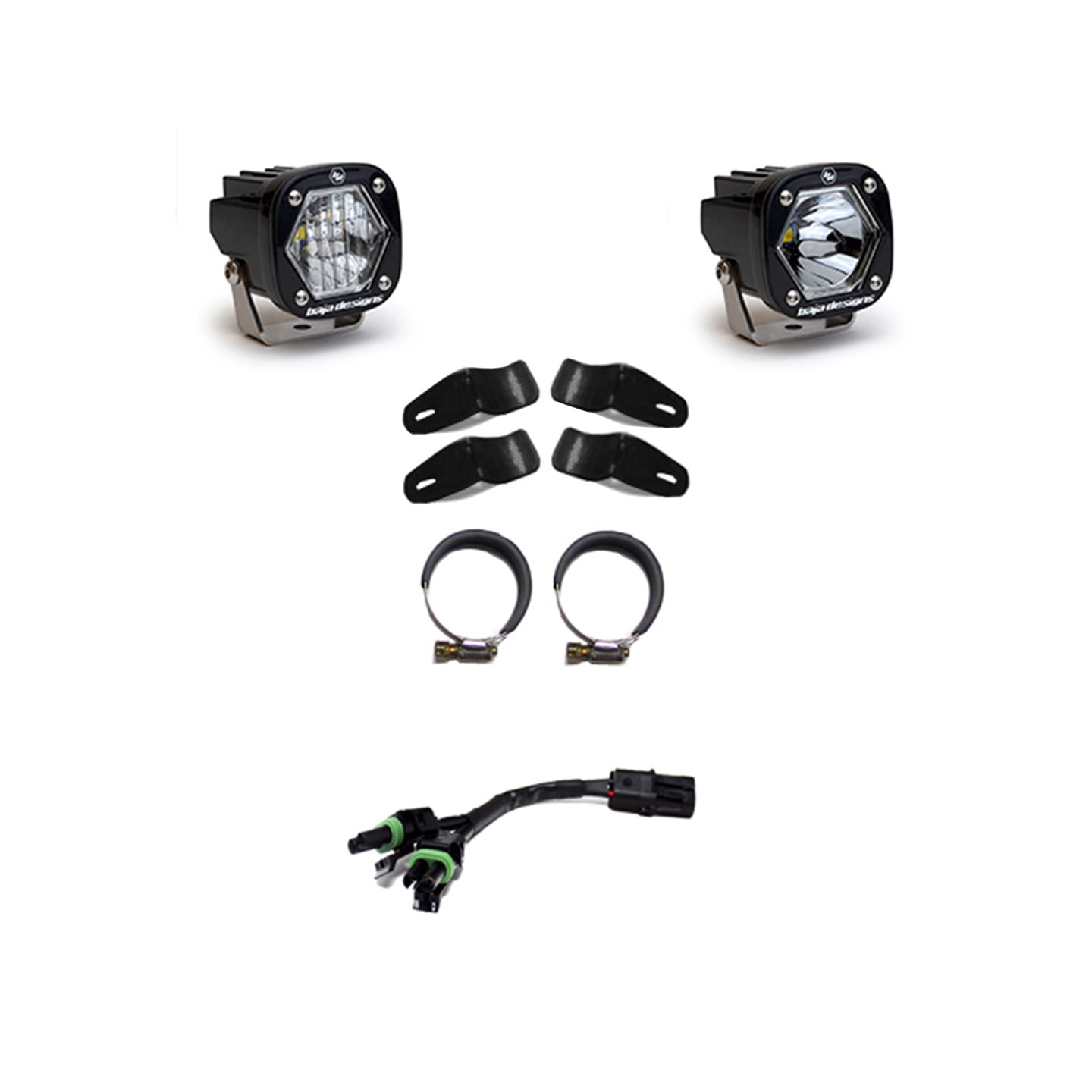

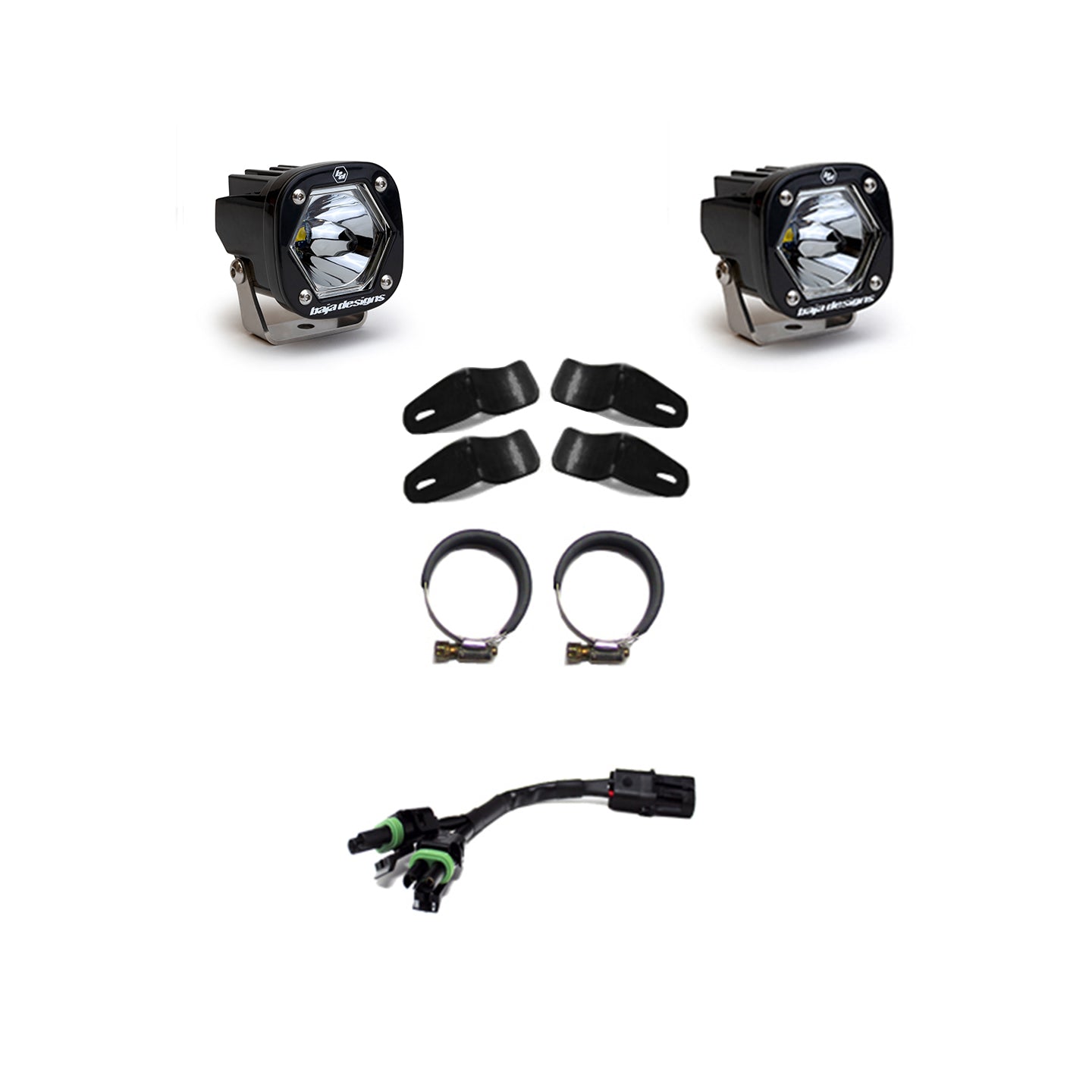

EFI Kits Includes:
- (2x) S1, Clear (Spot/Spot or Spot/Trail multi-pattern setup)
- (1x) Splitter Harness (613607)
- (4x) Tecate Bracket Mount
- (2x) Hose Clamps
- All necessary mounting hardware
Universal Kits Includes:
- (2x) S1, Clear (Spot/Spot or Spot/Trail multi pattern setup)
- (1x) Splitter Harness (613607)
- (1x) Universal Motorcycle Harness w/ switch (611049)
- (4x) Tecate Bracket Mount
- (2x) Hose Clamps
- All necessary mounting hardware
S1 Specifications (per light)
- Lumens: 2,320
- 19.59W/1.42A
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Safely Driving LEDs at 100%
5000K Daylight – Less Driver Fatigue, Natural Color
Baja Designs 507086 Installation Sheet
Baja Designs 507087 Installation Sheet
Specifications
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 1 |
| Lighting Modes | Beam |
| Lighting Quantity | 1 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
| Product Type | S1 LED Light Pod |
| Voltage | 9-28 |
| Wattage (W) | 19.596 |
| Wiring Harness Included | No |
| Amperage Rating (A) | 1.420 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Spot |
| Bezel Material | Powder Coated Cast Aluminum |
| Brightness (Lumens) | 2320 |
| Description | Spot; Clear |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
Dimensions
| Depth (in.) | 2.100 |
| Height (in.) | 2.100 |
| Length (in.) | 2.100 |
| Weight (lbs.) | 0.400 |
MEET THE S1 - Big Light, Small package
Performance Per Inch
Compact in size, the S1 is packed with the same race-winning DNA as our flagship series lights. The S1 delivers big performance in a small package. Take an inside look at what makes the S1 the most versatile and powerful compact light in our lineup—built by the Scientists of Lighting.
2,320 Powerful Lumens
We took the DNA out of our XL80, scaled it down to a single high-output 20-watt LED and paired with our Clearview® optics allows the S1 to deliver an impressive 2,320 lumens that projects light into zones 1, 2, and 4 for optimal trail coverage. That means you get performance normally reserved for larger lights—now in a form factor that fits anywhere and bright enough to be used as a standalone driving light.
uSERVICE® Technology
Customize and maintain your Baja Designs S1 LED Light with ease using our exclusive uService® technology. Whether you’re replacing a damaged lens or fine-tuning your beam pattern, the S1 LED Light offers unmatched serviceability and flexibility. With the ability to easily swap optics, you can tailor your lighting setup to match any off-road adventure or riding condition. Make the most of your Baja Designs S1 with a lighting solution that’s built for performance, durability, and total customization.
LIGHTING ZONES/ LENS PATTERNS/ COLORS
-
Driving Combo
Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42-degree) and spot (9-degree) optics to provide you with a smooth blend of light for both near field applications and distance.
-
Spot
A longer and narrower 9-degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights.
-
Wide Cornering
The Wide Driving pattern offers a 42-degree flattened horizontal beam for the ultimate in comfort lighting. This pattern is specifically for cornering, dust, snow, rain, and/or fog conditions.
-
Work/Scene
Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft. This pattern is not suitable for driving.
-
Trail
Designed to aid in both vertical and horizontal light spread. Provides more near and mid-field visibility in tight slower technical terrain. (S1 only)
-
-
Clear
The original performance lens. Our clear lens combined with our 5000k LEDs provides light most similar to daylight, reducing driver fatigue and increasing terrain recognition.
-
Baja Amber
This performance-driven lens is designed for off-road driving in challenging conditions like dust, rain, snow, or fog. The Baja Amber lens minimizes glare, enhancing visibility and significantly improving your driving experience.
-
Factory Amber
This replacement lens option is crafted to seamlessly match the OEM running lights found on vehicles today. Factory Amber provides a color temperature that is best utilized in low-visibility conditions to increase depth perception while minimizing glare.
-
ZONES
-
Dust/Fog
Illuminates the area directly in front of the vehicle, for use during rainy, snowy, or dusty conditions.
Automotive, Motorcycle, UTV
-
Cornering
Provides cornering and peripheral light, which is necessary to drive comfortably at speed.
Automotive, Motorcycle, UTV
-
Driving Combo
Your primary driving light and most important zone to start with when building a balanced lighting package.
Automotive, Motorcycle, UTV
-
Spot
This zone is your first level of long-distance lighting. Lights intended for this zone will give you the distance needed to travel at speeds and see safely down the road or trail.
Automotive, Motorcycle, UTV
-
Racer Edition Spot
This zone is implemented when approaching triple-digit speeds, or in instances when distance penetration becomes necessary.
Automotive, Motorcycle, UTV
-
Rock Light
This zone illuminates the wheel wells, undercarriage, or any other part of the vehicle that can benefit from great visibility while moving through tight spaces and jagged terrain.
Automotive, UTV
-
Cargo
This zone is important for drivers that need quick access to tools and cargo, in and immediately around the vehicle.
Automotive, UTV
-
Backup/Reverse
This zone is crucial to keeping the backside of your vehicle safe. Whether reversing on the trail or leading a pack through the dust, you will want the correct lighting solution.
Automotive, UTV
-
Laser Series
This zone is one of the last additions to your lighting package. When you have optimized your entire package and still need that extra punch in the distance, make sure to check out the ultimate distance lighting available today.
Automotive, UTV
