Baja Designs Squadron-R 2.0 Sport Black LED Auxiliary Light Pod Pair

SKU: 5878012NH
No reviews
$ 239.95
Light Pattern
Lens Color
Harness?

SPECIAL ORDER

Please allow 1 - 3 weeks for this item to fulfill.

Product Details

  • Type LED Light Pods
  • Vendor Baja Designs
  • SKU 5878012NH
  • UPC 810160465478
  • Shipping Weight 5.0 lb
Description Fitment Shipping

The Baja Designs Squadron-R 2.0 Sport pair is the next evolution of our most trusted compact LED light pod. Completely redesigned from the inside out, the Squadron-R 2.0 Sport features a larger 4-inch round bezel for those that want more traditional styling and for aftermarket bumpers with a round hole. An all-new modern exterior, next‑generation optics, and a powerful 3,200‑lumen output at 30W—delivering a 35% increase in performance over the previous generation with improved beam control and efficiency. Precision‑engineered optics create a refined beam pattern that throws light farther and wider while minimizing wasted spill, giving you more usable illumination exactly where you need it.

Whether you're navigating tight trails, wide‑open desert, or night‑time roads, the Squadron 2.0 Sport delivers superior clarity and confidence after dark. Every detail has been upgraded to raise the bar for small LED light pods while maintaining the proven reliability that defines Baja Designs. The new gloss‑black aluminum housing delivers a bold, modern look while retaining the unmistakable Baja Designs style. Designed to maximize durability, performance, and consistency, the Squadron 2.0 Sport stands at the top of its class.

New features include updated lens patterns optimized for the redesigned optics, a rugged 4‑pin Deutsch connector for enhanced durability, and an all‑new color selectable backlight with nine selectable colors to match your vehicle’s style. Improved uService® components include clip‑in reflectors that stay secure during lens swaps, plus a redesigned gasket for better sealing and long‑term protection from the elements. A new mounting bracket provides increased vertical adjustability for precise aiming. Setting a bold new benchmark for LED auxiliary lighting, the Squadron 2.0 Sport is engineered for enthusiasts who demand uncompromising night‑time visibility. Like all Baja Designs products, it’s backed by our 30‑Day Satisfaction Guarantee and Limited Lifetime Warranty for complete peace of mind.

Features:

  • Refined beam pattern provides greater distance, wider coverage, and reduced light spill
  • Color selectable backlight with 9 selectable colors to match any vehicle
  • New clip‑in reflectors stay secure during lens changes, improving uService®
  • New gasket design improves sealing and protection against the elements
  • Redesigned mounting bracket allows greater vertical adjustability
  • Standard 4‑pin Deutsch connector for improved wiring harness durability

Squadron 2.0 Sport Specifications:

  • Lumens: 3,200
  • Watts/Amps: 30W/2.2A @13.8V
  • Operational Voltage: 12-32V

ELS™ Scores:

  • Squadron 2.0 Sport Spot Clear: ELS 84°/5.1/398/2645
  • Squadron 2.0 Sport Driving Combo Clear: ELS 106°/6.8/296/2670
  • Squadron 2.0 Sport Wide Cornering Clear: ELS 118°/7.4/128/2664
  • Squadron 2.0 Sport Work/Scene Clear: ELS 136°/7.9/47/2475

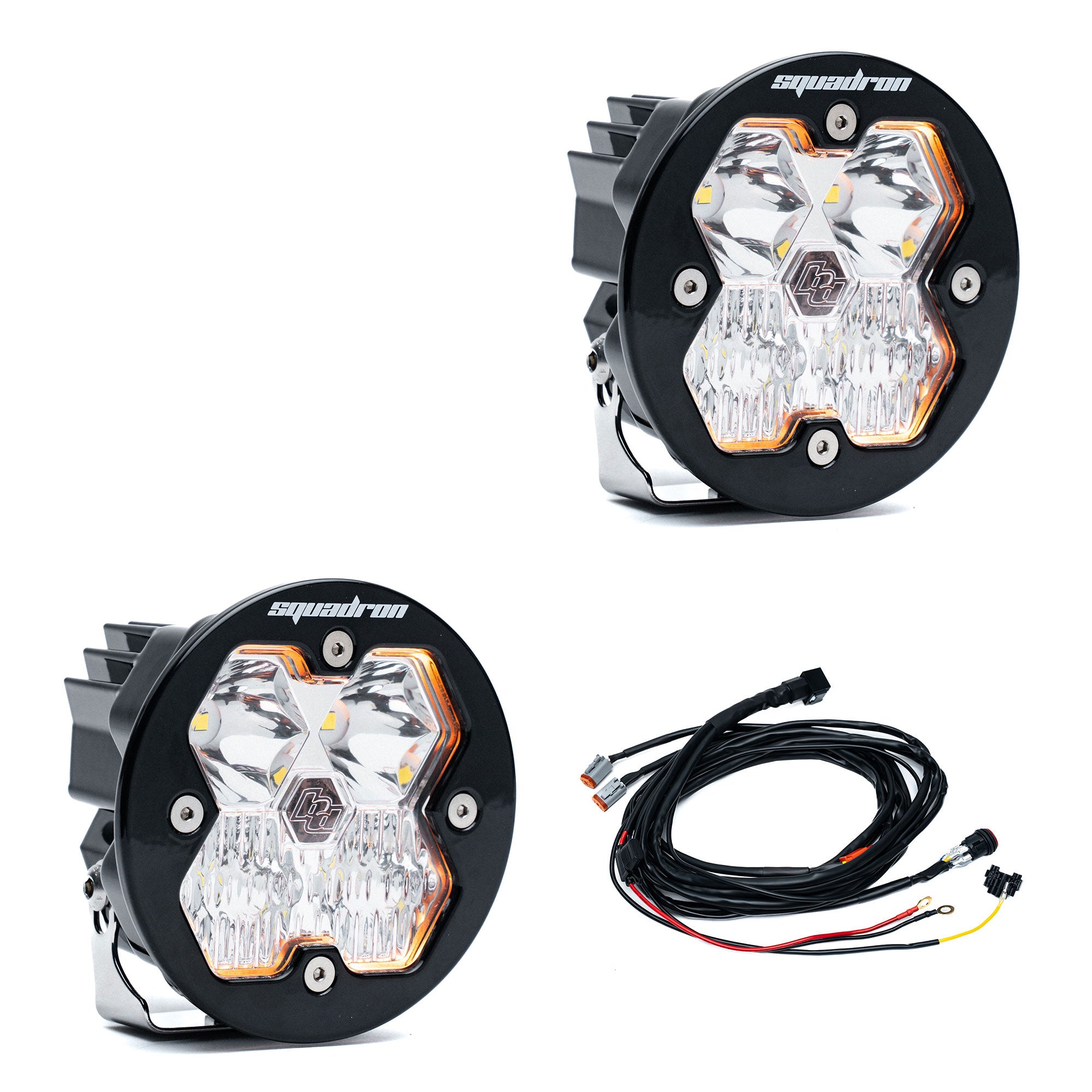

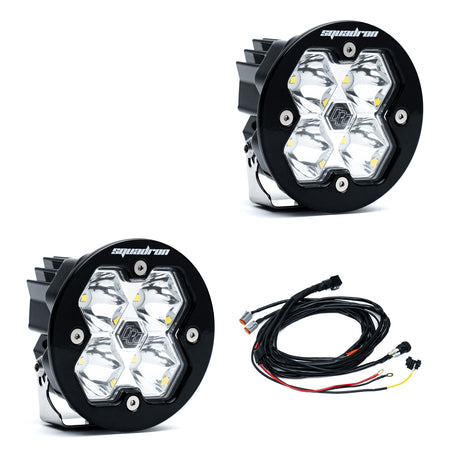

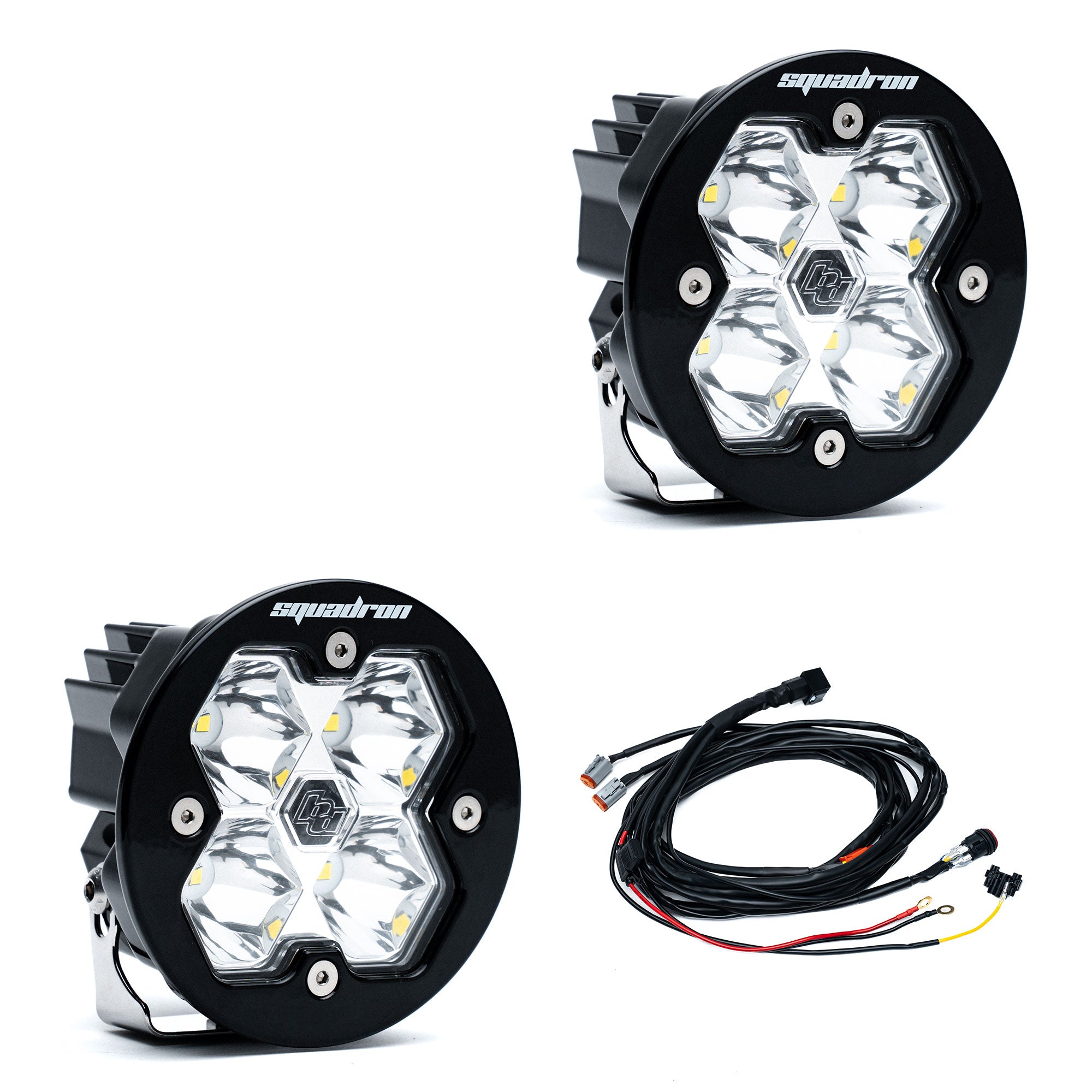

Harness Kits Includes:

  • (2x) Squadron-R 2.0 Sport Light Pods
  • (1x) Wiring Harness
  • All Necessary Mounting Hardware

No Harness Kits Includes:

  • (2x) Squadron-R 2.0 Sport Light Pods
  • All Necessary Mounting Hardware

  • Improved performance – Pro 41%/ Sport 35% performance increase over Squadron 1.0
  • All new color selectable backlight – industry leading 9-selectable backlight colors in a 3” light package
  • Improved uService functionality includes new clip-in reflectors that won’t fall out and new lens gasket improves sealing out the elements reducing pinched o-rinigs/sealing failures
  • 4-pin Deutsch-style connectors are standard on wire harness
  • Redesigned universal bracket allows for increased vertical light adjustment
  • Updated lens patterns/designs for increased performance
  • Newly designed vehicle-specific kits (VSKs)

The next generation of Baja Designs

HIGH OUTPUT PERFORMANCE: The Squadron 2.0 Sport produces 3,200 lumens at 30W. Next-generation optics throw light farther and wider while minimizing wasted spill, delivering more usable illumination exactly where you need it.

For drivers demanding maximum output, the Squadron 2.0 Pro throws 5,921 lumens at 65W a 41% increase in power over previous generation. Both configurations operate on 12-36V systems and are available in harness and non-harness pair options.

COLOR SELECTABLE BACKLIGHT:

The Squadron 2.0 features an integrated 9-color selectable backlight. Drivers can toggle between red, green, blue, magenta, cyan, amber, yellow, pink, and white, all configurable through the included harness. Color settings are retained when the light is powered off, so your setup is always ready when you are.

IMPROVED uSERVICE FUNCTIONALITY:

Updated uService® components include clip-in reflectors that stay secure during lens swaps and a new gasket design that improves sealing and long-term protection from the elements. A rugged 4-pin Deutsch-style connector replaces the previous standard for enhanced durability.

Every detail has been upgraded while maintaining the proven reliability that defines Baja Designs.

CLEARVIEW OPTICAL CONTROL:

Features Baja Designs ClearView Optics with updated reflectors and lens designs for increased usable light, improved beam pattern efficiency, and reduced driver fatigue using Baja Designs’ exclusive 5000K daylight color temperature.

CONNECTORS TO HANDLE ABUSE:  4-pin Deutsch-style connectors are now standard on every wire harness — weatherproof, vibration-resistant, and rated for the kind of punishment that kills cheap connectors.

Baja Designs 58-7801-2 Installation Sheet
Baja Designs 58-7803-2 Installation Sheet
Baja Designs 58-7805-2 Installation Sheet
Baja Designs 58-7806-2 Installation Sheet
Baja Designs 58-7813-2 Installation Sheet
Baja Designs 58-7815-2 Installation Sheet

LIGHTING ZONES/ LENS PATTERNS/ COLORS

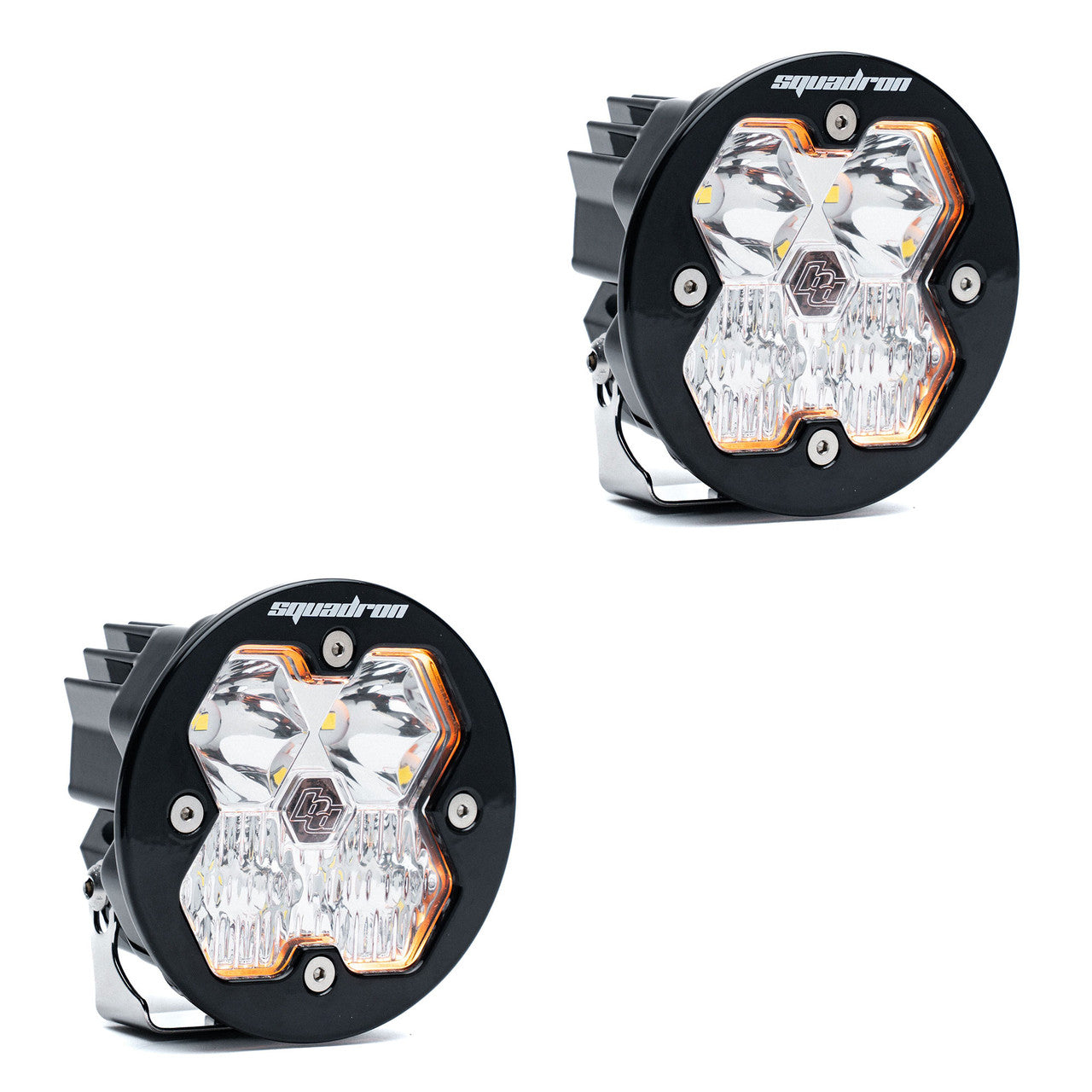

  • Driving Combo

    Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42-degree) and spot (9-degree) optics to provide you with a smooth blend of light for both near field applications and distance.

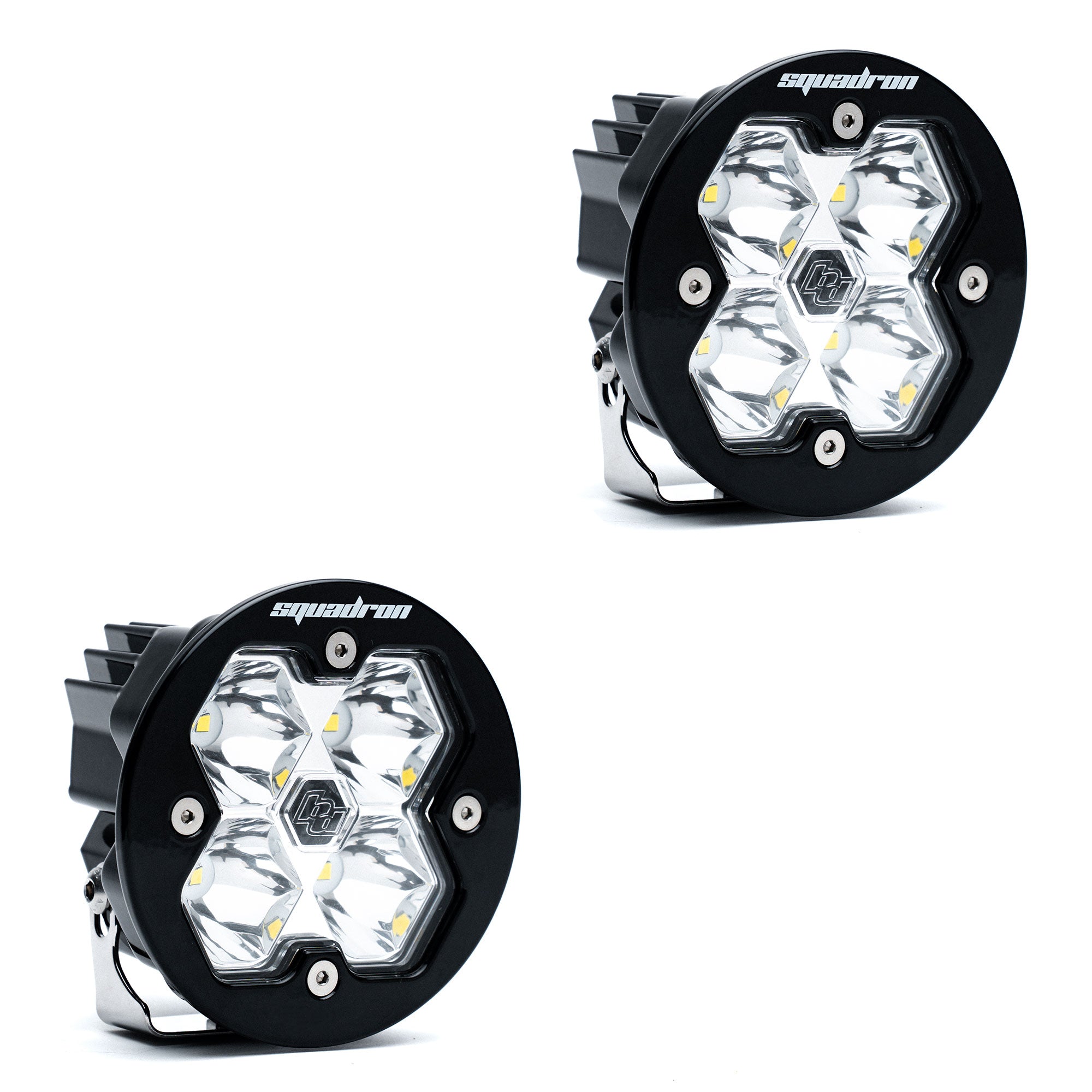

  • Spot

    A longer and narrower 9-degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights.

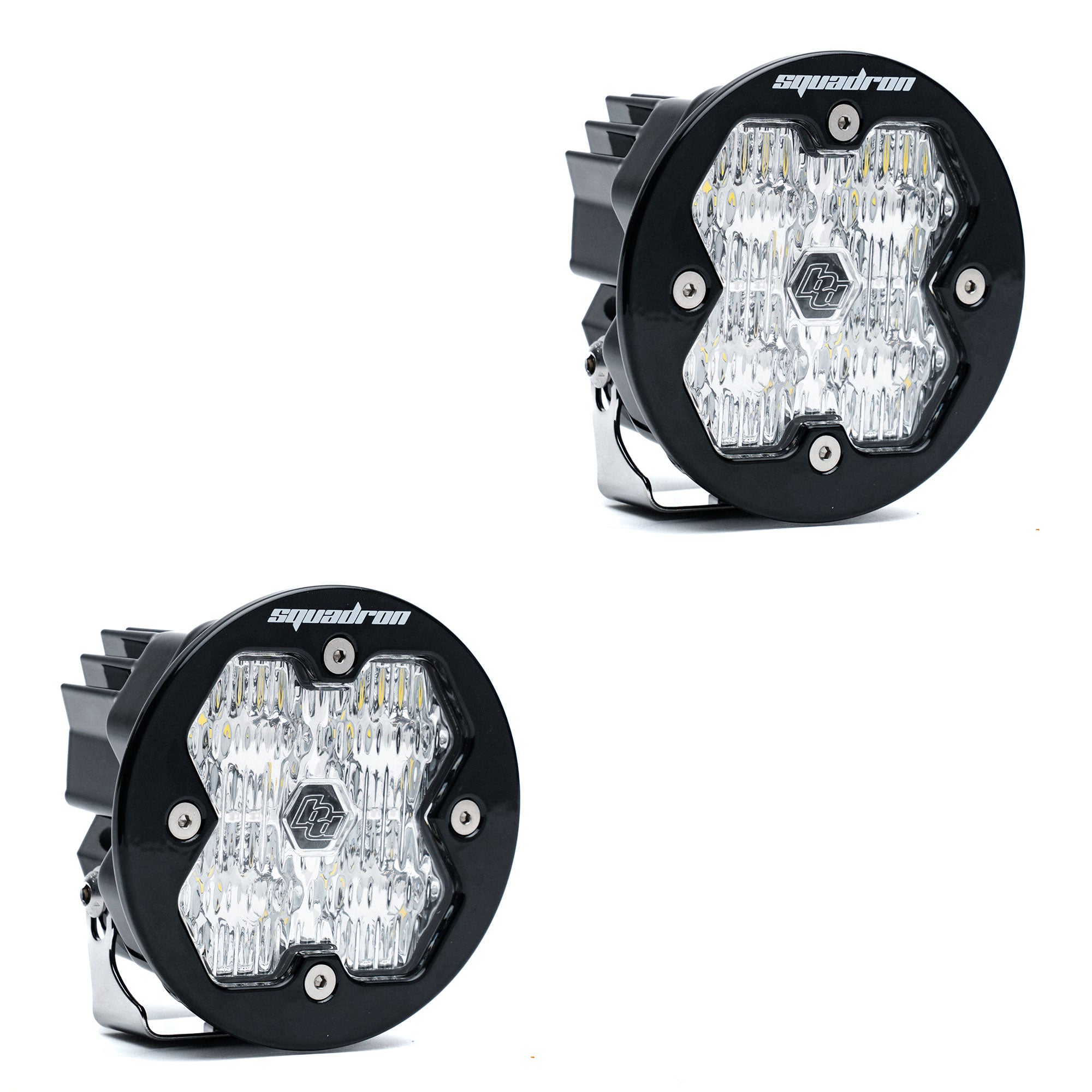

  • Wide Cornering

    The Wide Driving pattern offers a 42-degree flattened horizontal beam for the ultimate in comfort lighting. This pattern is specifically for cornering, dust, snow, rain, and/or fog conditions.

  • Work/Scene

    Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft. This pattern is not suitable for driving.

  • Trail

    Designed to aid in both vertical and horizontal light spread. Provides more near and mid-field visibility in tight slower technical terrain. (S1 only)

  • Clear

    The original performance lens. Our clear lens combined with our 5000k LEDs provides light most similar to daylight, reducing driver fatigue and increasing terrain recognition.

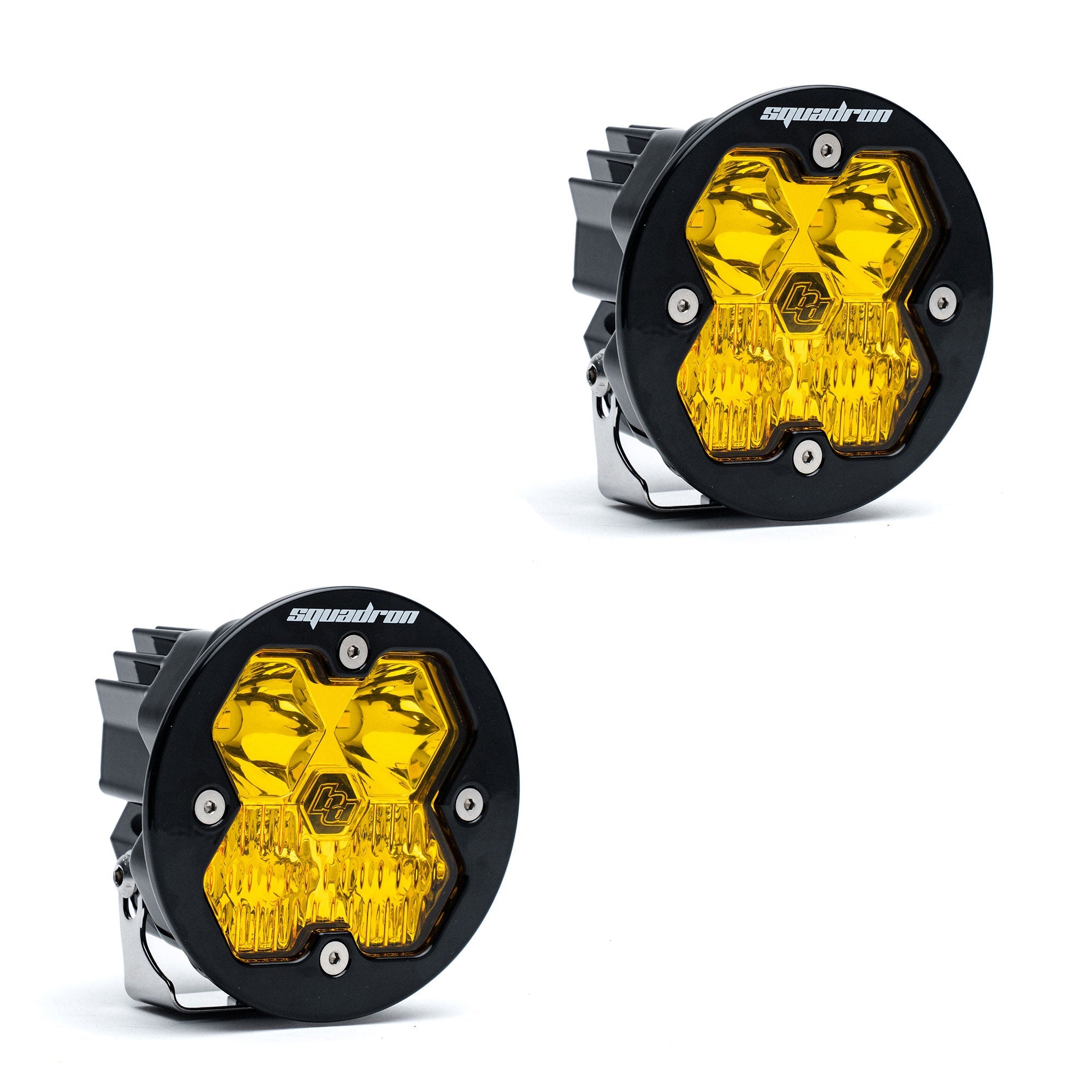

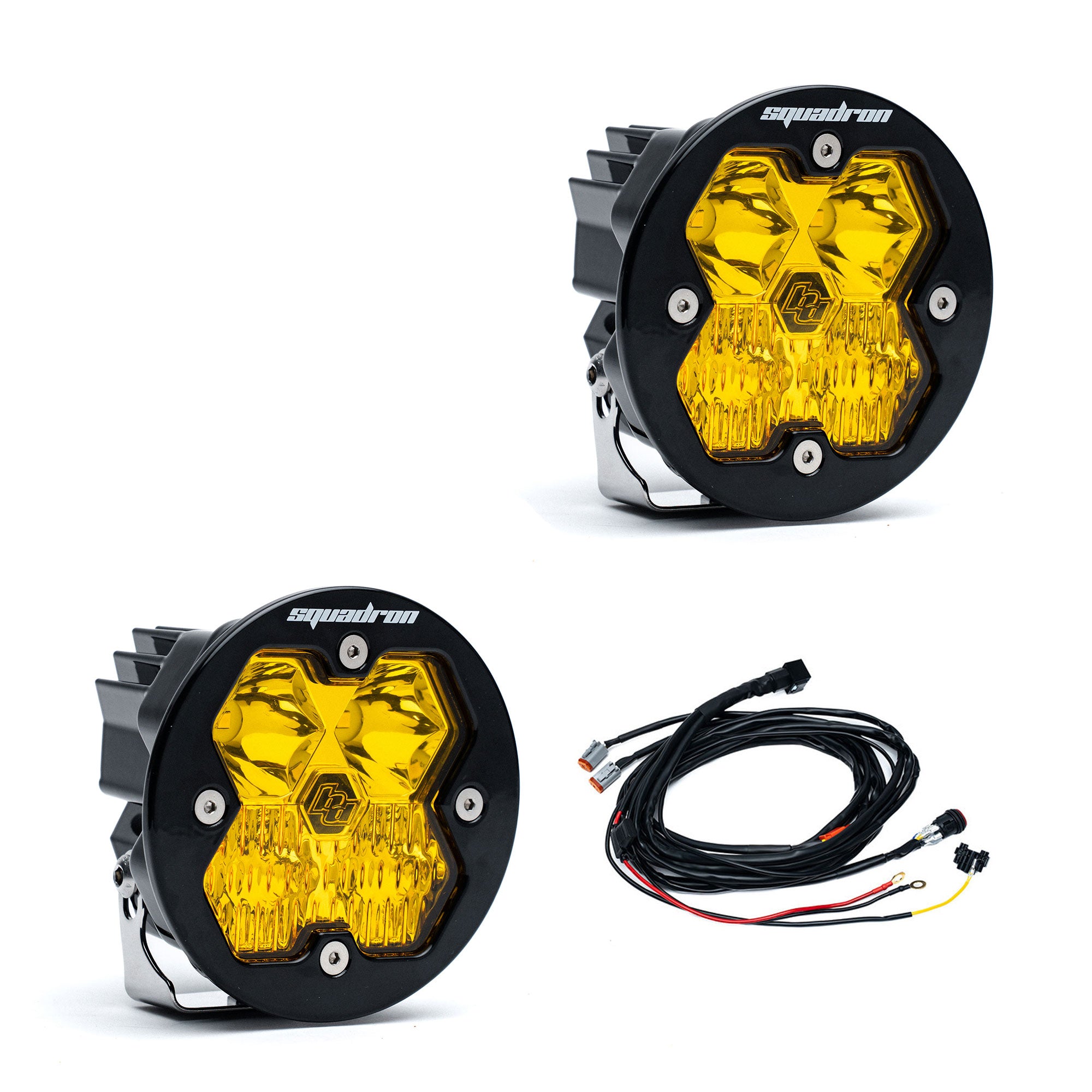

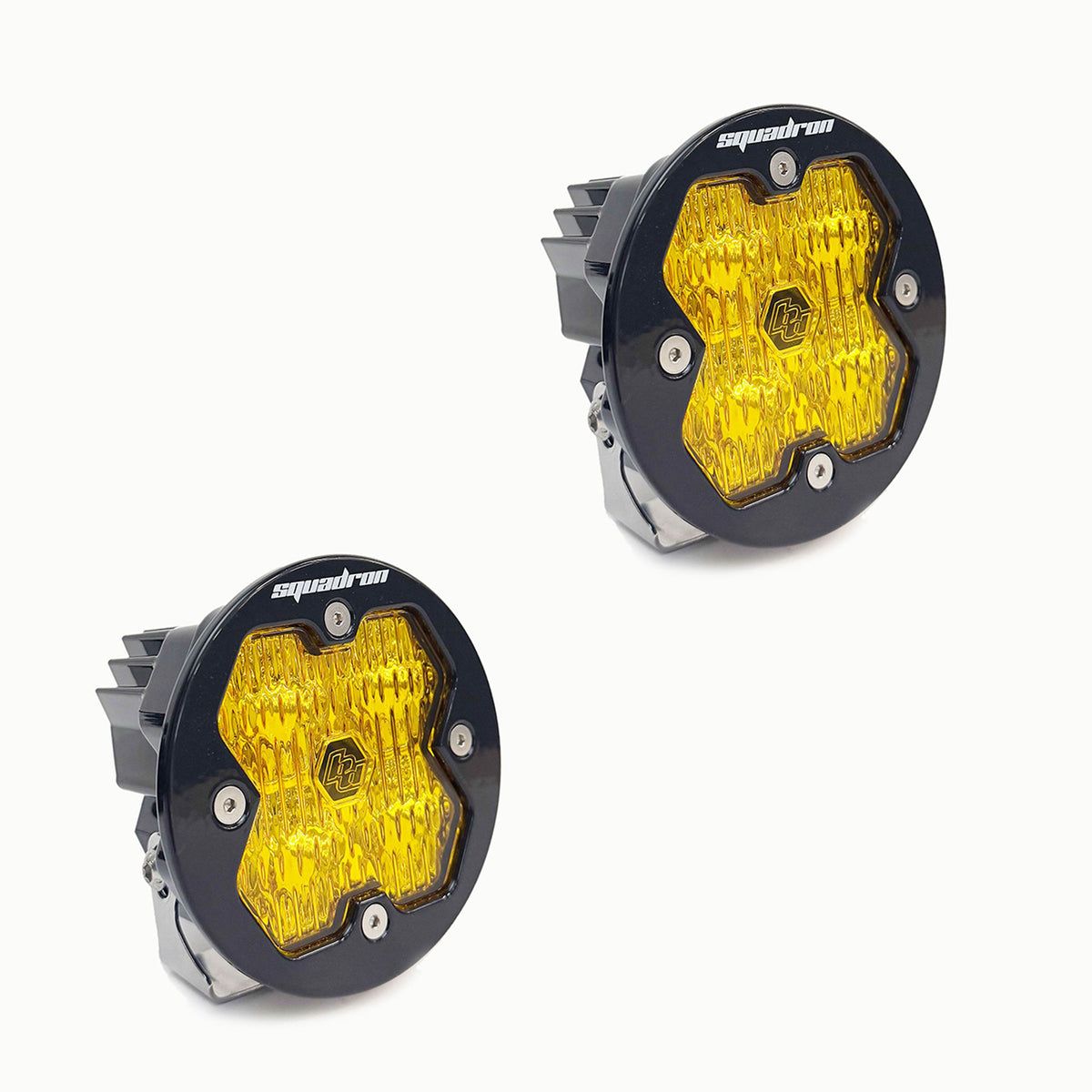

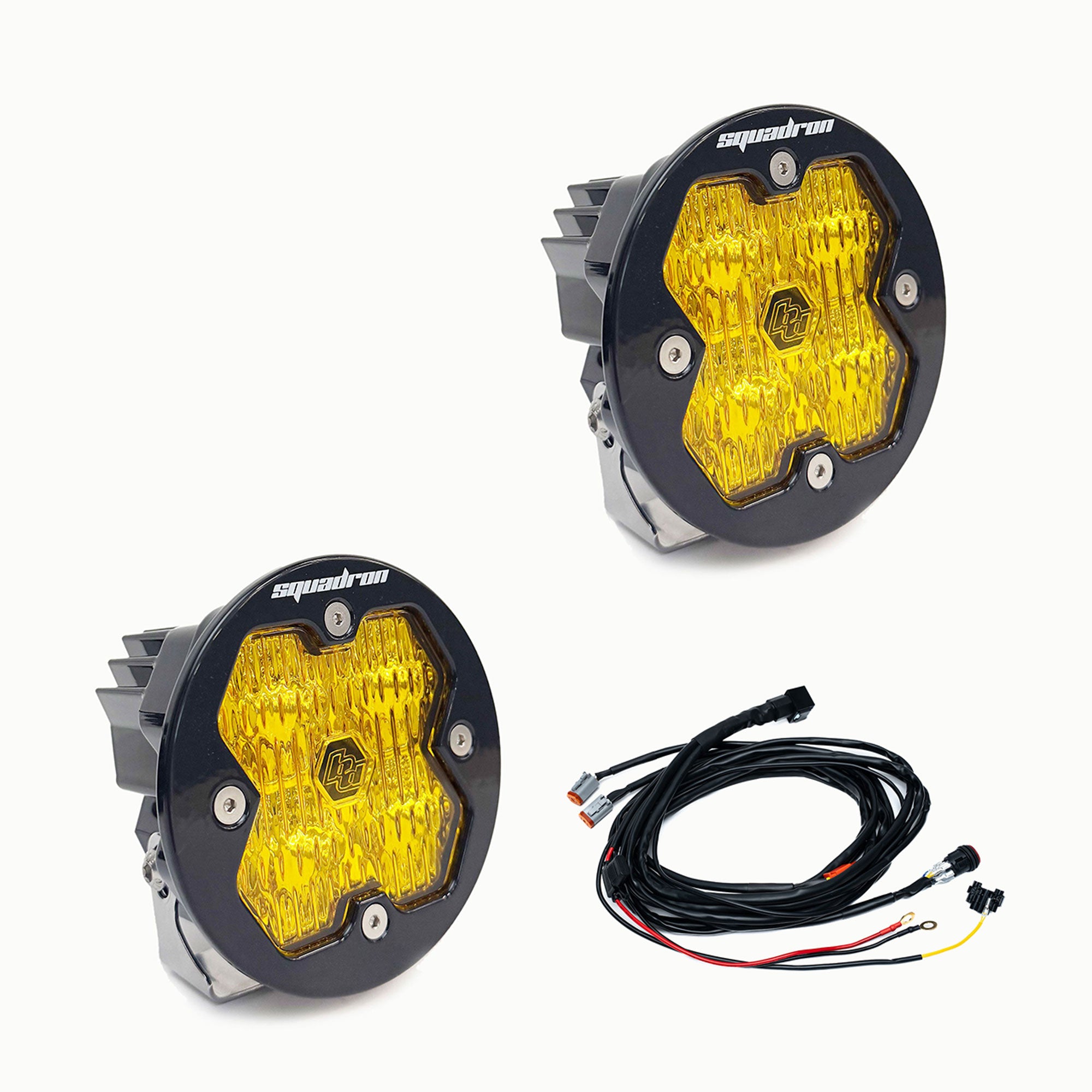

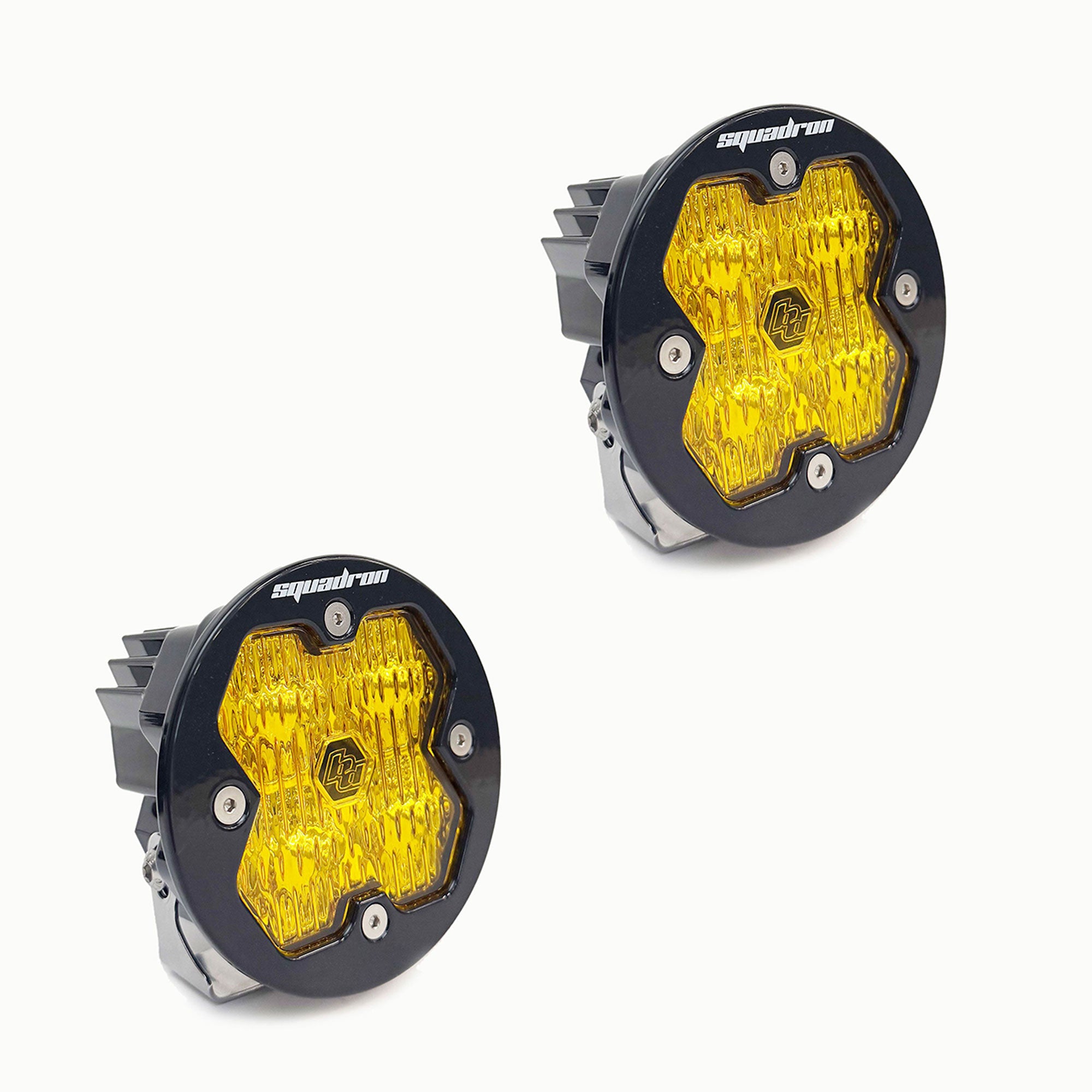

  • Baja Amber

    This performance-driven lens is designed for off-road driving in challenging conditions like dust, rain, snow, or fog. The Baja Amber lens minimizes glare, enhancing visibility and significantly improving your driving experience.

  • Factory Amber

    This replacement lens option is crafted to seamlessly match the OEM running lights found on vehicles today. Factory Amber provides a color temperature that is best utilized in low-visibility conditions to increase depth perception while minimizing glare.

ZONES

  • Dust/Fog

    Illuminates the area directly in front of the vehicle, for use during rainy, snowy, or dusty conditions.

    Automotive, Motorcycle, UTV

  • Cornering

    Provides cornering and peripheral light, which is necessary to drive comfortably at speed.

    Automotive, Motorcycle, UTV

  • Driving Combo

    Your primary driving light and most important zone to start with when building a balanced lighting package.

    Automotive, Motorcycle, UTV

  • Spot

    This zone is your first level of long-distance lighting. Lights intended for this zone will give you the distance needed to travel at speeds and see safely down the road or trail.

    Automotive, Motorcycle, UTV

  • Racer Edition Spot

    This zone is implemented when approaching triple-digit speeds, or in instances when distance penetration becomes necessary.

    Automotive, Motorcycle, UTV

  • Rock Light

    This zone illuminates the wheel wells, undercarriage, or any other part of the vehicle that can benefit from great visibility while moving through tight spaces and jagged terrain.

    Automotive, UTV

  • Cargo

    This zone is important for drivers that need quick access to tools and cargo, in and immediately around the vehicle.

    Automotive, UTV

  • Backup/Reverse

    This zone is crucial to keeping the backside of your vehicle safe. Whether reversing on the trail or leading a pack through the dust, you will want the correct lighting solution.

    Automotive, UTV

  • Laser Series

    This zone is one of the last additions to your lighting package. When you have optimized your entire package and still need that extra punch in the distance, make sure to check out the ultimate distance lighting available today.

    Automotive, UTV
