Winch Details:

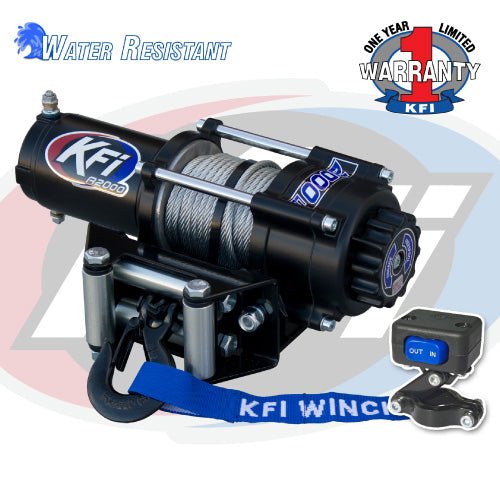

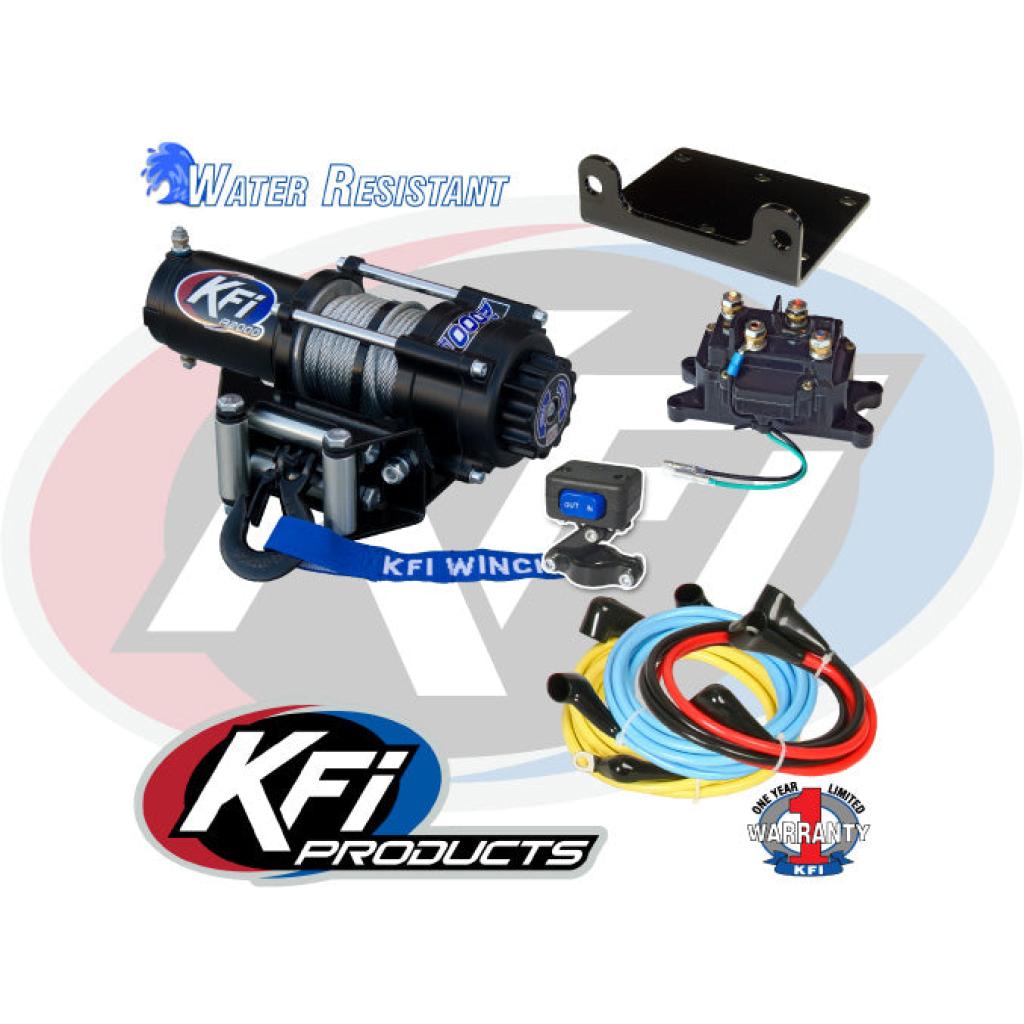

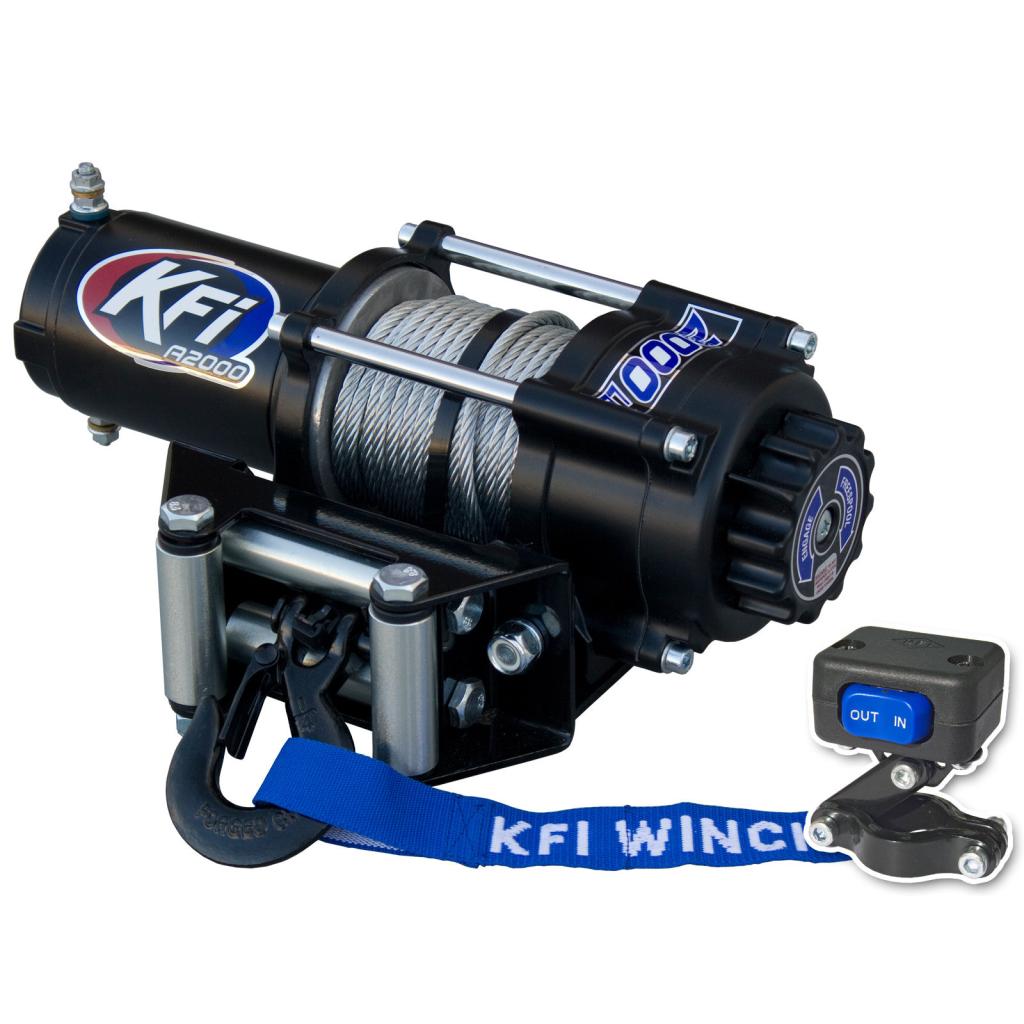

Whether it’s on a winding trail, plowing snow or deep in the mud, a reliable winch is the most important accessory a rider can have. Equip your ATV, UTV, or SxS with a KFI WINCH and feel confident you can pull yourself out of any situation. The compact 2000lb ATV Series winches feature quality cast aluminum and durable steel components, water resistant seals to keep the elements out, a standard 4-hole mounting design and a heavy duty, all metal turn clutch. All of the KFI winches are backed by a 1-year Limited Warranty and come with everything you need other than an ATV model specific winch mount. Everything is included along with detailed installation instructions and hardware to mount your winch to a model specific ATV winch mount.
Winch Includes:

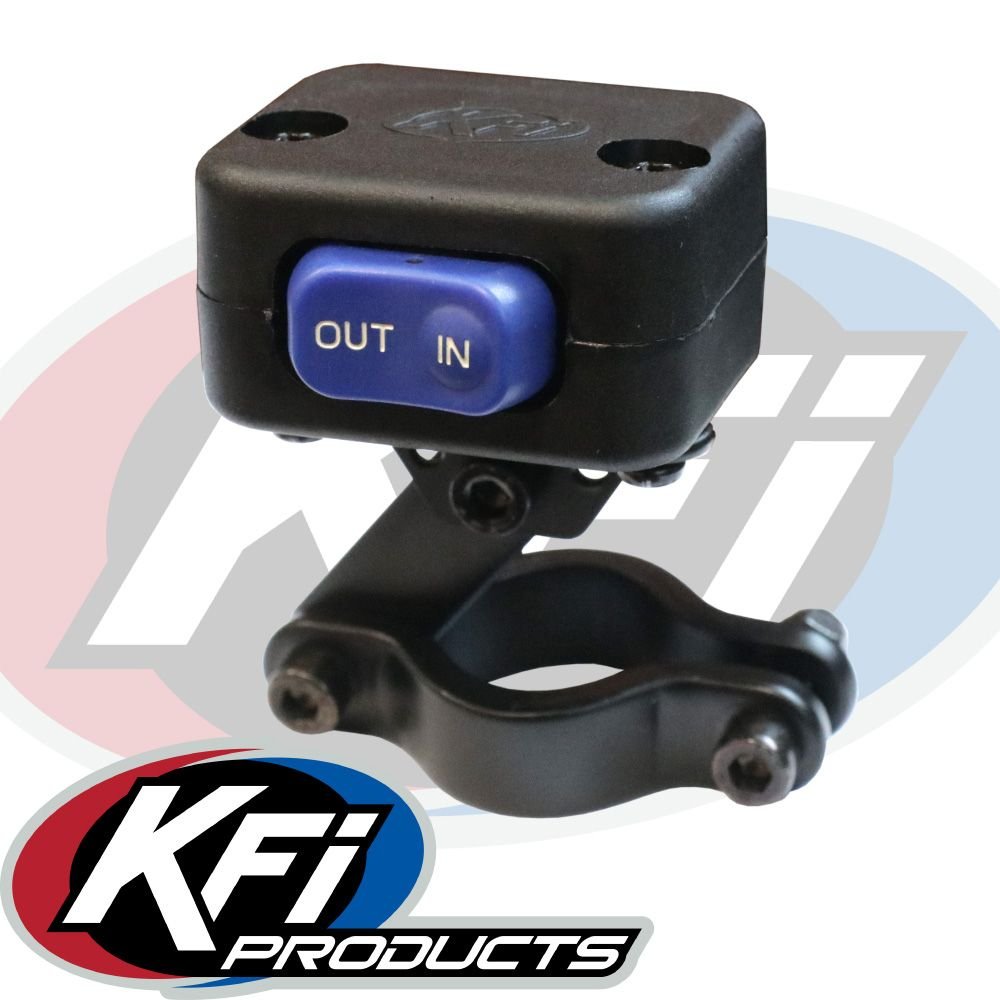

Take control of your winch with the included Mini-Rocker Switch. It comes with an adjustable bracket to mount on to your ATV's handlebars. This allows you to control your winch with just the touch of your finger, never having to let go of your handlebars.

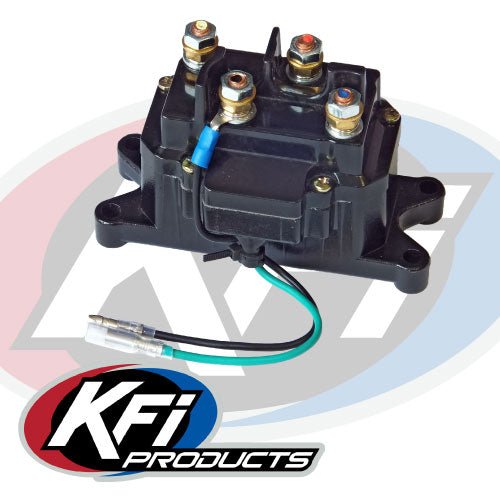

The included Heavy Duty Electric Contactor protects your ATV's electrical system and switches the power distribution of your winch that is controlled from your switches.
A2000 Specifications |
Model |
A2000 ATV Series |
Rated Line Pull |
2000 lbs. |
Motor |
12V DC, 1.1 hp Permanent Magnet |
Gear Ratio |
171:1 |
Gear/Transmission |
All-metal Planetary Gear Drive |
Brake |
Dynamic and Mechanical |
Clutch (free spooling) |
All Metal Cam Activated Freespool |
Drum Size |
1.5" (D) x 3.15" (L) |
Cable |
5/32" (D) x 49' (L) |
Fairlead |
Multi-directional Roller |
Control |
Deluxe Handlebar-Mounted Mini-Rocker Control Switch |

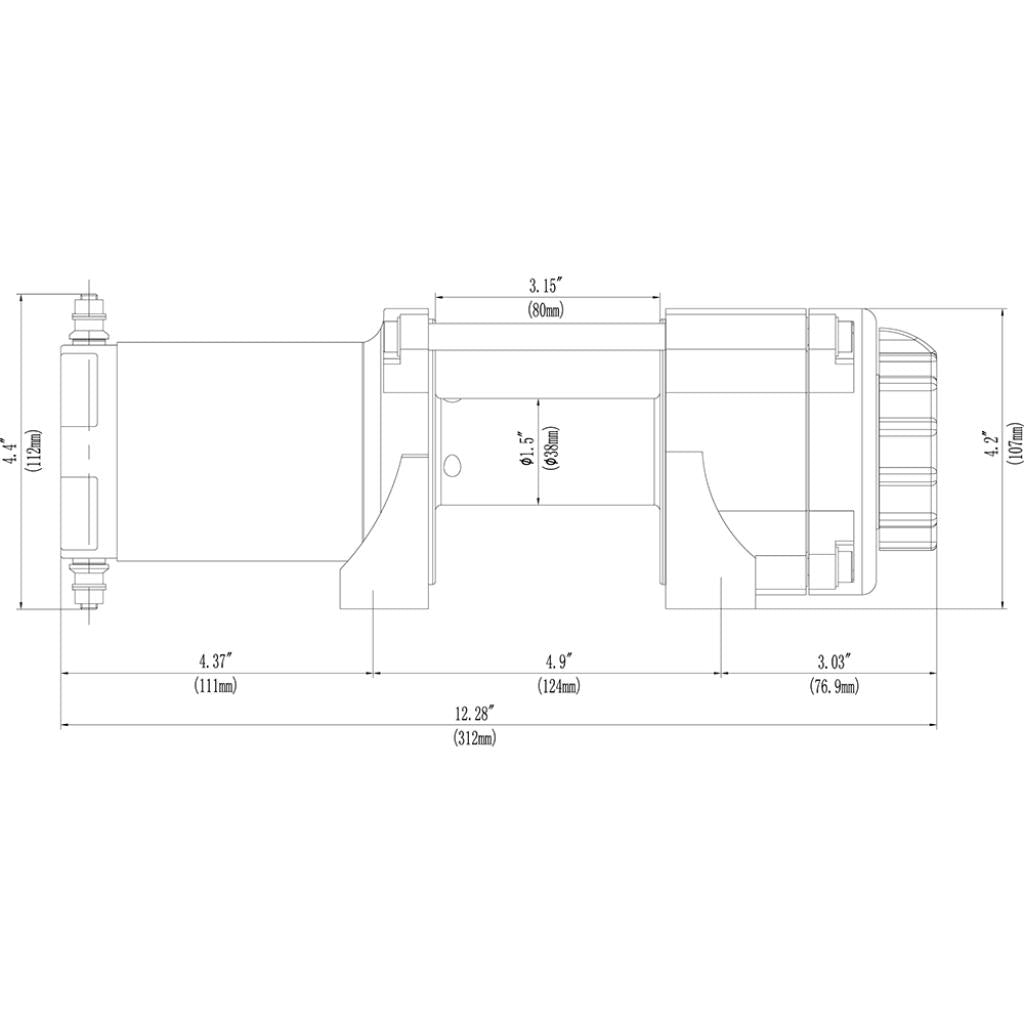

Winch Dimensions |
12.28" L x 4.2" D x 4.4" H |
Mount Plate |
Fairlead Mount Only (A Model Specific Mount is necessary for your make and model ATV) |
Mounting Bolt Pattern |
3.00" x 4.875" (4-Hole) |
Recommended Battery |
12 Amp/hour minimum |
Warranty |
Limited 1 Year |
Winch Weight |
24.8 lbs. (complete kit) |
