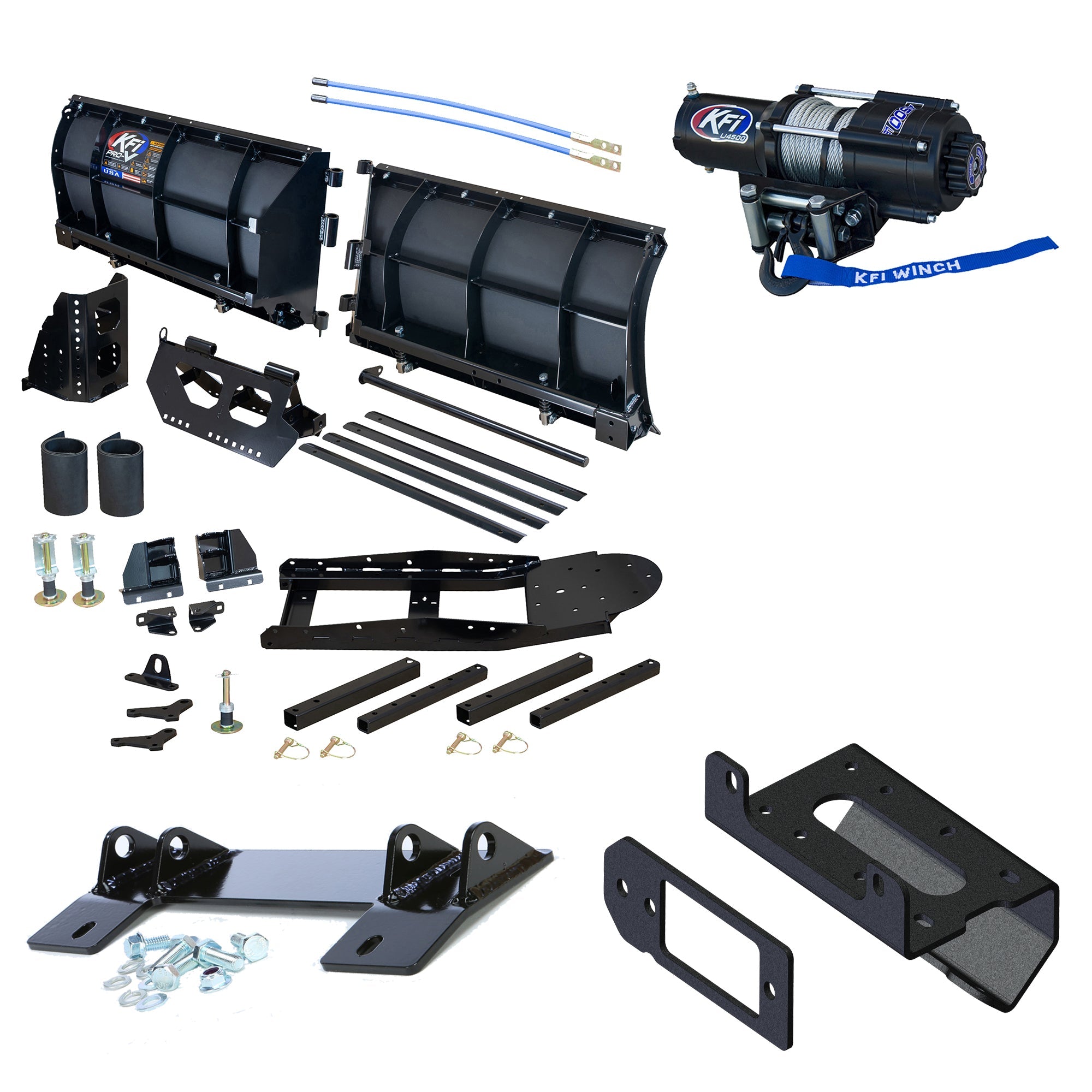

KFI 80" Pro-V Snowplow Kit Can-Am Defender HD5 HD7 HD8 HD9 HD10
Product Details
- Type Snow Plow Kit
- Vendor KFI
- SKU WPS-10-5780|10-6180-DS|10-6180-PS|10-6180-CP|10-6180-MP
- Shipping Weight 150.0 lb
FITS:
Can-Am Defender HD5 DPS : 2017-2021
Can-Am Defender HD7: 2022-2025
Can-Am Defender HD7 DPS : 2022-2025
Can-Am Defender HD8: 2016-2018, 2020-2021
Can-Am Defender HD8 DPS : 2016-2018, 2020-2021
Can-Am Defender HD9 DPS : 2022-2025
Can-Am Defender HD8 800R 4x4: 2019
Can-Am Defender HD8 800R DPS 4x4: 2019
Can-Am Defender HD9: 2022-2025
Can-Am Defender HD10: 2016-2018
Can-Am Defender HD10 1000 DPS 4x4: 2019
Can-Am Defender HD10 DPS : 2016-2018, 2020-2025
Can-Am Defender HD10 1000 XT 6x6: 2020
Can-Am Defender HD10 6X6 DPS: 2020-2024
Can-Am Defender HD10 6x6 Limited: 2022
Can-Am Defender HD10 6X6 Limited: 2023-2024
Can-Am Defender HD10 6X6 XT: 2021-2024
Can-Am Defender MAX HD7: 2022-2025
Can-Am Defender MAX HD8 DPS: 2017-2021
Can-Am Defender MAX HD8: 2018-2021
Can-Am Defender MAX HD9: 2022-2025
Can-Am Defender MAX HD9 DPS: 2022-2025
Can-Am Defender MAX HD10 DPS: 2017-2025
Can-Am Defender PRO HD10 DPS: 2023-2024
Can-Am Defender PRO HD10 1000 DPS 4x4: 2020-2022
Can-Am Defender PRO HD10 Limited: 2022-2024
Can-Am Defender PRO HD10 1000 Lone Star 4x4: 2021-2022
Can-Am Defender PRO HD10 XT: 2020-2024
Pro-V Plow System Installation Instructions:
Plow Mount Installation Instructions:
Winch Mount Installation Instructions:
UTV Pro-V Plow System:
Specifications:
- 80" Wide When Straight
- 75" Wide in V-Shape
- 72" Wide in Scoop
- 21” Vertical Blade Face Height with Approximate 28” Height w/ Snow Flap
- 4" Integrated Height Adjustment (-1" to +3" in 1" Increments)
- Steel Frame Design with Replaceable Poly Face
- Dual Curvature Face for Supreme Snow Moving
- Heavy Duty 3" Diameter, Grade-50 Steel Skid Plates with Bolt-On Brackets
- Tripping Wear Bar
- Metal Bead Blasted, Then Powder Coated Black for Supreme Durability
- Weighs ~260lbs (~100-200lbs Lighter Than the Competition)
- MADE IN USA
- 2-Year Limited Warranty
- Accessories Coming Soon

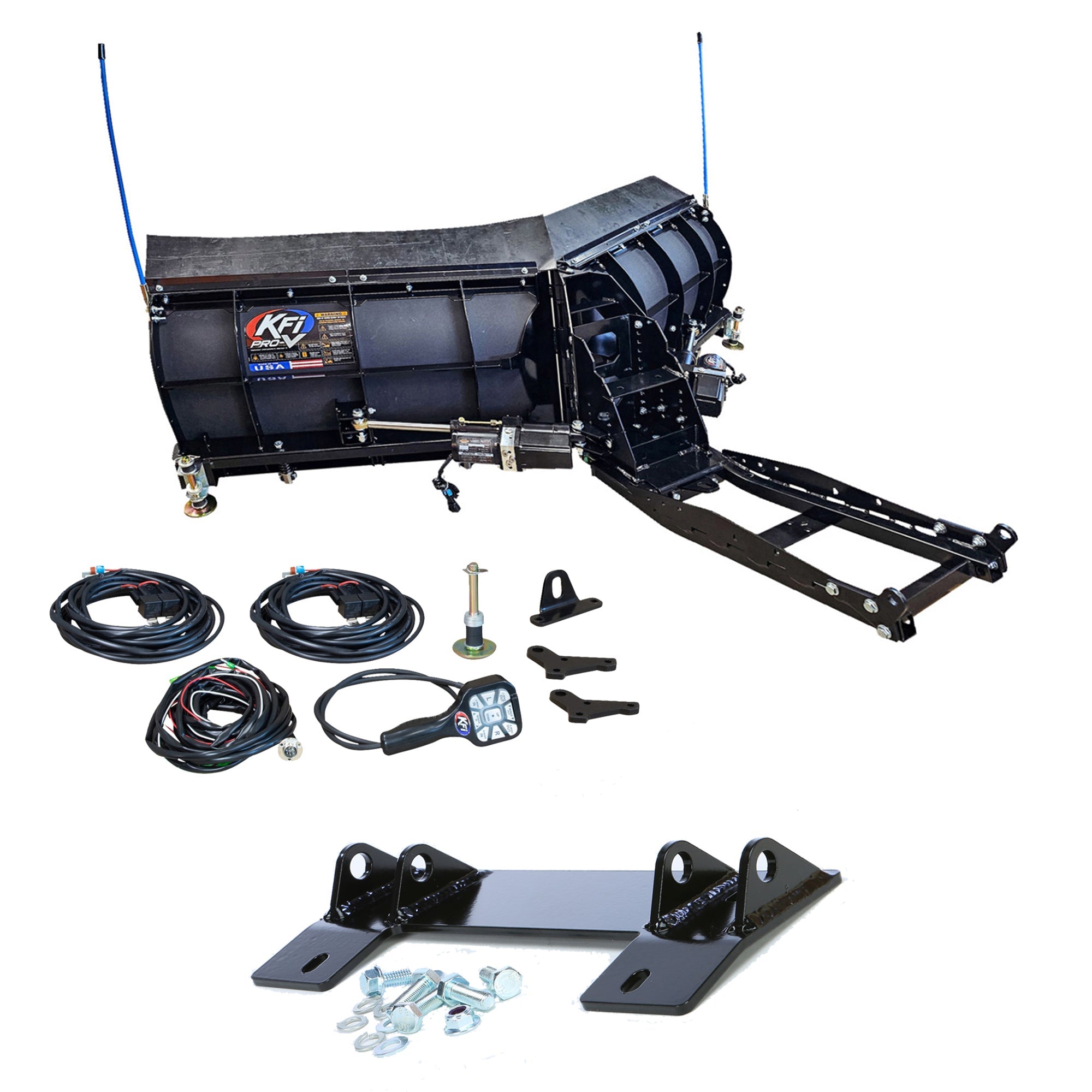

Option #1:

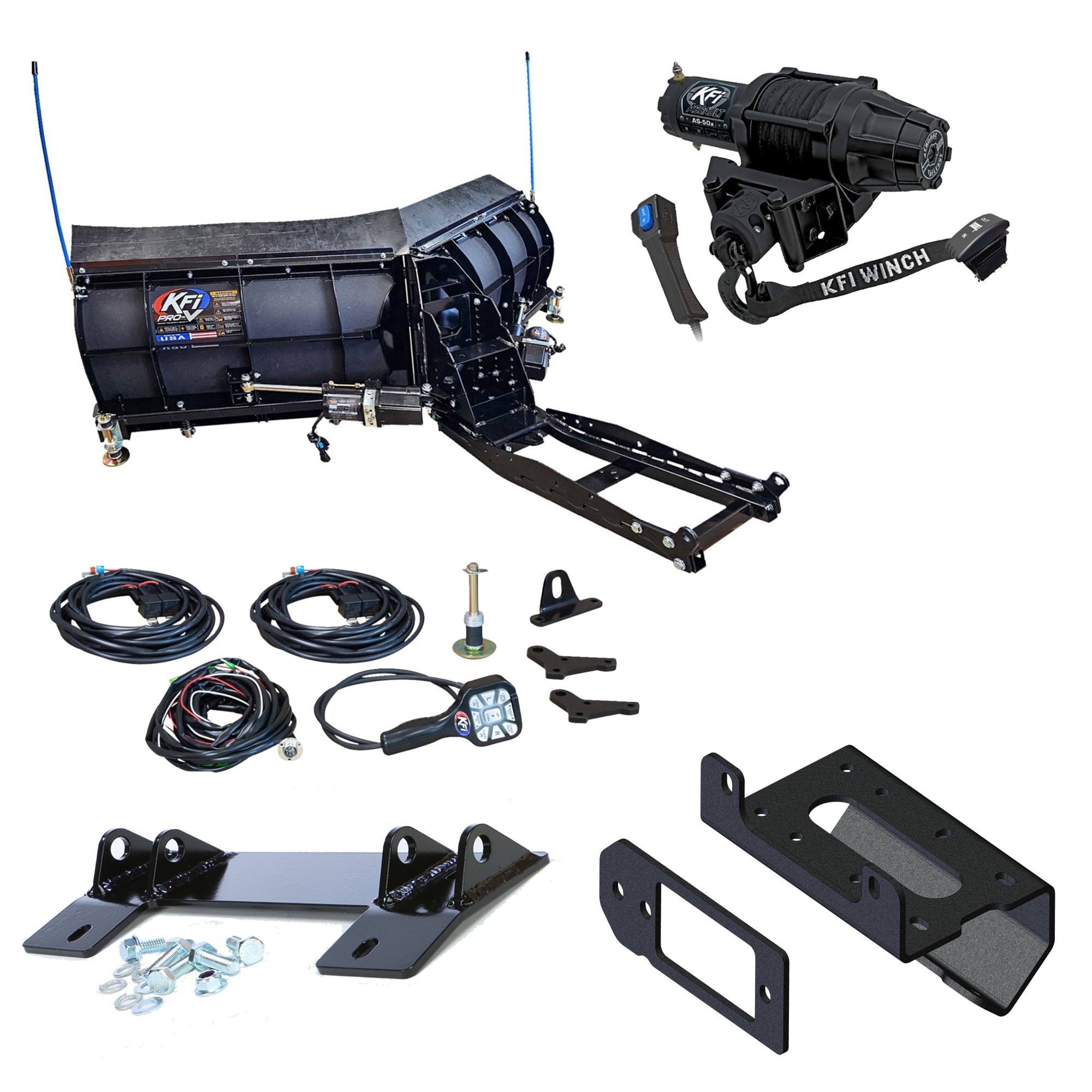

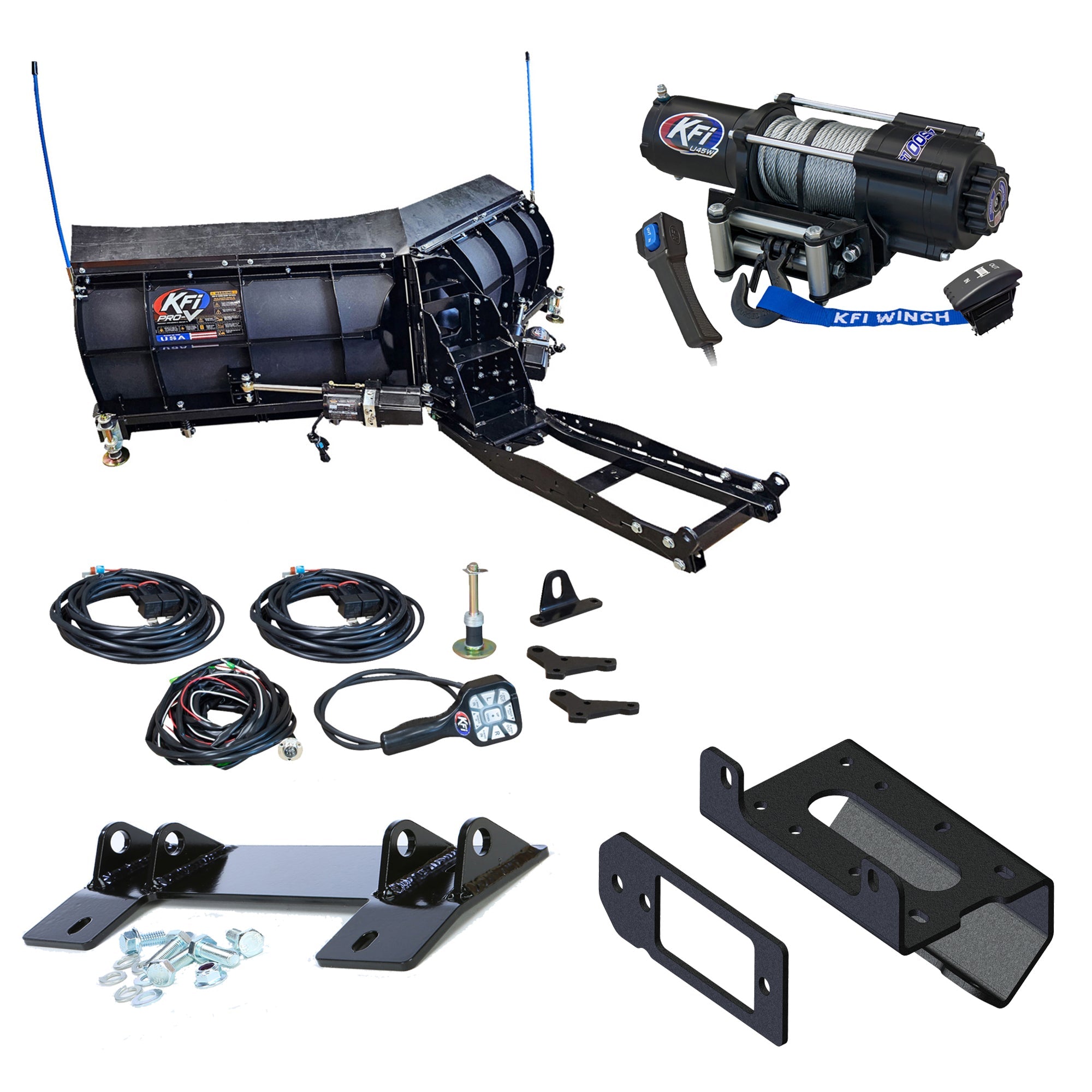

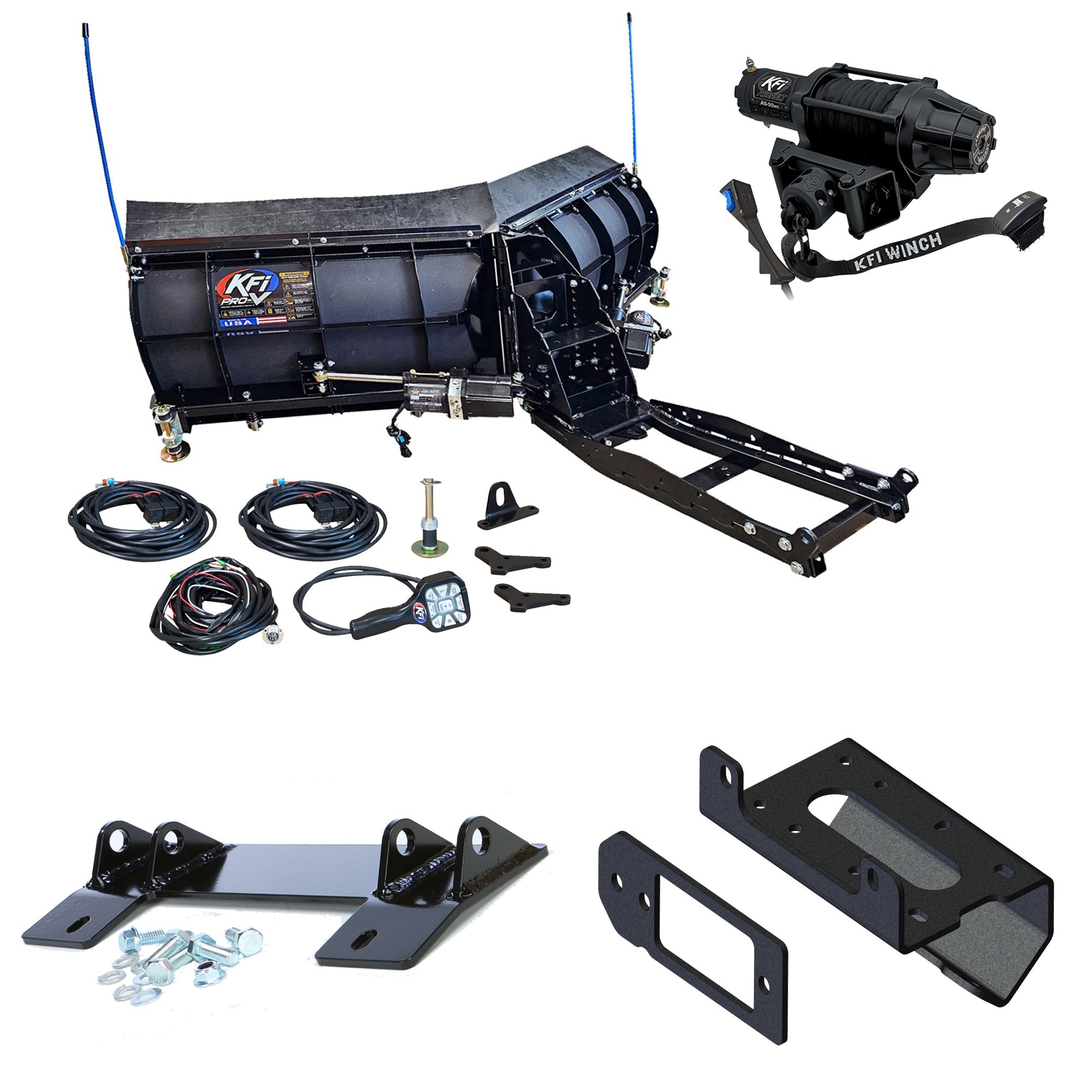

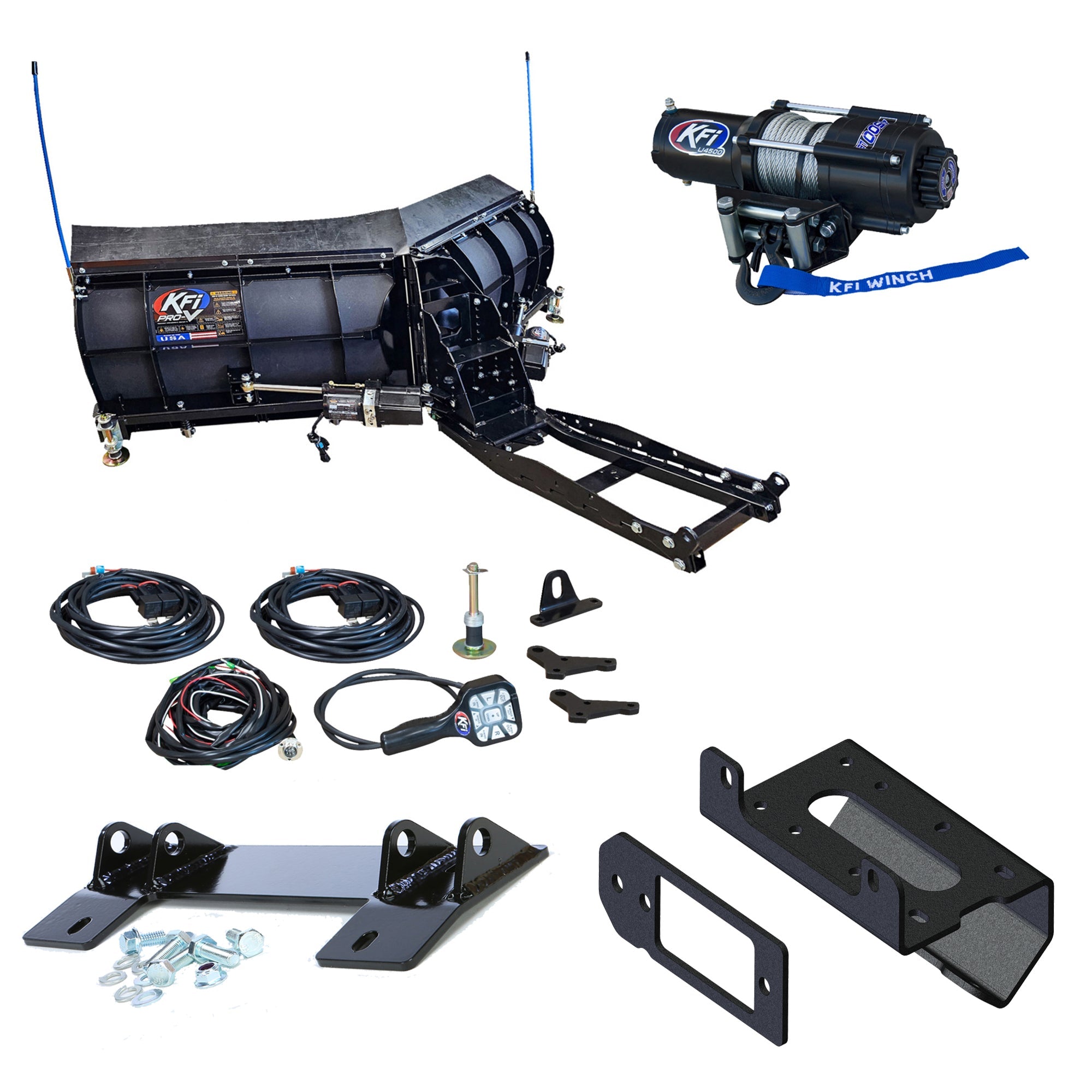

Pro-V UTV Plow System w/ Hand Remote Controlled Actuators
| Components To Order | Included Components |
|---|---|
|
106180-DS (Box 1) 106180-PS (Box 2) 106180-CP (Box 3) 106180-APH (Box 4) |
|

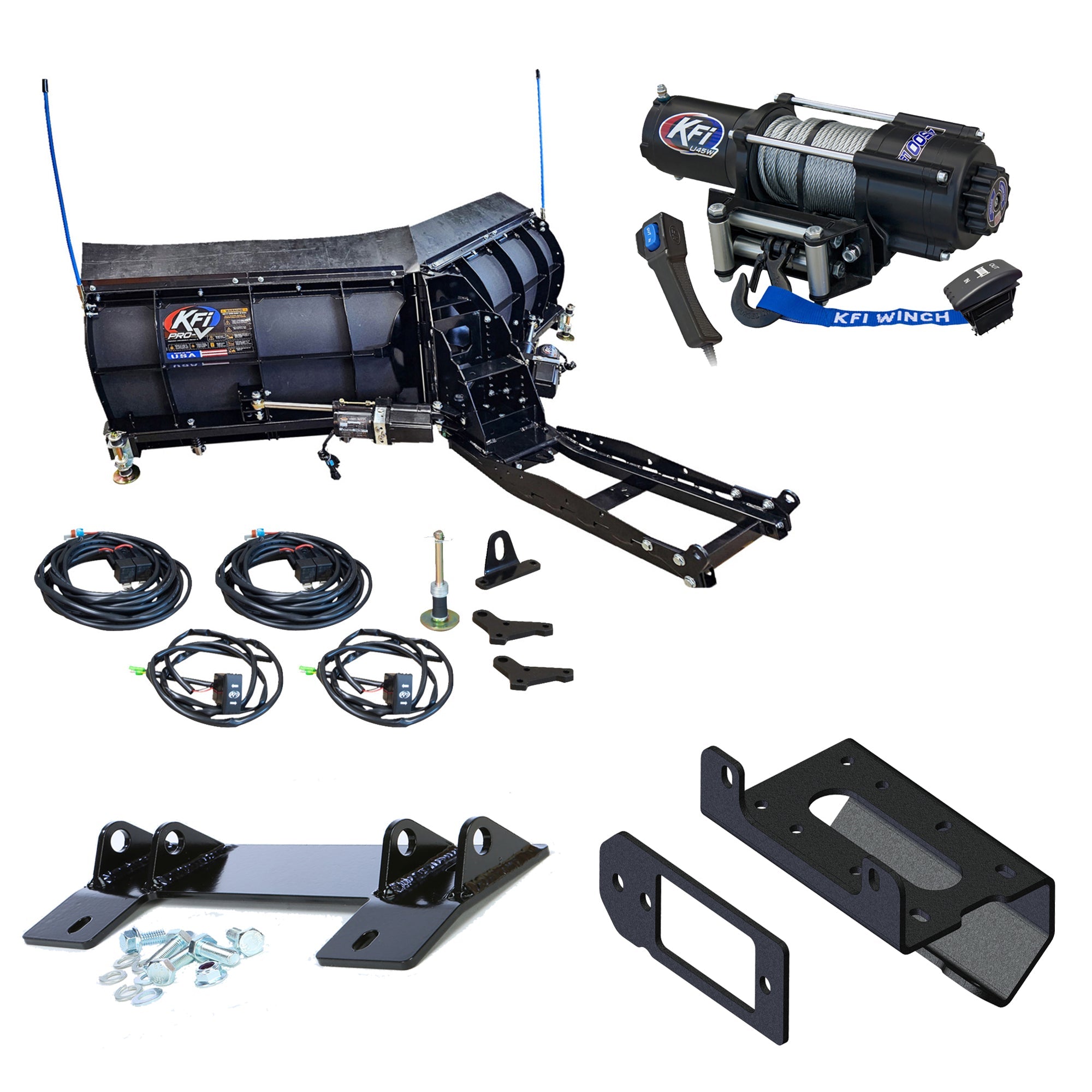

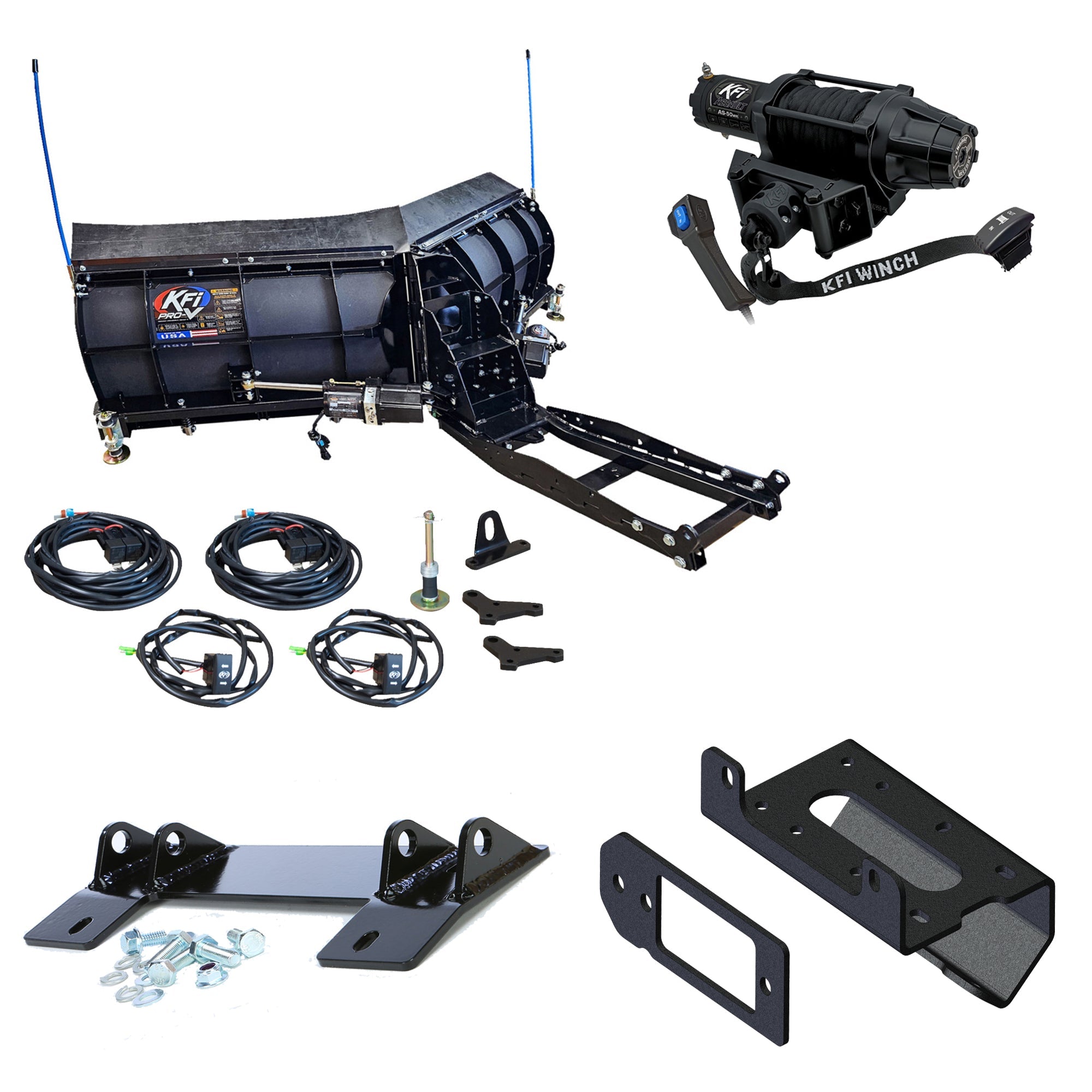

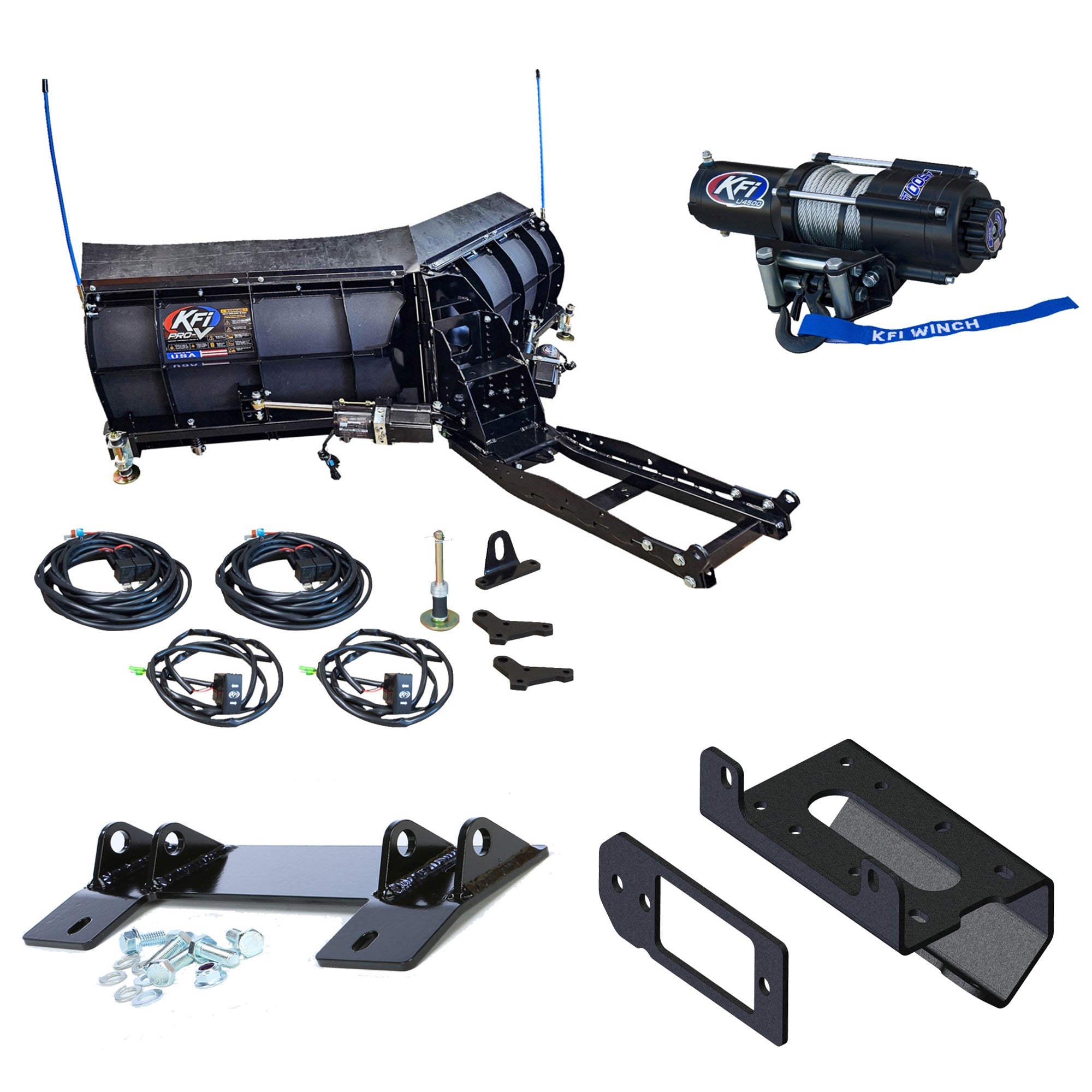

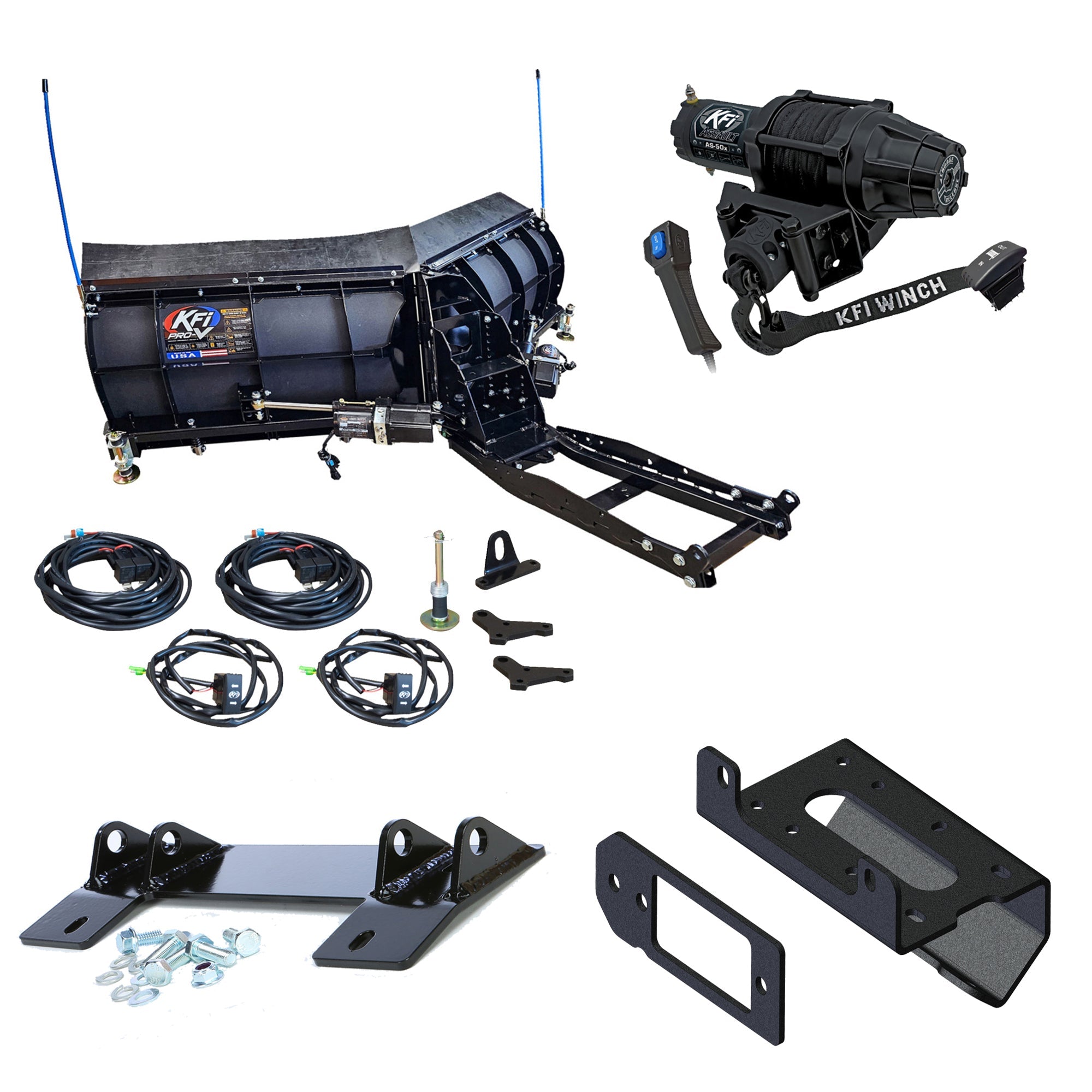

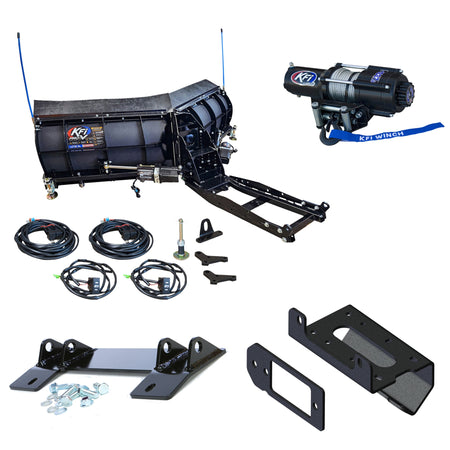

Option #2:

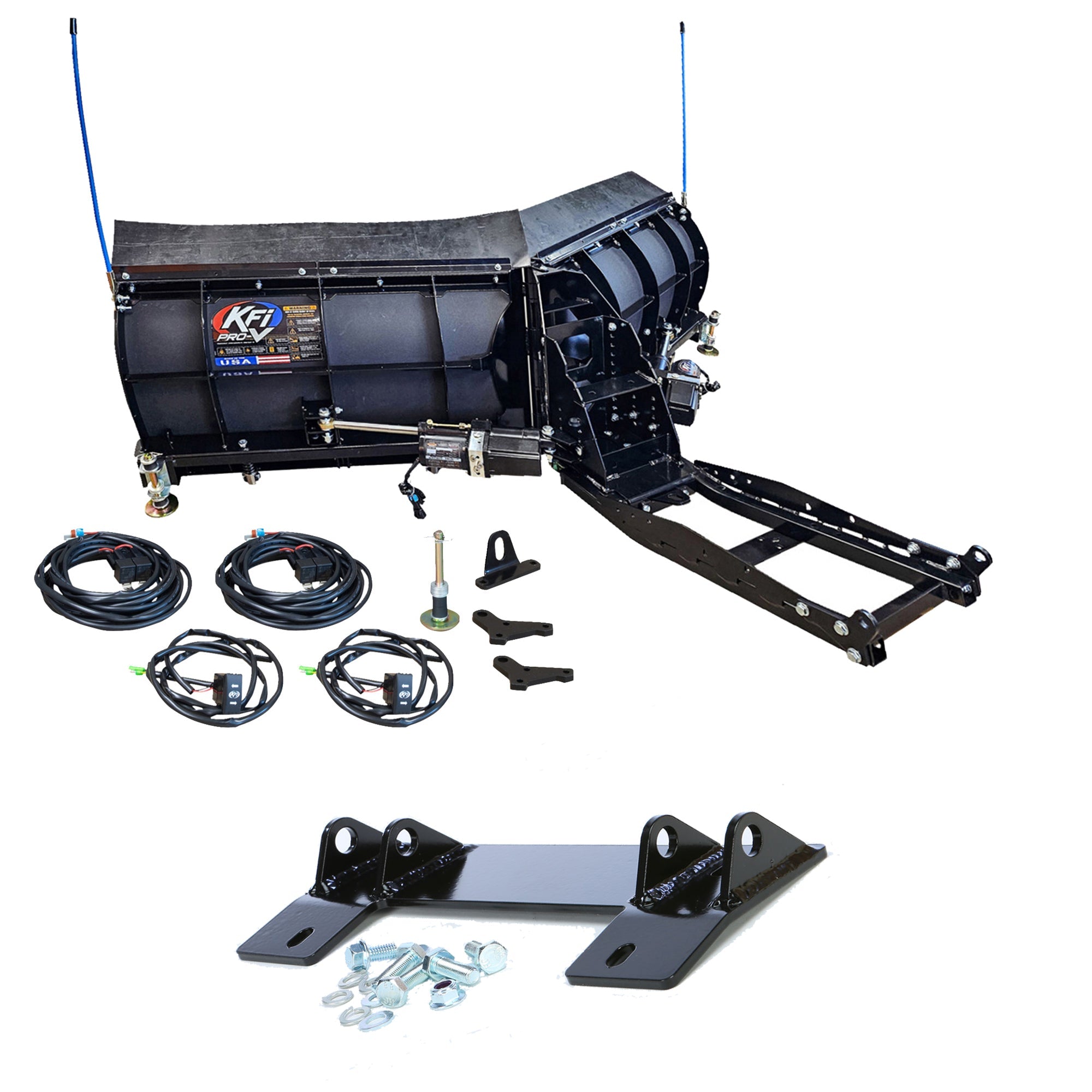

Pro-V UTV Plow System w/ Dash Rocker Controlled Actuators
| Components To Order | Included Components |
|---|---|
|
106180-DS (Box 1) 106180-PS (Box 2) 106180-CP (Box 3) 106180-AP (Box 4) |
|

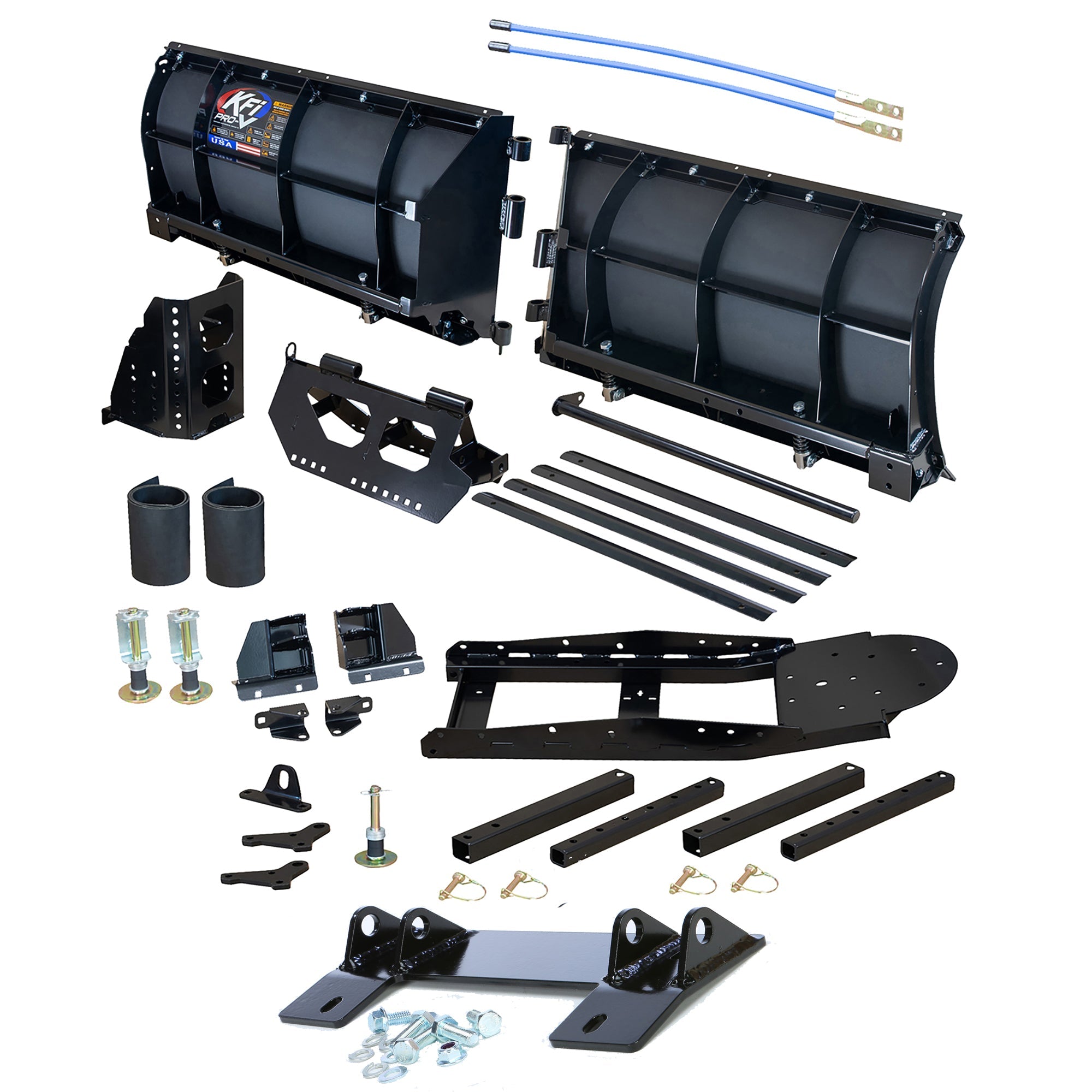

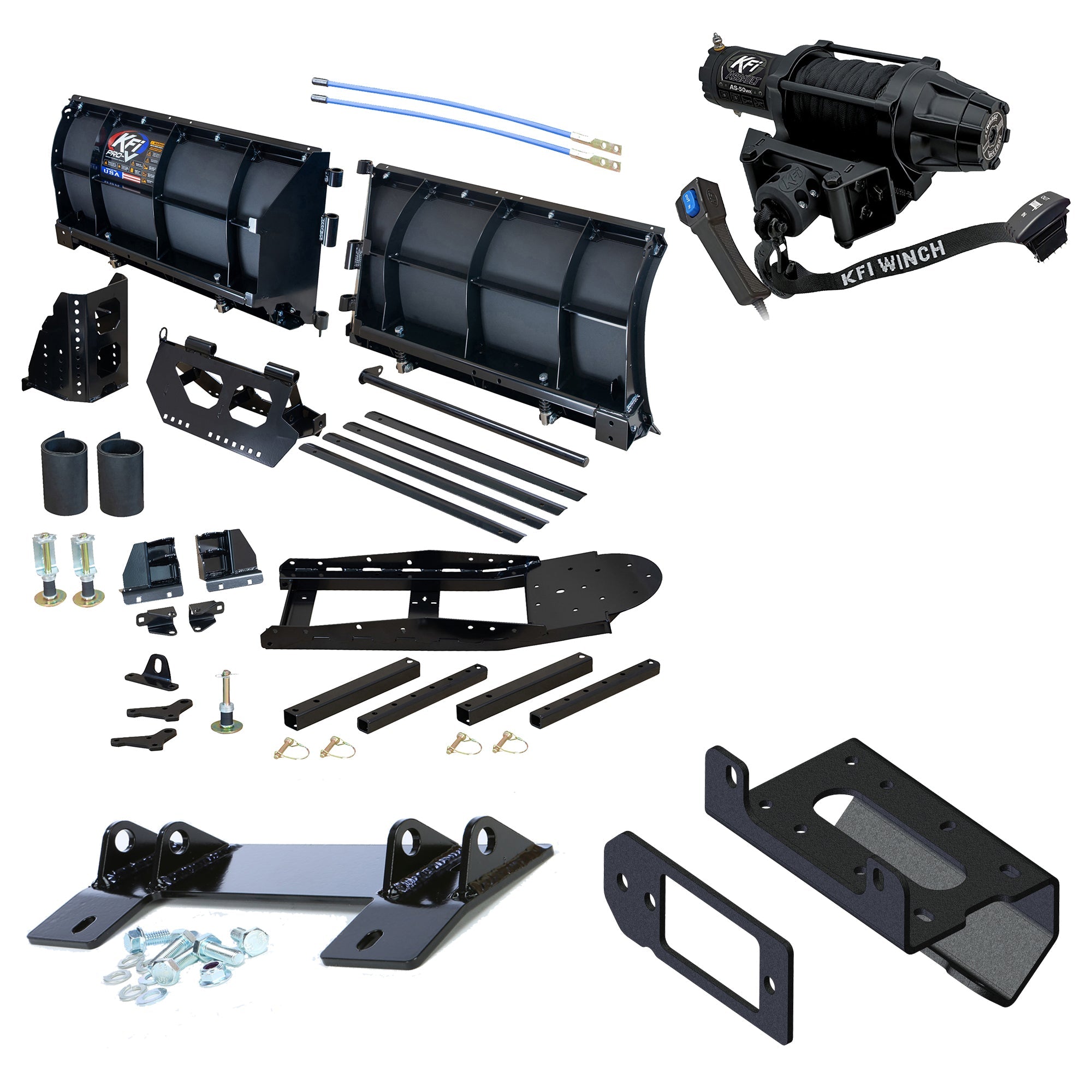

Option #3:

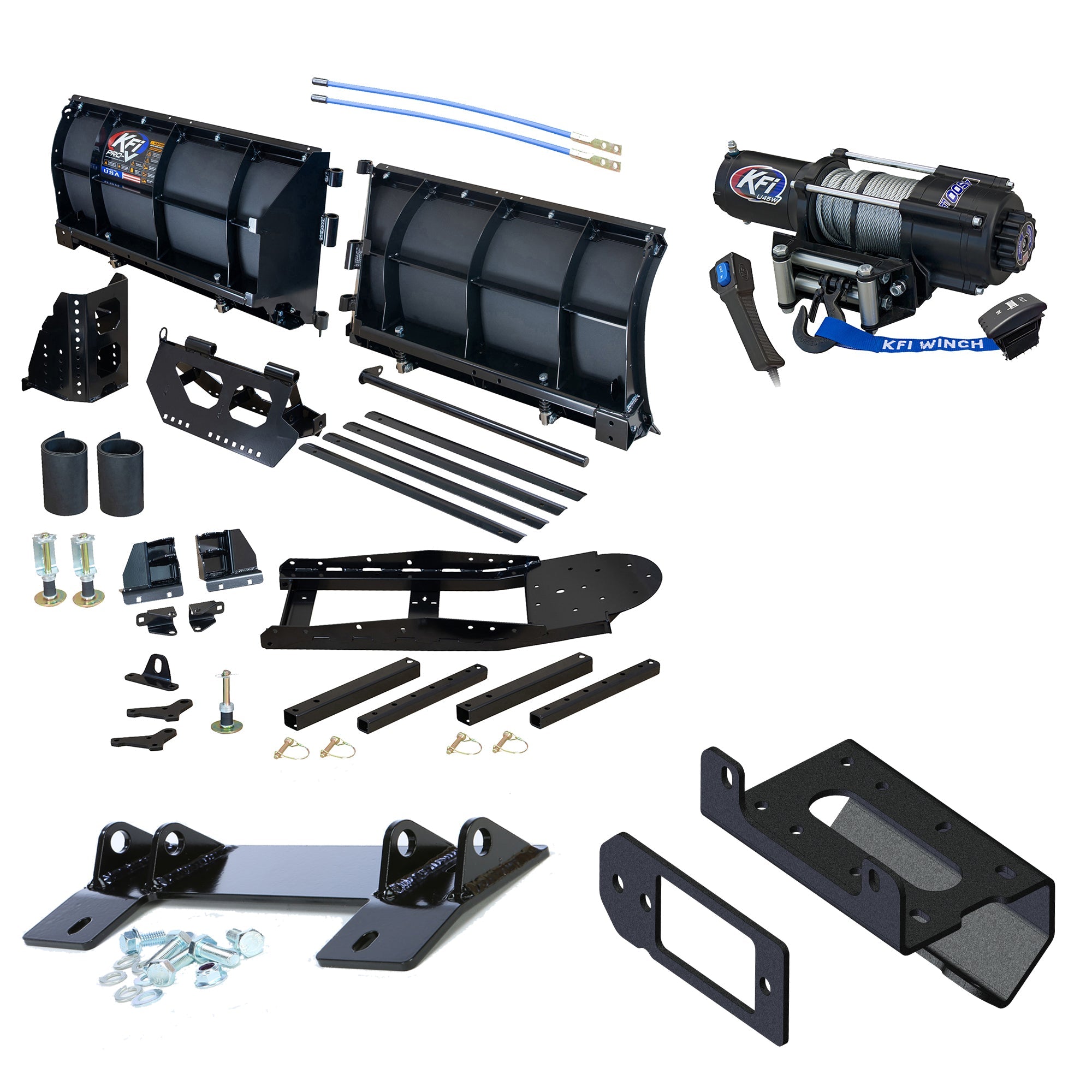

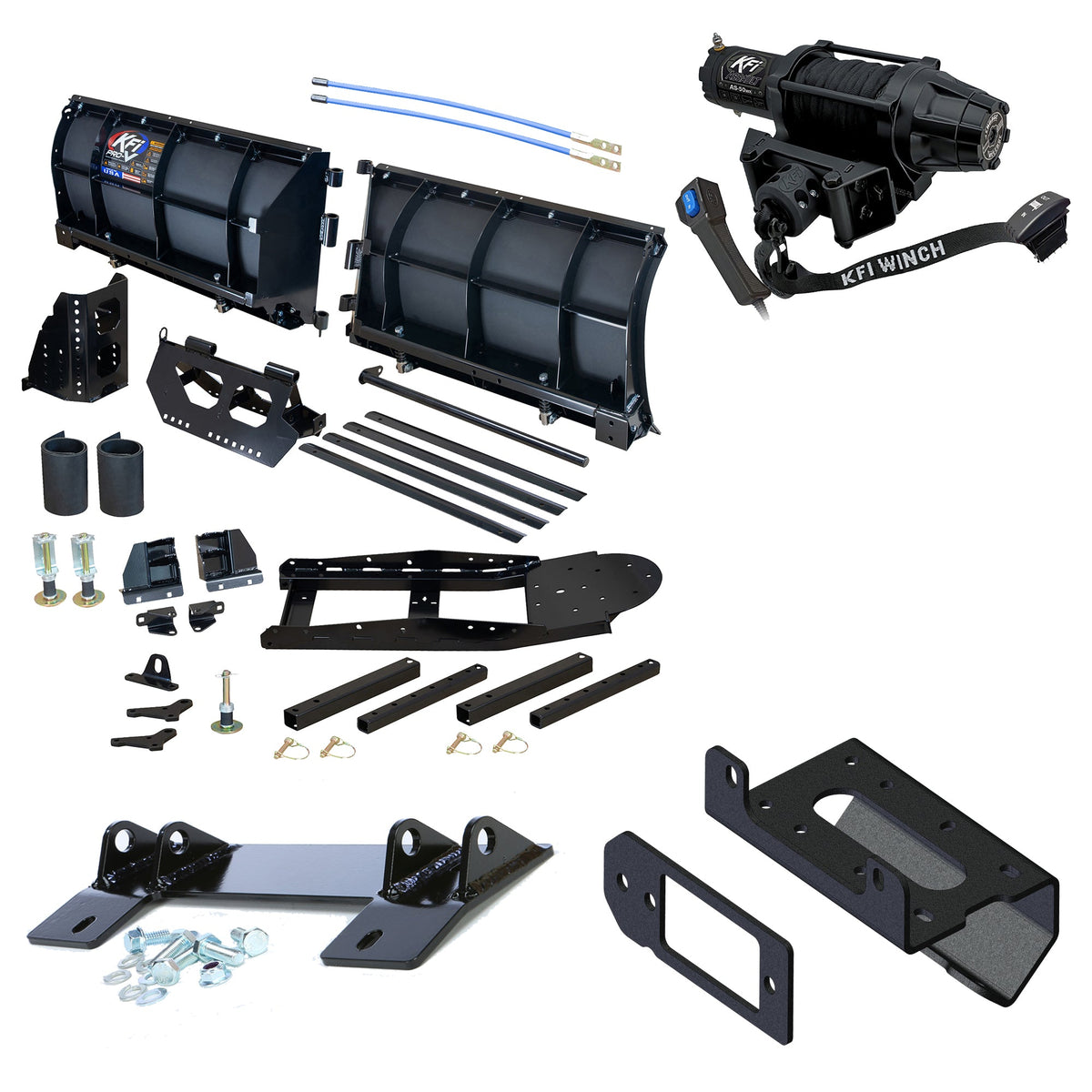

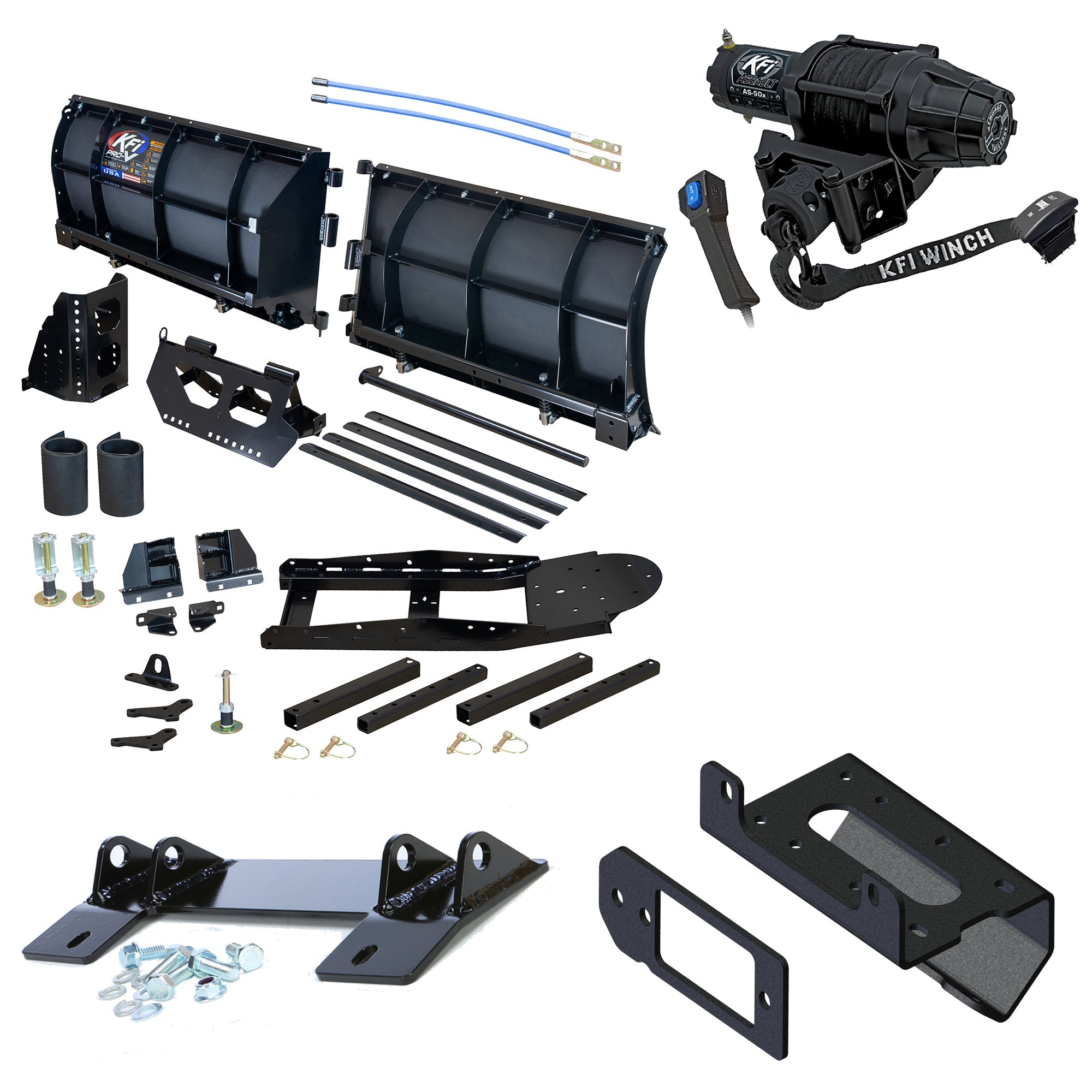

Pro-V UTV Plow System with Two Manual Angle Adjustment Bars
| Components To Order | Included Components |
|---|---|
|
106180-DS (Box 1) 106180-PS (Box 2) 106180-CP (Box 3) 106180-MP (Box 4) |
|
UTV Model Specific Plow Mount Specifications:
- 100% Made in the USA
- Front Lower Plow Mount System: Allows for easy attachment and removal of the plow.
- Uses Two Standard 5/8" Hitch Pins for Secure Connection (comes with push tubes)
- Plate Material: Constructed from 3/16" thick grade 50 steel for durability and strength.
- Plow Mounting Tabs: Made from 1/4" thick grade 50 steel to ensure a secure fit.
- Superior Finish Preparation: Unlike competitors, products undergo metal bead blasting before powder coating to provide the best possible finish.
- Powder Coated Black: Ensures supreme durability and corrosion resistance.
- Installation: Comes with complete instructions for hassle-free installation.
- All Necessary Hardware Included: Provides all the mounting hardware needed for installation.
This mount offers a robust and durable option for UTV plowing needs, ensuring long-lasting performance and ease of use.
Winch Specifications:
Any winch selection will also receive a model-specific winch mount. Click links below to view winch specific details.
U4500 / U4500w 4,500lb Winch, Steel Cable
AS-50s / AS50wx 5,000 lb Winch, Synthetic Cable
