KFI 80" Pro-V Snowplow Kit fits Kawasaki Ridge XR & Ridge Crew XR
Product Details
- Type Snow Plow Kit
- Vendor KFI
- SKU WPS-10-6675|10-6180-DS|10-6180-PS|10-6180-CP|10-6180-MP
- Shipping Weight 150.0 lb
FITS:
Kawasaki Ridge XR (Base / HVAC / Deluxe): 2024-2025 (A)
Kawasaki Ridge XR Crew (HVAC / Limited HVAC): 2025 (A)
NOTE A - Limited winch fitment. Winches that don't fit are listed below.
Below is a picture of the XR Bumper. If you have an XR model or an aftermarket bumper on your machine, this limited fitment will impact you.
NOTE "A" Will not work with the following wide winches:
- KFI: U4500w / AS-50wx
Pro-V Plow System Installation Instructions:
Plow Mount Installation Instructions:
Winch Mount Installation Instructions:
UTV Pro-V Plow System:
Specifications:
- 80" Wide When Straight
- 75" Wide in V-Shape
- 72" Wide in Scoop
- 21” Vertical Blade Face Height with Approximate 28” Height w/ Snow Flap
- 4" Integrated Height Adjustment (-1" to +3" in 1" Increments)
- Steel Frame Design with Replaceable Poly Face
- Dual Curvature Face for Supreme Snow Moving
- Heavy Duty 3" Diameter, Grade-50 Steel Skid Plates with Bolt-On Brackets
- Tripping Wear Bar
- Metal Bead Blasted, Then Powder Coated Black for Supreme Durability
- Weighs ~260lbs (~100-200lbs Lighter Than the Competition)
- MADE IN USA
- 2-Year Limited Warranty
- Accessories Coming Soon

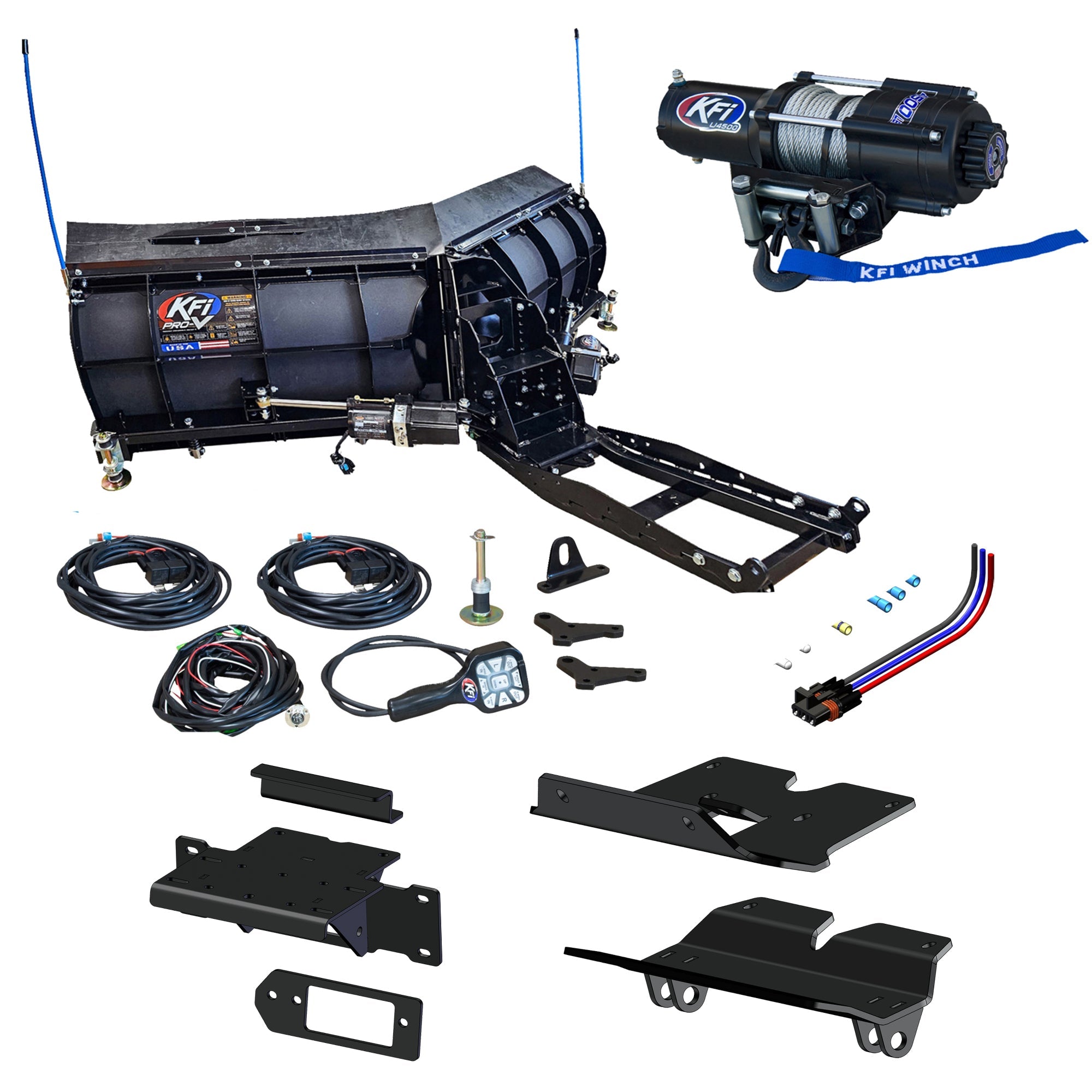

Option #1:

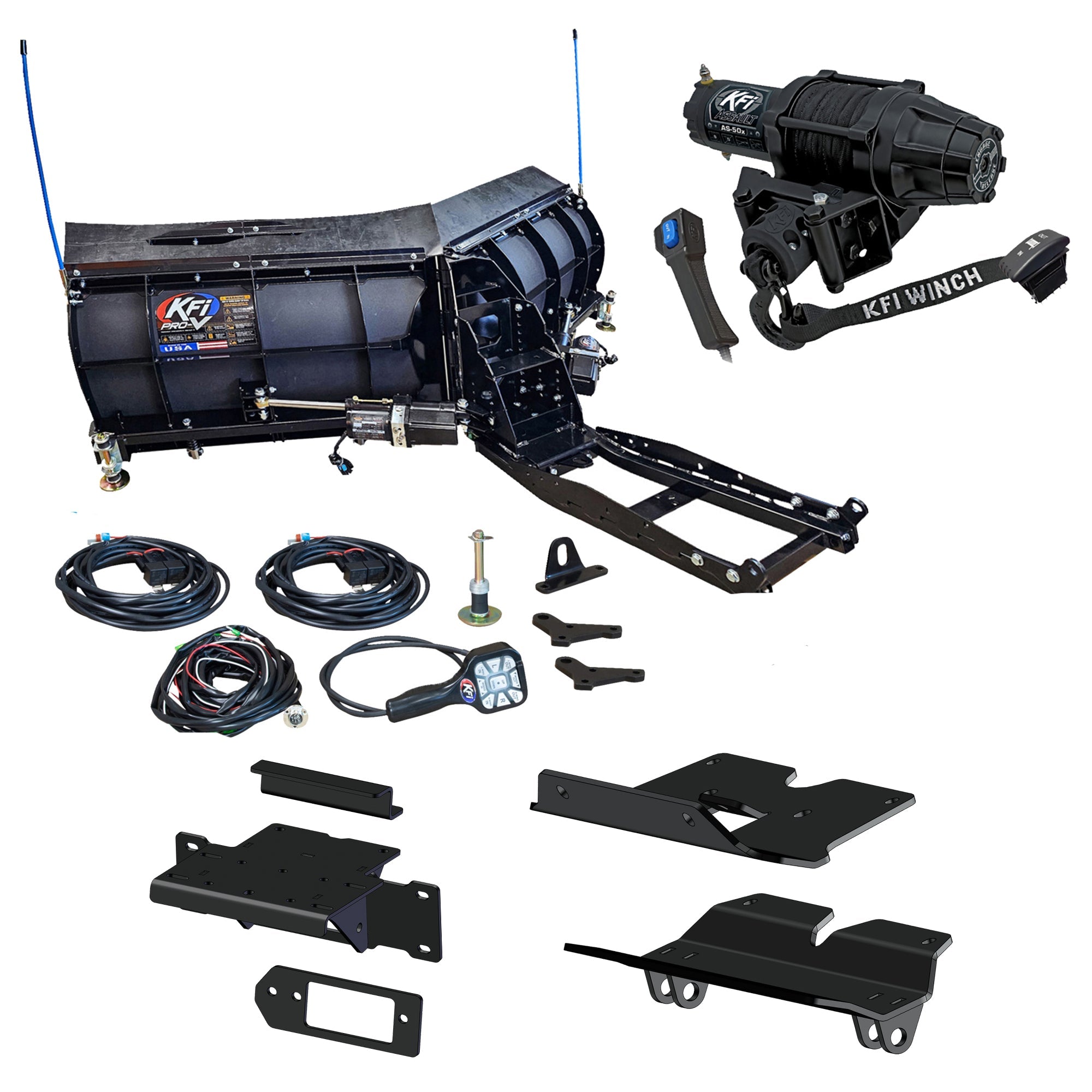

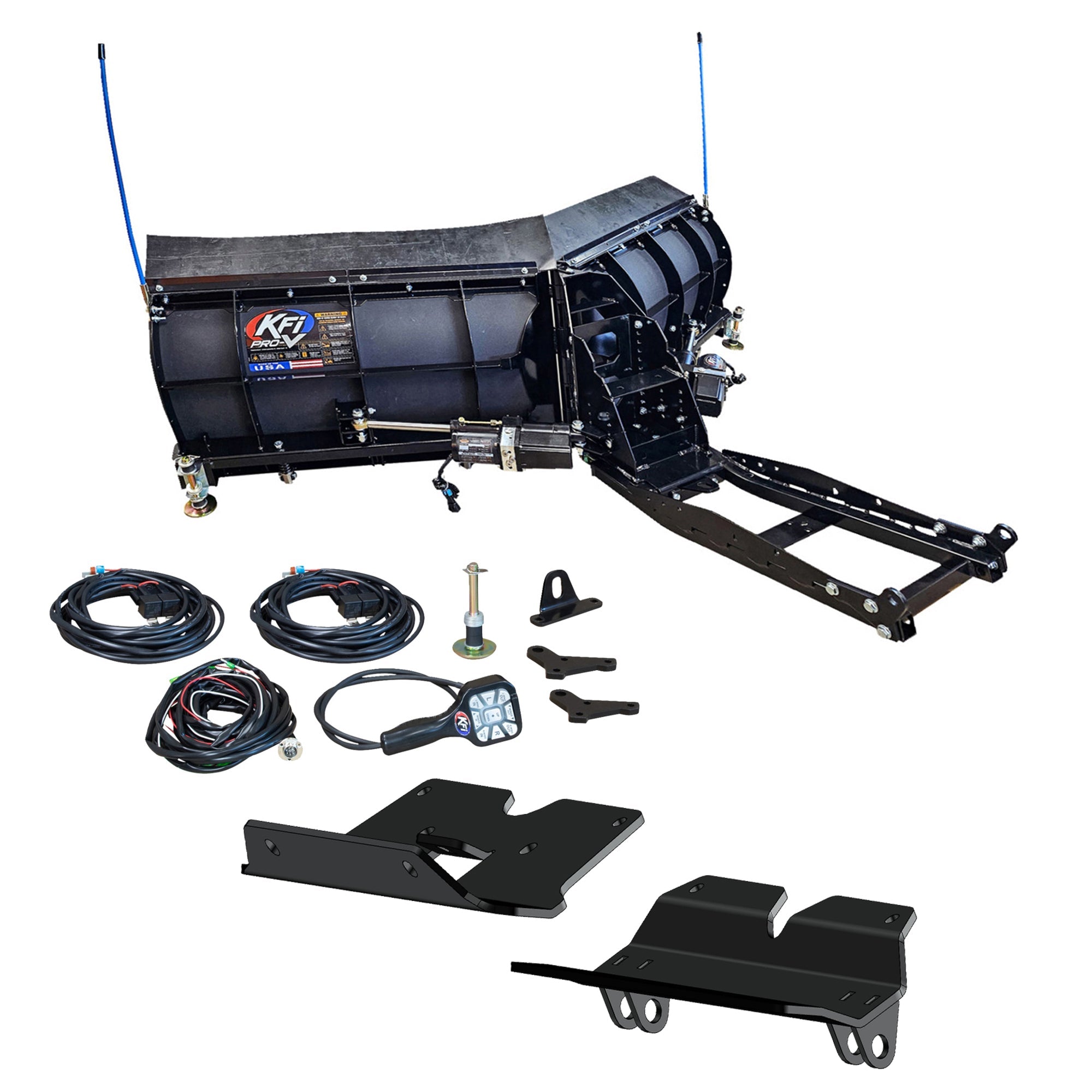

Pro-V UTV Plow System w/ Hand Remote Controlled Actuators
| Components To Order | Included Components |
|---|---|
|
106180-DS (Box 1) 106180-PS (Box 2) 106180-CP (Box 3) 106180-APH (Box 4) |
|
Option #2:

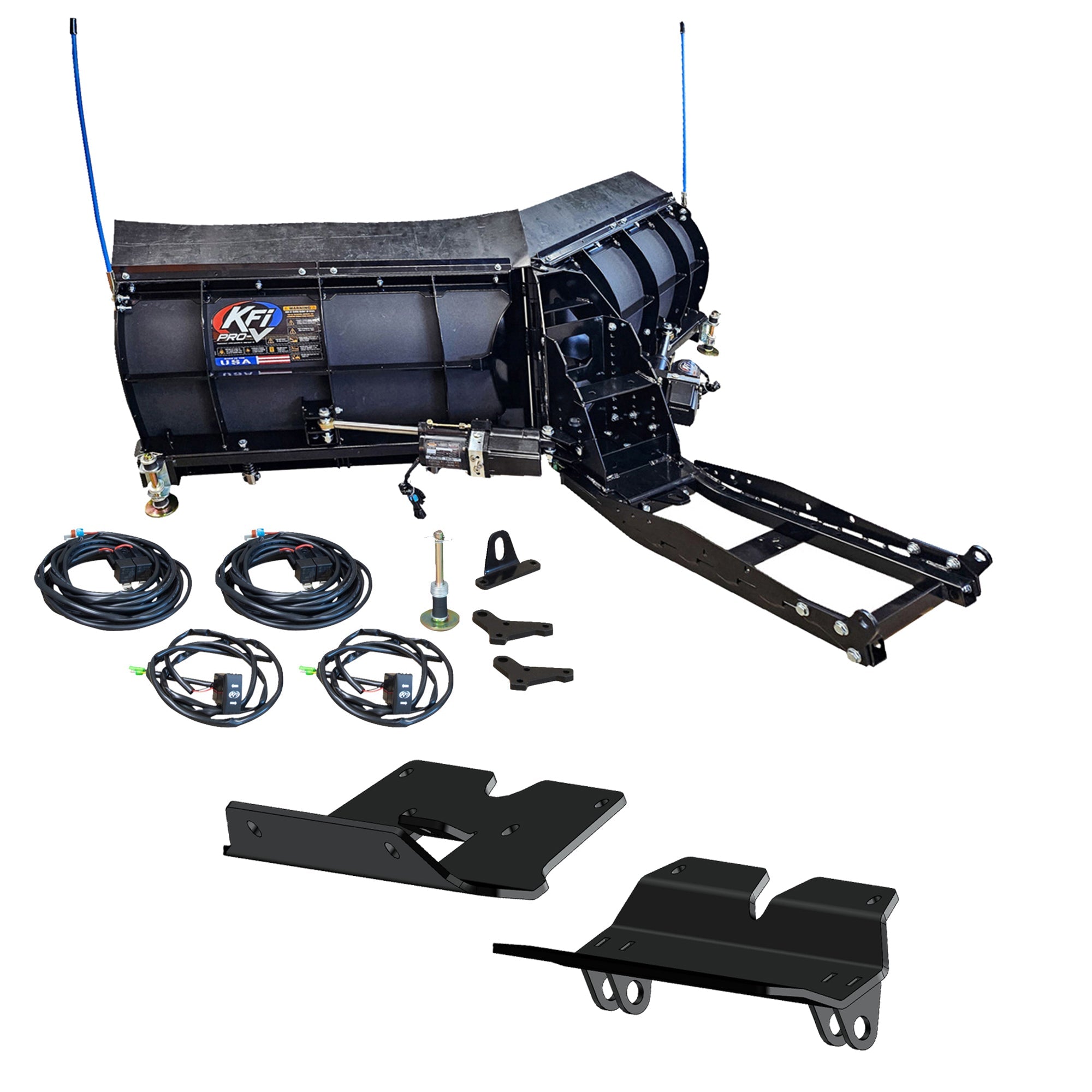

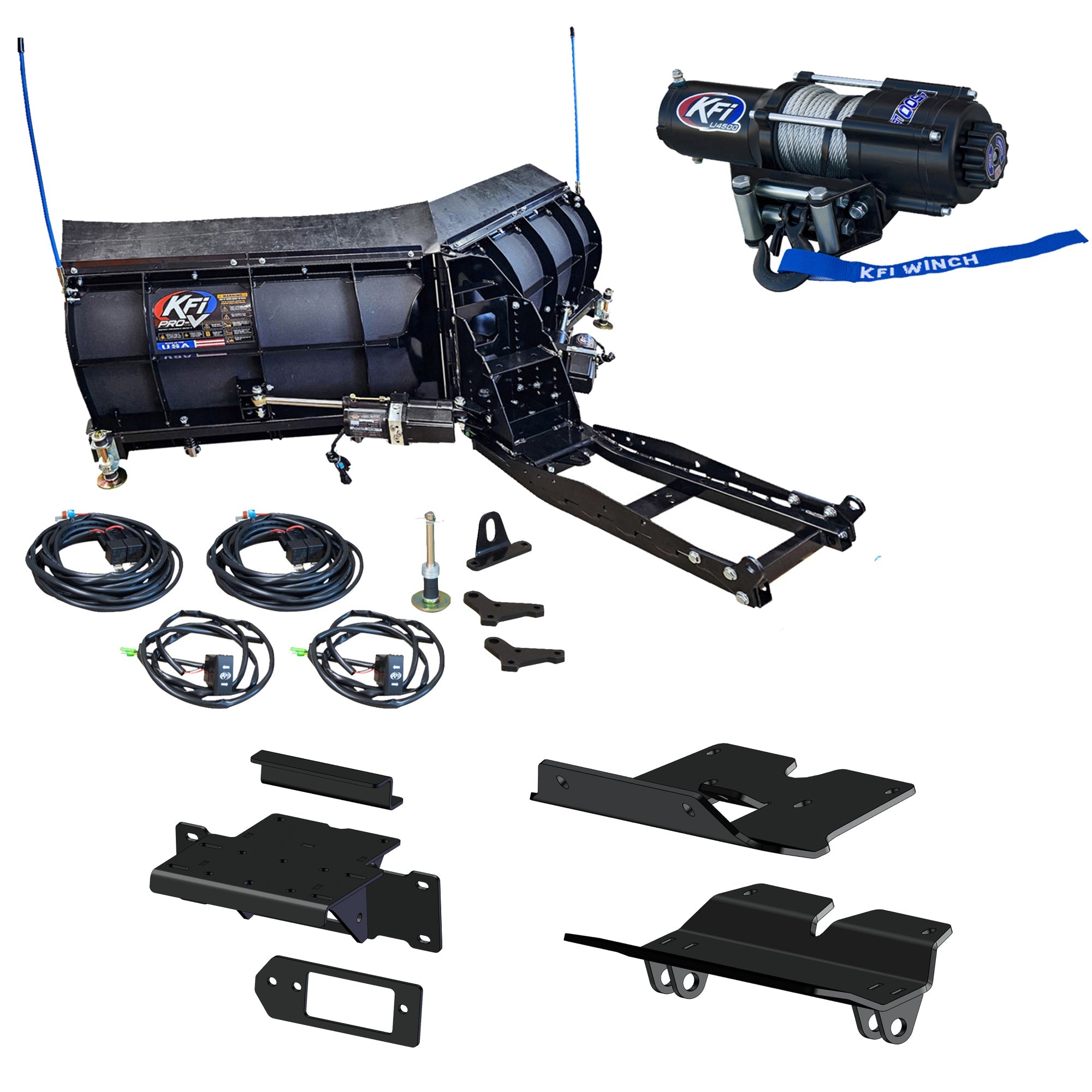

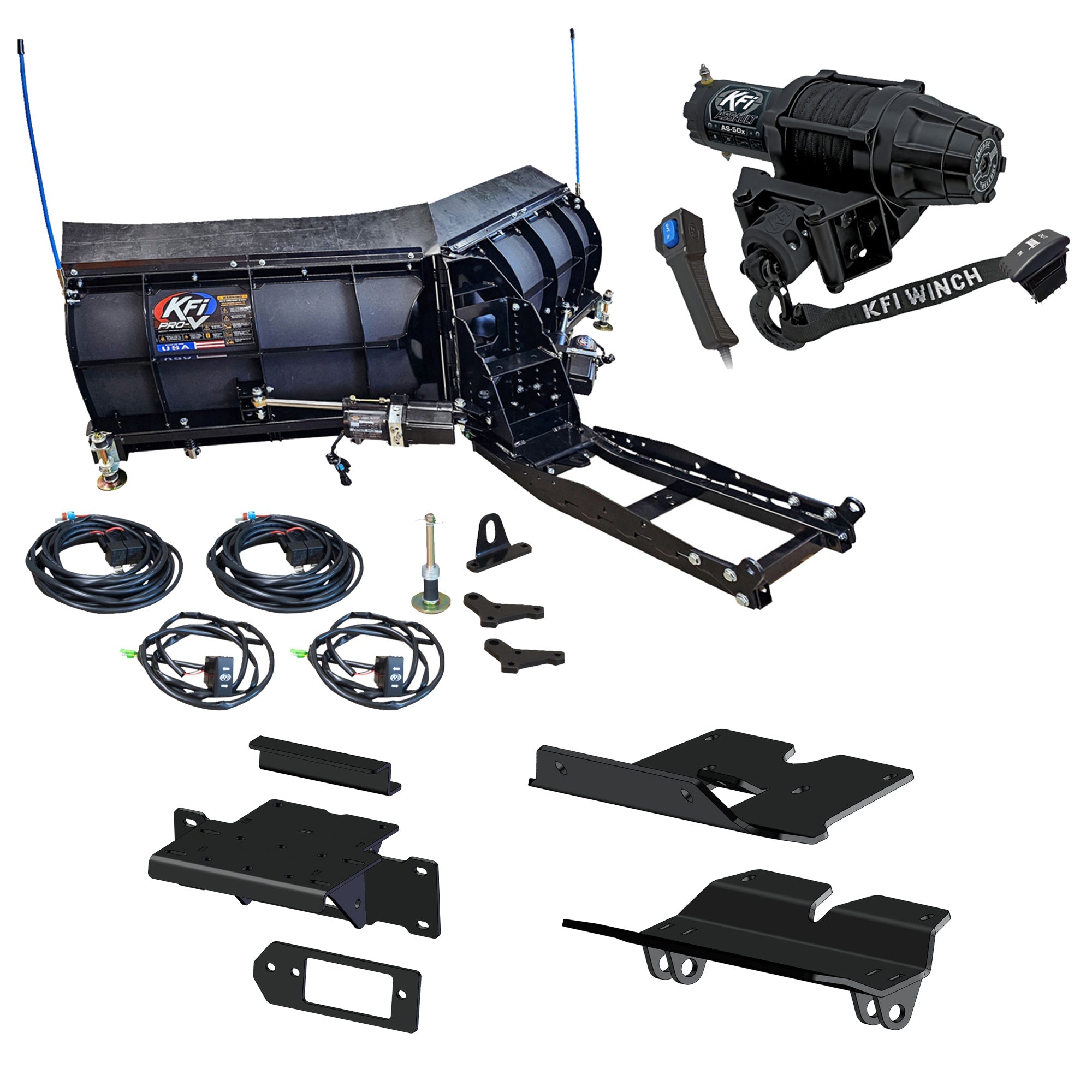

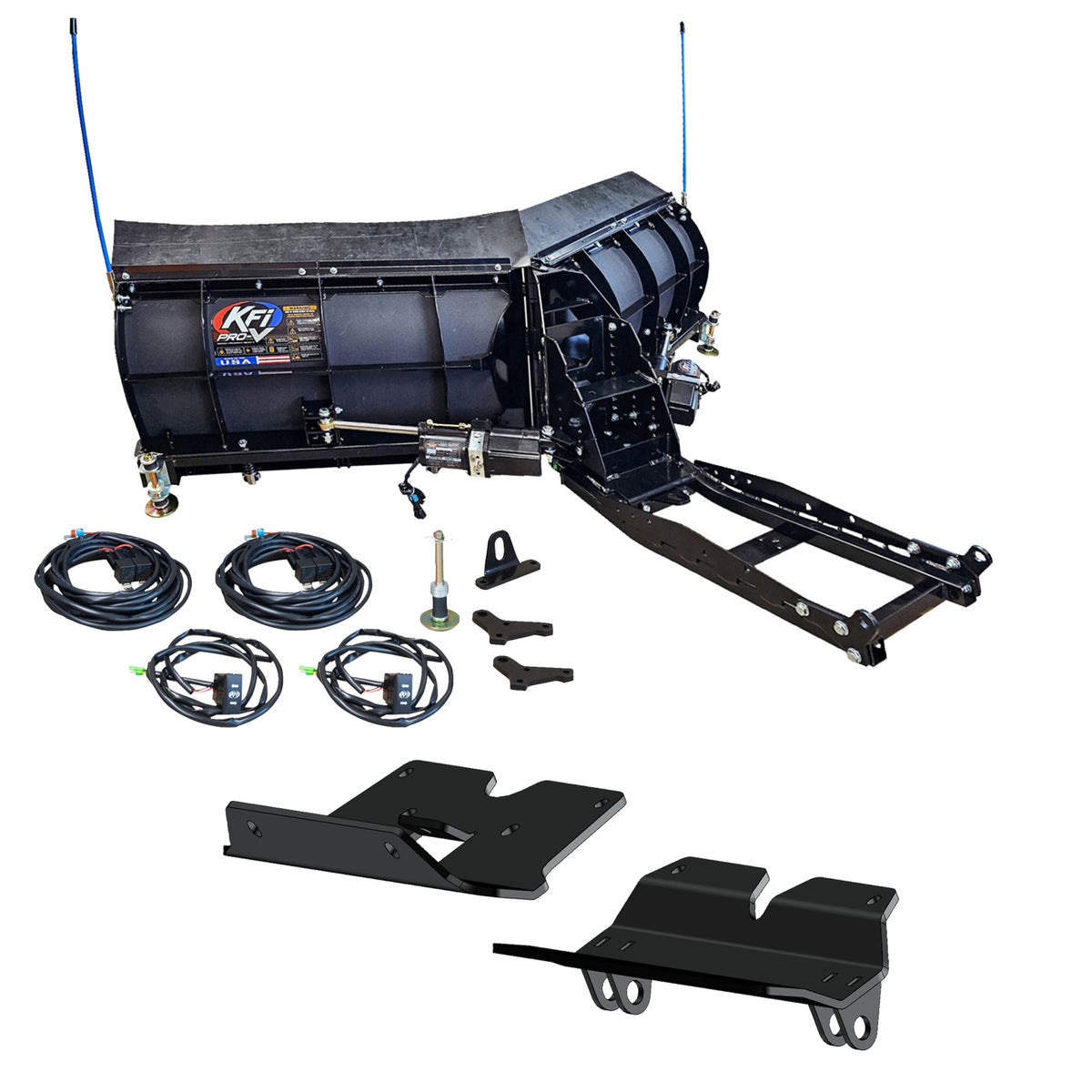

Pro-V UTV Plow System w/ Dash Rocker Controlled Actuators
| Components To Order | Included Components |
|---|---|
|
106180-DS (Box 1) 106180-PS (Box 2) 106180-CP (Box 3) 106180-AP (Box 4) |
|

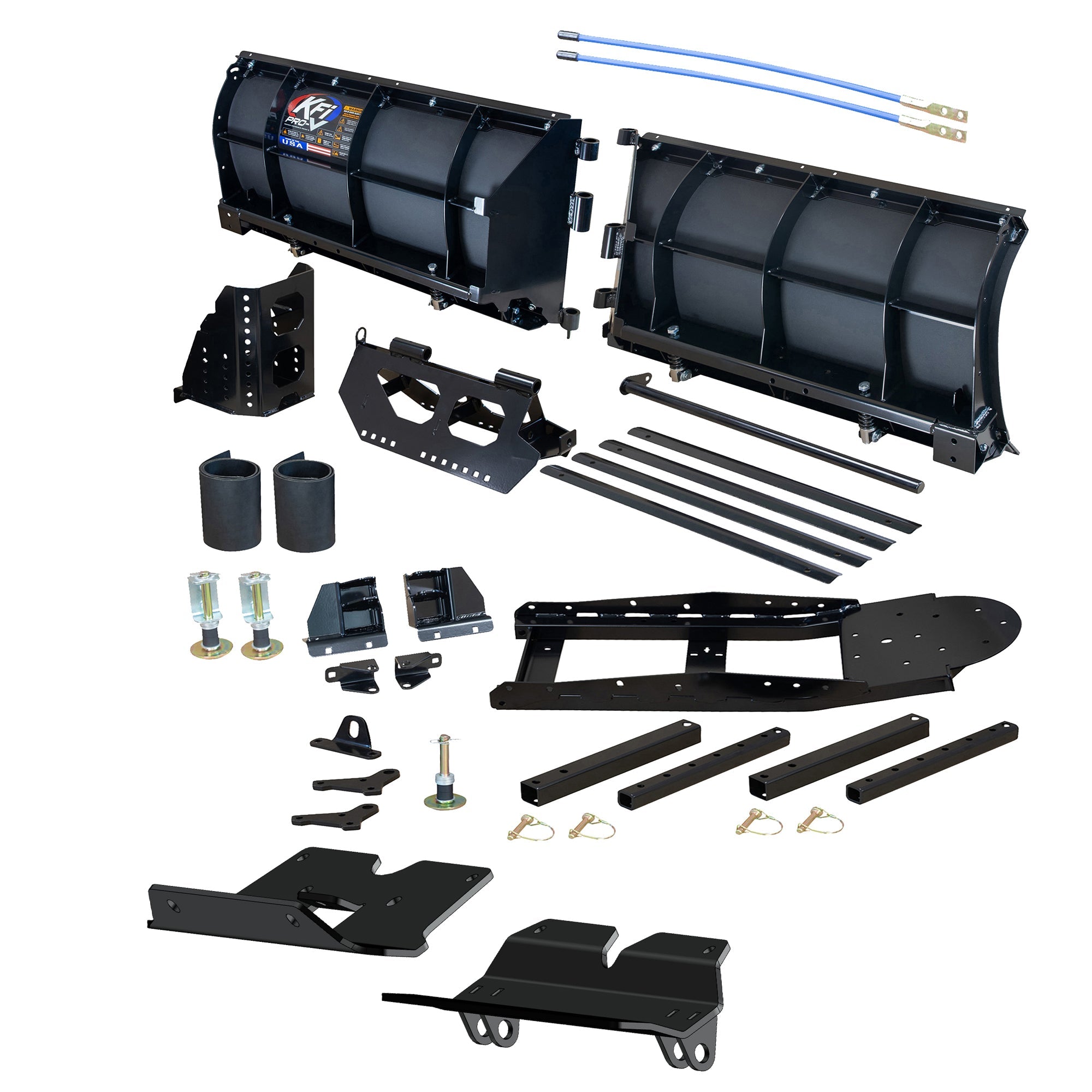

Option #3:

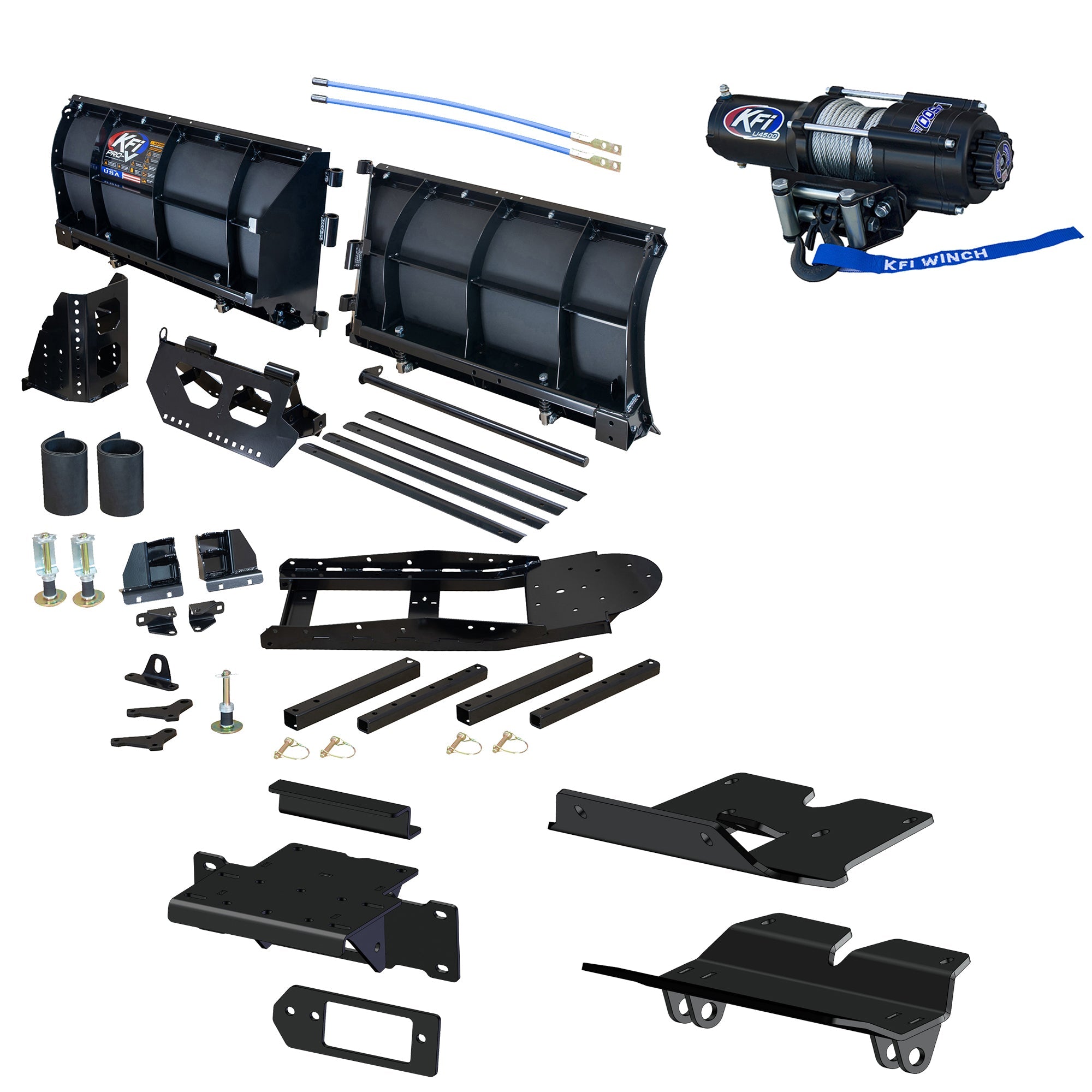

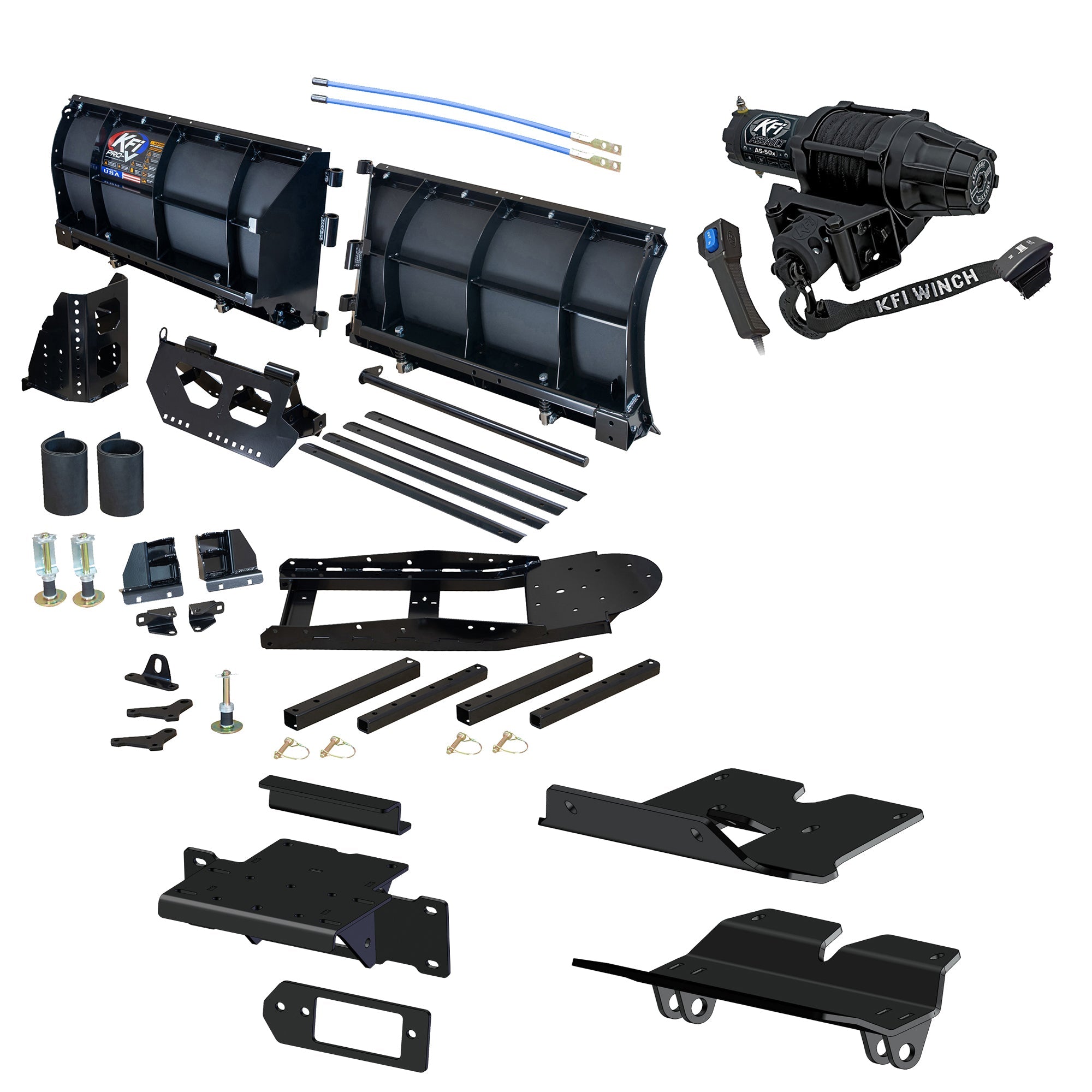

Pro-V UTV Plow System with Two Manual Angle Adjustment Bars
| Components To Order | Included Components |
|---|---|
|
106180-DS (Box 1) 106180-PS (Box 2) 106180-CP (Box 3) 106180-MP (Box 4) |
|
UTV Model Specific Plow Mount Specifications:
- 100% Made in the USA
- Front Lower Plow Mount System: Allows for easy attachment and removal of the plow.
- Uses Two Standard 5/8" Hitch Pins for Secure Connection (comes with push tubes)
- Plate Material: Constructed from 3/16" thick grade 50 steel for durability and strength.
- Plow Mounting Tabs: Made from 1/4" thick grade 50 steel to ensure a secure fit.
- Superior Finish Preparation: Unlike competitors, products undergo metal bead blasting before powder coating to provide the best possible finish.
- Powder Coated Black: Ensures supreme durability and corrosion resistance.
- Installation: Comes with complete instructions for hassle-free installation.
- All Necessary Hardware Included: Provides all the mounting hardware needed for installation.
This mount offers a robust and durable option for UTV plowing needs, ensuring long-lasting performance and ease of use.
Winch Specifications:
Any winch selection will also receive a model-specific winch mount. Click links below to view winch specific details.
U4500 4,500lb Winch, Steel Cable
AS-50x 5,000 lb Winch, Synthetic Cable
