Plow Mount Installation Instructions

Fitment:
CF-Moto ZFORCE 500 (‘16-22)
CF-Moto ZFORCE 500 (Canada Only) 2023
CF-Moto ZFORCE 800 / 800EX (‘14-22)
CF-Moto ZFORCE800 Trail (G1 Canada Only) 2023
CF-Moto ZFORCE 1000 (‘18-19)
CF-Moto ZFORCE 1000 Classic (Canada Only) 2021

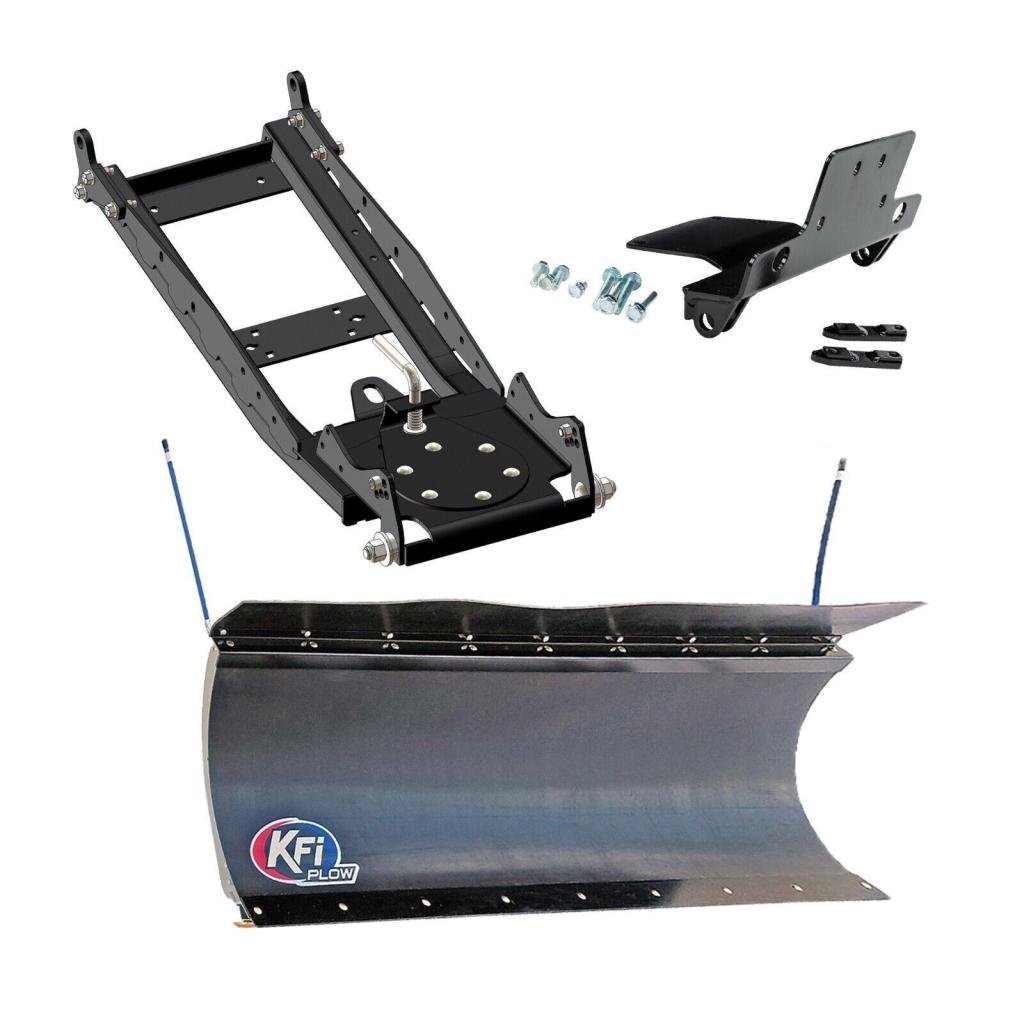

NOTE: Main image utilizes the picture of the machine specific mount. Additional images are for visual representation only.

Straight Blade Specifications:
100% MADE IN USA
Pushes snow straight ahead or to the sides up to 25 degrees
Added gussets for the wider width
The 66" & 72" blades include a 7" high 2-ply top rubber flap
Measures 16” Vertical blade face height with an approximate 21” height with snow flap
Fully-adjustable blade skids with bolt-on brackets
Heavy duty 3"-diameter grade-50 steel skid plates
Blade Constructed of 11 ga steel
3/16" Grade 50 Ribbing for a strong bolt-up to the Swivel Tube
Unlike all other Plow competitors our Plows are metal bead blasted before they are powder coated Metallic Silver for supreme durability
2-Sided 3/16" x 3.00" Grade 50 Steel Wear Bar
Wear Bar attached with Heavy Duty Grade 8 Bolts
2-Year KFI Warranty

UTV Poly Blade Specifications:
Includes a 7" high 2-ply top rubber flap
100% MADE IN USA
Dual Curvature face for supreme snow moving
Measures 21” Vertical blade face height with an approximate 27” height with snow flap
Fully-adjustable blade skids with bolt-on brackets
Heavy duty 3"-diameter grade-50 steel skid plates
Flexible Heavy Duty Black Poly face
3/16” Grade 50 Steel Rib and Frame construction
Unlike all other Plow competitors our Plows are metal bead blasted before they are Powder Coated Black for supreme durability
2-Sided 3/16" x 3.00" Grade 50 Steel Wear Bar
Wear Bar attached with Heavy Duty Grade 8 Bolts
Complete installation instructions included
Works with KFI ATV & UTV Tubes
Includes Plow Markers
2-Year KFI Warranty
