KFI Snowplow Kit Hisun Sector 450/550/750/1000

Plow Mount Installation Instructions

FITS:
Axis E1 (All) *
Axis 450 (All) *
Axis 500 (All) *
Axis 700 (All) *
Axis Pro 750 (All) *
Axis 750 Crew (All) *

Bennche Cowboy 500 / 700 (2015-2016) *

BMS Colt 700 LSX-2S (2021) *
BMS Colt 700 LSX 4S (2021) *
BMS Ranch Pony 700 EFI 2S (2021) *
BMS Ranch Pony 700 EFI 4S (2021) *

Coleman Colt 700 LSX-2S (2021) *
Coleman Colt 700 LSX 4S (2021) *
Coleman Ranch Pony 700 EFI 2S (2021) *
Coleman Ranch Pony 700 EFI 4S (2021) *

Hisun HS400 (2015-2016) *
Hisun Sector E1 (All) *
Hisun Sector 450 (All) *
Hisun Sector 550 (All) *
Hisun Sector 750 (All) *
Hisun Sector 750 Crew (All) *
Hisun Sector 1000 (All) *
Hisun Sector 1000 Crew (All) *

Massimo Knight 500 / 700 (All) *


SSR Bison 400U (2023-2025) *
SSR Bison 500U (2023-2025) *


Bighorn Explorer 550 (B / DX / DXH) (All) *

*Uses stock winch

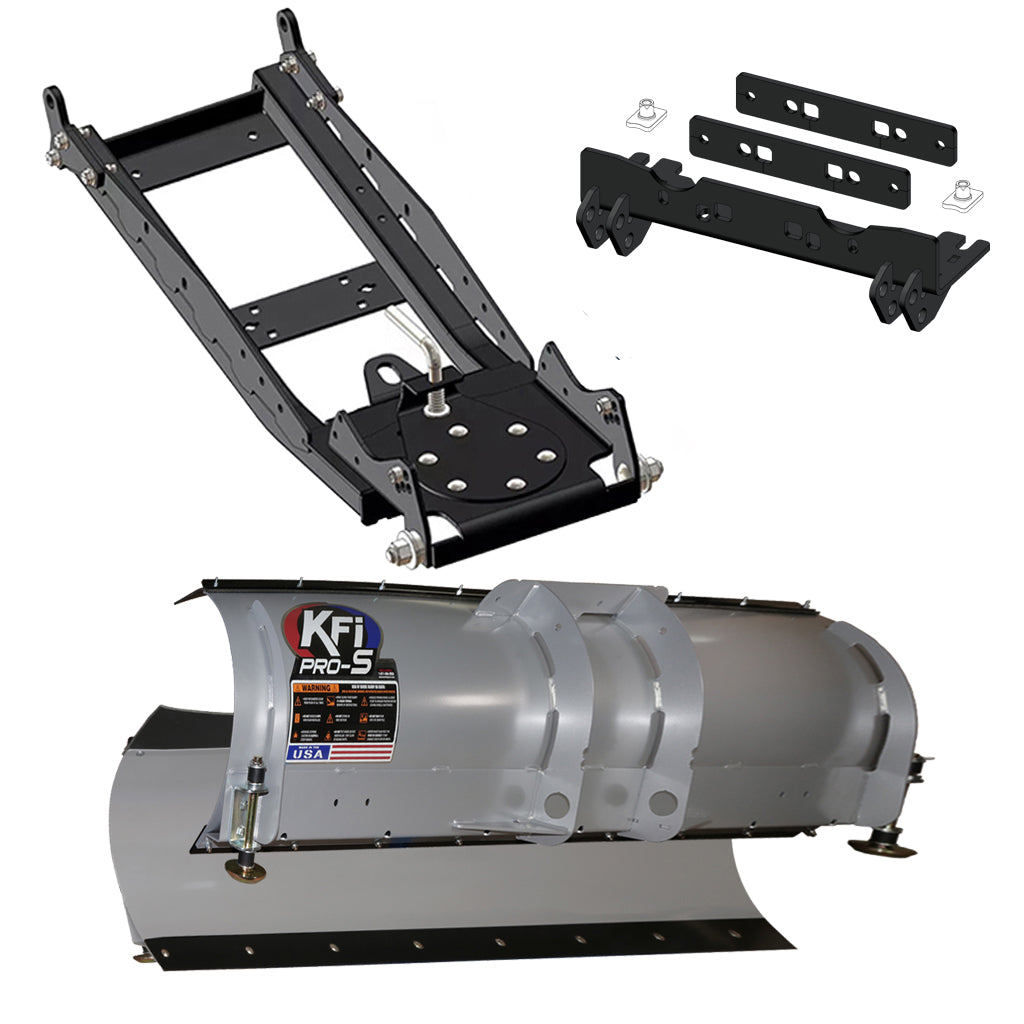

Straight Blade Specifications:
100% MADE IN USA
Pushes snow straight ahead or to the sides up to 25 degrees
Added gussets for the wider width
The 66" & 72" blades only include a 7" high 2-ply top rubber flap
Measures 16 inches Vertical blade face height with an approximate 21 inches height with snow flap
Fully-adjustable blade skids with bolt-on brackets
Heavy duty 3"-diameter grade-50 steel skid plates
Blade Constructed of 11 ga steel
3/16" Grade 50 Ribbing for a strong bolt-up to the Swivel Tube
Unlike all other Plow competitors our Plows are metal bead blasted before they are powder coated Metallic Silver for supreme durability
2-Sided 3/16" x 3.00" Grade 50 Steel Wear Bar
Wear Bar attached with Heavy Duty Grade 8 Bolts
2-Year KFI Warranty

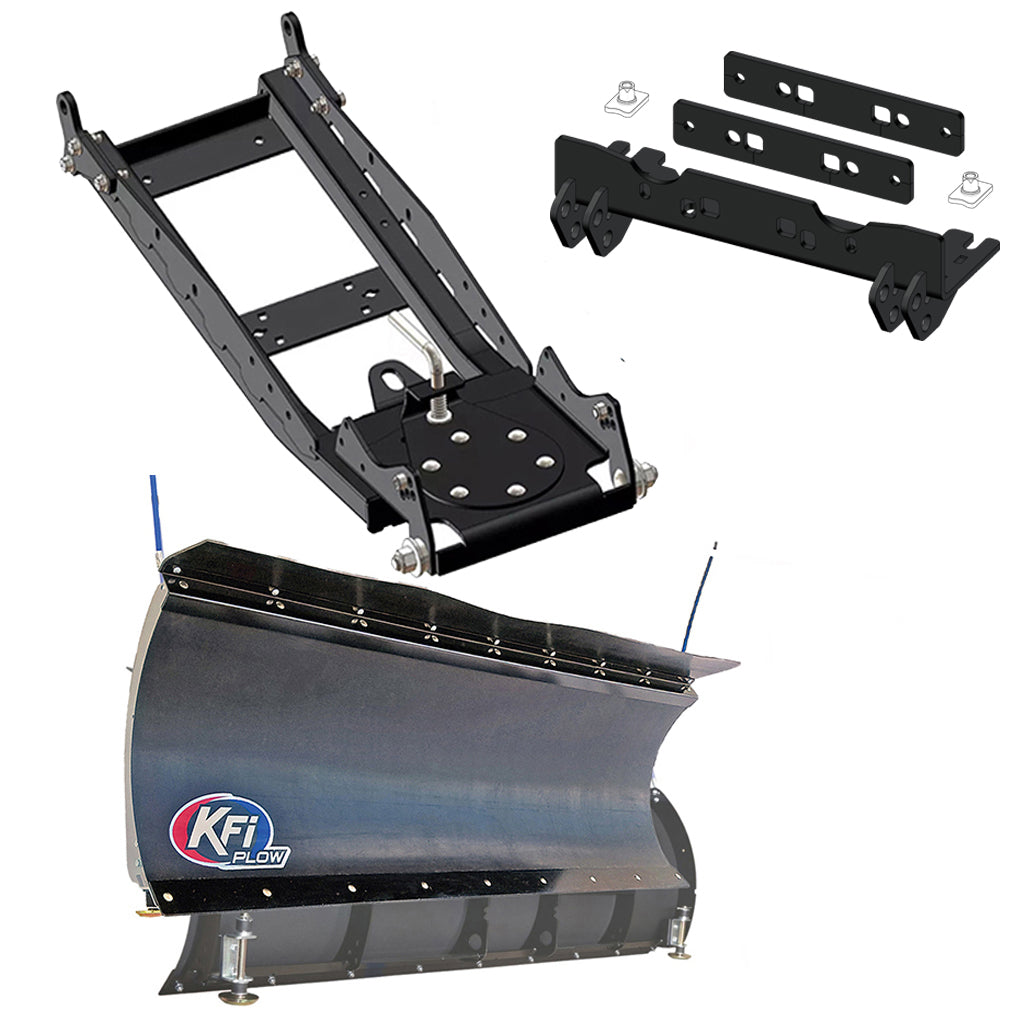

Poly Blade Specifications:
Includes a 7" high 2-ply top rubber flap
100% MADE IN USA
Dual Curvature face for supreme snow moving
Measures 21 inch Vertical blade face height with an approximate 27 inch height with snow flap
Fully-adjustable blade skids with bolt-on brackets
Heavy duty 3"-diameter grade-50 steel skid plates
Flexible Heavy Duty Black Poly face
3/16 inch Grade 50 Steel Rib and Frame construction
Unlike all other Plow competitors our Plows are metal bead blasted before they are Powder Coated Black for supreme durability
2-Sided 3/16" x 3.00" Grade 50 Steel Wear Bar
Wear Bar attached with Heavy Duty Grade 8 Bolts
Complete installation instructions included
Works with KFI UTV Tubes
Includes Plow Markers
2-Year KFI Warranty
