Motion Factory Racing 10mm Down/5mm Back Offset Footpegs 2023+ KTM/Husky/GasGas/Beta | KGFD

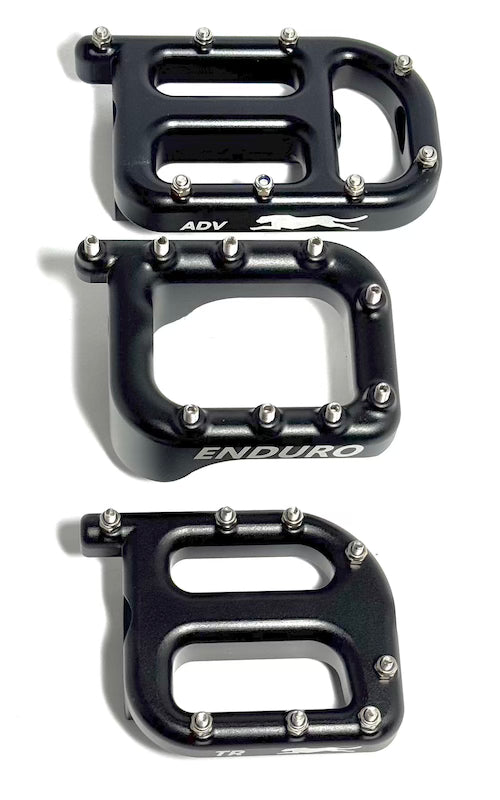

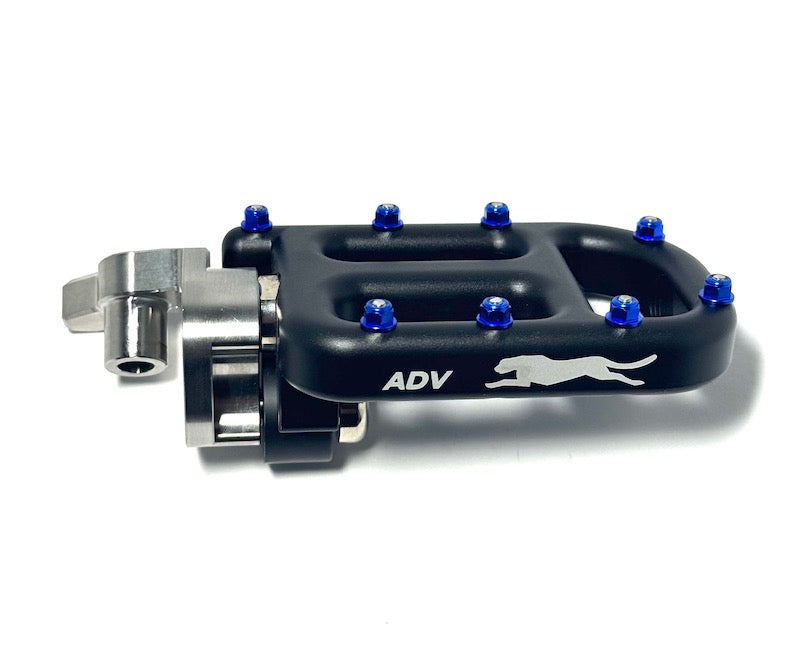

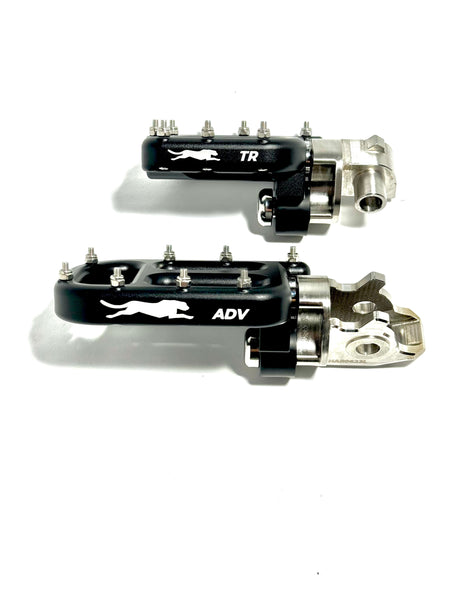

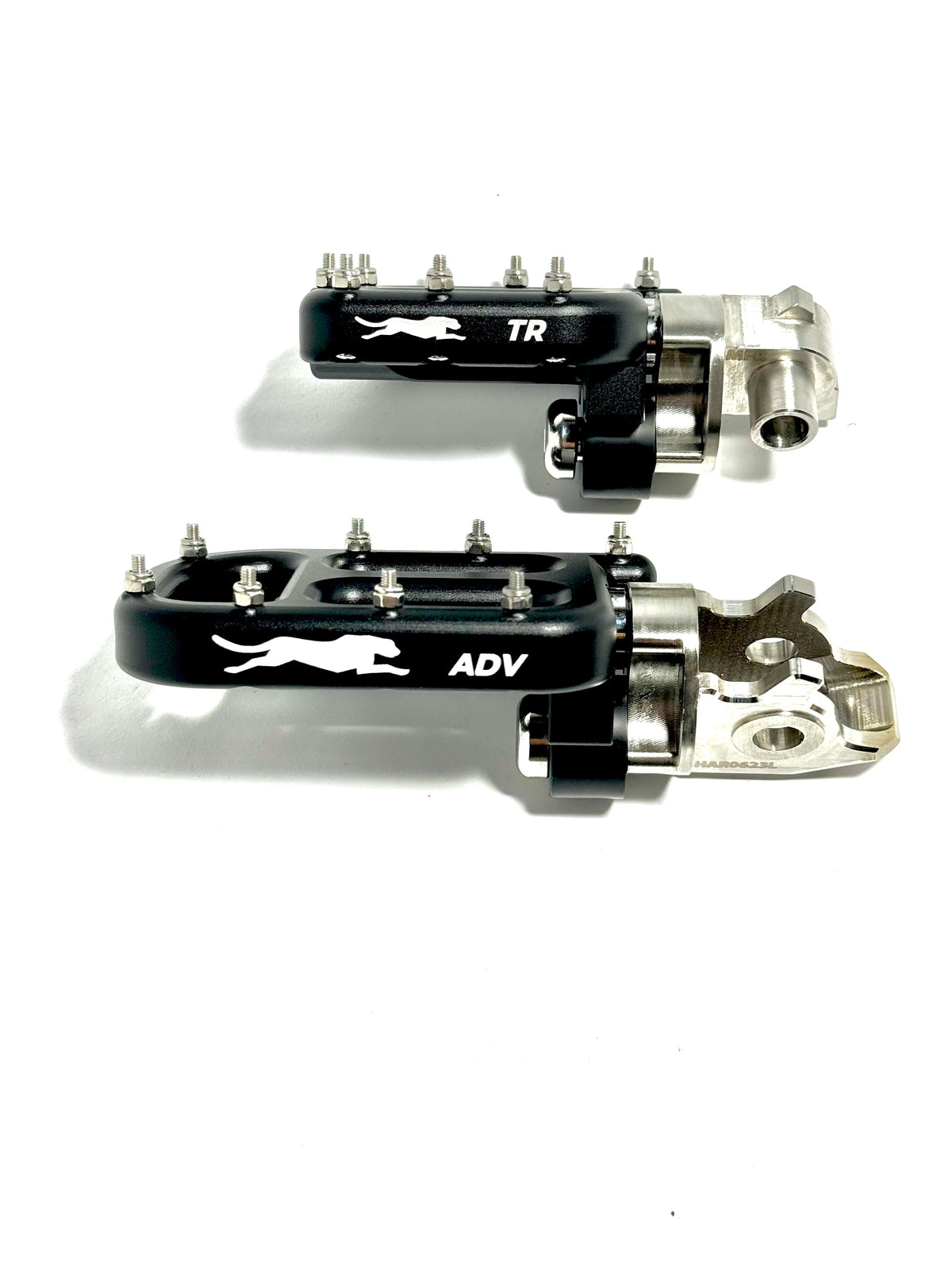

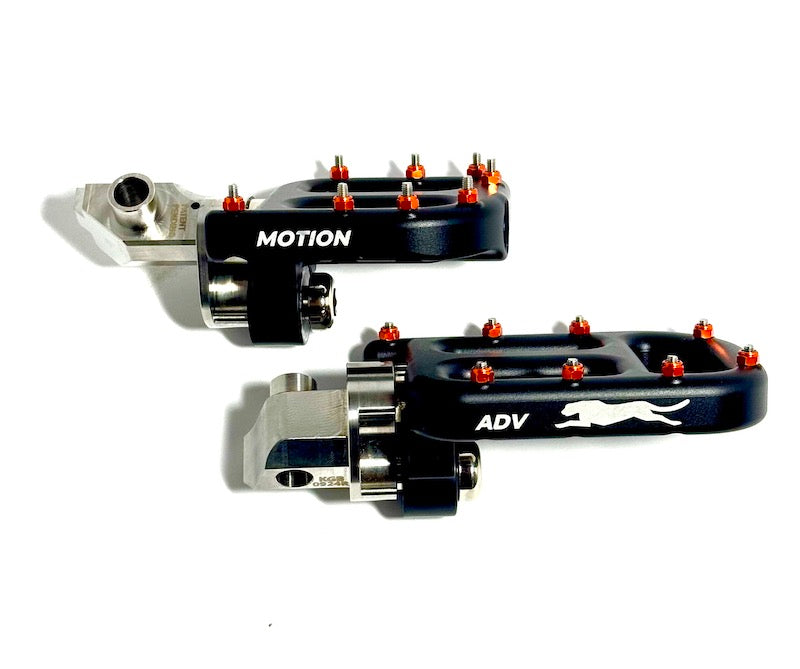

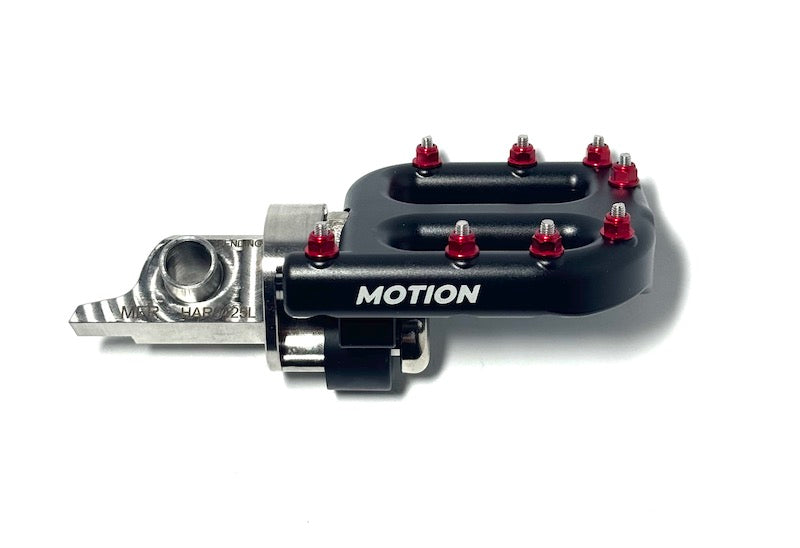

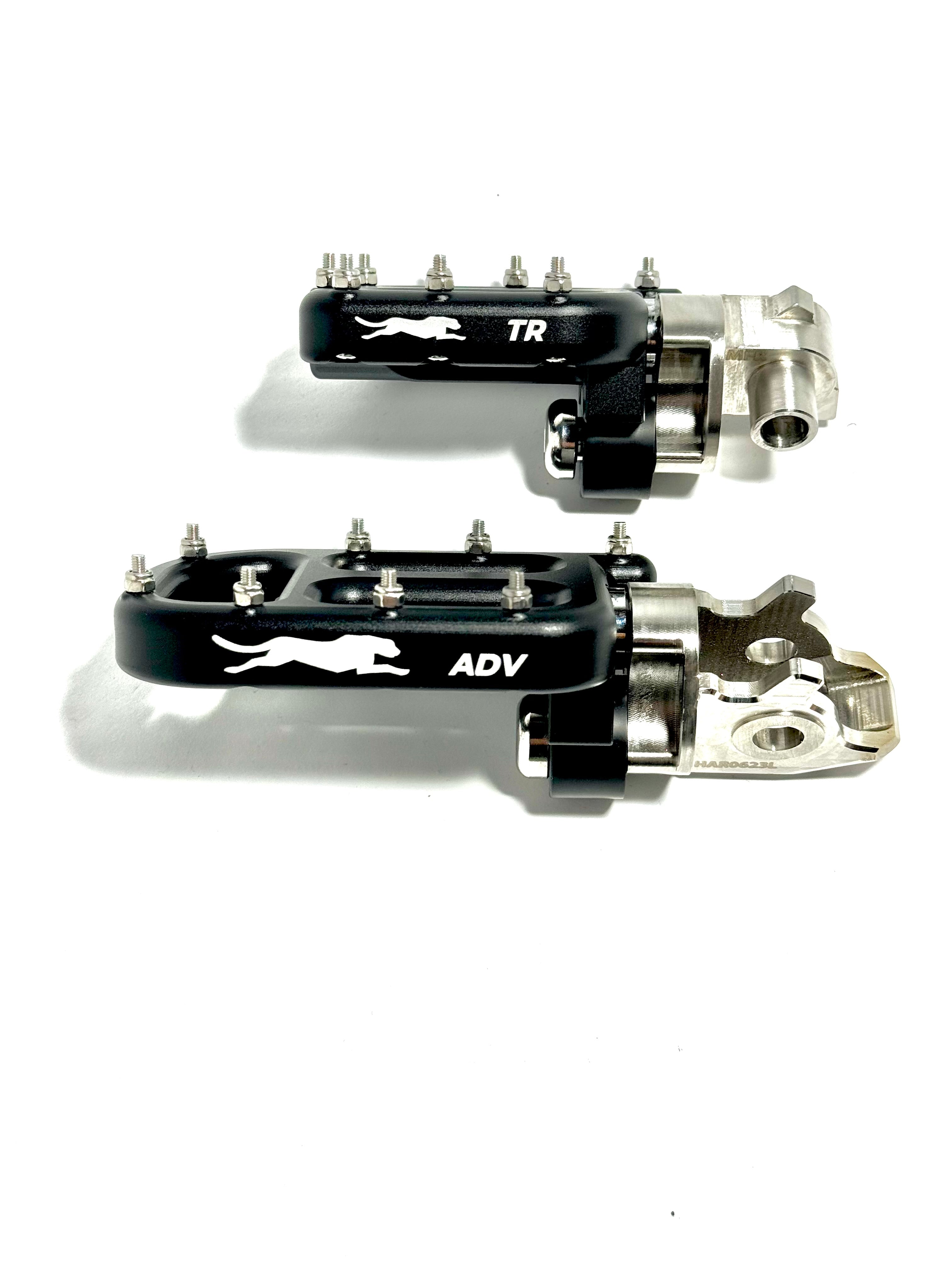

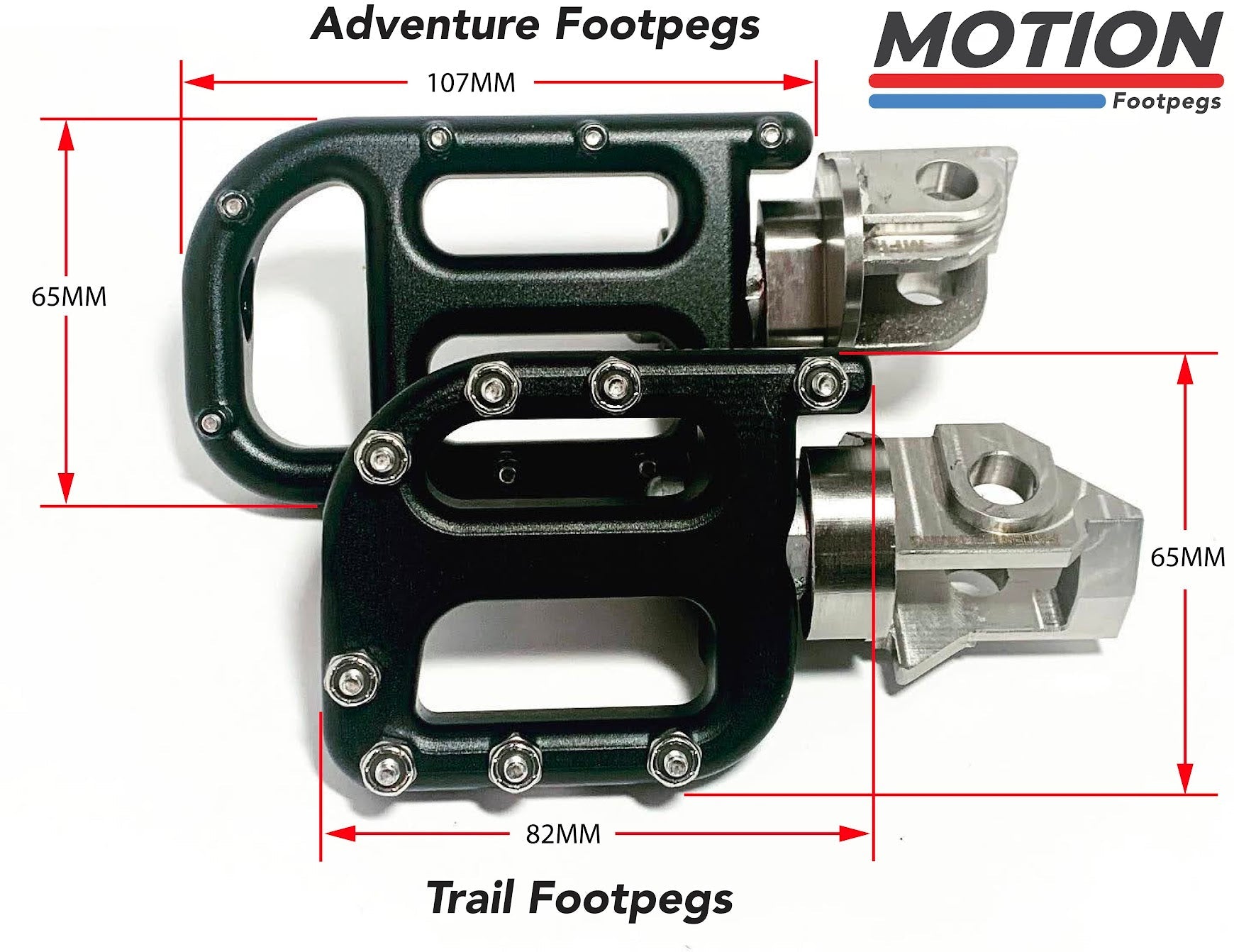

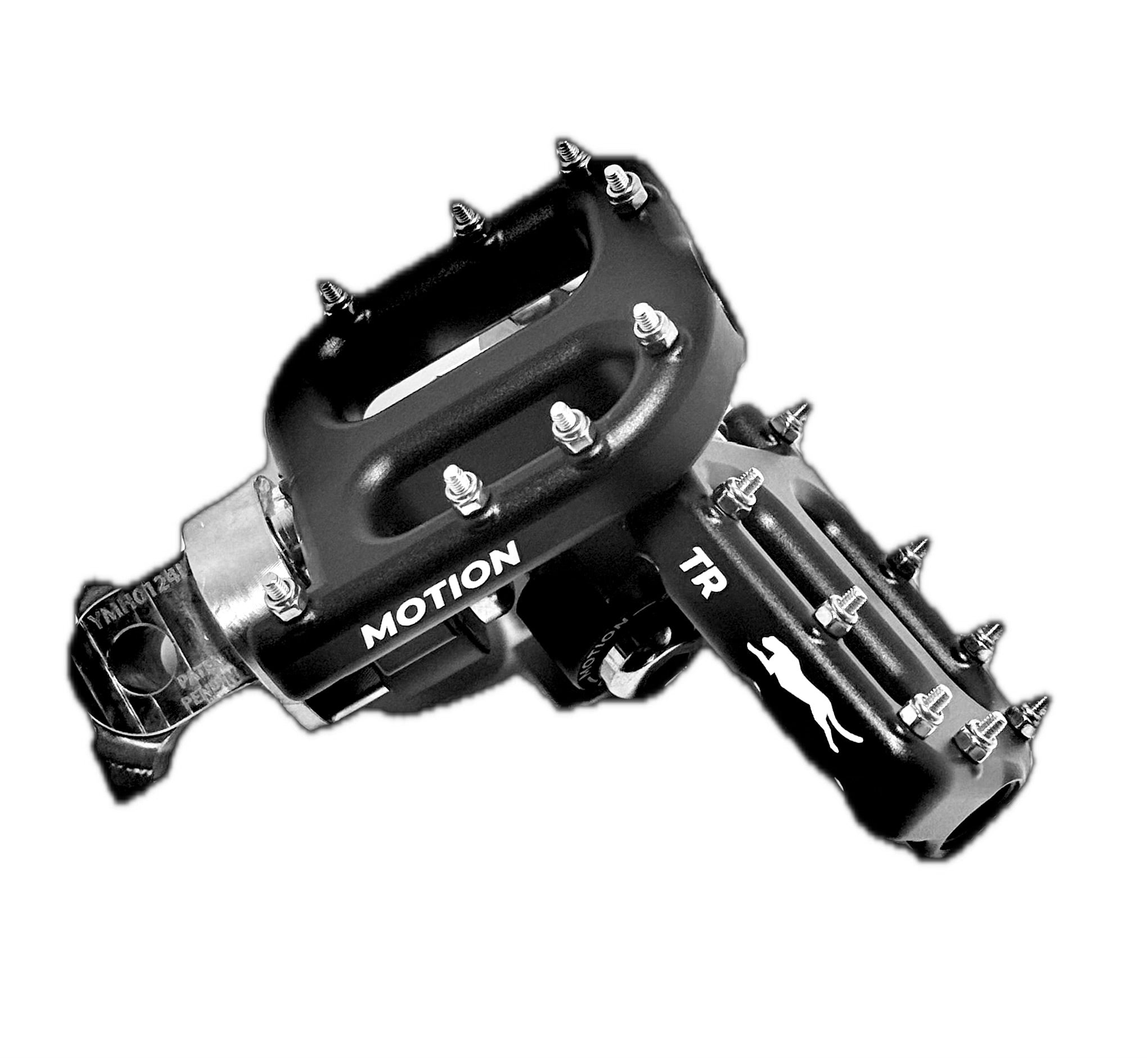

Patented Flex-Mount Footpeg System now offers a platform option for all riders. Try our Trail or Adventure platforms that offer rotation with the added benefits of vibration damping and adjustable flex. Click here to learn more about these 2 options.

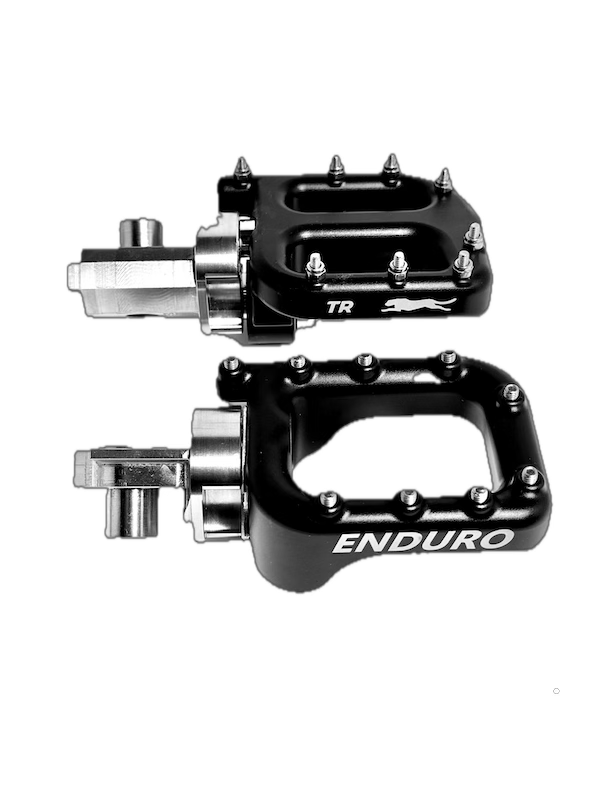

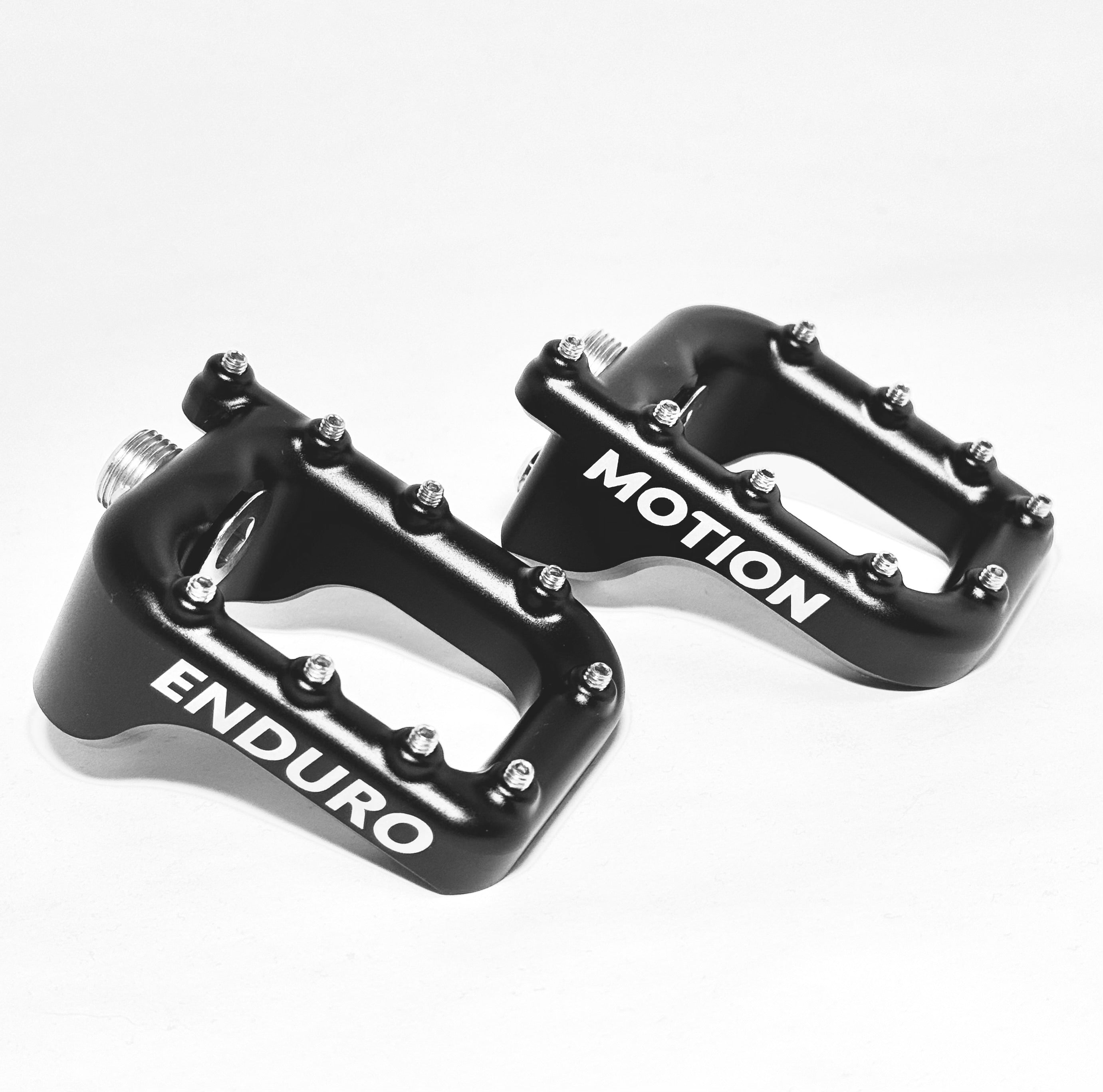

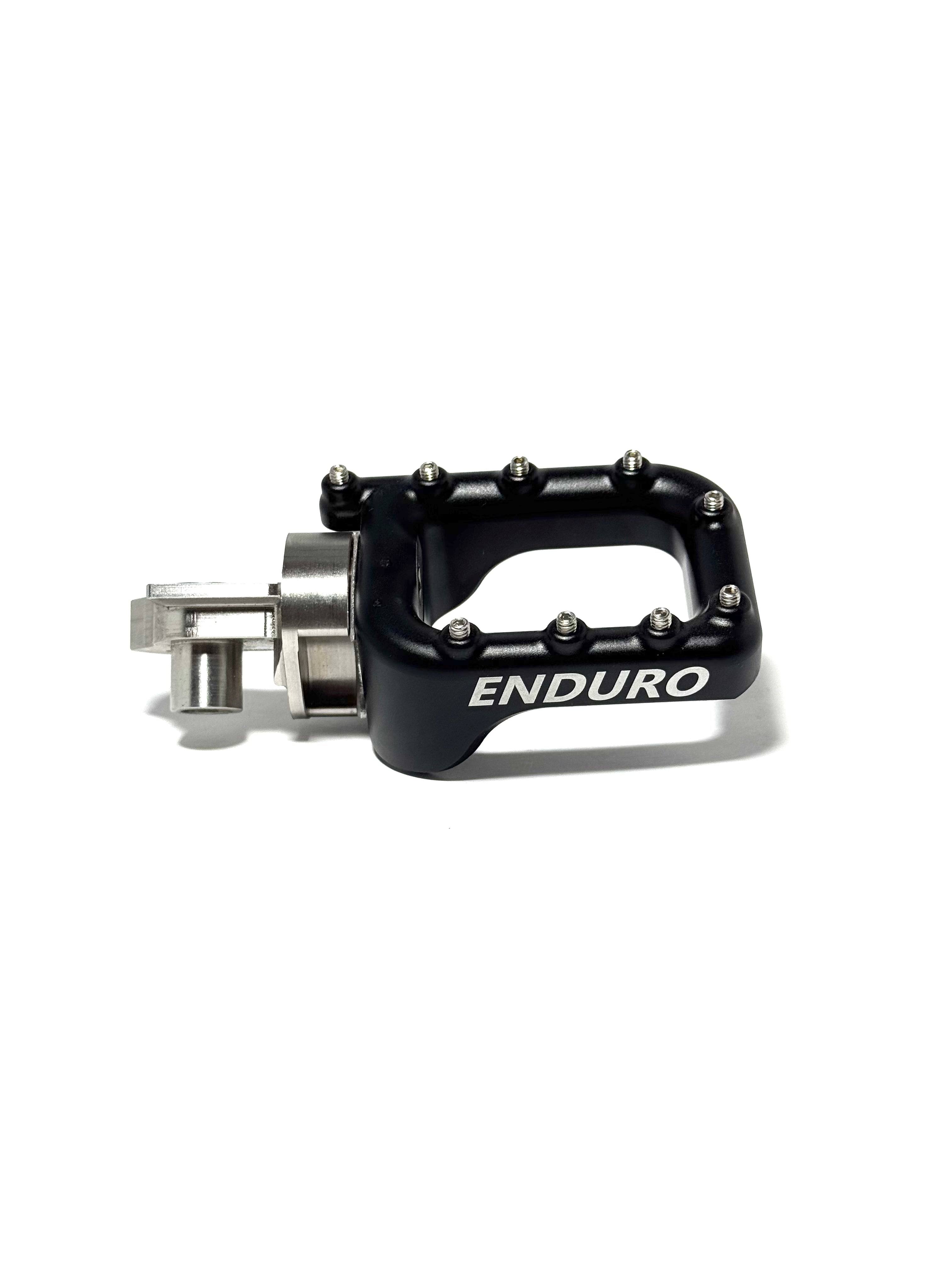

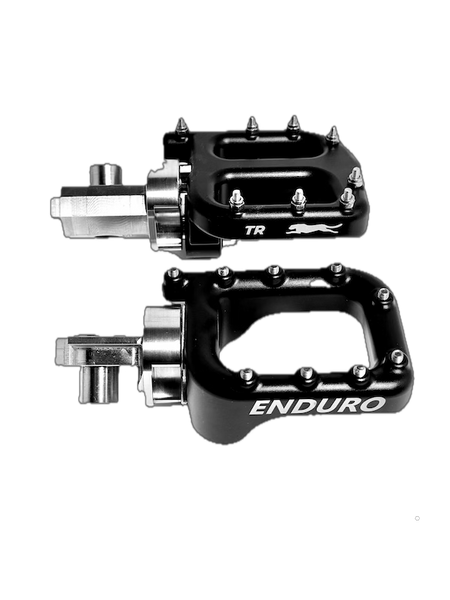

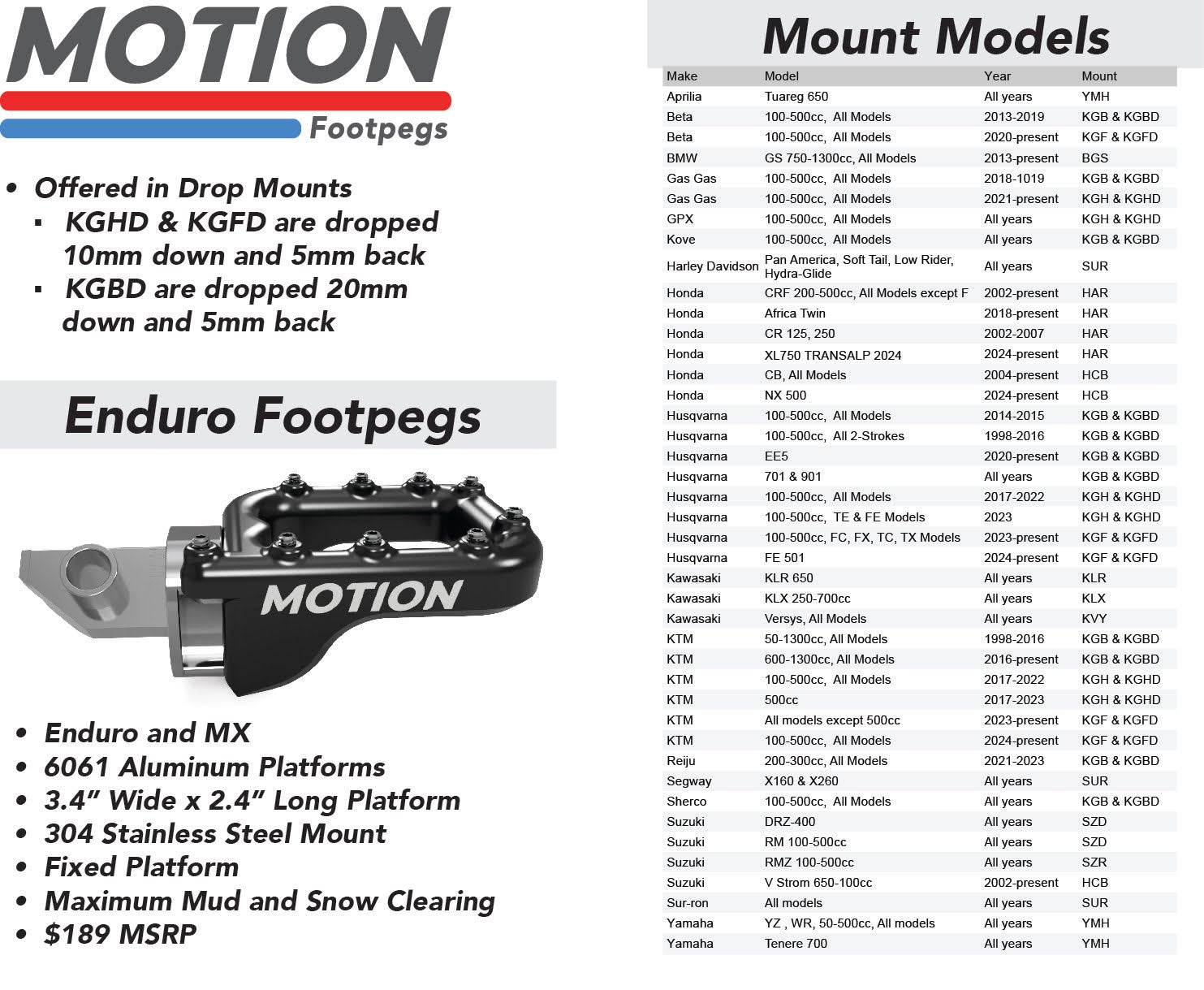

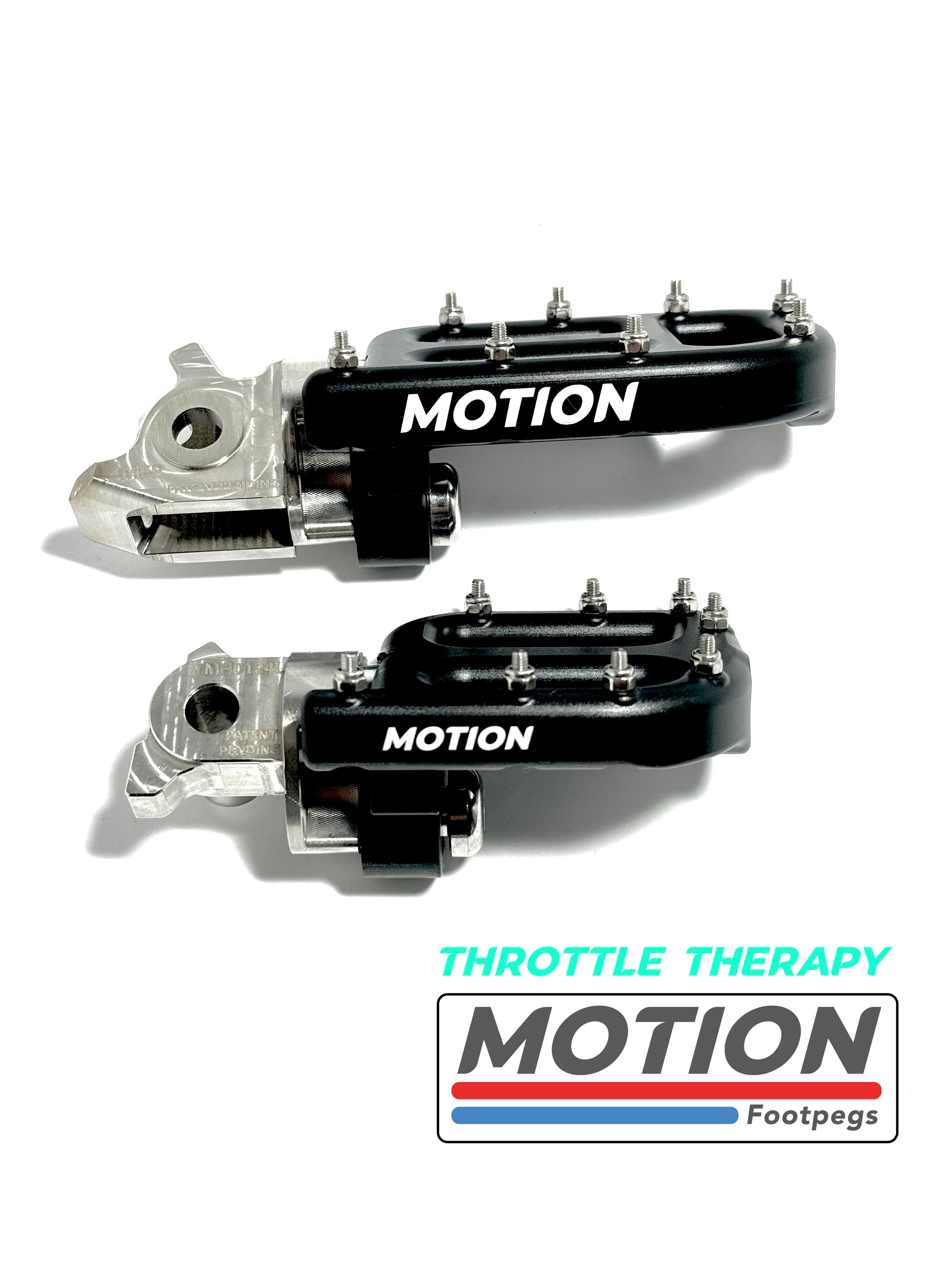

The Enduro Platform *does not* rotate and offers a traditional footpeg option for riders. This is the best option for those riders who are super hard on gear and need something that can take a lot of abuse. Click this link for more details. Or reach out if you have questions.

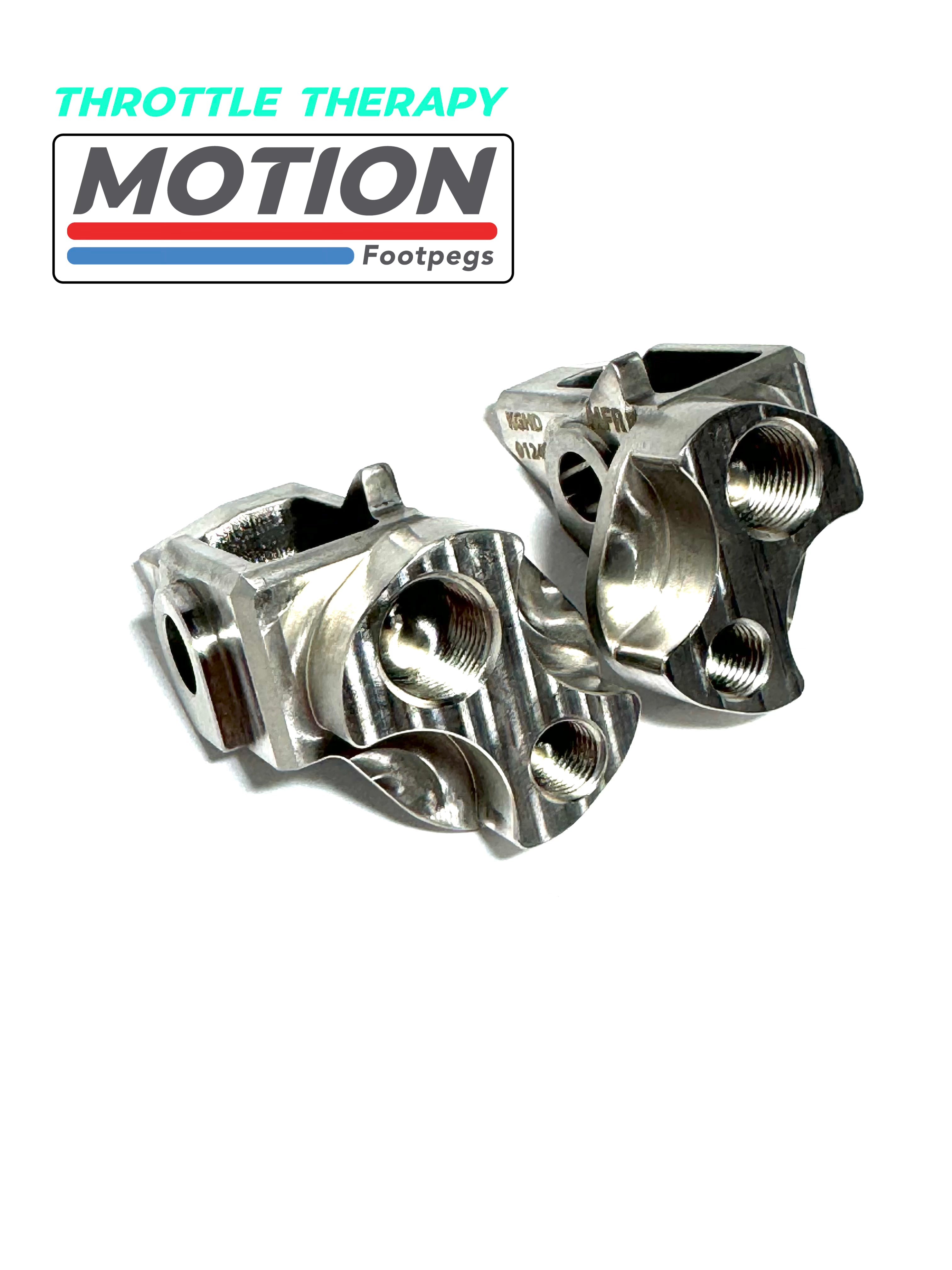

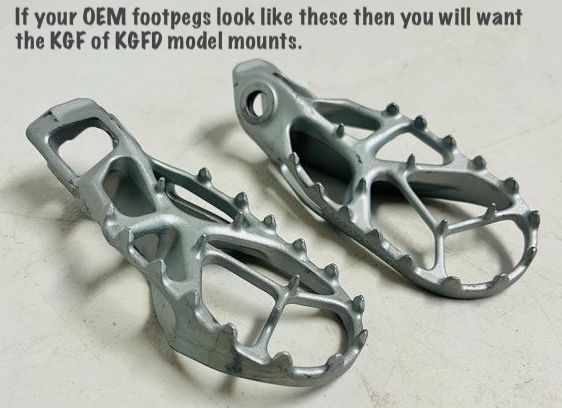

The drop is 10mm down and 5mm back from the KGF mount position. This opens up the cockpit nicely while still giving you full adjustment of the controls.

• Enduro platforms are hard-mounted (they do not rotate or flex) with an optional camber adjustment wedge sold separately.

• Trail and Adventure Platform options come with:

  • Chromoly steel spindles with reusable thread locker. 14mm wrench. Torque spec 40 ft/lbs

  • A90 (medium flex) rated bushings

  • Cleats and stainless steel machine screws. M3x18mm. These can simply be replaced by going to your local hardware store when damaged or worn out.

  • Bushing bolts. 8mm Allen wrench. Torque spec 30 ft/lbs

*IMPORTANT*  If you are ever installing the platforms onto the spindle the nylon locking nut torque spec is 2 ft/lbs (hand tight) Once you feel it bottom out stop tightening and visually inspect to make sure the nylon in the nut has engaged with the last couple of threads on the spindle. Over-torquing/tightening will cause the threads to strip and fail.

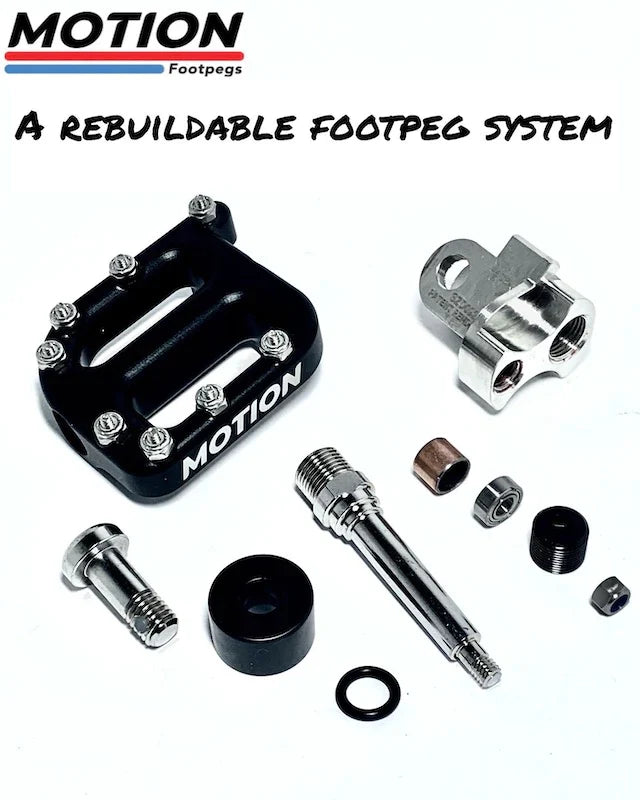

*Hardware is designed to bend rather than break in a significant impact. A wrench or adjustable wrench will quickly and easily bend the bolt back straight. Please avoid using a hammer. A little leverage from a long-handled wrench or pipe will do the job. The whole system is rebuildable and serviceable.

Fitment:

2020 BETA 480 RR 4T
2020-2022+ BETA 390 RR-S
2020-2022+ BETA 500 RR-S
2020-2022+ BETA 350 RR-S
2020-2022+ BETA 430 RR-S
2020-2022, 2024+ BETA 200 RR
2020-2022, 2024+ BETA 300 RR
2020-2022, 2024+ BETA 250 RR
2020-2022, 2024+ BETA 125 RR
2021-2022, 2024+ BETA 300 RX
2023+ BETA 125RR
2023+ BETA 200RR
2023+ BETA 250RR
2023+ BETA 300RR
2023+ BETA 300RX
2023+ BETA 350RR
2023+ BETA 350RR-S
2023+ BETA 390RR
2023+ BETA 390RR-S
2023+ BETA 430RR
2023+ BETA 430RR-S
2023+ BETA 450RX
2023+ BETA 480RR
2023+ BETA 500RR-S
2024+ BETA 350 RR
2024+ BETA 390 RR
2024+ BETA 430 RR
2024+ BETA 480 RR

2022 HUSQVARNA FC 250 Rockstar Edition
2022+ HUSQVARNA FC 450 Rockstar Edition
2023+ HUSQVARNA FC250
2023+ HUSQVARNA FC350
2023+ HUSQVARNA FC450
2023+ HUSQVARNA FX350
2023+ HUSQVARNA FX450
2023+ HUSQVARNA TC 125
2023+ HUSQVARNA TC 250
2023+ HUSQVARNA TX300i
2024+ HUSQVARNA FE501

2022+ KTM 250 SX-F factory Edition
2022+ KTM 450 SX-F Factory Edition
2024+ KTM 500 XC-F-W
2023+ KTM 125 XC
2023+ KTM 250 XC
2023+ KTM 250 XC-F
2023+ KTM 300 XC
2023+ KTM 350 XC-F
2023+ KTM 450 XC-F
2023+ KTM 250 SX
2023+ KTM 250 SX-F
2023+ KTM 300 SX
2023+ KTM 450 SX-F
2023+ KTM 125 SX
2023+ KTM 350 SX-F
