Motion Factory Racing Footpegs for ADV Honda/Kawasaki CR/XR/Africa Twin & KLX/KLR | KLX

In stock
SKU: KLXTRORA
No reviews
$ 199.00
Size
Color
Item material

Product Details

  • Type Foot Pegs
  • Vendor Motion Factory Racing
  • SKU KLXTRORA
  • Shipping Weight 1.2 lb
Description Fitment Shipping

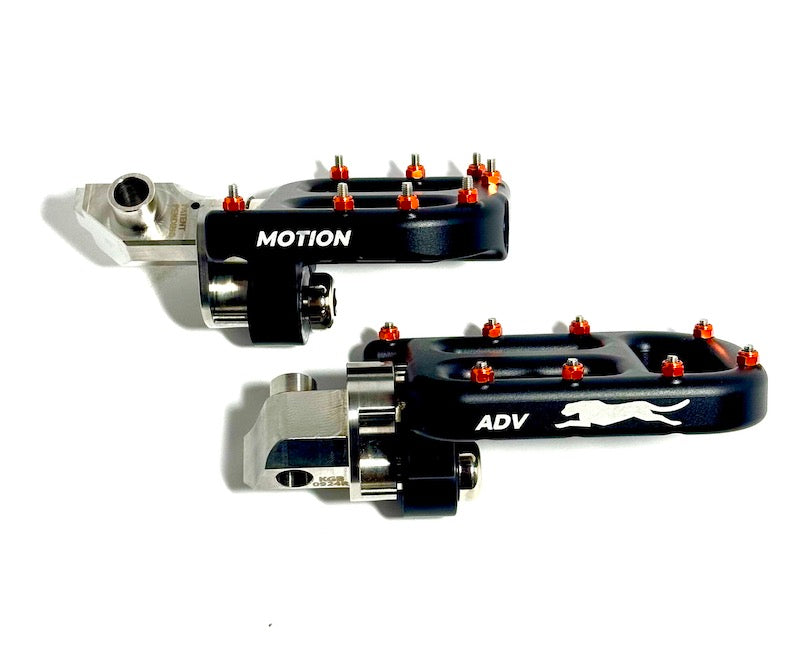

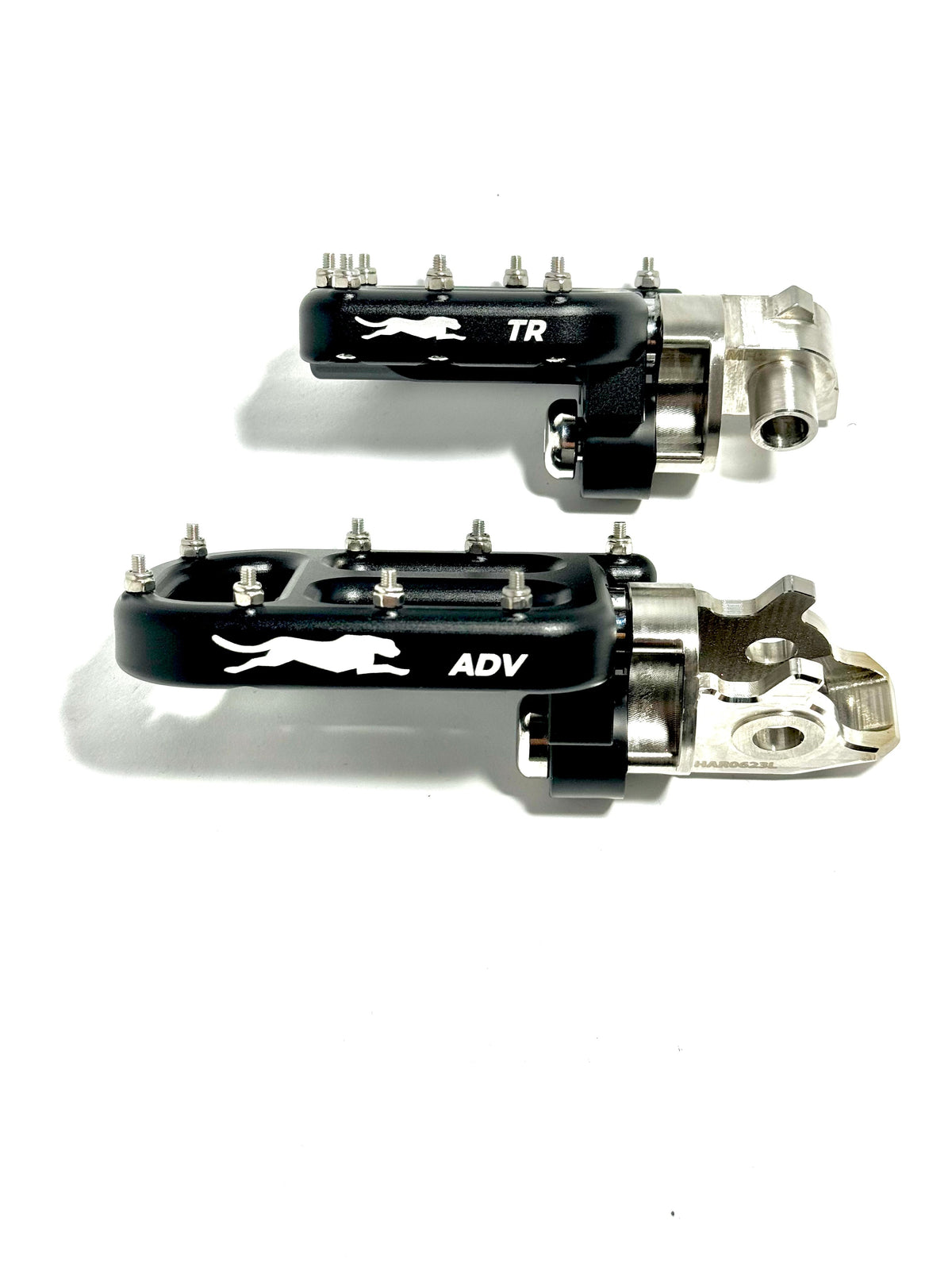

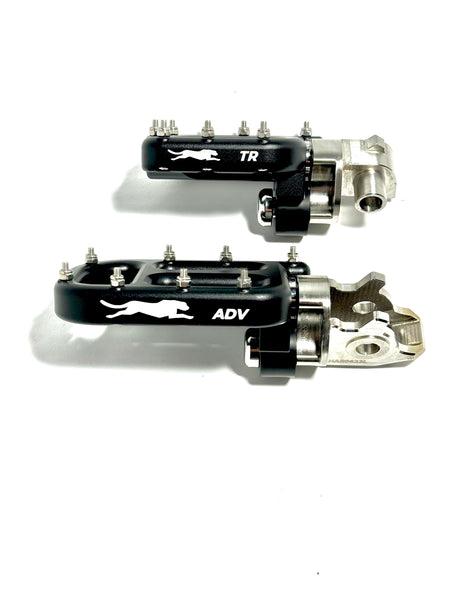

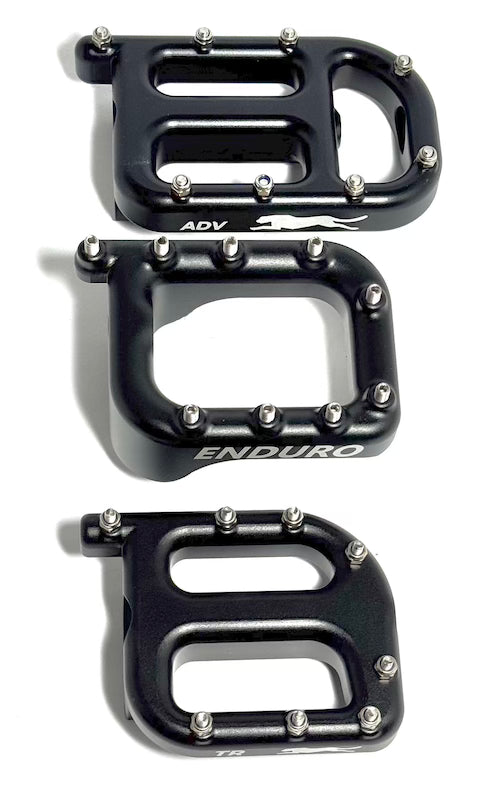

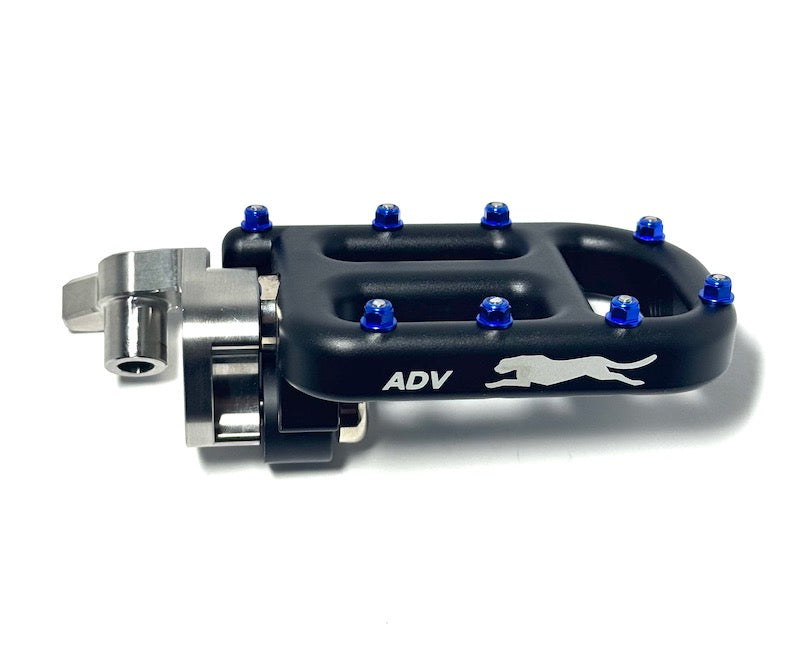

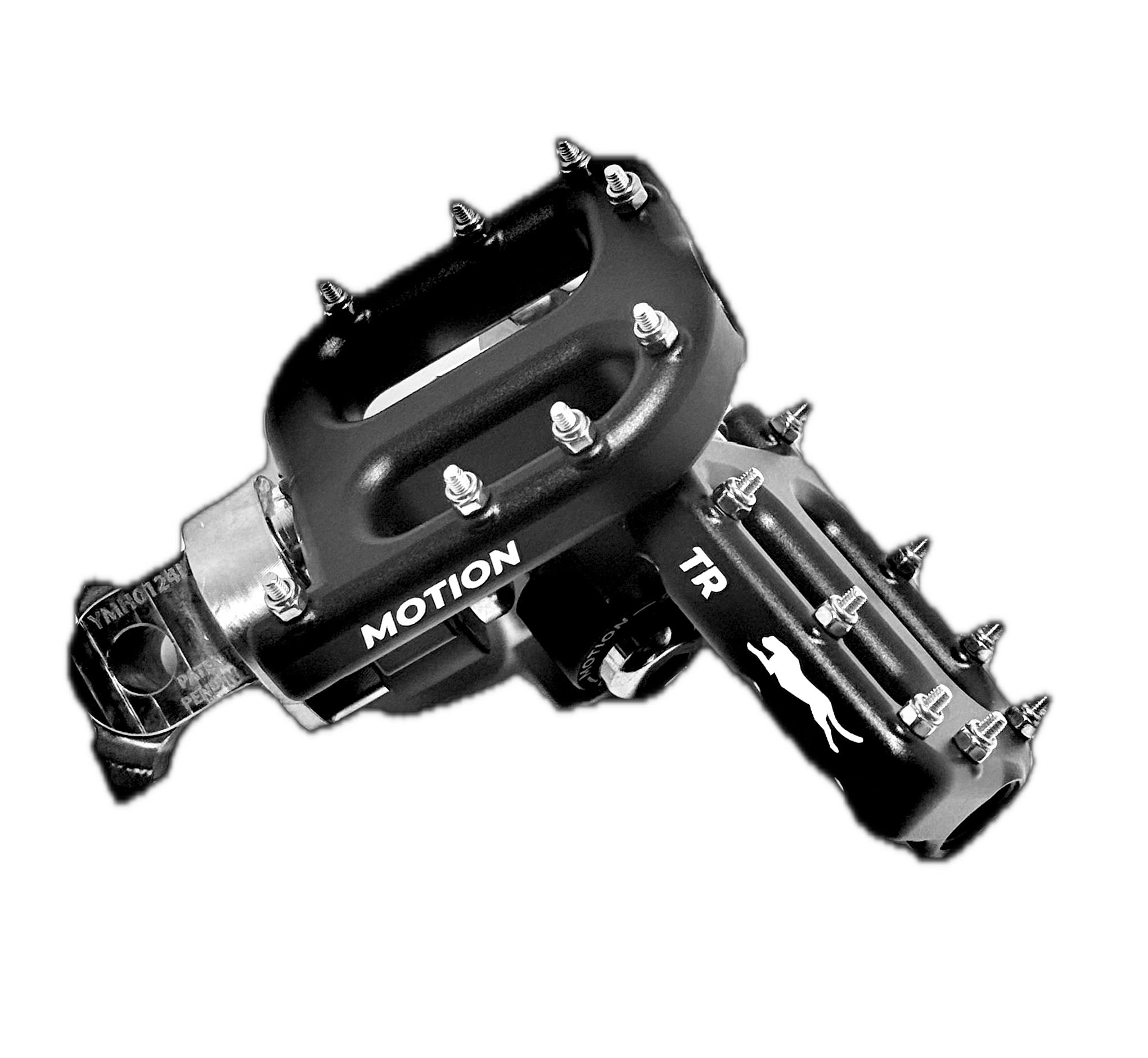

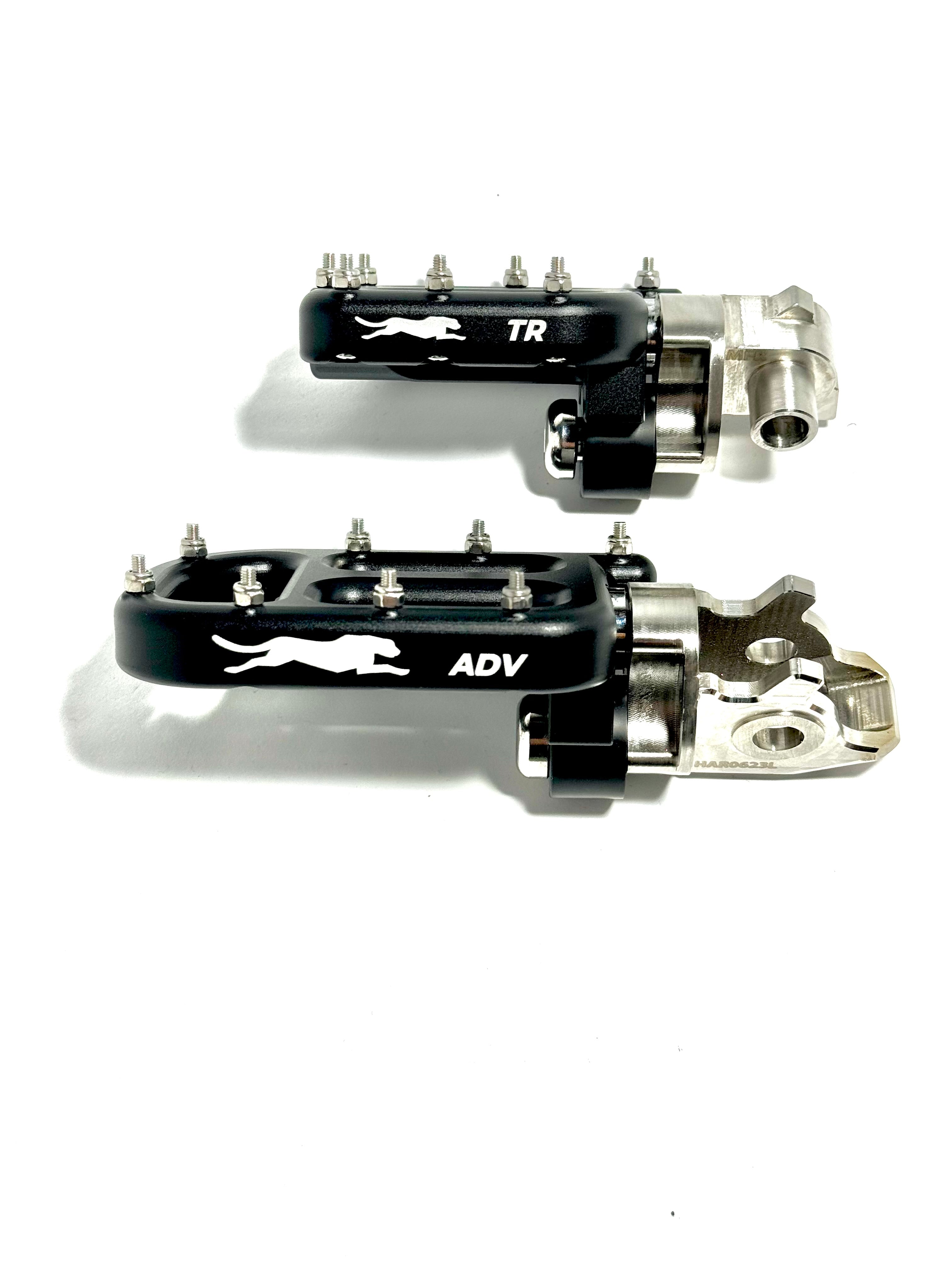

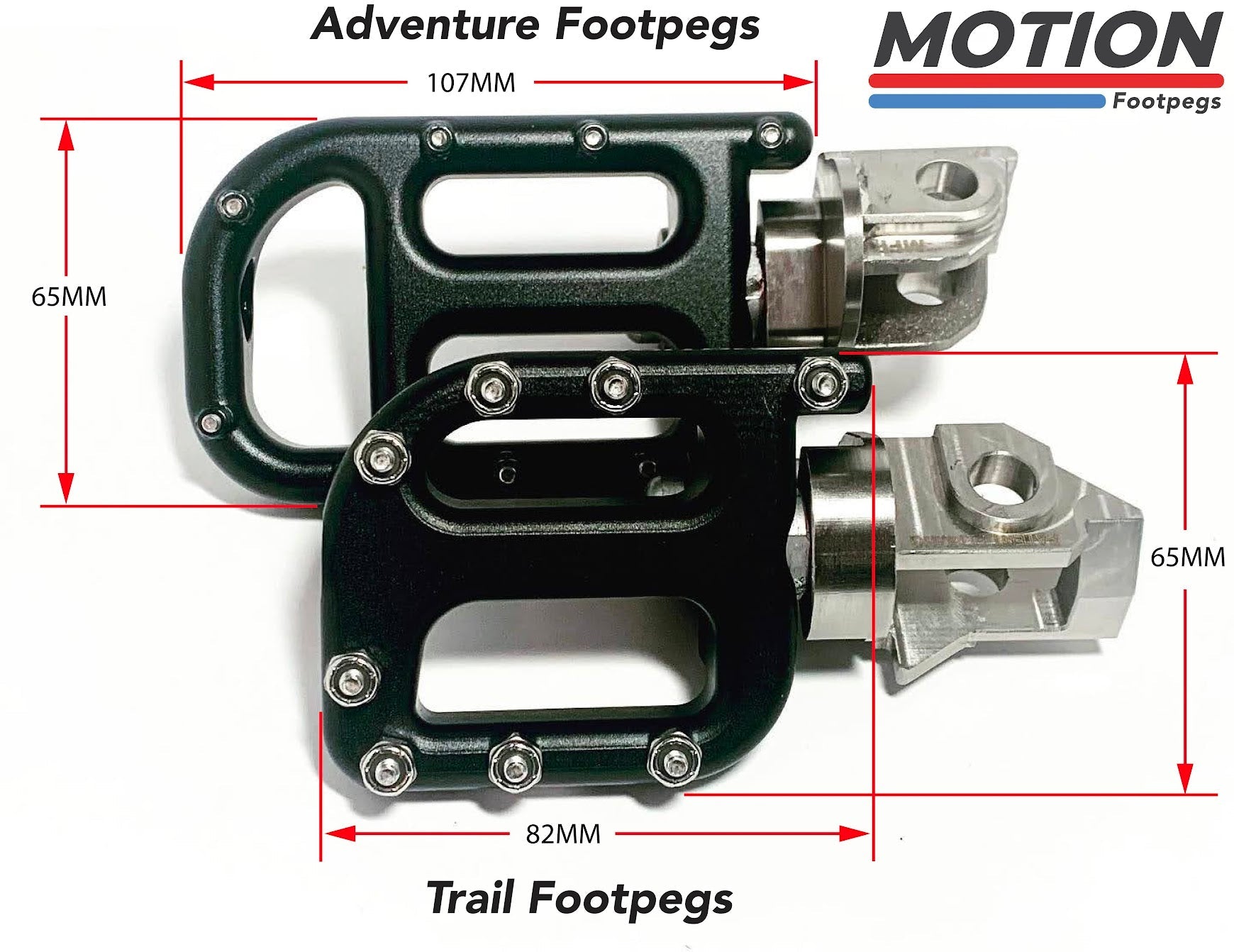

Patented Flex-Mount Footpeg System now offers a platform option for all riders. Try our Trail or Adventure platforms that offer rotation with the added benefits of vibration damping and adjustable flex. Click here to learn more about these 2 options.

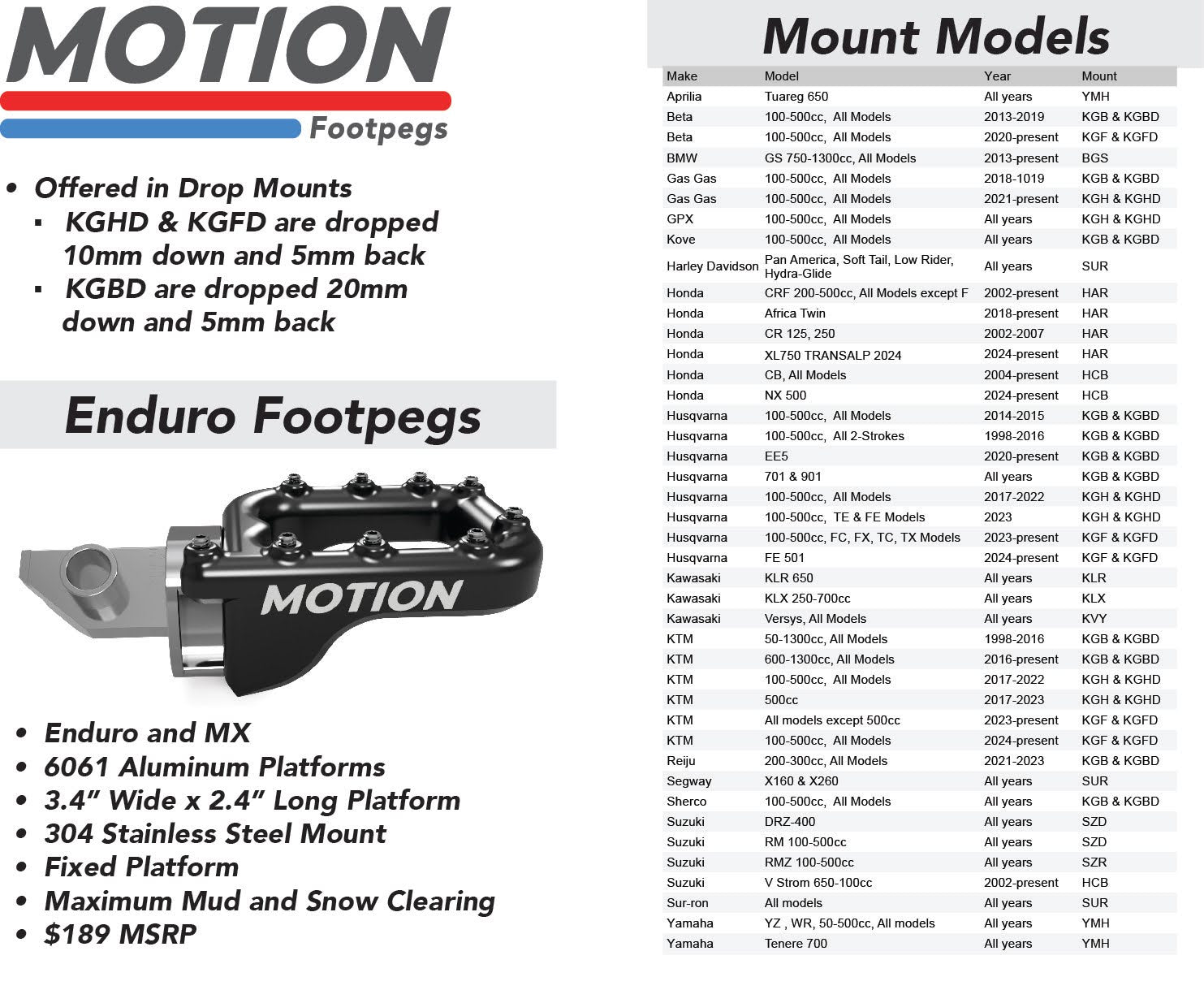

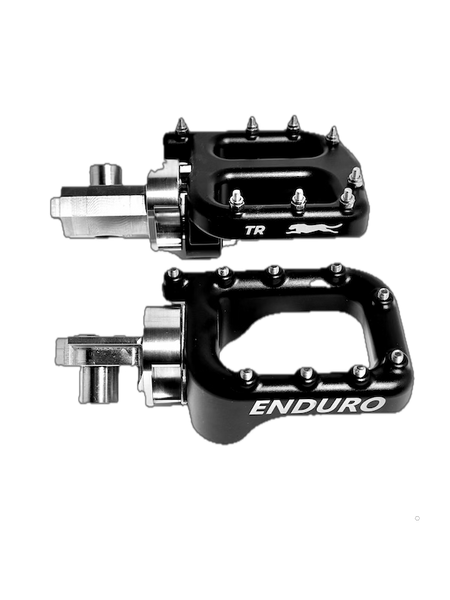

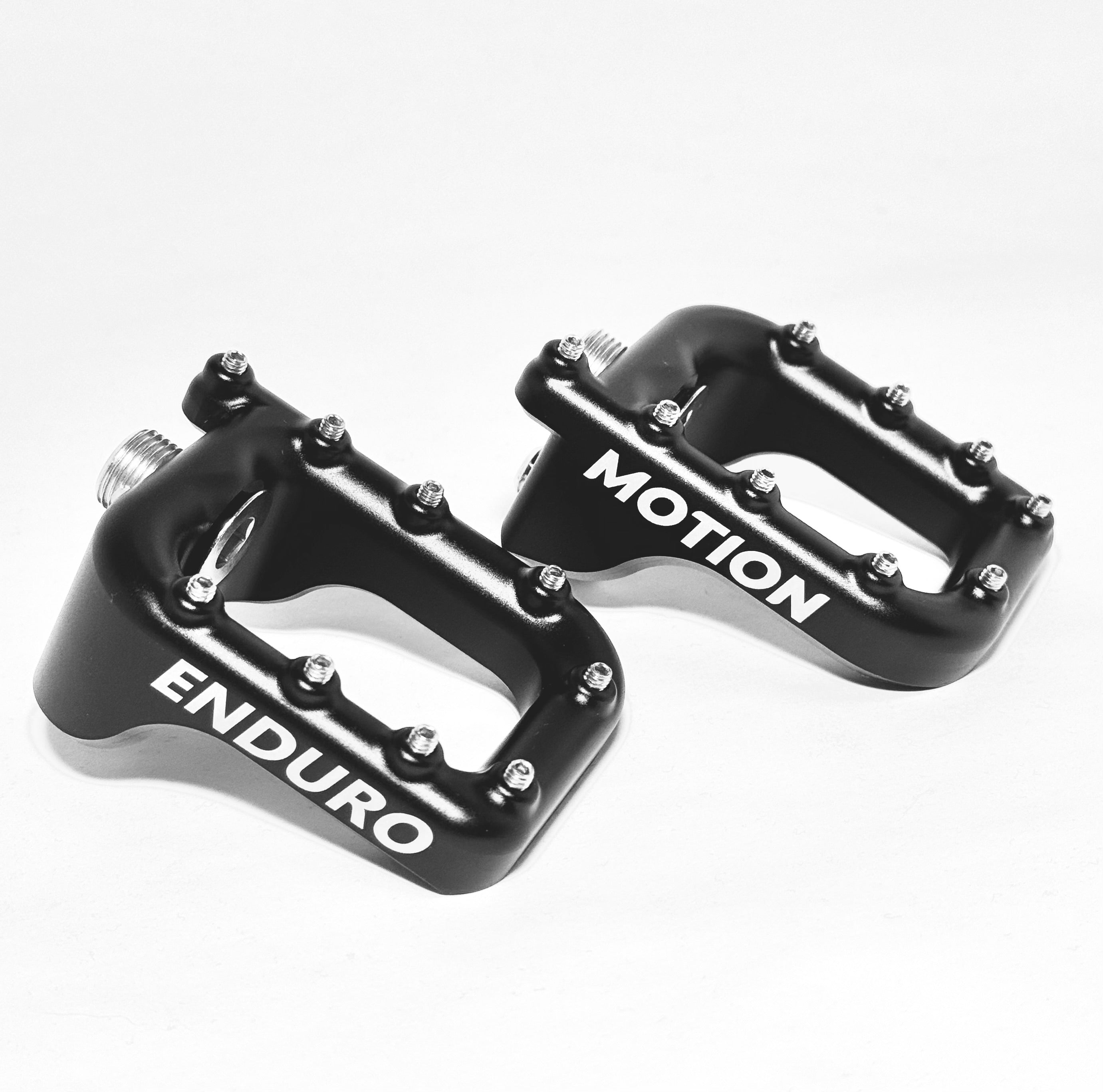

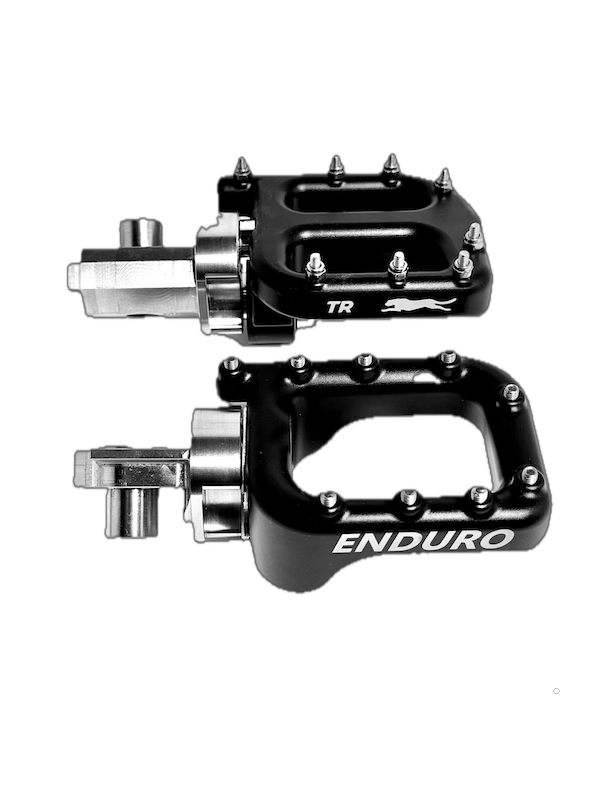

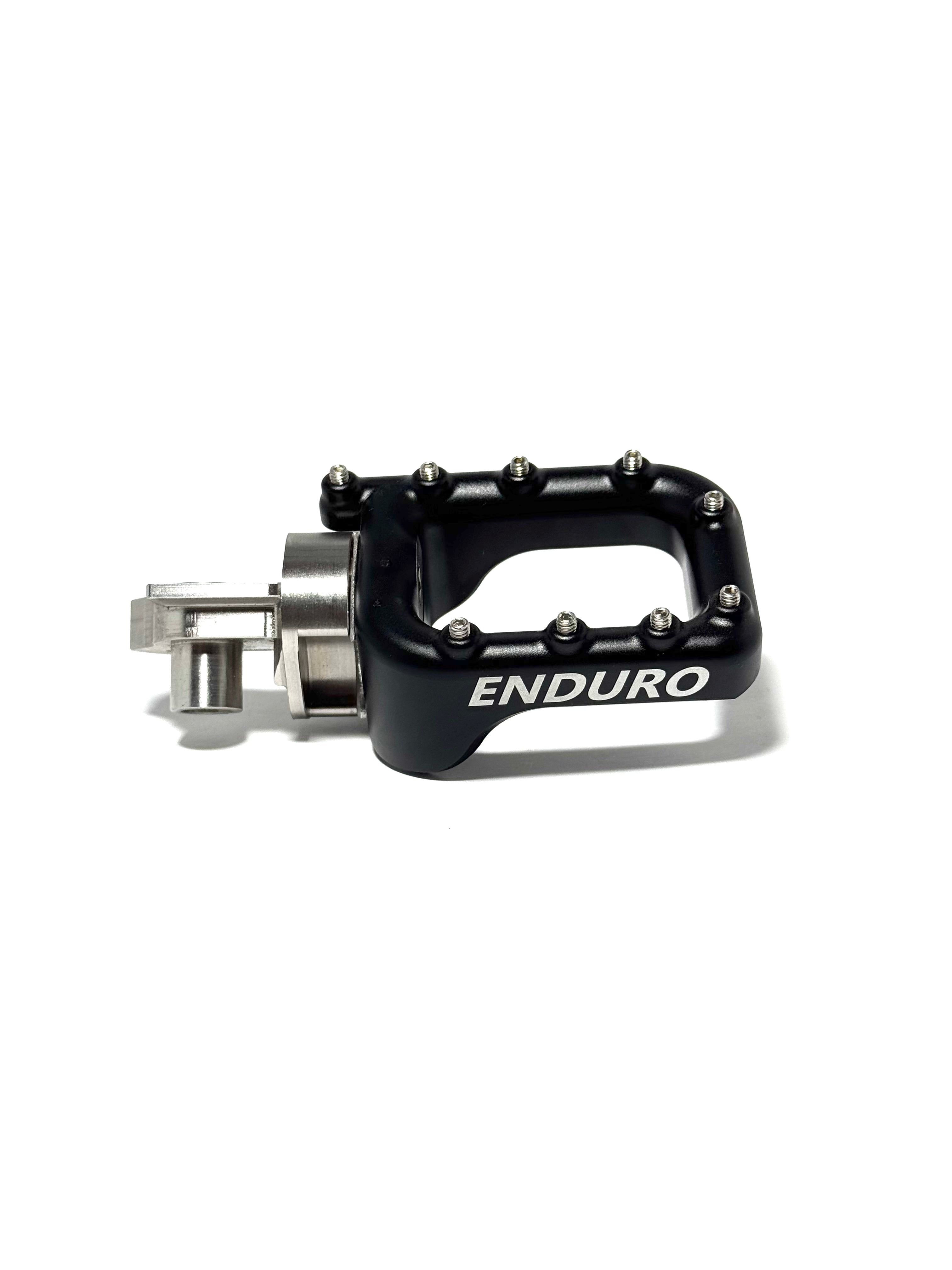

The Enduro Platform *does not* rotate and offers a traditional footpeg option for riders. This is the best option for those riders who are super hard on gear and need something that can take a lot of abuse. Click this link for more details. Or reach out if you have questions.

  • Enduro platforms are hard-mounted (they do not rotate or flex) with an optional camber adjustment wedge sold separately.
  • Trail and Adventure Platform options come with:
    • Chromoly steel spindles with reusable thread locker. 14mm wrench. Torque spec 40 ft/lbs
    • A90 (medium flex) rated bushings
    • Cleats and stainless steel machine screws. M3x18mm. These can simply be replaced by going to your local hardware store when damaged or worn out.
    • Bushing bolts. 8mm Allen wrench. Torque spec 30 ft/lbs

*IMPORTANT*  If you are ever installing the platforms onto the spindle the nylon locking nut torque spec is 2 ft/lbs (hand tight) Once you feel it bottom out stop tightening and visually inspect to make sure the nylon in the nut has engaged with the last couple of threads on the spindle. Over-torquing/tightening will cause the threads to strip and fail.

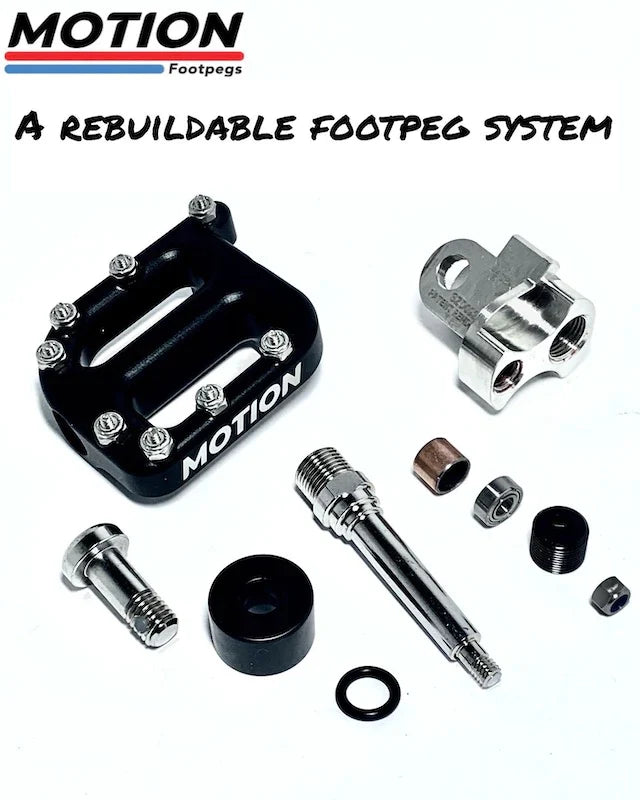

*Hardware is designed to bend rather than break in a significant impact. A wrench or adjustable wrench will quickly and easily bend the bolt back straight. Please avoid using a hammer. A little leverage from a long-handled wrench or pipe will do the job. The whole system is rebuildable and serviceable.

Fitment:

Honda CR80R/RB 1996-2002
CR85R/RB 2003-2007
CRM250 1989-1998
Honda XR250R XR400R 1996-2004 XR600R 1989-2000
XR650L 1992-2020
XR650R 2000-2007
Honda Africa Twin CRF1000L / DTC 2016-2017

KLX250R 1994-1996
KLX250 2006-CURRENT
KLX250S 2009-2014
KLX250SF 2009-2010
KLX300R KLX300 All models and years.
KLX650 1993-1996
KLX650R 1996
KLR650 1987-2007
