Open Trail Snowplow Kit fits 2023+ CF-Moto ZFORCE 800/950 Trail & 950 Sport/Sport 4

Plow Mount Installation Instructions

Fairled & Plow Pulley Installation Instructions

FITS:

CF-Moto ZFORCE 800 Trail (G2) (2023-2026)  (1) (2)
CF-Moto ZFORCE 950 Trail (G2) (2023-2026) (1) (2)
CF-Moto ZFORCE 950 Sport (G2) (2023-2026) (1) (2)
CF-Moto ZFORCE 950 Sport 4 (G2) (2024-2026) (1) (2)

(1) Plow Mount Installation requires drilling
(2) Open Trail #105270 Plow Pulleys included for optimum operation of the snowplow using the stock steel cable winch

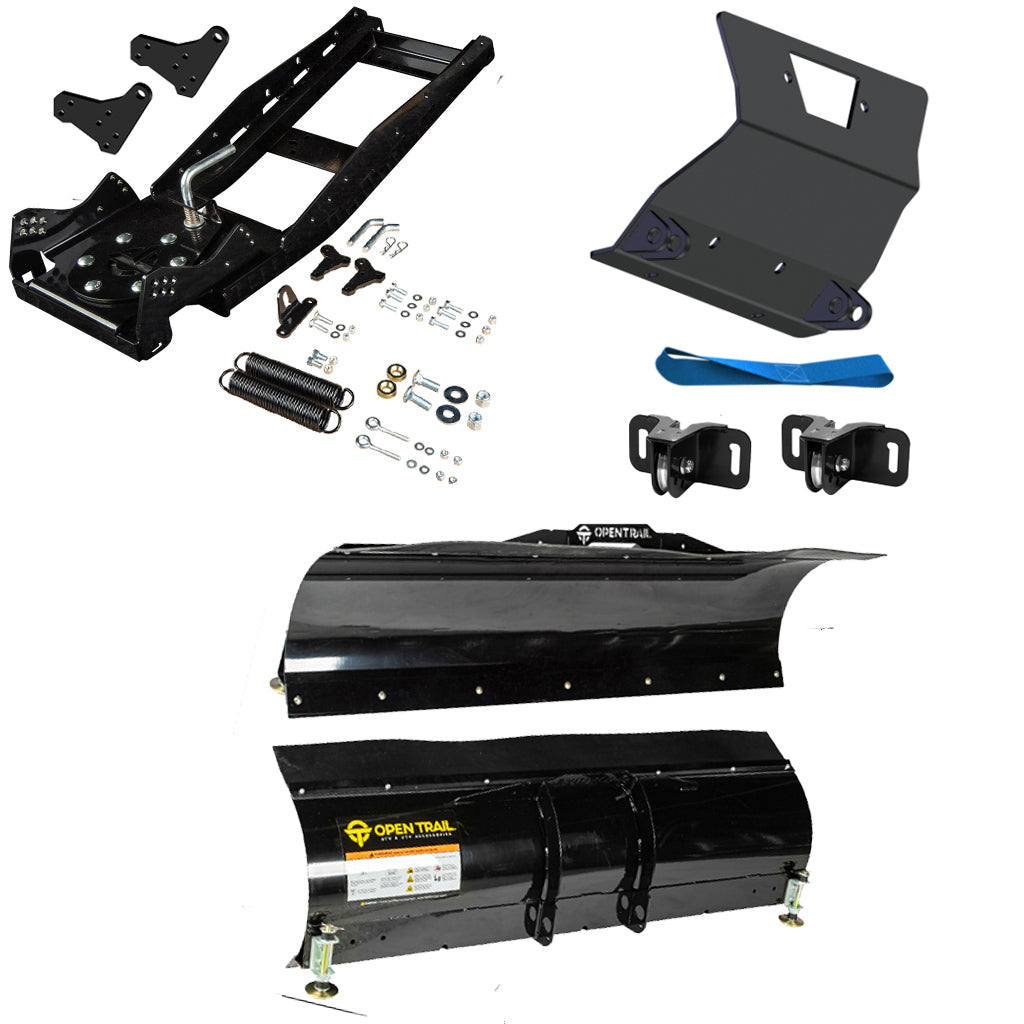

Straight Blade Specifications:

• Blade Constructed of 11-gauge steel
• Powder coated gloss black for supreme durability
• 2-Sided Steel Wear Bar that comes attached to the blade
• All blades include a 7" rubber flap and adjustable skids
• Blade face measure 16” Vertical and is approximately 21” with rubber flap installed
• All mounting hardware and complete installation instructions included

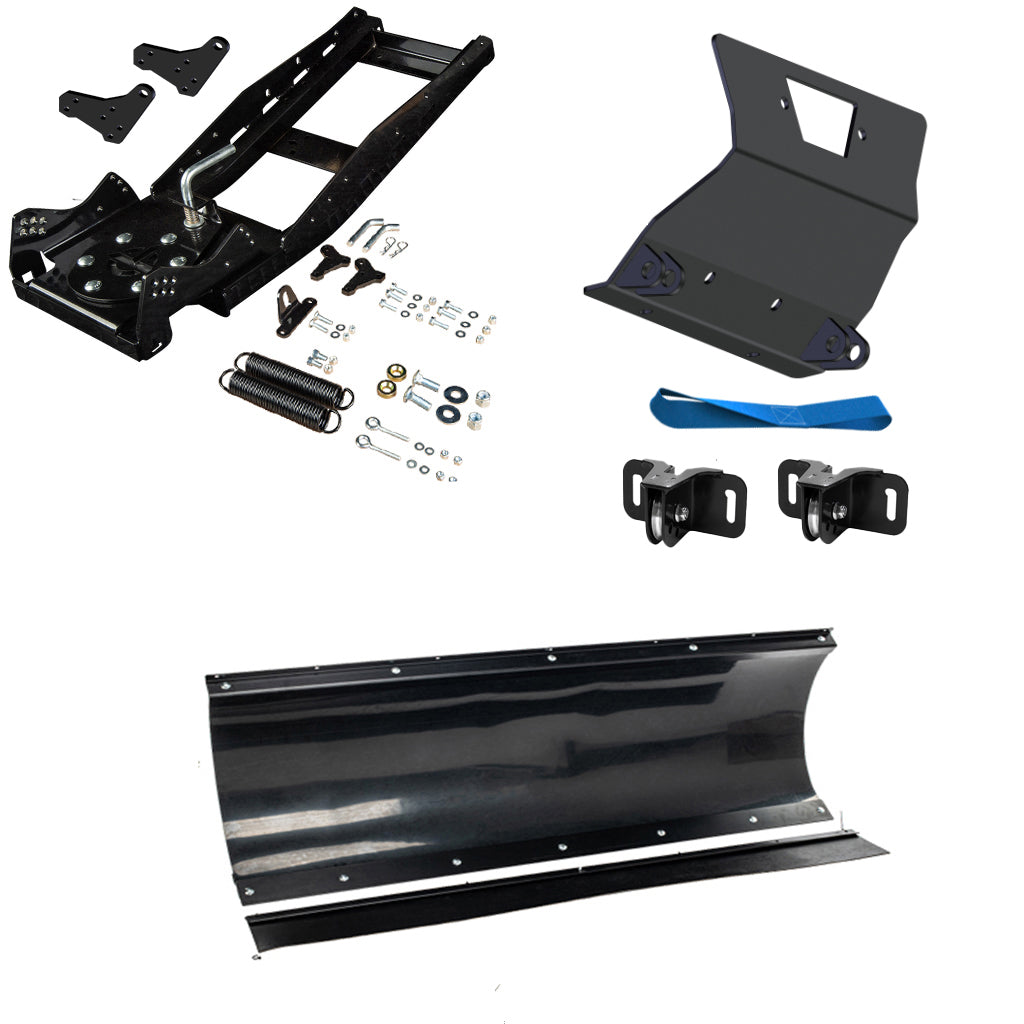

Poly Hybrid Series Blade Specifications:

• Includes a 7" high 2-ply top rubber flap
• 100% MADE IN USA
• Dual Curvature face for supreme snow moving
• Measures 21” Vertical blade face height with an approximate 27” height with snow flap
• Fully-adjustable blade skids with bolt-on brackets
• Heavy duty 3"-diameter grade-50 steel skid plates
• Flexible Heavy Duty Black Poly face
• 3/16” Grade 50 Steel Rib and Frame construction
• Unlike all other Plow competitors our Plows are metal bead blasted before they are Powder Coated Black for supreme durability
• 2-Sided 3/16" x 3.00" Grade 50 Steel Wear Bar
• Wear Bar attached with Heavy Duty Grade 8 Bolts
• Complete installation instructions included
• Works with Open Trail or KFI ATV & UTV Tubes
• Includes Plow Markers


Open Trail Winch Details
Any winch selection will also receive a model-specific winch mount. Click links below to view winch specific details.

459-0131  4500 lb Winch, Wire Rope

459-0132  4500 lb Winch, Synthetic Cable

459-0133  6,000 lb Winch, Synthetic Cable

459-0133W  6,000 lb Wide Winch, Synthetic Cable
