Open Trail Snowplow Kit Can-Am Defender with level kit

Plow Mount Installation Instructions

Winch Mount Installation Instructions

FITS:

Can-Am Defender Limited (2023-2025) (1)
Can-Am Defender X MR (2018-2025) (1)
Can-Am Defender MAX Limited (2023-2025) (1)
Can-Am Defender MAX Lone Star (2023-2025) (1)
Can-Am Defender MAX X MR (2019-2025) (1)
Can-Am Defender 6x6 Limited (2023-2025) (1)
Can-Am Defender PRO Limited (2021-2025) (1)

(1) Requires KFI 2" Leveling Kit #106322 which is included in this kit

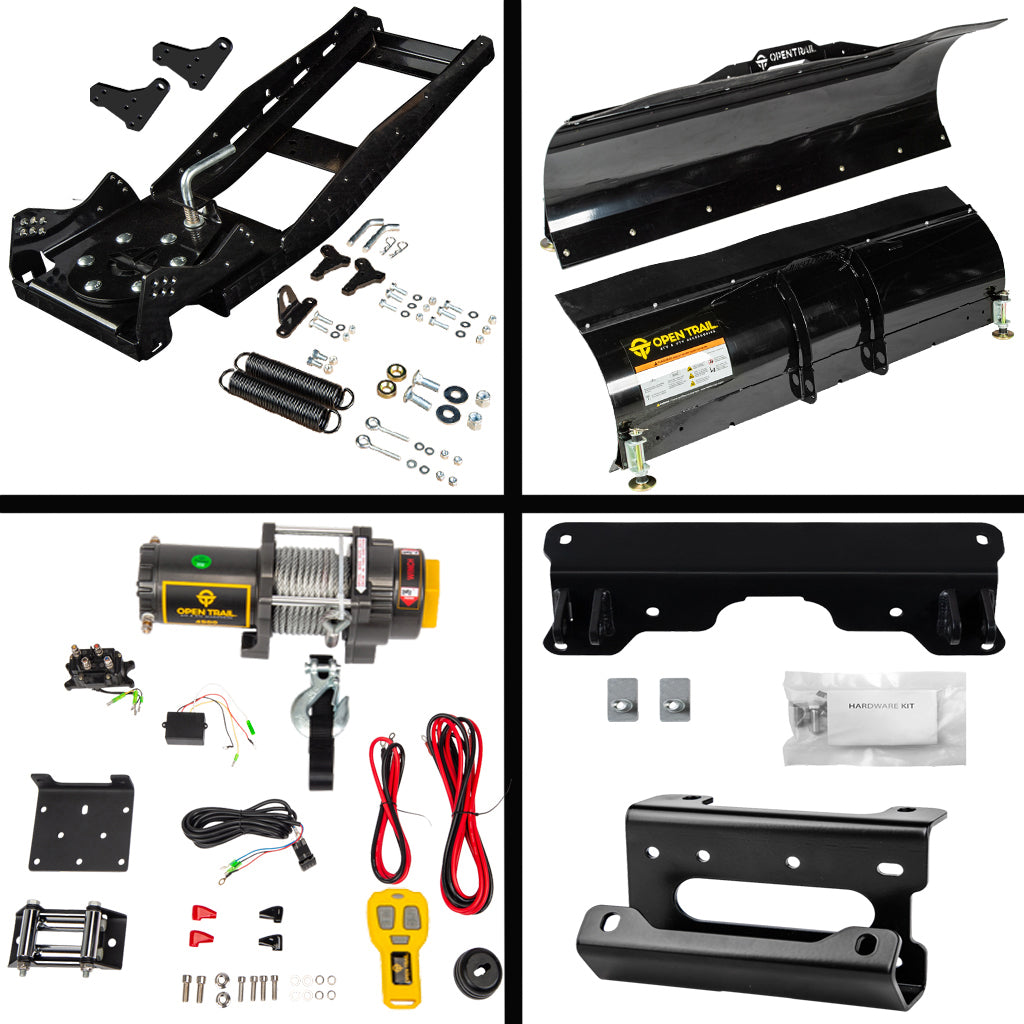

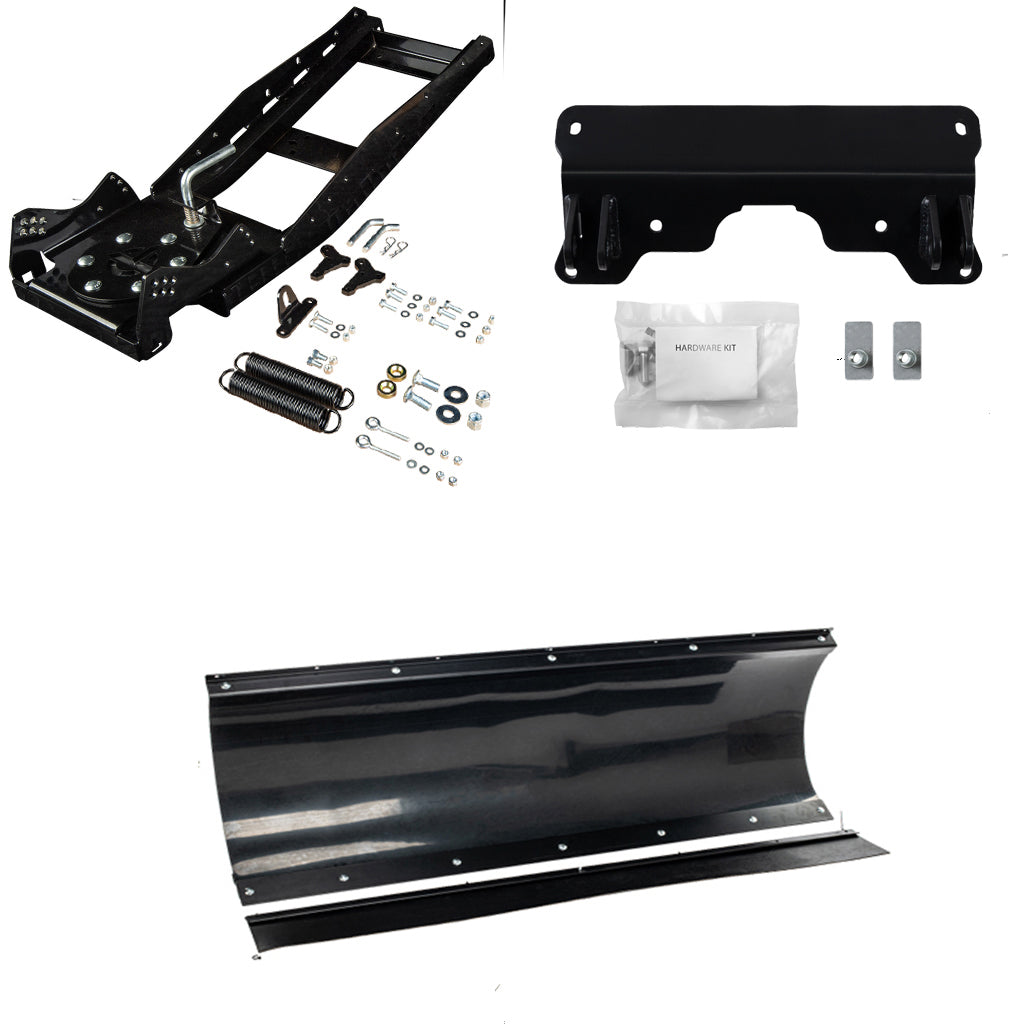

Straight Blade Specifications:

• Blade Constructed of 11-gauge steel
• Powder coated gloss black for supreme durability
• 2-Sided Steel Wear Bar that comes attached to the blade
• All blades include a 7" rubber flap and adjustable skids
• Blade face measure 16” Vertical and is approximately 21” with rubber flap installed
• All mounting hardware and complete installation instructions included

Poly Hybrid Series Blade Specifications:

• Includes a 7" high 2-ply top rubber flap
• 100% MADE IN USA
• Dual Curvature face for supreme snow moving
• Measures 21” Vertical blade face height with an approximate 27” height with snow flap
• Fully-adjustable blade skids with bolt-on brackets
• Heavy duty 3"-diameter grade-50 steel skid plates
• Flexible Heavy Duty Black Poly face
• 3/16” Grade 50 Steel Rib and Frame construction
• Unlike all other Plow competitors our Plows are metal bead blasted before they are Powder Coated Black for supreme durability
• 2-Sided 3/16" x 3.00" Grade 50 Steel Wear Bar
• Wear Bar attached with Heavy Duty Grade 8 Bolts
• Complete installation instructions included
• Works with Open Trail or KFI ATV & UTV Tubes
• Includes Plow Markers


Open Trail Winch Details
Any winch selection will also receive a model-specific winch mount. Click links below to view winch specific details.

459-0131  4500 lb Winch, Wire Rope

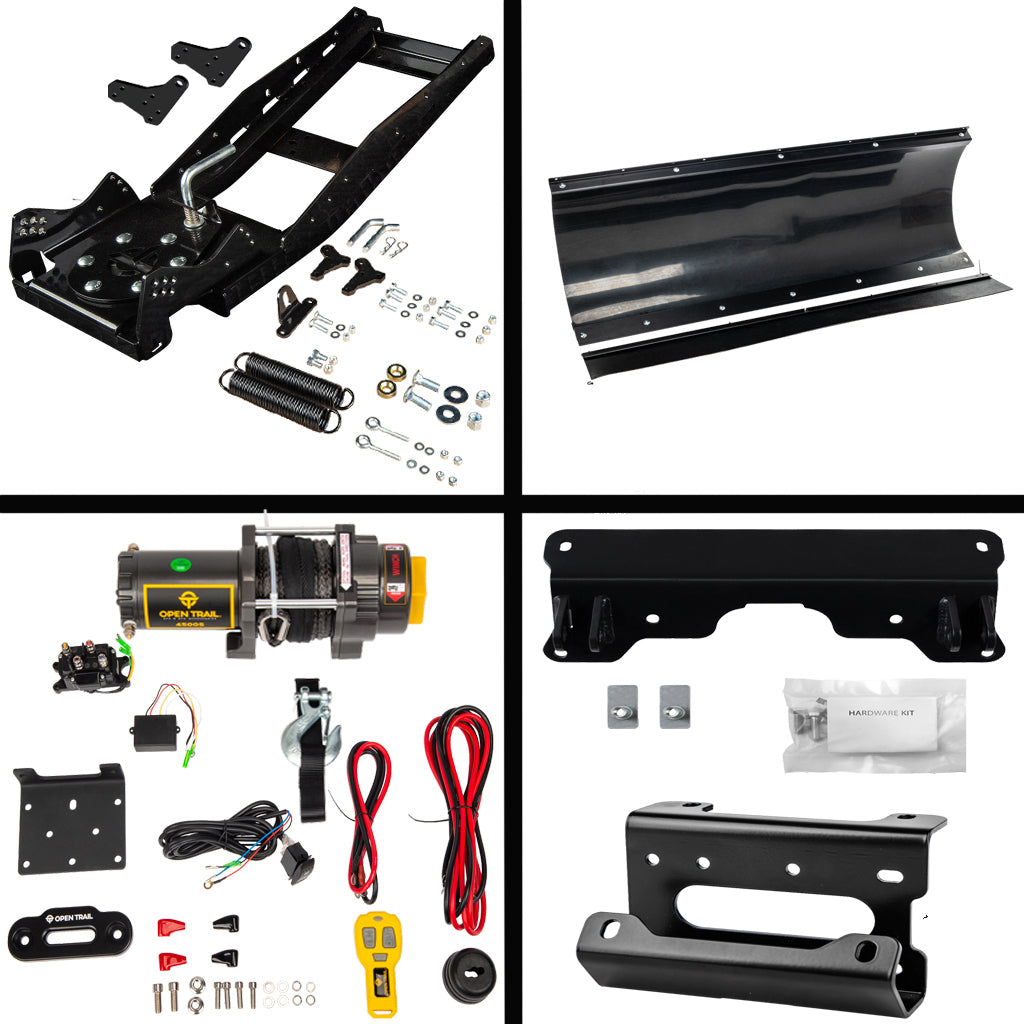

459-0132  4500 lb Winch, Synthetic Cable

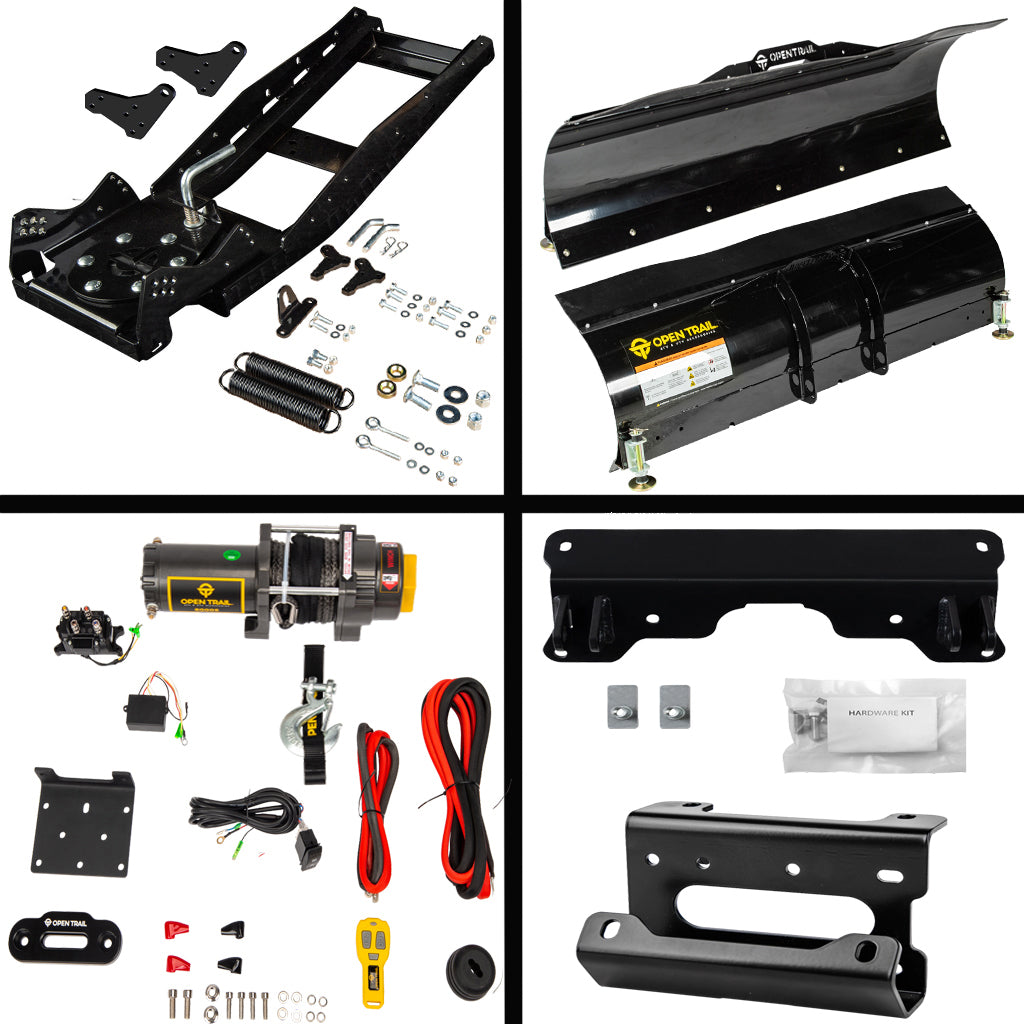

459-0133  6,000 lb Winch, Synthetic Cable

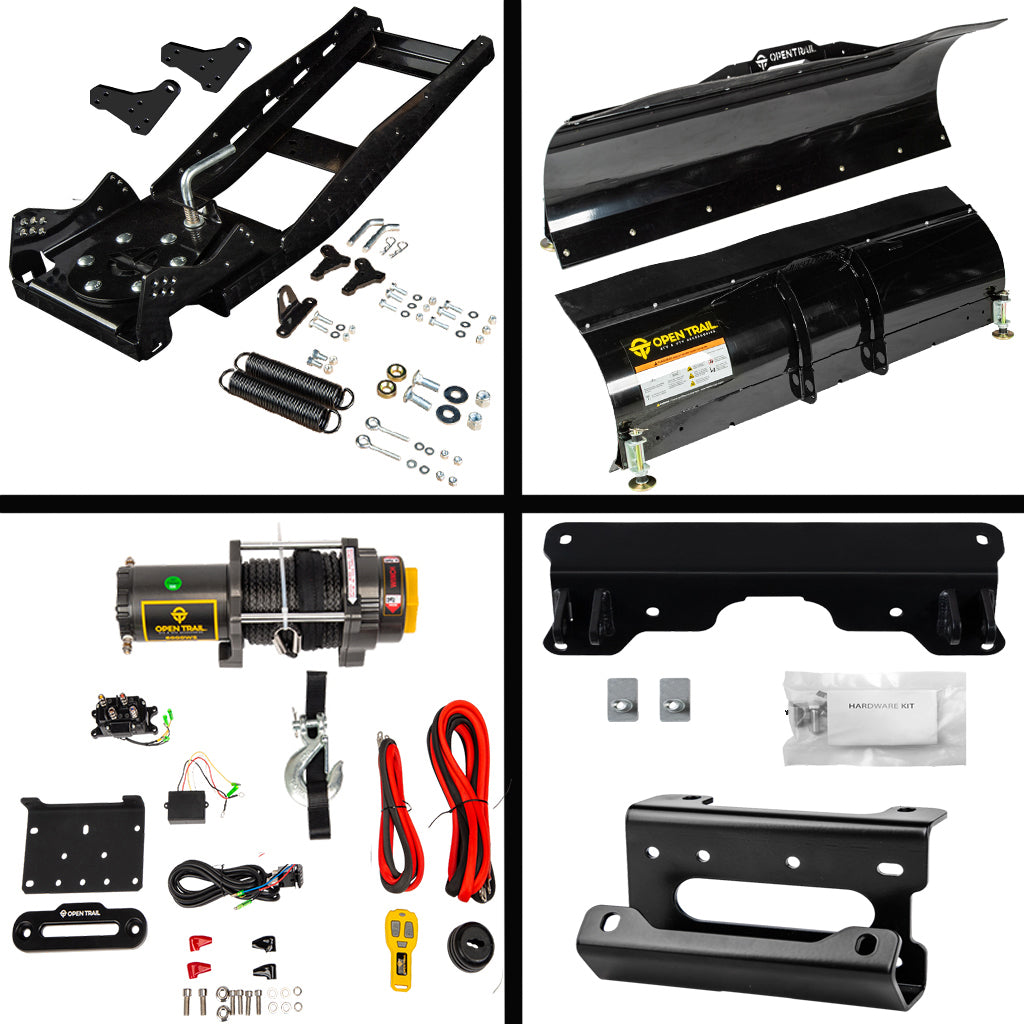

459-0133W  6,000 lb Wide Winch, Synthetic Cable
