Precision 1-1/8 Bar Complete Parabolic Damper Honda CRF450R/RX & CRF250R/RX | PDS1C-3102

Precision SKU: PDS1C-3102-NC-1-BF
Regular price

$ 569.00

What handlebar Clamps are you using?
Handlebar Clamps Mounting Position
Do you run a riser under your handlebar clamps? (risers not provided)

Description

Availability: ALLOW 4 WORKING DAYS TO SHIP

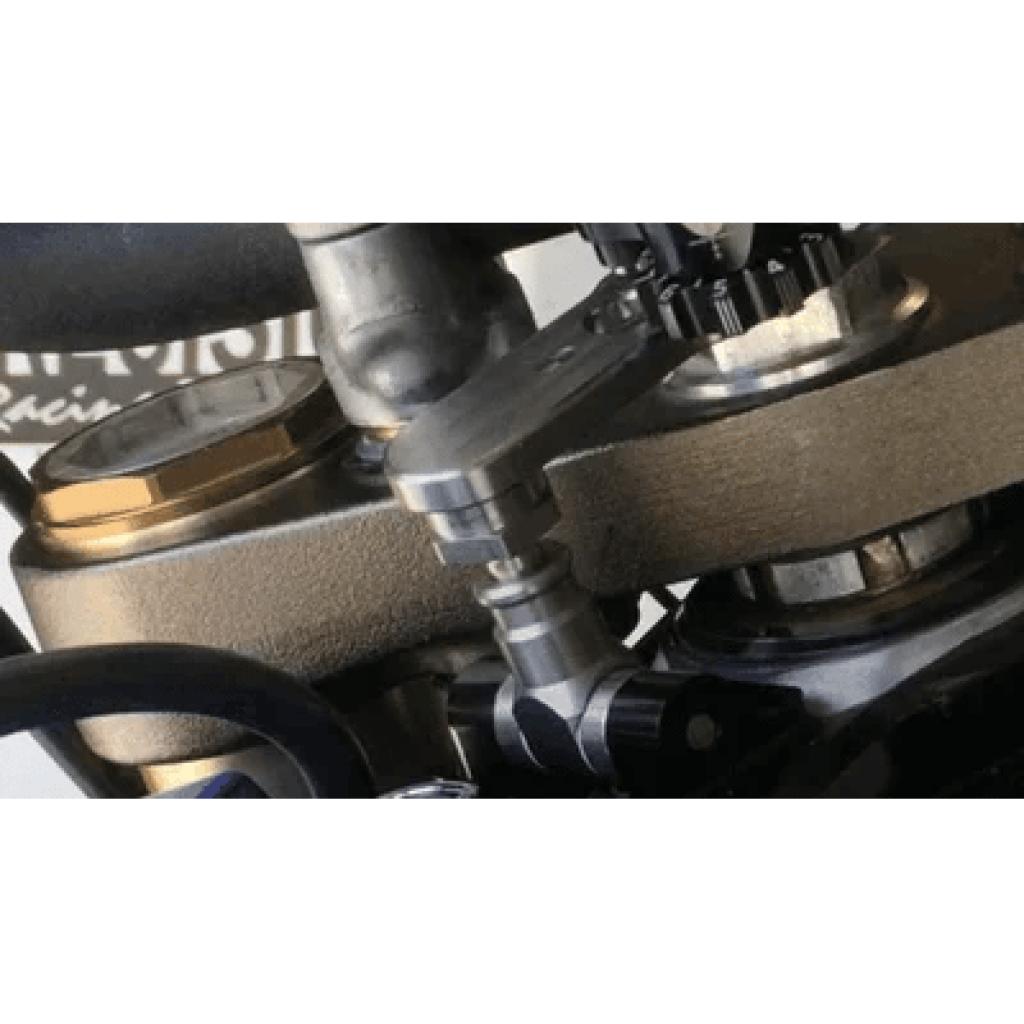

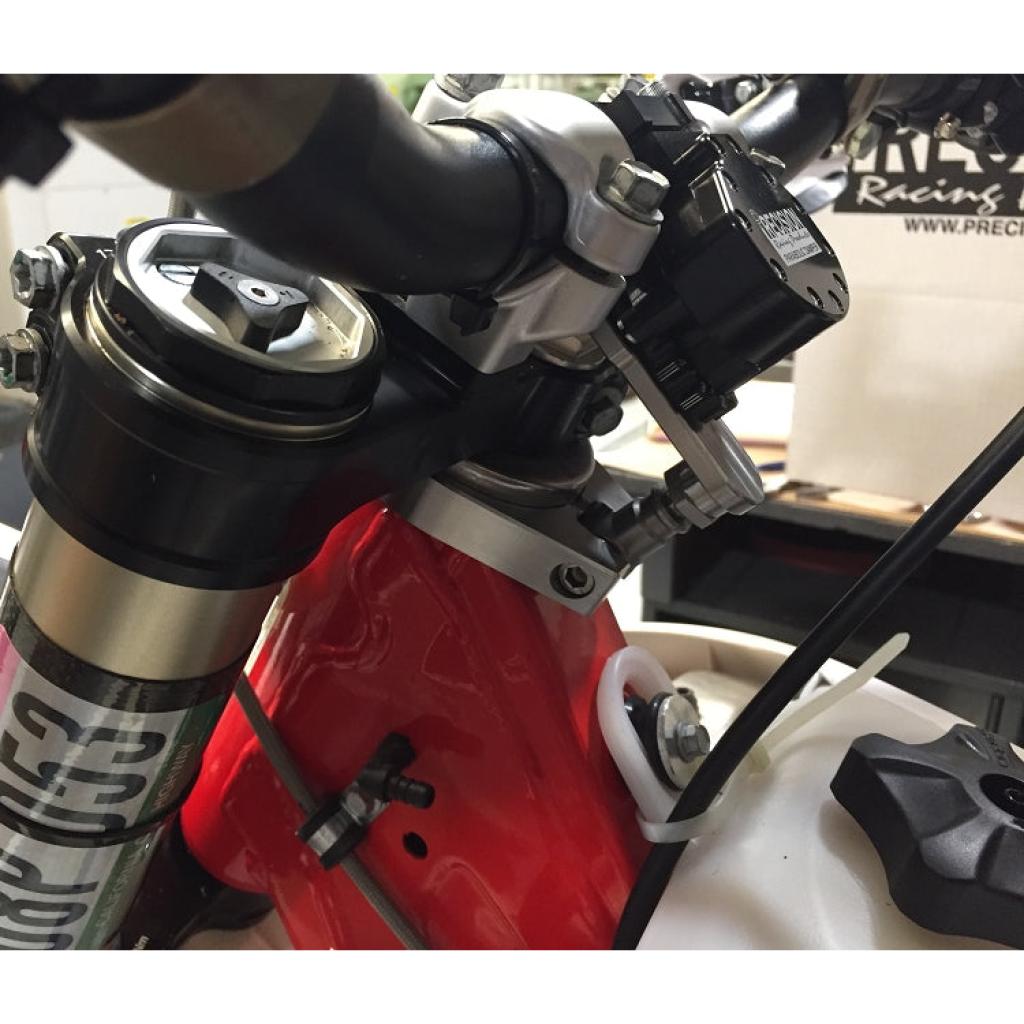

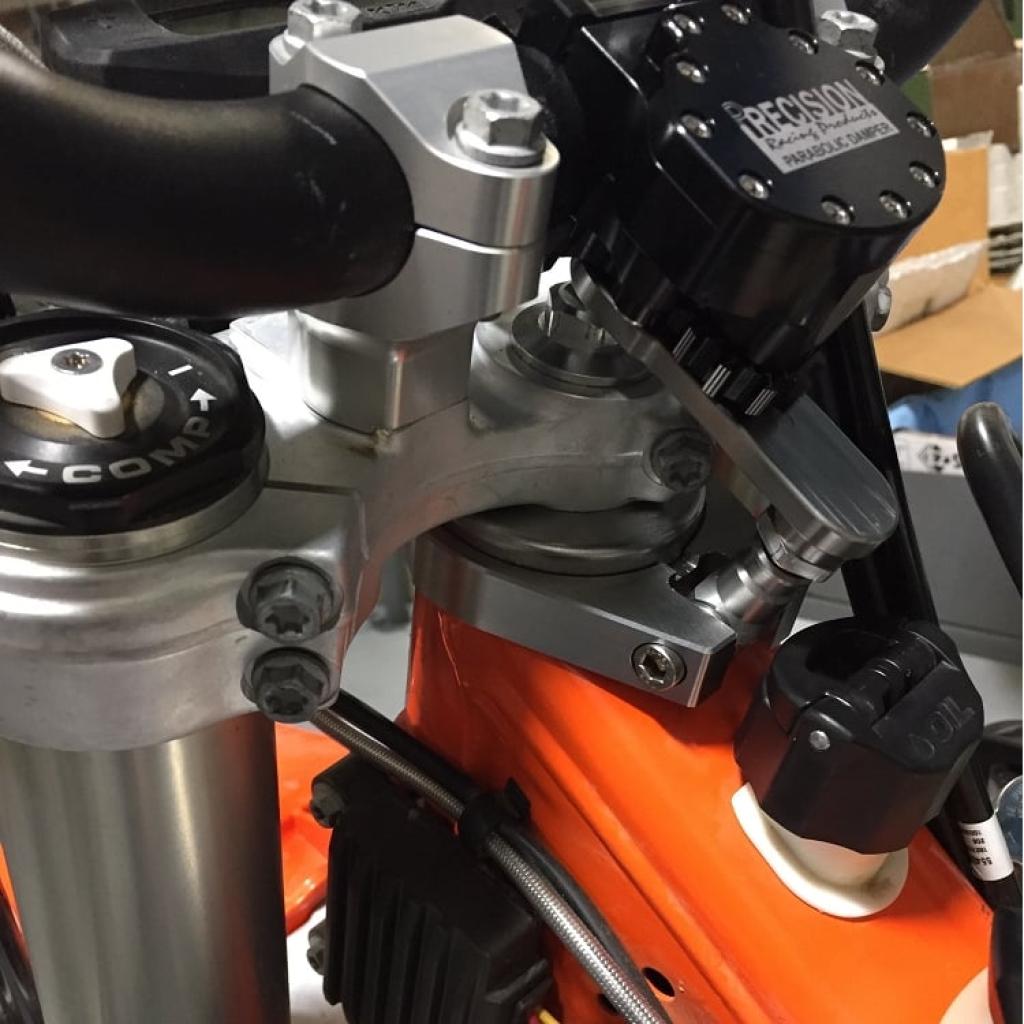

Steering Stabilizer for 1-1/8" Handlebars stock size for 2021 on. With mounting kit for HONDA CRF450R & RX 2021-ON CRF250R & RX 2022-ON This Damper mounts to the handlebar between the two handlebar clamps. Handlebar positions are counted from the closest to the rider #1 out. Standard position may not be your bikes stock position please double check the handlebars position on your bike.

If you run an oversized fuel tank like IMS please contact us beforehand.

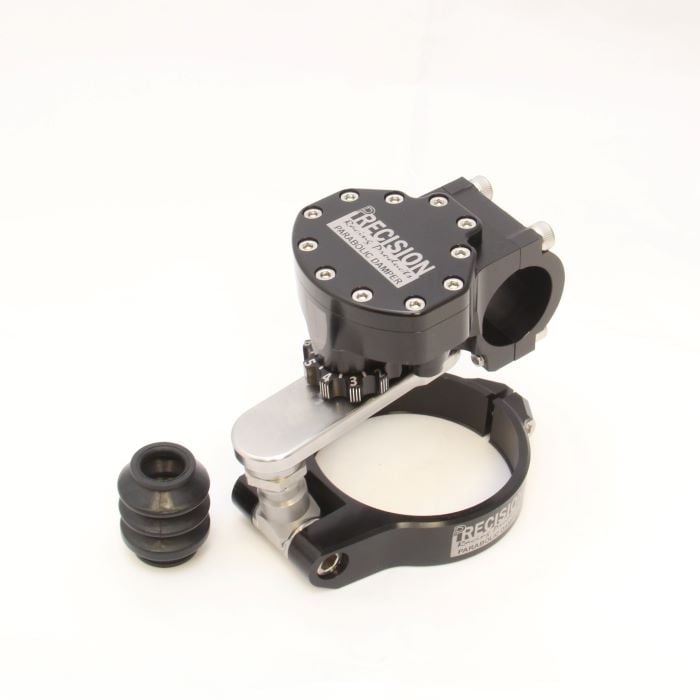

This damper has 20 low speed adjustments with detente clicks and 12 high speed adjustments with lobe clicks. The linkage is greased and sealed for long life and is adjustable for wear. The unit as shown weighs approx. 1.0 Lb (454 grams) and is rebuildable.

MOUNTING

  • Does not mount in a dangerous position over the bars to cause injury to your chest or chin
  • Does not raise your handlebars at all in most applications
  • Can be used with: Stock, Shock & Vibe, BRP, and PHDS clamps in multiple positions
  • Can be used with standard handlebars or Flexx Bars, no razed crossbar needed
  • Allows you to run a bar pad for your protection and still adjust the damper with it on
  • Fully greased and sealed linkage (no lubricating with dirt) wear adjustable linkage to ensure there is no slop in the steering

CONSTRUCTION

  • Compact, rugged construction
  • Has 20 numbered low speed positions with clicks and stops at both ends
  • Adjustable in a second with a bar pad on
  • Has 12 high speed positions with lobes and stops at both ends
  • Automatically compensates for thermal expansion with a built in reservoir, greatly reduces fading
  • Lever is attached by a tapered tri-lobe over 10x the contact area of a pin or a slot
  • Single piece shaft and vane. No 3mm pin holding two parts together

THE DAMPING

  • Unique bell curve damping
  • Smooth transition from straight to turning
  • Slightly reduced damping on return to center
  • No sudden drop-offs on the sides
  • Slightly more damping in the center helps keep the back tire behind you
  • Better in the whoops
  • Better in braking bumps
  • Better in slippery conditions
  • Better at reducing harmonics (headshake)

FEATURES

  • Lightweight
  • Complete unit can be under 1 pound
  • Easy to maintain
  • No expensive triple clamps or special mounts
  • Change the oil in minutes without opening the unit, using fill plugs
  • Easy install
  • Move the damper portion to another bike in minutes

What will you notice when you ride?

  • High speed stability, greatly reduces high speed wobbles / head shake / death wobble
  • Reduced wheel chatter going into corners.
  • The back end wants to stay behind you in the whoops, braking bumps, and in muddy or slippery conditions
  • Reduced handlebars jerking when you cross rut, hit a rock, root, trees or other obstacles.
  • Rider can lighten up their grip reducing arm pump and fatigue.
