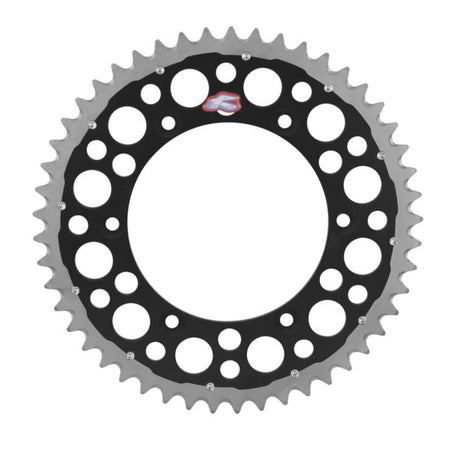

Unique flat face design keeps weight to a minimum and means the TwinRing is as narrow as a regular chainwheel. Flat socket head screws and additional strength to the chainwheel during side impacts. Self-cleaning mud grooves between every tooth on both sides help prevent dirt build up.
- Inner ring is high-strength, ultralight 7075-T6 aluminum
- Outer ring is electroless nickel coated steel, expanded at 200*C and then fitted to inner, creating a permanent bond for the life of the sprocket
- Precision CNC machined to extremely tight tolerances
- Available for most popular dirt bikes with a 520 chain in sizes ranging from 47 to 52 teeth
Fitment:
Make |
Model |
Year |
|
Yamaha |
WR250F |
01-21 |
|
Yamaha |
WR400F |
99-00 |
|
Yamaha |
WR426F |
01-02 |
|
Yamaha |
WR450F |
03-21 |
|
Yamaha |
YZ125 |
99-21 |
|
Yamaha |
YZ250 |
99-21 |
|
Yamaha |
YZ250F |
01-21 |
|
Yamaha |
YZ250FX |
15-21 |
|
Yamaha |
YZ250X |
16-21 |
|
Yamaha |
YZ400F |
1999 |
|
Yamaha |
YZ426F |
00-02 |
|
Yamaha |
YZ450F |
03-21 |
|
Yamaha |
YZ450FX |
16-21 |
