Rockford Fosgate Complete Audio Roof System 17+ Can-Am Defender Select Models | DEFEND17-STG1

SKU: DEFEND17-STG1
No reviews
$ 849.99

Product Details

  • Type Audio System
  • Vendor Rockford Fosgate UTV
  • SKU DEFEND17-STG1
  • UPC 780687364151
  • Shipping Weight 17.0 lb
Description Fitment Shipping

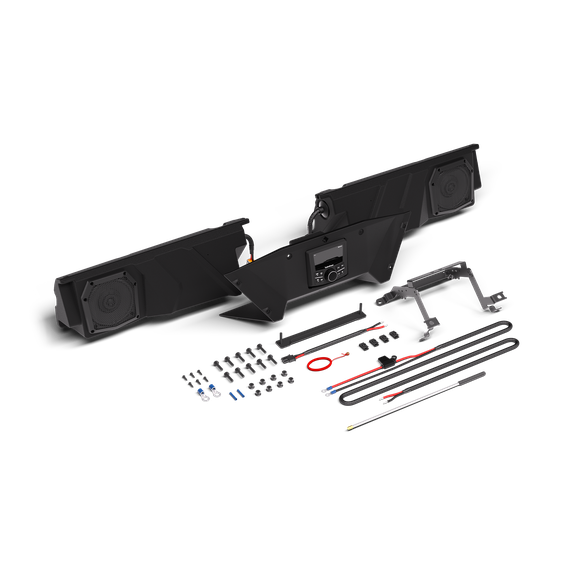

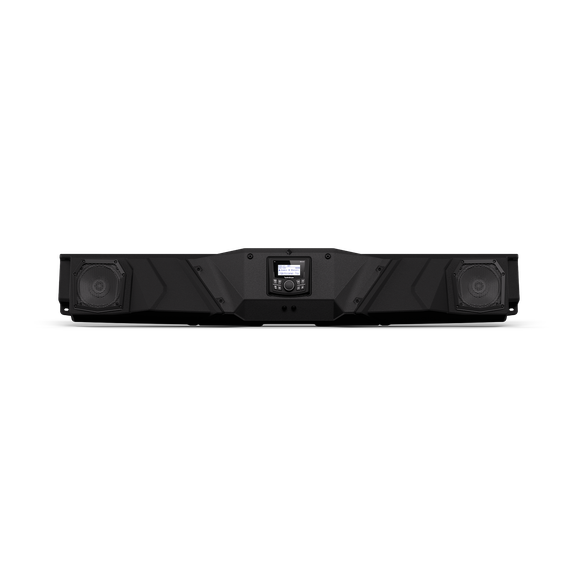

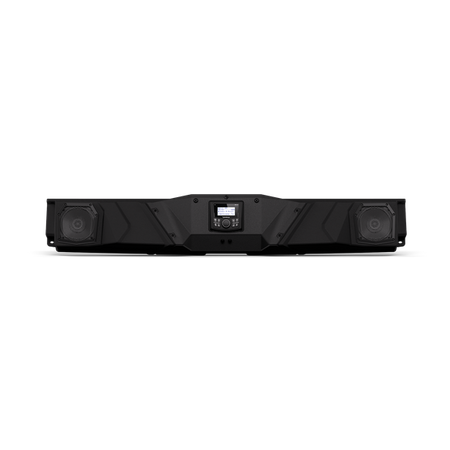

This complete audio roof system is a 2-speaker, 50-watt amplified audio system designed for 2017 and newer 2-door and 4-door Can-Am® Defender models and is compatible with factory equipped windshields and headliners. The 3-piece design allow for easy installation – and once attached – produces a complete, all-in-one assembly.

Overhead Audio Performance Equipped with two 5.25-inch speakers and a 2.3-inch source unit, all in a plug and play design, making the perfect blend of dynamic performance and simple installation.

Plug-And-Play Design No drilling, no cutting and designed to work right out of the box. Simple installation ensures less time in the garage and more time out riding.

Bluetooth Control With Bluetooth® connectivity it’s easy to control your music and take your playlist with you no matter where you go.

Element Ready™ Purpose Built for the outdoor environment, Rockford’s Element Ready™ products are built to stand up to Water, Salt, and UV rays, making sure your products stand the test of time.

Compatibility Chart: Please review below tab for fitment before purchasing.

PERFORMANCE SIMPLIFIED

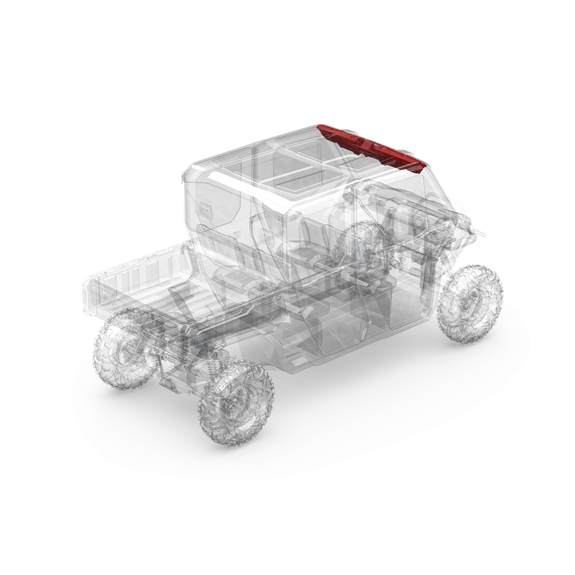

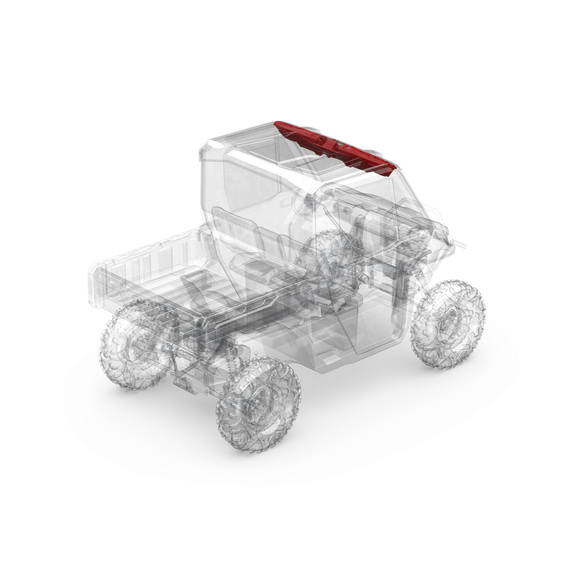

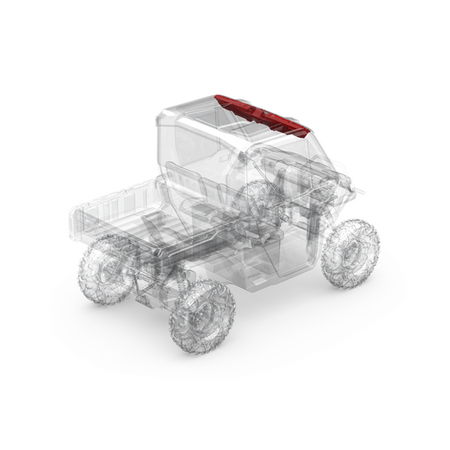

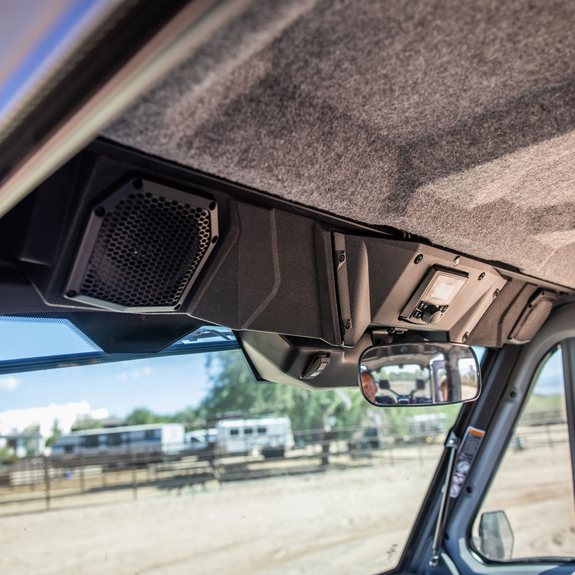

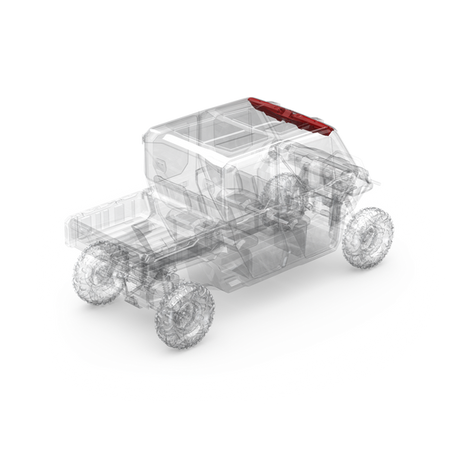

The system features two 5.25” high output speakers and a PMX-1 multimedia source unit.  The system attaches to factory mounting points with no holes to drill.  It integrates seamlessly with factory headliners, so there’s no cutting either. Electrical connections are keyed to fit, and the built-in antenna stretches across the passenger speaker pod for optimum radio reception. Defender “Limited” models are equipped with much of the overhead hardware.  However, we’ve provided brackets, screws and bolts for models that require the assembly.

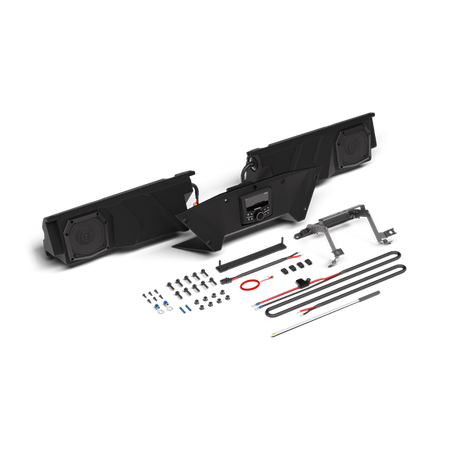

Components:
• (1) PMX-1 Source Unit
• (2) TMS5 5.25” Coaxial Speakers

Installation:
• 1~2 Hours Typical (depends on model)

Refer to our COMPATIBILITY chart to verify fitment before purchasing.

FEATURES AT A GLANCE

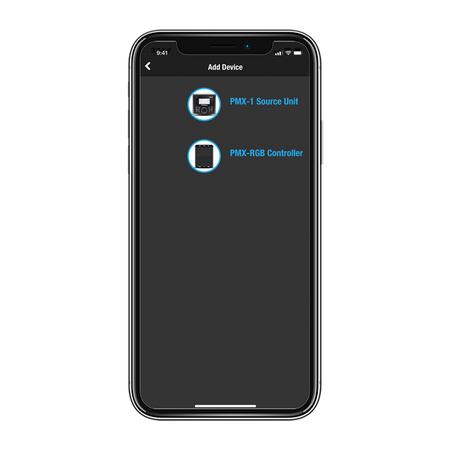

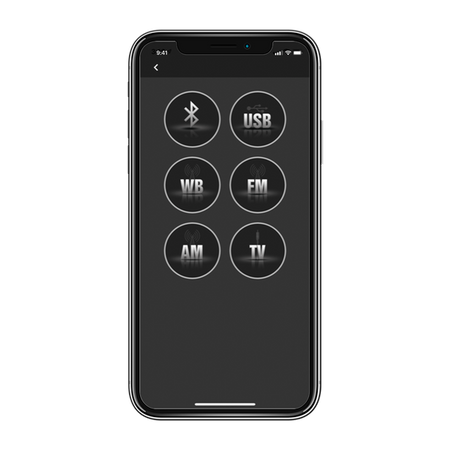

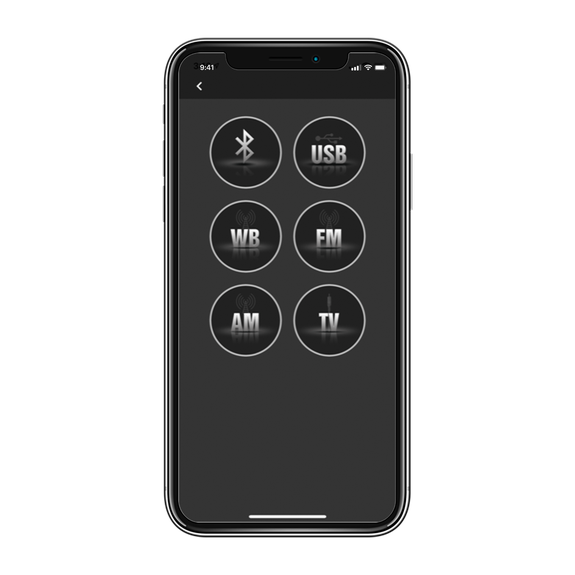

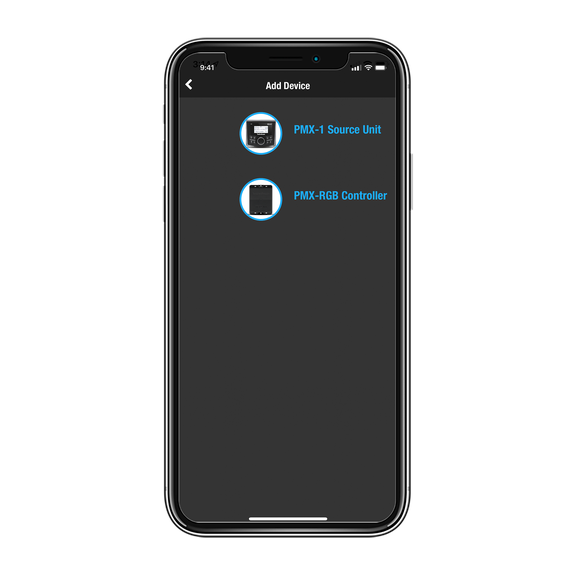

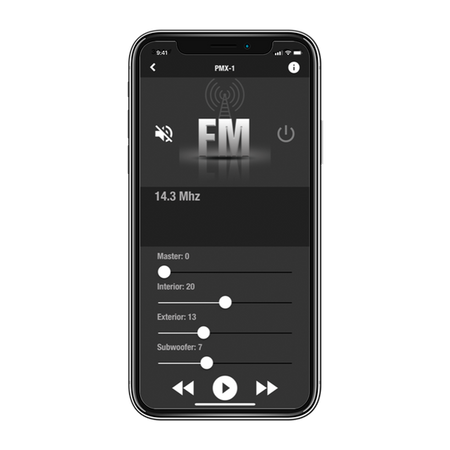

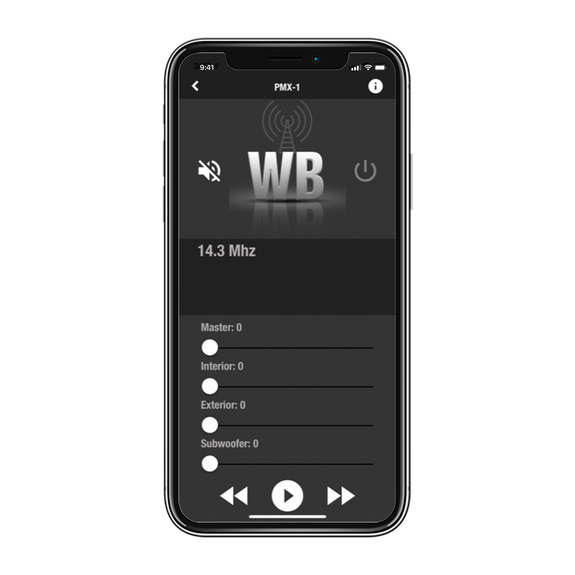

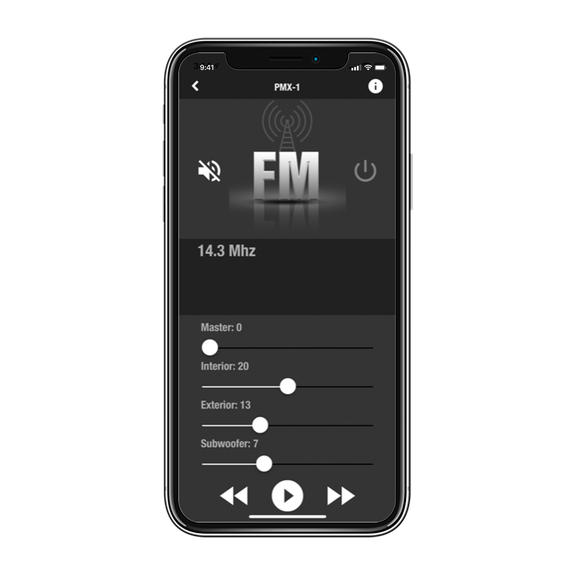

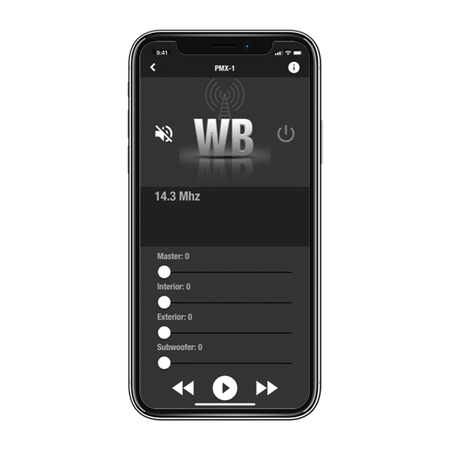

  • RF Connect iOS / Android App with native control of PMX-1
  • 2-Year Warranty
  • Plug-and-Play design for easy installation
  • A2DP and AVRCP Bluetooth® Wireless Streaming
  • Element Ready™ to withstand the harsh outdoor environment like dust, water, and UV rays
  • Complete all-in-one design
  • No setup required

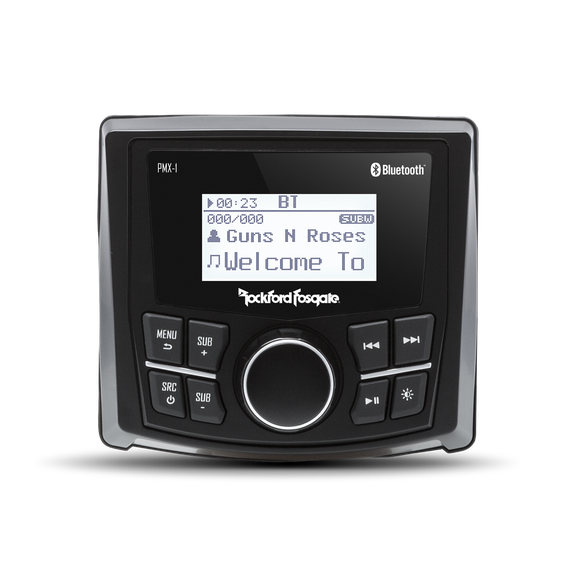

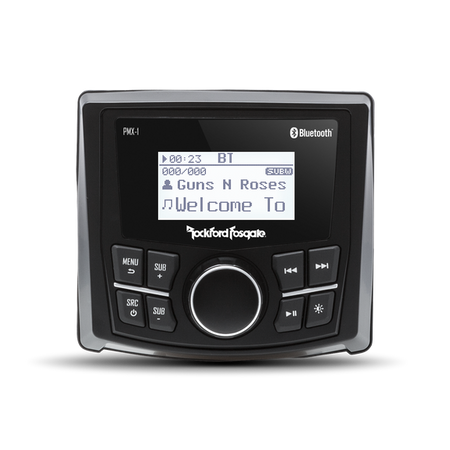

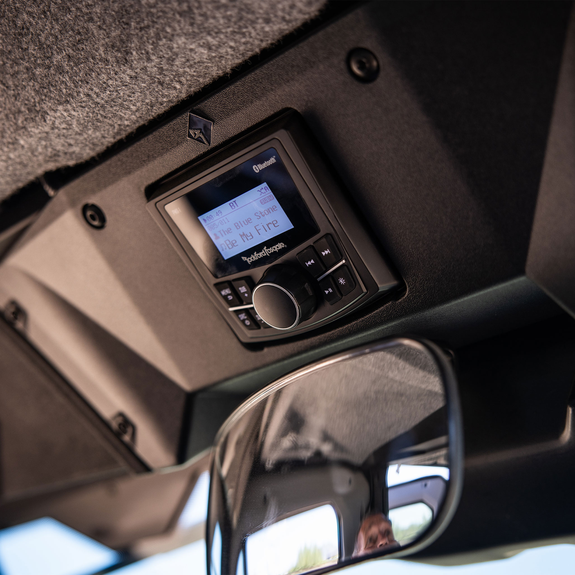

  • PMX-1: Punch Marine Grade Media Receiver with 2.3" Dot Matrix Display

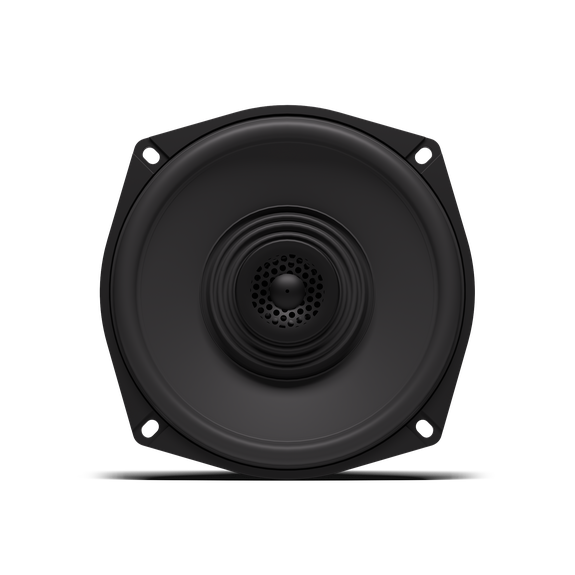

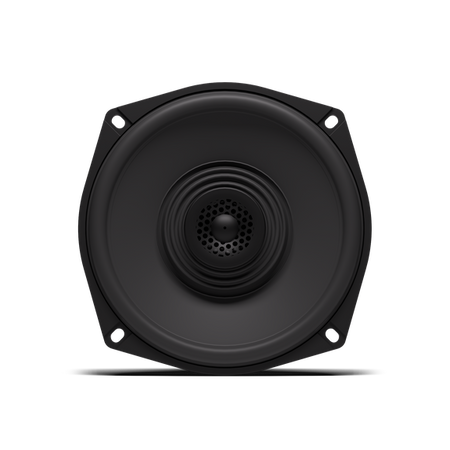

  • TMS5: 5.25" Element Ready™ full-range high-output speakers
  • AM/FM/WB Tuner
  • 7-Band Graphic EQ + PEQ
  • Voltage gauge with Low voltage Warning
  • Compatible with PMX-BTUR Steering Wheel Remote
  • Works with factory roof and windshields
  • Antenna built into wiring harness
  • Includes wire pulling tools to route harness through cage




Speaker Model
TMS5
Speaker Qty
2
Amplifier Type
Internal
Total Power
50 Watts
Mounting Hardware
Yes
Included In The Box

(1) Long Reach Magnet
(1) Magnet with Twine
(4) Speed Nut Clip, M6 x 1.0
(8) Nylon Locking Nut, M6 x 1.0
(10) T30 Torx Machine Screw, M6 x 1.0, 28 mm L
(6) T20 Tapping Screw, 4,2x16

LEGEND

YES

Model IS compatible with kit

NO

Model NOT compatible with kit

NOT AVAILABLE

Model not produced this year



COMPATIBILITY

COMPATIBLE

Roof Liner

COMPATIBLE

Flip Glass Windshield

COMPATIBLE

Full Doors



2-SEAT MODELS
MODEL 2017 2018 2019 2020 2021 2022 2023 2024 2025
Defender [500/HD5/HD8/HD10] ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅
Defender DPS [500/HD5/HD8/HD10] ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅
Defender DPS CAB [HD8/HD10] ✅ — — — ✅ ✅ ✅ ✅ ✅
Defender X mr [HD10] — ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅
Defender X mr with Half-Doors — — — — — — ✅ ✅ ✅
Defender XT [HD8/HD10] ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅
Defender XT CAB [HD8/HD10] ✅ ✅ ✅ ✅ — — — — —
Defender XT-P [HD10] — ✅ ✅ ✅ — — — — —
Defender Limited [HD10] — — — ✅ ✅ ✅ ✅ ✅ ✅
Defender Mossy Oak [Hunting] Edition [HD10]* ✅ ✅ ✅ ✅ — — — — —



4-SEAT MODELS
MODEL 2017 2018 2019 2020 2021 2022 2023 2024 2025
Defender MAX [HD8] — ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅
Defender MAX DPS [HD8/HD10] ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅
Defender MAX XT [HD8/HD10] ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅
Defender MAX XT CAB [HD10] — ✅ ✅ ✅ — — — — —
Defender MAX Limited [HD10] — — — ✅ ✅ ✅ ✅ ✅ ✅
Defender MAX Lone Star [HD10] — ✅ ✅ ✅ ✅ ✅ ✅ ✅ ✅
Defender MAX Lone Star CAB — — — — — ✅ ✅ ✅ X
Defender MAX X mr [HD10] — — ✅ ✅ ✅ ✅ ✅ ✅ ✅
Defender MAX X mr with Half-Doors — — — — — — ✅ ✅ ✅



6X6 MODELS
MODEL 2017 2018 2019 2020 2021 2022 2023 2024 2025
Defender 6X6 DPS [HD10] — — — ✅ ✅ ✅ ✅ ✅ ✅
Defender 6X6 XT [HD10] — — — — ✅ ✅ ✅ ✅ ✅
Defender 6X6 Limited — — — — — ✅ ✅ ✅ ✅



PRO MODELS
MODEL 2017 2018 2019 2020 2021 2022 2023 2024 2025
Defender PRO DPS [HD10] — — — ✅ ✅ ✅ ✅ ✅ ✅
Defender PRO XT [HD10] — — — ✅ ✅ ✅ ✅ ✅ ✅
Defender PRO Limited [HD10] — — — — ✅ ✅ ✅ ✅ ✅
Defender PRO Lone Star [HD10] — — — — ✅ ✅ — — —

* "HUNTING" dropped in 2020.
[ ] Brackets indicate engine size used on earlier models and inherited on 2022 and newer models.
