Rockford Fosgate Stage 4 Audio System 2017+ Can-Am X3 (Gen-3) | X317-STG4
Product Details
- Type Audio System
- Vendor Rockford Fosgate UTV
- SKU X317-STG4
- Shipping Weight 64.0 lb
The easiest SXS kits to install and set up, optional Color Optix™ lighting control, and even higher performance, all to ensure an epic off-road audio experience.
Plug-and-Play Design: No drilling, no cutting and designed to work right out of the box. Simple installation ensures less time in the garage and more time out riding.
Element Ready™: Purpose built for the off-road environment, Rockford’s Element ReadyTM products are built to stand up to water, dirt, mud and UV rays, making sure all your audio components perform regardless of the conditions.
RF3 (Rockford Factory Fit & Finish): Designed and engineered to match and compliment the factory fit and finish of your vehicle. These components are purpose built to the exact specifications to ensure the best in class fitment and look.
Connectivity Control: With Bluetooth connectivity, AUX and USB inputs, it’s easy to control your music or even charge your phone, no matter where the trail takes you.
Compatibility Chart: Please review compatibility tab for fitment before purchasing. Not compatible with Maverick R.
STAGE-4 PERFORMANCE

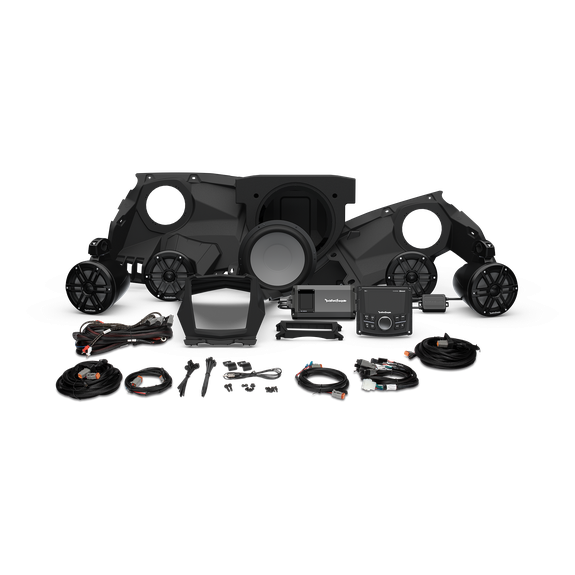

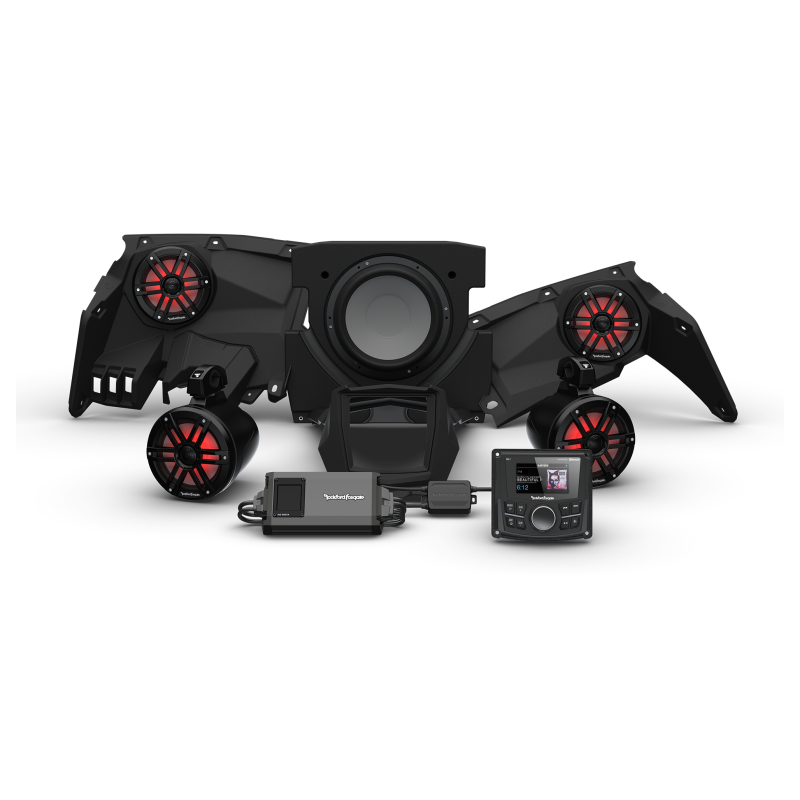

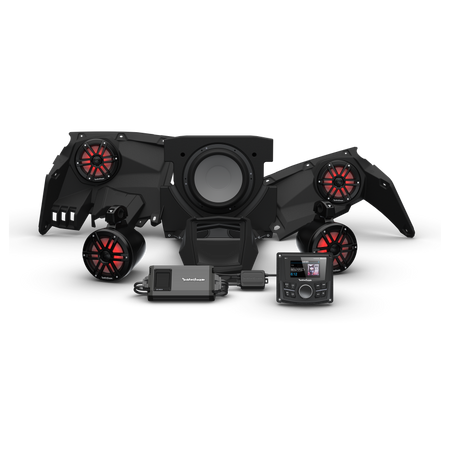

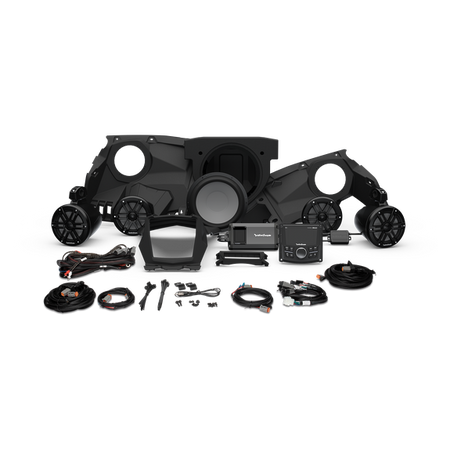

Our Gen-3 Stage 4 lets you hit the dunes and trails and make an impact! System allows you to add front and rear Color Optix™ speakers and a subwoofer on select Maverick X3 models. Kit is equipped with a PMX-2 digital media receiver, upper dash kit, front speaker panels, M1 6.5” Color Optix™ speakers, 800-watt Element Ready™ amplifier, under-seat front subwoofer enclosure, M1 10” Element Ready™ subwoofer, 8-gauge wiring harness, M1 6.5” Color Optix™ moto-cans with harness, and a Color Optix™ controller. Kit supplied with all necessary mounting and installation hardware requiring minimal time and tools.
Download RF Connect™ to control the PMX-RGB
FEATURES AT A GLANCE
- Direct connect wiring harnesses for Can-Am X3 models
- Includes wired antenna

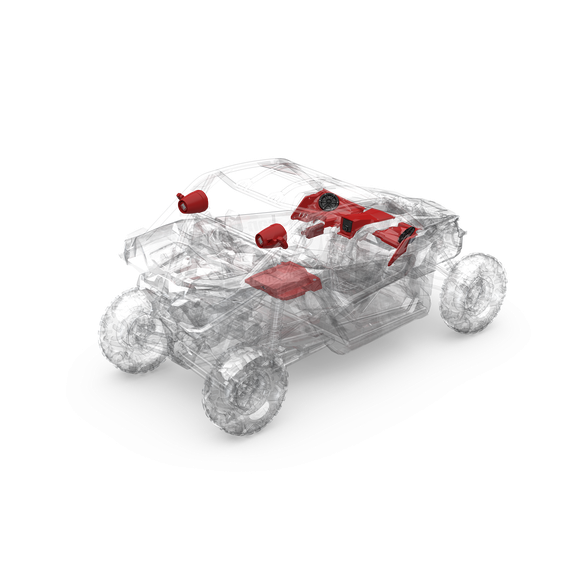

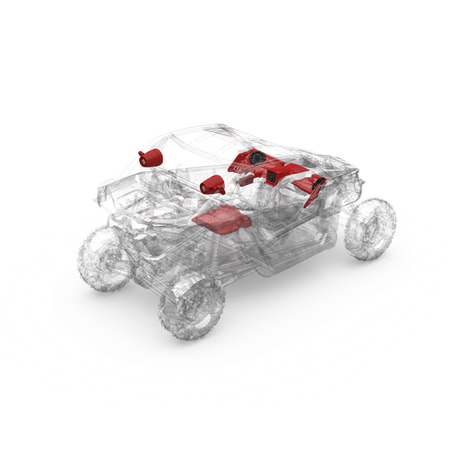

- Enclosures for speakers/subwoofer integrate with no loss of passenger space
- Color Optix™ enabled
- Complete Element Ready™ audio system
- Easy setup of audio system: amplifier preset for maximum performance without tuning
- X317-DK: Dash Kit for PMX-1, PMX-2 or PMX-3 on Select Can-Am® Maverick X3 Models
- X317-FSE: 6.5" Front Color Optix™ Speaker Panels with Smart-Lok for Select Can-Am® Maverick X3 Models
- X317-M1FWE: M1 10" Element Ready™ Loaded Subwoofer Enclosure for Select Can-Am® Maverick X3 Models (no RGB Color Optix™)
- X317-K8: 8 AWG Amp Installation Kit for Select Can-Am® Maverick X3 Models
- MX-RSW16: Rear Color Optix™ Speaker Add-On Harness for Select UTV Models
- M1-65B: M1 6.5” Color Optix™ Marine 2-Way Speakers - Black
- M5-800X4: 800-watt 4-channel IPX6 Element Ready™ amplifier
- PMX-RGB: Color Optix™ speaker color controllable via RF Connect mobile app
- M1WL-65MB: M1 6.5" Element Ready™ Color Optix™ Moto-Can Speaker - Black
- PMX-2: Compact AM/FM/WB Digital Media Receiver 2.7" Display
Element Ready™ | Motorsports
All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion & Vibration.
Color Optix™ Control
Adjust your own bright, wide, and limitless lighting experience with the Rockford Fosgate Color Optix™ plug-and-play controller and App.
IPX6 Water Intrusion Rating
Water projected in powerful jets from any direction shall have no harmful effects.
(1 ea) X317-DK
(1 pr) X317-FSE
(1 pr) M1-65B
(1 ea) M5-800X4
(1 ea) X317-M1FWE
(1 ea) X317-K8
(1 pr) M1WL-65MB
(1 ea) MX-RSW16
(1 ea) PMX-RGB
54 Lbs (24.49 Kg)
YES Model IS compatible with kit |
NO Model NOT compatible with kit |
NOT AVAILABLE Model not produced this year |
|---|
YES  MAVERICK X32-Seat |
YES MAVERICK X34-Seat |
NO MAVERICK R2-Seat |
NO MAVERICK Sport2-Seat / 4-Seat |
NO MAVERICK Trail2-Seat / 4-Seat |
|---|
YES MAVERICK X3Hi/Low Seat Level |
COMPATIBLE Front Window(remove to install speakers) |
POSSIBLE Rear Window(mount cans externally) |
POSSIBLE Snorkel(mount cans externally) |
|---|
|
MODELS |
 2017 |
2018 |
2019 |
2020 |
2021 |
2022 |
2023 |
2024 |
2025 |
|---|---|---|---|---|---|---|---|---|---|
| Maverick X3 900 HO [64] | — | ✅ | — | — | — | — | — | — | — |
| Maverick X3 Turbo [64] | — | ✅ | ✅ | ✅ | — | — | — | — | — |
| Maverick X3 Turbo R [64] | ✅ | ✅ | ✅ | — | — | — | — | — | — |
| Maverick X3 ds Turbo [64] | — | — | — | — | ✅ | ✅ | ✅ | ✅ | ✅ |
| Maverick X3 ds Turbo R [64] | — | — | — | ✅ | ✅ | — | — | — | — |
| Maverick X3 ds Turbo RR [64] | — | — | — | — | — | ✅ | ✅ | ✅ | ✅ |
| Maverick X3 rs Turbo [72] | — | — | — | — | — | — | — | ✅ | ✅ |
| Maverick X3 rs Turbo R [72] | — | — | — | ✅ | — | — | — | — | — |
| Maverick X3 rs Turbo RR [72] | — | — | — | — | — | ✅ | ✅ | ✅ | ✅ |
|
X MODELS |
2017 |
2018 |
2019 |
2020 |
2021 |
2022 |
2023 |
2024 |
2025 |
|---|---|---|---|---|---|---|---|---|---|
| Maverick X3 X ds Turbo R [64] | ✅ | ✅ | ✅ | — | — | — | — | — | — |
| Maverick X3 X ds Turbo RR [64] | — | — | — | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ |
| Maverick X3 X ds Turbo RR Smart-Shox [64] | — | — | — | — | — | — | — | — | ✅ |
| Maverick X3 X mr Turbo [64] 1 | — | ✅ 1,3 | ✅ 1,3 | ✅ 1 | ✅ 1 | — | — | — | — |
| Maverick X3 X mr Turbo R [72] 1 | — | ✅ 1,3 | ✅ 1,3 | — | — | — | — | — | — |
| Maverick X3 X mr Turbo RR [64] | — | — | — | — | — | ✅ | ✅ | ✅ | ✅ |
| Maverick X3 X mr Turbo RR [72] | — | — | — | — | ✅ | ✅ | — | — | ✅ |
| Maverick X3 X mr Turbo RR [72] 1 | — | — | — | ✅ 1 | ✅ 1 | — | ✅ 1 | ✅ 1 | — |
|
X rc/rs MODELS |
2017 |
2018 |
2019 |
2020 |
2021 |
2022 |
2023 |
2024 |
2025 |
|---|---|---|---|---|---|---|---|---|---|
| Maverick X3 X rc Turbo [64] | — | ✅ | ✅ 3 | ✅ | ✅ | — | — | — | — |
| Maverick X3 X rc Turbo R [72] 2 | — | X 2 | X 2 | — | — | — | — | — | — |
| Maverick X3 X rc Turbo RR [64] | — | — | — | — | — | ✅ | ✅ | ✅ | X 2 |
| Maverick X3 X rc Turbo RR [72] 2 | — | — | — | X 2 | X 2 | X 2 | X 2 | X 2 | X 2 |
| Maverick X3 X rs Turbo R [72] | ✅ | ✅ | ✅ 3 | — | — | — | — | — | — |
| Maverick X3 X rs Turbo RR [72] | — | — | — | ✅ | — | ✅ | ✅ | ✅ | ✅ |
| Maverick X3 X rs Turbo RR Smart-Shox [72] | — | — | — | — | ✅ | ✅ | ✅ | ✅ | ✅ |
|
MAX MODELS |
2017 |
2018 |
2019 |
2020 |
2021 |
2022 |
2023 |
2024 |
2025 |
|---|---|---|---|---|---|---|---|---|---|
| Maverick X3 MAX Turbo [64] | — | ✅ | ✅ | ✅ | — | — | — | — | — |
| Maverick X3 MAX Turbo R [64] | ✅ | ✅ | ✅ | — | — | — | — | — | — |
| Maverick X3 MAX ds Turbo [64] | — | — | — | — | ✅ | ✅ | ✅ | ✅ | ✅ |
| Maverick X3 MAX ds Turbo R [64] | — | — | — | ✅ | ✅ | — | — | — | — |
| Maverick X3 MAX ds Turbo RR [64] | — | — | — | — | — | ✅ | ✅ | ✅ | ✅ |
| Maverick X3 MAX rs Turbo [72] | — | — | — | — | — | — | — | ✅ | ✅ |
| Maverick X3 MAX rs Turbo R [72] | — | — | — | ✅ | ✅ | — | — | — | — |
| Maverick X3 MAX rs Tubro RR [72] | — | — | — | — | — | ✅ | ✅ | ✅ | ✅ |
|
MAX X MODELS |
2017 |
2018 |
2019 |
2020 |
2021 |
2022 |
2023 |
2024 |
2025 |
|---|---|---|---|---|---|---|---|---|---|
| Maverick X3 MAX X ds Turbo R [64] | ✅ | ✅ | ✅ 3 | — | — | — | — | — | — |
| Maverick X3 MAX X ds Turbo RR [64] | — | — | — | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ |
| Maverick X3 MAX X ds Turbo RR Smart-Shox [64] | — | — | — | — | — | — | — | — | ✅ |
| Maverick X3 MAX X rc Turbo RR [72] 2 | — | — | — | — | — | — | — | X 2 | X 2 |
| Maverick X3 MAX X mr Turbo RR [72] 1 | — | — | — | ✅ 1 | ✅ 1 | ✅ 1 | ✅ 1 | ✅ 1 | ✅ 1 |
| Maverick X3 MAX X rs Turbo R [72] | ✅ | ✅ | ✅ 3 | — | — | — | — | — | — |
| Maverick X3 MAX X rs Turbo RR [72] | — | — | — | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ |
| Maverick X3 MAX X rs Turbo RR Smart-Shox [72] | — | — | — | — | ✅ | ✅ | ✅ | ✅ | ✅ |
[] Brackets New naming convention started in 2022 — featuring 64" and 72" width models. Older models denote [width] in name to clarify make/model/year progression.
1 Snorkel prevents stages with rear moto-cans from being installed inside roll-cage, must be installed outside roll-cage.
2 Intrusion Bar introduced in 2018, causes (FSE) front speaker clearance issue.
3 Smart-Lok™ introduced in 2018, requires 2nd generation (RFX317-FSE) or 3rd generation (X317-FSE) front speaker panels.
