Rockford Fosgate Rear Roof Audio Cap 2018+ Polaris Ranger Select Models | RNGR18-CAPM2

The Ranger audio roof systems were developed to provide performance never heard before in a side by side. It’s our loudest all-in-one system, featuring simple plug and play installation and built to stand up to the elements.

All-in-One Audio Performance: Equipped with 4, 8-inch speakers and 800-watt amplifier in a one-piece design; making it the perfect blend of epic performance and simple installation.

Element Ready™: Purpose Built for the outdoor environment, Rockford’s Element Ready™ products are built to stand up to Water, Salt, and UV, making sure your products stand the test of time.

Adventure Tested: No matter where the adventure leads surround yourself with sound, all while the entire audio system is elevated out of the elements. With the system being overhead, all the audio stays above the water line, so fording water or deep mud won’t be a problem.

Color Optix™ Lighting: Adjust your own bright, wide, and limitless lighting experience with the built-in Rockford Fosgate Color Optix™ plug-and-play controller and App.

Compatibility: Refer to our compatibility chart to verify fitment before purchasing.

WE SPEAK VOLUME

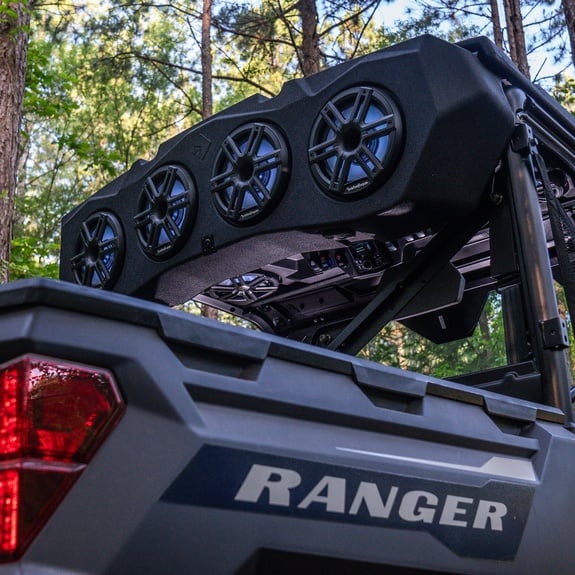

The RNGR18-CAPM2 is a high-output, 4-speaker, 800-watt amplified rear audio cap that replaces the included blank cap on RNGR18-ROOF2M2 and RNGR18-ROOF4M2 audio systems.

Components:
• (4) 8" M2 Color Optix™ Speakers
• (1) 800 Watt Amplifier
• (1) Backup Camera
• (2) Cargo Lights

Installation:
• (30) Minutes Typical

FEATURES AT A GLANCE

• Plug-and-Play design for easy installation
• Direct bolt into vehicle using OEM mounting holes
• Requires minimal disassembly
• Integrated driver/passenger LED dome light
• Integrated dual LED cargo bed lights
• MX-CAM: waterproof backup camera with MX-CAM-RNGR18 harness and switch system
• M2-8HB: 8" Horn Loaded Color Optix™ Marine Grade 2-Way Speakers
• Sport grilles featured on all speakers
• Element Ready™ to withstand the harsh outdoor environment like dust, water, and UV rays
• 2-Year Warranty
• Integrated built-in backup camera for display on the PMX-3

Mounting Hardware

Included in 2-seat and 4-seat kits

Grille/Trim Ring Included

Yes

Light Bar Fuse

N/A

Included In The Box

(1) Rear loaded cap assembly
NOTE: Hardware needed to secure rear cap to roof is included in the RNGR18-ROOF2M2 kit.

Shipping Dimensions

11.75" x 19.75" x 59.75"
29.8 cm x 50.2 cm x 151.8 cm

Shipping Weight

47 Lbs. (21.3 Kg)

 LEGEND

YES Ranger model IS compatible with kit	NO Ranger model NOT compatible with kit	NOT AVAILABLE Ranger model not produced this year

COMPATIBLE Polaris Ranger Premium Roof Liner

COMPATIBLE Polaris Tip-Out Full Windshield

 REQUIRED AUDIO SYSTEM

YEAR	IMAGE	MODEL	DESCRIPTION
2023⁠—current		RNGR18-ROOF2M2	Front Audio Roof for Select 2018+ Polaris Ranger Models
2023⁠—current		RNGR18-ROOF4M2	Front & Rear Audio Roof for Select 2018+ Polaris Ranger Crew Models

MID-SIZE (2-SEAT)

MODEL	2018	2019	2020	2021	2022	2023	2024	2025
Ranger 500	X	X	X	X	X	—	—	—
Ranger 570	X	X	X	—	—	—	—	—
Ranger 570 EPS	X	X	X	—	—	—	—	—
Ranger SP 570	—	—	—	X	X	X	X	X
Ranger SP 570 Premium	—	—	—	X	X	X	X	X
Ranger SP 570 NorthStar Edition	—	—	—	X	X	X	X	X

 COMPATIBILITY

YES Ranger 1000 Models

YES Ranger XP 1000 Models

YES Ranger XP 1000 Northstar Models

FULL-SIZE (3-SEAT)

BASE MODELS	2018	2019	2020	2021	2022	2023	2024	2025
Ranger 570 Full-Size	X	X	X	X	X	X	X	X
Ranger Diesel	X	—	—	—	—	—	—	—
Ranger 1000	—	—	✅	✅	✅	✅	✅	✅
Ranger 1000 EPS	—	—	✅	✅	✅	✅	✅	✅
Ranger 1000 Premium	—	—	✅	✅	✅	✅	✅	✅
Ranger 1000 Premium + Winter Prep Package	—	—	—	✅	✅	—	—	—

XP MODELS	2018	2019	2020	2021	2022	2023	2024	2025
Ranger XP 900 [EPS]	X	X	—	—	—	—	—	—
Ranger XP 1000 Big Game Edition	—	—	—	✅	✅	—	—	—
Ranger XP 1000 Texas Edition	—	—	✅	✅	—	—	—	—
Ranger XP 1000 Trail Boss	—	—	—	✅	✅	—	—	—
Ranger XP 1000 Waterfowl Edition	—	—	—	✅	✅	—	—	—
Ranger XP 1000 NorthStar [Edition] Premium	—	—	✅	✅	✅	✅	✅	✅
Ranger XP 1000 NorthStar [Edition] Premium Fixed Windshield	—	—	—	—	—	—	—	✅
Ranger XP 1000 NorthStar [Edition] Ultimate	—	—	✅	✅	✅	✅	✅	✅
Ranger XP 1000 NorthStar Edition Trail Boss	—	—	—	✅	✅	✅	✅	✅
Ranger XP 1000 EPS	✅	✅	—	—	—	—	—	—
Ranger XP 1000 [EPS] Premium	—	✅	✅	✅	✅	✅	✅	✅
Ranger XP 1000 [EPS] High Lifter Edition	✅	✅	✅	✅	✅	—	—	—
Ranger XP 1000 EPS NorthStar [HVAC] Edition	✅	✅	—	—	—	—	—	—
Ranger XP 1000 EPS Back Country Limited Edition	—	✅	—	—	—	—	—	—

EXTREME-DUTY (3-SEAT)

MODELS	2018	2019	2020	2021	2022	2023	2024	2025
Ranger XD 1500 Premium	—	—	—	—	—	—	X	—
Ranger XD 1500 Northstar Edition Premium	—	—	—	—	—	—	X	X
Ranger XD 1500 Northstar Edition Ultimate	—	—	—	—	—	—	X	X

RANGER CREW (4-SEAT)

MODEL	2018	2019	2020	2021	2022	2023	2024	2025
Ranger Crew 570[-4]	X	X	X	X	—	—	—	—
Ranger Crew 570-4 EPS	X	X	—	—	—	—	—	—
Ranger Crew 570[-4] Premium	—	—	X	X	—	—	—	—
Ranger Crew SP 570	—	—	—	X	X	X	X	X
Ranger Crew SP 570 Premium	—	—	—	—	X	X	X	X
Ranger Crew SP 570 NorthStar Edition	—	—	—	X	X	X	X	X

RANGER CREW (6-SEAT)

BASE MODELS	2018	2019	2020	2021	2022	2023	2024	2025
Ranger Crew 570-6	X	X	X	—	—	—	—	—
Ranger Crew 570 Full-Size	—	—	—	X	X	X	X	X
Ranger Crew Diesel	X	—	—	—	—	—	—	—
Ranger Crew 1000	—	—	✅	✅	✅	—	✅	✅
Ranger Crew 1000 EPS	—	—	✅	—	—	—	—	—
Ranger Crew 1000 Premium	—	—	✅	✅	✅	✅	✅	✅
Ranger Crew 1000 Premium + Winter Prep Package	—	—	—	—	✅	—	—	—

XP MODELS	2018	2019	2020	2021	2022	2023	2024	2025
Ranger Crew XP 900 [EPS]	X	X	—	—	—	—	—	—
Ranger Crew XP 1000 Big Game Edition	—	—	—	✅	✅	—	—	—
Ranger Crew XP 1000 Premium	—	—	✅	✅	✅	✅	✅	✅
Ranger Crew XP 1000 Texas Edition	—	—	✅	✅	✅	✅	✅	✅
Ranger Crew XP 1000 Trail Boss	—	—	—	✅	✅	—	—	—
Ranger Crew XP 1000 Waterfowl Edition	—	—	—	✅	✅	—	—	✅
Ranger Crew XP 1000 NorthStar Big Game Edition	—	—	—	—	✅	—	—	—
Ranger Crew XP 1000 NorthStar [Edition] Premium	—	—	✅	✅	✅	✅	✅	✅
Ranger Crew XP 1000 NorthStar [Edition] Premium Fixed Windshield	—	—	—	—	—	—	—	✅
Ranger Crew XP 1000 NorthStar [Edition] Ultimate	—	—	✅	✅	✅	✅	✅	✅
Ranger Crew XP 1000 NorthStar [Edition] Trail Boss	—	—	—	✅	✅	✅	✅	✅
Ranger Crew XP 1000 Northstar Texas Edition	—	—	—	—	—	—	—	✅
Ranger Crew XP 1000 EPS	✅	✅	—	—	—	—	—	—
Ranger Crew XP 1000 [EPS] High Lifter Edition	✅	✅	✅	✅	✅	—	—	—
Ranger Crew XP 1000 EPS NorthStar [HVAC] Edition	✅	✅	—	—	—	—	—	—
Ranger Crew XP 1000 EPS Back Country Edition	—	✅	—	—	—	—	—	—

EXTREME DUTY CREW (6-SEAT)

MODELS	2018	2019	2020	2021	2022	2023	2024	2025
Ranger Crew XD 1500 Premium	—	—	—	—	—	—	X	—
Ranger Crew XD 1500 Northstar Edition Premium	—	—	—	—	—	—	X	X
Ranger Crew XD 1500 Northstar Edition Ultimate	—	—	—	—	—	—	X	X

ELECTRIC

MODEL	2018	2019	2020	2021	2022	2023	2024	2025
Ranger EV	X	X	X	X	X	—	—	—
Ranger XP Kinetic Premium	—	—	—	—	—	X	X	?
Ranger XP Kinetic Ultimate	—	—	—	—	—	X	X	?

YOUTH

MODEL	2018	2019	2020	2021	2022	2023	2024	2025
Ranger 150 EFI	X	X	X	X	X	X	X	X

^* [ ] brackets indicate nomenclature used on earlier models and inherited on later models.
