Rockford Fosgate Stage 4 Audio System 2018+ Polaris Ranger (Gen-2) | RNGR18-STG4
Product Details
- Type Audio System
- Vendor Rockford Fosgate UTV
- SKU RNGR18-STG4
- Shipping Weight 76.7 lb
All the Rockford Fosgate sound, easy installation, quick smartphone connection, and right out of the box performance, so everything just works, so you can too.
Element Ready™: Purpose built for the off-road environment, Rockford’s Element Ready™ products are built to stand up to water, dirt, mud and UV rays, making sure all your audio components perform regardless of the conditions.
Plug-and-Play Design: Minimal drilling, no cutting and designed to work right out of the box. Simple installation ensures less time in the garage and more time out riding.
Color Optix™: Adjust your own bright, wide, and limitless lighting experience with the Rockford Fosgate Color Optix™ plug-and-play controller and App.
Preset: Out of the box performance, literally. No settings or adjustments are needed. Pre-Tuned by Rockford to deliver the legendary performance you have come to expect.
RF3 (Rockford Factory Fit and Finish): Designed and engineered to match and compliment the factory fit and finish of your vehicle. These components are purpose built to the exact specifications to ensure the best-in-class fitment and look.
Compatibility Chart: Please review below tab for fitment before purchasing.
Ranger Lifestyle Ranger Stages Product Overview Ranger Stage-4 Installation
STAGE-4 PERFORMANCE

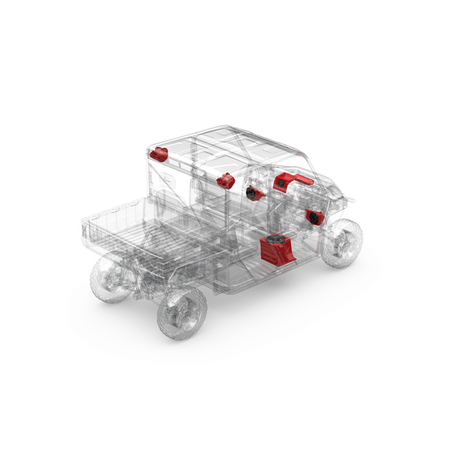

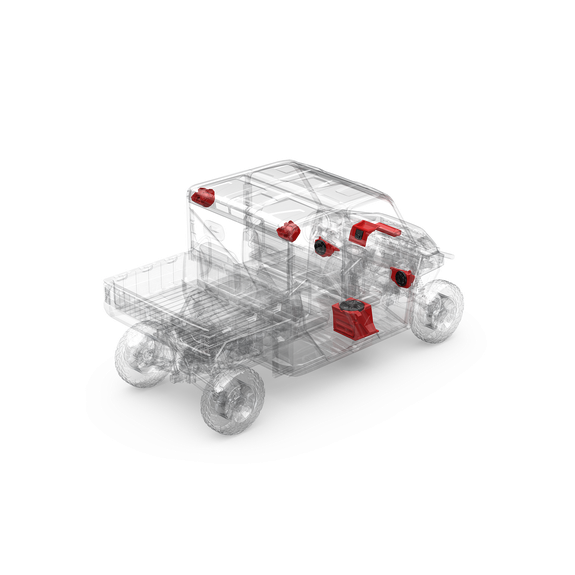

The Ranger Stage-4 is an aftermarket 1,500-watt M1 Color Optix™ front and rear audio system with subwoofer. This kit features the PMX-2 color screen multi-media source unit with Pandora® internet radio. Building on all the great features of Stage-3, this kit nearly doubles the amplifier power with the M5-1500X5. With 5 discrete channels, you’ll have full control of the 6.5” front speakers, 6.5” rear speakers, and 10” subwoofer, with future expansion of a secondary 10” subwoofer with rear-seats. A Polaris Ranger Poly Roof equipped with/without the Premium Roof Liner is required for installation of the rear speakers. The system is designed for select 2018 and newer XP 1000 FULL-SIZE (3-seat) and CREW (6-seat) models.
FEATURES AT A GLANCE
- RNGR18-DK: Dash kit for PMX-1, PMX-2 or PMX-3 on select Polaris® Ranger models

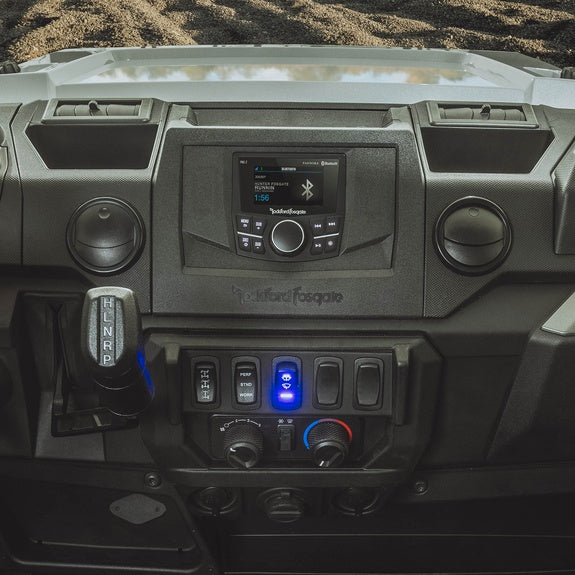

- PMX-2: Compact AM/FM/WB Digital Media Receiver 2.7" Display

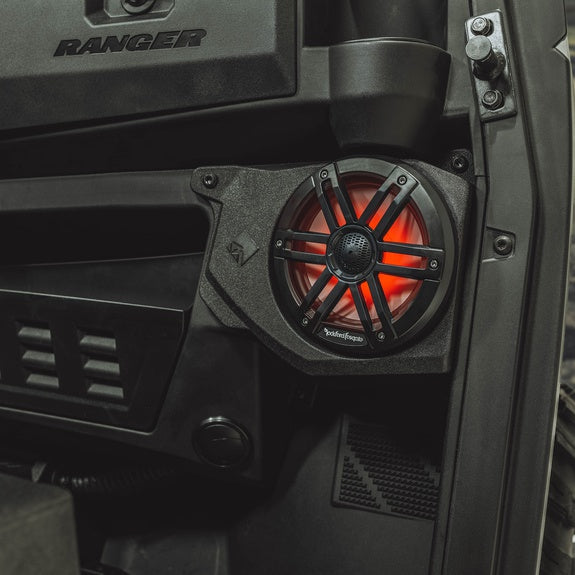

- RNGR18-FSE: 6.5" front Color Optix™ speaker pods for select Polaris® Ranger models
- M1-65B: M1 6.5” Color Optix™ Marine 2-Way Speakers - Black
- PMX-RGB: Color Optix™ speaker color controllable via RF Connect mobile app

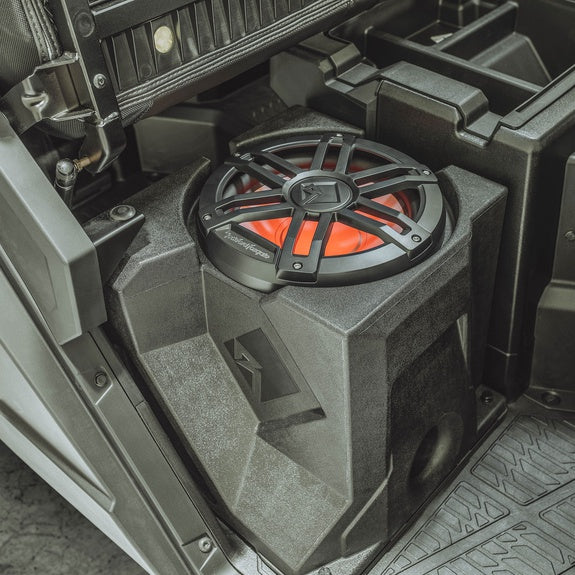

- RNGR18-FWE: Color Optix™ 10" ported subwoofer enclosure for select Polaris® Ranger models
- M1D4-10B: M1 10" DVC 4Ω Element Ready™ Color Optix™ Subwoofer - Black
- RNGR18-K4: 4 AWG amp installation kit for select Polaris® Ranger models

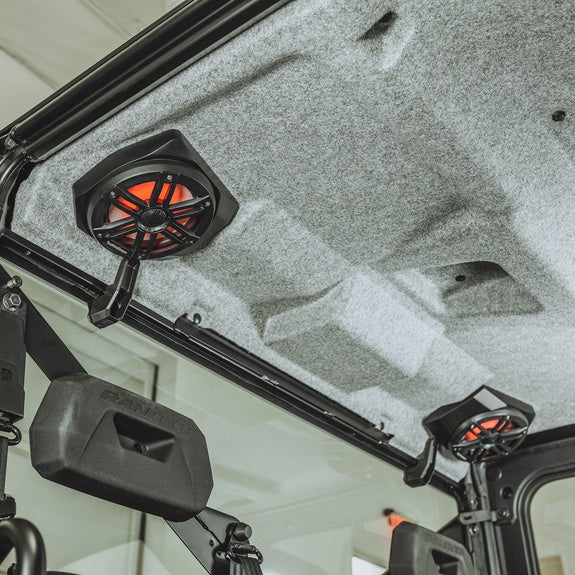

- RNGR18-RSE: 6.5" rear speaker pods for select Polaris® Ranger (requires Polaris® poly roof)

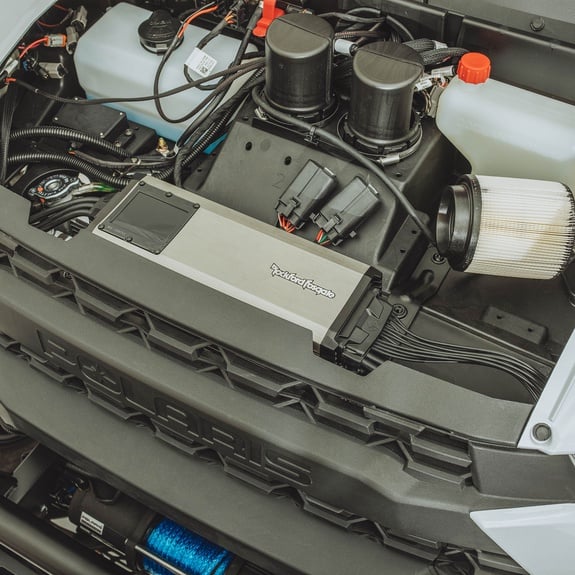

- M5-1500X5: 1,500 Watt 5-Channel IPX6 Element Ready™ Amplifier
Element Ready™ | Motorsports
All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion & Vibration.
IPX6 Water Intrusion Rating
Water projected in powerful jets from any direction shall have no harmful effects.
Bluetooth Control
With Bluetooth® connectivity it’s easy to control your music and take your playlist with you no matter where you go.
Plug & Play
This product is designed for rapid installation using pre-configured wiring harnesses and quick connect terminals.
Color Optix™ Control
Adjust your own bright, wide, and limitless lighting experience with the Rockford Fosgate Color Optix™ plug-and-play controller and App.
Vibration Resistant
Components are able to withstand shock and vibration conditions common with outdoor vehicles.
Water Resistant
IPX Ratings allow for the components to be directly sprayed with water without ingress.
UV Inhibitor Materials
Centrex and ASA plastic materials are used for their UV radiation resistance and components are tested in accordance with ASTM D4329 testing and certification procedures.
Thermal Shock Resistant
Components are designed to withstand extreme temperature fluctuations ensuring they perform day-in and day-out.
Stainless Hardware
Stainless hardware is used to its natural resistance to corrosion and rusting. This ensures electrical connections will not degrade over time due to exposure to the elements.
CE Compliant
This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 EC).
Corrosion Protection
Components are tested for salt spray corrosion resistance.
Dust Resistant
Displays and motor structures are sealed tight so they look and sound as clear as possible no matter how many times you hit the trails.

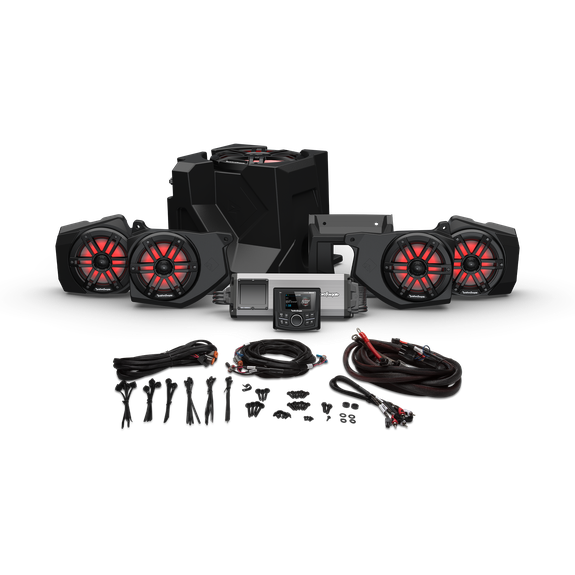

(1 ea) RNGR18-DK
(1 pr) RNGR18-FSE
(2 pr) M1-65B
(1 ea) M5-1500X5
(1 ea) RNGR18-FWE
(1 ea) M1D2-10B
(1 ea) RNGR18-K4
(1 pr) RNGR18-RSE
(1 ea) PMX-RGB
69 Lbs (31.29 Kg)
YES Ranger model IS compatible with kit |
NO Ranger model NOT compatible with kit |
NOT AVAILABLE Ranger model not produced this year |
|---|
 MODEL |
 2018 |
2019 |
2020 |
2021 |
2022 |
 2023 |
2024 |
2025 |
|---|---|---|---|---|---|---|---|---|
| Ranger EV | ✕ | ✕ | ✕ | ✕ | ✕ | — | — | — |
| Ranger XP Kinetic Premium | — | — | — | — | — | ✕ | ✕ | — |
| Ranger XP Kinetic Ultimate | — | — | — | — | — | ✕ | ✕ | — |
YES Ranger XP 1000 Models
|
YES Ranger XP 1000 Northstar Models
|
REQUIRED Polaris Ranger Poly Roof |
COMPATIBLE Polaris Ranger Premium Roof Liner |
COMPATIBLE Polaris Tip-Out Full Windshield(drill hole for receiver) |
COMPATIBLE Polaris Ranger HVAC System |
|---|
|
MODEL |
 2018 |
2019 |
2020 |
2021 |
2022 |
|---|---|---|---|---|---|
| Ranger 500 | ✕ | ✕ | ✕ | ✕ | ✕ |
| Ranger 570 | ✕ | ✕ | ✕ | — | — |
| Ranger 570 EPS | ✕ | ✕ | ✕ | — | — |
| Ranger SP 570 | — | — | — | ✕ | ✕ |
| Ranger SP 570 Premium | — | — | — | ✕ | ✕ |
| Ranger SP 570 NorthStar Edition | — | — | — | ✕ | ✕ |
| Ranger EV | ✕ | ✕ | ✕ | ✕ | ✕ |
|
MODEL |
 2018 |
2019 |
2020 |
2021 |
2022 |
|---|---|---|---|---|---|
| Ranger 570 Full-Size | ✕ | ✕ | ✕ | ✕ | ✕ |
| Ranger Diesel | ✕ | — | — | — | — |
| Ranger 1000 | — | — | ✕ | ✕ | ✕ |
| Ranger 1000 EPS | — | — | ✕ | ✕ | ✕ |
| Ranger 1000 Premium | — | — | ✕ | ✕ | ✕ |
| Ranger 1000 Premium + Winter Prep Package | — | — | — | ✕ | ✕ |
| Ranger XP 900 | ✕ | ✕ | — | — | — |
| Ranger XP 900 EPS | — | — | — | — | — |
| Ranger XP 1000 Big Game Edition | — | — | — | ✅ | ✅ |
| Ranger XP 1000 Texas Edition | — | — | ✅ | ✅ | — |
| Ranger XP 1000 Trail Boss | — | — | — | ✅ | ✅ |
| Ranger XP 1000 Waterfowl Edition | — | — | — | ✅ | ✅ |
| Ranger XP 1000 NorthStar [Edition] Premium | — | — | ✅ | ✅ | ✅ |
| Ranger XP 1000 NorthStar [Edition] Ultimate | — | — | ✅ | ✅ | ✅ |
| Ranger XP 1000 NorthStar Edition Trail Boss | — | — | — | ✅ | ✅ |
| Ranger XP 1000 EPS | ✅ | ✅ | — | — | — |
| Ranger XP 1000 [EPS] Premium | — | ✅ | ✅ | ✅ | ✅ |
| Ranger XP 1000 [EPS] High Lifter Edition | ✅ | ✅ | ✅ | ✅ | ✅ |
| Ranger XP 1000 EPS NorthStar [HVAC] Edition | ✅ | ✅ | — | — | — |
| Ranger XP 1000 EPS Back Country Limited Edition | — | ✅ | — | — | — |
|
MODEL |
 2018 |
2019 |
2020 |
2021 |
2022 |
2023 |
2024 |
2025 |
|---|---|---|---|---|---|---|---|---|
| Ranger XD 1500 Premium | — | — | — | — | — | — | ✕ | — |
| Ranger XD 1500 Northstar Edition Premium | — | — | — | — | — | — | ✕ | — |
| Ranger XD 1500 Northstar Edition Ultimate | — | — | — | — | — | — | ✕ | — |
|
MODEL |
 2018 |
2019 |
2020 |
2021 |
2022 |
|---|---|---|---|---|---|
| Ranger Crew 570[-4] | ✕ | ✕ | ✕ | ✕ | — |
| Ranger Crew 570-4 EPS | ✕ | ✕ | — | — | — |
| Ranger Crew 570[-4] Premium | — | — | ✕ | ✕ | — |
| Ranger Crew SP 570 | — | — | — | ✕ | ✕ |
| Ranger Crew SP 570 Premium | — | — | — | — | ✕ |
| Ranger Crew SP 570 NorthStar Edition | — | — | — | ✕ | ✕ |
|
MODEL |
 2018 |
2019 |
2020 |
2021 |
2022 |
|---|---|---|---|---|---|
| Ranger Crew 570-6 | ✕ | ✕ | ✕ | — | — |
| Ranger Crew 570 Full-Size | — | — | — | ✕ | ✕ |
| Ranger Crew Diesel | ✕ | — | — | — | — |
| Ranger Crew 1000 | — | — | ✕ | ✕ | ✕ |
| Ranger Crew 1000 EPS | — | — | ✕ | — | — |
| Ranger Crew 1000 Premium | — | — | ✕ | ✕ | ✕ |
| Ranger Crew 1000 Premium + Winter Prep Package | — | — | — | — | ✕ |
| Ranger Crew XP 900 EPS | ✕ | ✕ | — | — | — |
| Ranger Crew XP 900 | ✕ | ✕ | — | — | — |
| Ranger Crew XP 1000 Big Game Edition | — | — | — | ✅ | ✅ |
| Ranger Crew XP 1000 Premium | — | — | ✅ | ✅ | ✅ |
| Ranger Crew XP 1000 Texas Edition | — | — | ✅ | ✅ | ✅ |
| Ranger Crew XP 1000 Trail Boss | — | — | — | ✅ | ✅ |
| Ranger Crew XP 1000 Waterfowl Edition | — | — | — | ✅ | ✅ |
| Ranger Crew XP 1000 NorthStar Big Game Edition | — | — | — | — | ✅ |
| Ranger Crew XP 1000 NorthStar [Edition] Premium | — | — | ✅ | ✅ | ✅ |
| Ranger Crew XP 1000 NorthStar [Edition] Ultimate | — | — | ✅ | ✅ | ✅ |
| Ranger Crew XP 1000 NorthStar Edition Trail Boss | — | — | — | ✅ | ✅ |
| Ranger Crew XP 1000 EPS | ✅ | ✅ | — | — | — |
| Ranger Crew XP 1000 [EPS] High Lifter Edition | ✅ | ✅ | ✅ | ✅ | ✅ |
| Ranger Crew XP 1000 EPS NorthStar [HVAC] Edition | ✅ | ✅ | — | — | — |
| Ranger Crew XP 1000 EPS Back Country Edition | — | ✅ | — | — | — |
|
MODEL |
2018 |
2019 |
2020 |
2021 |
2022 |
2023 |
2024 |
2025 |
|---|---|---|---|---|---|---|---|---|
| Ranger XD 1500 Premium | — | — | — | — | — | — | ✕ | — |
| Ranger XD 1500 Northstar Edition Premium | — | — | — | — | — | — | ✕ | — |
| Ranger XD 1500 Northstar Edition Ultimate | — | — | — | — | — | — | ✕ | — |
|
MODEL |
 2018 |
2019 |
2020 |
2021 |
2022 |
2023 |
2024 |
2025 |
|---|---|---|---|---|---|---|---|---|
| Ranger 150 EFI | ✕ | ✕ | ✕ | ✕ | ✕ | ✕ | ✕ | — |
[ ] Indicates early model name nomenclature that was later inherited
* Denotes Optional Package
FSE 2025 Lower Dash does not fit Front Speaker Enclosures. Make compatible by replacing with 2024 lower dash (Polaris #5453747-070).
HVAC HVAC Heating ventilation & air conditioning system
IA Integrated Audio with AM/FM radio and in-dash speakers.
JBL JBL Trail Pro 2000 Audio equipped from factory not compatible for upgrade to RF kit.
RC Ride Command equipped from factory. RF kits equipped with PMX source will bypass Ride Command. RF kits with RC interface use Ride Command as source unit.
SR Sport Roof
SRP Sport Roof + Premium Liner
PW Powered windows . Crew models feature powered front seat windows.
WF Windshield Front (Lock and Ride)
WT Windshield Tipout
WR Window Rear Panel (Poly or Glass)
