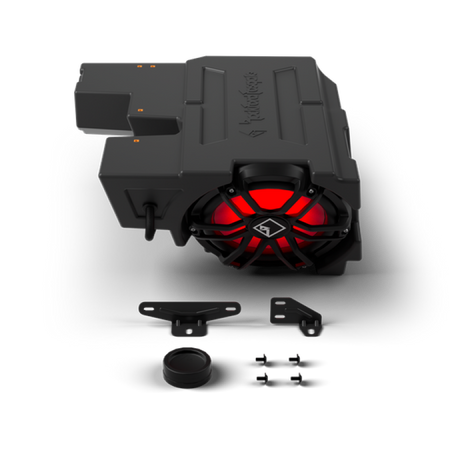

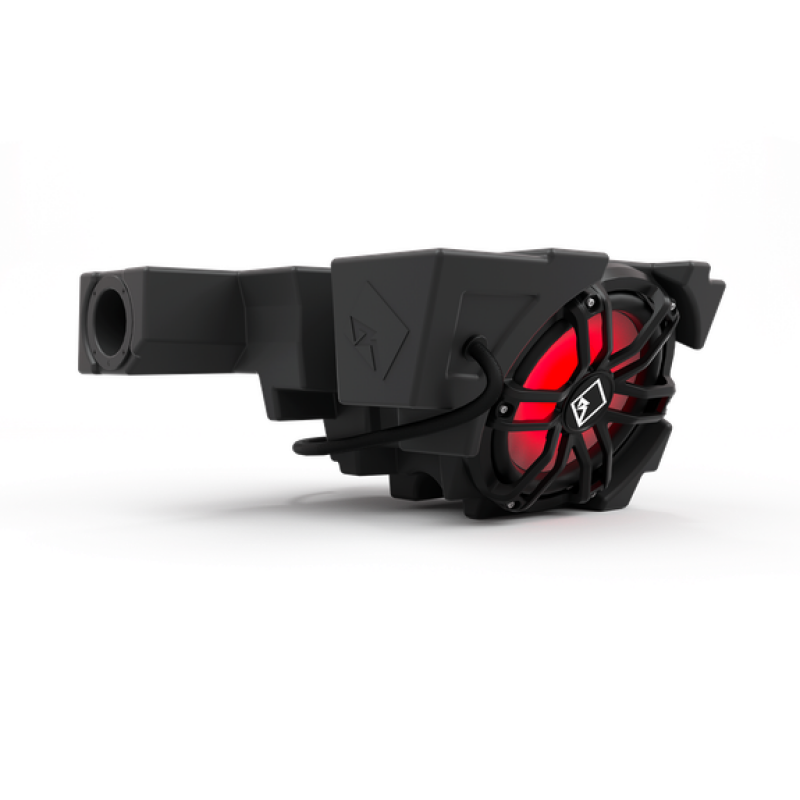

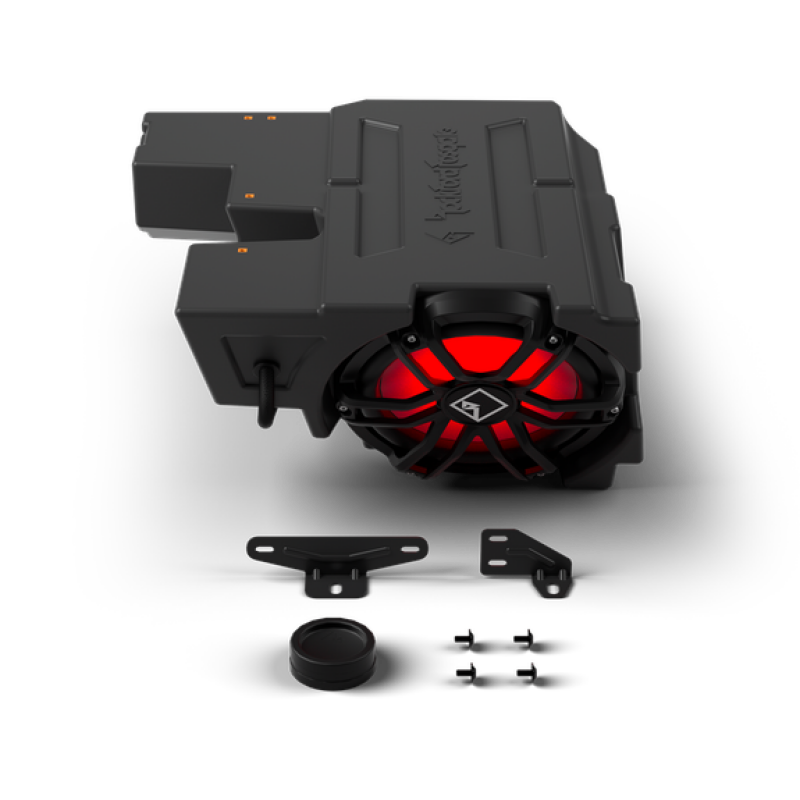

Rockford Fosgate 2019-2024 RZR Pro XP 4 Rear Subwoofer Solution | RZR19PXP-RSS
Product Details
- Type Subwoofer
- Vendor Rockford Fosgate UTV
- SKU RZR19PXP-RSS
- Shipping Weight 23.4 lb
The easiest SXS kits to install and set up, Color Optix™ lighting control, and even higher performance, all to ensure an epic off-road audio experience.
Element Ready™: Purpose built for the off-road environment, Rockford’s Element Ready™ products are built to stand up to water, dirt, mud and UV rays, making sure all your audio components perform regardless of the conditions.
Plug-and-Play Design: Minimal drilling or cutting and designed to work right out of the box. Simple installation ensures less time in the garage and more time out riding.
Color Optix: Adjust your own bright, wide, and limitless lighting experience with the Rockford Fosgate Color Optix™ plug-and-play controller and App.
Preset: Out of the box performance, literally. No settings or adjustments are needed. Pre-Tuned by Rockford to deliver the legendary performance you have come to expect.
RF3 (Rockford Factory Fit and Finish): Designed and engineered to match and compliment the factory fit and finish of your vehicle. These components are purpose built to the exact specifications to ensure the best-in-class fitment and look..
PRO AUDIO PERFORMANCE
The Pro XP rear subwoofer solution takes your bass impact to higher level by adding a secondary 10” subwoofer to existing aftermarket Pro XP Stage 4, 5, or 6 audio systems with or without Ride Command®. This complete waterproof solution provides the ability to take your UTV into any environment. The subwoofer enclosure – vented to provide maximum bass performance – offers the ability to seal the vent when submerging the vehicle. The integral harness allows for plug-and-play design and requires no cutting or drilling by using OEM mounting points. The rear subwoofer solution is only compatible with 2020 - 2024 Pro XP 4 seat models. See compatibility chart before purchasing. Not designed to work with Polaris OEM systems.
FEATURES AT A GLANCE
- Plug-n-Play wiring harnesses for select RZR models
- Direct bolt into vehicle using OEM mounting holes
- Element Ready™ to withstand the harsh outdoor environment like dust, water, and UV rays
- RZR19PXP-M2RWE: M2 10" Element Ready™ rear subwoofer enclosure for select 4-seat RZR® models
- Vented subwoofer enclosure design for maximum bass performance
- Ported enclosure with optional cap for deep-water use or tighter, sealed bass
- Sub enclosure integrates with no loss of passenger space
(1 ea) M2D4-10IB
YES Model IS compatible with kit |
NO Model NOT compatible with kit |
NOT AVAILABLE Model not produced this year |
|---|
YES  2020-2024 RZR Pro XP(4-SEAT) |
NO RZR Turbo R(4-SEAT) |
NO 2025+ RZR Pro S(4-SEAT) |
NO RZR Pro R(4-SEAT) |
|
MODELS |
FRONT SUB |
ADD-ON REAR SUB |
FINAL AMP IMPEDANCE |
WIRING |
|---|---|---|---|---|
| RZR19PXP-STG4 | M2D4-10B (2Ω) | M2D4-10IB (2Ω) | Front+Rear Sub (1Ω) | Existing STG4 configured to a 2Ω sub amp load. Adding rear sub creates a 1Ω sub amp load. Subwoofers get 600W RMS (300W ea.) |
| RZR19PXP-STG5 | M2D4-10B (2Ω) | M2D4-10IB (2Ω) | Front+Rear Sub (1Ω) | Existing STG5 configured to a 2Ω sub amp load. Adding rear sub creates a 1Ω sub amp load. Subwoofers get 600W RMS (300W ea.) |
| RZR19PXP-STG6 | M2D4-10B (2Ω) | M2D4-10IB (2Ω) | Front+Rear Sub (1Ω) | Existing STG6 configured to a 2Ω sub amp load. Adding rear sub creates a 1Ω sub amp load. Subwoofers get 600W RMS (300W ea.) |
| RZR19RCPXP-STG4 | M2D4-10B (2Ω) | M2D4-10IB (2Ω) | Front+Rear Sub (1Ω) | Existing RC STG4 configured to a 2Ω sub amp load. Adding rear sub creates a 1Ω sub amp load. Subwoofers get 600W RMS (300W ea.) |
| RZR19RCPXP-STG5 | M2D4-10B (2Ω) | M2D4-10IB (2Ω) | Front+Rear Sub (1Ω) | Existing RC STG5 configured to a 2Ω sub amp load. Adding rear sub creates a 1Ω sub amp load. Subwoofers get 600W RMS (300W ea.) |
| RZR19RCPXP-STG6 | M2D4-10B (2Ω) | M2D4-10IB (2Ω) | Front+Rear Sub (1Ω) | Existing RC STG6 configured to a 2Ω sub amp load. Adding rear sub creates a 1Ω sub amp load. Subwoofers get 600W RMS (300W ea.) |
|
4-SEAT MODELS |
 2020 |
2021 |
2022 |
2023 |
2024 |
 2025 |
|---|---|---|---|---|---|---|
| RZR Pro XP 4 | ✅ | — | — | — | — | — |
| RZR Pro XP 4 Orange Madness LE | ✅ RC,RF3 | — | — | — | — | — |
| RZR Pro XP 4 Sport | — | ✅ | ✅ | ✅ | ✅ | X |
| RZR Pro XP 4 Sport Rockford Fosgate® LE RF1 | — | ✅ | — | — | — | — |
| RZR Pro XP 4 Premium RC,RF | ✅ | ✅ RF3 | ✅ RC*,RF2* | ✅ RF2 | ✅ RF2 | X |
| RZR Pro XP 4 Ultimate RC,DY | ✅ RF3 | ✅ RF | ✅ RF2 | ✅ RF2 | ✅ RF2 | X RF2 |
| RZR Pro XP 4 Ultimate Rockford Fosgate [LE] Limited Edition RC, DY, RF4 | — | ✅ | ✅ | — | — | — |
|
4-SEAT MODELS |
 2020 |
2021 |
2022 |
2023 |
2024 |
2025 |
|---|---|---|---|---|---|---|
| RZR Turbo R 4 Sport | — | — | X | X | X | — |
| RZR Turbo R 4 Premium RC*, RF2* | — | — | X | X | X | — |
| RZR Turbo R 4 Ultimate DY | — | — | X | X RC,RF2 | X RC,RF2 | — |
|
4-SEAT MODELS |
2020 |
2021 |
2022 |
2023 |
2024 |
 2025 |
|---|---|---|---|---|---|---|
| RZR Pro S 4 Sport | — | — | — | — | — | X |
| RZR Pro S 4 Premium RC | — | — | — | — | — | X |
| RZR Pro S 4 Ultimate RC | — | — | — | — | — | X RF4 |
|
4-SEAT MODELS |
2020 |
2021 |
 2022 |
2023 |
2024 |
 2025 |
|---|---|---|---|---|---|---|
| RZR Pro R 4 Sport | — | — | X | — | — | X |
| RZR Pro R 4 Premium RC, RF | — | — | X | X | X | — |
| RZR Pro R 4 Ultimate RC, DY | — | — | X RF | X RF2 | X RF2 | X RF4 |
| RZR Pro R 4 Ultimate Launch Edition DSC | — | — | X | — | — | — |
| RZR Pro R 4 Troy Lee Designs Edition RC, DY, RF4 | — | — | — | X | — | — |
[ ] Brackets indicate nomenclature used on earlier models and inherited on later models.
* Optional package available from factory
CV Clutch Vent impedes installation of rear add-on subwoofer
DY DYNAMIX suspension factory equipped
RB Rear Brace impedes installation of rear add-on subwoofer
RC Ride Command comes factory equipped
RF1 Stage 1 factory equipped with Rockford Fosgate premium audio (2 front speakers). Needs to be bypassed.
RF2 Stage 2 factory equipped with Rockford Fosgate premium audio (2 tweeters, 2 front speakers, 400W amp). Needs to be bypassed.
RF3 Stage 3 factory equipped with Rockford Fosgate premium audio (2 tweeters, 2 front speakers, 2 rear speakers, 400W amp). Needs to be bypassed
