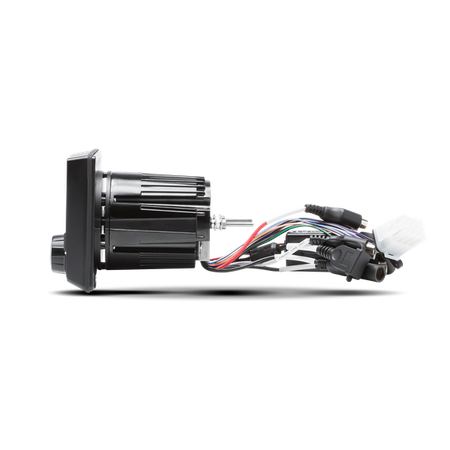

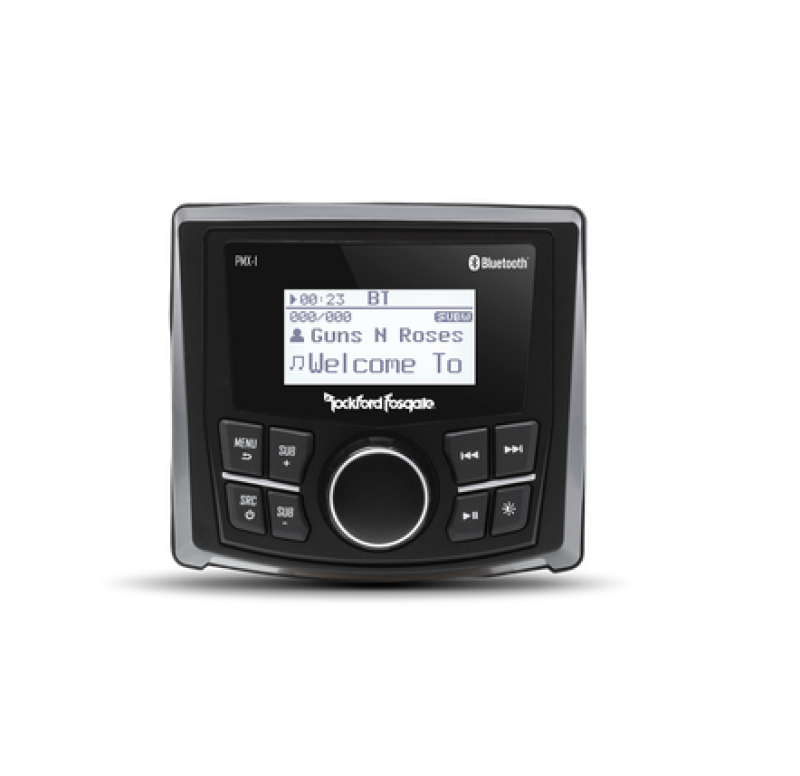

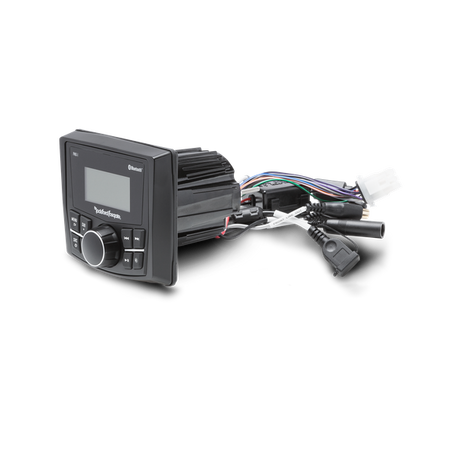

Rockford Fosgate 2.3in. Dot Matrix Display Punch Marine Grade Media Receiver
Rockford Fosgate 2.3in. Dot Matrix Display Punch Marine Grade Media Receiver

Rockford Fosgate Punch Marine Grade Media Receiver with 2.3" Dot Matrix Display | PMX-1

SKU: PMX-1
No reviews
$ 329.99
SPECIAL ORDER: Please allow up to 3 weeks for order fulfillment.

Product Details

  • Type Audio
  • Vendor Rockford Fosgate UTV
  • SKU PMX-1
  • UPC 780687344658
  • Shipping Weight 1.6 lb
Description Fitment Shipping

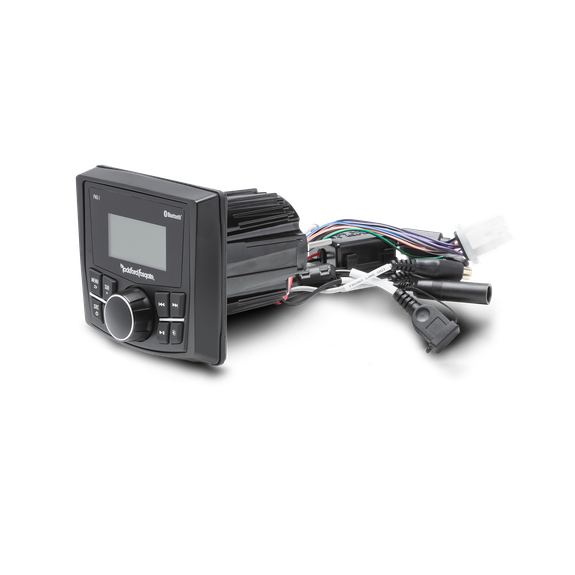

The PMX-1 features a scratch resistant wet bonded display, superior Bluetooth® audio, AUX and USB inputs.  The Element Ready™ design also provides protection against water, dust, and UV rays.

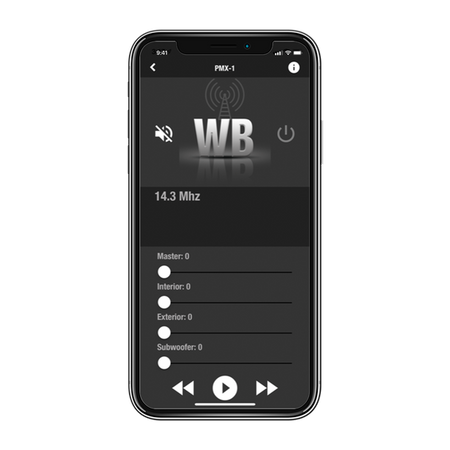

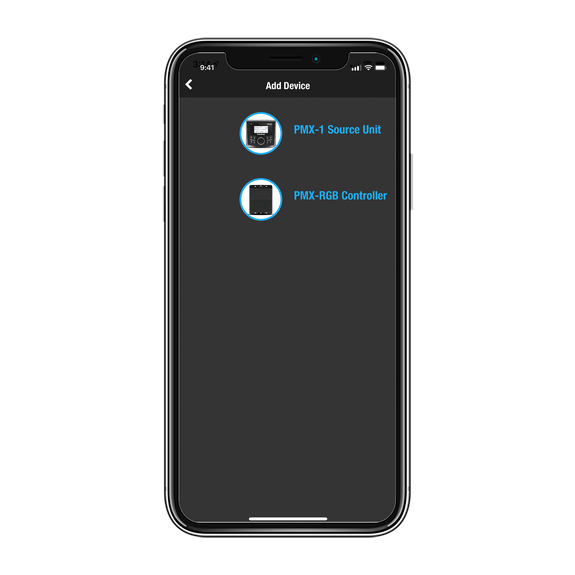

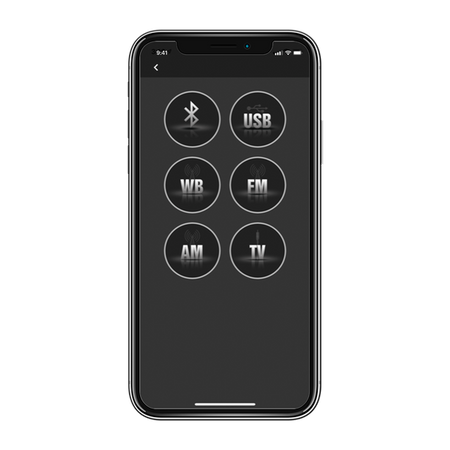

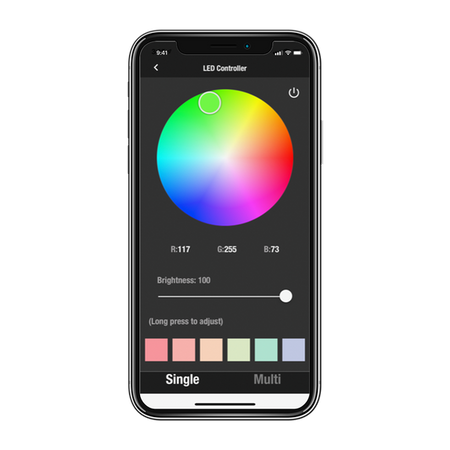

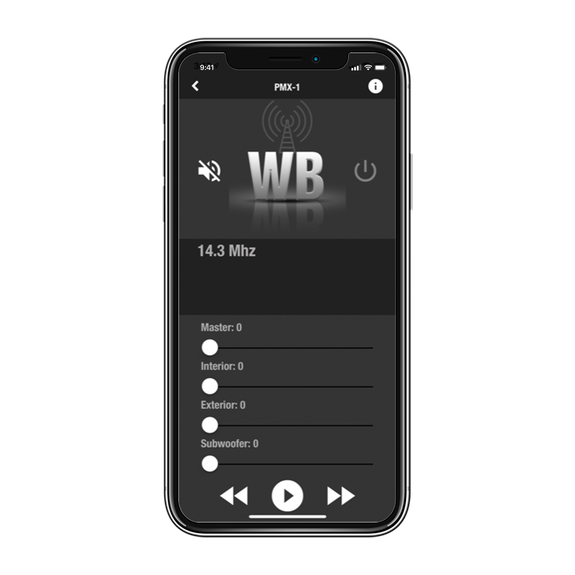

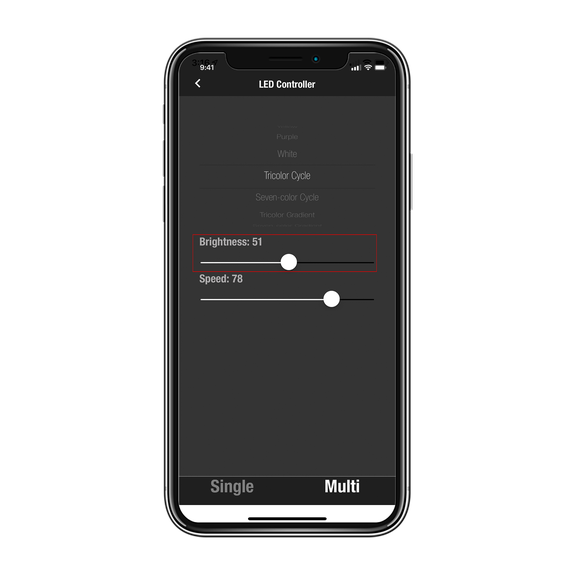

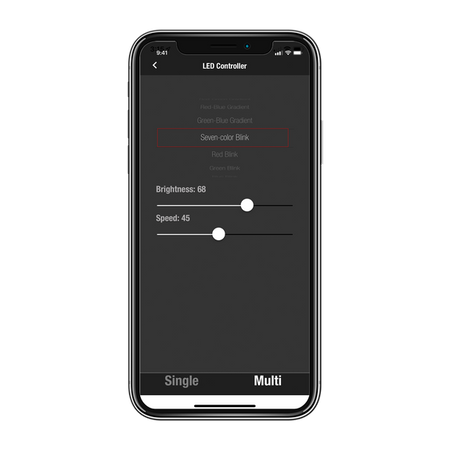

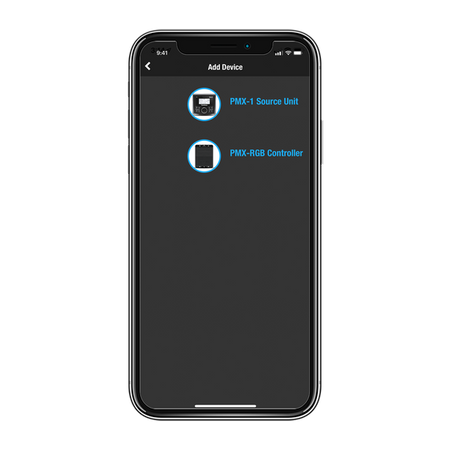

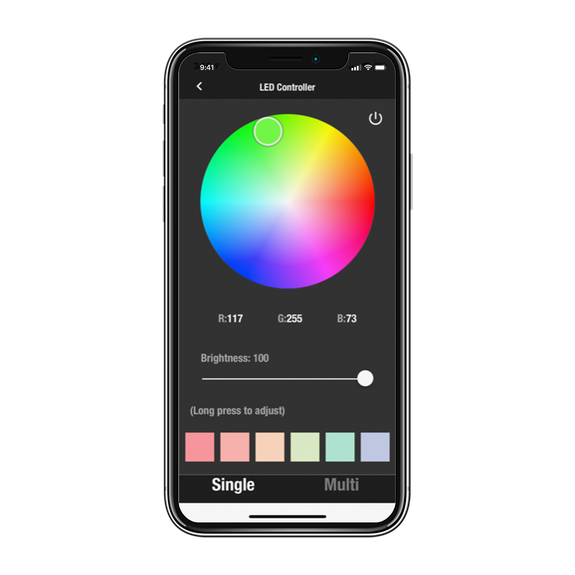

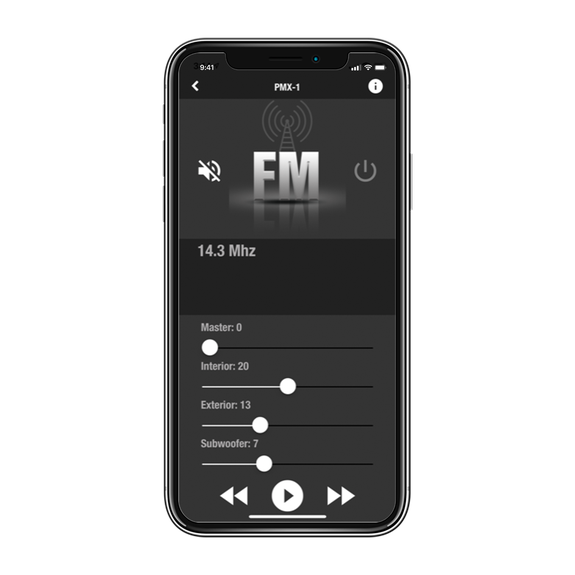

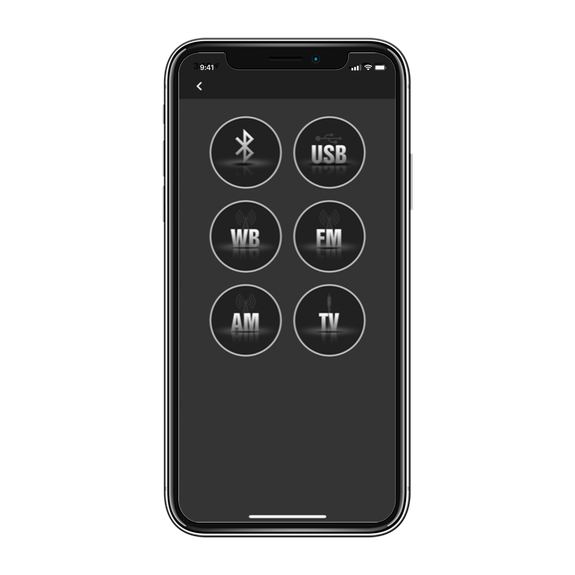

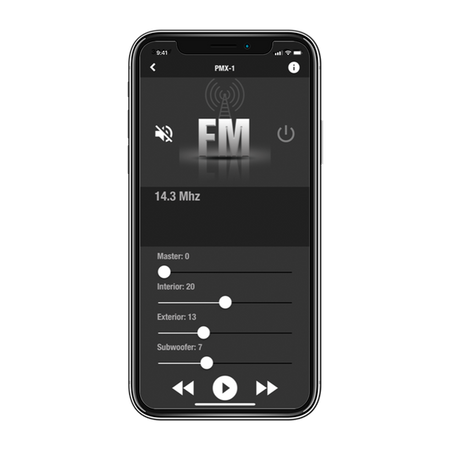

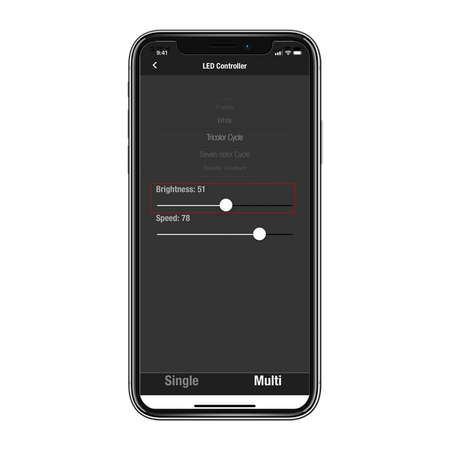

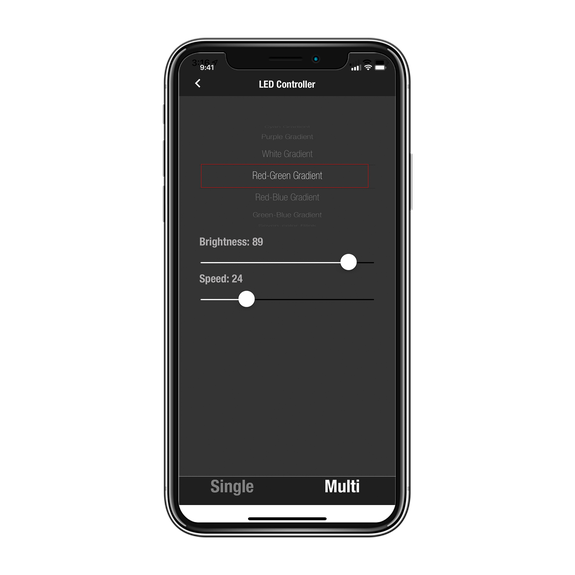

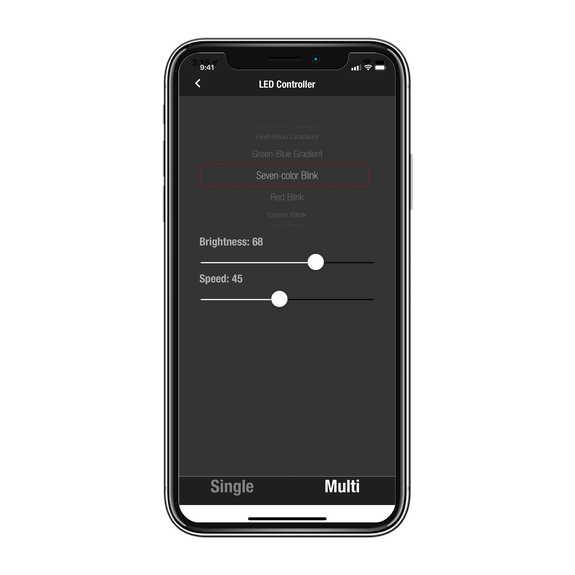

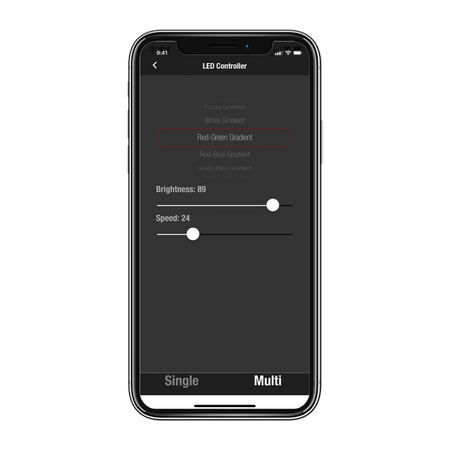

Download RF Connect™ to control the PMX-1

The PMX-1 features a 9H tempered glass screen optically bonded which allows for optimized viewing of the dot matrix display under all lighting and viewing conditions. The superior Bluetooth® audio features A2DP and AVRCP for better range, easier device pairing and glitch free wireless audio streaming. The flexible AUX and USB inputs enable convenient access to various audio playback formats and charging of your mobile devices.

FEATURES AT A GLANCE

  • 2-Year Warranty
  • FCC, CE and EN60945 Certified
  • Selectable HP / LP / AP Crossovers with Selectable Slope 12 / 24 dB/Oct
  • AM/FM/WB Tuner
  • RF Connect iOS / Android App with native control of PMX-1
  • A2DP and AVRCP Bluetooth® Wireless Streaming
  • Voltage gauge with Low voltage Warning
  • 7-Band Graphic EQ + PEQ
  • Independent Subwoofer Level Control
  • Multi-region radio frequencies
  • Wet bonded 2.3" Full Dot Matrix LCD Display
  • 9H Tempered Glass Screen
  • Compatible with PMX-BTUR Steering Wheel Remote
  • IP6 Marine Grade Front Panel
  • AUX and USB Inputs with USB Charging

Element Ready™ | Source Units

All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion & Vibration.

Built In Bluetooth®

Built In Bluetooth®

USB Playback

This source unit supports playback from a USB device.

ASTM B117 & D4329 Tested

ASTM B117 & D4329 Tested

IPX6 Water Intrusion Rating

Water projected in powerful jets from any direction shall have no harmful effects.

MP3 Playback

This source unit supports MP3 file format playback.

Multi-Zone/Multi-Source
(Yes/No)
No
Speaker Outputs
(Yes/No)
Yes
Bluetooth®
(Yes/No)
Yes
3.0+EDR, A2DP 1.3
TUNER
Number Of Presets
18 FM / 12 AM / 6 WB
Device Type
Digital-Media Receiver
Pandora® Internet Radio
(Yes/No)
No
Steering Wheel Control Ready
(Yes/No)
No
AUX Input
(Yes/No)
Yes (1 RCA pair)
SiriusXM-Ready®
(Yes/No)
No
Clock
(Yes/No)
No
Frequency Response
RCA: 20 Hz - 20 kHz
High-Level: 20 Hz - 20 kHz
USB Charging
(Yes/No)
Yes
Media Formats
MP3
WMA
FM Tuner
Range: 87.9 - 107.9 MHz
Sensitivity: 8 dB
Frequency Response. 20 - 15 KHz
AM Tuner
Range: 530 - 1710 kHz
Sensitivity: 40 dB
Frequency Response: 45 to 2.4 KHz
FM Tuner
Range: 87.9 - 107.9 MHz
Sensitivity: 8 dB
Frequency Response. 20 - 15 KHz
AM Tuner
Range: 530 - 1710 kHz
Sensitivity: 40 dB
Frequency Response: 45 to 2.4 KHz
Output Impedance
<500 Ω
Signal to Noise Ratio
RCA 2V: >85 dB
High-Level CEA-2006: >75 dB
High-Level Max Watts: >85 dB
Channel Separation
RCA: >70 dB
High-Level: >50 dB
Compatible Remotes
N/A
Max Output Voltage
RCA Front: 2 V
RCA Rear/Sub: 2 V
Max THD+N
High-Level: <1.0 @ 4-Ohm
USB Version
2.0
Idle Current
<2 A
Operating Voltage
9 - 16 VDC
USB Output Current
1 A
Fuse Rating
20 A
Shipping Weight
1.22 Lbs. (0.55 Kg)
Dimensions
Width: 4.5" (11.5 cm)
Face Depth: 1.5" (3.8 cm)
Mount Depth: 3.38 (8.6 cm)
Height: 4.2 (10.6 cm)
Back Panel Cutout
3" (77 mm)
