Rockford Fosgate 6-Pin Color Optix Y-Adaptor for PMX-RGB (Gen-2) | RGB-Y6P
Product Details
- Type Audio Cables
- Vendor Rockford Fosgate UTV
- SKU RGB-Y6P
- Shipping Weight 0.29 lb

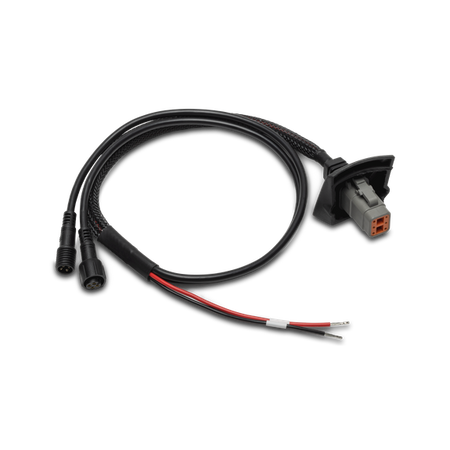

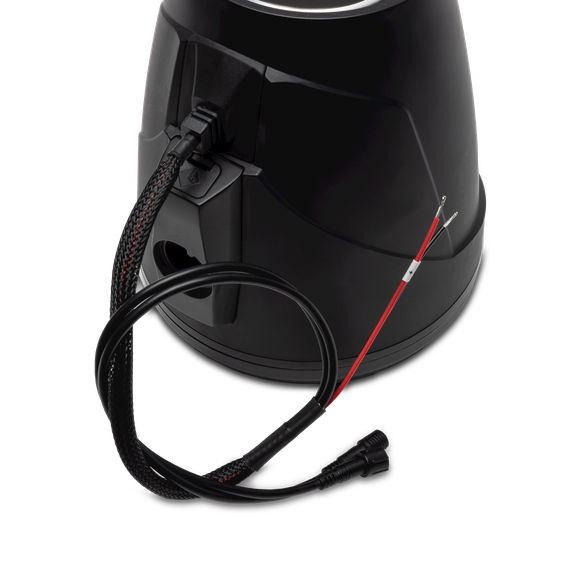

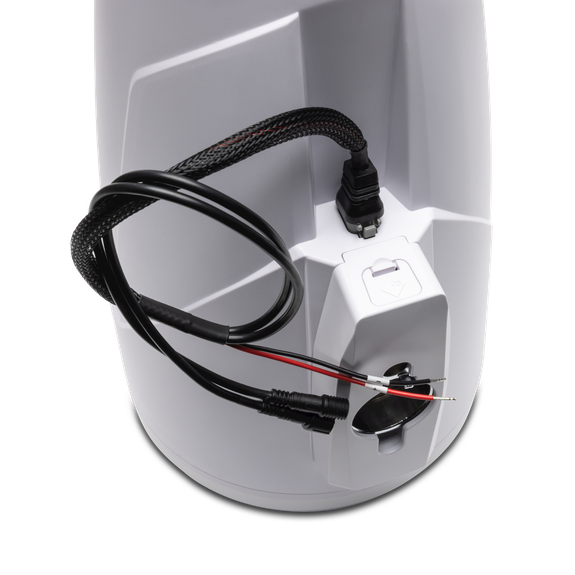

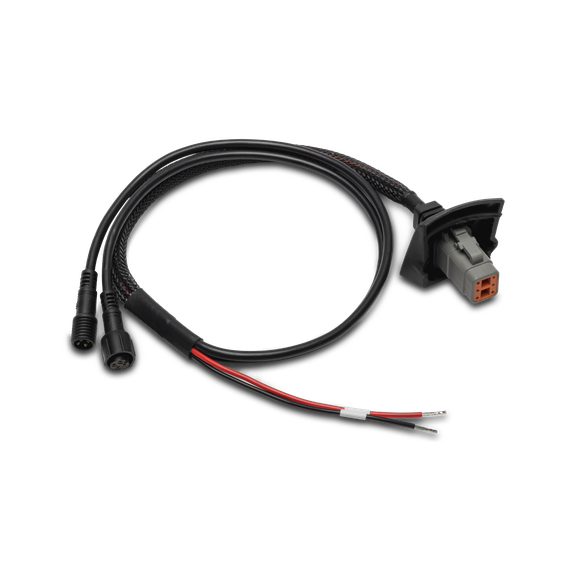

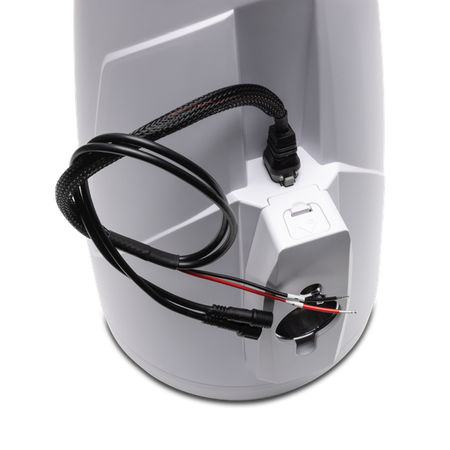

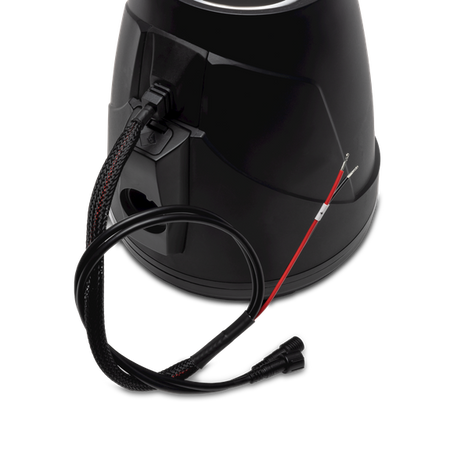

Plug-and-play Y-adaptor simplifies the installation of daisy-chaining Color Optix™ moto-can or wake-can speakers. Simply connect this Y-adaptor to the RGB controller or RGB-6/16/25 extension cable, plug-in the speaker's Deutsch™ connector, then use the additional 4-pin female connector to daisy-chain an additional speaker. The remaining red/black wire can be used to wire the speaker to the amplifier's output terminals. Check compatibility chart of Rockford Fosgate marine audio speakers before purchasing.
TRUE MARINE ECOSYSTEM
Color Optix™ cables provide a water-tight seal for electrical connections between our RGB controller and matching Color Optix™ speaker. The cable carries DC low voltage, designed to illuminate the appropriate LEDs behind the speaker grille. The IPX6 rating ensures your connections are water-tight when properly secured. Check compatibility chart of Rockford Fosgate marine audio speakers before purchasing.
FEATURES AT A GLANCE
- Y-adapter allows for daisy-chaining multiple speakers on a single run
- True Marine ecoSystem that works together with Color Optix™ controller
- No cutting, no splicing
- 2-Year Warranty
- Compatible with M1/M2 speakers and subwoofers
- 2 conductor leads for speaker (+) and (-)
- Element Ready™ Deutsch™ / Amphenol™ connector IP7 rated
- Ensures connections remain waterproof and safe from elements
IPX6 Water Intrusion Rating
Water projected in powerful jets from any direction shall have no harmful effects.
Corrosion Protection
Components are tested for salt spray corrosion resistance.
Dust Resistant
Displays and motor structures are sealed tight so they look and sound as clear as possible no matter how many times you hit the trails.
Stainless Hardware
Stainless hardware is used to its natural resistance to corrosion and rusting. This ensures electrical connections will not degrade over time due to exposure to the elements.
Thermal Shock Resistant
Components are designed to withstand extreme temperature fluctuations ensuring they perform day-in and day-out.
UV Inhibitor Materials
Centrex and ASA plastic materials are used for their UV radiation resistance and components are tested in accordance with ASTM D4329 testing and certification procedures.
Vibration Resistant
Components are able to withstand shock and vibration conditions common with outdoor vehicles.
Water Resistant
IPX Ratings allow for the components to be directly sprayed with water without ingress.
(2) 18 AWG
(1) Deutsch/Amphenol #DT06-6S

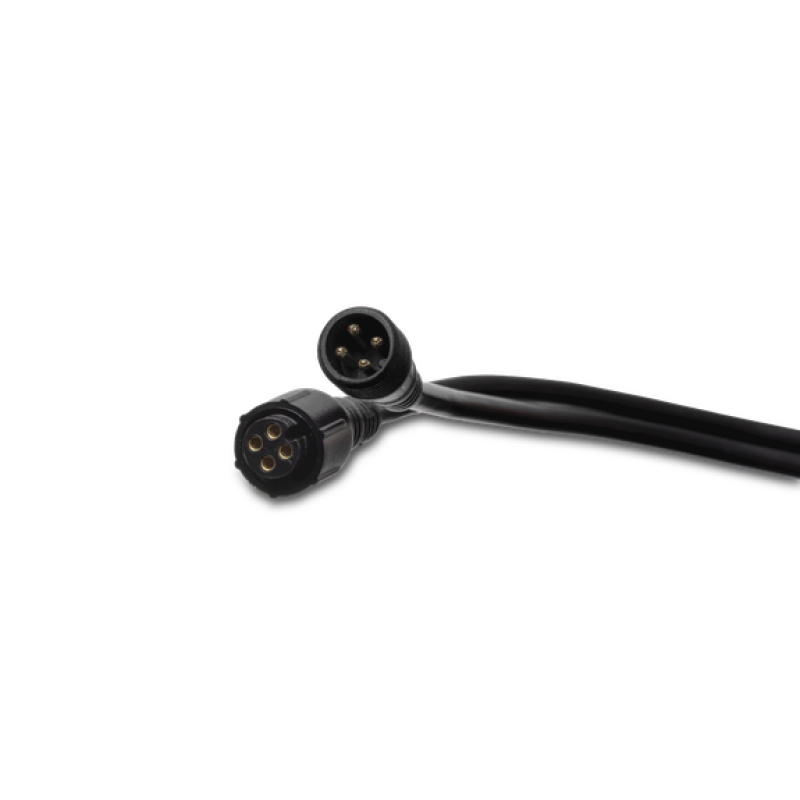

(1) 4-pin mini male
(1) 4-pin mini female
MOTO-CAN COMPATIBILITY
Year
|
Model
|
Description
|
|---|---|---|
| 2021—current | M0WL-65MB1 | M0 6.5” Element Ready™ 2-Way Wake Tower Speakers |
| 2021—current | M1WL-65MB | M1 6.5” Color Optix™ 2-Way Wake Tower Speakers |
| 2021—current | M2WL-65MB | M2 6.5” Color Optix™ 2-Way Wake Tower Speakers |
WAKE-CAN COMPATIBILITY
| Year
|
Model
|
Description
|
|---|---|---|
| 2021—current | M2WL-8 | M2 8” Color Optix™ 2-Way Wake Tower Speakers |
| 2021—current | M2WL-8B | M2 8” Color Optix™ 2-Way Wake Tower Speakers - Black |
| 2021—current | M2WL-8H | M2 8” Color Optix™ 2-Way Horn Wake Tower Speakers |
| 2021—current | M2WL-8HB | M2 8” Color Optix™ 2-Way Horn Wake Tower Speakers - Black |
| 2022—current | M2WL-10H | M2 10” Color Optix™ 2-Way Horn Wake Tower Speakers |
| 2022—current | M2WL-10HB | M2 10” Color Optix™ 2-Way Horn Wake Tower Speakers - Black |
1 M0WL-65MB Moto-Can does not have RGB illumination, but will maintain LED daisy-chain capability for additional lighted speakers.
