Rockford Fosgate 10" Color Optix Subwoofer Enclosure 2018+ Ranger Models (Gen-2) | RNGR18-FWE
Product Details
- Type Subwoofer
- Vendor Rockford Fosgate UTV
- SKU RNGR18-FWE
- Shipping Weight 19.0 lb
The new 2nd generation 10" subwoofer enclosure is Color Optix™ Ready for systems utilizing M1 and M2 series subwoofers. The newer roto-molded composite blend is lighter in weight and designed to directly fit select RANGER model vehicles. New Vented design produces louder output over previous Gen-1 model. Includes vent cap to create sealed enclosure for tighter response or when submerging your UTV. Subwoofer enclosure fits under the front or rear passenger seat where the 5-gallon bucket emboss is located. Designed for use with M1/M2 series 10" woofers. Kit includes all needed hardware for the installation.
Rockford Fosgate audio systems for select 2018+ RANGER models are 100% Element Ready™, providing the ability to take your off-road vehicle into any environment. The system features a plug and play design, requires minimal drilling for some components, and includes step-by-step installation videos.
Refer to our COMPATIBILITY chart to verify fitment before purchasing.
FEATURES AT A GLANCE
- Designed for use with Color Optix™ M1D2-10 and M1D2-10B subwoofers
- Ported enclosure with optional cap for deep-water use or tighter, sealed bass

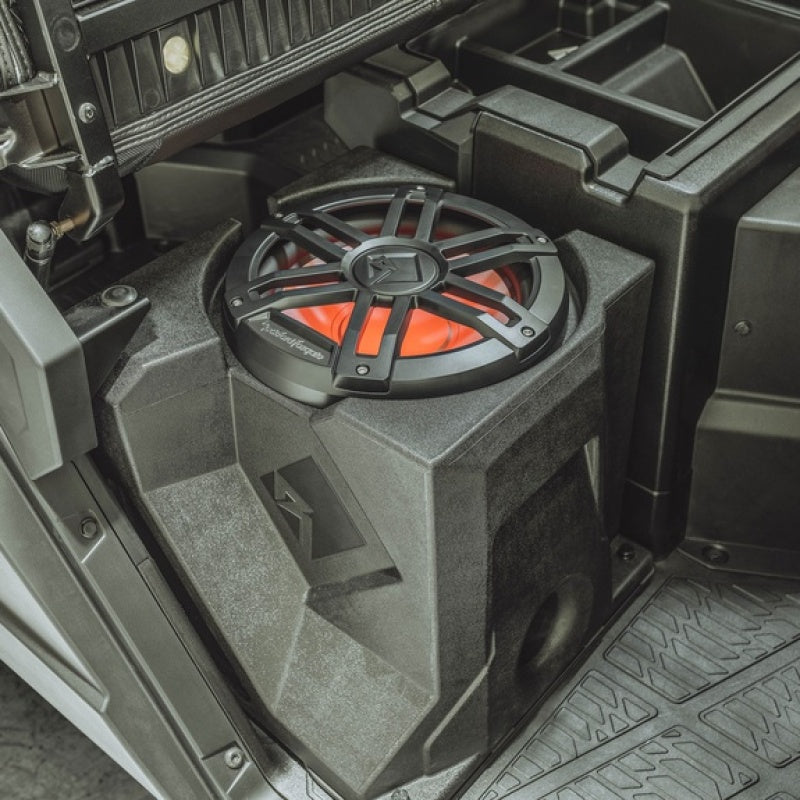

- Subwoofer enclosure takes place of 5 gallon bucket location under front or rear seat
- Texture and color matched to vehicle interior
- 1 Year Warranty
- Injection molded Centrex plastic with integrated UV inhibitors
- Designed for use with Color Optix™ M1D4-10 and M1D4-10B subwoofers
- Designed for use with Color Optix™ M2D4-10I and M2D4-10IB subwoofers
- Direct bolt into vehicle using OEM mounting holes. Minimal drilling required
Element Ready™ | Motorsports
All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion & Vibration.
Color Optix™ Control
Adjust your own bright, wide, and limitless lighting experience with the Rockford Fosgate Color Optix™ plug-and-play controller and App.
IPX6 Water Intrusion Rating
Water projected in powerful jets from any direction shall have no harmful effects.
(1) 1560-73630-01 Wiring Harness 1250mm, 4x 22AWG & 2x 16AWG
1130-75442-01 Accessory Pack:
(1) 1025-71321-01 Wire Saddles 23.8 * 9.6 x 12.05
(1) 1125-61435-01 Cable Tie 0.19W x 14.5 in.
(2) 1125-71317-01 Screw M8 x 1.25, 29.5mm, 13mm Hex
(2) 1125-71319-01 Split Lock Washer M8, 2.1mm
(1) 1125-74670-01 Screw Flanged Socket T 3.5 x 13
(3) 1125-75385-01 Screw Round M6 x 1.0, 37.5mm, T40 Torx
(2) 1125-75436-01 Washer 16.0mm OD, 8.5mm ID, 1.0 mm
