Rockford Fosgate Punch Marine Compact Digital Media Receiver 2.7" Display | PMX-2

SKU: PMX-2
No reviews
$ 549.99

Product Details

  • Vendor Rockford Fosgate UTV
  • SKU PMX-2
  • UPC 780687344665
  • Shipping Weight 2.7 lb
Description Fitment Shipping

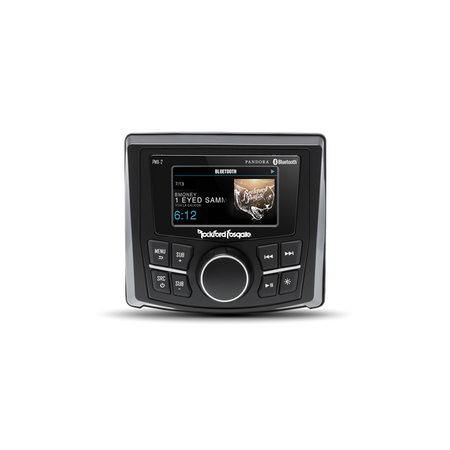

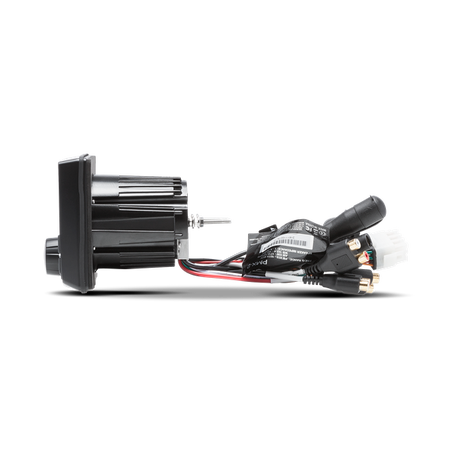

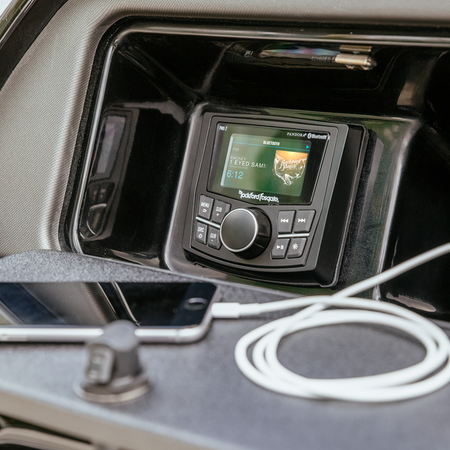

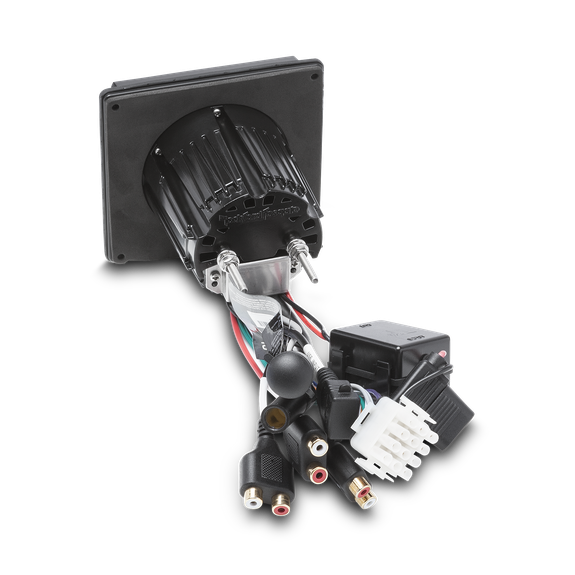

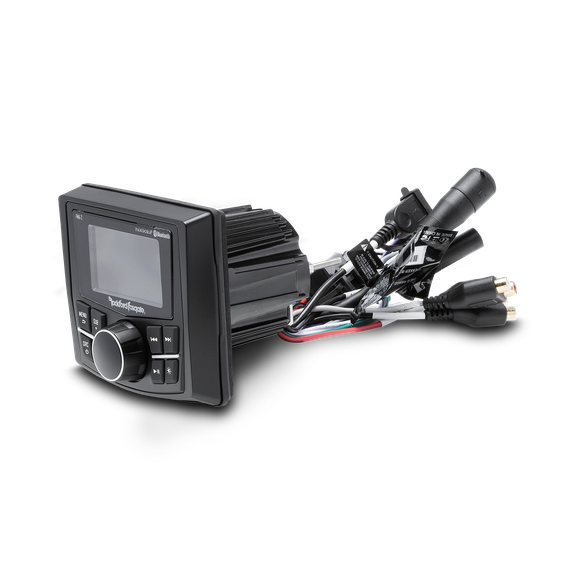

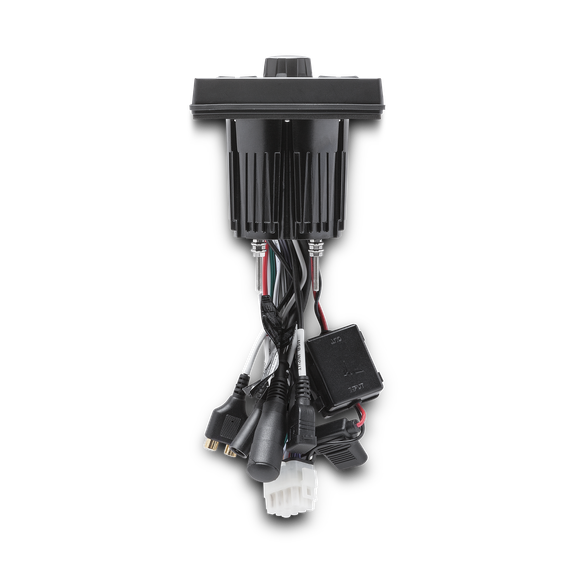

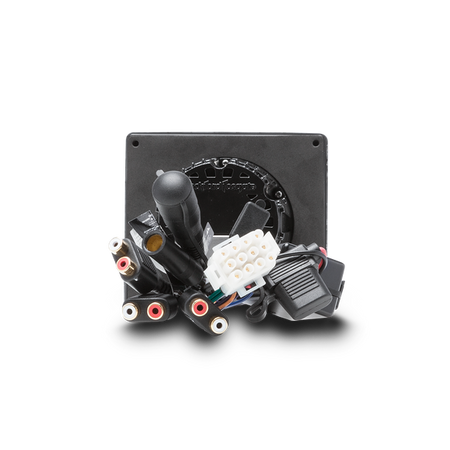

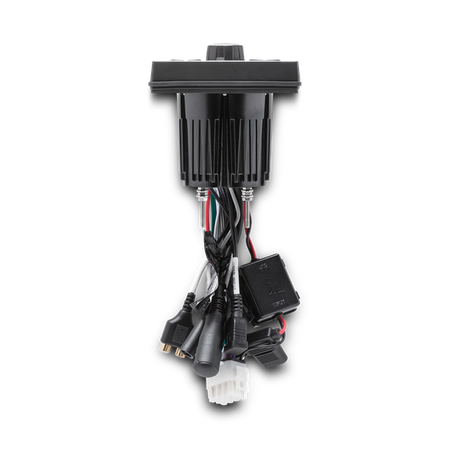

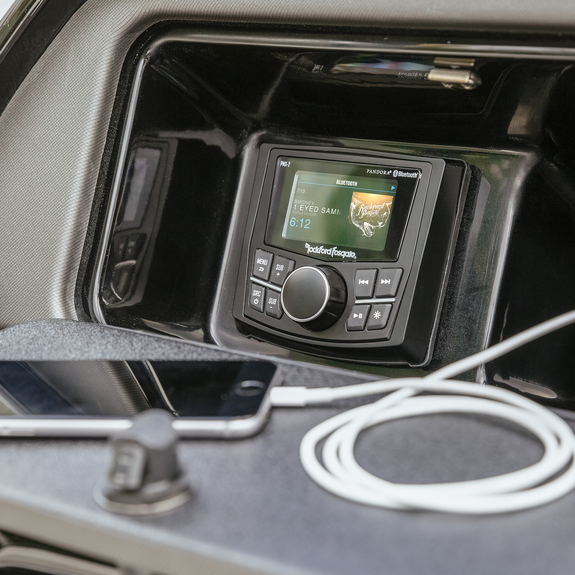

The PMX-2 is an AM/FM/WB tuner and compact digital media receiver with a 2.7" full color display.

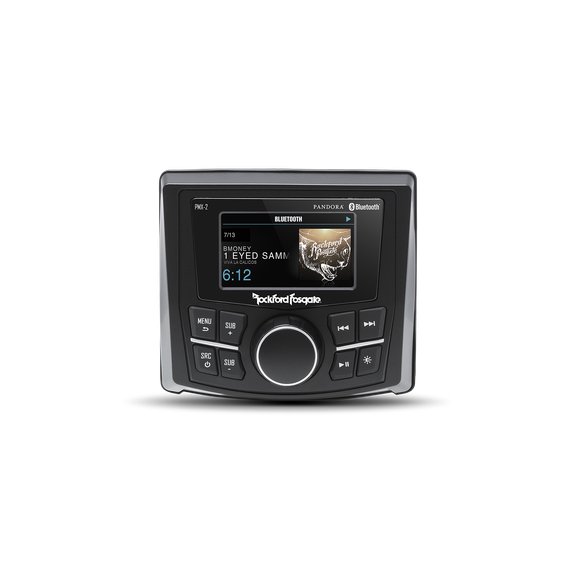

The PMX-2 features a 2.7"full color TFT display for optimum viewing - even in full sun - that is optically wet bonded to prevent any dust or moisture penetration. It is IPX6 rated and uses a water resistant rotary encoder knob with white LED button illumination and front mounted sub level controls. Additionally, with features such Pandora control capabilities and Bluetooth audio steaming with album art support1 this unit becomes a true command center of any system. 1Android devices equipped with limited functionality. Please refer to owners manual for details.

Output flexibility comes with a 4x50W @ 2ohm internal amplifier or front and rear/sub output RCA's allowing the addition of after-market amplifiers for more power and output. Add-in the EEPROM memory system, custom GUI interface, and wired remote expansion capabilities and you have the only media receiver you'll ever need.

FEATURES AT A GLANCE

  • 2-Year Warranty
  • iPod playback with on-screen display
  • ISO8846/SAE J1171 Ignition Protection Certified
  • A2DP and AVRCP Bluetooth Wireless Streaming
  • FCC, CE, IC, and C-Tick Certified
  • Multi-region radio frequencies
  • Low Voltage Warning Alert
  • AUX and USB Inputs with USB Charging
  • On Board Punch EQ Control
  • Independent Subwoofer Level Control
  • Selectable HP / LP / AP Crossovers with Selectable Slope 12 / 24 dB/Oct
  • IPX6 Marine Grade for prevention of water intrusion
  • 7-Band Graphic EQ
  • AM/FM/WB Tuner
  • Zone Control: 1 Zone / 1 Source (F/R or Sub)
  • 2.7" full color display w/ auto dimming backlightning
  • Pandora Internet Radio
  • *Antenna not included

Built In Bluetooth®

Built In Bluetooth®

Made for Android

This device supports the Google "Made for Android" protocol.

USB Playback

This source unit supports playback from a USB device.

ASTM B117 & D4329 Tested

ASTM B117 & D4329 Tested

IPX6 Water Intrusion Rating

Water projected in powerful jets from any direction shall have no harmful effects.

FLAC

The Free Lossless Audio Codec is an audio format similar to MP3, but lossless, meaning that audio is compressed in FLAC without any loss in quality.

Pandora® Internet Radio

Pandora® (also known as Pandora Internet Radio) is a music streaming and automated music recommendation service.

Element Ready™ | Source Units

All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion & Vibration.

FM TUNER
Sensitivity
8 dB
AM TUNER
Frequency Range
530 kHz - 1710 kHz
AM TUNER
Usable Sensitivity
40 dB
Compatible Remotes
PMX-1R
PMX-0R
(3 Remote Limit, 100 ft Total Wired Distance)
RCA Output Voltage
2V RMS
Does not clip at full output
RCA Output Impedance
500Ω
Operating Voltage
10.5 V - 16 V
Speaker Impedance
2-Ohms
Fuse Rating
20 A
Dimensions (HxWxD)
Width 4.5" (11.5cm)
Face Depth 1.5" (3.8cm)
Mount Depth 2.9" (7.4cm)
Height 4.2" (10.6cm)
USB Capacity
32Gb max
999 Folders max
999 Songs max
MEDIA PLAYER
Audio Format Compatibility
MP3
WMA
FLAC
Bluetooth®
(Yes/No)
Yes
3.0+EDR, A2DP 1.3
Pandora® Internet Radio
(Yes/No)
Yes
SPEAKER OUTPUTS
Yes
Android Compatibility
Bluetooth® Only
Device Type
Digital-Media Receiver
TUNER
Number Of Presets
18 FM / 12 AM / 6 WB
WB TUNER
Frequency Range
162.40 - 162.55
(US & Canada)
TUNER
Number Of Presets
18 FM / 12 AM / 6 WB
WB TUNER
Frequency Range
162.40 - 162.55
(US & Canada)
FM TUNER
Frequency Range
87.5 MHz - 107.9 MHz
Multi-Zone/Multi-Source
(Yes/No)
No
Frequency Response
20 Hz - 20 kHz
Steering Wheel Control Ready
(Yes/No)
No
Clock
(Yes/No)
No
Power Output
CEA-2006 Power Rating
25W x 4 @ 4Ω RMS
50W x 4 @ 2Ω Peak
≤1.0% THD+N
Speaker Outputs
(Yes/No)
Yes (4-channel)
Made for iPod Models
iPod Touch (5th generation)
iPod Touch (4th generation)
iPod Nano (7th generation)
iPod Nano (6th generation)

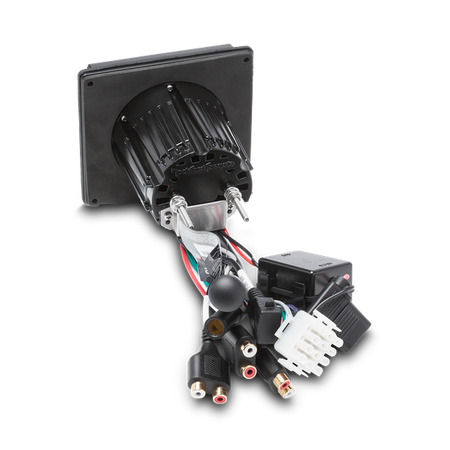

RCA OUTPUTS
(1 pr) Front
(1 pr) Rear (or Sub-out)
Display Size
2.7" Color TFT
SiriusXM-Ready®
(Yes/No)
No
USB Output Current
1A
Made for iPhone Models
iPhone XS (pending)
iPhone XS Max
iPhone XR (pending)
iPhone X
iPhone 8
iPhone 8 Plus
iPhone 7
iPhone 7 Plus
iPhone 6s
iPhone 6s Plus
iPhone 6
iPhone 6 Plus
iPhone 5S
iPhone 5C
iPhone 5
iPhone 4
iPhone 4S
Phone 3GS
Apple®/Android™ Compatible
(Yes/No)
Yes
Limited functionality on Android. See owners manual.
AUX Input
(Yes/No)
Yes (1pr)
Back Panel Cutout
3" (77mm)
Shipping Weight

3 Lbs. (1.36 Kg)
