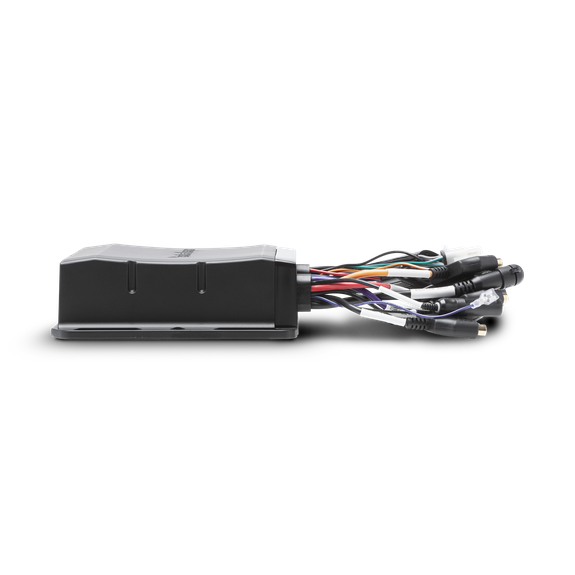

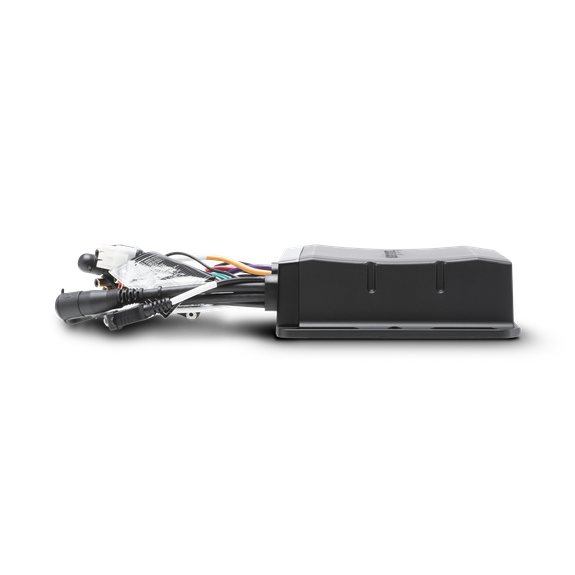

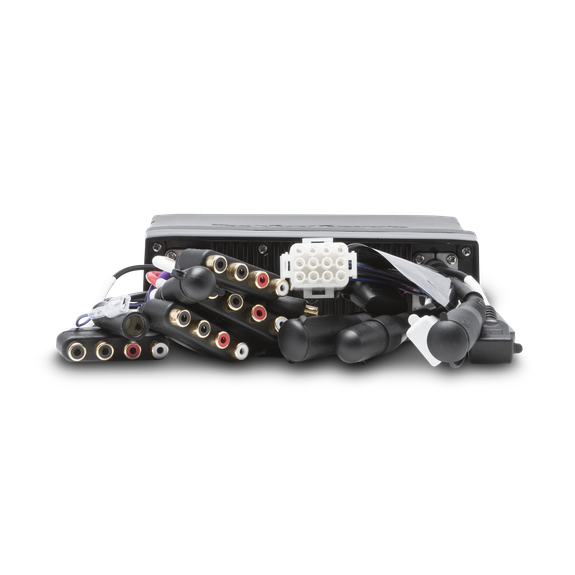

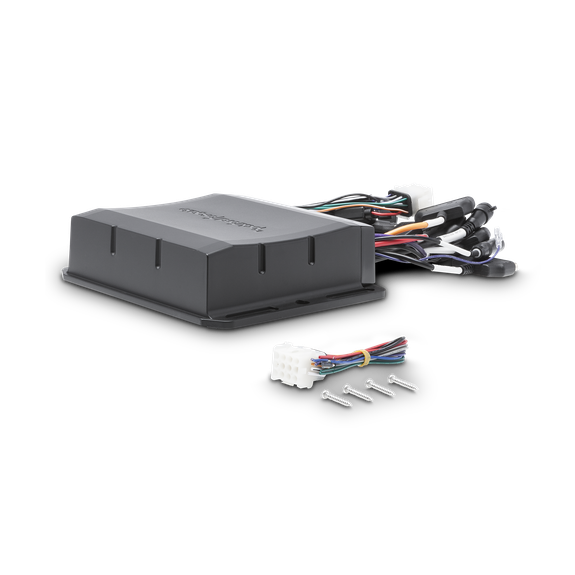

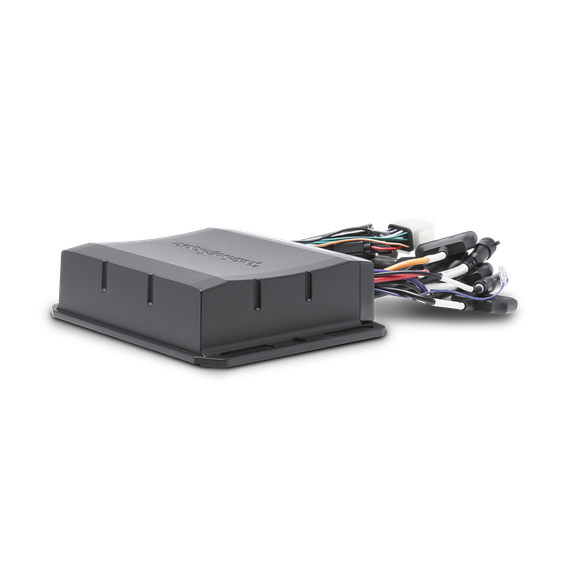

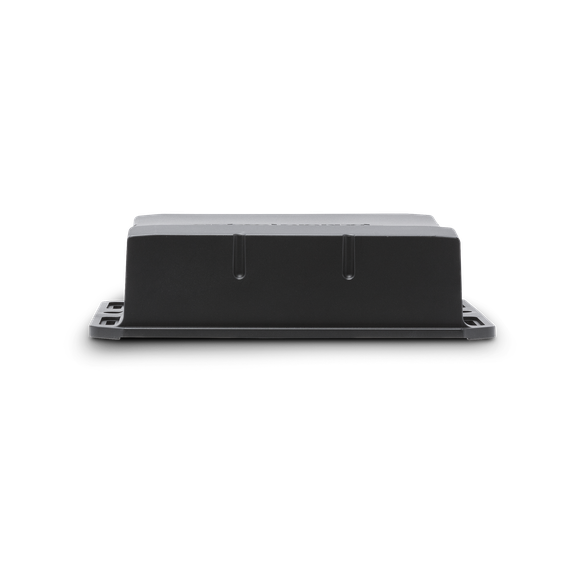

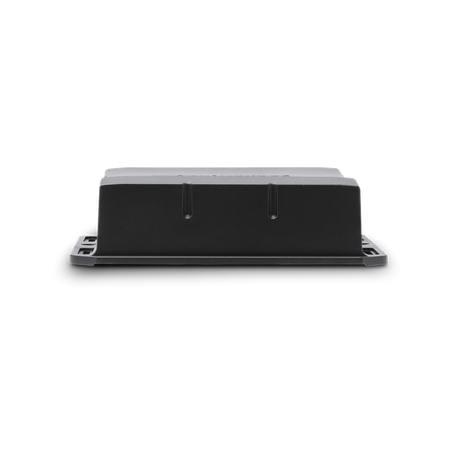

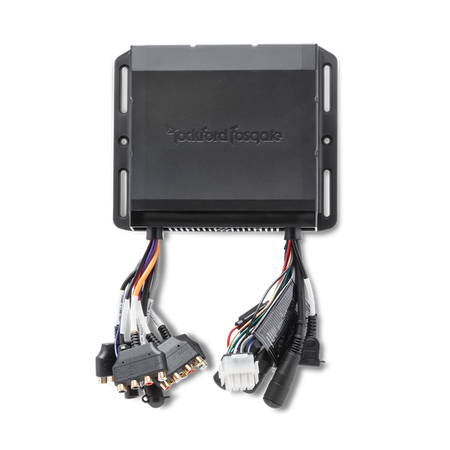

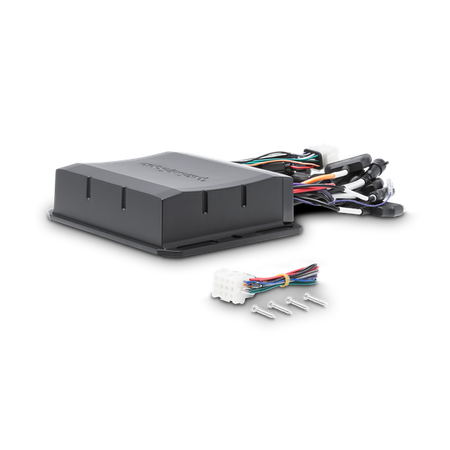

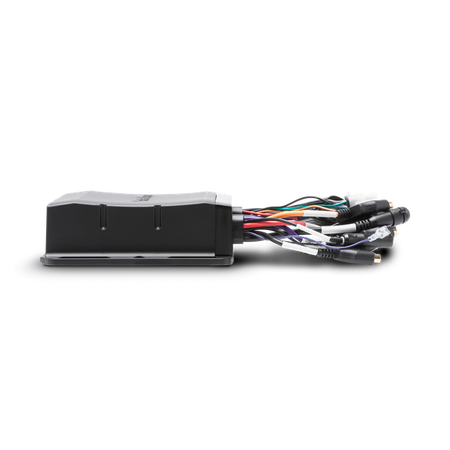

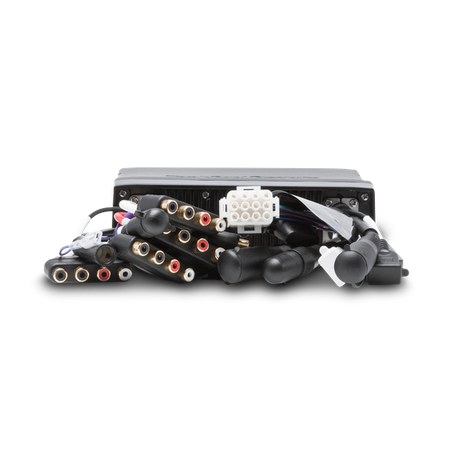

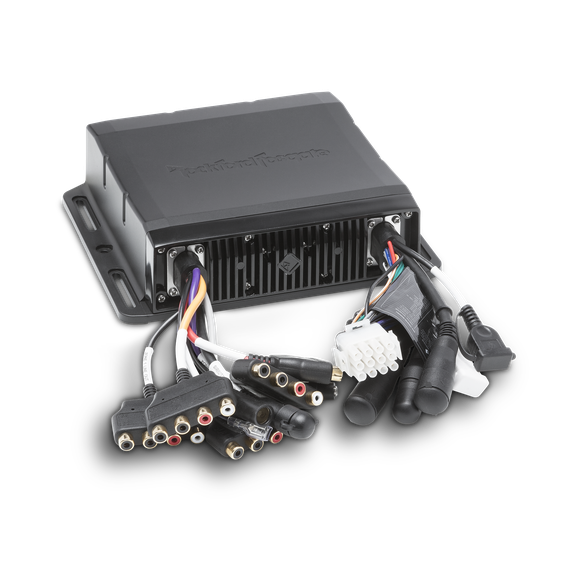

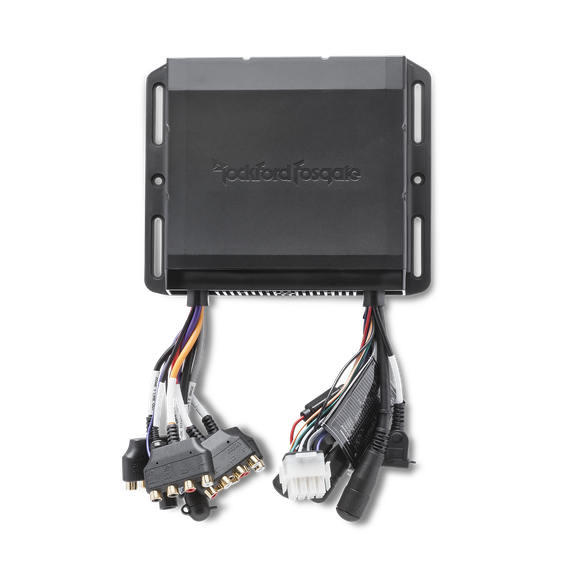

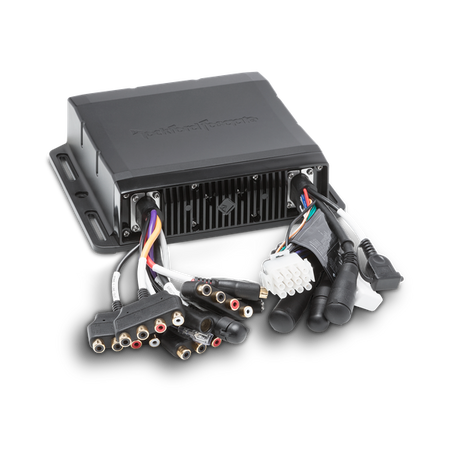

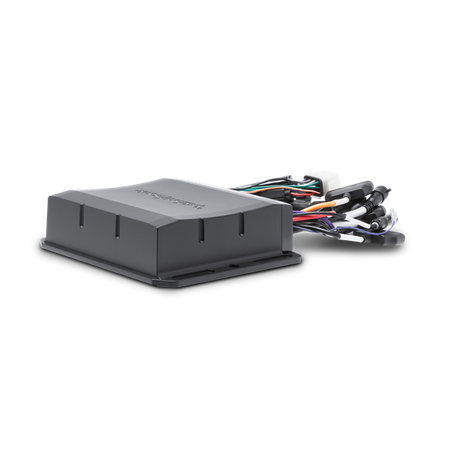

Rockford Fosgate Punch Marine Hide-Away AM/FM/WB Multi-Zone Digital Media Receiver | PMX-8BB

Global AM/FM/WB Tuner, SiriusXM Ready, Full iOS/Android, Made for iPod, Dual USB Input w/ Video Playback, Bluetooth AVRCP 1.5, 2-Source Zone Control, 4-Zone Volume Control, 6 Channel F/R/S 4V Zone 1&2 Pre-outs, 2 Channel Zone 3&4 4V Pre-outs, 7-Band Graphic Equalizer, Punch EQ, A/V Input, Video Output, CAN Ready, EEPROM Non-Volatile Memory,Wired Illumination Control, Steering Wheel Control Ready.  Features CANbus functionality for connection to NMEA2K systems using the PMX-CAN adaptor (see Accessories tab.)

FEATURES AT A GLANCE

• 2-Year Warranty
• CAN-bus (Controller Area Network) compatible. Requires PMX-CAN accessory
• *Antenna not included
• Automotive grade AM/FM Radio, Weatherband Radio digital tuner. Supports Radio Data System (RDS) to receive and display broadcast information
• Licensed Pandora control (apple direct USB or BT/ android via bluetooth)
• Made for iPhone apple certified
• Bluetooth, A2DP only, AVRCP 1.4
• Simple secure pairing bluetooth profile for android & iOS
• Display album art from connected iPhones on the radios display
• Folder browsing via BT connected iPhones
• 4 sets (Zones) RCA out; 4 active with 4 channels per zone (2 full range + 2 sub) 4V signal output
• Internal power amplifier 4x50w 2 ohm stable
• Selectable high pass and low pass crossover points for each independent zone
• Selectable crossover slopes of 12dB or 24 dB for each independant zone
• Dedicated DSP audio processors for each zone with independent 7 Band EQ+Punch EQ
• Adjustable input gain for each source
• Integrated voltage gauge w/ low voltage alert
• Electrically Erasable Programmable Read-Only Memory (EEPROM) is a type of non-volatile memory used in electronic devices to store data that must be saved when power is removed
• Wired remote ready (up to 3 remotes)
• Rear aux-in (L/R)
• External steering wheel remote control interface compatible
• External trigger input to activate reverse camera mode
• Wired illumination control
• Optional CAN-BUS transceiver ready (PMX-CAN)
• Rear USB with 1a charging (supports album art on USB connected iPhones)
• Epoxy coated circuit board
• IPX5 Water Intrusion Rating: Water projected from nozzles from any direction shall have no harmful effects.
• Upgradeable Firmware and Bluetooth Software via USB
• Compatible with a MFD (Multi-Function Display) via NMEA 2000 standard. See MFD Compatibility

Made for Android

This device supports the Google "Made for Android" protocol.

Pandora® Internet Radio

Pandora® (also known as Pandora Internet Radio) is a music streaming and automated music recommendation service.

Element Ready™ | Source Units

All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion & Vibration.

CANbus

CANbus allows communication with other devices.

SiriusXM-Ready®

This radio is ready to accept SiriusXM® satellite programming.

Made for iPod/iPhone

This device supports the Apple "Made for iPod/iPhone" protocol.

USB Playback

This source unit supports playback from a USB device.

Built In Bluetooth®

Built In Bluetooth®

FLAC

The Free Lossless Audio Codec is an audio format similar to MP3, but lossless, meaning that audio is compressed in FLAC without any loss in quality.

Operating Voltage

10.5V - 16V

Device Type

Digital-Media Black Box

Fuse Rating

15A

Remote Capacity

(see Compatibility Chart)

Power Output

CEA-2006 Power Rating
25W x 4 @ 4Ω RMS
≤1.0% THD+N

Speaker Impedance

2-Ohms

Frequency Response

20 Hz - 20 kHz

SPEAKER OUTPUTS

YES

Dimensions (HxWxD)

H4.25" x W8.3" x D2.2"
(108mm x 211mm x 56mm)

Clock
(Yes/No)

No

Multi-Zone/Multi-Source
(Yes/No)

Yes

Speaker Outputs
(Yes/No)

Yes

Bluetooth®
(Yes/No)

Yes
3.0+EDR, A2DP 1.3

SiriusXM-Ready®
(Yes/No)

Yes
Requires SXV300

Pandora® Internet Radio
(Yes/No)

Yes

AUX Input
(Yes/No)

Yes
