Motion Factory Racing Footpegs Harley Pan-Am Softtail Street Bob Livewire | SUR

Are you packing up to head cross-country? Maybe about to put some serious miles in to get to Sturgis? You are going to want a footpeg that will get you there in style and comfort. These dramatically reduce engine vibration and comfort like nothing else on the market with our patented anti-vibration bushing technology.

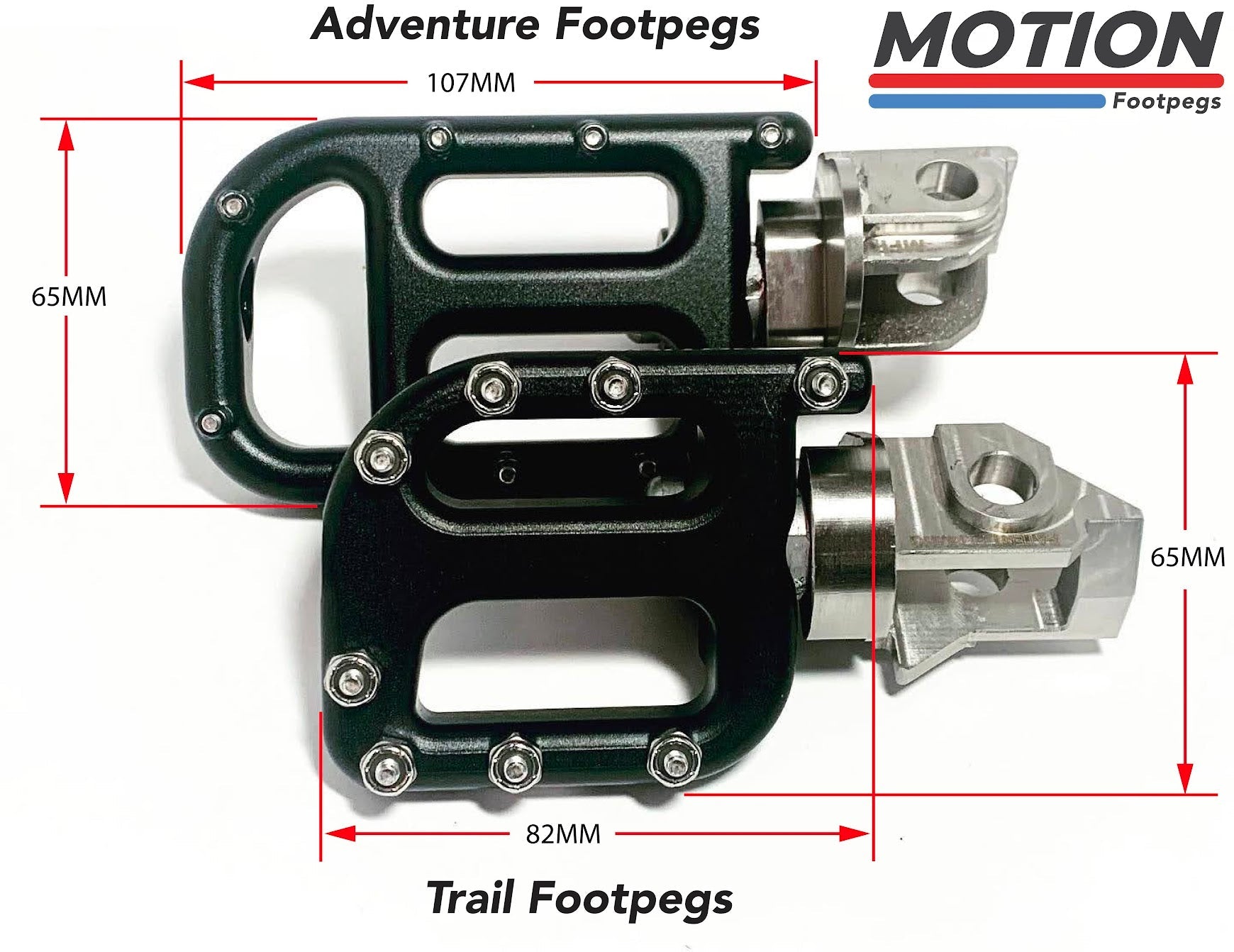

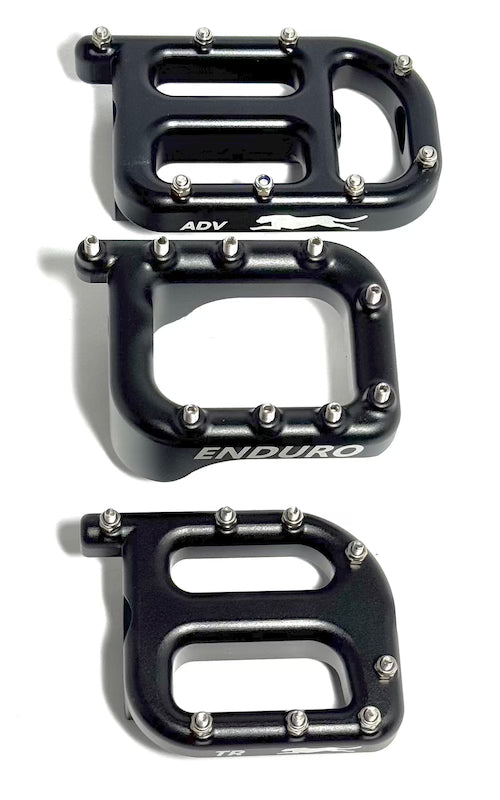

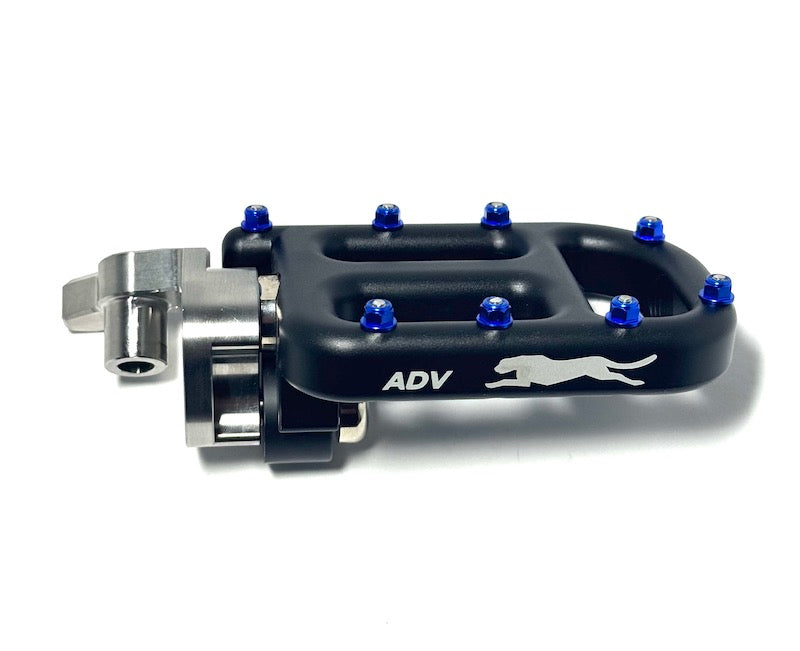

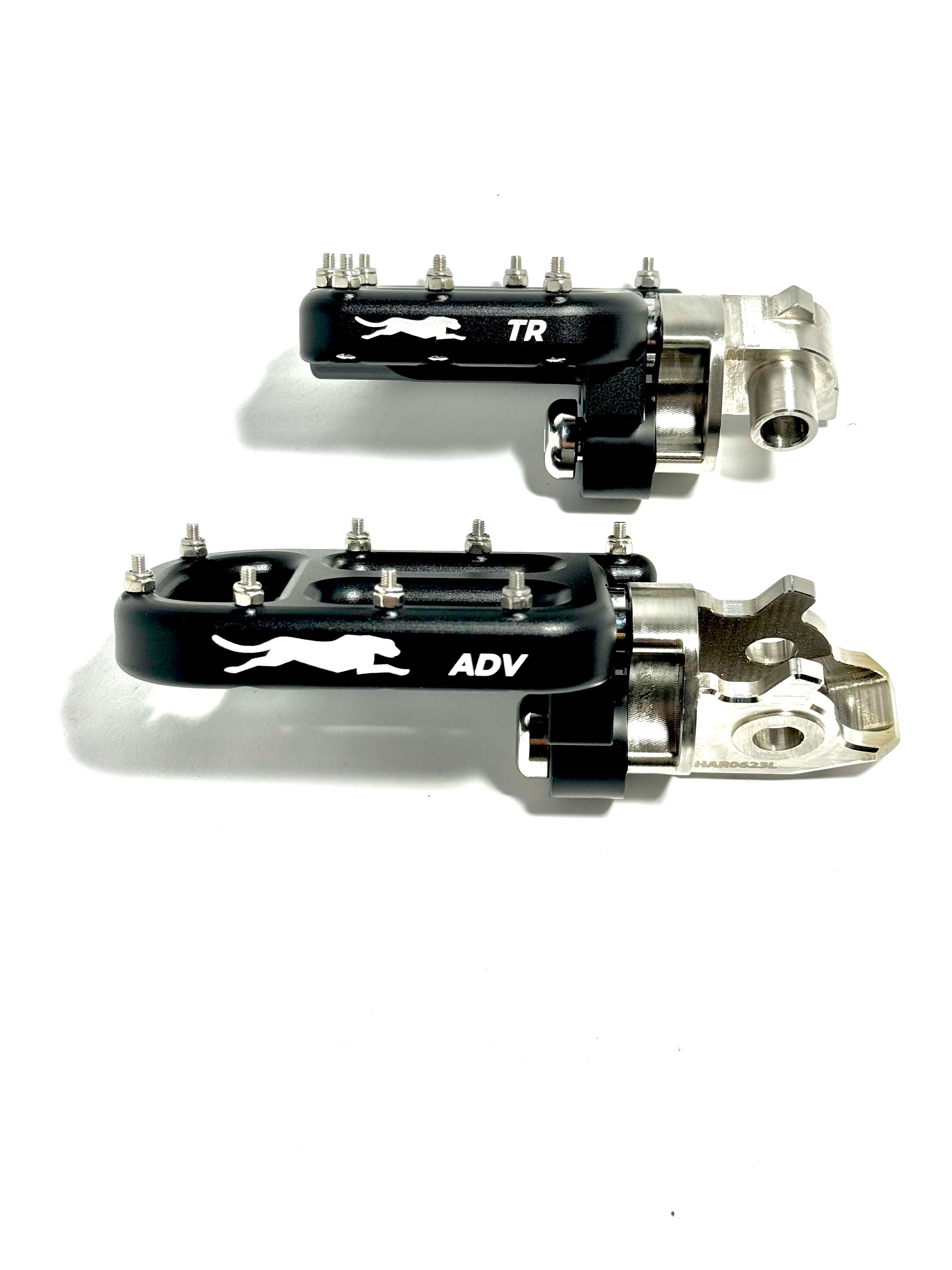

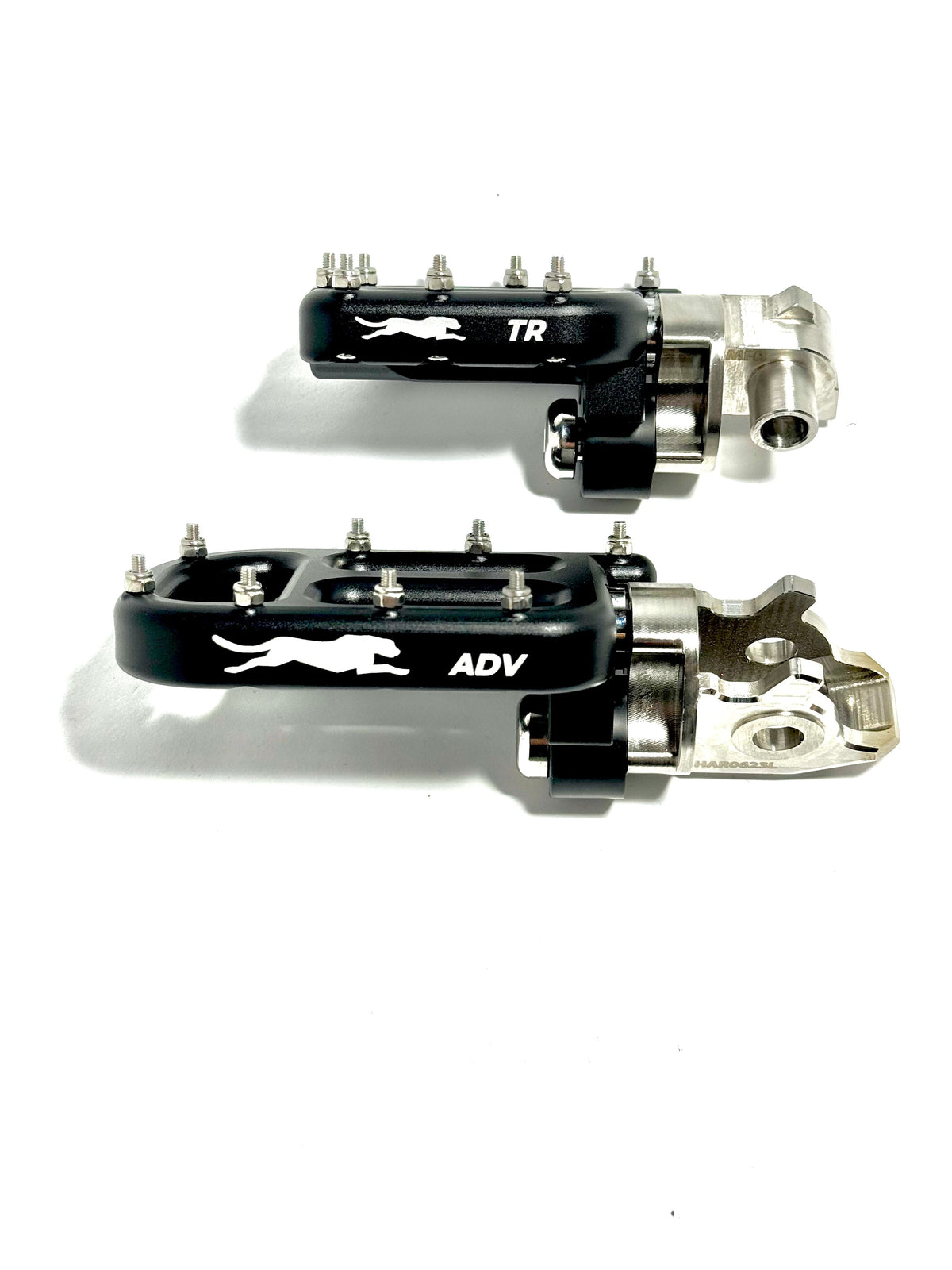

Patented Flex-Mount Footpeg System now offers a platform option for all riders. Try our Trail or Adventure platforms that offer rotation with the added benefits of vibration damping and adjustable flex. Click here to learn more about these 2 options.

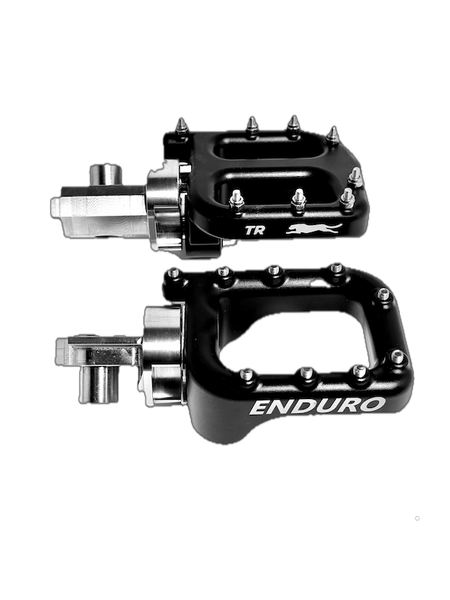

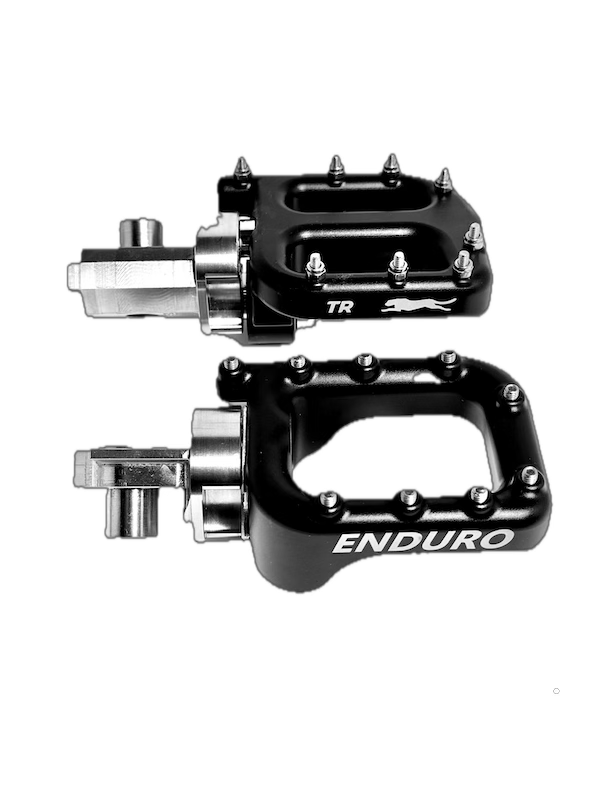

The Enduro Platform *does not* rotate and offers a traditional footpeg option for riders. This is the best option for those riders who are super hard on gear and need something that can take a lot of abuse. Click this link for more details. Or reach out if you have questions.

• Enduro platforms are hard-mounted (they do not rotate or flex) with an optional camber adjustment wedge sold separately.

• Trail and Adventure Platform options come with:

  • Chromoly steel spindles with reusable thread locker. 14mm wrench. Torque spec 40 ft/lbs

  • A90 (medium flex) rated bushings

  • Cleats and stainless steel machine screws. M3x18mm. These can simply be replaced by going to your local hardware store when damaged or worn out.

  • Bushing bolts. 8mm Allen wrench. Torque spec 30 ft/lbs

*IMPORTANT*  If you are ever installing the platforms onto the spindle the nylon locking nut torque spec is 2 ft/lbs (hand tight) Once you feel it bottom out stop tightening and visually inspect to make sure the nylon in the nut has engaged with the last couple of threads on the spindle. Over-torquing/tightening will cause the threads to strip and fail.

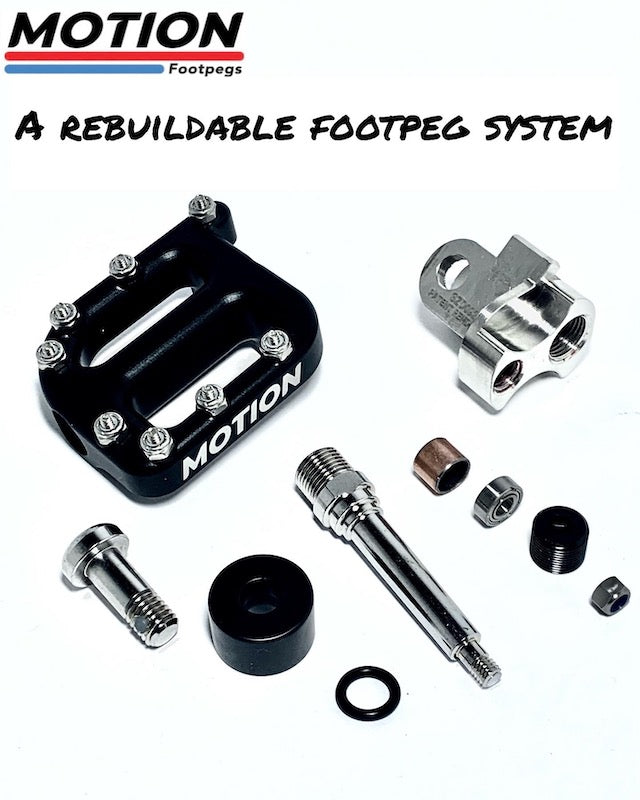

*Hardware is designed to bend rather than break in a significant impact. A wrench or adjustable wrench will quickly and easily bend the bolt back straight. Please avoid using a hammer. A little leverage from a long-handled wrench or pipe will do the job. The whole system is rebuildable and serviceable.

Fitment:

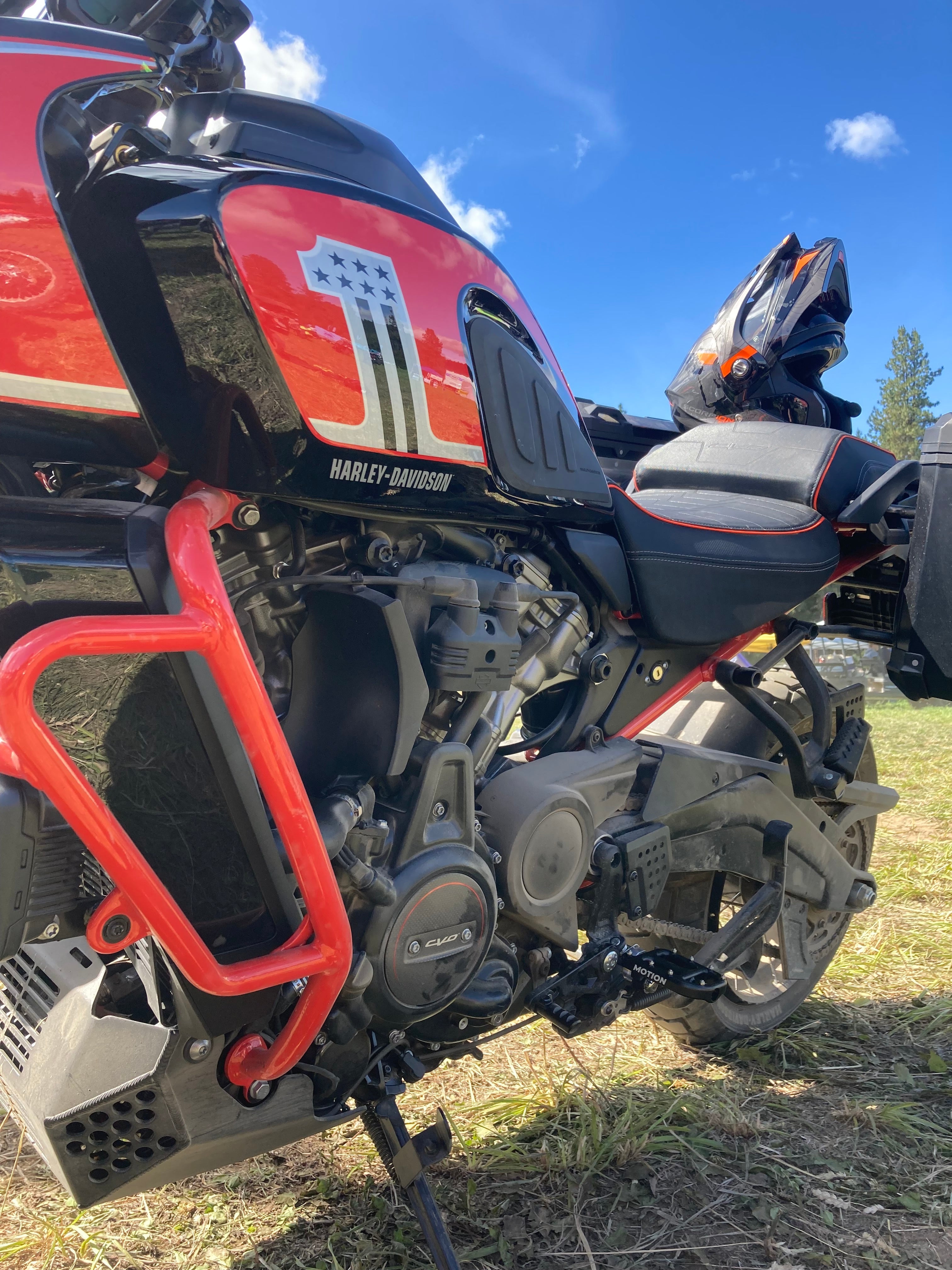

Harley Davidson: Pan America All Years.
HARLEY DAVIDSON Softail 2018-2023
Softail Street Bob 114 FXBBS 2021, 2022, 2023
Softail Street Bob FXBB 2018, 2019, 2020
Softail Standard FXST 2020, 2021, 2022, 2023
Softail Low Rider FXLR 2018, 2019, 2020
Softail Low Rider S 114 FXLRS 2020, 2021
Softail Low Rider S 117 FXLRS 2022, 2023
Softail Low Rider ST 117 FXLRST 2022, 2023
Softail Fat Bob 114 FXFBS 2018, 2019, 2020, 2021, 2022, 2023
Softail Fat Bob FXFB 2018, 2019

Low Rider ST FXLRST 2024
Low Rider FXLR 2018-2020
Softail Standard FXST 2020-2024
Street Bob 114 FXBBS 2021-2024
Street Bob FXBB 2018-2020
Softail Slim FLSL 2018-2021
Sport Glide FLSB 2018-2021
FXDR 114 FXDRS 2019-2020
Deluxe FLDE 2018-2020
LiveWire ELW 2020.

Passenger Position 2020-Later LiveWire and 2018-Later Softail Models

CVO Pan America RA1250SE 2024
Fat Bob 114 FXFBS 2018-2023
Fat Bob FXFB 2018-2019
Fat Boy 114 FLFBS 2018-2024
Fat Boy FLFB 2018-2019
Breakout FXBR 2018-2019, 2023-2024
Heritage Classic 114 FLHCS 2018-2024
Heritage Classic FLHC 2018-2021
Low Rider S FXLRS 2020-2024
