Motion Factory Racing Footpegs for E-Bikes/Honda/Kawi | SUR

In stock
SKU: SUTRORA
No reviews
$ 199.00
Size
Color
Item material

Product Details

  • Type Foot Pegs
  • Vendor Motion Factory Racing
  • SKU SUTRORA
  • Shipping Weight 26.0 oz
Description Fitment Shipping

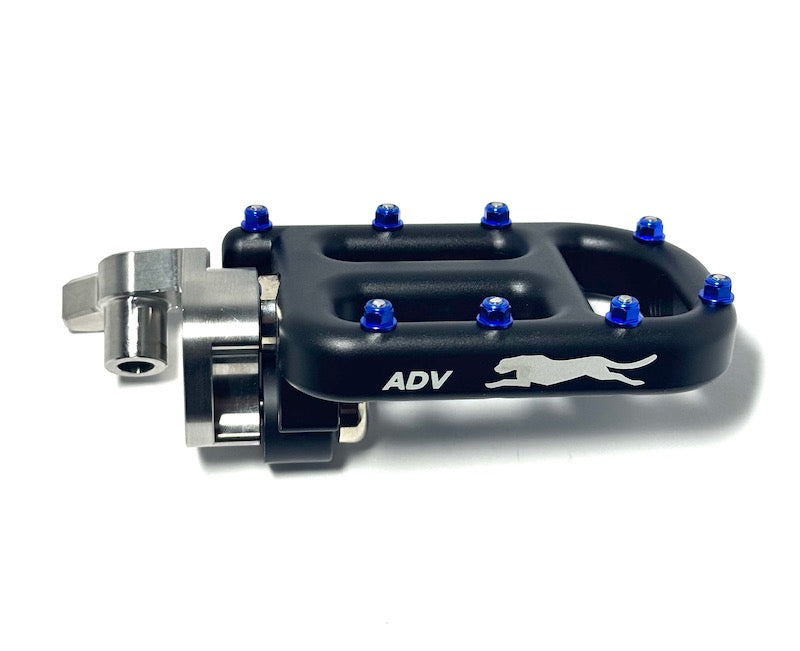

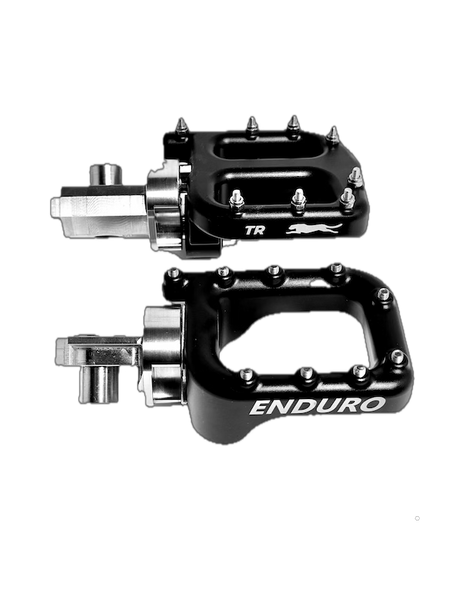

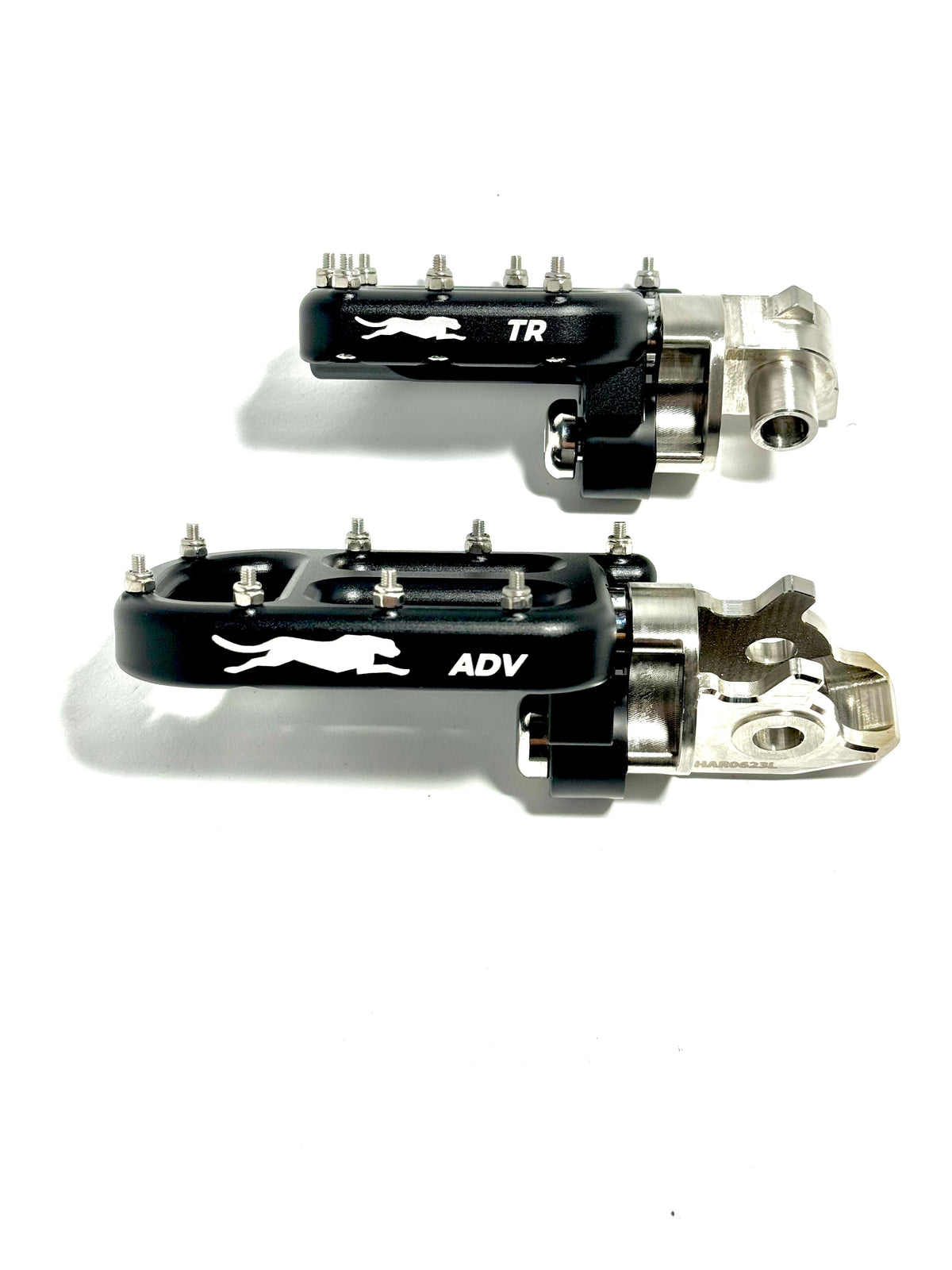

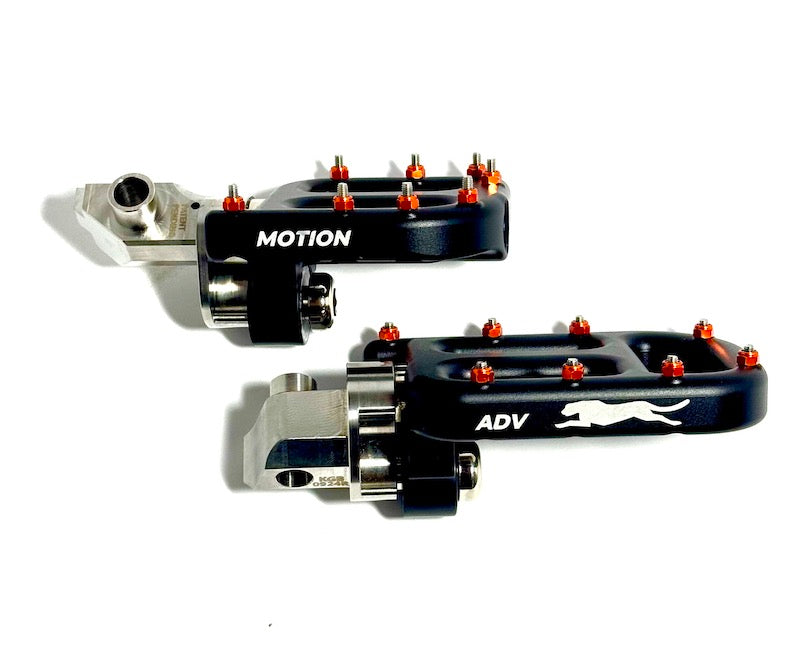

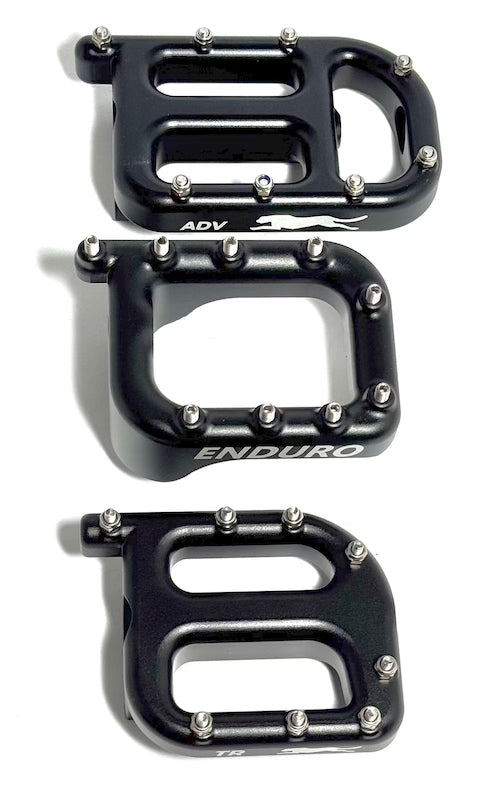

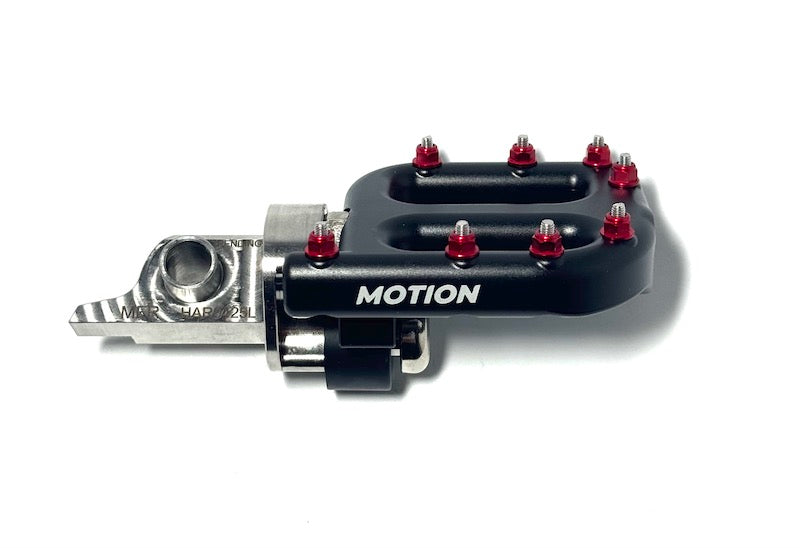

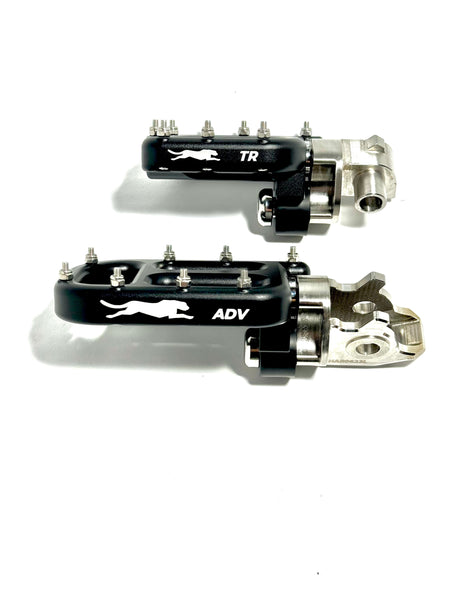

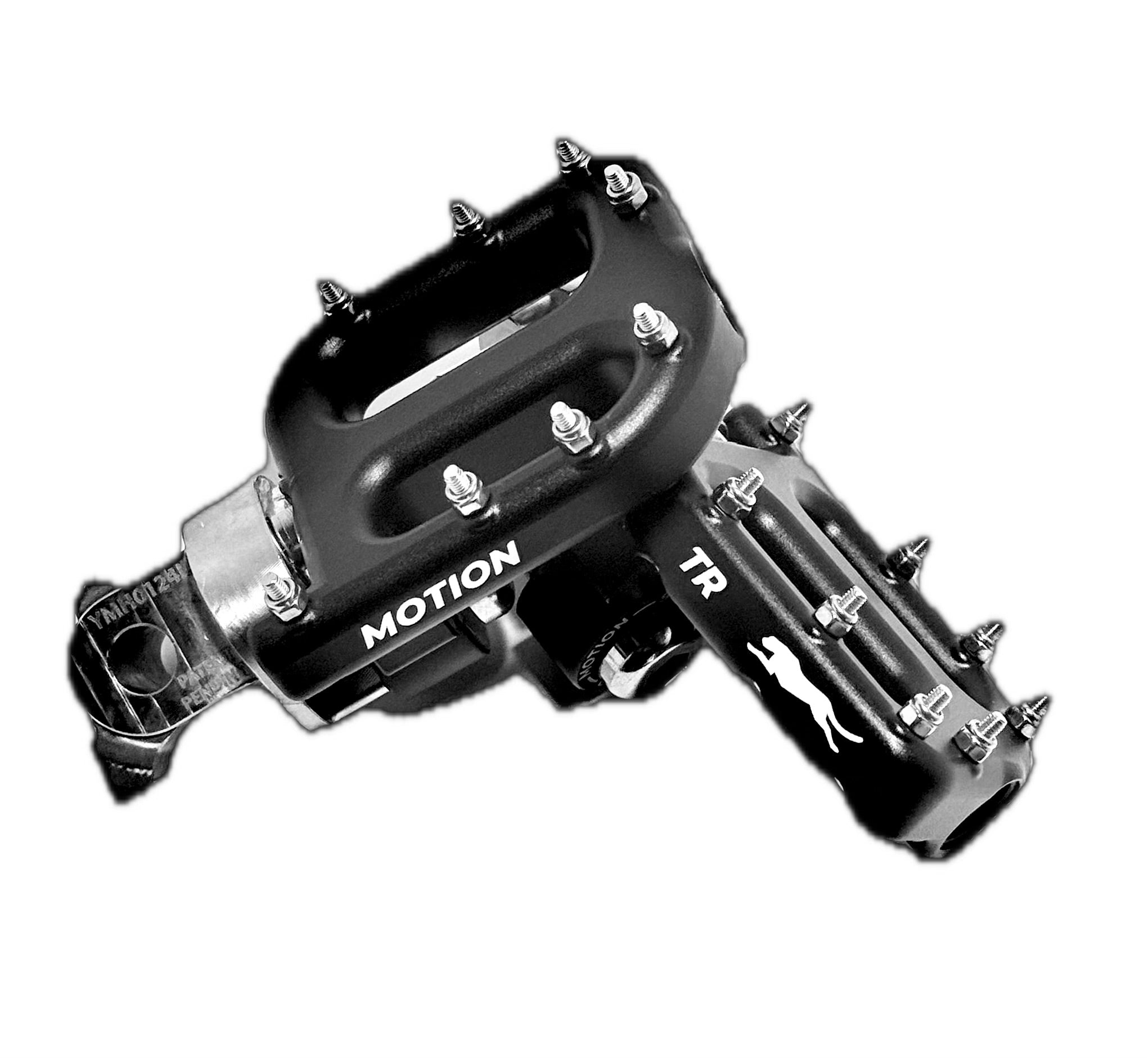

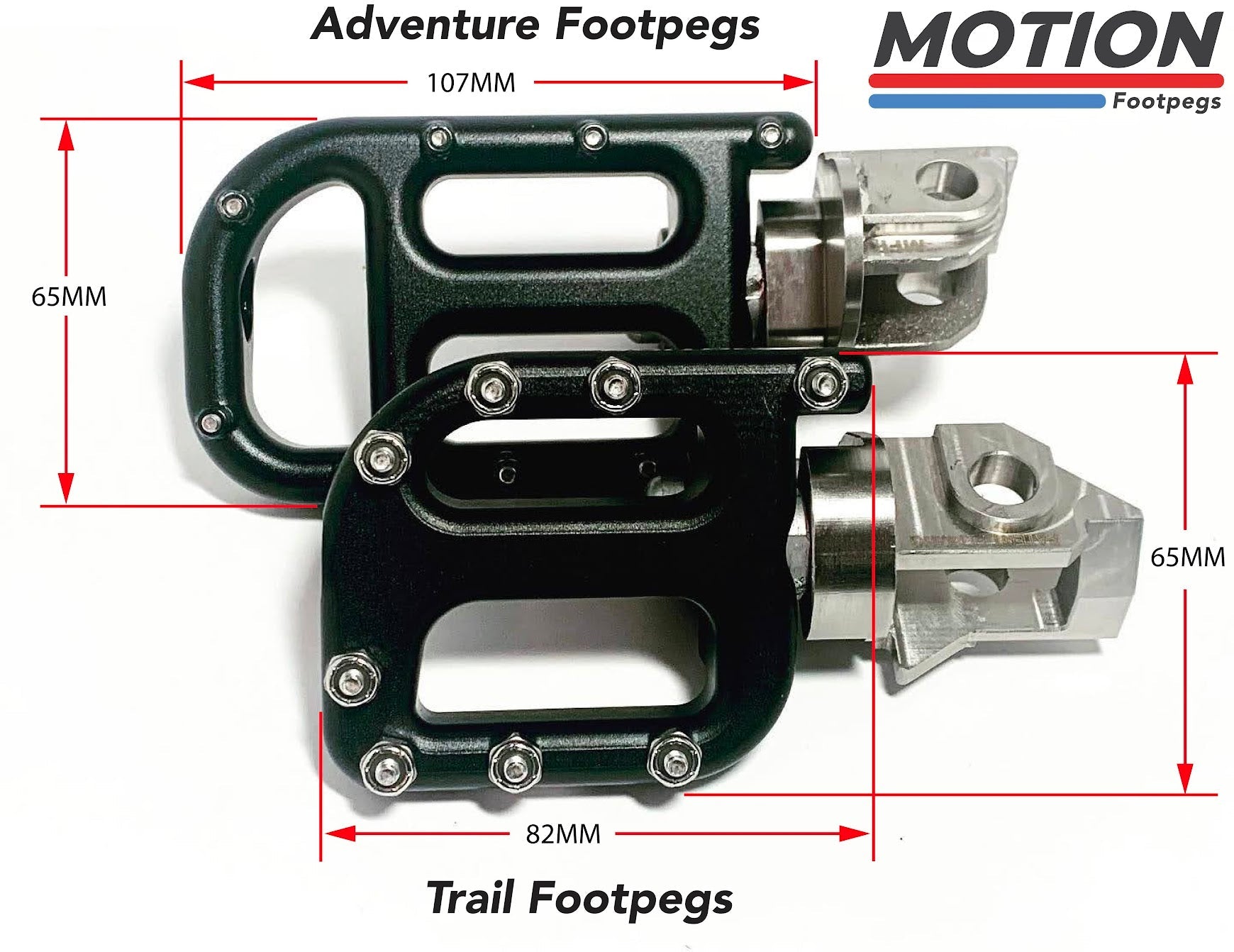

Patented Flex-Mount Footpeg System now offers a platform option for all riders. Try our Trail or Adventure platforms that offer rotation with the added benefits of vibration damping and adjustable flex. Click here to learn more about these 2 options.

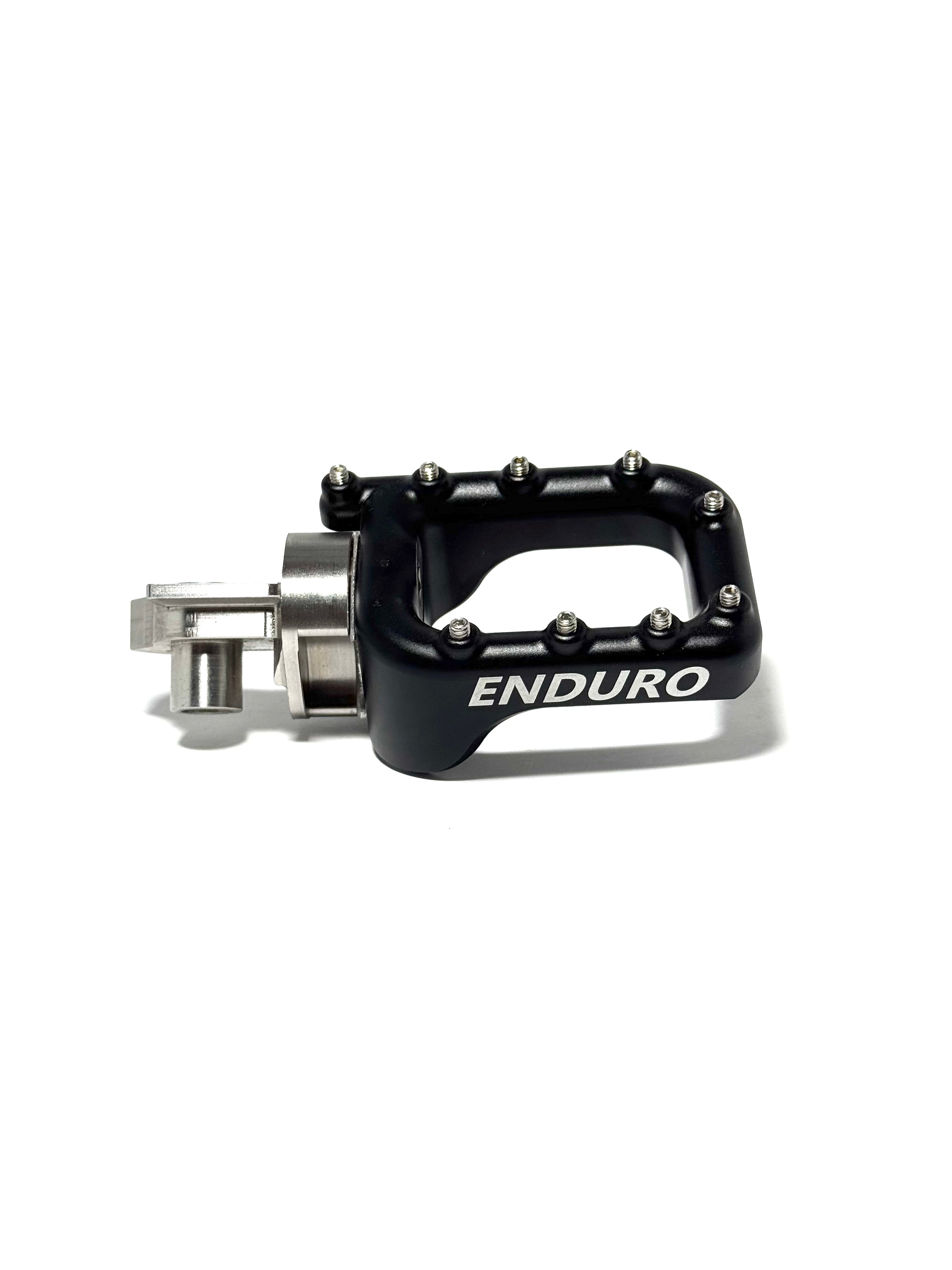

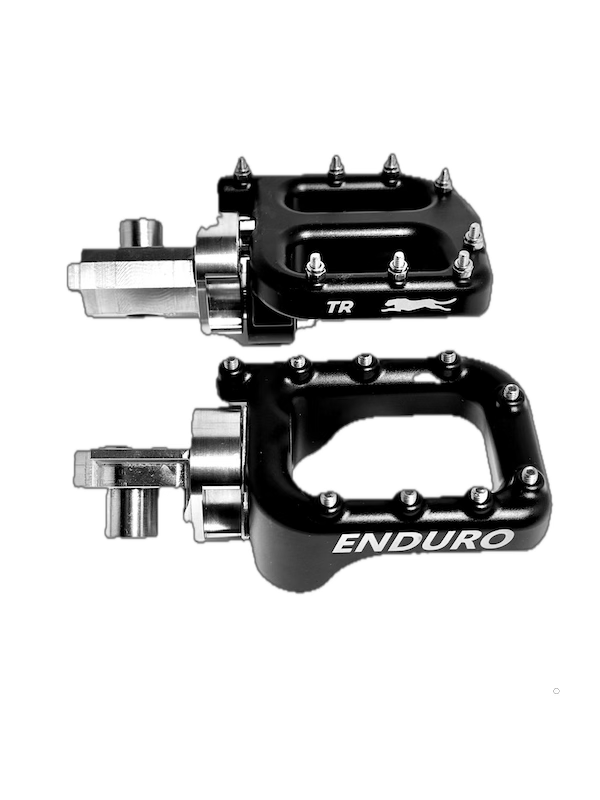

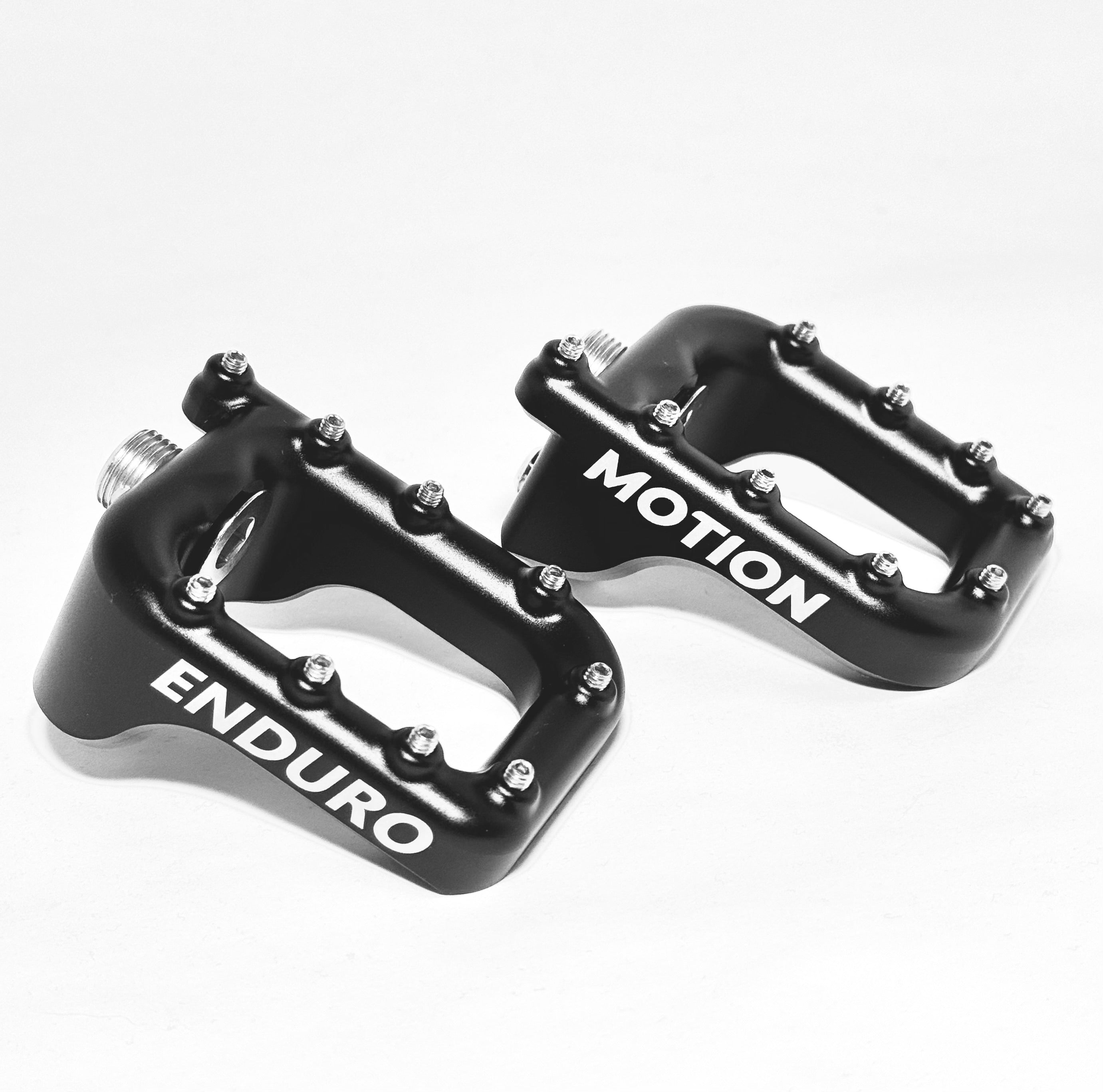

The Enduro Platform *does not* rotate and offers a traditional footpeg option for riders. This is the best option for those riders who are super hard on gear and need something that can take a lot of abuse. Click this link for more details. Or reach out if you have questions.

  • Enduro platforms are hard-mounted (they do not rotate or flex) with an optional camber adjustment wedge sold separately.

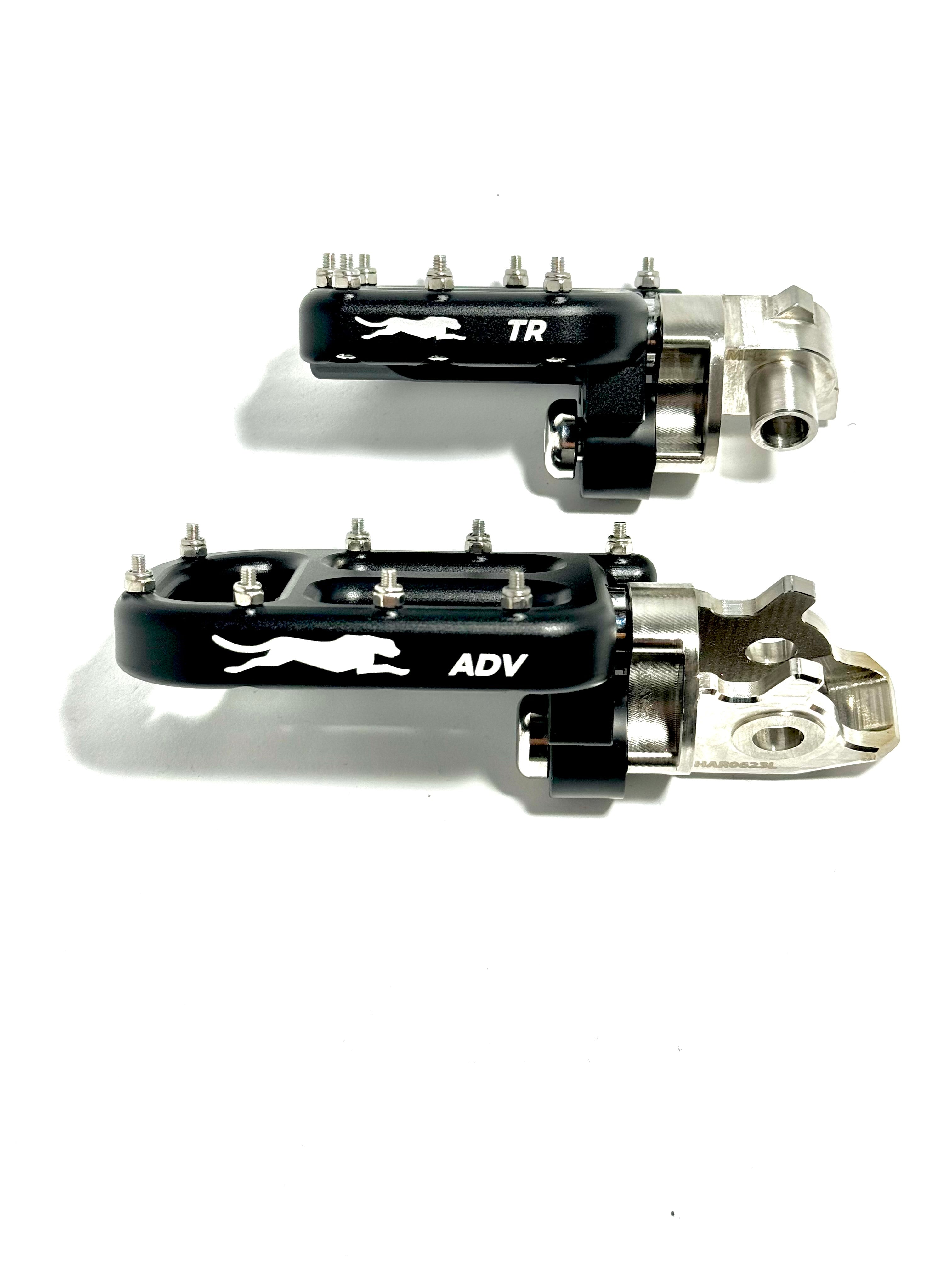

  • Trail and Adventure Platform options come with:
    • Chromoly steel spindles with reusable thread locker. 14mm wrench. Torque spec 40 ft/lbs
    • A90 (medium flex) rated bushings
    • Cleats and stainless steel machine screws. M3x18mm. These can simply be replaced by going to your local hardware store when damaged or worn out.
    • Bushing bolts. 8mm Allen wrench. Torque spec 30 ft/lbs

*IMPORTANT*  If you are ever installing the platforms onto the spindle the nylon locking nut torque spec is 2 ft/lbs (hand tight) Once you feel it bottom out stop tightening and visually inspect to make sure the nylon in the nut has engaged with the last couple of threads on the spindle. Over-torquing/tightening will cause the threads to strip and fail.

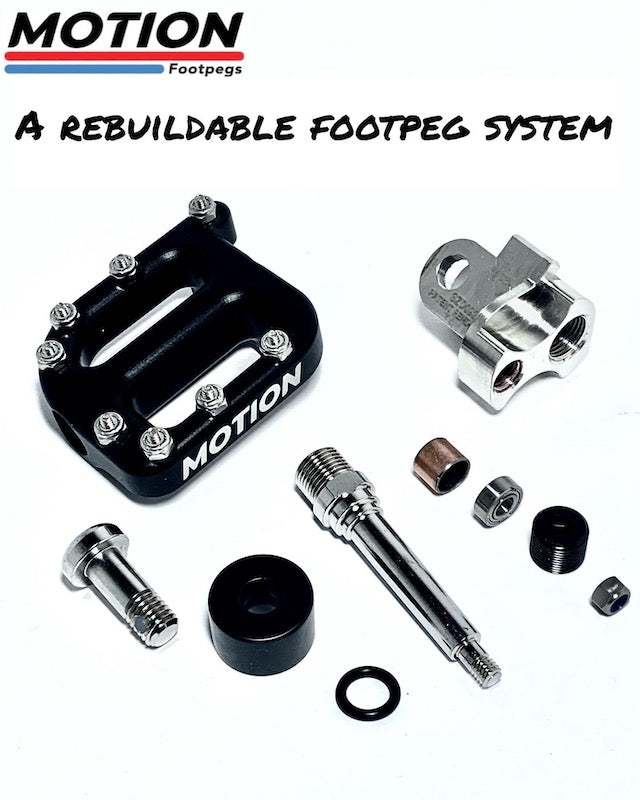

*Hardware is designed to bend rather than break in a significant impact. A wrench or adjustable wrench will quickly and easily bend the bolt back straight. Please avoid using a hammer. A little leverage from a long-handled wrench or pipe will do the job. The whole system is rebuildable and serviceable.

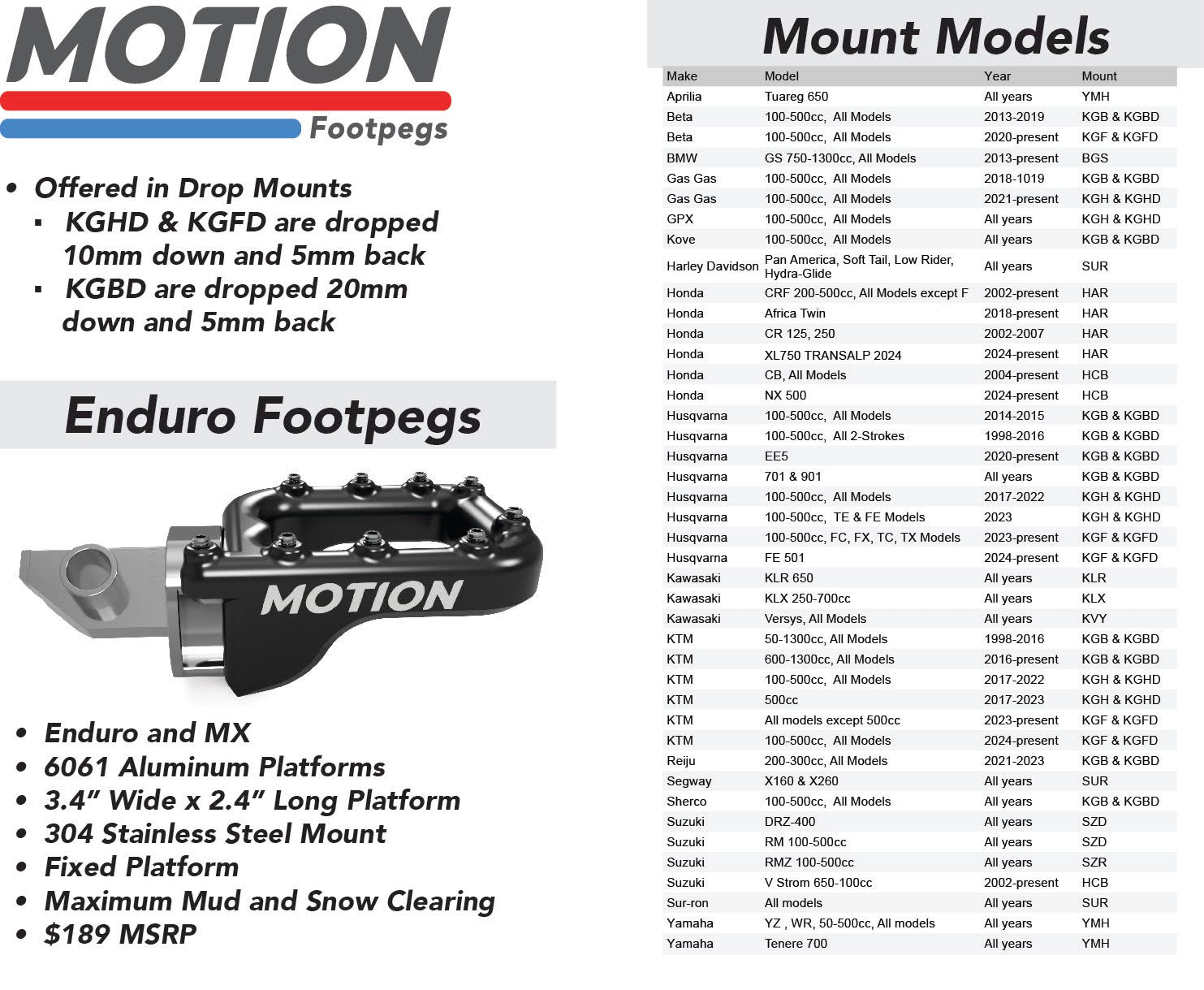

Fitment:

Segway X160 & X260

Surron Light Bee
Surron Light Bee X

E Ride Pro-SS 2.0

79Bike Falcon M

CRF150F 03-10
CRF230F 03-19
CRF250F 19-24
XR150L 15-24
XR125L 10-15

KDX200 83-94

These can be used with the Talaria bikes but you will need to use a Surron mounting bracket.
