Motion Factory Racing Footpegs Suzuki RMZ 2010-2025 | SZR
Product Details
- Type Foot Pegs
- Vendor Motion Factory Racing
- SKU SZRENDBLA
- Shipping Weight 18.89 oz
*CURRENTLY JUST OFFERED IN THE ENDURO OPTION.

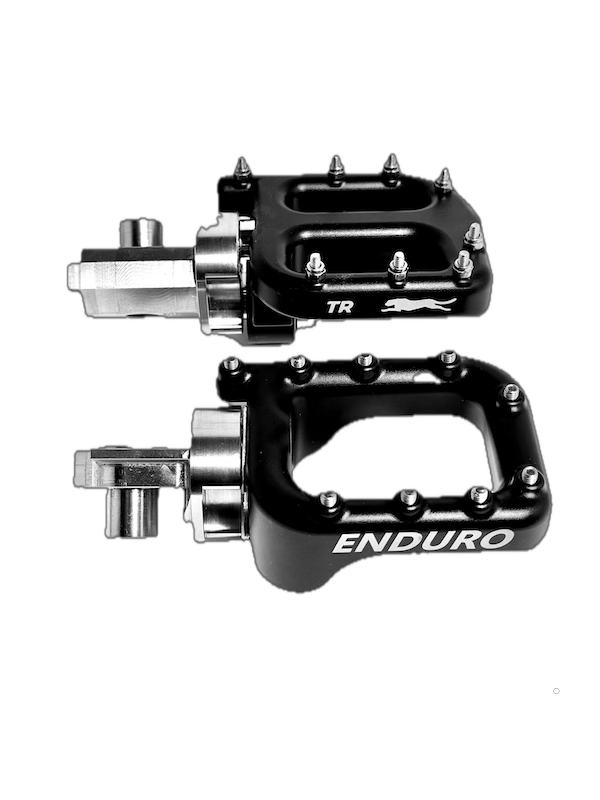

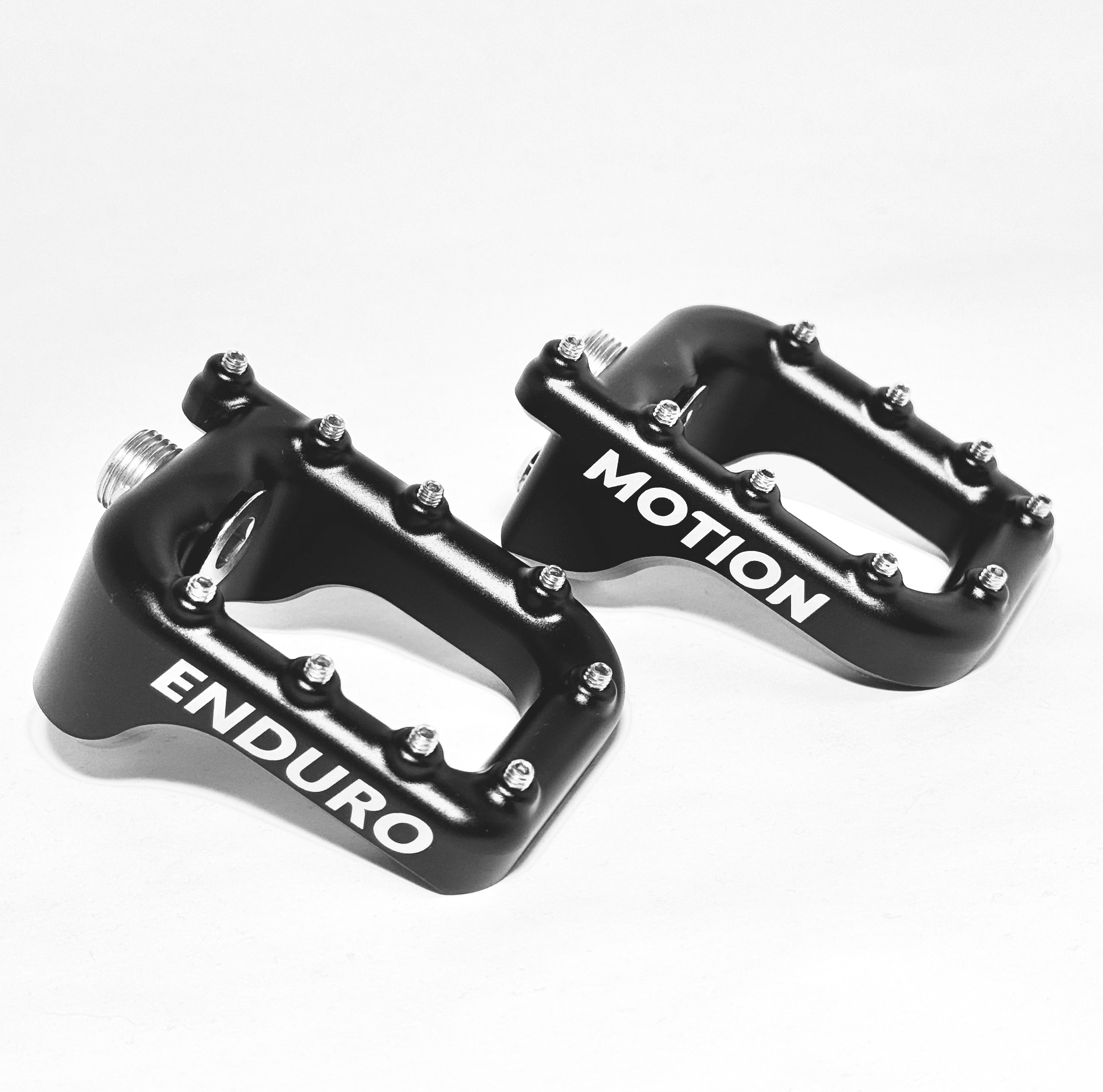

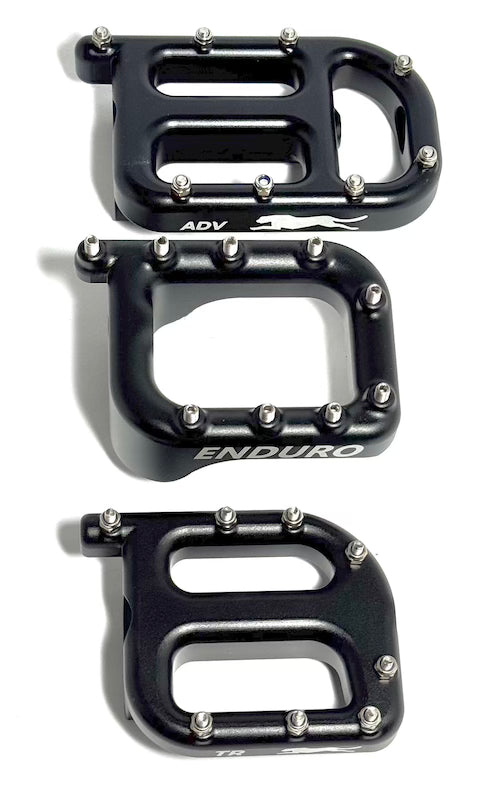

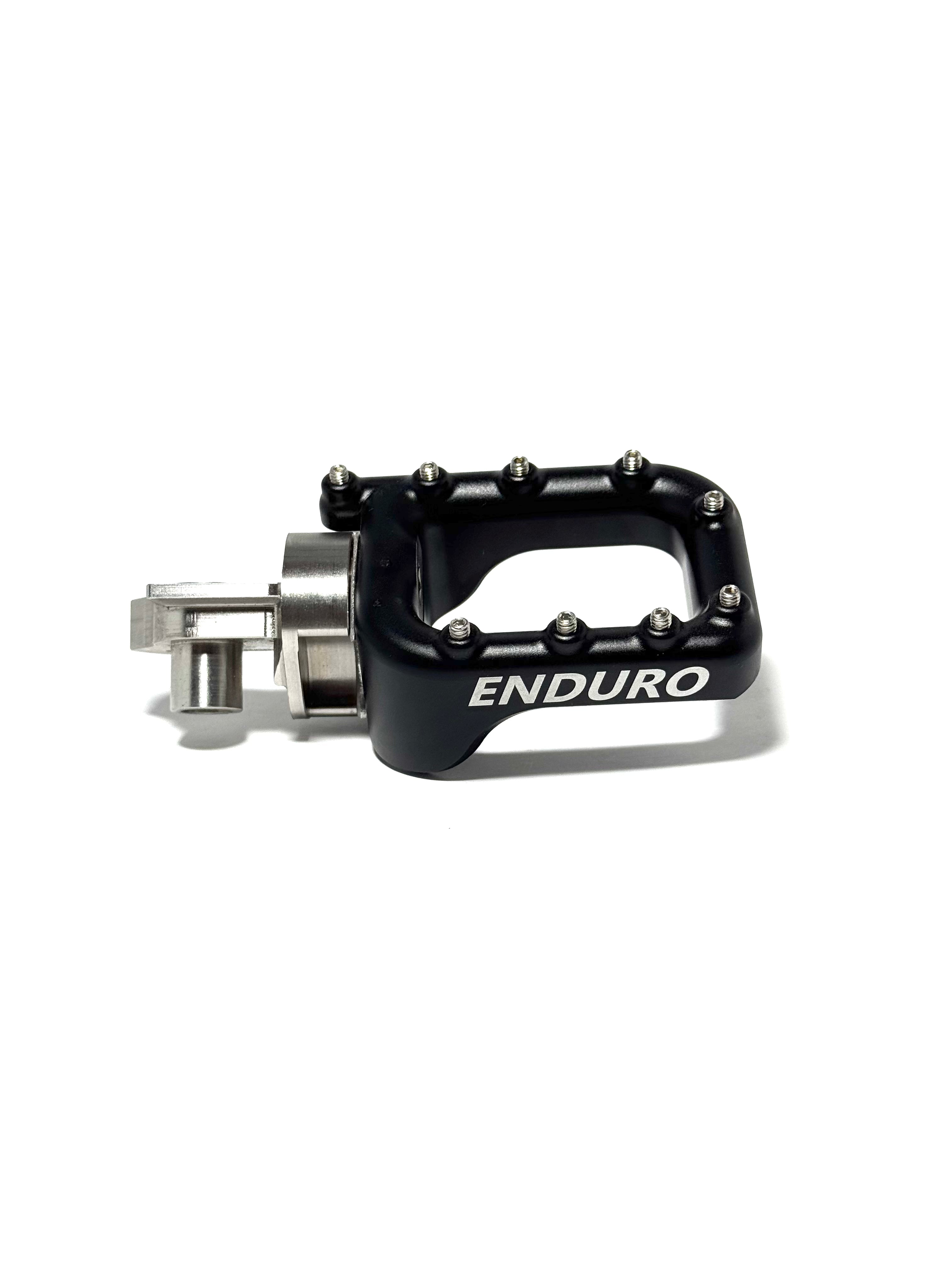

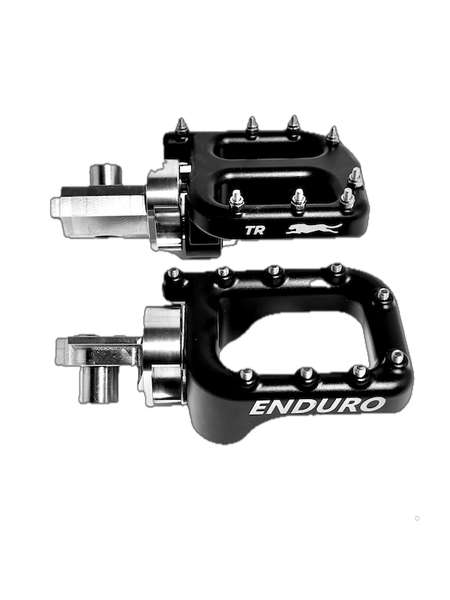

The Enduro Platform *does not* rotate and offers a traditional footpeg option for riders. This is the best option for those riders who are super hard on gear and need something that can take a lot of abuse. Click this link for more details. Or reach out if you have questions.
- Enduro platforms are hard-mounted (they do not rotate or flex) with an optional camber adjustment wedge sold separately.

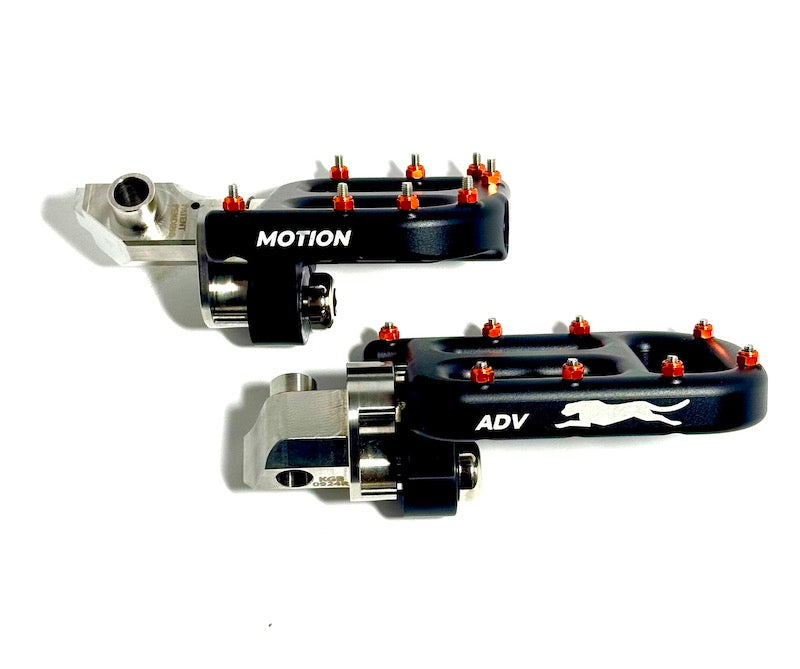

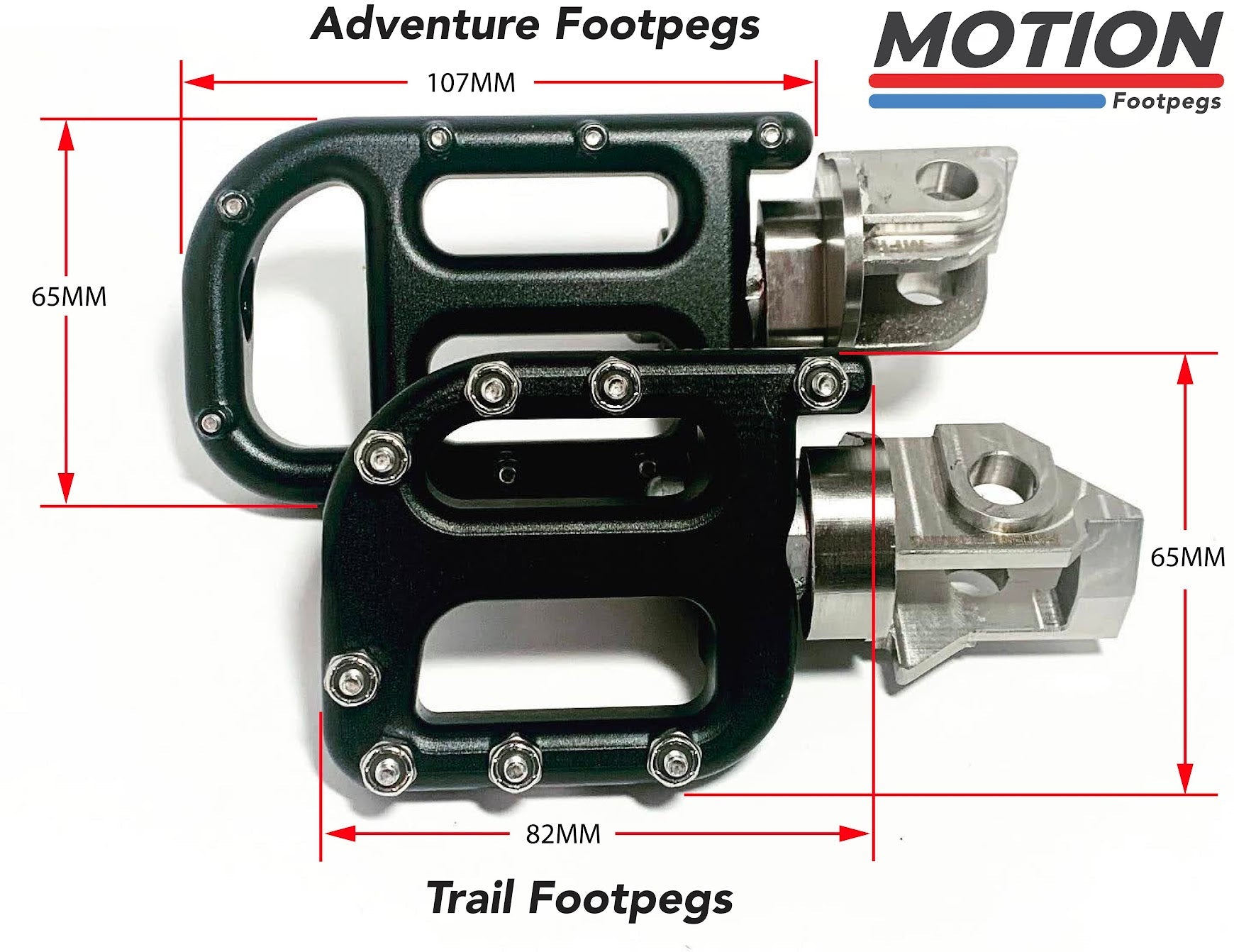

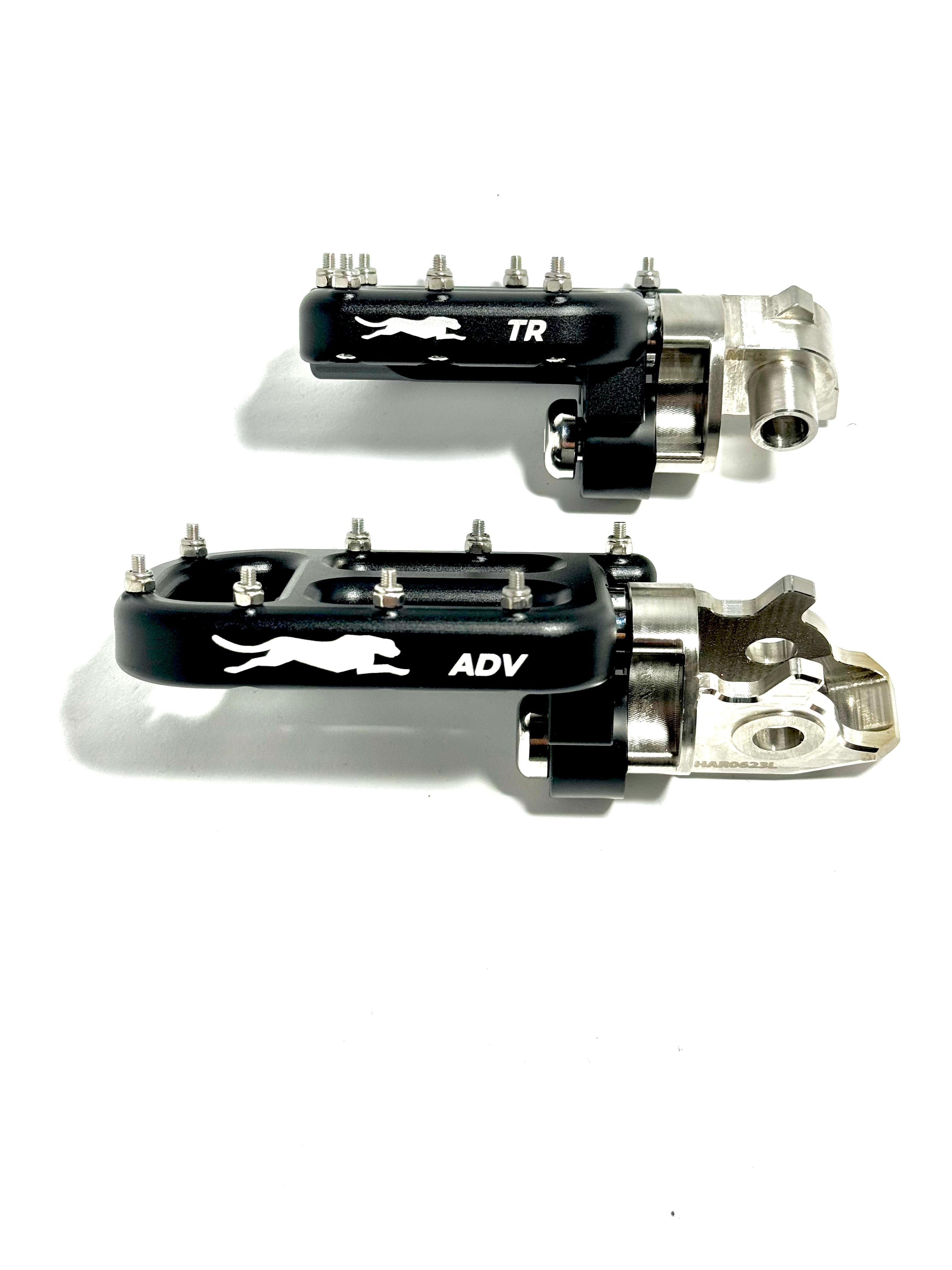

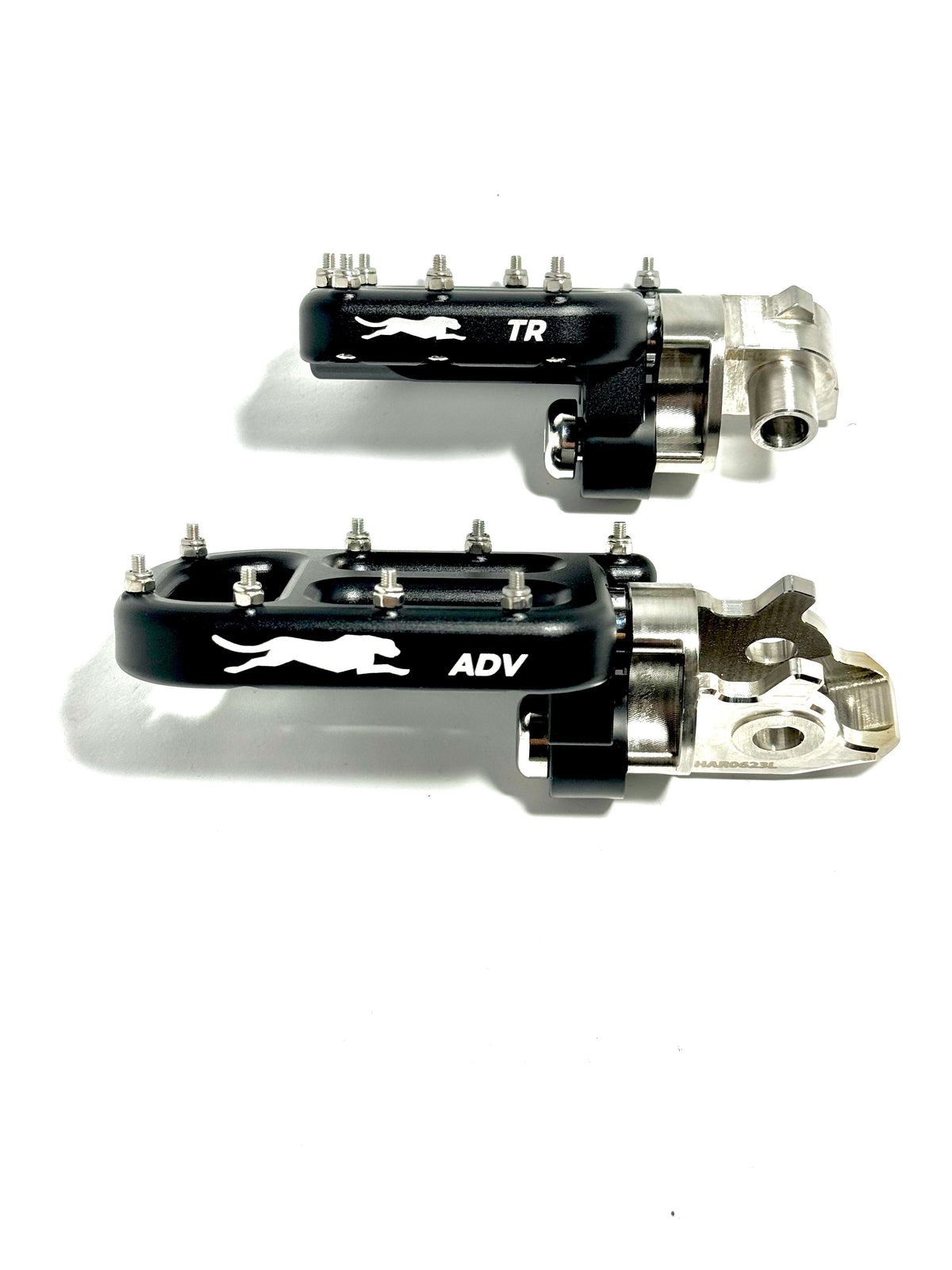

- Trail and Adventure Platform options come with:
- Chromoly steel spindles with reusable thread locker. 14mm wrench. Torque spec 40 ft/lbs
- A90 (medium flex) rated bushings
- Cleats and stainless steel machine screws. M3x18mm. These can simply be replaced by going to your local hardware store when damaged or worn out.
- Bushing bolts. 8mm Allen wrench. Torque spec 30 ft/lbs
- Chromoly steel spindles with reusable thread locker. 14mm wrench. Torque spec 40 ft/lbs
*IMPORTANT* If you are ever installing the platforms onto the spindle the nylon locking nut torque spec is 2 ft/lbs (hand tight) Once you feel it bottom out stop tightening and visually inspect to make sure the nylon in the nut has engaged with the last couple of threads on the spindle. Over-torquing/tightening will cause the threads to strip and fail.

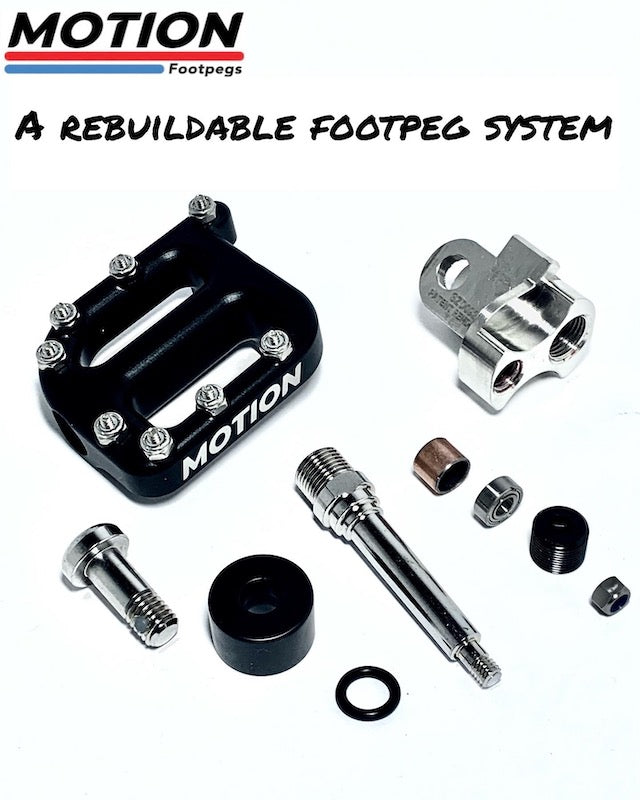

*Hardware is designed to bend rather than break in a significant impact. A wrench or adjustable wrench will quickly and easily bend the bolt back straight. Please avoid using a hammer. A little leverage from a long-handled wrench or pipe will do the job. The whole system is rebuildable and serviceable.

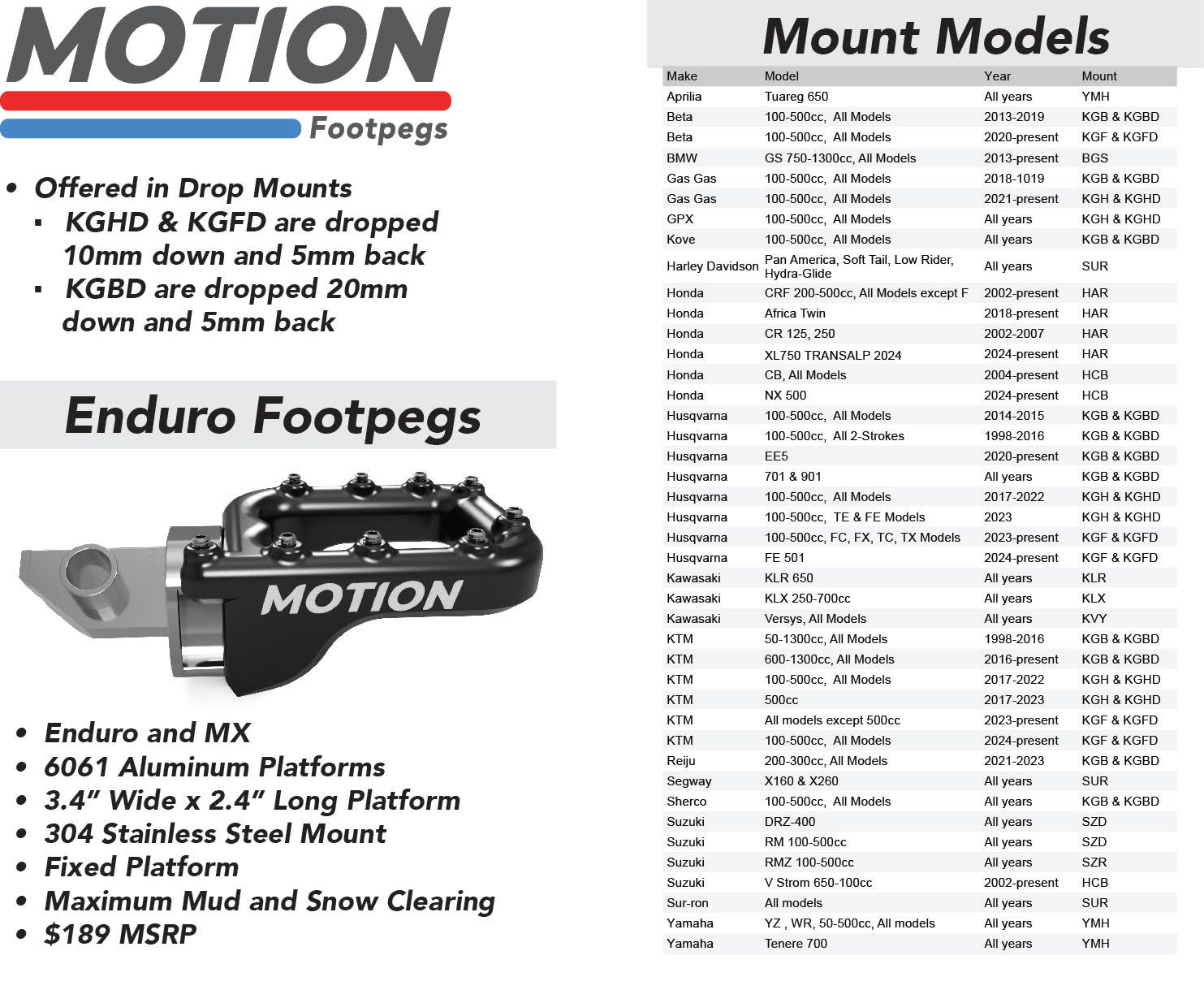

Fitment:
RMZ 250-450 years: 2010-2025
