Description
Voyager is the original Trail Tech off-road GPS, designed specifically to meet the needs of off-road riders. With Voyager you can download, record, and share maps while recording vital engine data. The 2.7 inch TFT backlit display is ideal for viewing in any environment and gets easier to read in direct sunlight.

Overview & Specs

• GPS enabled, active compass, elevation readings, distance and the ability to record ride data to SD card
• Speedometer and tachometer readings in real time, shows current and total ride time and battery voltage
• The 400x240 WQVGA LCD map screen is monochrome, displaying maps in black and white.
• Plan routes on the web, then import to Voyager as gray routes ready to ride.
• As a new track is recording, a black line appears indicating where you have been.
• Voyager integrates with your vehicle using standard Trail Tech vehicle sensors, providing vital ride gauges such as engine temperature, RPM, battery voltage, speed/distance, and more.
• At only 4.5 x 2.5 inches, Voyager is a great choice for many types of vehicles from adventure bikes to quads, UTVs and dirt bikes.
• 12V DC power required, make sure your vehicle has a battery.

Warranty
1 Year Warranty

What's in the Box

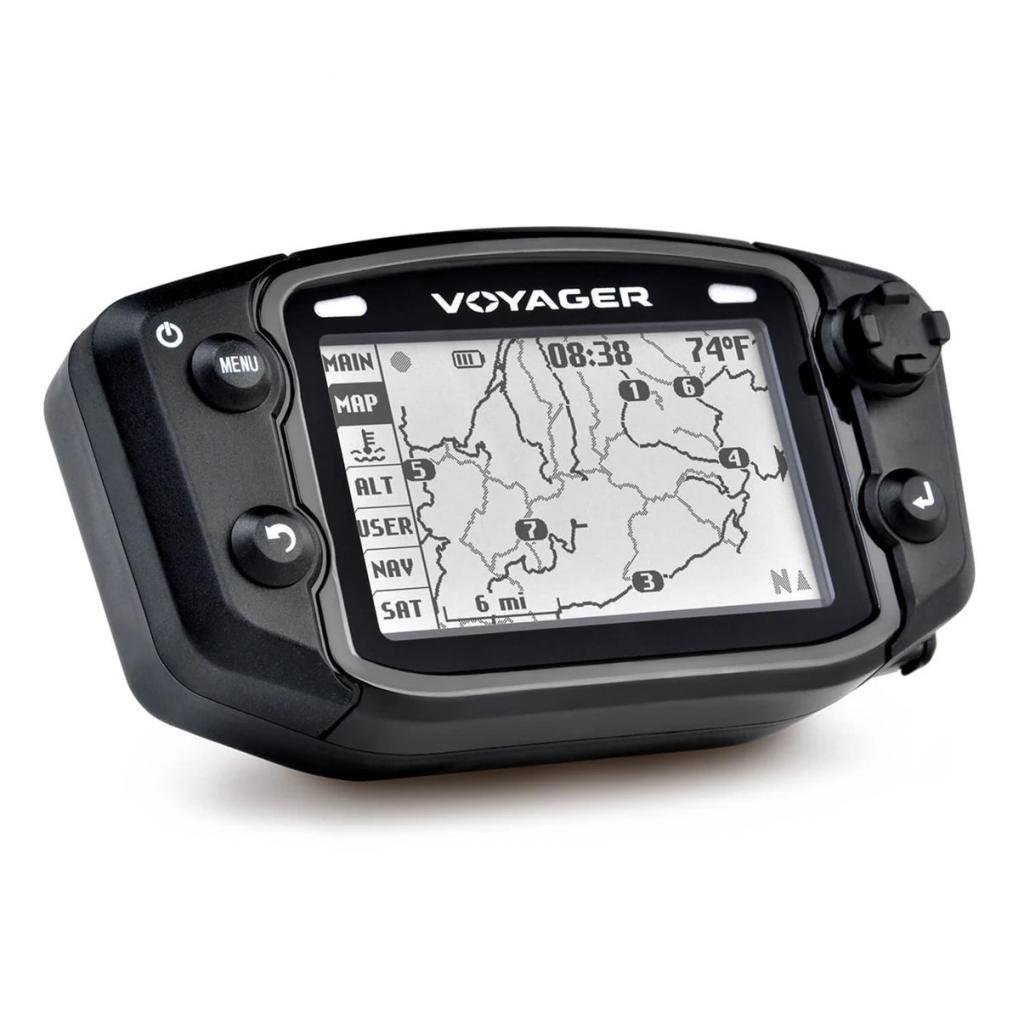

Voyager Gauges Screen
HEAD UNIT
9100-R2
Voyager GPS Device

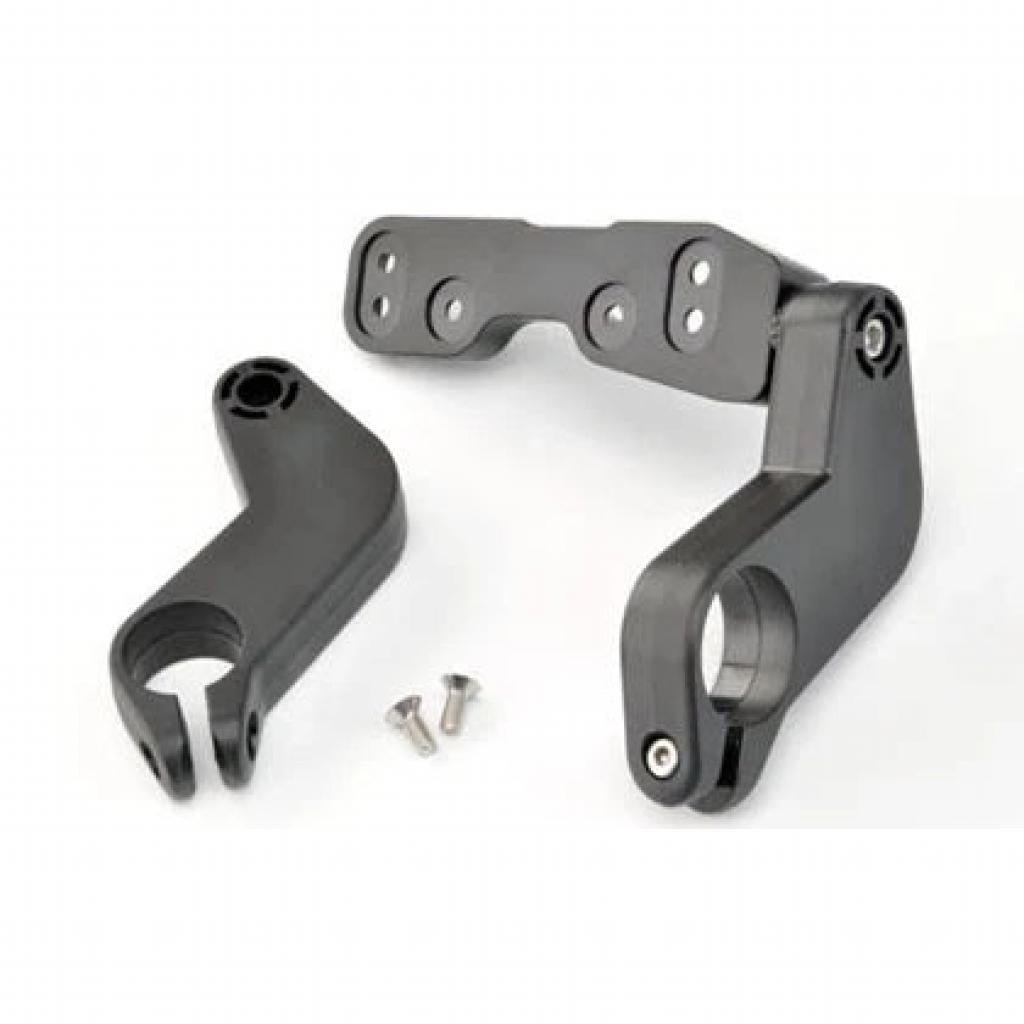

Vapor Handlebar Mounting Hardware
BAR MOUNT
9000-1000
Vapor/Striker/Voyager Mounting for 7/8" and 1-1/8" Bars

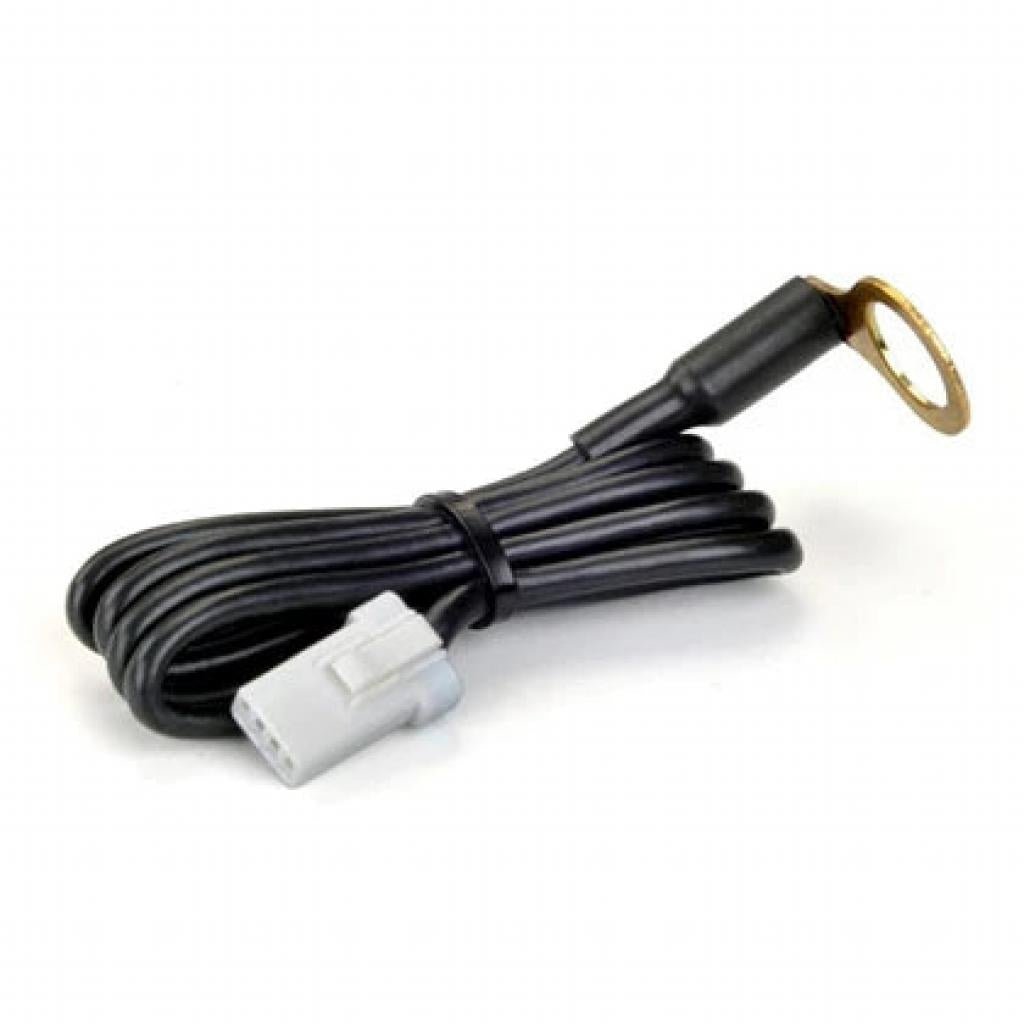

Sensor, CHT, 10mm
CHT Temperature Sensor
7500-3010
10mm CHT

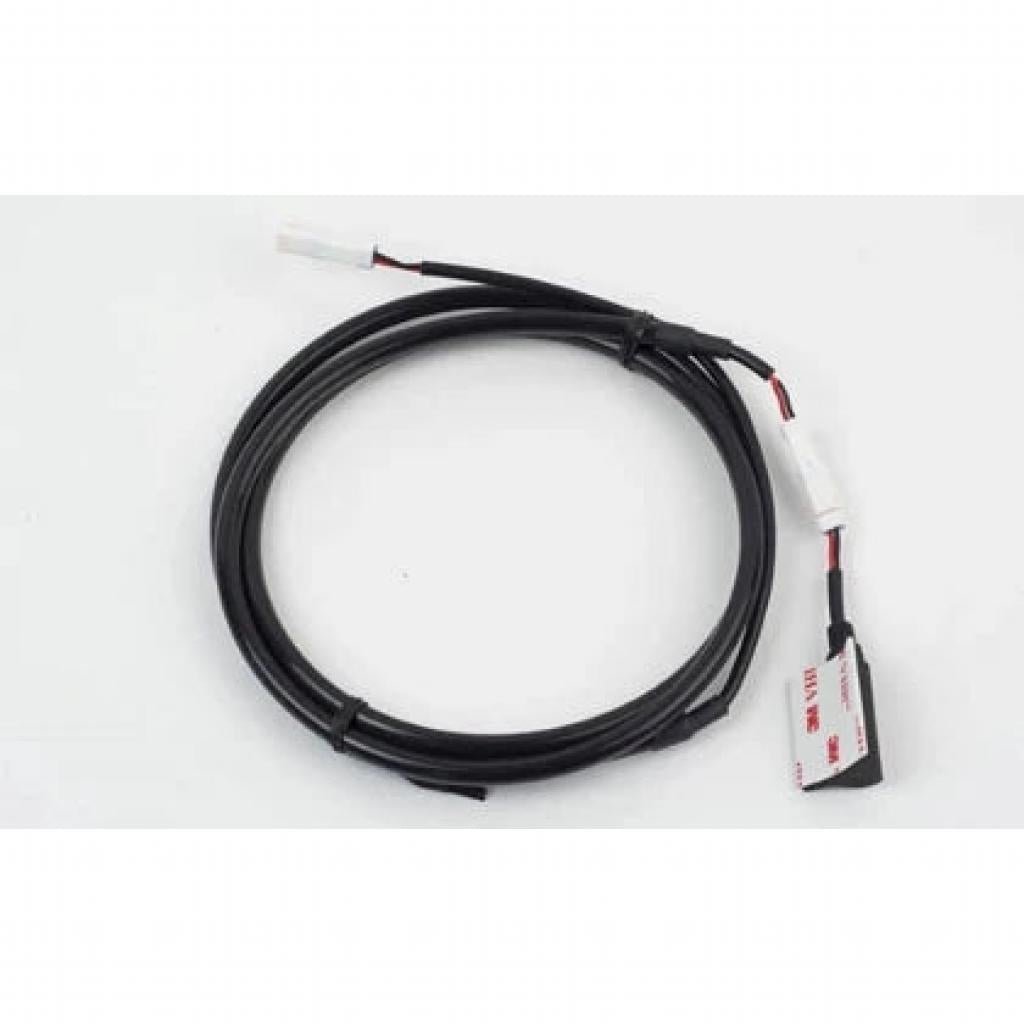

Sensor, Wheel Speed, 704-06
Wheel Speed Sensor
704-06
Generic Conventional Forks

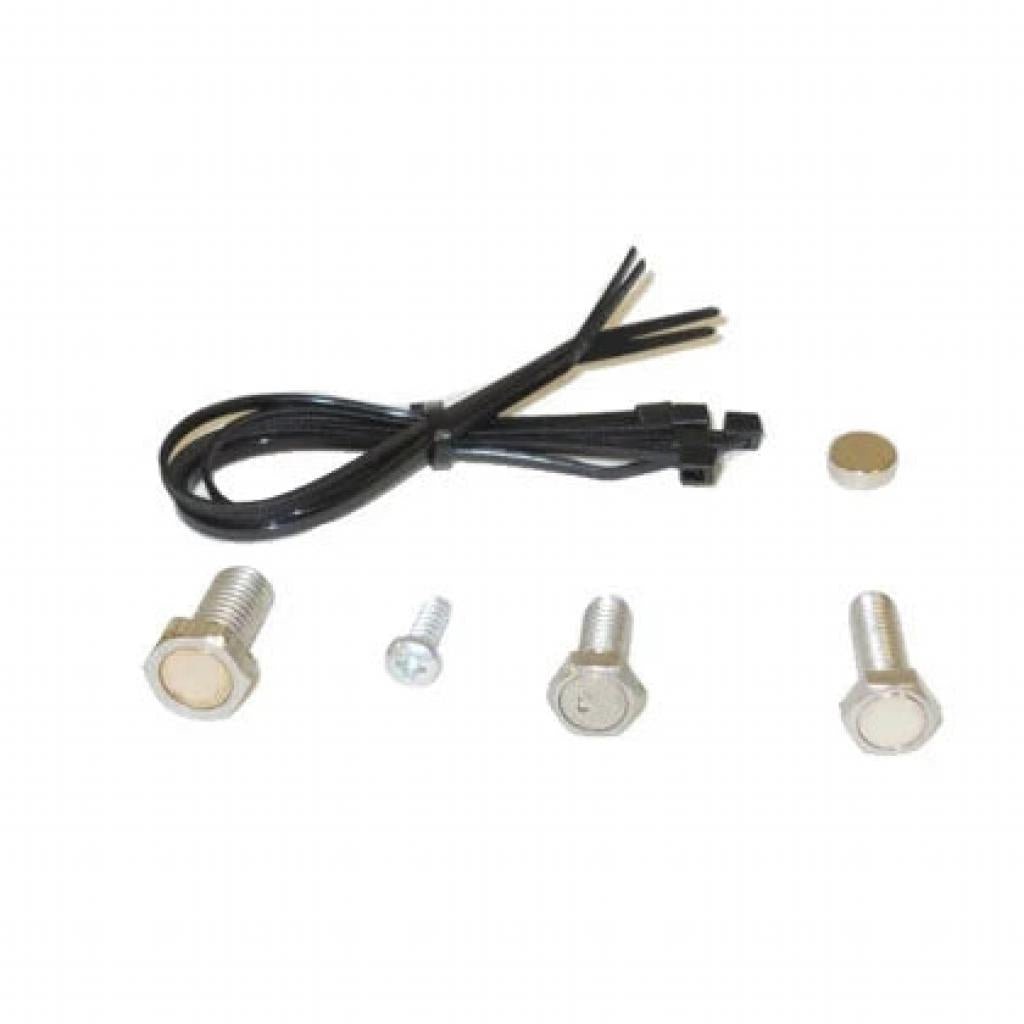

Sensor, Magnets, 704-01
Magnet Kit
704-01
Multi Bolt Selection

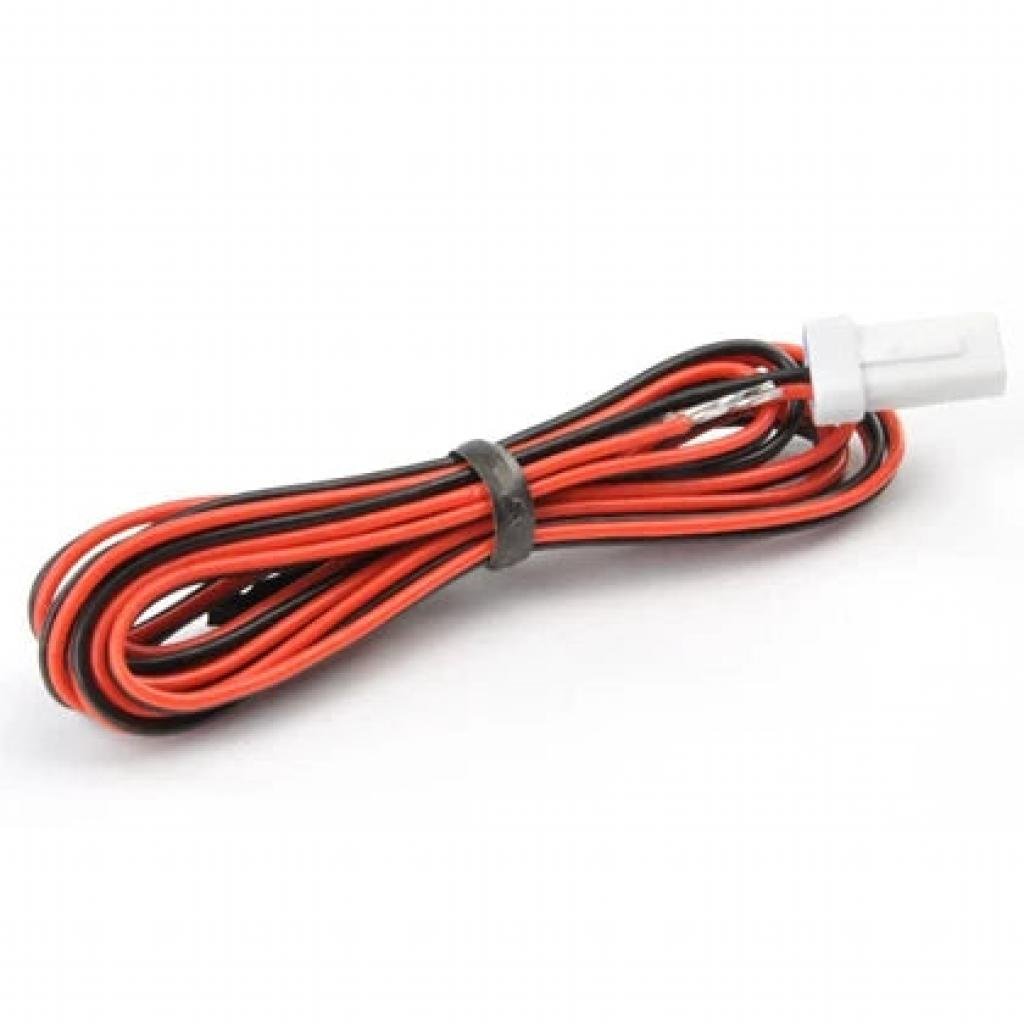

Sensor, Tachometer, 70in
TACH SENSOR
9000-1021
70in, Senses Engine RPM

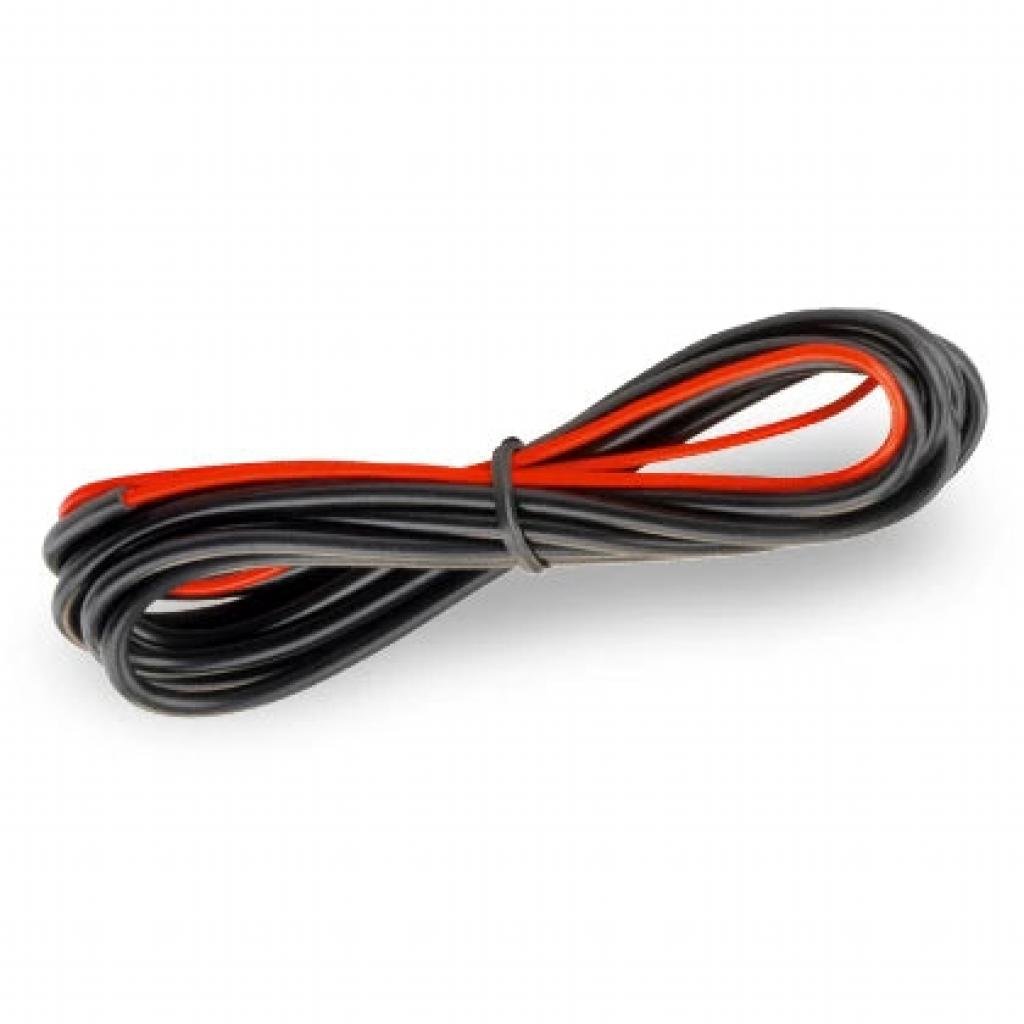

Sensor, Power Wire, 48in
POWER WIRE
9000-1011
48", Connect to Vehicle Battery

Fitment:

• Honda CRF125F 2014 to 2019
• Honda CRF125FB 2014 to 2019
• Honda CRF150F 2006 to 2009
• Honda CRF150F 2012 to 2017
• Honda NPS50 Ruckus [Scooter] 2002 to 2019
• Honda NPS50S Ruckus [Scooter] 2004 to 2009
• Honda PS250 Big Ruckus 2005 to 2006
• Honda XR250R 1981 to 1982
• Honda XR250R 1984 to 2004
• Honda XR400R 1996 to 2004
• Honda XR600R 1985 to 2000
• Honda XR650L 1993 to 2009
• Honda XR650L 2012 to 2019
• Kawasaki KLX140 2008 to 2009
• Kawasaki KLX140 2011 to 2019
• Kawasaki KLX140G 2017 to 2019
• Kawasaki KLX140L 2008 to 2009
• Kawasaki KLX140L 2011 to 2019
• Polaris RZR 170 2009 to 2016
• Suzuki DR650S 1990 to 1995
• Suzuki DR650S 2015 to 2019
• Suzuki DR650SE 1996 to 2009
• Suzuki DR650SE 2011 to 2014
• Suzuki DR650SES 1991 to 1995
