Overview & Specs

• Trail Tech Voyager Pro, the Connected Rider’s GPS. A premium off-road GPS with 4 inch color touchscreen anti-glare display, sealed and rated IP67 for anti dust/water intrusion
• The map screen is enabled with base maps, topography lines, hill shading, and some trails. Record or load GPX trails and riding areas, and transfer to a PC using the MicroSD card. Voyager Pro comes loaded with North American maps, but other map regions can be downloaded for free.
• Amongst the major features is Buddy Tracking. Buddy Tracking uses localized radio signals and can support up to 20 riders in a single group. View members of your ride group on the map screen in real time, increase your following distances, and use the buddy beacon to summon your buddies. Cell reception is not required.
• Buddy tracking displays the current location of up to 20 members of your ride group on the map screen
• Voyager Pro is Bluetooth enabled for intercom, phone and media controls. Play songs from your phone or MicroSD card using a Bluetooth headset, speaker, or intercom. Two phones and two headsets can be connected at the same time.

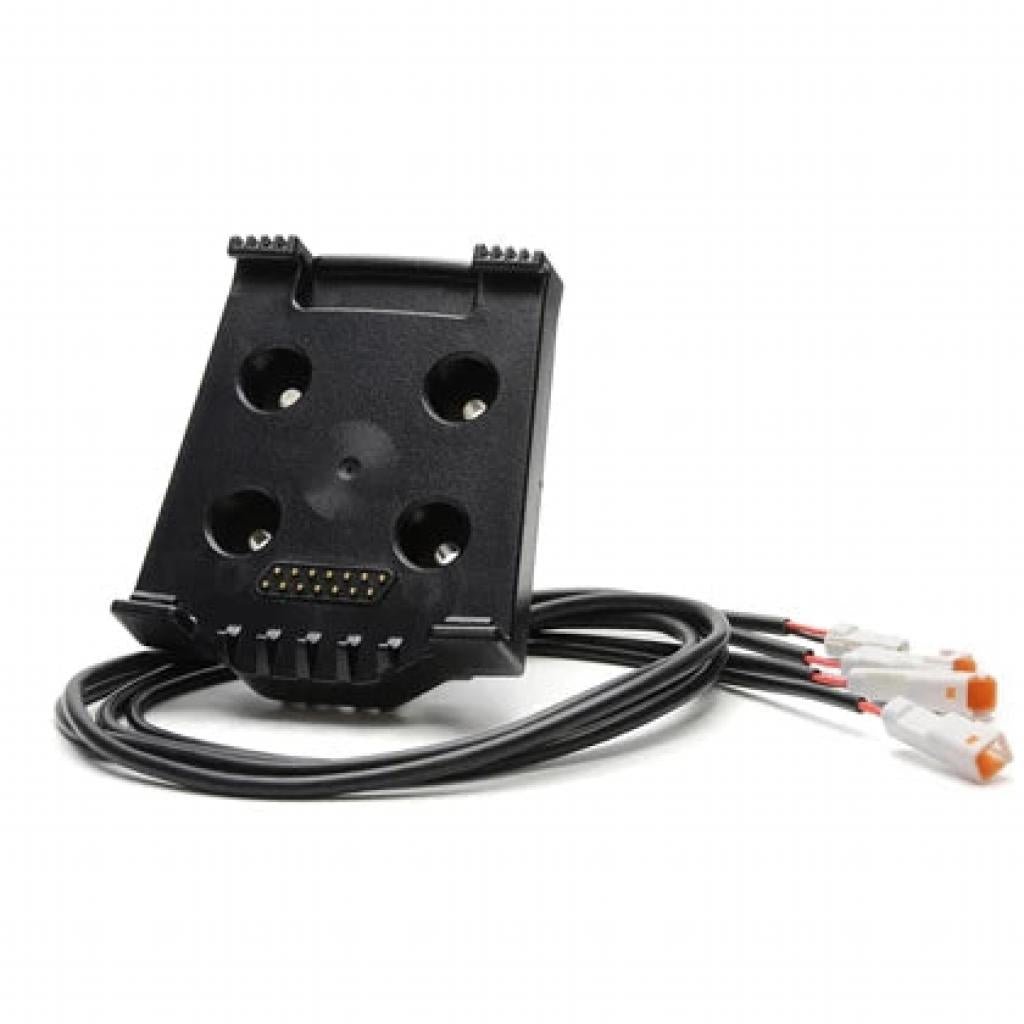

• The 4 inch glove friendly color touchscreen TFT display is visible in all conditions, including direct sunlight. Sealed and rated IP67 for anti-dust and water intrusion, it is built to withstand the harshest elements that come with extreme riding conditions. The mounting dock hard mounts to the dashboard, can be locked, and allows for quick removal of Voyager Pro from the machine. The dock utilizes the AMPs hole pattern, and is compatible with the full line of RAM brand mounts or Trail Tech mounting hardware.

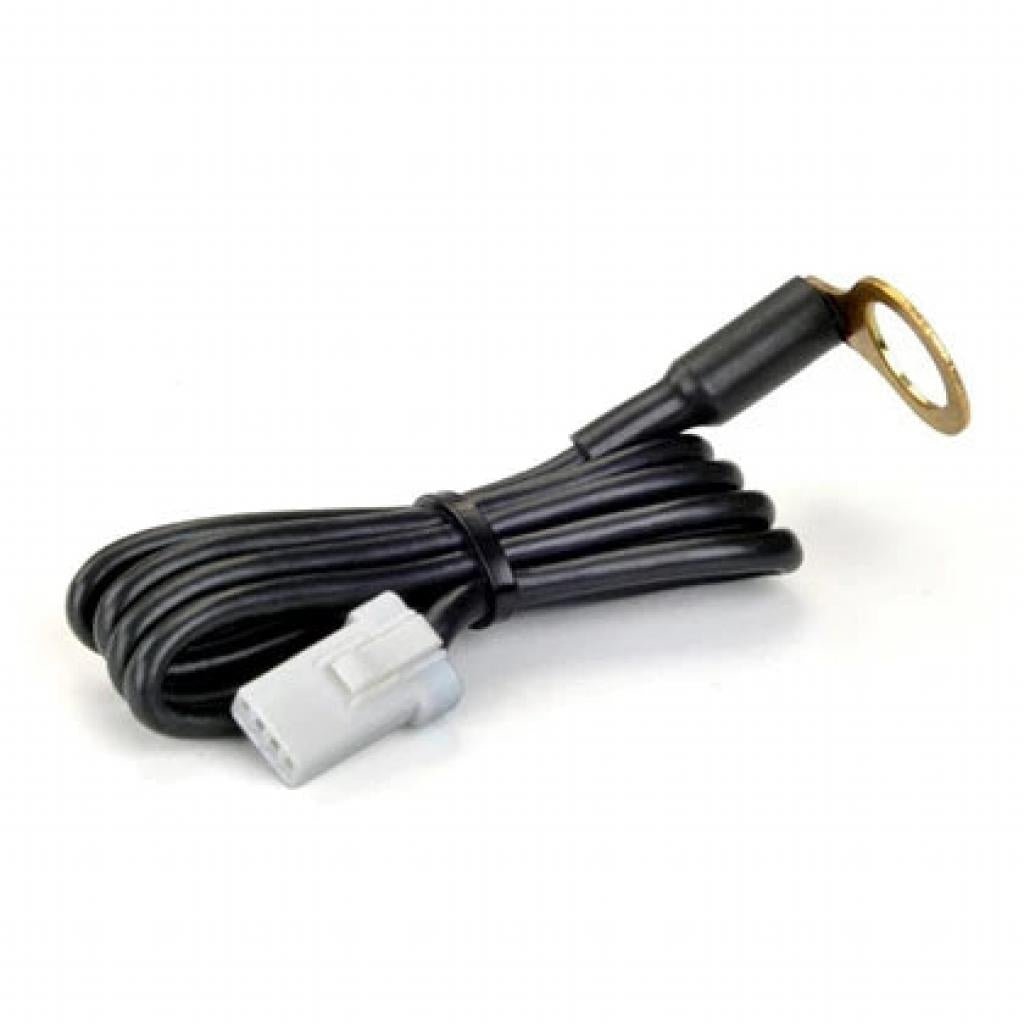

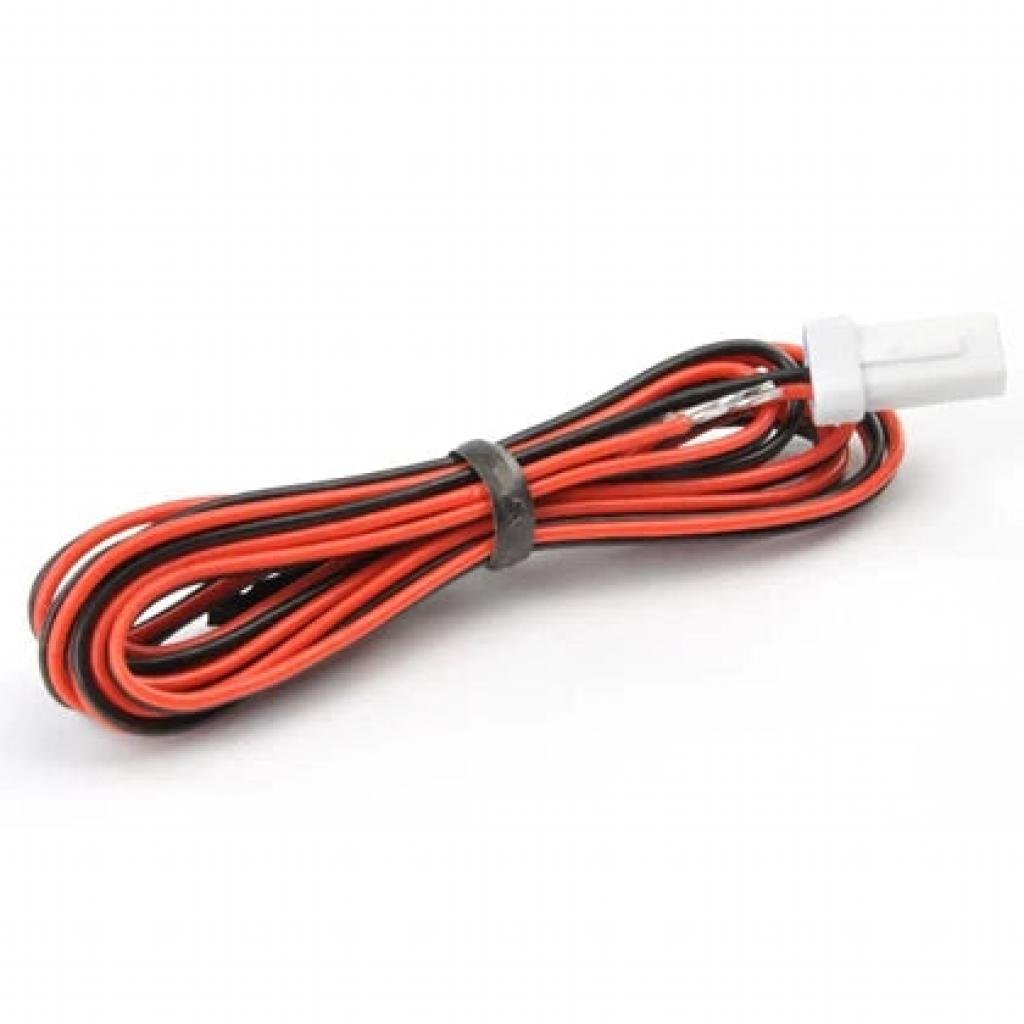

• Voyager Pro integrates with your vehicle using standard Trail Tech vehicle sensors, providing vital ride data such as engine temperature, RPM, battery voltage, speed/distance and more.
• At 5.6 x 3.5 inches, Voyager Pro still fits on dirt bike dashboards, but is big enough to use on adventure bikes and UTVs. Voyager Pro’s mapping abilities and buddy tracking make it the premium choice for off-road riders.

Warranty: 1 Year Warranty
Subbed From: 922-117

VOYAGER PRO SCREENS AND ABILITIES OVERVIEW

CLUSTER SCREEN
Dashboard Gauges
Get speed from the GPS or a wheel sensor. Displays speed, temperature, distance, elevation and voltage.

TACHBAR SCREEN
"Everybody loves the tach graph!"
The tach screen is dominated by a large animated tachometer bar graph. It also displays ambient temperature, trip distance and current speed.

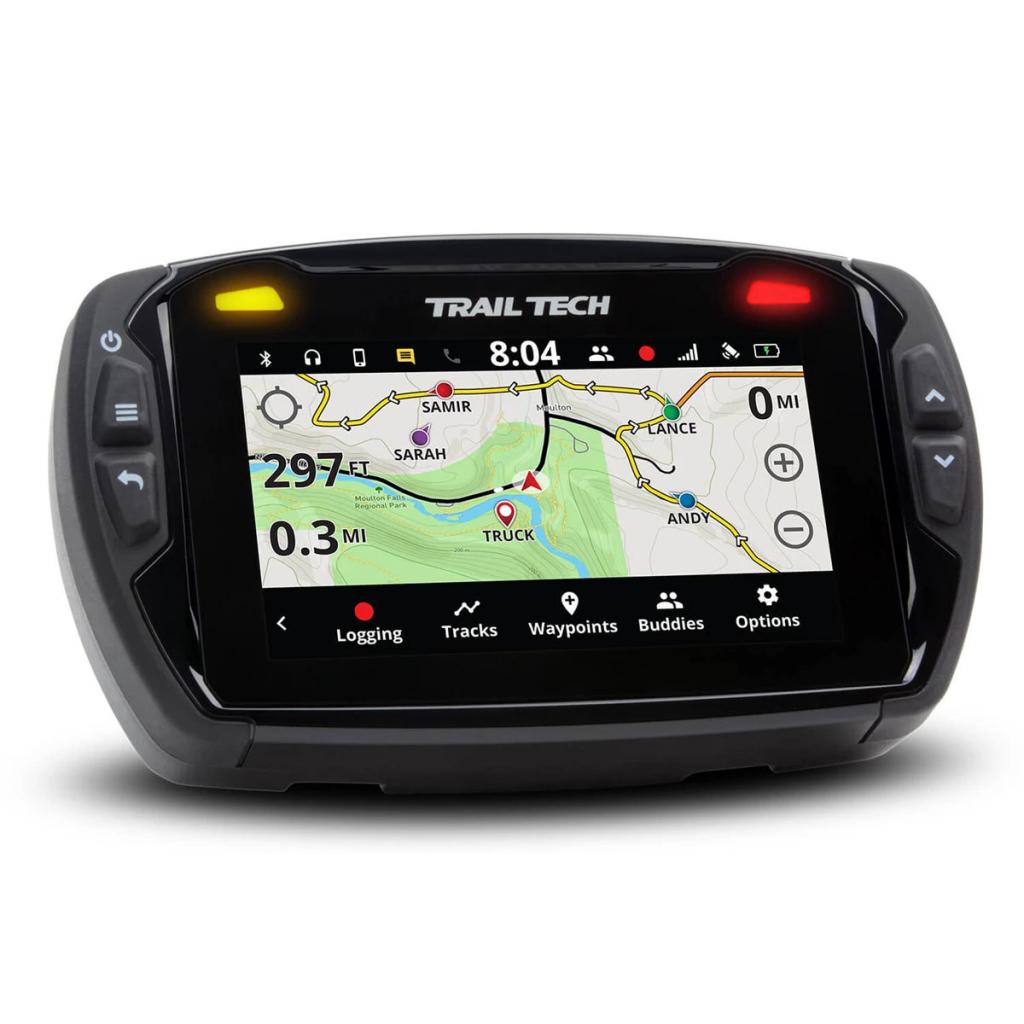

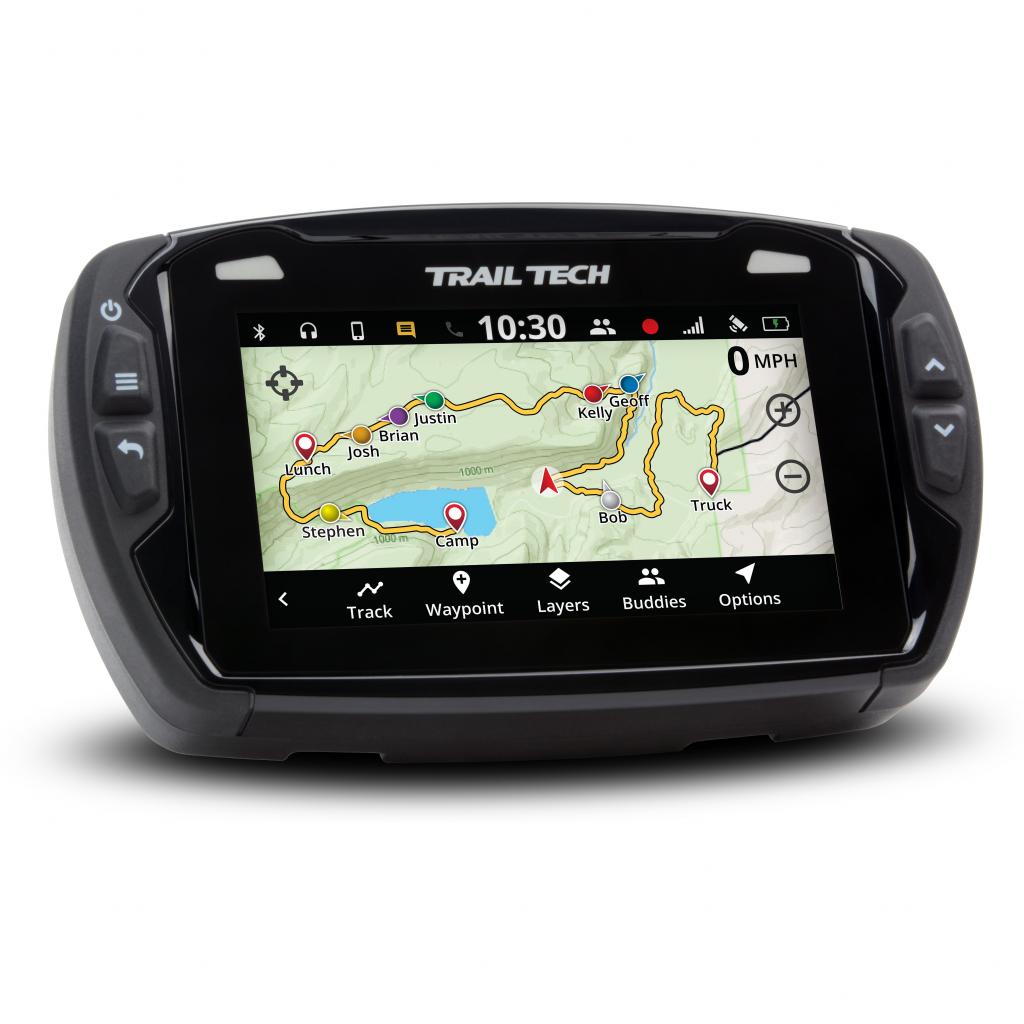

MAP SCREEN
GPS MAPS WITH BUDDY TRACKING
Color maps with topo and hillshading. Supports tracks, routes, waypoints. Plan and record entire trail systems. *Patent pending.

MEDIA SCREEN
BLUETOOTH INTERACTION
Control volume, song playback (phone or SD card), dialing, call history and messaging features. Compatible with Bluetooth headphones and headsets such as Lexin, Cardo and Sena.

USER SCREEN
Choose your own gauges
The user screen is customizable. You can choose up to 6 gauge readouts from a long list of options. Select fewer gauges to make the remaining readouts larger.

STOPWATCH SCREEN
Simple lap timer
Tap the large circle to begin counting. Tap it again to take note of the first lap off to the side and start timing a new lap.

SATELLITE SCREEN
GPS satellites in range
The satellite screen displays a graph of the sky and visible GPS satellites in orbit. The graph to the side shows the relative signal strength of each satellite.

SETTINGS MENU
Detailed settings and user guide
The Settings Menu is where Voyager Pro is customized to your needs. You can access the settings menu from the main screens by pressing the menu button.

VOYAGER PRO BUDDY TRACKING RANGE

BUDDY TRACKING ACTIVE IN GREEN REGIONS

Buddy Tracking displays the members of your ride group on the Voyager Pro Map Screen.

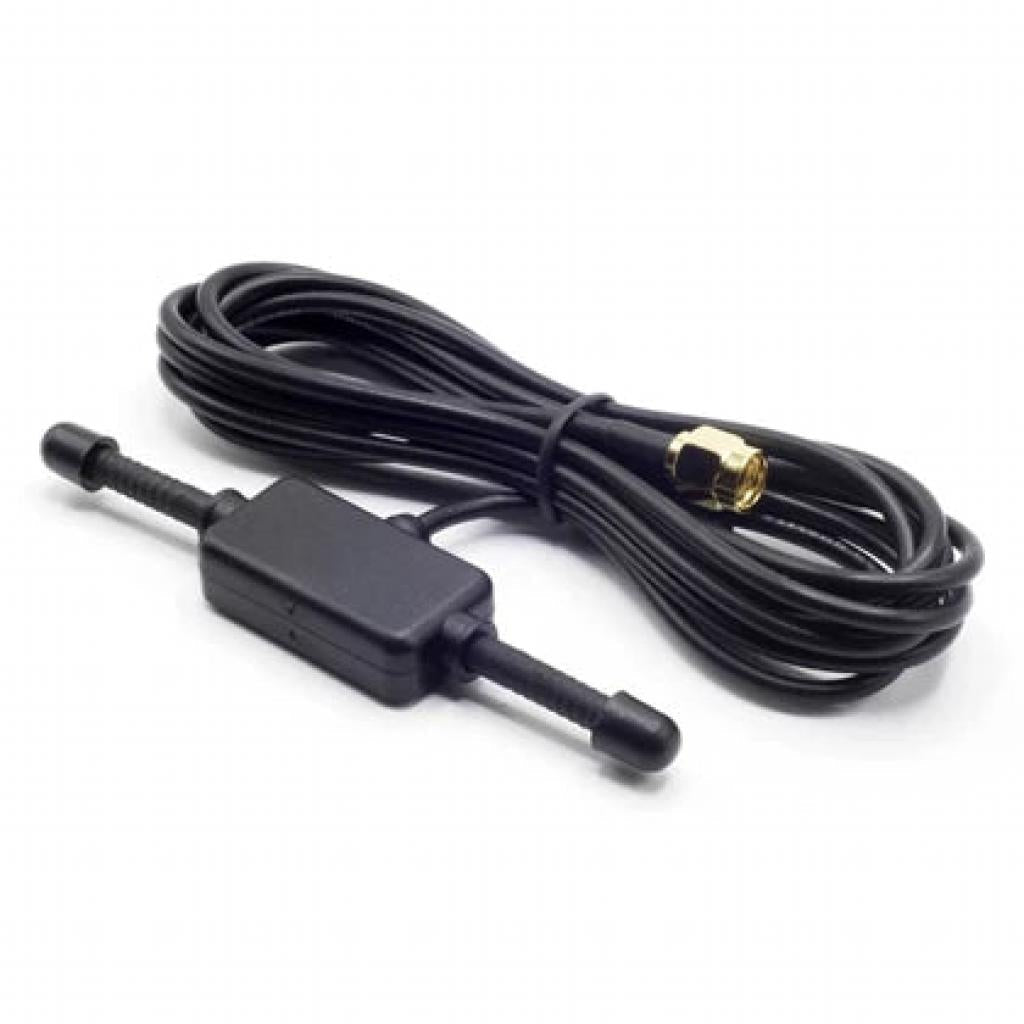

Buddy Tracking uses radio signals and GPS to calculate the location of each member. In some countries, Buddy Tracking must be disabled by law.

Buddy Tracking is compatible with POLARIS RIDECOMMAND GROUP RIDE. Integrate seamlessly into Polaris ride groups

Fitment:

• Honda CRF125F 2014-2021
• Honda CRF125FB 2014-2021
• Honda CRF150F 2006-2017
• Honda NPS50 Ruckus [Scooter] 2002-2019
• Honda NPS50S Ruckus [Scooter] 2004-2009
• Honda PS250 Big Ruckus 2005-2006
• Honda XR250R 1981-2004
• Honda XR650L 2000-2019
• Kawasaki KLX140 2011-2020
• Kawasaki KLX140L 2010-2020
• Kawasaki KLX140R L 2021
• Polaris RZR 170 2009-2019
• Suzuki DR-Z250 2001-2007
• Suzuki DR650S 1990-2021
• Suzuki DR650SE 1996-2021
• Yamaha TT-R125 2001-2003
• Yamaha TT-R125E 2003-2009
• Yamaha TT-R125L 2001-2008
• Yamaha TT-R125LE 2003-2021
