Description

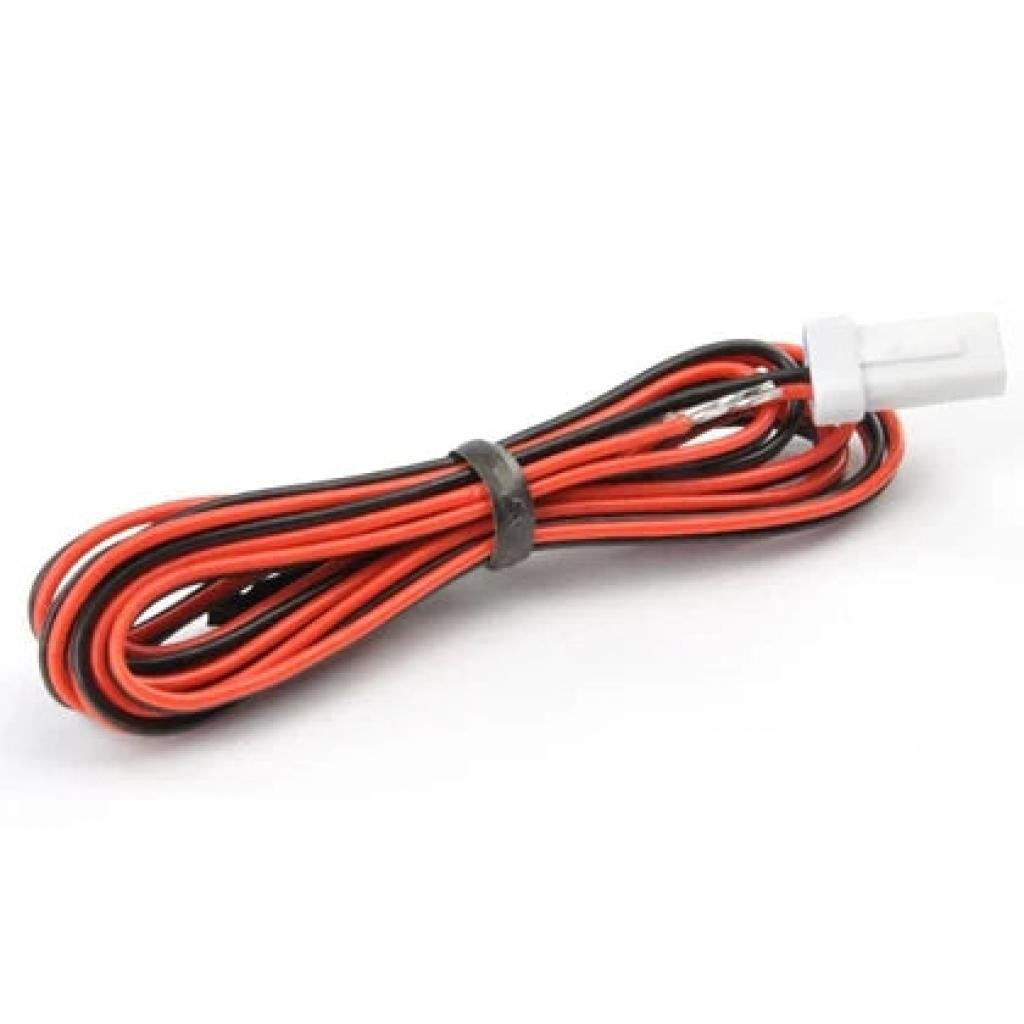

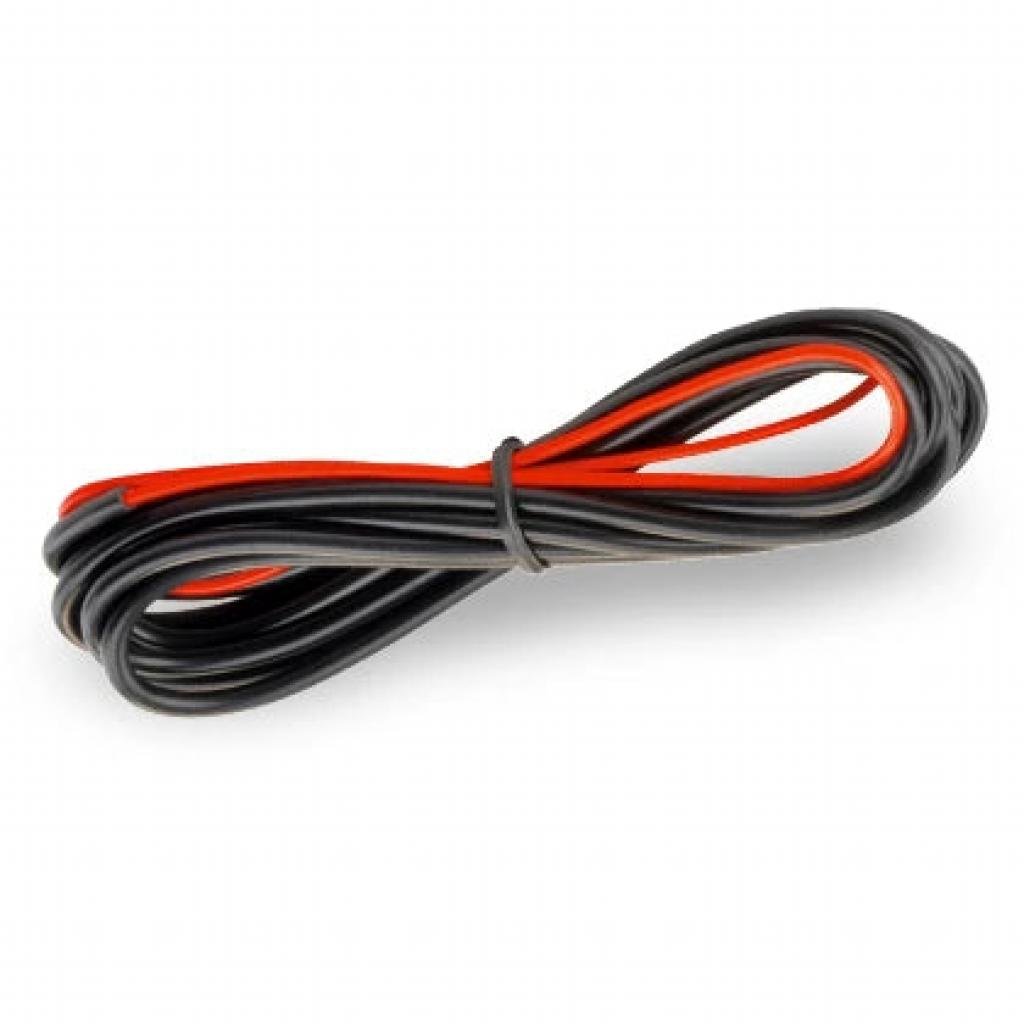

Voyager Pro, The Connected Rider’s GPS. Trail Tech offers a variety of model specific and universal kits for complete vehicle integration. All kits include mounting hardware, tach sensor, and power connection. Temperature and wheel sensors vary by kit, see kit contents for details. Adventure Begins Here!

• Powersports GPS with topo maps and sunlight readable touchscreen
• Group Ride technology enabled for real time buddy tracking
• Bluetooth phone audio and wireless headset control
• Vehicle integrated sensors with gauge screens and GPS speed
• Compatible with RAM Mounts and CalTopo.com GPX tools
• Compatible with POLARIS RIDECOMMAND® Group Ride
• Model-specific and universal vehicle kits

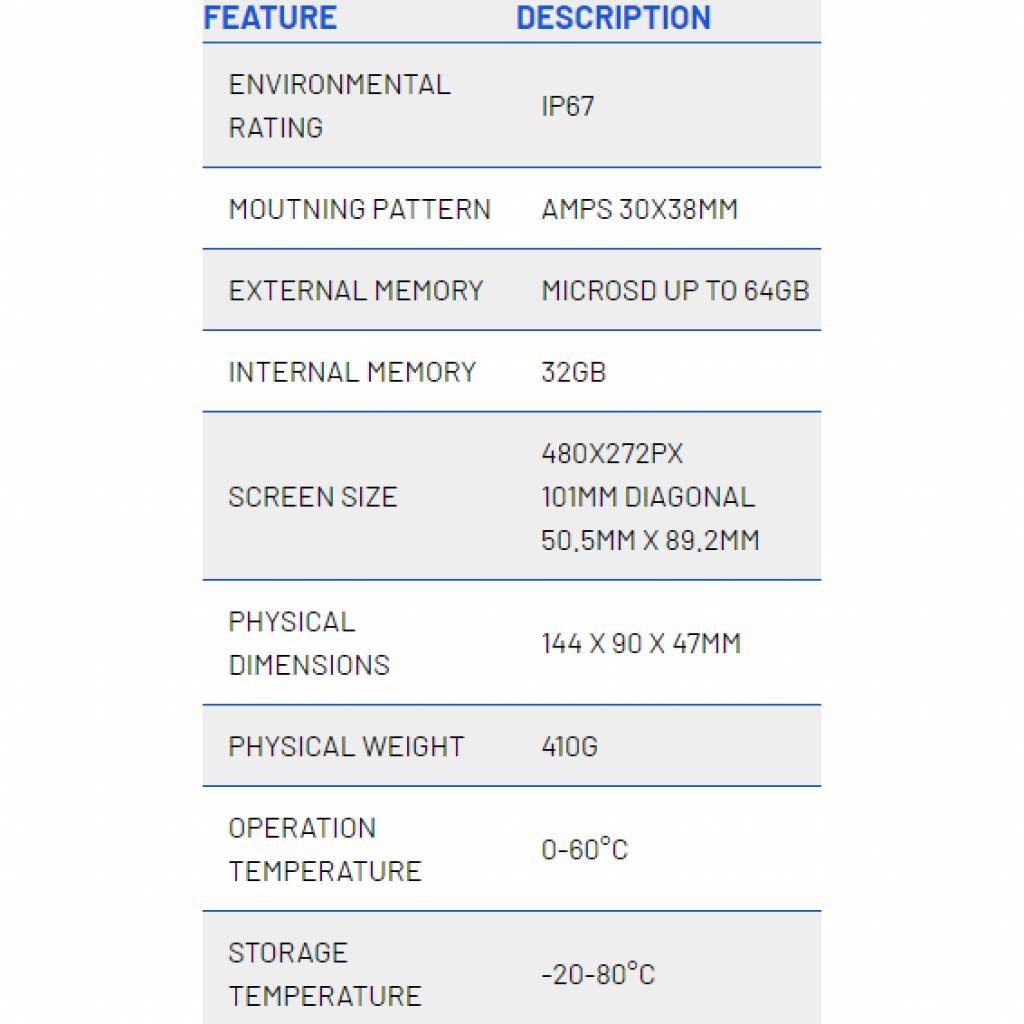

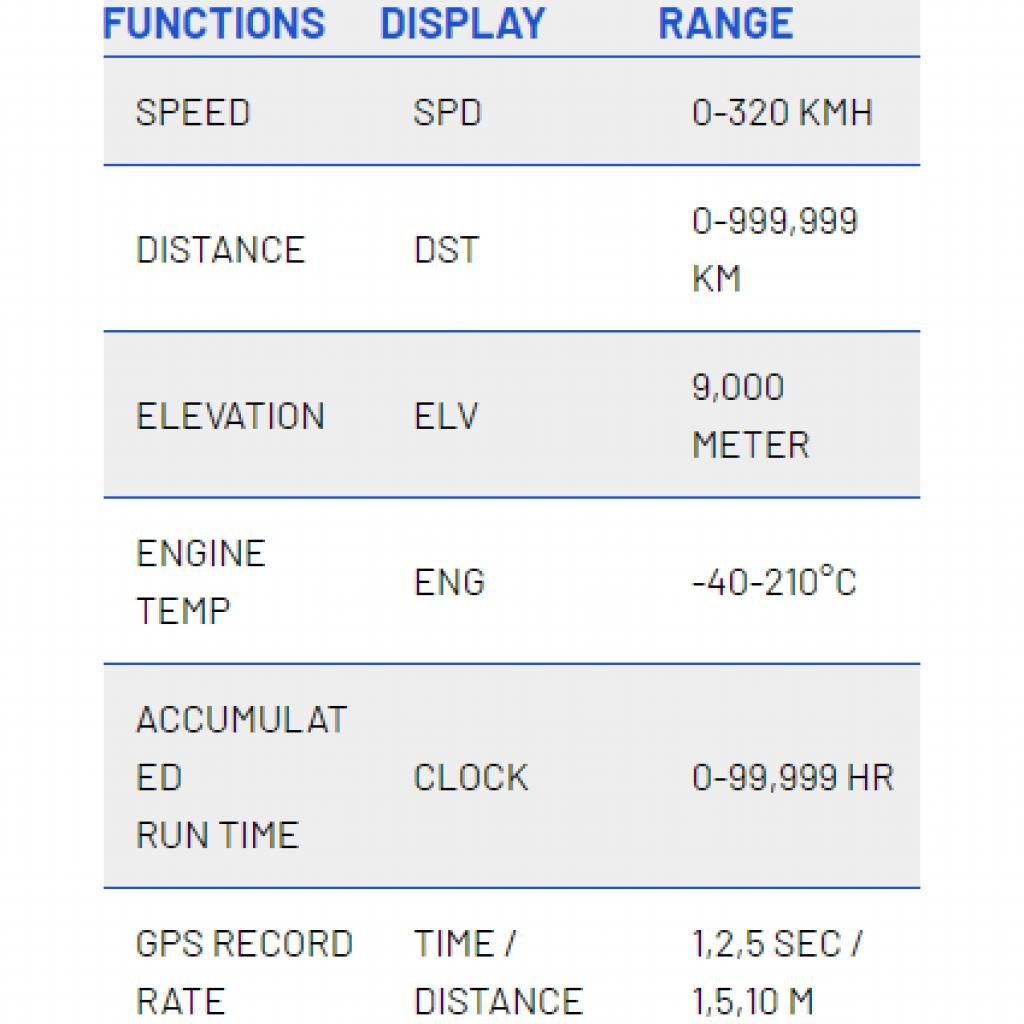

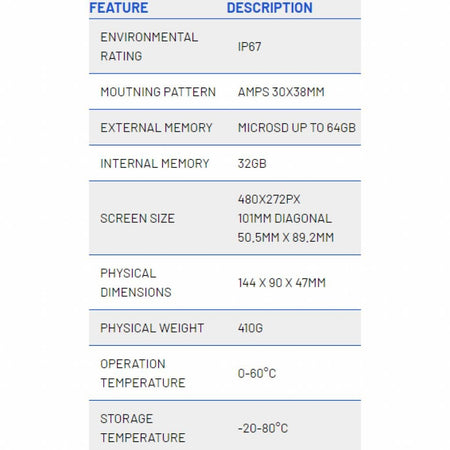

Overview & Specs

• Trail Tech Voyager Pro, the Connected Rider’s GPS. A premium off-road GPS with 4 inch color touchscreen anti-glare display, sealed and rated IP67 for anti dust/water intrusion
• The map screen is enabled with base maps, topography lines, hill shading, and some trails. Record or load GPX trails and riding areas, and transfer to a PC using the MicroSD card. Voyager Pro comes loaded with North American maps, but other map regions can be downloaded for free.
• Amongst the major features is Buddy Tracking. Buddy Tracking uses localized radio signals and can support up to 20 riders in a single group. View members of your ride group on the map screen in real time, increase your following distances, and use the buddy beacon to summon your buddies. Cell reception is not required.
• Buddy tracking displays the current location of up to 20 members of your ride group on the map screen
• Voyager Pro is Bluetooth enabled for intercom, phone and media controls. Play songs from your phone or MicroSD card using a Bluetooth headset, speaker, or intercom. Two phones and two headsets can be connected at the same time.

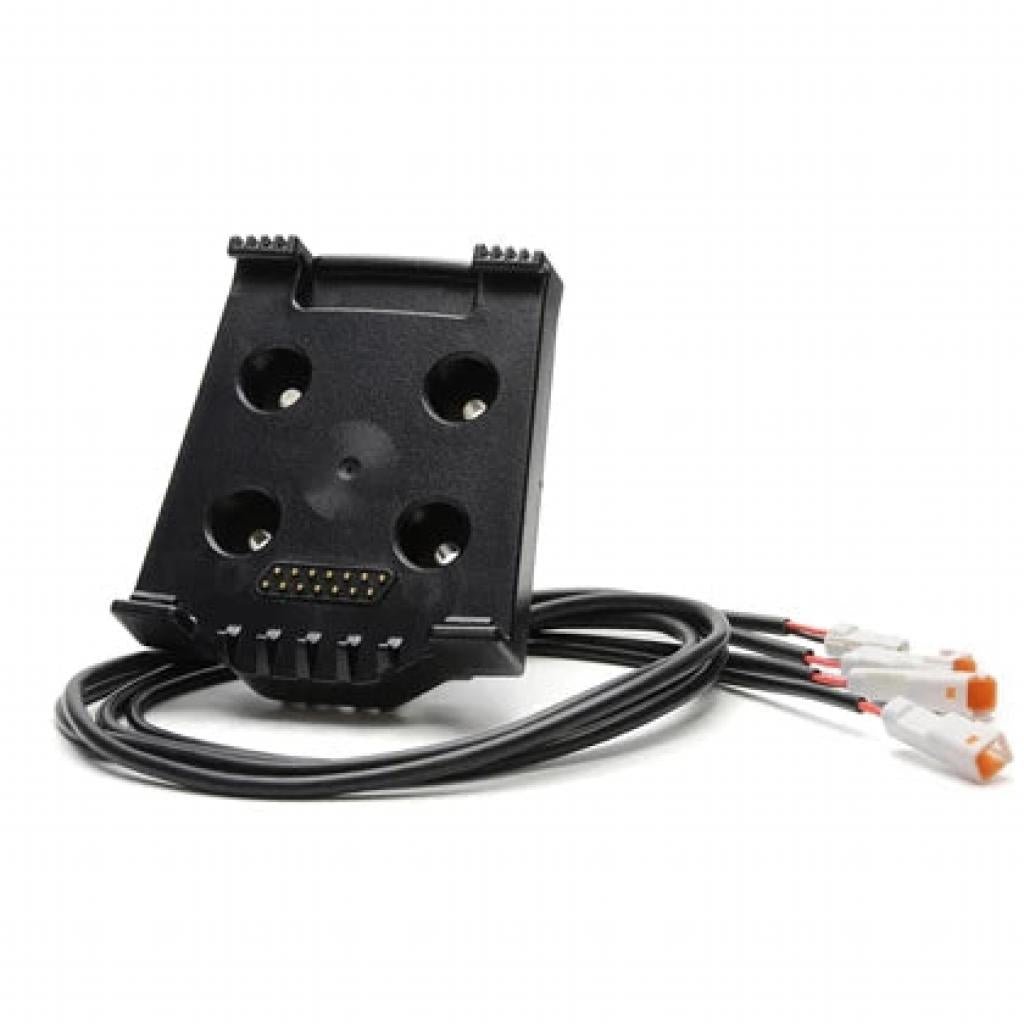

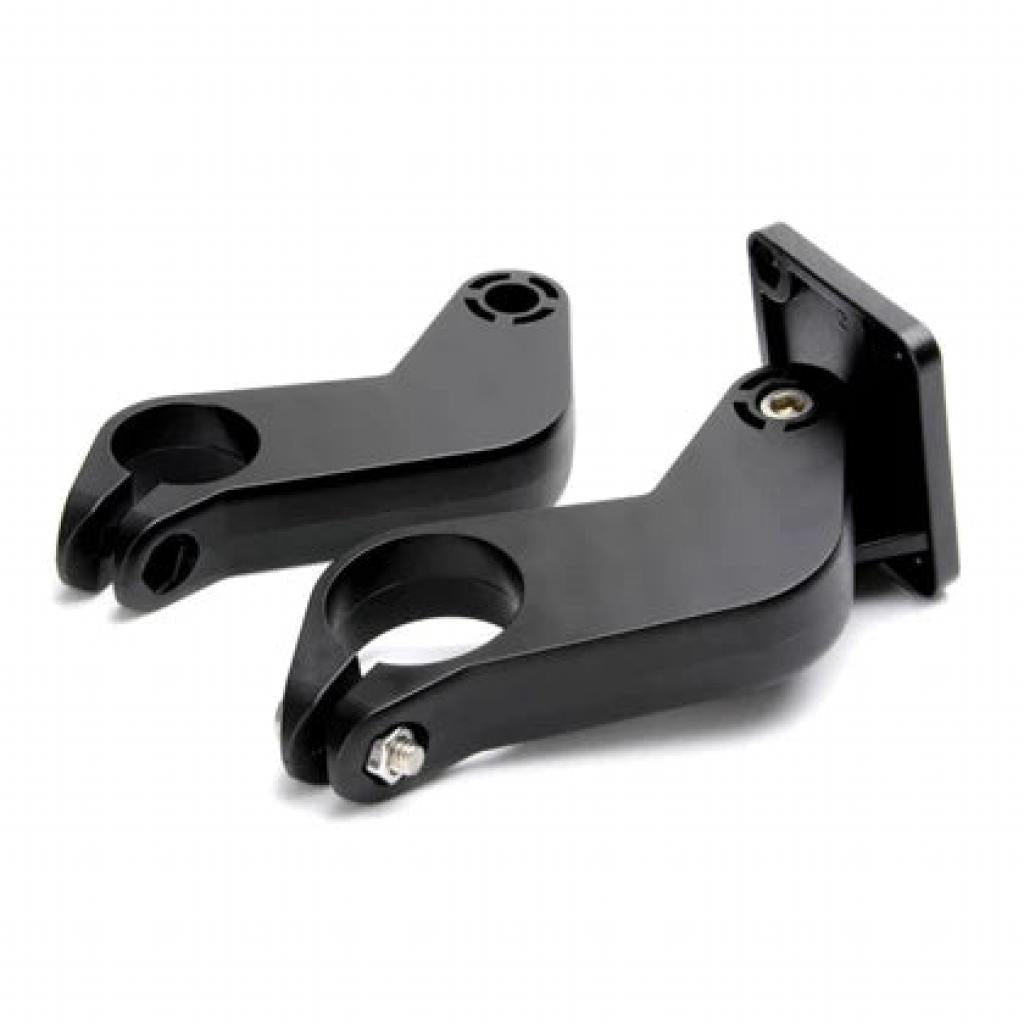

• The 4 inch glove friendly color touchscreen TFT display is visible in all conditions, including direct sunlight. Sealed and rated IP67 for anti-dust and water intrusion, it is built to withstand the harshest elements that come with extreme riding conditions. The mounting dock hard mounts to the dashboard, can be locked, and allows for quick removal of Voyager Pro from the machine. The dock utilizes the AMPs hole pattern, and is compatible with the full line of RAM brand mounts or Trail Tech mounting hardware.

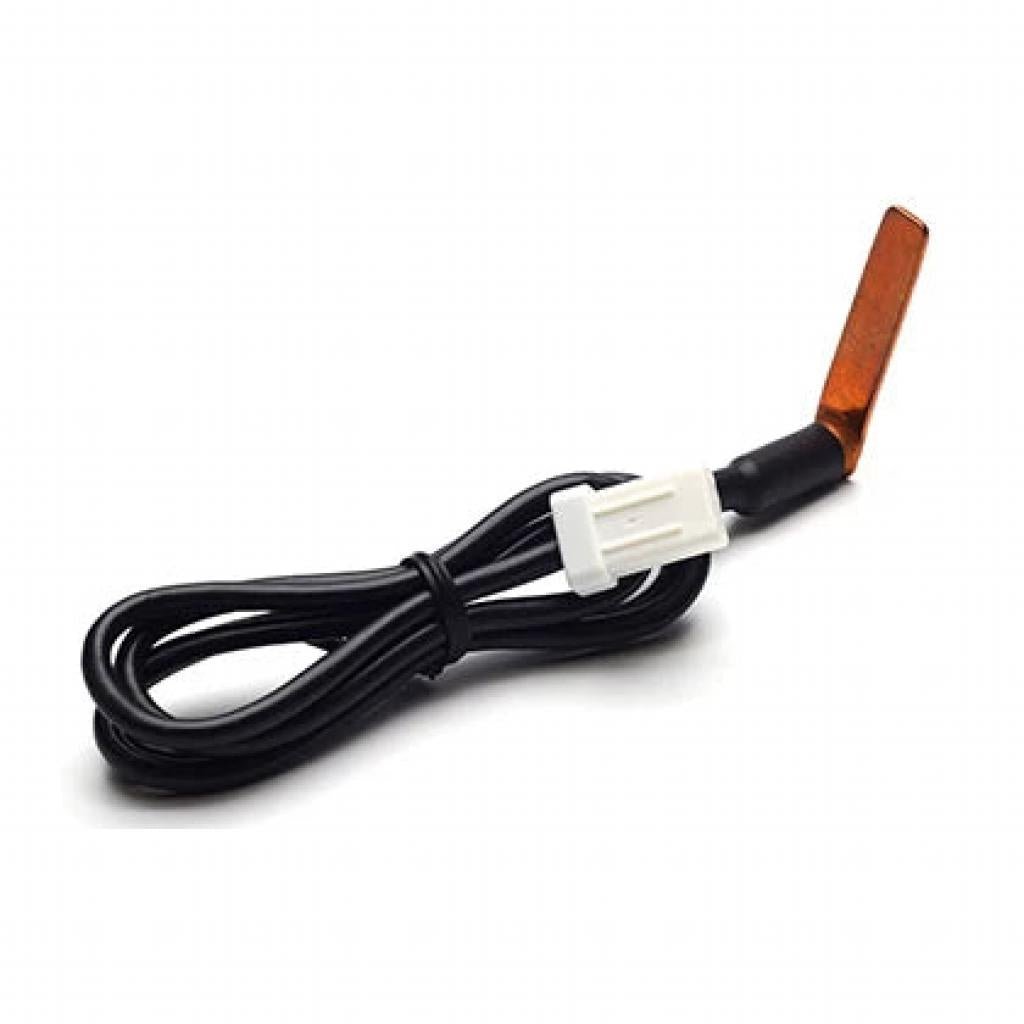

• Voyager Pro integrates with your vehicle using standard Trail Tech vehicle sensors, providing vital ride data such as engine temperature, RPM, battery voltage, speed/distance and more.
• At 5.6 x 3.5 inches, Voyager Pro still fits on dirt bike dashboards, but is big enough to use on adventure bikes and UTVs. Voyager Pro’s mapping abilities and buddy tracking make it the premium choice for off-road riders.

Warranty: 1 Year Warranty
Subbed From: 922-119,922-121,922-118

VOYAGER PRO SCREENS AND ABILITIES OVERVIEW

CLUSTER SCREEN
Dashboard Gauges
Get speed from the GPS or a wheel sensor. Displays speed, temperature, distance, elevation and voltage.

TACHBAR SCREEN
"Everybody loves the tach graph!"
The tach screen is dominated by a large animated tachometer bar graph. It also displays ambient temperature, trip distance and current speed.

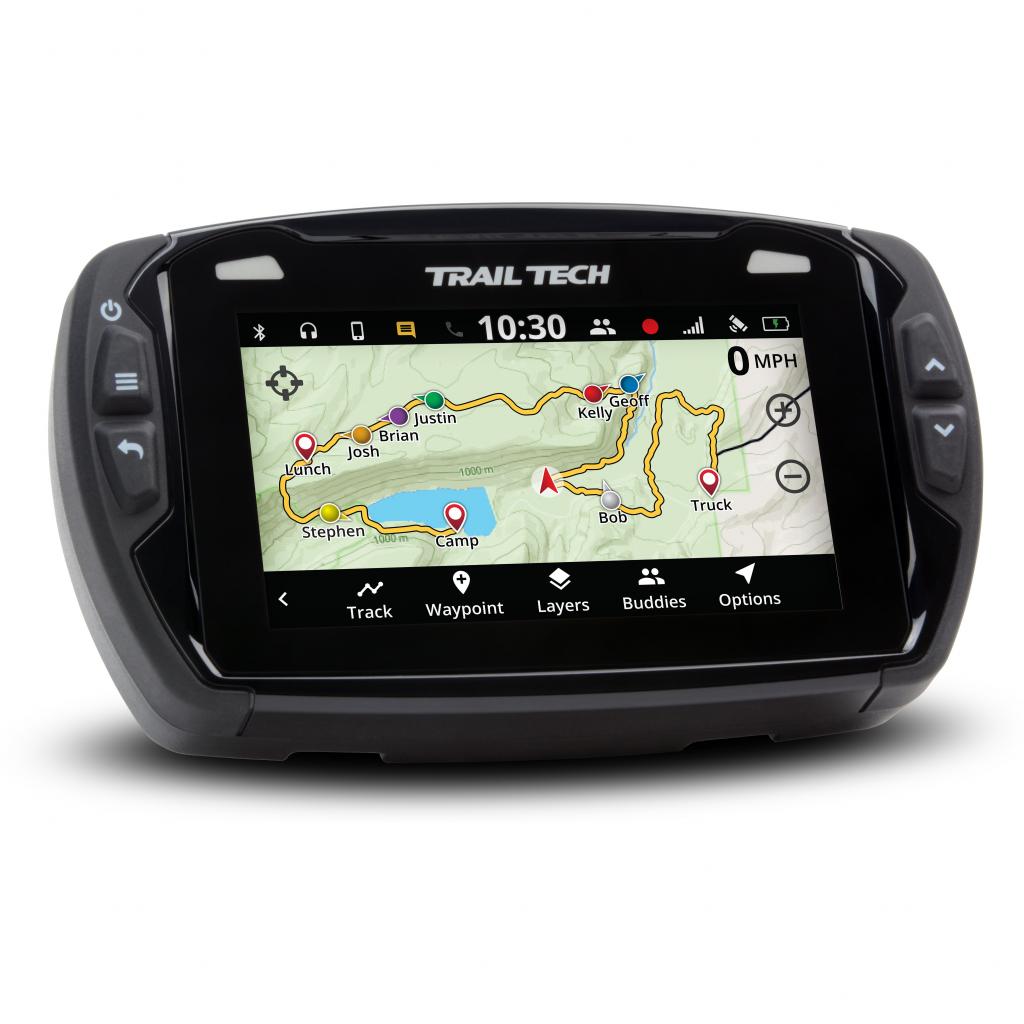

MAP SCREEN
GPS MAPS WITH BUDDY TRACKING
Color maps with topo and hillshading. Supports tracks, routes, waypoints. Plan and record entire trail systems. *Patent pending.

MEDIA SCREEN
BLUETOOTH INTERACTION
Control volume, song playback (phone or SD card), dialing, call history and messaging features. Compatible with Bluetooth headphones and headsets such as Lexin, Cardo and Sena.

USER SCREEN
Choose your own gauges
The user screen is customizable. You can choose up to 6 gauge readouts from a long list of options. Select fewer gauges to make the remaining readouts larger.

STOPWATCH SCREEN
Simple lap timer
Tap the large circle to begin counting. Tap it again to take note of the first lap off to the side and start timing a new lap.

SATELLITE SCREEN
GPS satellites in range
The satellite screen displays a graph of the sky and visible GPS satellites in orbit. The graph to the side shows the relative signal strength of each satellite.

SETTINGS MENU
Detailed settings and user guide
The Settings Menu is where Voyager Pro is customized to your needs. You can access the settings menu from the main screens by pressing the menu button.

VOYAGER PRO BUDDY TRACKING RANGE

BUDDY TRACKING ACTIVE IN GREEN REGIONS

Buddy Tracking displays the members of your ride group on the Voyager Pro Map Screen.

Buddy Tracking uses radio signals and GPS to calculate the location of each member. In some countries, Buddy Tracking must be disabled by law.

Buddy Tracking is compatible with POLARIS RIDECOMMAND GROUP RIDE. Integrate seamlessly into Polaris ride groups.

Fitment:

• Husaberg FE 250 2013-2014
• Husaberg FE 350 2013-2014
• Husaberg FE 450 2013-2014
• Husaberg FE 501 2013-2014
• Husaberg Te250 2013-014
• Husaberg Te300 2013-2014
• Husqvarna FC 250 2015-2016
• Husqvarna FC 350 2015-2016
• Husqvarna FC 450 2015-2016
• Husqvarna FE 250 2015-2016
• Husqvarna FE 350 2015-2016
• Husqvarna FE 350S 2015-2016
• Husqvarna FE 450 2015-2016
• Husqvarna FE 501 2015-2016
• Husqvarna FE 501S 2015-2016
• Husqvarna TE 125 2015-2016
• Husqvarna TE 250 2015-2016
• Husqvarna TE 300 2015-2016
• KTM 125 Exc 2000-2007
• KTM 200 Exc 2000-2005
• KTM 200 Mxc 2000-2003
• KTM 200 Xc 2008-2009
• KTM 200 Xc-W 2008-2016
• KTM 250 EXC 2000-2005
• KTM 250 EXC-F 2003-2005
• KTM 250 MXC 2000-2003
• KTM 250 SX-F 2005-2015
• KTM 250 SX-F Factory Edition 2015-2016
• KTM 250 XC 2008-2016
• KTM 250 XC-F 2007-2015
• KTM 250 XC-W 2008-2016
• KTM 250 XCF-W 2006-2016
• KTM 300 EXC 2000-2007
• KTM 300 MXC 2000-2005
• KTM 300 XC 2008-2016
• KTM 300 XC-W 2008-2016
• KTM 350 EXC-F 2012-2016
• KTM 350 SX-F 2010-2015
• KTM 350 XC-F 2010-2015
• KTM 350 XCF-W 2008-2016
• KTM 380 Exc 2000-2002
• KTM 380 Mxc 2000-2002
• KTM 400 EXC 4-Stroke 2000-2006
• KTM 400 MXC 4-Stroke 2001-2002
• KTM 450 EXC-F 2003-2007
• KTM 450 EXC-R 4-Stroke 2008-2014
• KTM 450 MXC 4-Stroke 2003-2005
• KTM 450 SM-R 4-Stroke 2005-2009, 2013
• KTM 450 SX-F 2003-2015
• KTM 450 SX-F Factory Edition 2012-2015
• KTM 450 XC-F 2006-2015
• KTM 450 XCF-W 2006-2016
• KTM 500 EXC-F 2005-2016
• KTM 500 XCF-W 2012-2016
• KTM 505 Sx-F 2008-2009
• KTM 520 EXC 4-Stroke 2000-2002
• KTM 520 MXC 4-Stroke 2000-2002
• KTM 525 EXC 4-Stroke 2003-2006
• KTM 525 EXC-G 4-Stroke 2006-2007
• KTM 525 MXC 4-Stroke 2003-2006
• KTM 530 EXC-R 4-Stroke 2008-2012
• KTM 560 SMR 4-Stroke 2006-2008
• KTM Freeride 250R 4-Stroke 2015-2017
