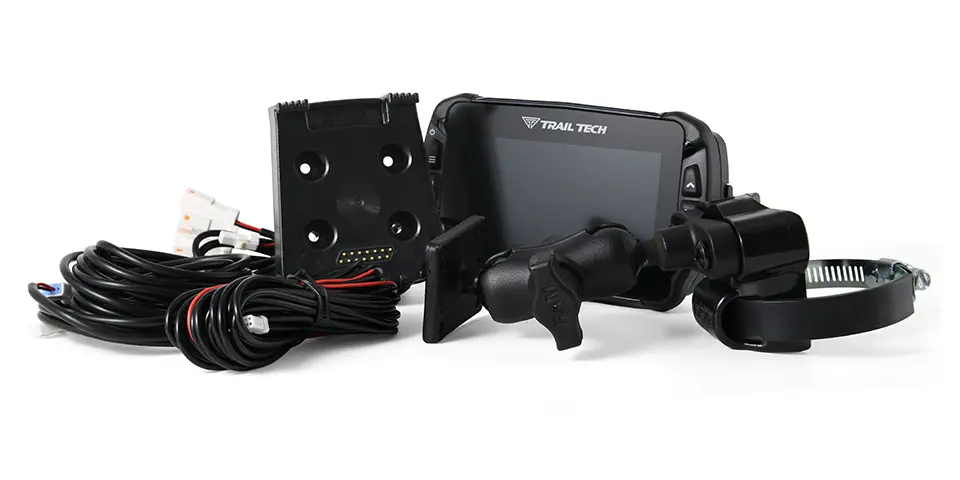

Voyager Pro4 UTV Kit
Product Details
- Type GPS Systems
- Vendor Trail Tech
- SKU 925-UTV
- Shipping Weight 1.5 lb
Bring more of the crew into view with the Voyager Pro4 UTV Kit: Buddy Tracking for up to 20 riders, no cell service required, ROPS-ready mounting, mapping, vehicle data, and compatibility with Polaris RIDE COMMAND Group Ride vehicles.
The Voyager Pro4 UTV Kit is built for the ride leader’s cockpit. It packages the VP4 head unit, plastic quick-release dock, Buddy Tracking antenna, 48 in power wire, extra-long ignition sensor, M6x1 temperature probe, 120 in temp-sensor extension lead, car charger accessory plug wire, RAM ROPS mount kit, and flat AMPS plate for a side-by-side-ready install.
The 4.3 in display gives the driver or co-driver one dedicated screen for the map, the route, the machine, and the group. VP4 supports GPX, GeoPDF, and Raster MBTiles, stores maps and routes on 32 GB of internal memory plus microSD up to 64 GB, and pairs over Bluetooth 5.1 to a compatible phone and headset for music controls, calls, and text alerts.
Buddy Tracking uses radio signals plus GPS so VP4-equipped riders can appear on the group map without relying on cell service. The included V2V antenna enables Buddy Tracking for up to 20 riders, with Buddy Tails, Navigate to Buddy, and Buddy Beacon regroup messaging. Buddy Tracking groups are compatible with Polaris RIDE COMMAND Group Ride vehicles, giving mixed-machine crews a cleaner way to keep more riders in view.
Voyager Pro4: bring more of the group onto the map
Voyager Pro4 is Trail Tech's dedicated off-road GPS display for side-by-sides, snowmobiles, dirt bikes, dual-sports, and adventure motorcycles. It puts Buddy Tracking, mapping, ride data, Bluetooth, and machine-specific install hardware into three kits for UTV, SNOW, and MOTO riders.
Built for the ride leader’s cockpit
The VP4 UTV Kit packages Voyager Pro4 for ROPS tubes, dashboards, and co-driver-friendly mounting positions. In the box are the VP4 head unit, quick-release dock, Buddy Tracking antenna, RAM ROPS hardware, flat AMPS plate, power lead, extra-long ignition pickup, M6x1 temperature probe, and a 120 in sensor extension to make UTV routing easier.
Bring more of the crew onto the map
Buddy Tracking uses radio signals plus GPS so VP4-equipped riders can appear on the group map without cell service. Up to 20 riders can join one group, and the included external V2V antenna enables the feature. VP4 also supports Buddy Tails for quick movement awareness, Navigate to Buddy for a direct line to another rider, and Buddy Beacon for regroup messages. Buddy Tracking groups are compatible with Polaris RIDE COMMAND Group Ride vehicles.

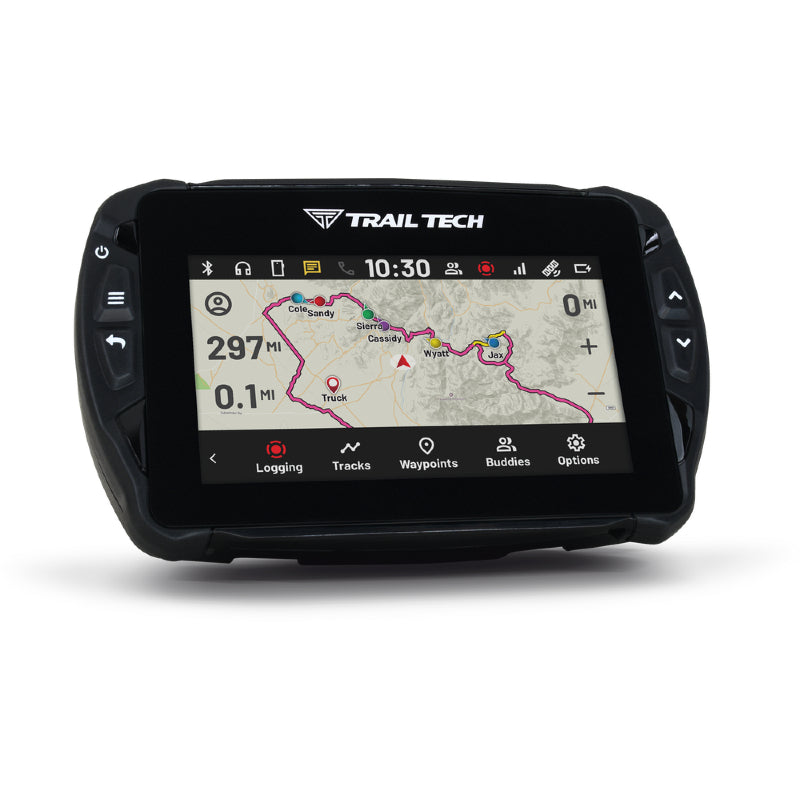

One screen for the route, ride, and machine
Voyager Pro4 combines GPS mapping, ride logging, vehicle information, and on-dash data in one dedicated off-road display. The 4.3 in, 1000 nit screen is backed by microSD support up to 64 GB and support for GPX, GeoPDF, and Raster MBTiles.
Pair to your phone and headset
VP4 can pair to a compatible phone and headset over Bluetooth. Riders can access music controls, calls, and text alerts from the display without giving up a dedicated off-road screen.

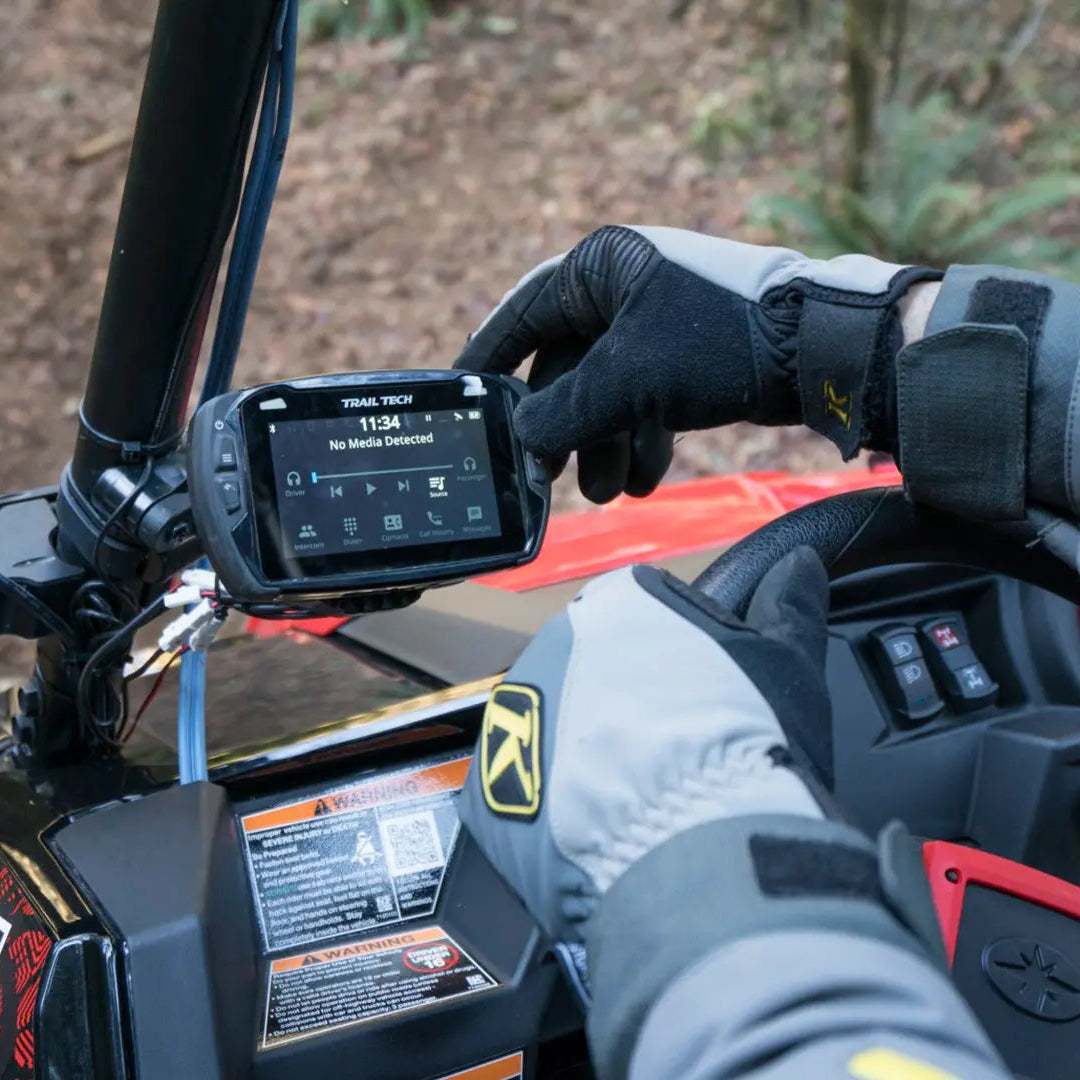

UTV-specific install hardware
The UTV Kit is built around side-by-side mounting and routing. The RAM ROPS setup supports tube mounting, the flat AMPS plate adds install flexibility, and the long ignition and temperature leads are better suited to side-by-side routing than a shorter motorcycle-style harness.
Advanced map options for technical users
VP4 supports GPX, GeoPDF, and Raster MBTiles. Advanced users can build and load their own compatible map files. Available space for custom maps is typically around 2 GB with the default maps installed. If the default maps are replaced, available space for custom maps can increase to approximately 20 GB.
Buddy Tracking keeps the group visible
Built for off-road riding, Buddy Tracking uses a local radio network between Trail Tech devices. No cell service required.
Up to 20 Riders
Works with No Cell Service
Buddy Tracking & Beacon
Typical range between riders is about 0.5 to 1.5 miles depending on terrain.
Key Specs Summary
- Buddy Tracking with included V2V antenna; up to 20 riders; no cell service required; compatible with Polaris RIDE COMMAND Group Ride vehicles
- 4.3 in WQVGA display with 1000 nit brightness
- NXP i.MX 6 dual-core applications processor
- u-blox MAX-M10S concurrent multi-GNSS receiver with GPS, GLONASS, Galileo, and BeiDou support
- Plastic quick-release docking station with RAM ROPS hardware and flat AMPS plate
- 9-16 V DC external power plus internal 3.7 V 3100 mAh Li-ion backup battery
- IP67 environmental rating, Bluetooth 5.1, and microSD support up to 64 GB
Core Device Specifications
- Head Unit Part Number: 9205-R2
- Display Type: 4.3 in WQVGA TFT LCD, landscape orientation
- Touchscreen Type: Projected capacitive touchscreen
- Display Resolution: 480 x 272 px
- Screen Brightness: 1000 nit
- Application Processor: NXP i.MX 6 dual-core applications processor
- CPU Architecture: Dual-core Arm Cortex-A9
- System Memory: 8 Gb RAM
- Internal Memory: 32 GB
- External Memory Support: microSD up to 64 GB
- External Power Input: 9-16 V DC
- Internal Battery: 3.7 V 3100 mAh Li-ion
- Power Draw, Shutdown: 0 W
- Power Draw, Sleep: 100 mW
- Power Draw, Low: 1.2 W
- Power Draw, Max: 2 W
- Battery Life, Typical Use: 2 hours
- Battery Life, 100% Backlight: 45 minutes
- Battery Charge Time: 6.5 hours
- Charge Temperature Range: 16-45 degrees C (60.8-113 degrees F)
- Environmental Rating: IP67
- Operating Temperature: -10-45 degrees C (14-113 degrees F)
- Storage Temperature: -10-45 degrees C (14-113 degrees F)
- Temperature Display Range: -10-210 degrees C (14-410 degrees F)
- Physical Dimensions: 144 x 90 x 47 mm (5.67 x 3.54 x 1.85 in)
- Physical Weight: 410 g (0.90 lb)
- Mounting Pattern: AMPS 30 x 38 mm
- Dock Style: Hard mount with quick-release
- Certifications / Standards: IP67; FCC; IC; CE
GNSS, Mapping & Recording
- GNSS Chipset: u-blox MAX-M10S
- GNSS Receiver Type: Concurrent multi-GNSS receiver
- Supported Constellations: GPS, GLONASS, Galileo, BeiDou
- GPS Accuracy: 1.5 m
- GPS Update Rate: 10 Hz
- Speed Range: 0-320 km/h
- Distance Range: 0-999,999 km
- Elevation Range: up to 9,000 m
- Accumulated Runtime: 0-99,999 hr
- GPS Record Rate Options: 1, 2, 5 sec / 1, 5, 10 m
- Supported File Types: GPX, GeoPDF, Raster MBTiles
Onboard File Support
- GPX Recording & Export: View your actively recording track on the device and save or export recorded rides as GPX files, including waypoints.
- GPX Import: Import previously exported GPX files or compatible custom GPX files created with route-planning tools.
- GeoPDF: Import georeferenced single-image map overlays. Technical users can create GeoPDFs in GIS software or export them from services that support geospatial PDF maps.
- Raster MBTiles: Import compatible raster MBTiles map packages. Files must be prepared as a single raster layer. MBTiles packages can bundle multiple zoom levels into one offline map for higher detail as you zoom in.
- Custom Map Storage Note: Available space for custom maps is typically around 2 GB with the default maps installed. If the default maps are replaced, available space for custom maps can increase to approximately 20 GB.
Buddy Tracking & Group Ride
- Buddy Tracking Technology: Radio-based rider-to-rider location network using GPS position data
- Group Capacity: Supports up to 20 riders in a single group
- Cell Service Requirement: Not required
- Network Behavior: Mesh-capable network that can relay location updates through other riders in the group
- Typical Buddy-to-Buddy Range: Approximately 0.5-1.5 miles
- Range Note: Range improves with line of sight and fewer obstructions; terrain, installation, and environmental conditions affect real-world results
- Required Hardware: External V2V antenna required and included in kit
- Antenna Mounting Guidance: Mount the V2V antenna vertically for best performance
- Compatible Group Ride Systems: Buddy Tracking groups are compatible with Polaris RIDE COMMAND Group Ride vehicles
- Buddy View: Shows group members on the map screen with name and location
- Buddy Features: Buddy Tracking, Buddy Tails, Navigate to Buddy, Buddy Beacon
- Buddy Beacon Note: Group-alert / regroup feature only; not a rescue beacon
Wireless, Audio & Interfaces
- Bluetooth Version: 5.1
- Bluetooth Profiles / Functions: HSP, HID
- Bluetooth Phone / Headset Pairing: Music controls, calls, and text alerts with a compatible phone and headset

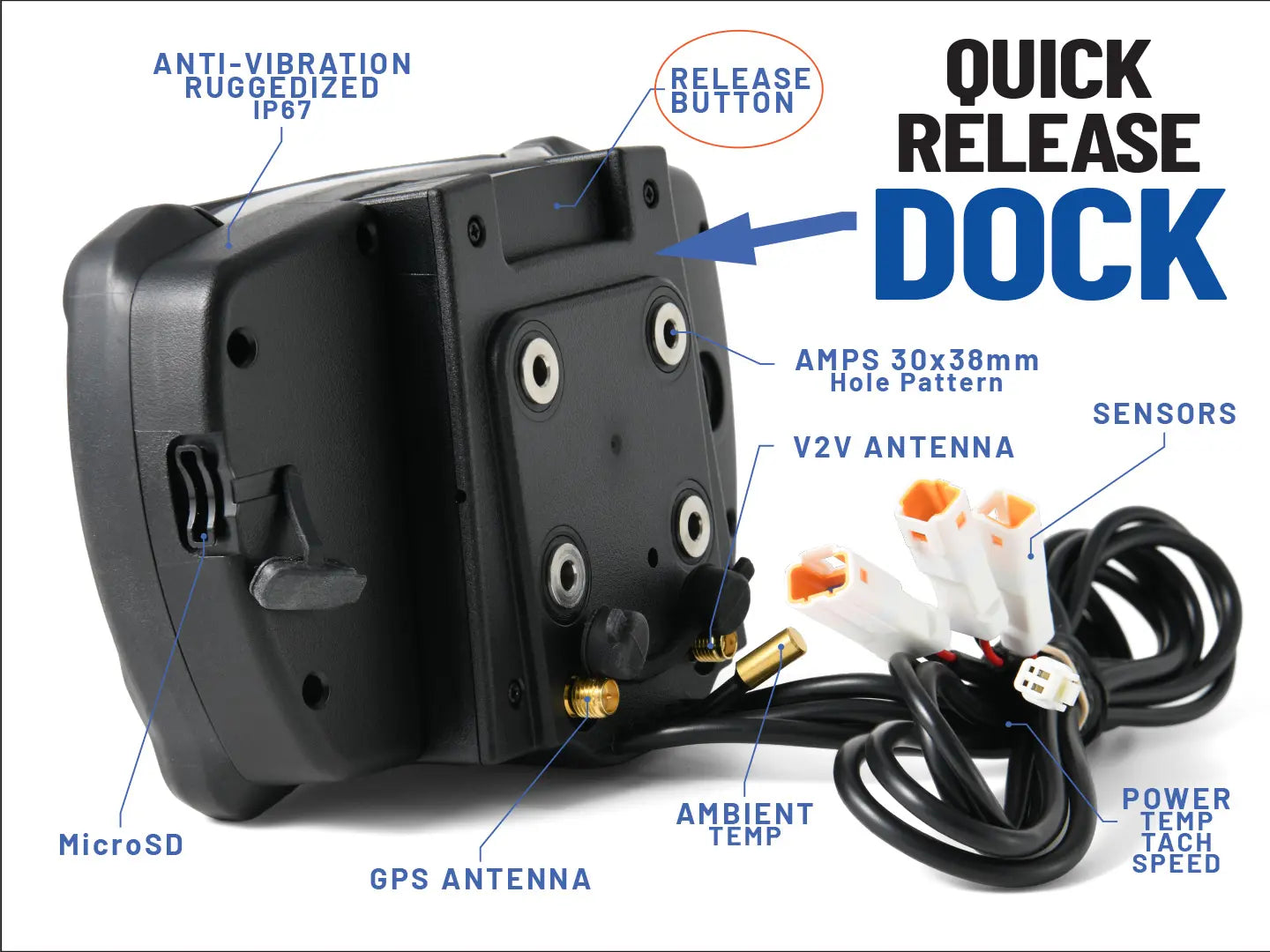

- Dock Connector to Head Unit: Gold pogo pins
- Dock Rear Harness / Sensor Leads: 4 JST leads
- Power Connector: Female 3-pin JST
- Buddy Tracking V2V Antenna Connector: SMB (included)
- GPS Antenna Connector: SMB
- Wheel Sensor Connector: Male 2-pin JST (sold separately)
- Tach / Ignition Sensor Connector: Female 2-pin JST
- Temperature Sensor Connector: Female 4-pin JST
- Ambient Temperature Sensor: Integrated ambient temperature sensor lead on dock
UTV Kit Dock, Mount & Fitment

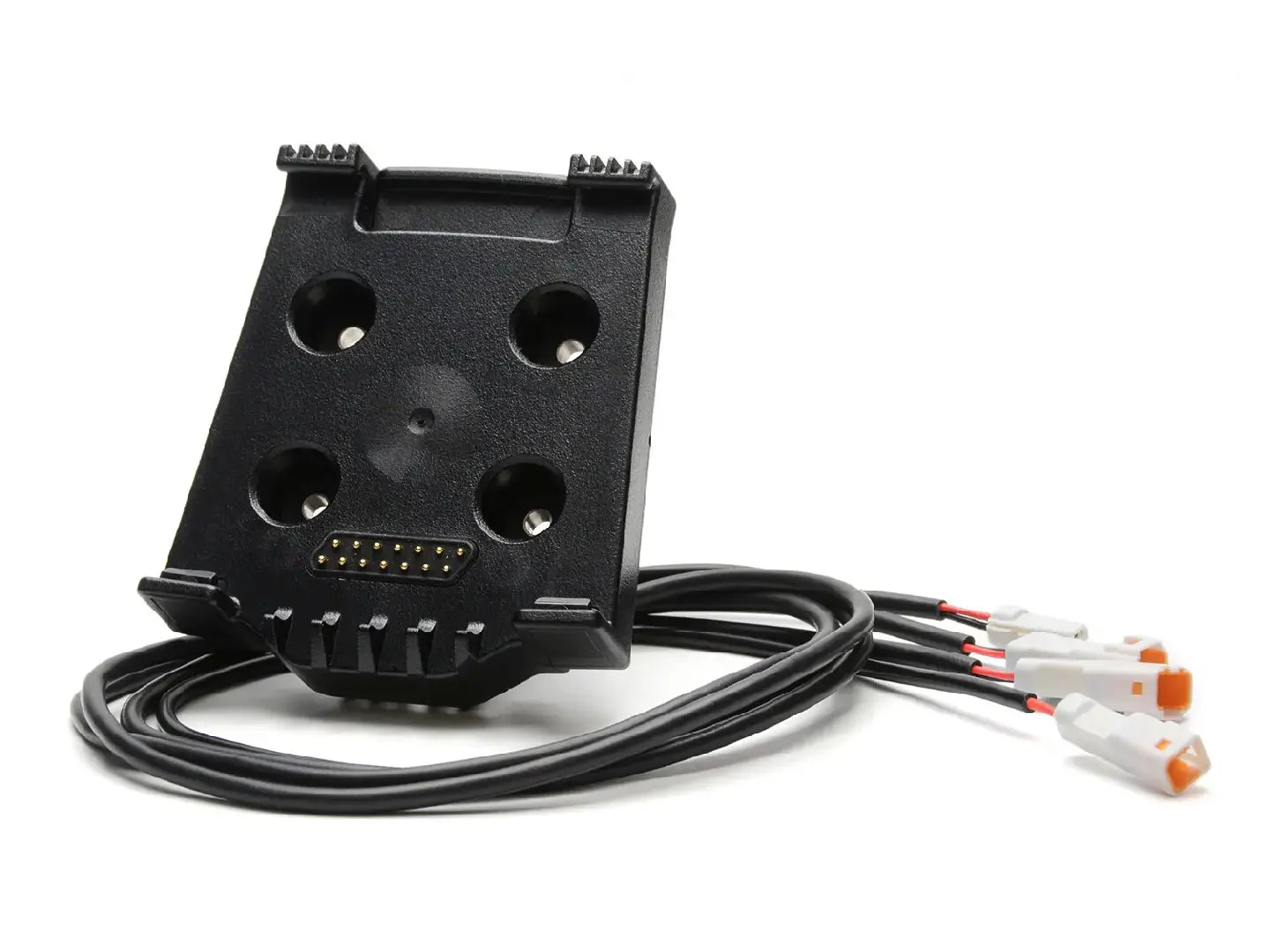

- Dock Part Number: 9200-DOCK
- Dock Material: Plastic
- Dock Release Style: Quick-release hard mount
- Buddy Tracking Antenna: 9200-V2V1
- Power Wire: 9000-1011 (48 in)
- Ignition Sensor: 9000-1023P Voyager Ignition Sensor (2550 mm)

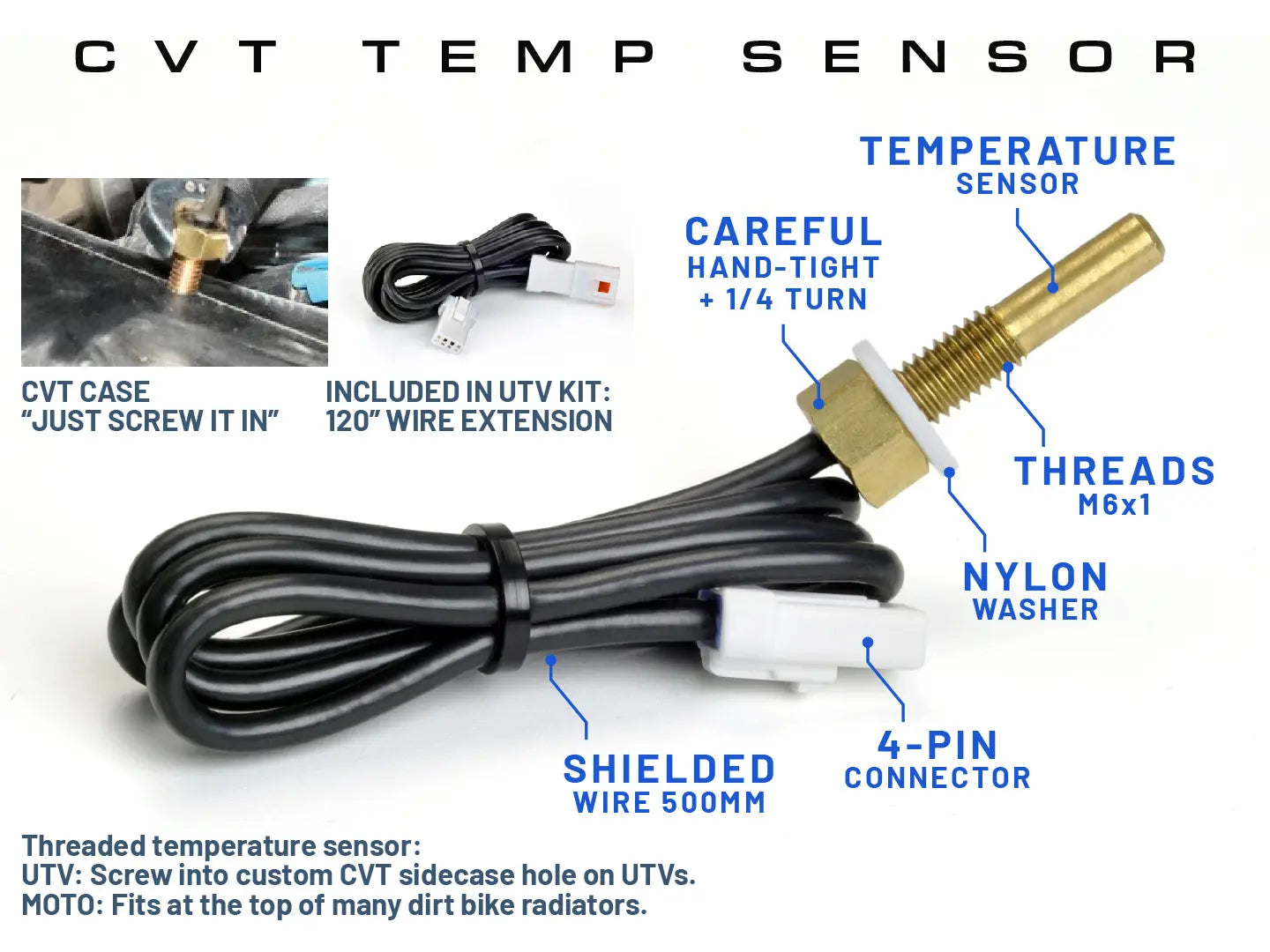

- Temperature Sensor: V300-001 Screw-In Temperature Sensor (M6x1, 580 mm)
- Temperature Sensor Extension Lead: V300-120 (120 in)
- Accessory Plug Wire: 9200-ACC Car Charger Accessories Plug Wire
- ROPS Mount Assembly: 026-FS RAM ROPS Mount Kit
- AMPS Mount Bolts Kit: 9200-PK1
- AMPS Flat Mount Plate: 3330028 CNC Aluminum Plate
- Intended Vehicle Type: UTV / Side-by-Side
- Compatibility / Fitment: UTVs / side-by-sides with regulated 9-16 V DC power
- Mounting Type: ROPS / tube RAM mount with flat AMPS plate

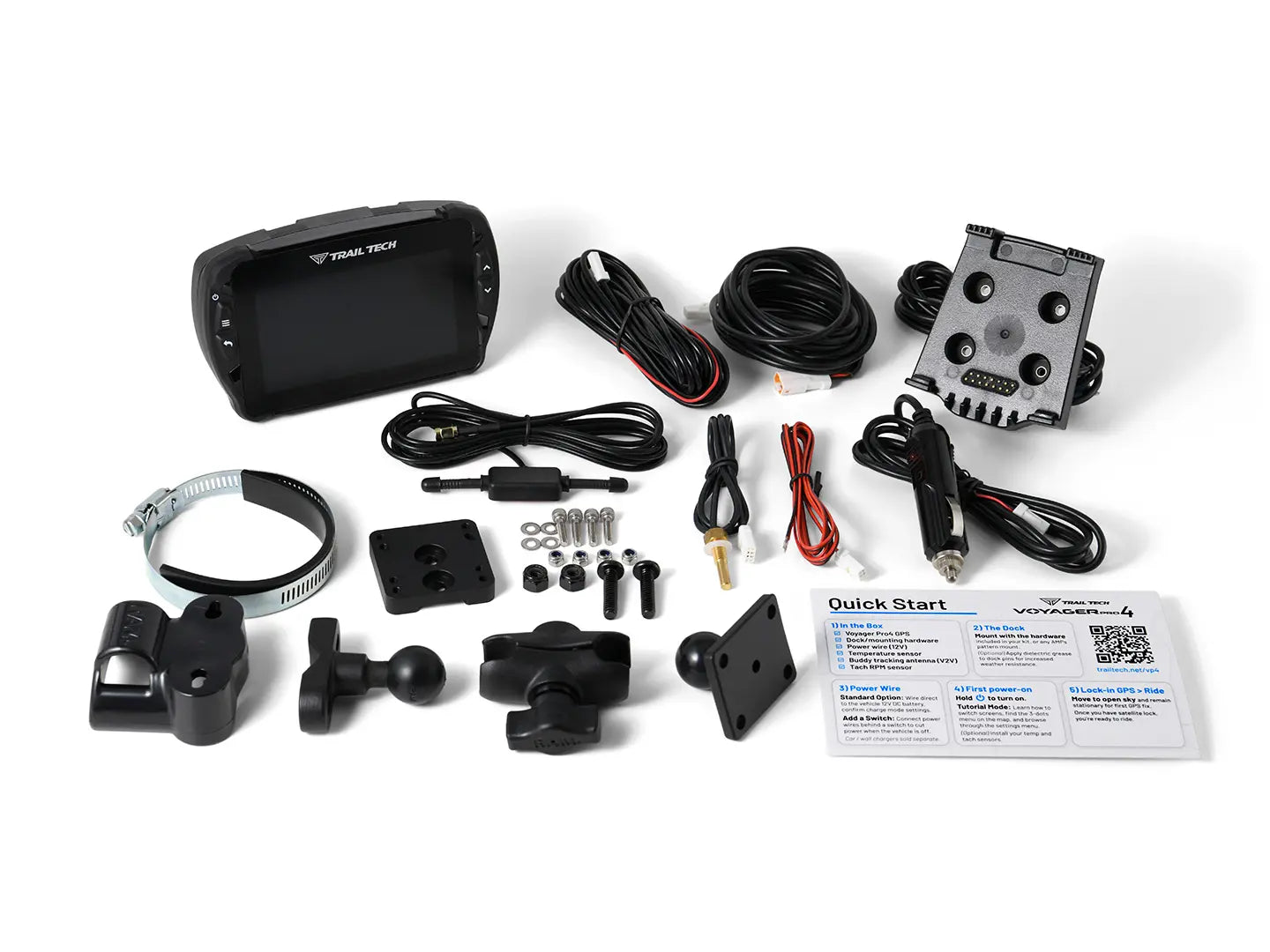

Main Unit
- 9205-R2: Voyager Pro 4 Head Unit
- 9200-DOCK: Quick-Release Docking Station

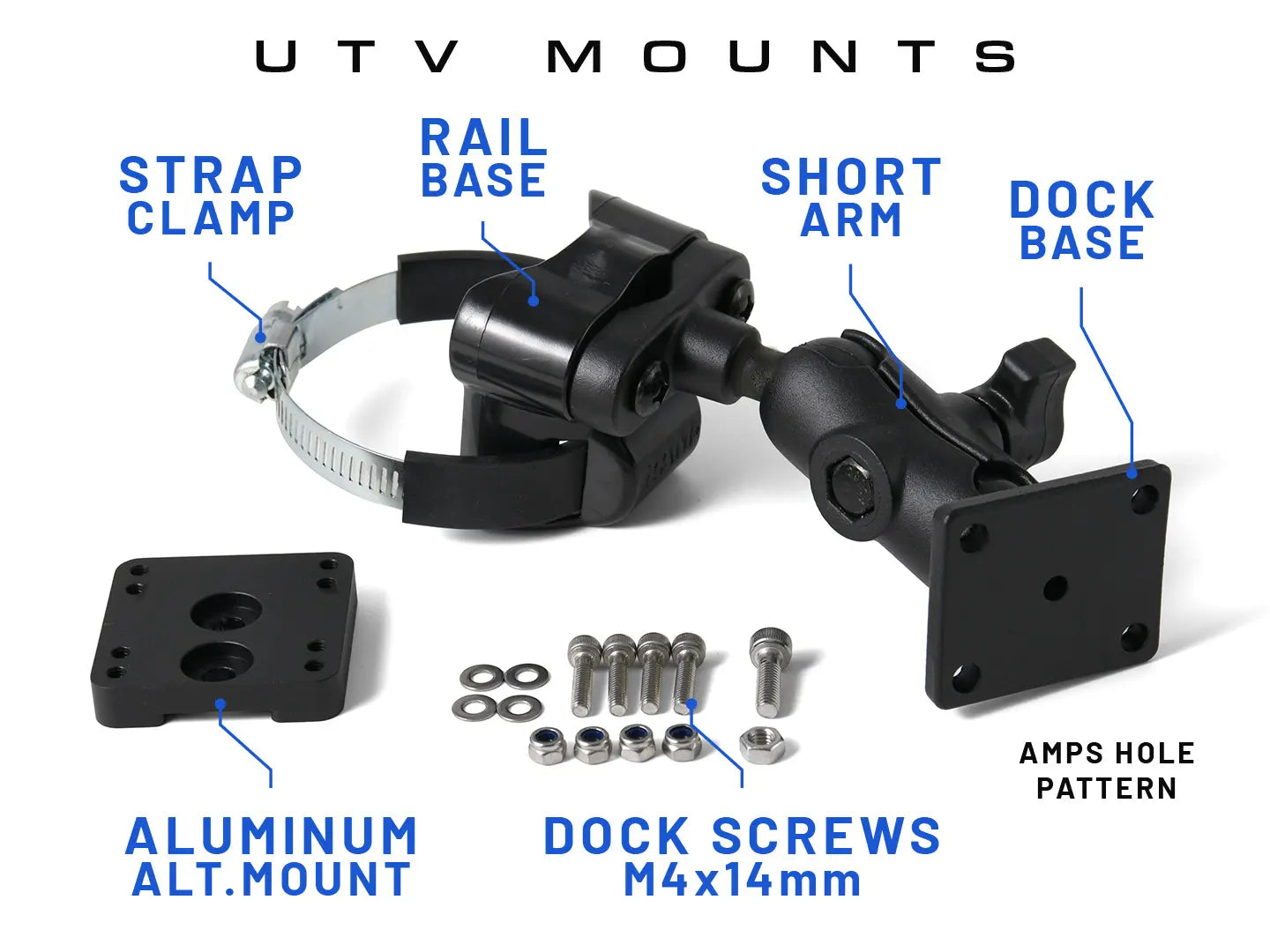

Mounting Hardware
- 026-FS: RAM ROPS Mount Kit
- 9200-PK1: AMPS Mount Bolts Kit
- 3330028: AMPS Flat Mount CNC Aluminum Plate
Wiring, Antennas & Sensors
- 9200-V2V1: Buddy Tracking V2V Antenna (included)
- 9000-1011: Power Wire (48 in)
- 9000-1023P: Voyager Ignition Sensor (2550 mm)
- V300-001: Screw-In Temperature Sensor (M6x1, 580 mm)
- V300-120: Temperature Sensor Extension Lead (120 in)
- 9200-ACC: Car Charger Accessories Plug Wire
Small Parts & Extras
- 010-TTKC: Trail Tech Keychain
- TTST-165-BK: Trail Tech Sticker
Documentation
- 010-ELV-VP4: Quick-Start Postcard
Optional Accessories
- Wheel Sensors: Sold separately
- 9205-SHIELD: Voyager Pro4 Screen Protector (coming soon)
FAQs
Voyager Pro4 is Trail Tech's off-road GPS display for Buddy Tracking, navigation, vehicle information, Bluetooth phone / headset pairing, and ride logging. It is sold in UTV, SNOW, and MOTO kits with machine-specific install hardware.
All three kits use the same VP4 head unit. The kit hardware changes. UTV is built around ROPS / dash mounting and longer sensor routing. SNOW is the premium snowmobile package with a CNC aluminum dock and aluminum center mount. MOTO is the compact motorcycle package for dirt bikes, dual-sports, and adventure bikes.
No. Buddy Tracking uses radio signals plus GPS, so it does not rely on cell service for rider-to-rider tracking.
VP4 Buddy Tracking supports up to 20 riders in one group.
Typical buddy-to-buddy range is about 0.5 to 1.5 miles. Range depends on terrain, line of sight, obstructions, antenna placement, installation, and riding conditions. Riders in between can help pass location updates through the group.
VP4 supports Buddy Tracking, Buddy Tails, Navigate to Buddy, and Buddy Beacon regroup messaging.
Yes. Buddy Tracking groups are compatible with Polaris RIDE COMMAND Group Ride vehicles.
VP4 supports GPX, GeoPDF, and Raster MBTiles.
Yes. Riders can load compatible GPX, GeoPDF, and Raster MBTiles files. Available space for custom maps is typically about 2 GB with the default maps installed and can increase to about 20 GB if the default maps are replaced.
Yes. VP4 combines mapping, ride logging, vehicle information, Bluetooth audio controls, calls, and text alerts in one dedicated off-road display.
No. Buddy Beacon is a regroup / alert feature for your group. It is not a rescue beacon.
