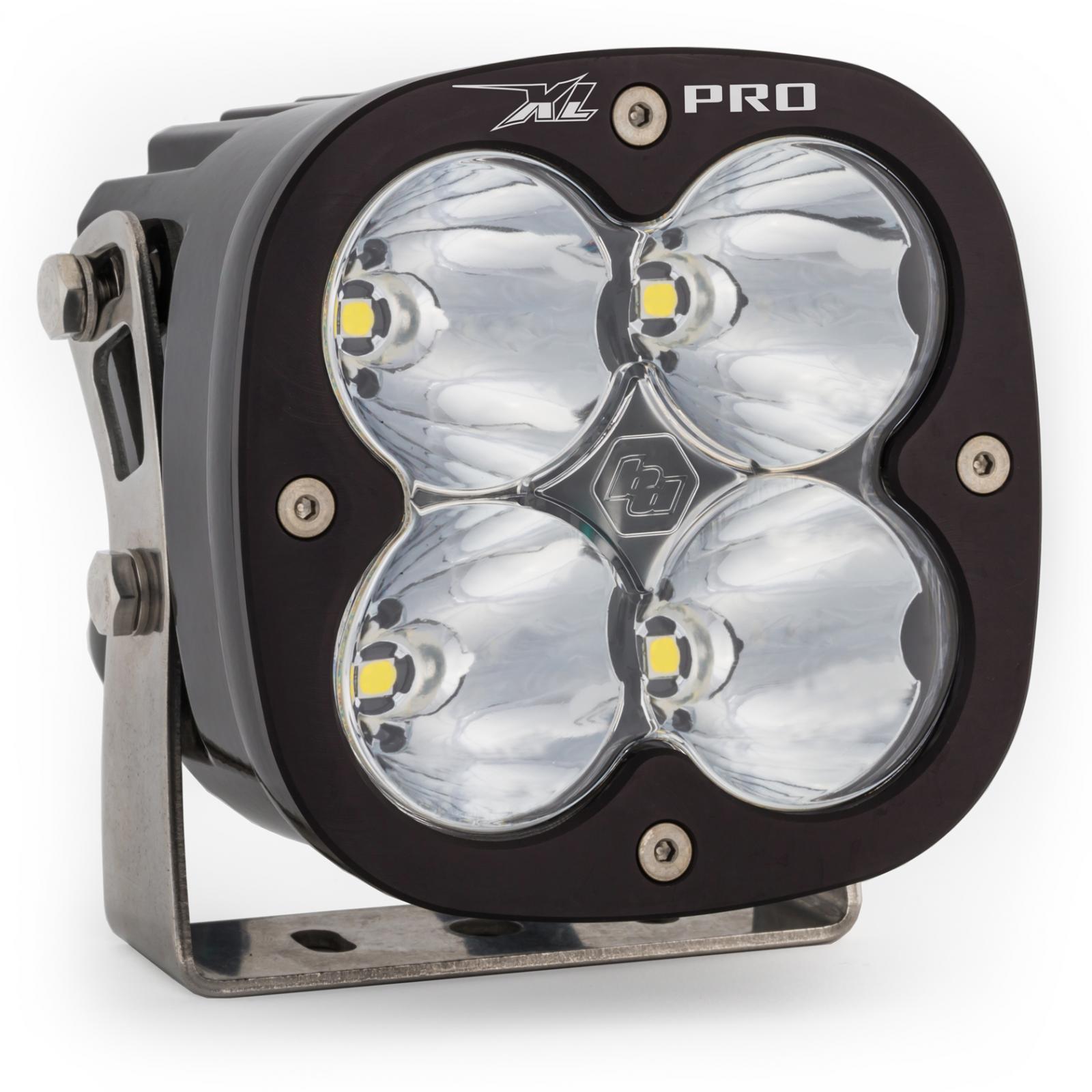

Baja Designs XL Pro LED Auxiliary Light Pod Clear Lens
Product Details
- Type LED Light Pods
- Vendor Baja Designs
- SKU 500001
- Shipping Weight 0.0 lb
The Baja Designs XL Pro auxiliary light is designed to illuminate the terrain ahead, making it ideal for off-road enthusiasts who need powerful, versatile lighting. The XL Pro features Baja Designs' trademarked high-speed spot reflectors, which deliver both a longer and wider beam pattern. With next-generation LED technology, the XL Pro offers 65% greater distance than the previous model while producing 4,095 raw lumens per light.
Durable and built to last, the XL Pro includes a 20% dimming feature, making it suitable for various off-road vehicles such as trucks, vans, UTVs, and motorcycles. This single light kit includes XL mounting hardware only, ensuring a straightforward setup. Please note that the wiring harness is not included; the applicable harnesses are 640115 (On/Off 3-pin) or 640119 (On/Off with mode switch). All Baja Designs lights come with a 30-day satisfaction guarantee and a limited lifetime warranty for ultimate purchase protection.
NOTE: This light does not come with a wiring harness. Make sure to “add” the applicable wiring harness 640115 (On/Off 3-pin) or 640119 (On/Off w/mode switch) for this light.
ELS™ Scores:
XL Pro Driving Combo (Clear): ELS 88°/ 6.6/ 432'/ 3764
XL Pro Spot (Clear): ELS 60°/ 4.1/ 498'/ 3228
XL Pro Wide Cornering (Clear): ELS 102°/ 5.8/ 162'/ 3363
Lens Pattern Options:
Driving Combo: Offers maximum trail coverage with a blend of driving and spot optics for near-field (zones 1 and 2) and distance (zone 3) applications.
Spot: A 9-degree narrow beam for long-distance illumination. Best when paired with additional Wide Cornering or Driving Combo lights.
Wide Cornering: Provides a 42-degree flattened horizontal beam, reducing blind spots and enhancing peripheral visibility in zones 1 and 2. Ideal for inclement weather and navigating tight trails.
Key Features:
Satisfaction Guarantee: 30-Day Money Back Guarantee
Limited Lifetime Warranty: Complete Purchase Protection
uService: Replaceable Lenses and Optics
ClearView: All the Light, Right Where You Need It
MoistureBlock: Waterproof, rainproof, and submersible
CopperDrive: The only LED driven at 100% capacity
5000K Daylight: Reduces driver fatigue with natural color lighting
The Baja Designs XL Pro is a reliable and high-performance lighting solution, ensuring that you can tackle any off-road adventure with confidence.
Standards & Compliance
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
Specifications
| Wiring Harness Included | No |
| Wattage (W) | 41.400 |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Housing Color | Black |
| Description | Spot; Clear |
| Brightness (Lumens) | 4095 |
| Bezel Material | Powder Coated Cast Aluminum |
| Beam Pattern | Spot |
| Average Rated Life (hr.) | 49,930 |
| Amperage Rating (A) | 3 |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Lighting Modes | High Beam/Dimming Feature (20%) |
| Universal or Specific | Universal |
| Product Type | XL Pro LED Light Pod |
| Overvoltage Protection | Built-In |
| Mounting Hardware Material | Stainless Steel |
| Mounting Hardware Included | Yes |
| Lighting Type | Forward Projecting |
| Lighting Technology | Cree XP-L LED |
| Lighting Quantity | 4 |
| Light Quantity | 1 |
Dimensions
| Weight (lbs.) | 2.450 |
| Length (in.) | 4.430 |
| Height (in.) | 4.430 |
| Depth (in.) | 3.650 |
LIGHTING ZONES/ LENS PATTERNS/ COLORS
-

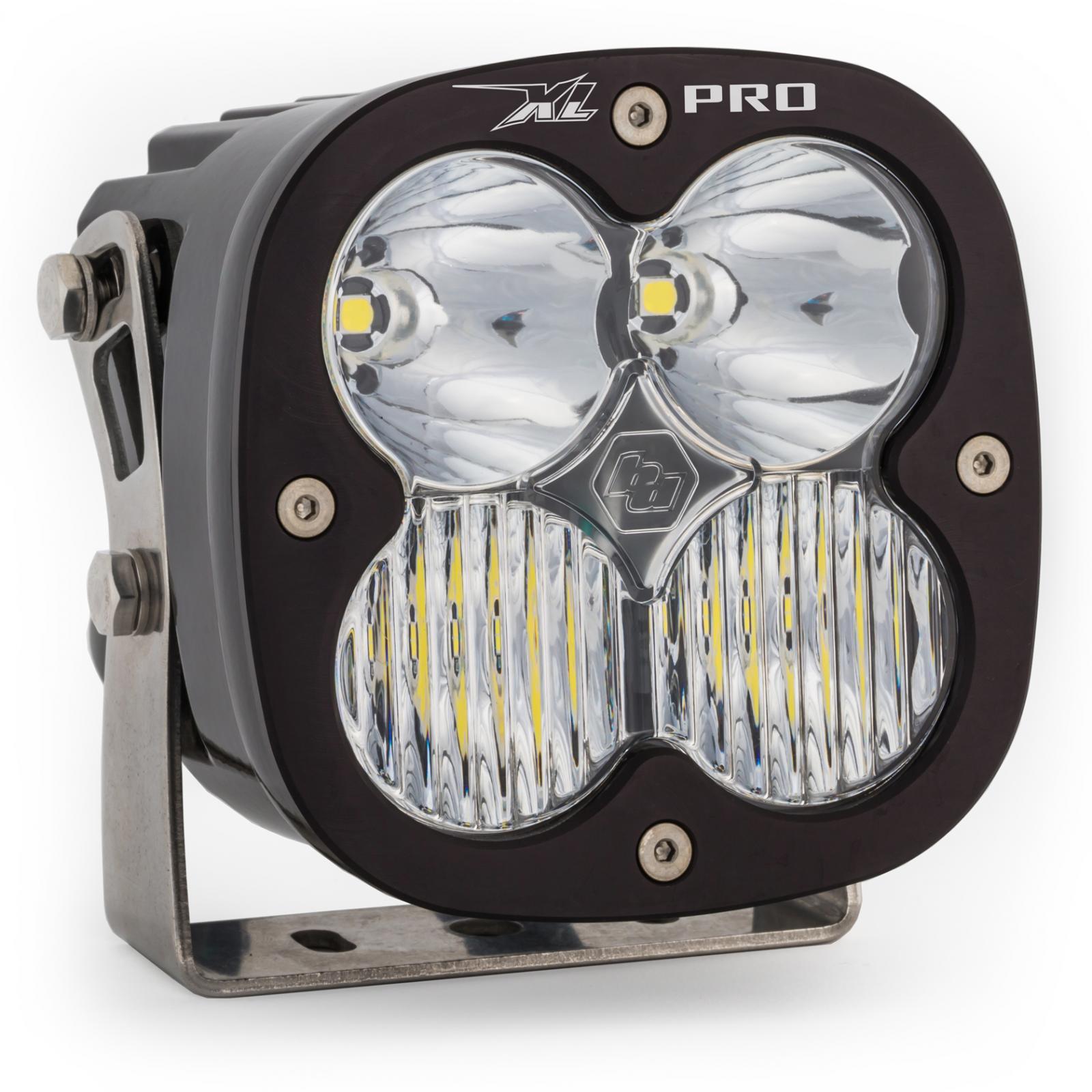

Driving Combo
Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42-degree) and spot (9-degree) optics to provide you with a smooth blend of light for both near field applications and distance.
-
Spot
A longer and narrower 9-degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights.
-

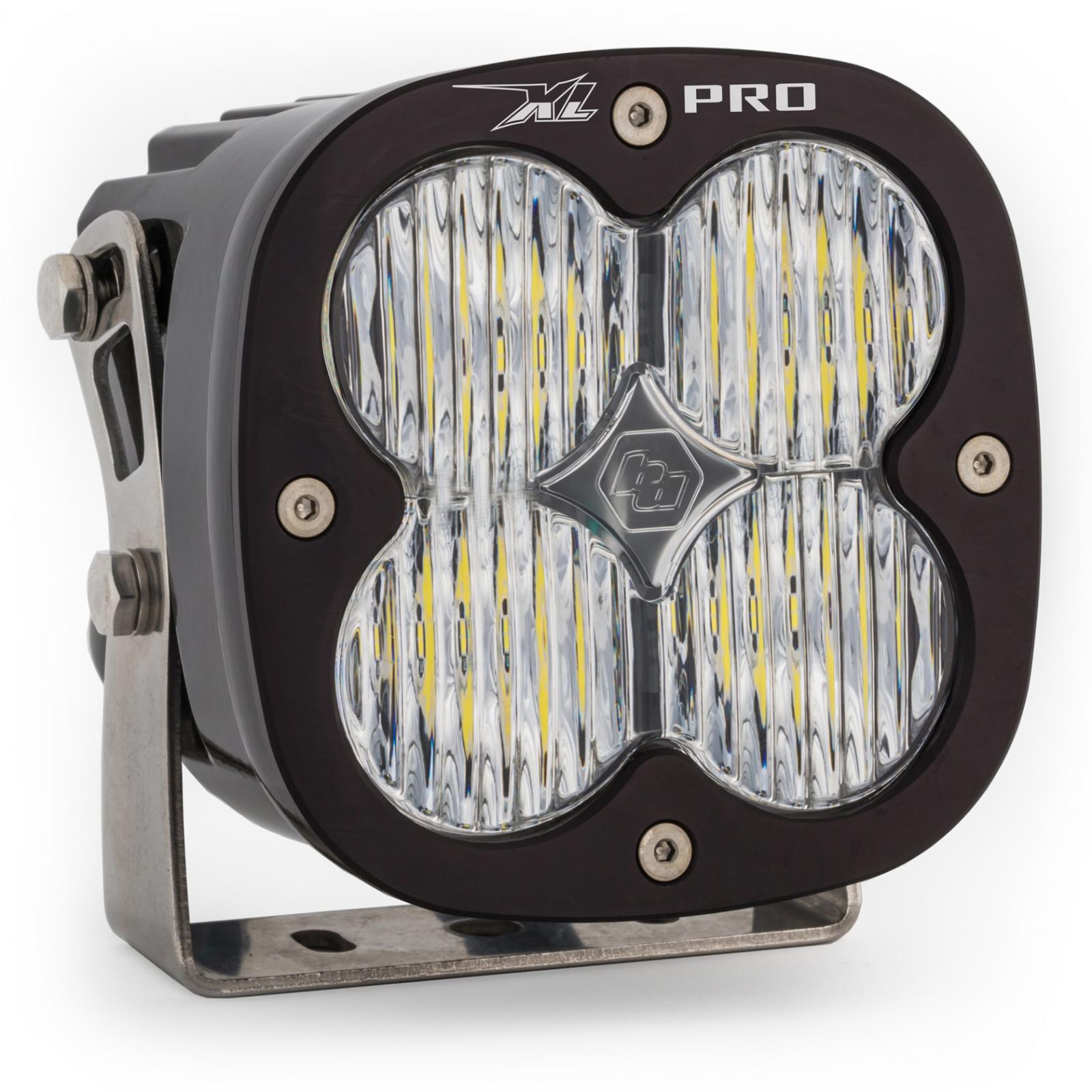

Wide Cornering
The Wide Driving pattern offers a 42-degree flattened horizontal beam for the ultimate in comfort lighting. This pattern is specifically for cornering, dust, snow, rain, and/or fog conditions.
-
Work/Scene
Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft. This pattern is not suitable for driving.
-
Trail
Designed to aid in both vertical and horizontal light spread. Provides more near and mid-field visibility in tight slower technical terrain. (S1 only)
-
-
Clear
The original performance lens. Our clear lens combined with our 5000k LEDs provides light most similar to daylight, reducing driver fatigue and increasing terrain recognition.
-
Baja Amber
This performance-driven lens is designed for off-road driving in challenging conditions like dust, rain, snow, or fog. The Baja Amber lens minimizes glare, enhancing visibility and significantly improving your driving experience.
-
Factory Amber
This replacement lens option is crafted to seamlessly match the OEM running lights found on vehicles today. Factory Amber provides a color temperature that is best utilized in low-visibility conditions to increase depth perception while minimizing glare.
-
ZONES
-
Dust/Fog
Illuminates the area directly in front of the vehicle, for use during rainy, snowy, or dusty conditions.
Automotive, Motorcycle, UTV
-
Cornering
Provides cornering and peripheral light, which is necessary to drive comfortably at speed.
Automotive, Motorcycle, UTV
-
Driving Combo
Your primary driving light and most important zone to start with when building a balanced lighting package.
Automotive, Motorcycle, UTV
-
Spot
This zone is your first level of long-distance lighting. Lights intended for this zone will give you the distance needed to travel at speeds and see safely down the road or trail.
Automotive, Motorcycle, UTV
-
Racer Edition Spot
This zone is implemented when approaching triple-digit speeds, or in instances when distance penetration becomes necessary.
Automotive, Motorcycle, UTV
-
Rock Light
This zone illuminates the wheel wells, undercarriage, or any other part of the vehicle that can benefit from great visibility while moving through tight spaces and jagged terrain.
Automotive, UTV
-
Cargo
This zone is important for drivers that need quick access to tools and cargo, in and immediately around the vehicle.
Automotive, UTV
-
Backup/Reverse
This zone is crucial to keeping the backside of your vehicle safe. Whether reversing on the trail or leading a pack through the dust, you will want the correct lighting solution.
Automotive, UTV
-
Laser Series
This zone is one of the last additions to your lighting package. When you have optimized your entire package and still need that extra punch in the distance, make sure to check out the ultimate distance lighting available today.
Automotive, UTV
