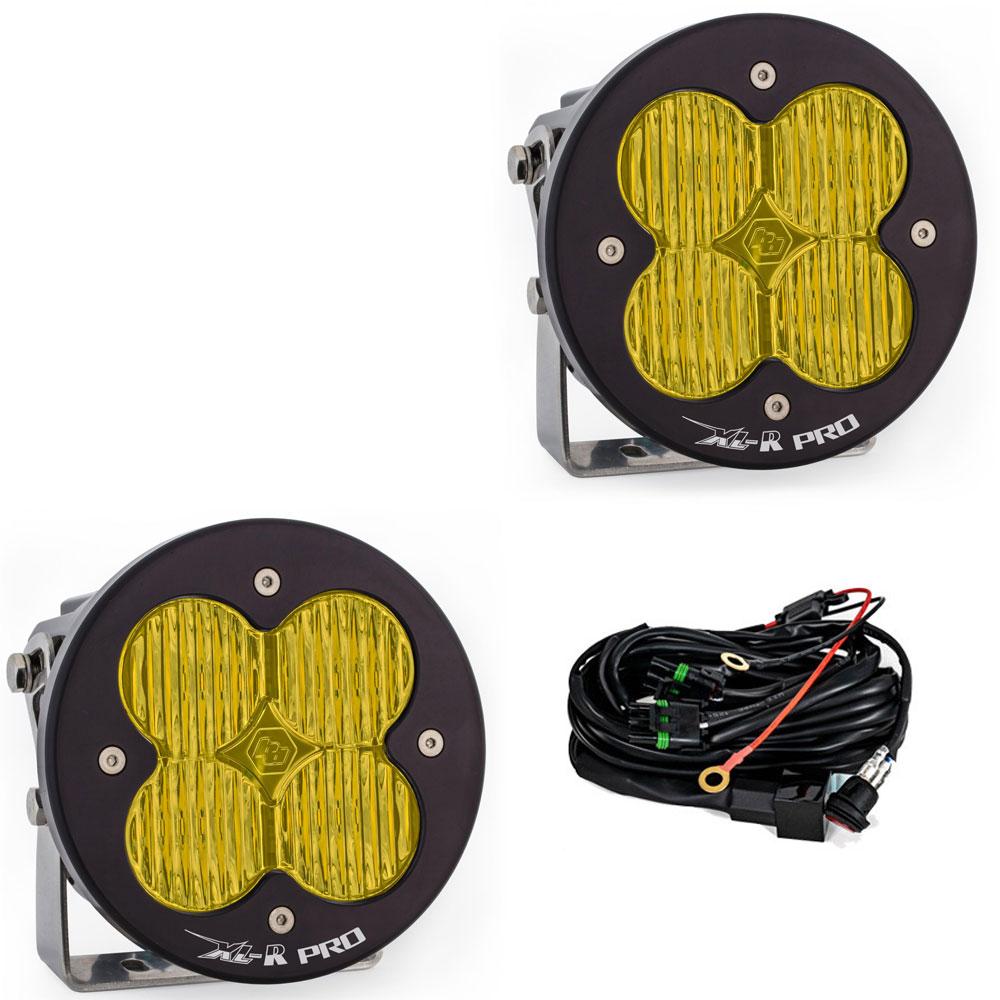

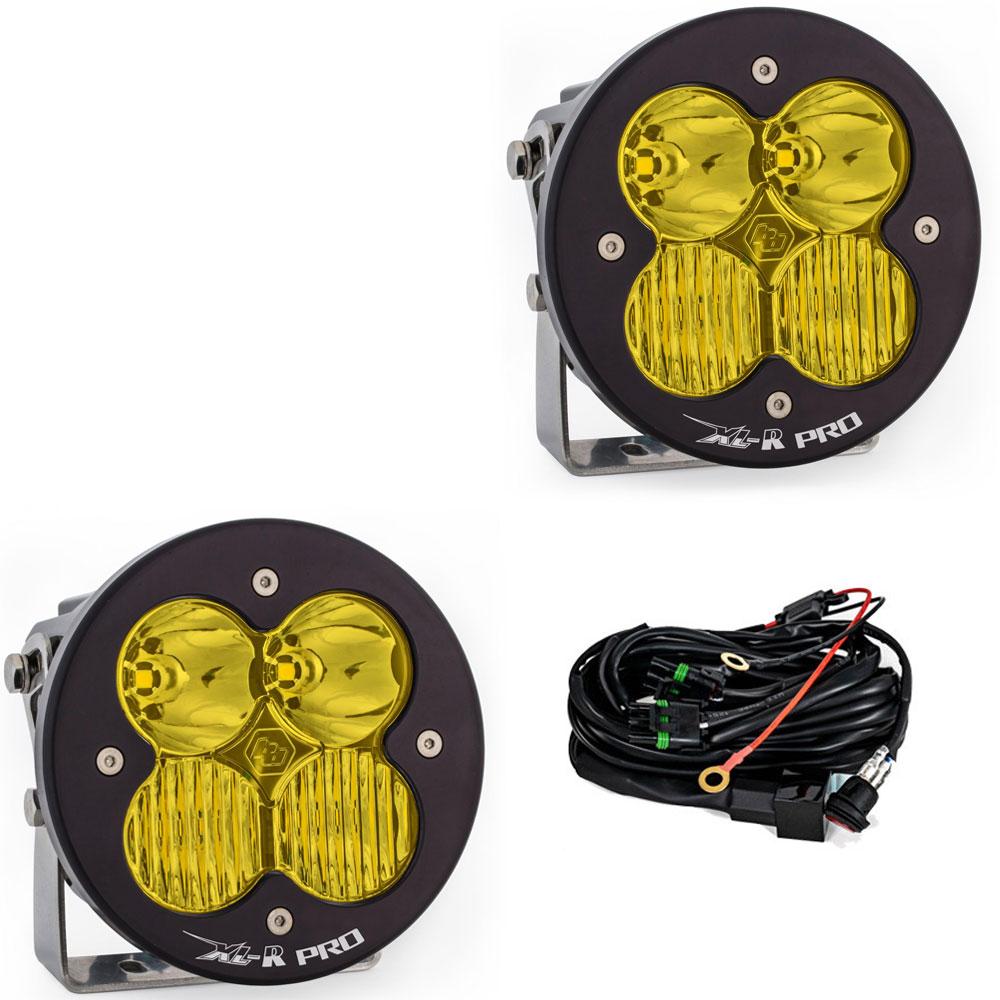

Baja Designs XL-R Pro LED Auxiliary Light Pod Pair
SPECIAL ORDER
Please allow 1 - 3 weeks for this item to fulfill.
Product Details
- Type LED Light Pods
- Vendor Baja Designs
- SKU 537813
- Shipping Weight 0.0 lb
The Baja Designs XL-R Pro auxiliary light pair is designed to illuminate the terrain in front of your vehicle, making it ideal for off-road enthusiasts who need powerful lighting in a versatile package. Featuring a round outer bezel, the XL-R Pro uses Baja Designs' trademarked high-speed spot reflectors, offering both a longer and wider beam pattern. Equipped with next-generation LED technology, the XL-R Pro delivers 65% greater distance than the previous generation model, while producing an impressive 4,095 raw lumens per light.
Built for durability, the XL-R Pro includes a 20% dimming feature, making it perfect for various off-road vehicles such as trucks, vans, UTVs, and motorcycles. This two-light kit comes complete with a wiring harness and all the necessary mounting hardware for a quick and easy installation. Designed with reliability in mind, all Baja Designs lights come with a 30-day satisfaction guarantee and a limited lifetime warranty, ensuring total purchase protection.
ELS™ Scores:
XL Pro Driving Combo (Clear): ELS 88°/ 6.6/ 432'/ 3764
XL Pro Spot (Clear): ELS 60°/ 4.1/ 498'/ 3228
XL Pro Wide Cornering (Clear): ELS 102°/ 5.8/ 162'/ 3363
Lens Pattern Options:
Driving Combo: Provides maximum trail coverage in a single light. Equipped with both driving and spot optics, this pattern offers a smooth blend of light for near-field applications (zones 1 and 2) and distance coverage (zone 3).
Spot: A 9-degree narrow focus beam designed for long-distance illumination down the trail or road. Best used in conjunction with additional Wide Cornering or Driving Combo beam lights.
Wide Cornering: This 42-degree flattened horizontal beam enhances peripheral visibility by reducing blind spots. Ideal for inclement weather conditions like dust, snow, rain, or fog, and perfect for navigating obstacles on winding trails or tight turns.
Key Features:
Satisfaction Guarantee: 30-Day Money Back Guarantee
Limited Lifetime Warranty: Complete Purchase Protection
uService: Replaceable Lenses and Optics
ClearView: All the Light, Right Where You Need It
MoistureBlock: Waterproof, rainproof, and submersible
CopperDrive: The only LED driven at 100% capacity
5000K Daylight: Reduces driver fatigue with natural color lighting
The Baja Designs XL-R Pro is engineered to provide reliable, high-performance lighting for off-road adventures, ensuring you can see and be seen, no matter the terrain.
Specifications
| Product Type | XL-R Pro LED Light Pod Pair w/ Wiring Harness |
| Overvoltage Protection | Built-In |
| Mounting Hardware Material | Stainless Steel |
| Mounting Hardware Included | Yes |
| Lighting Type | Forward Projecting |
| Lighting Technology | Cree XP-L LED |
| Lighting Quantity | 4 |
| Lighting Modes | High Beam/Dimming Feature (20%) |
| Light Quantity | 2 |
| Lens Material | Hardcoated Polycarbonate |
| Universal or Specific | Universal |
| Wattage (W) | 40 |
| Wiring Harness Included | Yes |
| Lens Color | Clear |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Description | Round; Spot; Clear; Pair |
| Brightness (Lumens) | 4,900 |
| Bezel Material | Powder Coated Cast Aluminum |
| Beam Pattern | Spot |
| Average Rated Life (hr.) | 49,930 |
| Amperage Rating (A) | 2.9 |
| Housing Color | Black |
Standards & Compliance
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
Dimensions
| Weight (lbs.) | 2.45 |
| Length (in.) | 5.24 |
| Height (in.) | 5.24 |
| Depth (in.) | 3.65 |
LIGHTING ZONES/ LENS PATTERNS/ COLORS
-
Driving Combo
Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42-degree) and spot (9-degree) optics to provide you with a smooth blend of light for both near field applications and distance.
-
Spot
A longer and narrower 9-degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights.
-
Wide Cornering
The Wide Driving pattern offers a 42-degree flattened horizontal beam for the ultimate in comfort lighting. This pattern is specifically for cornering, dust, snow, rain, and/or fog conditions.
-
Work/Scene
Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft. This pattern is not suitable for driving.
-
Trail
Designed to aid in both vertical and horizontal light spread. Provides more near and mid-field visibility in tight slower technical terrain. (S1 only)
-
-
Clear
The original performance lens. Our clear lens combined with our 5000k LEDs provides light most similar to daylight, reducing driver fatigue and increasing terrain recognition.
-
Baja Amber
This performance-driven lens is designed for off-road driving in challenging conditions like dust, rain, snow, or fog. The Baja Amber lens minimizes glare, enhancing visibility and significantly improving your driving experience.
-
Factory Amber
This replacement lens option is crafted to seamlessly match the OEM running lights found on vehicles today. Factory Amber provides a color temperature that is best utilized in low-visibility conditions to increase depth perception while minimizing glare.
-
ZONES
-
Dust/Fog
Illuminates the area directly in front of the vehicle, for use during rainy, snowy, or dusty conditions.
Automotive, Motorcycle, UTV
-
Cornering
Provides cornering and peripheral light, which is necessary to drive comfortably at speed.
Automotive, Motorcycle, UTV
-
Driving Combo
Your primary driving light and most important zone to start with when building a balanced lighting package.
Automotive, Motorcycle, UTV
-
Spot
This zone is your first level of long-distance lighting. Lights intended for this zone will give you the distance needed to travel at speeds and see safely down the road or trail.
Automotive, Motorcycle, UTV
-
Racer Edition Spot
This zone is implemented when approaching triple-digit speeds, or in instances when distance penetration becomes necessary.
Automotive, Motorcycle, UTV
-
Rock Light
This zone illuminates the wheel wells, undercarriage, or any other part of the vehicle that can benefit from great visibility while moving through tight spaces and jagged terrain.
Automotive, UTV
-
Cargo
This zone is important for drivers that need quick access to tools and cargo, in and immediately around the vehicle.
Automotive, UTV
-
Backup/Reverse
This zone is crucial to keeping the backside of your vehicle safe. Whether reversing on the trail or leading a pack through the dust, you will want the correct lighting solution.
Automotive, UTV
-
Laser Series
This zone is one of the last additions to your lighting package. When you have optimized your entire package and still need that extra punch in the distance, make sure to check out the ultimate distance lighting available today.
Automotive, UTV
