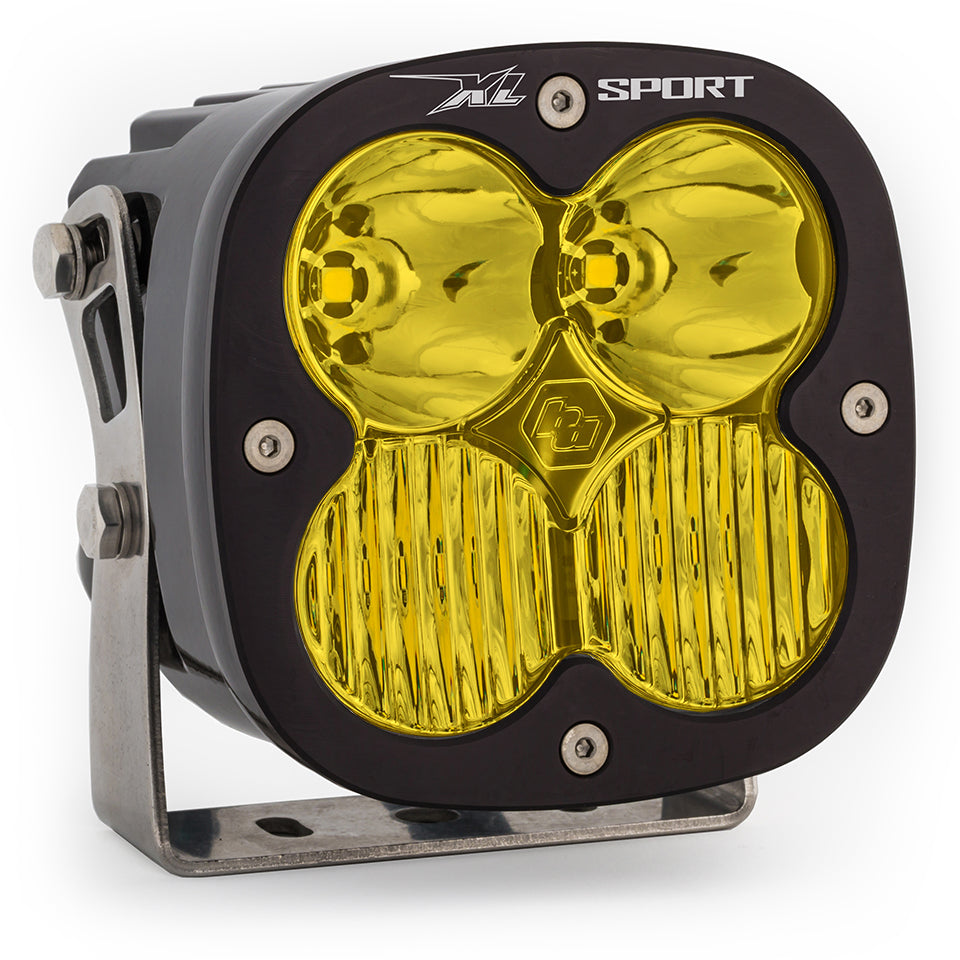

Baja Designs XL Sport LED Auxiliary Light Pod
SPECIAL ORDER
Please allow 1 - 3 weeks for this item to fulfill.
Product Details
- Type LED Light Pods
- Vendor Baja Designs
- SKU 560013
- Shipping Weight 0.0 lb
The Baja Designs XL Sport auxiliary light makes it easy to illuminate the terrain in front of your vehicle and is the perfect combination of affordability and performance. The XL Sport uses Baja Designs' trademarked high-speed spot reflectors providing for a longer and wider beam pattern with our next generation LEDs that offers 3,162 raw lumens per each light. This makes the XL Sport the perfect auxiliary light for off-road vehicles such as trucks, vans, UTVs and motorcycles. The single light kit comes with XL mounting hardware only. Designed for users who want reliable off-road lighting solutions, all Baja Designs lights are backed by a 30-day satisfaction guarantee and a limited lifetime warranty for the ultimate in purchase protection. NOTE: This light does not come with a wiring harness. The applicable wiring harness for this light is 640115 (On/Off Wiring Harness 3-pin)
ELS™ Scores
XL Sport Driving Combo (Clear): ELS 80°/ 6.4/ 324'/ 2765
XL Sport Spot (Clear): ELS 60⁰/ 3.9/ 418'/ 2253
Lens pattern options:
Driving Combo: Maximum trail coverage in a single light. The driving combo pattern is equipped with both driving and spot optics to provide you with a smooth blend of light for both near field applications in lighting zones 1 and 2 and distance in zone 3.
Spot: A longer and narrower 9-degree focus beam for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Cornering and/or Driving Combo beam lights.
Wide Cornering: The wide cornering pattern offers a 42-degree flattened horizontal beam, reducing blind spots and enhancing peripheral visibility in lighting zones 1 and 2. This cornering pattern is perfect for inclement weather such as dust, snow, rain or fog conditions while also perfect for seeing obstacles on the trail, trail conditions, and potential hazards - making it easier to navigate through tight turns, winding trails, or through wooded areas.
NOTE: This light does not come with a wiring harness. Make sure to “add” the applicable wiring harness 640115 for this light.
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
Specifications
| Description | Spot; Clear |
| Brightness (Lumens) | 3162 |
| Bezel Material | Powder Coated Cast Aluminum |
| Beam Pattern | Spot |
| Average Rated Life (hr.) | 49,930 |
| Amperage Rating (A) | 2.200 |
| Housing Color | Black |
| Housing Material | Powder Coated Cast Aluminum |
| Lens Material | Hardcoated Polycarbonate |
| Product Type | XL Sport LED Light Pod |
| Overvoltage Protection | Built-In |
| Mounting Hardware Material | Stainless Steel |
| Mounting Hardware Included | Yes |
| Lighting Type | Forward Projecting |
| Lighting Technology | LED |
| Lighting Quantity | 4 |
| Lighting Modes | Beam |
| Light Quantity | 1 |
| Universal or Specific | Universal |
| Lens Color | Clear |
| Wiring Harness Included | No |
| Wattage (W) | 30.360 |
Dimensions
| Weight (lbs.) | 2.450 |
| Length (in.) | 4.430 |
| Height (in.) | 4.430 |
| Depth (in.) | 3.650 |
LIGHTING ZONES/ LENS PATTERNS/ COLORS
-
Driving Combo
Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42-degree) and spot (9-degree) optics to provide you with a smooth blend of light for both near field applications and distance.
-
Spot
A longer and narrower 9-degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights.
-
Wide Cornering
The Wide Driving pattern offers a 42-degree flattened horizontal beam for the ultimate in comfort lighting. This pattern is specifically for cornering, dust, snow, rain, and/or fog conditions.
-
Work/Scene
Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft. This pattern is not suitable for driving.
-
Trail
Designed to aid in both vertical and horizontal light spread. Provides more near and mid-field visibility in tight slower technical terrain. (S1 only)
-
-
Clear
The original performance lens. Our clear lens combined with our 5000k LEDs provides light most similar to daylight, reducing driver fatigue and increasing terrain recognition.
-
Baja Amber
This performance-driven lens is designed for off-road driving in challenging conditions like dust, rain, snow, or fog. The Baja Amber lens minimizes glare, enhancing visibility and significantly improving your driving experience.
-
Factory Amber
This replacement lens option is crafted to seamlessly match the OEM running lights found on vehicles today. Factory Amber provides a color temperature that is best utilized in low-visibility conditions to increase depth perception while minimizing glare.
-
ZONES
-
Dust/Fog
Illuminates the area directly in front of the vehicle, for use during rainy, snowy, or dusty conditions.
Automotive, Motorcycle, UTV
-
Cornering
Provides cornering and peripheral light, which is necessary to drive comfortably at speed.
Automotive, Motorcycle, UTV
-
Driving Combo
Your primary driving light and most important zone to start with when building a balanced lighting package.
Automotive, Motorcycle, UTV
-
Spot
This zone is your first level of long-distance lighting. Lights intended for this zone will give you the distance needed to travel at speeds and see safely down the road or trail.
Automotive, Motorcycle, UTV
-
Racer Edition Spot
This zone is implemented when approaching triple-digit speeds, or in instances when distance penetration becomes necessary.
Automotive, Motorcycle, UTV
-
Rock Light
This zone illuminates the wheel wells, undercarriage, or any other part of the vehicle that can benefit from great visibility while moving through tight spaces and jagged terrain.
Automotive, UTV
-
Cargo
This zone is important for drivers that need quick access to tools and cargo, in and immediately around the vehicle.
Automotive, UTV
-
Backup/Reverse
This zone is crucial to keeping the backside of your vehicle safe. Whether reversing on the trail or leading a pack through the dust, you will want the correct lighting solution.
Automotive, UTV
-
Laser Series
This zone is one of the last additions to your lighting package. When you have optimized your entire package and still need that extra punch in the distance, make sure to check out the ultimate distance lighting available today.
Automotive, UTV
