Baja Designs XL80 LED Auxiliary Light Pod Pair
Product Details
- Type LED Light Pods
- Vendor Baja Designs
- SKU 677803
- Shipping Weight 0.0 lb
The Baja Designs XL80 auxiliary LED light pair elevates your off-road lighting with superior visibility and brightness. Equipped with our trademarked high-speed spot reflectors, the XL80 delivers a longer and wider beam pattern. Utilizing next-generation LED technology, it offers 18% greater distance and increased intensity compared to our previous model, pushing an impressive 9,022 raw lumens per light. This makes it perfect for any off-road vehicle, including trucks, vans, UTVs, and motorcycles.
Similar to the XL Pro model, the XL80 features a 20% dimming option, a powder-coated housing, and an anodized bezel. This two-light kit includes a wiring harness and all necessary mounting hardware, ensuring quick and easy installation. Designed for those seeking reliable off-road lighting solutions, all Baja Designs lights are backed by a 30-day satisfaction guarantee and a limited lifetime warranty for the ultimate in purchase protection.
ELS™ Scores:

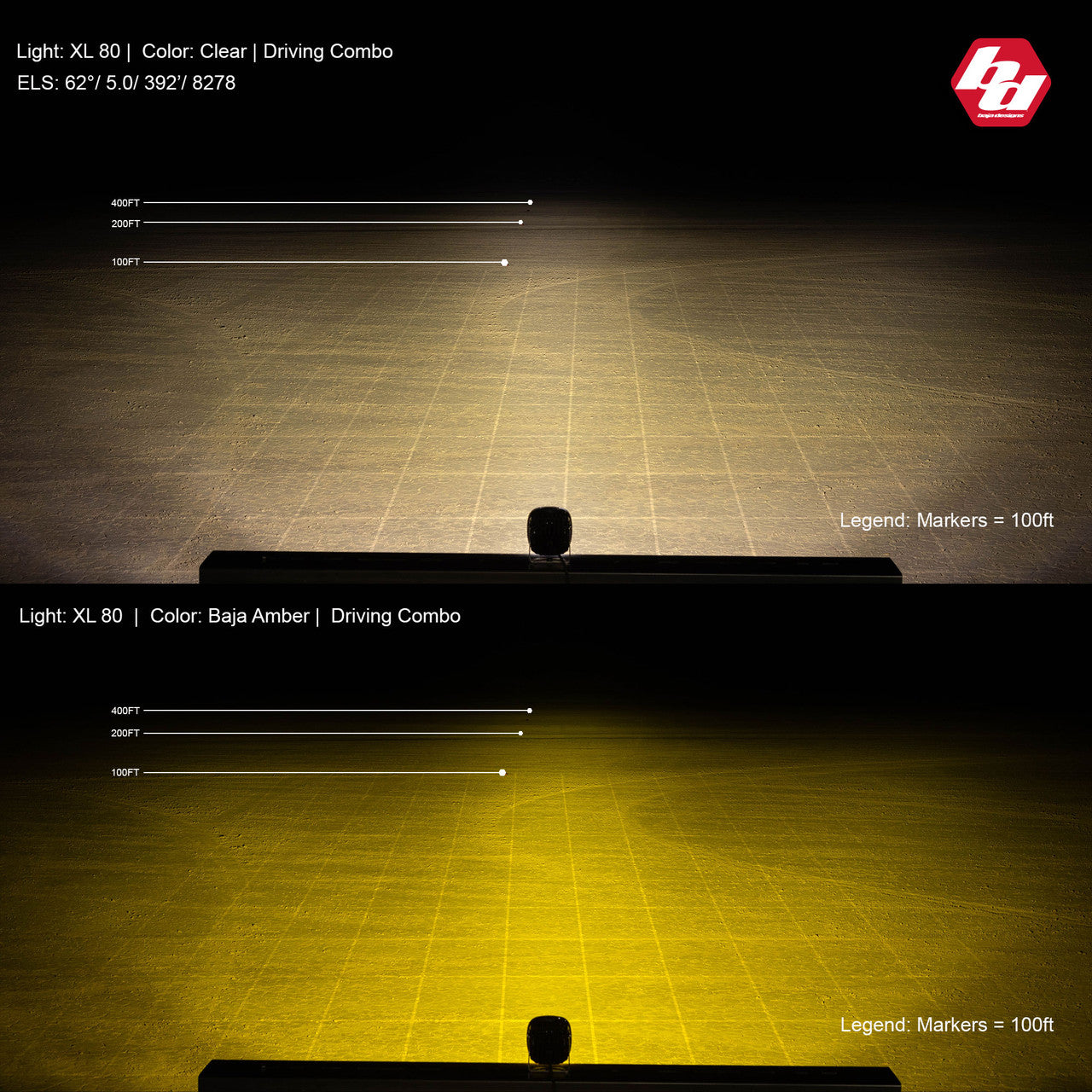

XL80 Driving Combo (Clear): ELS 62°/ 5.0/ 392'/ 8278

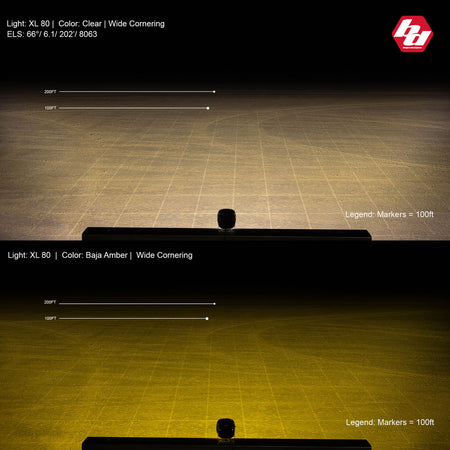

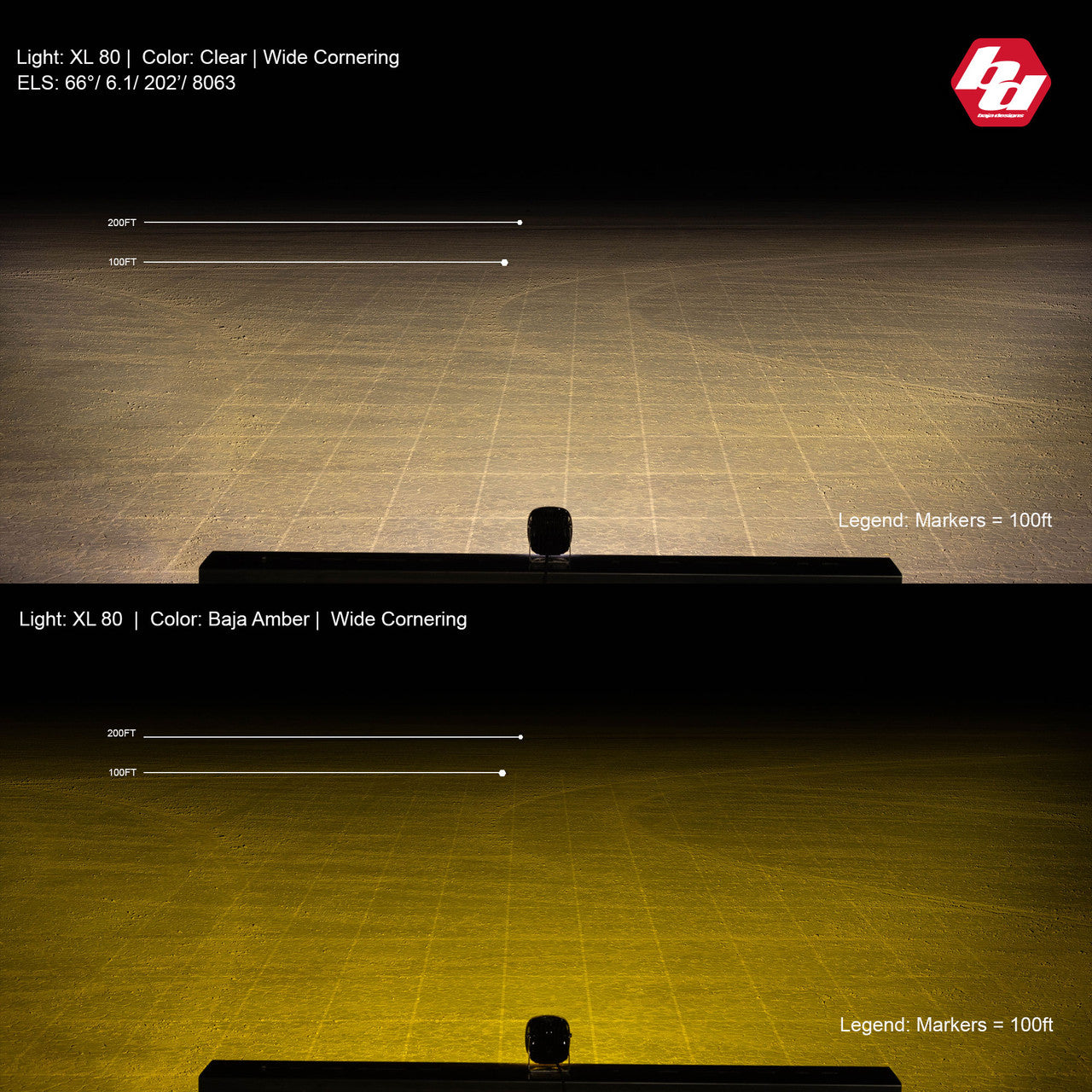

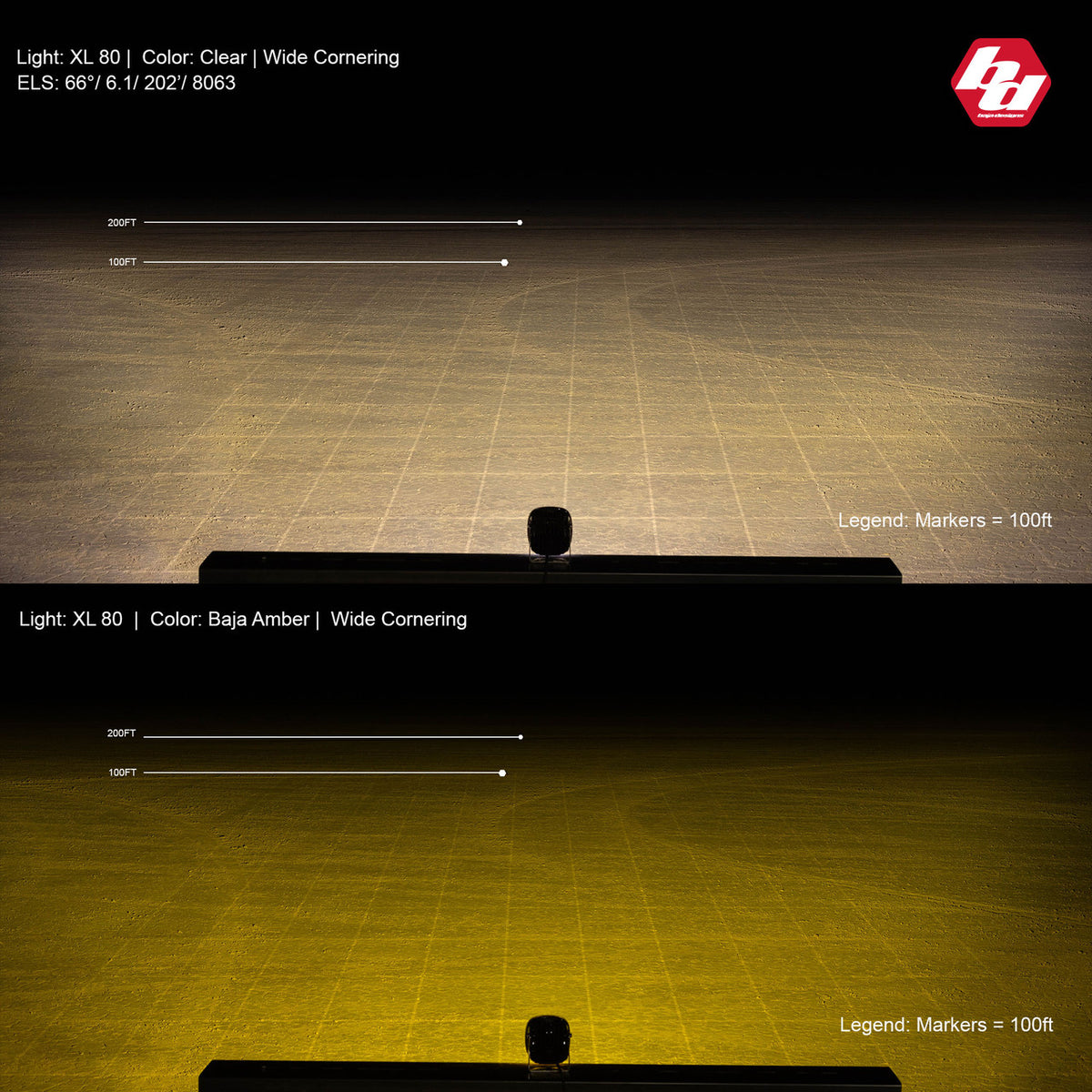

XL80 Wide Cornering (Clear): ELS 66⁰/ 6.1/ 202'/ 8063
Lens Pattern Options:
Driving Combo: The driving combo pattern offers maximum trail coverage in a single light. It combines both driving and spot optics to deliver a smooth blend of light for near-field applications in lighting zones 1 and 2, as well as distance illumination in zone 3. This pattern is perfect for those who need versatile lighting that covers both close and far distances.

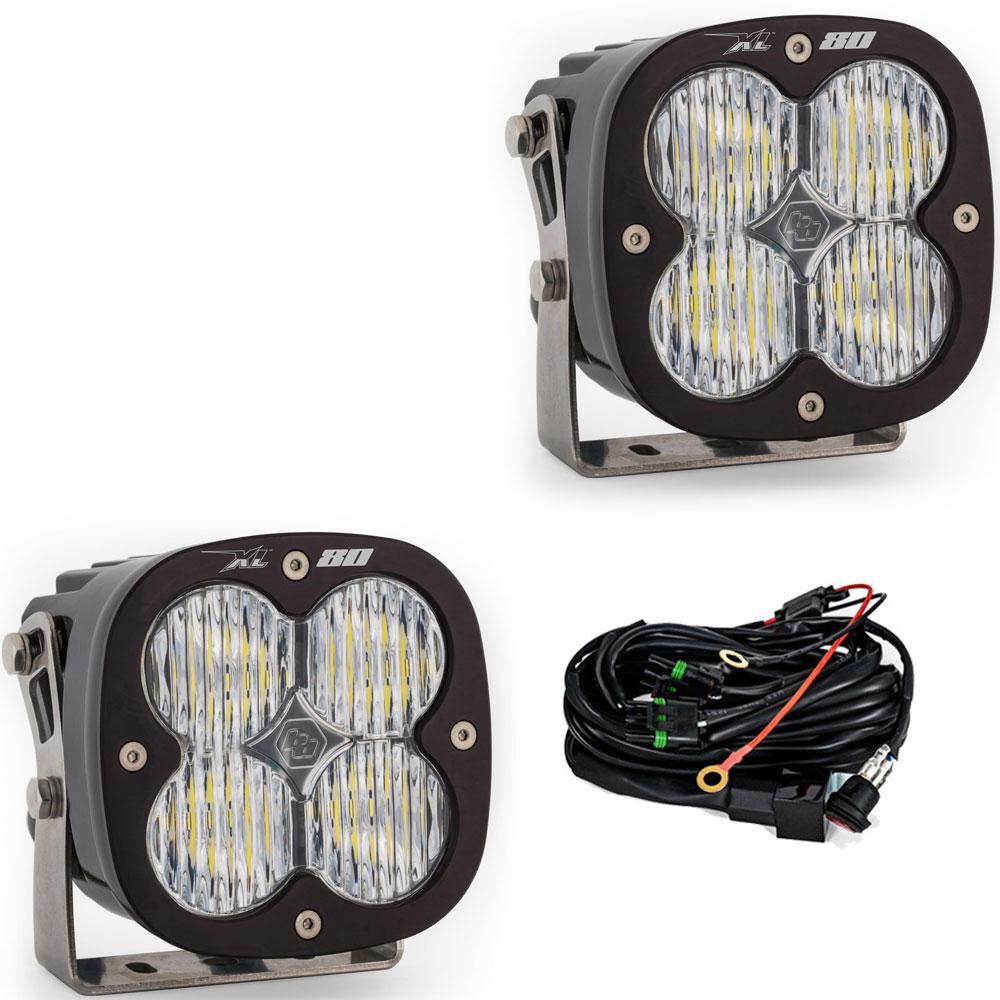

Wide Cornering: The wide cornering pattern provides a 42-degree flattened horizontal beam, enhancing peripheral visibility and reducing blind spots in lighting zones 1 and 2. This pattern is ideal for navigating through tight turns, winding trails, or wooded areas. It excels in inclement weather conditions such as dust, snow, rain, or fog, making it easier to see obstacles, trail conditions, and potential hazards.
Lens Color:
Clear: The original performance lens. Our clear lens combined with our 5000k LEDs provides light most similar to daylight, reducing driver fatigue and increasing terrain recognition.

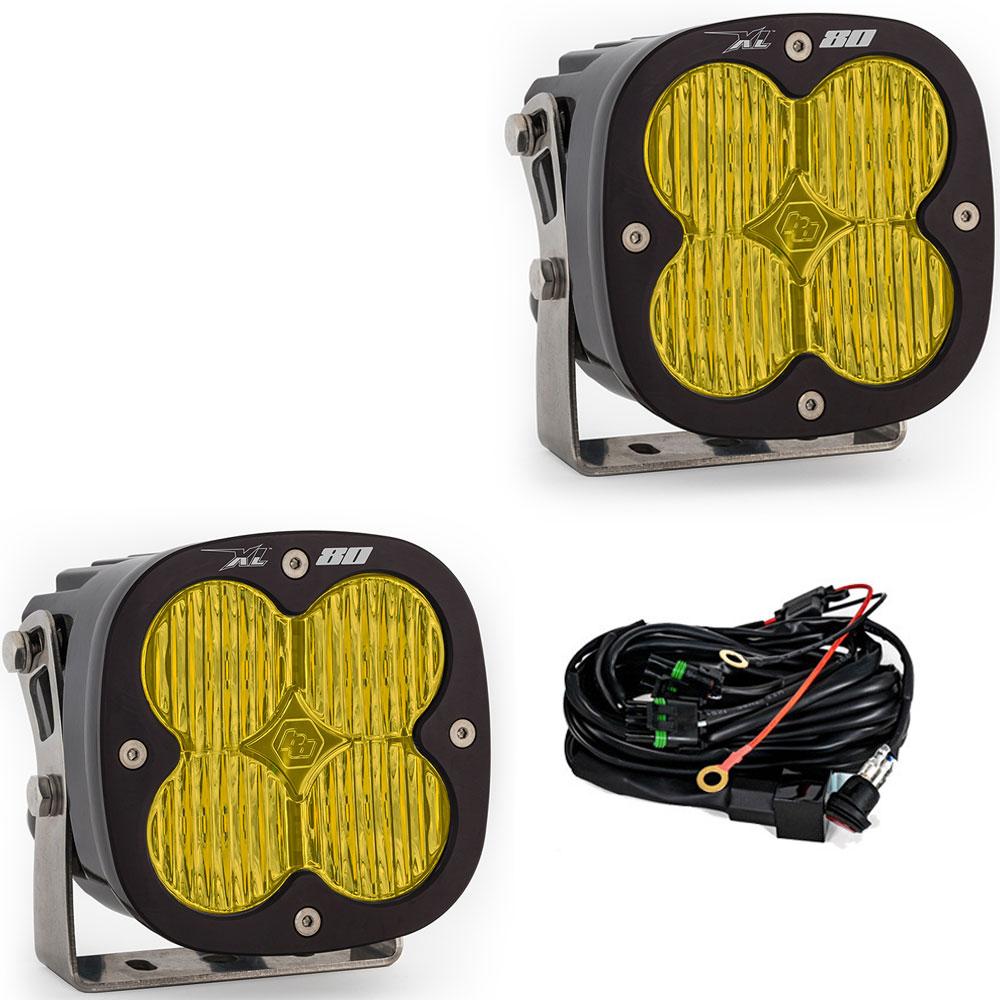

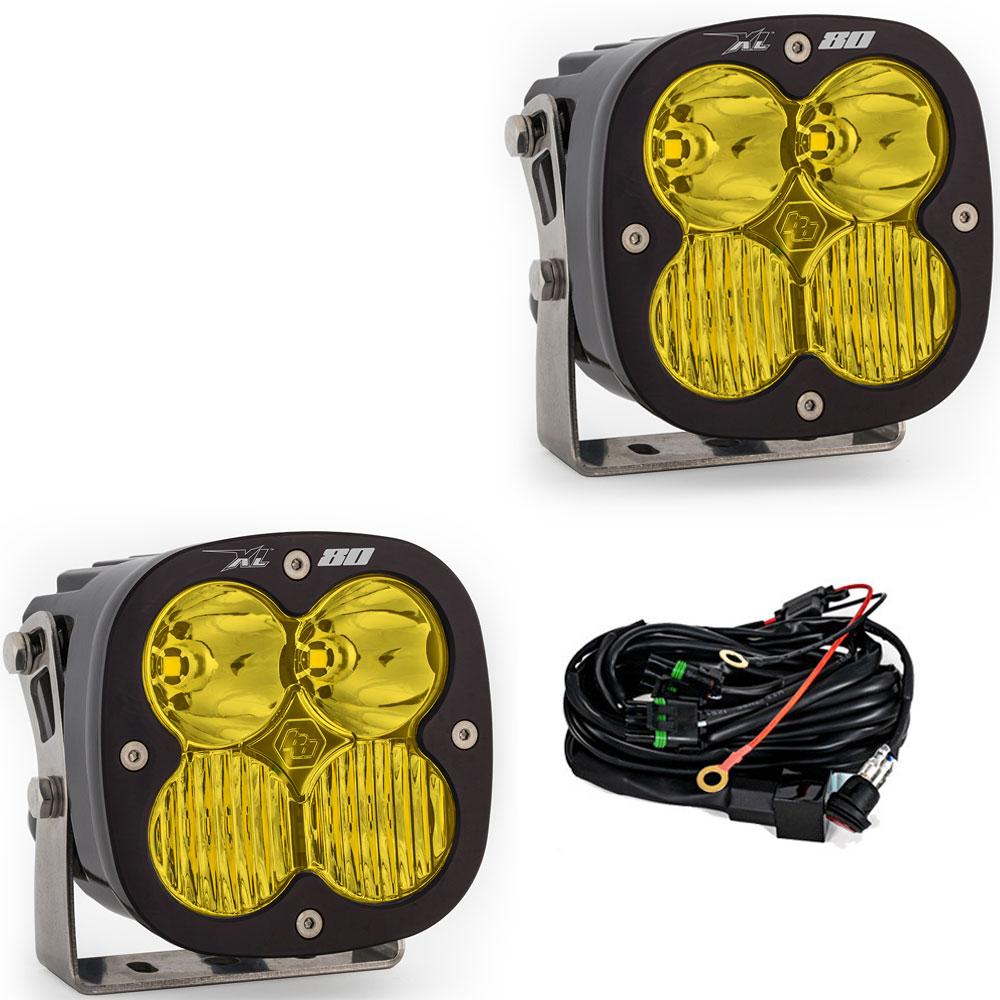

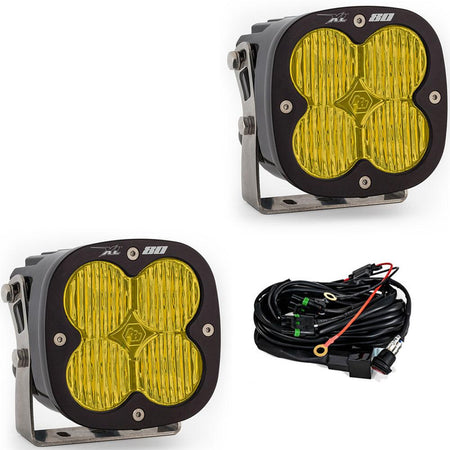

Baja Amber:This performance-driven lens is designed for off-road driving in challenging conditions like dust, rain, snow, or fog. The Baja Amber lens minimizes glare, enhancing visibility and significantly improving your driving experience.
Satisfaction Guarantee – 30-Day Money Back Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses And Optics
ClearView – All The Light, Right Where You Need It
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100 Percent
5000K Daylight – Less Driver Fatigue, Natural Color
Specifications
| Lighting Quantity | 4 |
| Lighting Modes | High Beam/Dimming Feature (20%) |
| Light Quantity | 2 |
| Lens Material | Hardcoated Polycarbonate |
| Lens Color | Clear |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Housing Color | Black |
| Description | Driving/Combo; Clear; Pair |
| Brightness (Lumens) | 9022 |
| Bezel Material | Powder Coated Cast Aluminum |
| Beam Pattern | Driving/Combo |
| Average Rated Life (hr.) | 49,930 |
| Amperage Rating (A) | 5.500 |
| Lighting Technology | Cree LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Included | Yes |
| Wiring Harness Included | Yes |
| Wattage (W) | 75.900 |
| Universal or Specific | Universal |
| Product Type | XL80 LED Light Pod Pair w/ Wiring Harness |
| Overvoltage Protection | Built-In |
| Mounting Hardware Material | Stainless Steel |
Dimensions
| Weight (lbs.) | 2.450 |
| Length (in.) | 4.430 |
| Height (in.) | 4.430 |
| Depth (in.) | 3.650 |
Standards & Compliance
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
LIGHTING ZONES/ LENS PATTERNS/ COLORS
-
Driving Combo
Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42-degree) and spot (9-degree) optics to provide you with a smooth blend of light for both near field applications and distance.
-
Spot
A longer and narrower 9-degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights.
-
Wide Cornering
The Wide Driving pattern offers a 42-degree flattened horizontal beam for the ultimate in comfort lighting. This pattern is specifically for cornering, dust, snow, rain, and/or fog conditions.
-
Work/Scene
Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft. This pattern is not suitable for driving.
-
Trail
Designed to aid in both vertical and horizontal light spread. Provides more near and mid-field visibility in tight slower technical terrain. (S1 only)
-
-
Clear
The original performance lens. Our clear lens combined with our 5000k LEDs provides light most similar to daylight, reducing driver fatigue and increasing terrain recognition.
-
Baja Amber
This performance-driven lens is designed for off-road driving in challenging conditions like dust, rain, snow, or fog. The Baja Amber lens minimizes glare, enhancing visibility and significantly improving your driving experience.
-
Factory Amber
This replacement lens option is crafted to seamlessly match the OEM running lights found on vehicles today. Factory Amber provides a color temperature that is best utilized in low-visibility conditions to increase depth perception while minimizing glare.
-
ZONES
-
Dust/Fog
Illuminates the area directly in front of the vehicle, for use during rainy, snowy, or dusty conditions.
Automotive, Motorcycle, UTV
-
Cornering
Provides cornering and peripheral light, which is necessary to drive comfortably at speed.
Automotive, Motorcycle, UTV
-
Driving Combo
Your primary driving light and most important zone to start with when building a balanced lighting package.
Automotive, Motorcycle, UTV
-
Spot
This zone is your first level of long-distance lighting. Lights intended for this zone will give you the distance needed to travel at speeds and see safely down the road or trail.
Automotive, Motorcycle, UTV
-
Racer Edition Spot
This zone is implemented when approaching triple-digit speeds, or in instances when distance penetration becomes necessary.
Automotive, Motorcycle, UTV
-
Rock Light
This zone illuminates the wheel wells, undercarriage, or any other part of the vehicle that can benefit from great visibility while moving through tight spaces and jagged terrain.
Automotive, UTV
-
Cargo
This zone is important for drivers that need quick access to tools and cargo, in and immediately around the vehicle.
Automotive, UTV
-
Backup/Reverse
This zone is crucial to keeping the backside of your vehicle safe. Whether reversing on the trail or leading a pack through the dust, you will want the correct lighting solution.
Automotive, UTV
-
Laser Series
This zone is one of the last additions to your lighting package. When you have optimized your entire package and still need that extra punch in the distance, make sure to check out the ultimate distance lighting available today.
Automotive, UTV
