Baja Designs Reflex Light Actuator Kit for LP4/LP6/LP9/XL-M Housings
SPECIAL ORDER
Please allow 1 - 3 weeks for this item to fulfill.
Product Details
- Type LED Light Pod Actuator
- Vendor Baja Designs
- SKU 80-0001
- Shipping Weight 0.0 oz

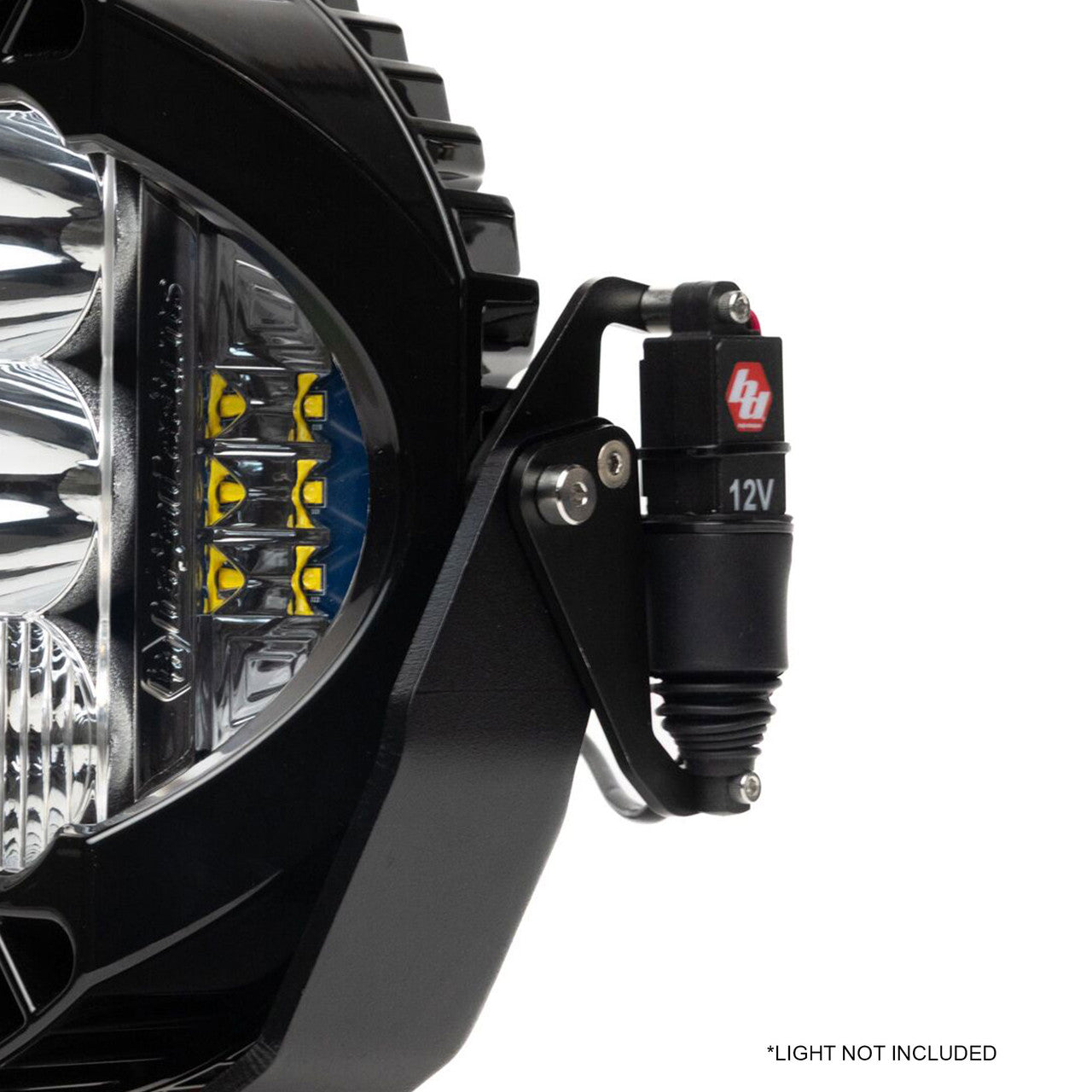

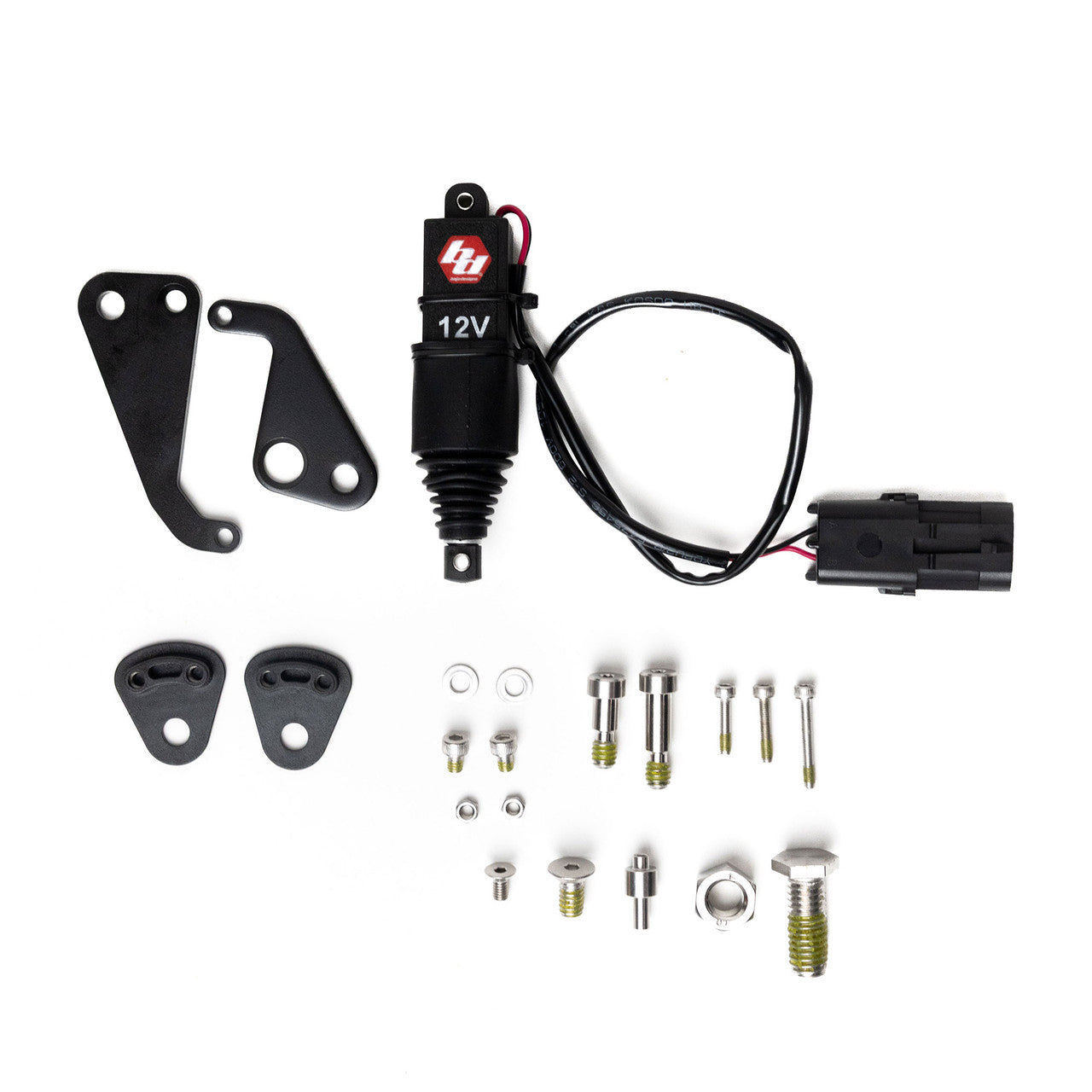

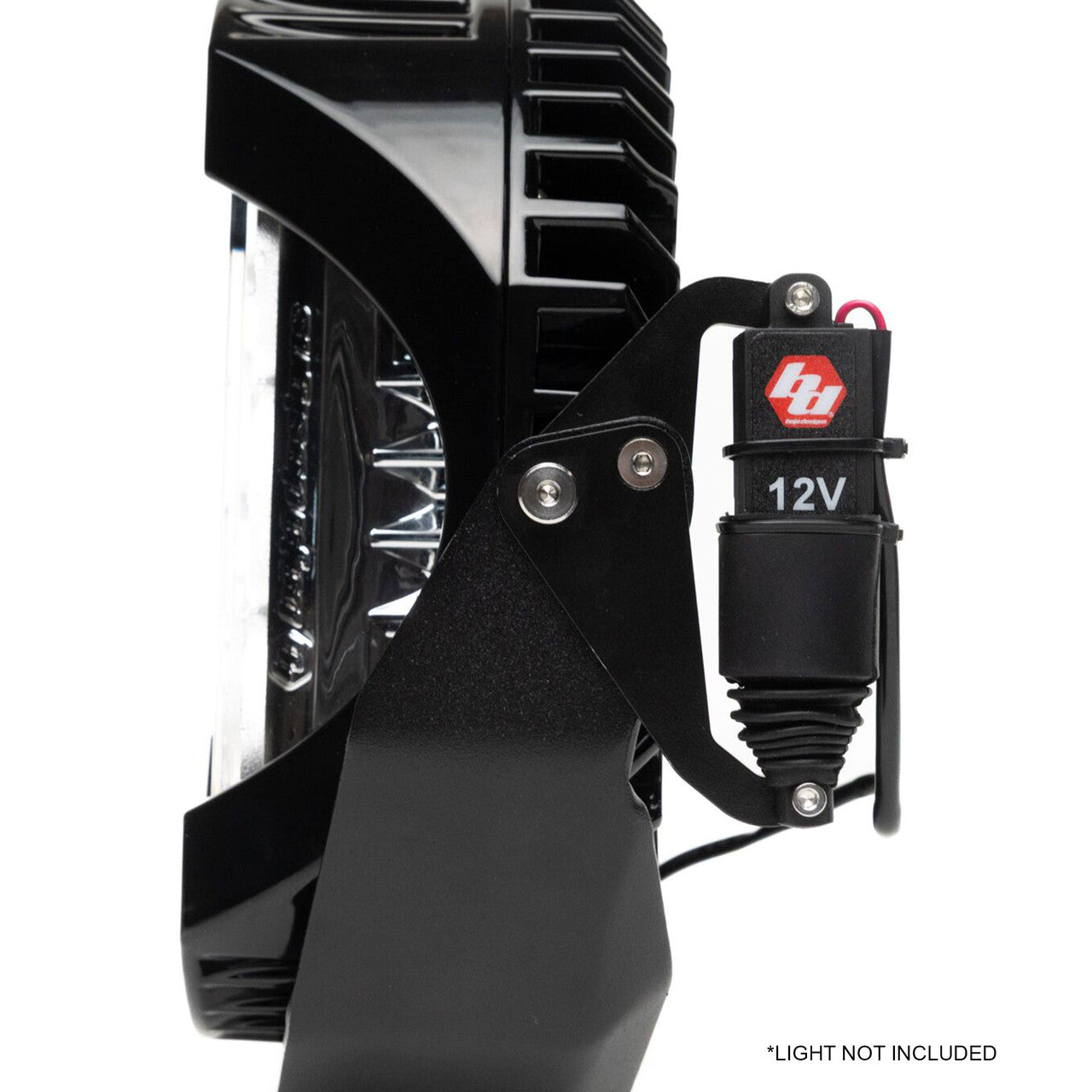

Introducing the Reflex Light Actuator™ (Patent Pending) – the first fully compatible actuator system designed exclusively for the Baja Designs light lineup. Born from racing in Baja, the Reflex brings professional race-level engineering to a consumer-ready solution. Engineered exclusively for our lights, the Reflex delivers instant, on-the-fly control of light pitch angle. Drivers can adjust their light up to 20 degrees depending on light type, ensuring perfect light coverage for every terrain change, climb, descent, or high-speed section. The Reflex mounts directly to existing Baja Designs light brackets with included hardware. No fabrication, no guesswork, just clean installation and plug-and-play setup. This actuator is compatible with the full LP Series and XL-M (shallow housing) lights.
NOTE: Actuator Wiring harness sold separately. Rocker Switch or Power Management
Features:
- Low profile actuators allow users to adjust the pitch angle of lights through large range of motion on the fly.
- Mounts directly to existing Baja Designs universal brackets, for installation on new lighting packages or retrofitting existing lighting packages.
- Compatible with most VSKs using the light’s universal bracket.
- Standard Baja Designs Limited Lifetime Warranty.
- Wiring harnesses for control via rocker switch or power control modules (sPOD, SwitchPros, and others).
- NOTE: Wiring harness sold separately.
Specifications:
- 0.14A/2.0W at 13.8V per actuator
- MIL-STD-810G, IEC compliant
- Waterproof Rating: IP54
Baja Designs 80-0001 Installation Sheet
Aim YOUR lights ON THE FLY - REFLEX LIGHT ACTUATOR
Adjust the Pitch Angle of Your Lights on the Fly
With the Reflex light actuator, you are now able to adjust the angle of your lights with a touch of a button. The low-profile of the Reflex light actuator allows users to adjust the pitch angle of lights through a large range of motion on the fly. This helps to aim the lights exactly where you need when on the trails.

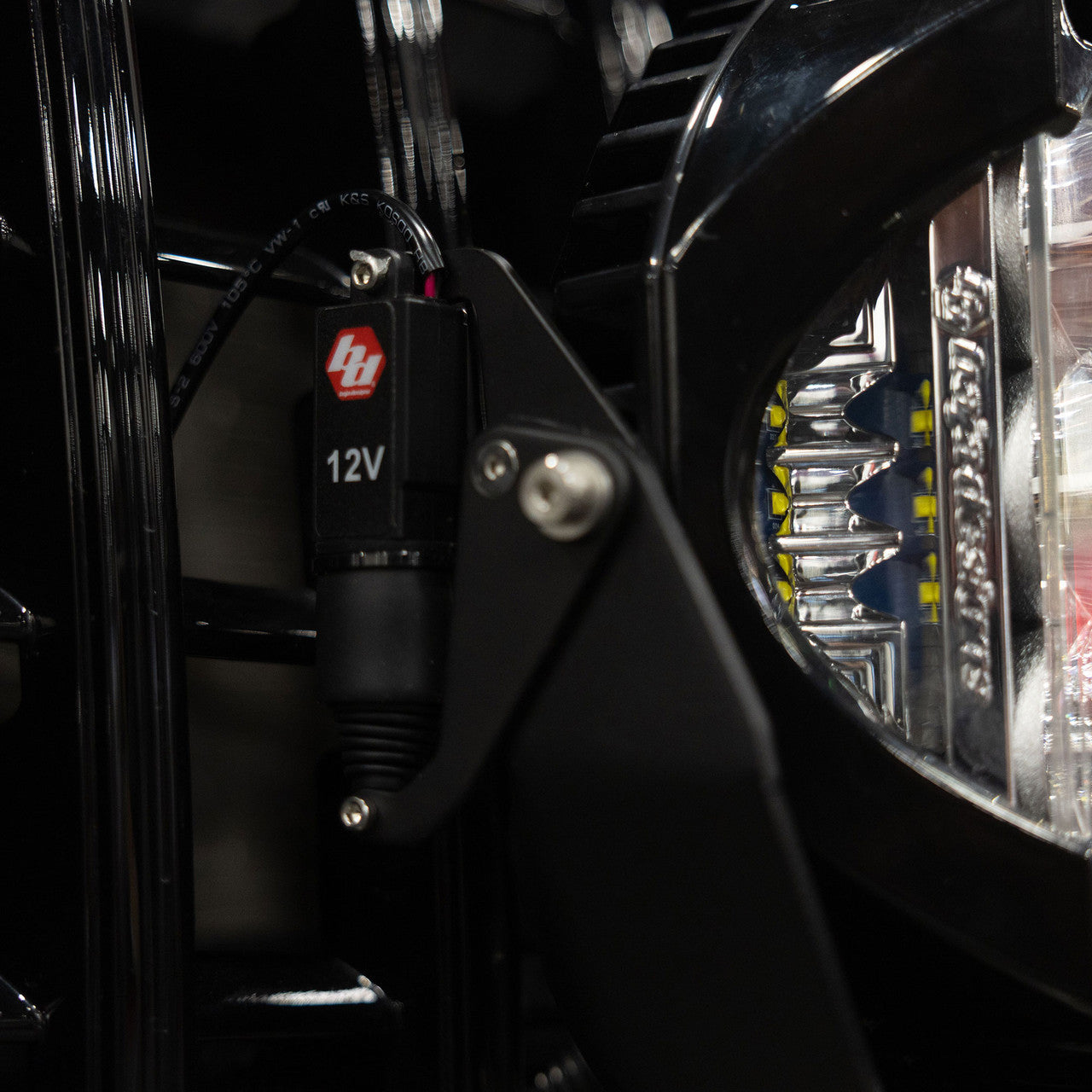

Mounts to Baja Designs Universal Light Brackets
We have engineered the Reflex Light Actuator to mount directly to Baja Designs’ universal light brackets of the LP Series, XL Series, S8 and OnX6+ light bars. This ensures that you don’t have to switch light mounts and installation is easy for the everyday mechanic.
Specific Wiring Harnesses for Control
You choose how you want to control the Reflex Light Actuator. Harnesses are sold separately to provide flexibility for customers’ existing lighting setups. With two style of wiring harnesses to select from provided flexibility to control your lights how you want. Wiring harnesses for control via momentary switch or power control modules (sPOD, SwitchPros, and others), take control of your lights at the push of a button.
Want to pair three or more actuators together? Use the single lead harnesses paired with our XL linkable harnesses to control multiple actuators simultaneously. See our rocker switch and power management actuator harness pages for more information on how you can achieve this feature.
LIGHTING ZONES/ LENS PATTERNS/ COLORS
-
Driving Combo
Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42-degree) and spot (9-degree) optics to provide you with a smooth blend of light for both near field applications and distance.
-
Spot
A longer and narrower 9-degree beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights.
-
Wide Cornering
The Wide Driving pattern offers a 42-degree flattened horizontal beam for the ultimate in comfort lighting. This pattern is specifically for cornering, dust, snow, rain, and/or fog conditions.
-
Work/Scene
Excellent work light or “scene light” with an extremely smooth 120° circle that projects about 40ft. This pattern is not suitable for driving.
-
Trail
Designed to aid in both vertical and horizontal light spread. Provides more near and mid-field visibility in tight slower technical terrain. (S1 only)
-
-
Clear
The original performance lens. Our clear lens combined with our 5000k LEDs provides light most similar to daylight, reducing driver fatigue and increasing terrain recognition.
-
Baja Amber
This performance-driven lens is designed for off-road driving in challenging conditions like dust, rain, snow, or fog. The Baja Amber lens minimizes glare, enhancing visibility and significantly improving your driving experience.
-
Factory Amber
This replacement lens option is crafted to seamlessly match the OEM running lights found on vehicles today. Factory Amber provides a color temperature that is best utilized in low-visibility conditions to increase depth perception while minimizing glare.
-
ZONES
-
Dust/Fog
Illuminates the area directly in front of the vehicle, for use during rainy, snowy, or dusty conditions.
Automotive, Motorcycle, UTV
-
Cornering
Provides cornering and peripheral light, which is necessary to drive comfortably at speed.
Automotive, Motorcycle, UTV
-
Driving Combo
Your primary driving light and most important zone to start with when building a balanced lighting package.
Automotive, Motorcycle, UTV
-
Spot
This zone is your first level of long-distance lighting. Lights intended for this zone will give you the distance needed to travel at speeds and see safely down the road or trail.
Automotive, Motorcycle, UTV
-
Racer Edition Spot
This zone is implemented when approaching triple-digit speeds, or in instances when distance penetration becomes necessary.
Automotive, Motorcycle, UTV
-
Rock Light
This zone illuminates the wheel wells, undercarriage, or any other part of the vehicle that can benefit from great visibility while moving through tight spaces and jagged terrain.
Automotive, UTV
-
Cargo
This zone is important for drivers that need quick access to tools and cargo, in and immediately around the vehicle.
Automotive, UTV
-
Backup/Reverse
This zone is crucial to keeping the backside of your vehicle safe. Whether reversing on the trail or leading a pack through the dust, you will want the correct lighting solution.
Automotive, UTV
-
Laser Series
This zone is one of the last additions to your lighting package. When you have optimized your entire package and still need that extra punch in the distance, make sure to check out the ultimate distance lighting available today.
Automotive, UTV
