Garmin Catalyst 2 Racetrack Driving Performance Optimizer
Product details
- Type Navigation
- Vendor Garmin
- SKU 010-03924-00
- Shipping Weight 930.0 g
FIND YOUR LINE TO FASTER TIMES

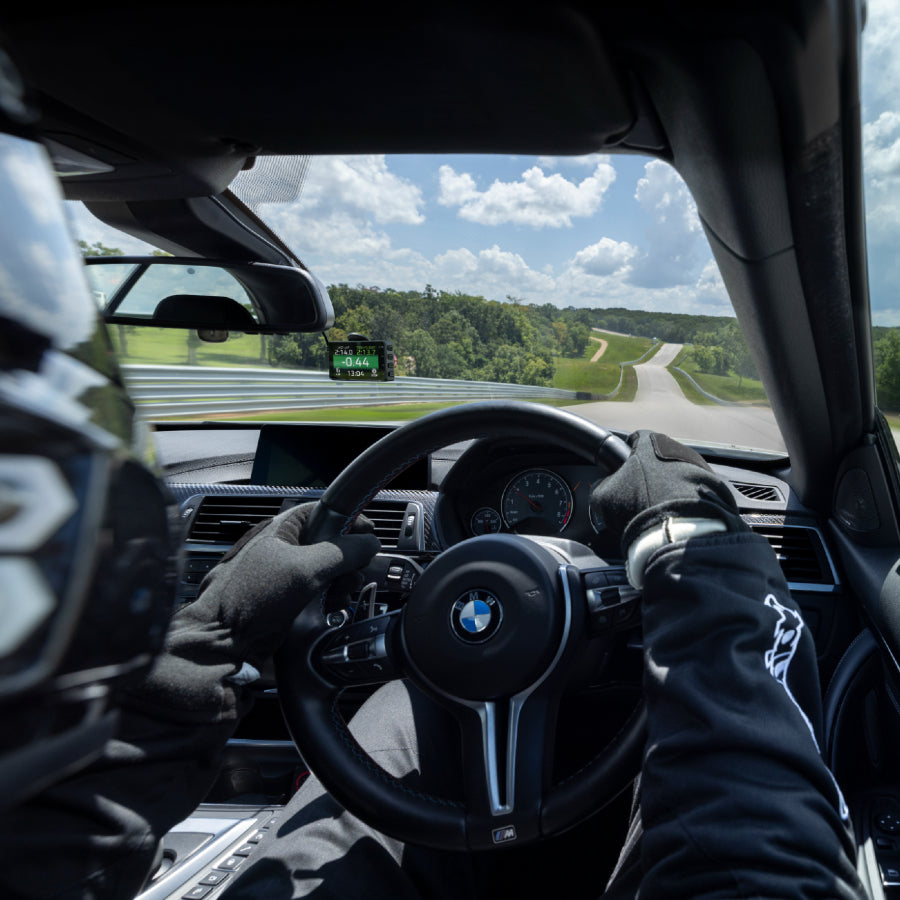

Get on track for your best achievable time with this compact all-in-one racetrack driving performance optimizer that provides real-time audio coaching1. After every session, review your performance data2 and see opportunities to save time.
BUILT TO DRIVE
SIMPLE DESIGN

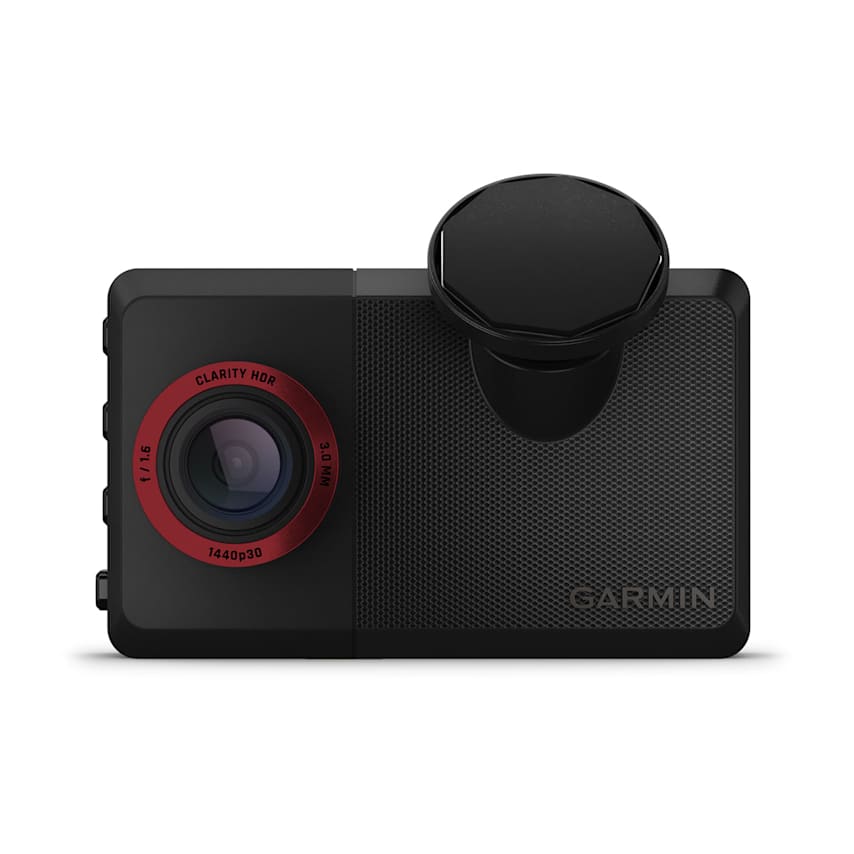

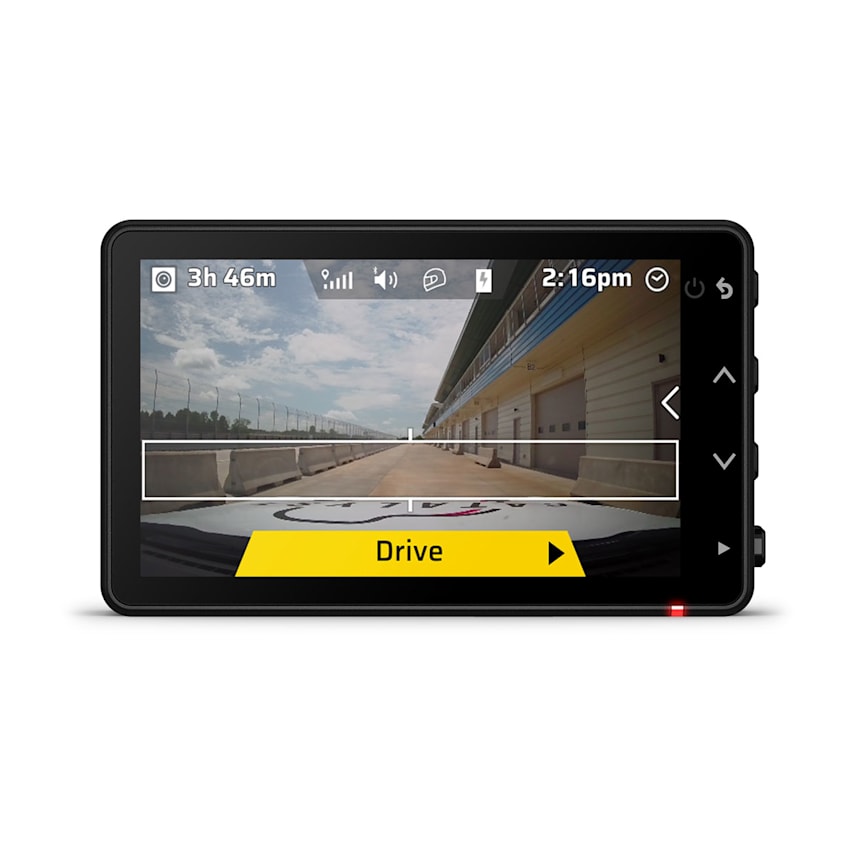

Easily secure Garmin Catalyst 2 to your windshield in seconds. The small and unobtrusive all-in-one design features a 3-inch touchscreen display to easily align the camera and adjust settings.
HD CAMERA

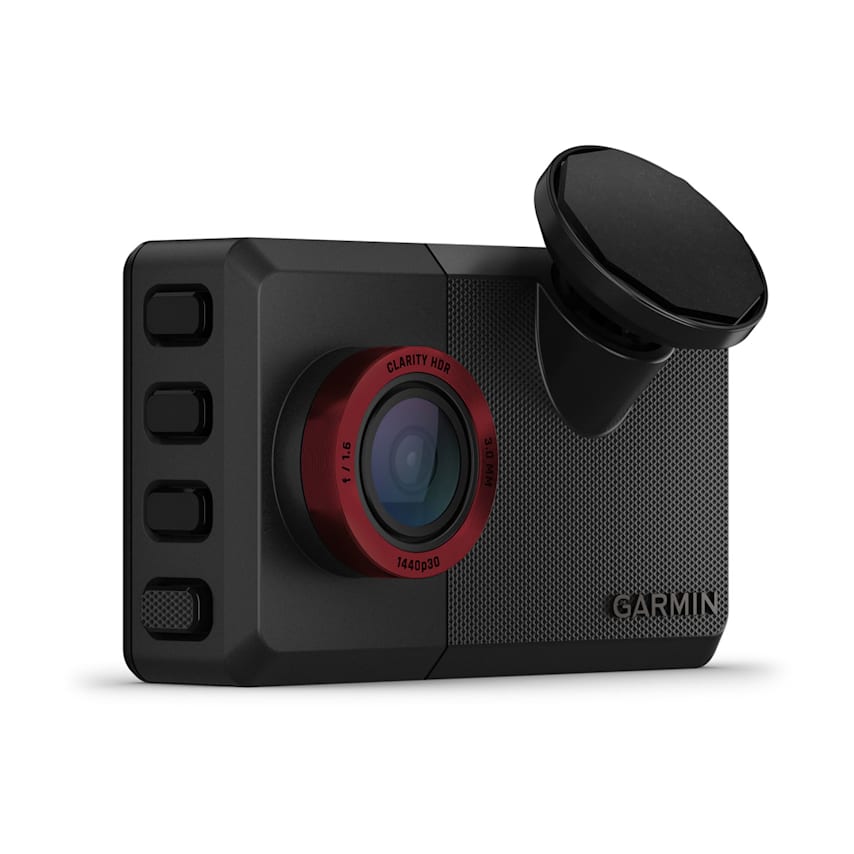

The built-in 1440P HD camera records sharp video of your track sessions on the pre-installed memory card. Garmin Clarity™ HDR optics capture crisp video detail in all weather conditions.
POLARIZED LENS COVER
The included lens cover can be easily removed or added to reduce any windshield glare.

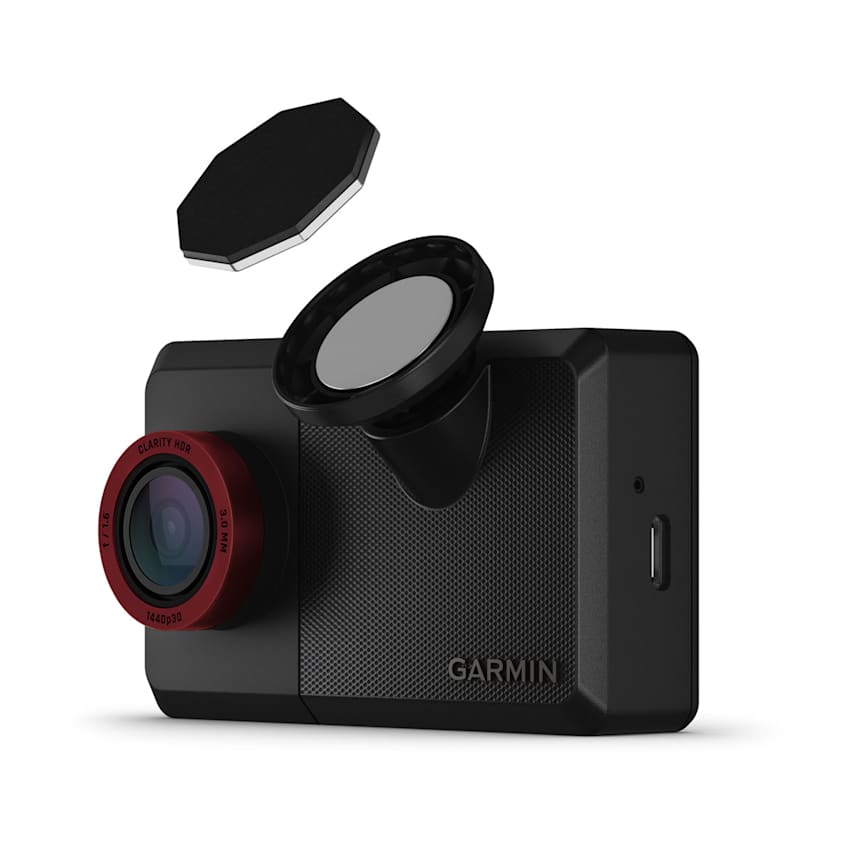

MOUNT-COMPATIBLE
This device includes an adapter for an action cam mount and is also compatible with alternate mount accessories.
ON THE TRACK
REAL-TIME LAP DATA

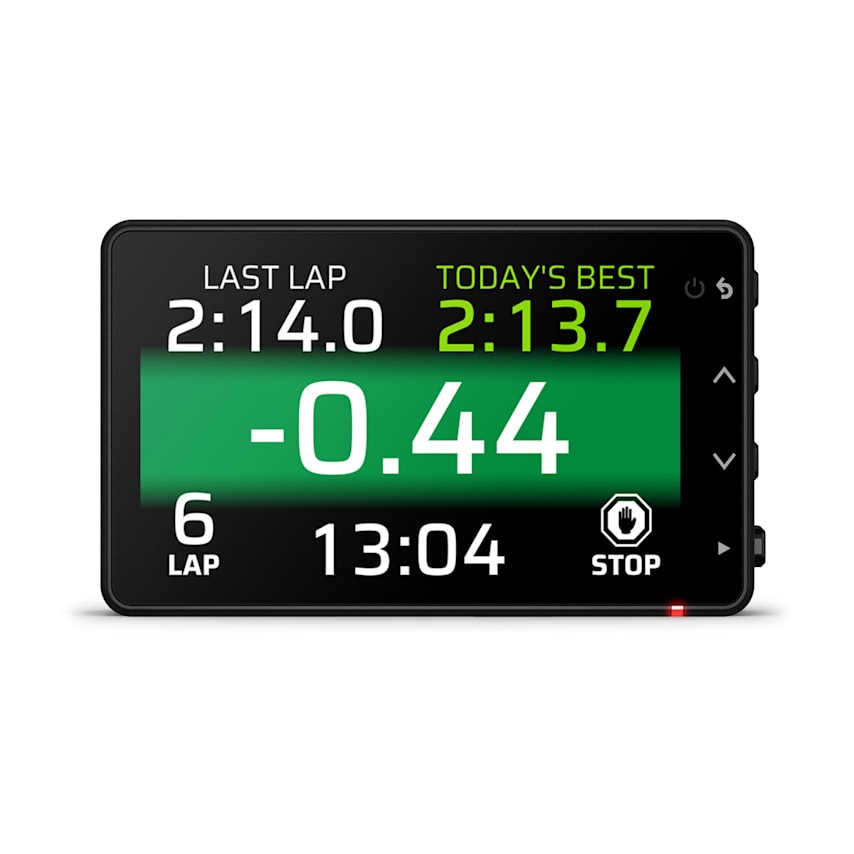

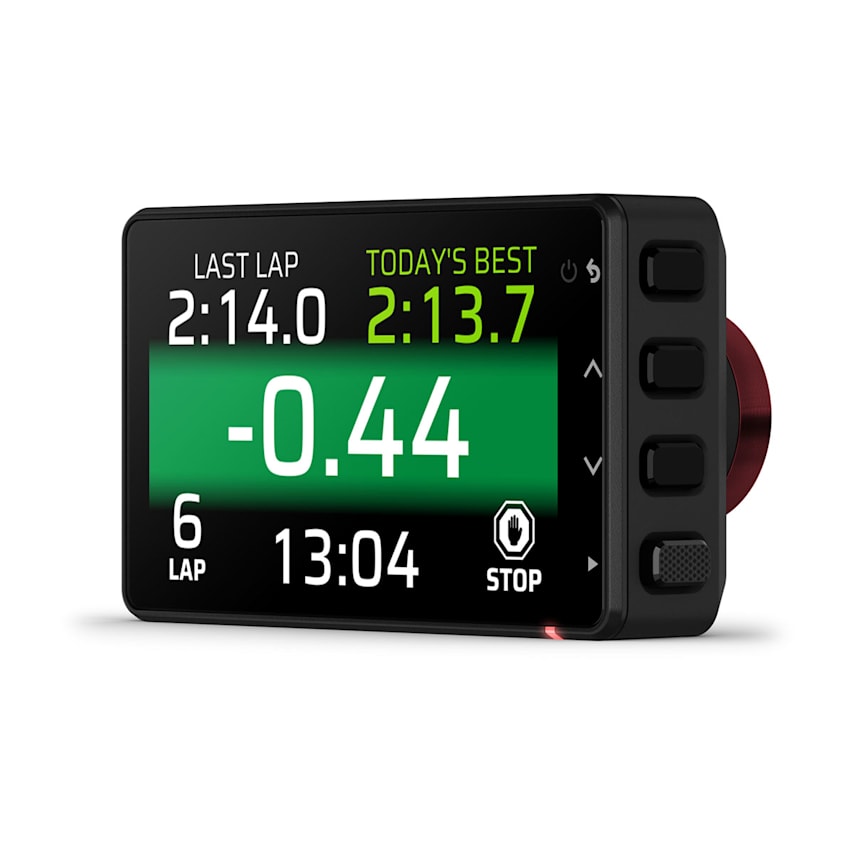

See your last lap time, best lap time, adaptive delta time on a red (behind) or green (ahead) gradient at a glance, alongside number of laps and total session time.
TRACK DATABASE

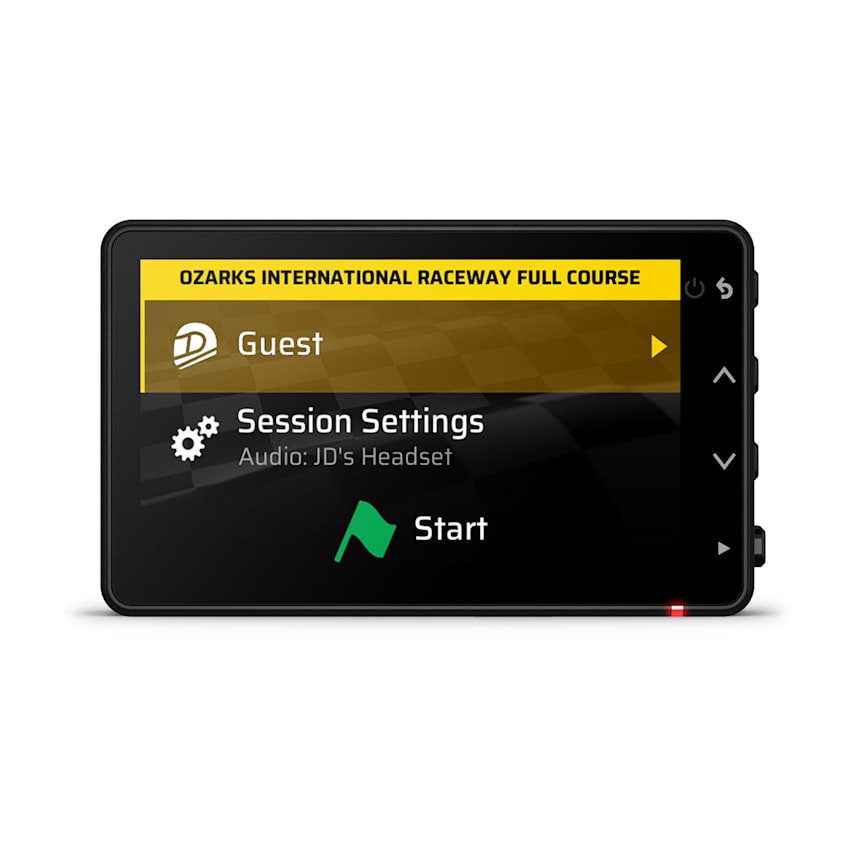

The device is preloaded with a track database featuring road courses from around the world. You can also create custom tracks and configurations.
REFINED TRUE TRACK POSITIONING™ TECHNOLOGY
This unique technology uses built-in accelerometers, gyroscopes, image processing and 25 Hz multi-GNSS positioning to generate your racing line on the track and more.
DRAG RACING TIMER
Record your drag racing time and distance milestones, such as your 0–60 mph time and 1/8-mile and 1/4-mile times.
AFTER THE SESSION
ADAPTIVE COACHING
This device compares your sessions and gives immediate, adaptive suggestions to show areas for improvement.
VAULT VIDEOS
With a Vault plan, your optimal and best lap videos from every session are automatically saved and accessible via the Garmin Catalyst app3.
GROUP SESSIONS
List your sessions in the order that makes the most sense to you — including by track or date — via the Garmin Catalyst app.
SESSION REVIEW

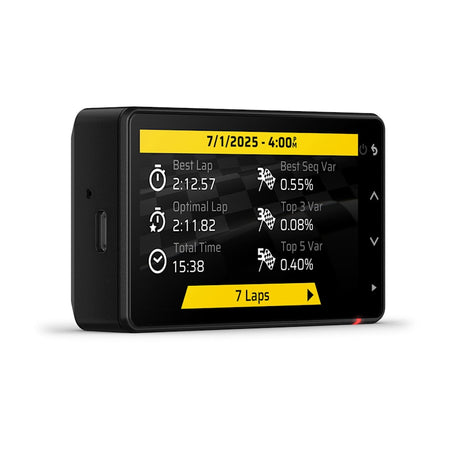

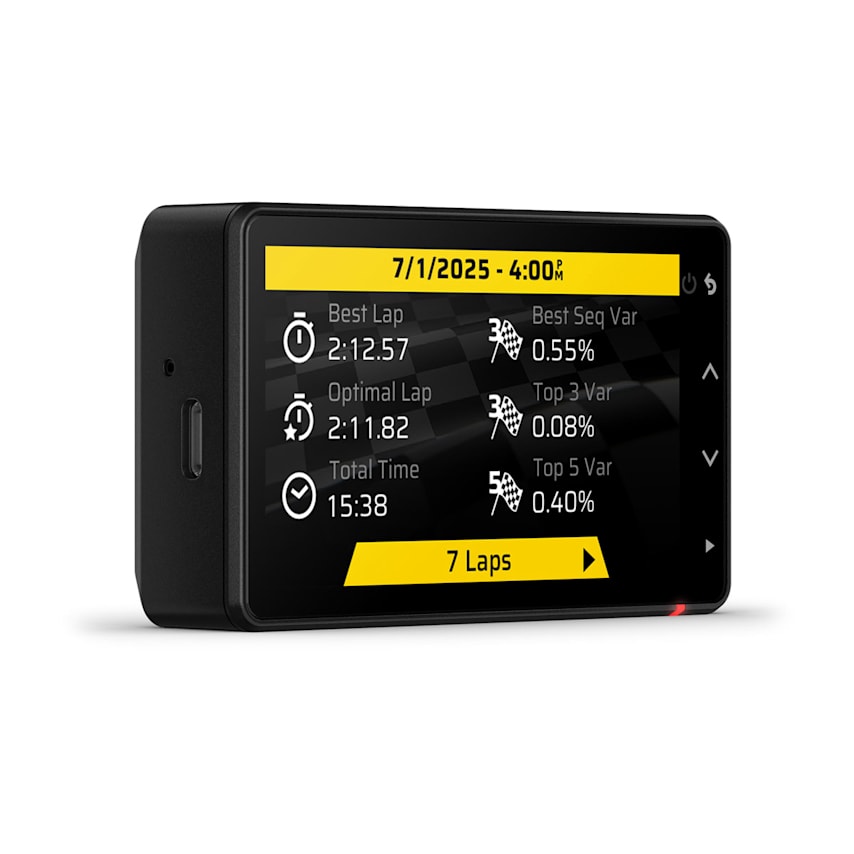

Compare your optimal lap to your intelligent average lap data. Plus, view your braking, cornering, speed, apex and delta time.
| General | |
|---|---|
| Dimension | 3.34" W x 1.98" H x 1.23" D (8.29 x 5.03 x 2.15 cm) |
| Weight |
4 oz (115 g) |
| Display Type | 3.0" color TFT, with on-cell capacitive touch panel |
| Display Size | 2.61" W x 1.49" H (6.6 x 3.8 cm); 3.0" (7.6 cm) |
| Display resolution | 640 x 360 pixels |
| Magnetic Mount | yes |
| Mount type | 11 mm ball |
| Battery Type | rechargeable lithium-ion |
| Battery life |
up to 45 minutes |
| Charging time | 2.5 hours |
| Maps & Memory | |
|---|---|
| Data cards | yes (32 GB microSD™ Class 10 card included: accepts up to 512 GB microSD) |
| Sensors | |
|---|---|
| GPS | yes |
| Galileo | yes |
| BeiDou | yes |
| 25 Hz multi-GNSS positioning | yes |
| Camera Features | |
|---|---|
| Camera Resolution | 1440p |
| Field of View | 140 degrees (diagonal) |
| Frame Rate | up to 30 FPS |
| Clarity ™ HDR | yes |
| Mobile app to review videos | yes (Garmin Catalyst™ app) |
| Vault compatible (secure online video storage) | yes |
| Advanced Features | |
|---|---|
| Wi-Fi® map and software updates | yes (software and track database updates) |
| Connectivity | |
|---|---|
| Smartphone platform compatibility | Garmin Catalyst™ app |
| Works with Garmin app on a compatible smartphone | yes |
| Requires Bluetooth®-enabled smartphone | yes |
| Works with vehicle stereo | yes |
| Motorsport Features | |
|---|---|
| True Track Positioning™ (your racing line) | yes |
| Real-time audio cues/audio coaching | yes |
| True Optimal Lap™ with video | yes |
| Built-in accelerometers | yes |
| Bluetooth® connectivity | yes (works with Bluetooth®-enabled helmet/headset (sold separately)) |
| Displays best lap time, adaptive delta time, number of laps and total session time | yes |
| Preloaded global track database | yes |
| Session comparisons | yes |
| Driving performance scores | yes |
| Automatically identifies areas of biggest time gain | yes |
| Supports multiple users | yes |
| Supports multiple cars | yes |
| Stores history of all on-track performance | yes |
| Segment analysis (racing line, speed and acceleration/deceleration) | yes |
| Leaderboards | yes |
| Leaderboard videos (requires Vault subscription) | yes |
| Friend comparisons | yes |
| Friend videos (requires Vault subscription) | yes |
| Videos with overlays | yes |
| Video with audio coaching | yes |
| Exportable videos | yes |
| Electrical Features | |
|---|---|
| Power Source | USB-C |
