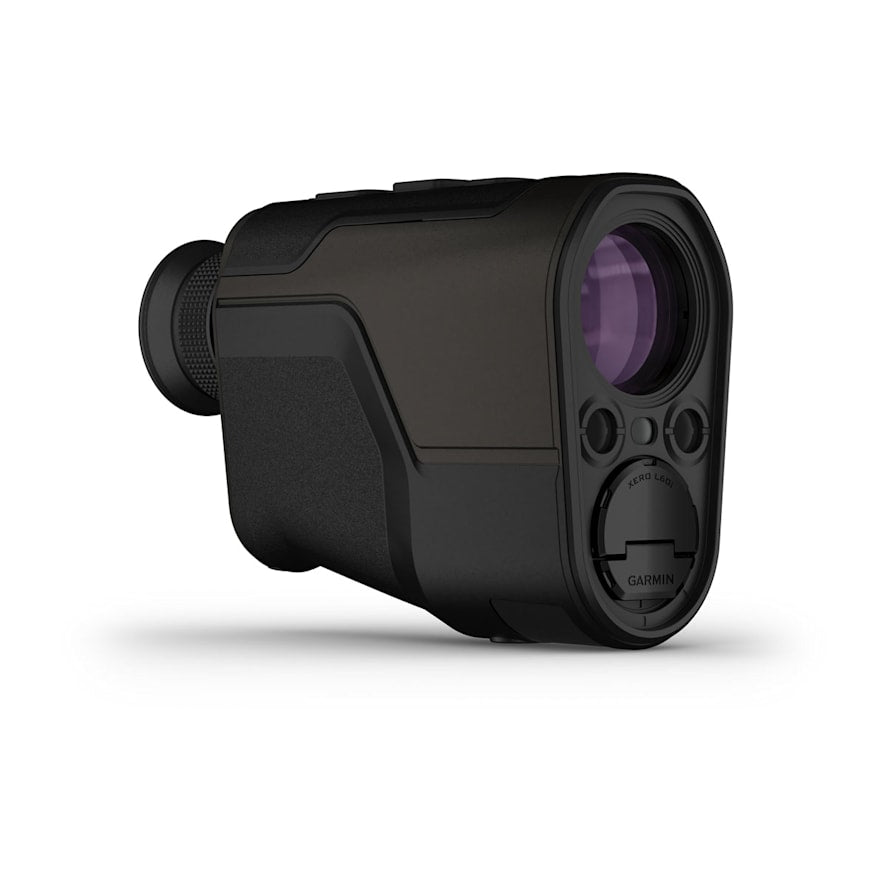

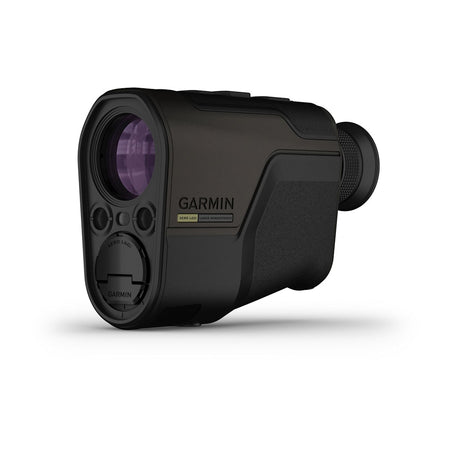

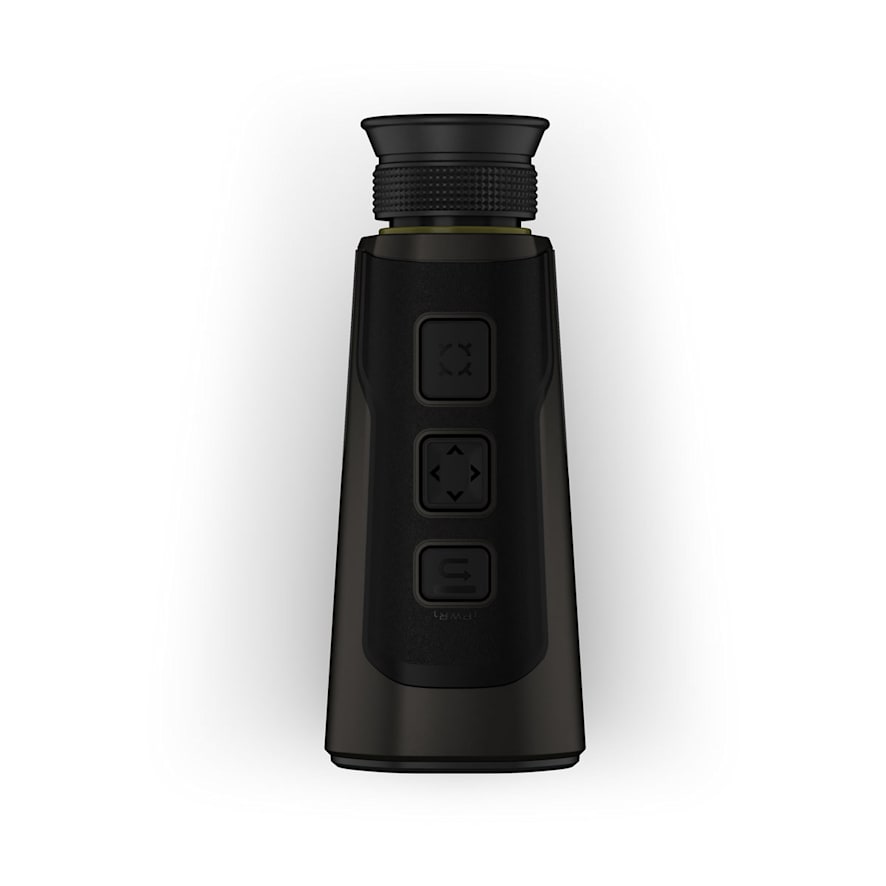

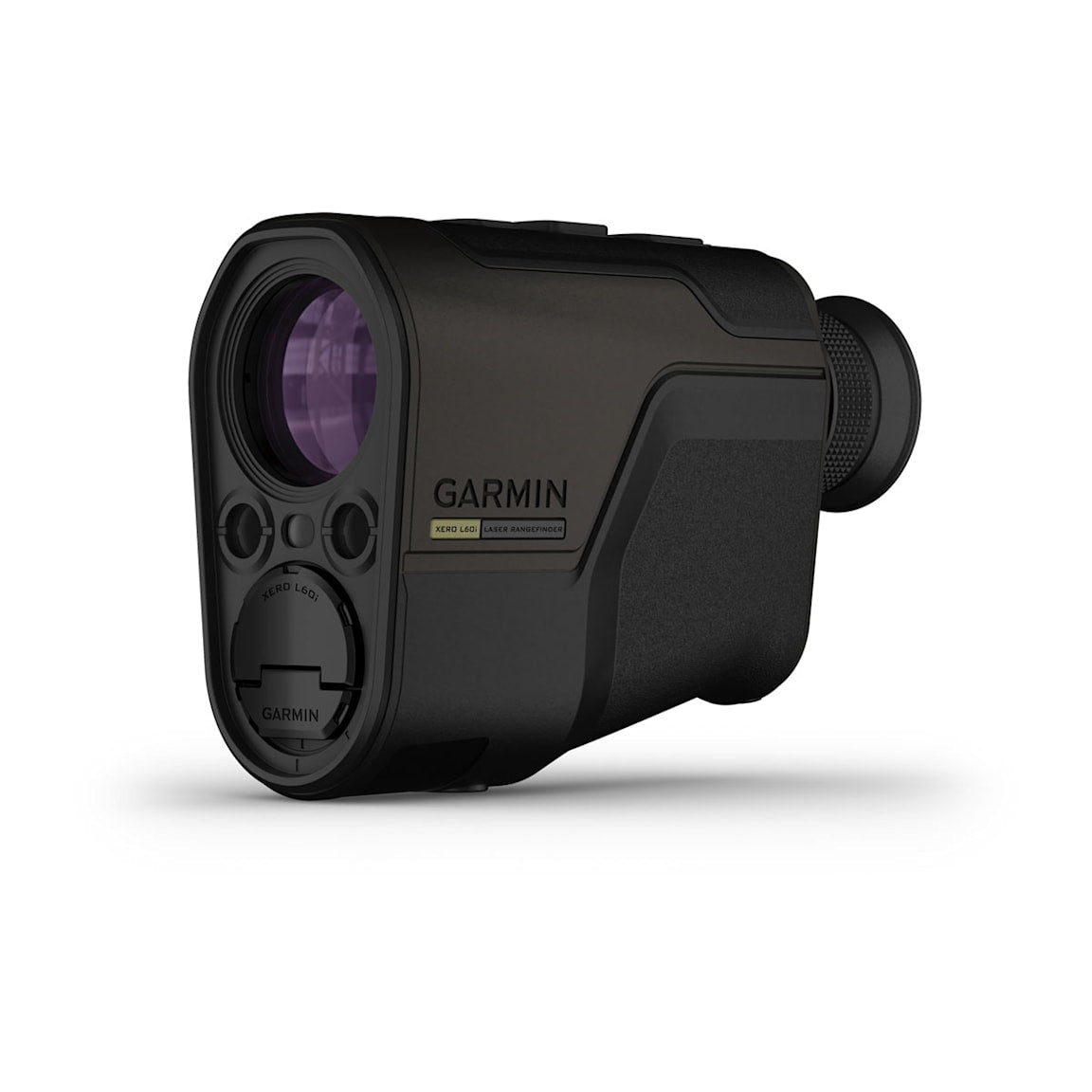

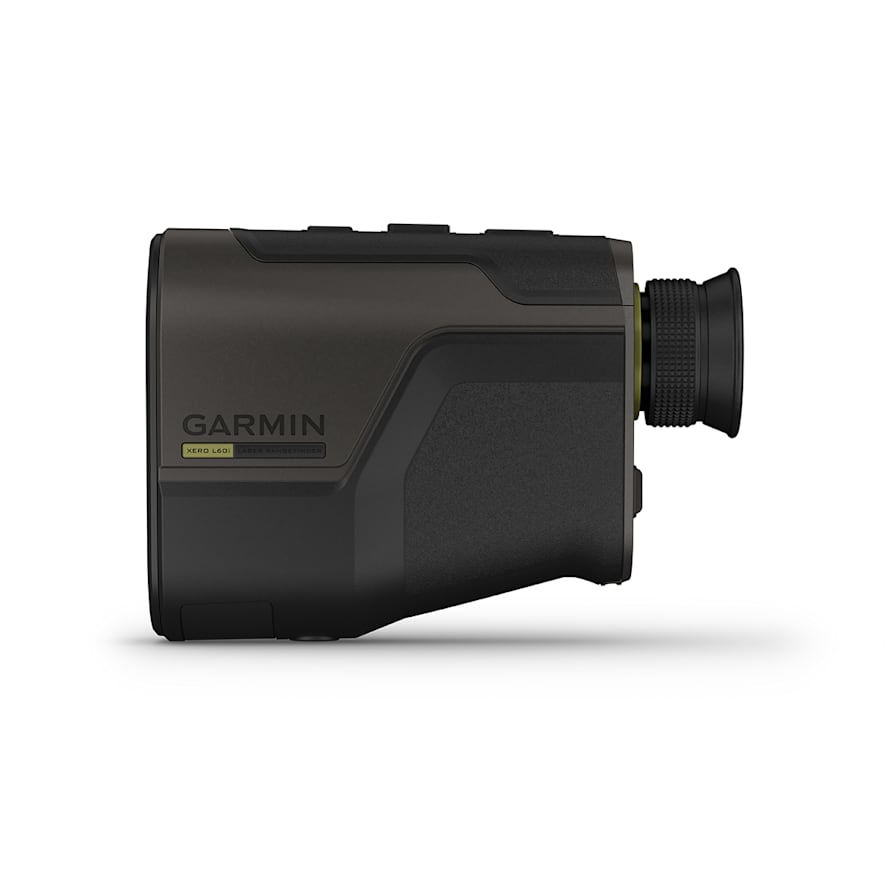

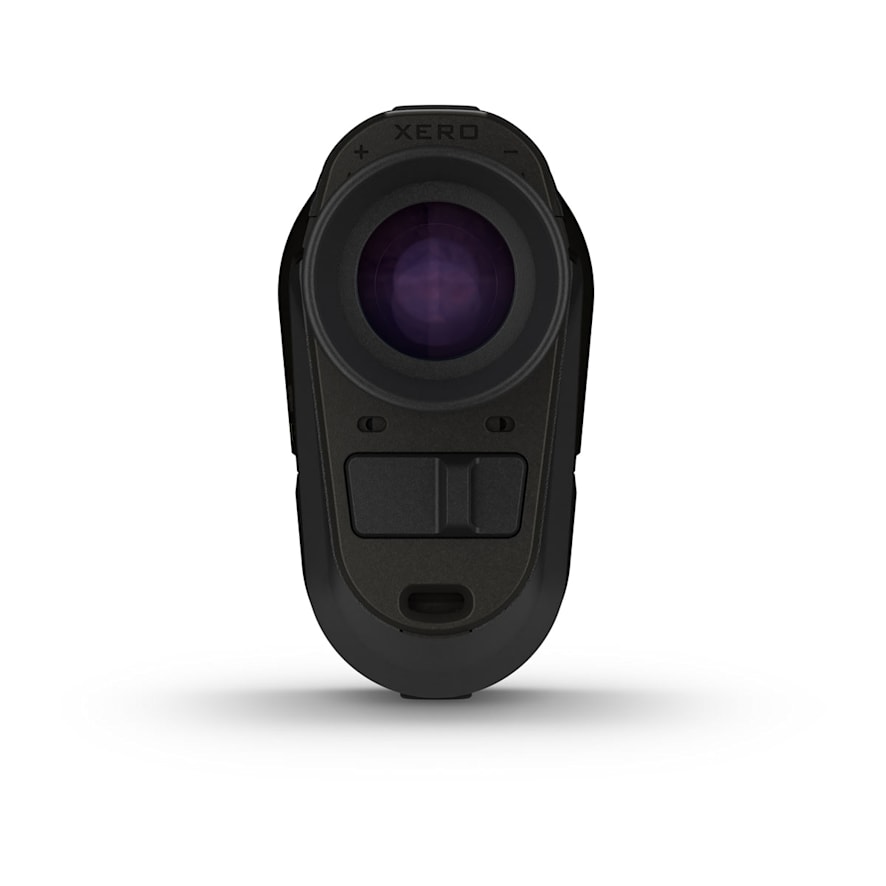

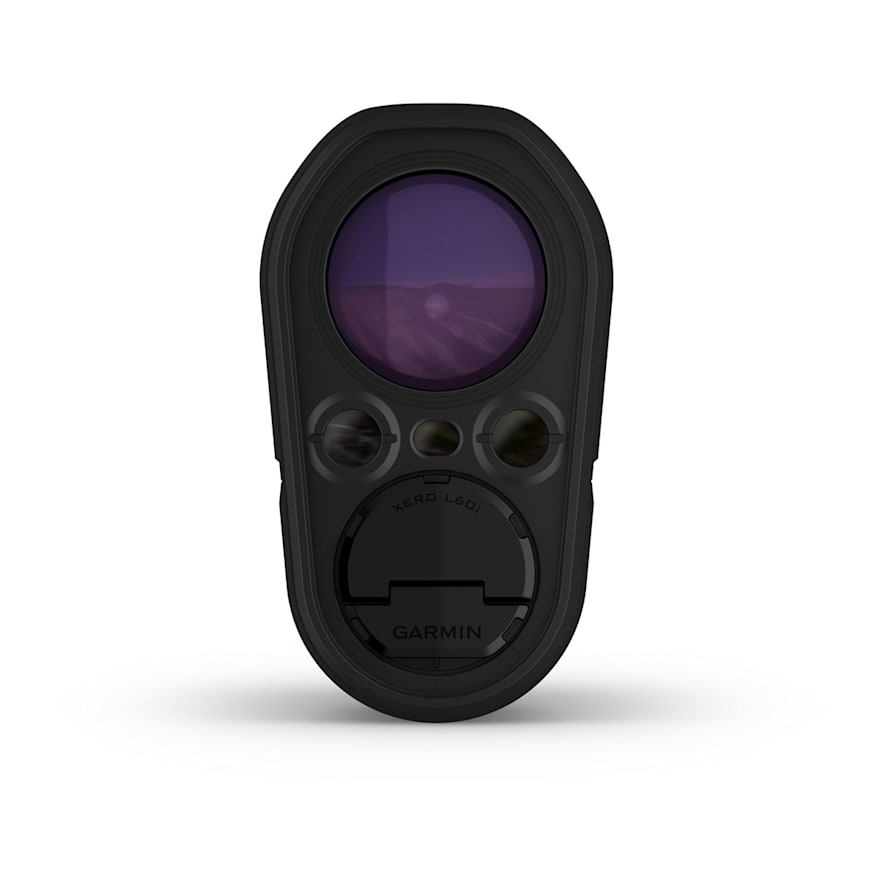

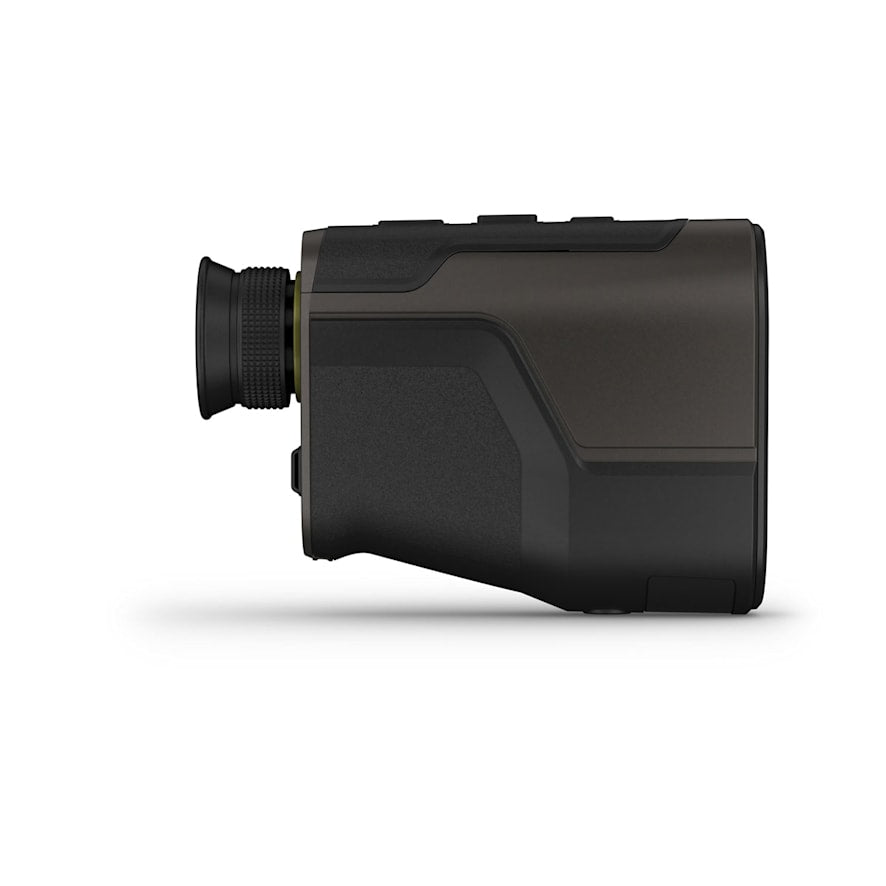

Garmin Xero L60i Laser Rangefinder
Product details
- Type Rangefinder
- Vendor Garmin
- SKU 010-02691-00
- Shipping Weight 191.5 g
KNOW THE DISTANCE AND BEYOND
A revolutionary rangefinder above the rest. See your target through premium glass with a high-resolution graphic overlay that displays distance, mapping, navigation and more for an immersive visual experience.
FIND THE MARK.
TRUST THE MARK.
ENDLESS EXPLORATION
MAPPING
Navigate with built-in TopoActive mapping.
OVERHEAD VIEW
See your position from a bird’s-eye perspective on the graphic overlay.
ELEVATION
See an elevation profile of where you want to go on the graphic overlay.
DROP WAYPOINTS
Use Laser Locate to drop a waypoint on objects or locations you’ve ranged.
EXTENDED RANGE
Use the sensor locate feature to project a waypoint beyond rangeable distances.
TARGET LOCK TECHNOLOGY
This feature delivers precise and accurate ranges by leveraging property signal validation methods.
TACK-SHARP GLASS
Experience accurate color fidelity and superior light transmission.
DIM THE DISPLAY
Automatic display brightness controls for optimal low-light performance.
RELOCATE WAYPOINTS
The visual recall feature on the graphic overlay can guide you back to a waypoint while traveling toward it.
VISUAL RECALL
Spot something your group can’t find? Use visual recall to share an animal’s location from a distance.
BUILT TO LAST
This rangefinder is built to withstand the harsh outdoor conditions with an IPX7 water-resistance rating.
| General | |
|---|---|
| Dimension | 4.94" x 3.53" x 1.99" (125.41 mm x 89.66 mm x 50.59 mm) |
| Weight |
No battery: 0.80 lbs (362.88 g) |
| Water rating | IPX7 |
| Display Type | DLP augmented reality |
| Display Size | Overlaid on visual scene |
| Display resolution | 960 x 540 pixels |
| Battery Type | 2 AAA lithium batteries (included) |
| Battery life |
1,400 ranges (1 sec range, 10 sec display) |
| Multi-color display | yes |
| Operating range | -20° C to 60° C (-4° F to 140° F) |
| Memory/History | 32 GB internal less file system space |
| Interface | USB-C |
| Laser classification | Class 1 |
| Daily Smart Features | |
|---|---|
| Connectivity | Bluetooth® |
| Mobile app | Explore App |
| Xero Laser Range Finder Features | |
|---|---|
| Magnification | 7x |
| Objective | 32 mm |
| Field of view | 7 degrees |
| Field of View (linear feet at 1,000 yards) | 365 ft |
| Eye relief | 0.71" (18 mm) |
| Exit pupil diameter | 4.6 mm |
| Focus adjustment | +/- 4 diopters |
| Compass | yes |
| Barometer | yes |
| Precision | +/- .1 m |
| Accuracy | +/- .25 m out to 1,000 m +/- 1.0 m beyond 1,000 m |
| Distance to targets (full sun) | Animals: 1,375 m (1,500 yds); Trees: 1,800 m (2,000 yds); Retro reflective: 5,000 m (5,500 yds) |
| Distance to targets (optimal conditions) | Animals: 2,775 m (3,000 yds); Trees: 3,600 m (4,000 yds); Retro reflective: 7,000 m (7,500 yds) |
| Laser Locate | yes |
| Sensor Locate | yes |
| Onboard mapping | yes |
| Visual recall | yes |
| Applied Ballistics Solver | Ultralight, access via AB Quantum app |
| Archery ballistics | yes |
| Angle compensated distance | yes |
| Garmin share | yes |
| Stores locations, tracks and courses | yes |
| Measures distances between 2 points | yes |
| Area calculation | yes |
| Compatible with Garmin Explore App | yes |
| Carrying case | yes (included) |
| Laser beam divergence | 0.5 x 0.5 mrad |
